Introduction
N09200100556
Thank you for buying a MITSUBISHI OUTLANDER.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
OUTLANDER. The Owner’s Manual contains descriptions
and illustrations that will assist in the operation and mainte-
nance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all OUTLANDER mod-
els and explains all features including options. Some features
explained in this manual may not be installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WARNING and
CAUTION appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
As with other vehicles of this type, failure to operate this vehicle
correctly may result in loss of control or an accident. Be sure to
read “on-pavement” and “off-road” driving guidelines in the
“Driving safety” and “Features and controls” sections.
WA R N I N G
!

Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects and reproduc-
tive harm. In addition, certain fluids contained in vehicles
and certain products of component wear contain or emit
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2009 Mitsubishi Motors Corporation Printed in Japan
10GS45X(NAS)_Cover2.fm 1 ページ ２００９年６月１日　月曜日　午前９時１０分

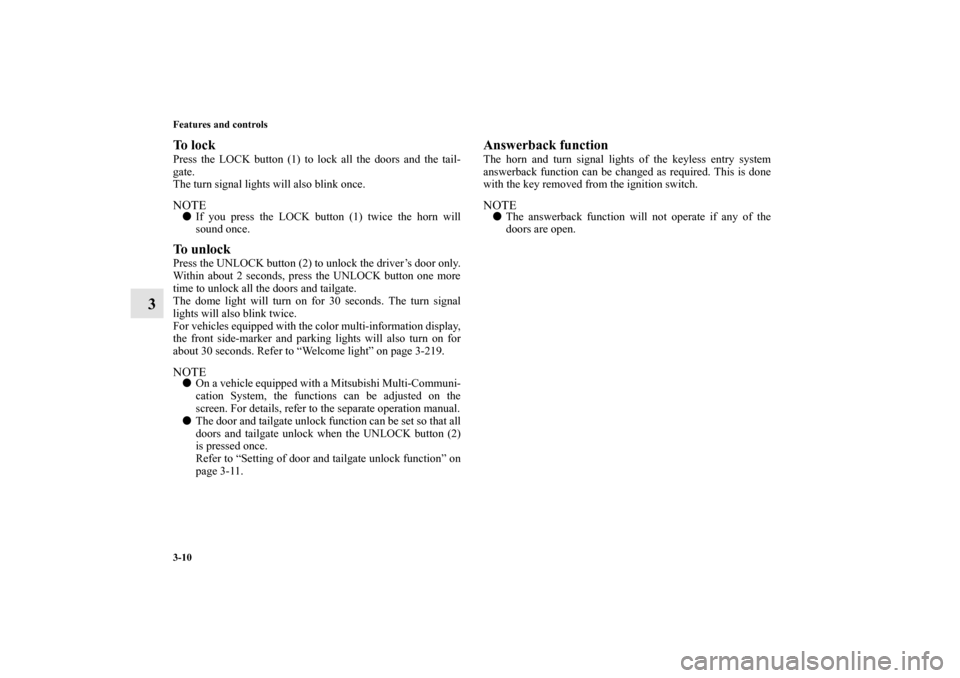

3-10 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the tail-
gate.
The turn signal lights will also blink once.NOTE

If you press the LOCK button (1) twice the horn will
sound once.
To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and tailgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
For vehicles equipped with the color multi-information display,
the front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-219.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.


The door and tailgate unlock function can be set so that all
doors and tailgate unlock when the UNLOCK button (2)
is pressed once.
Refer to “Setting of door and tailgate unlock function” on
page 3-11.
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE

The answerback function will not operate if any of the
doors are open.
BK0115300US.book 10 ページ ２００９年７月１６日　木曜日　午前９時１３分

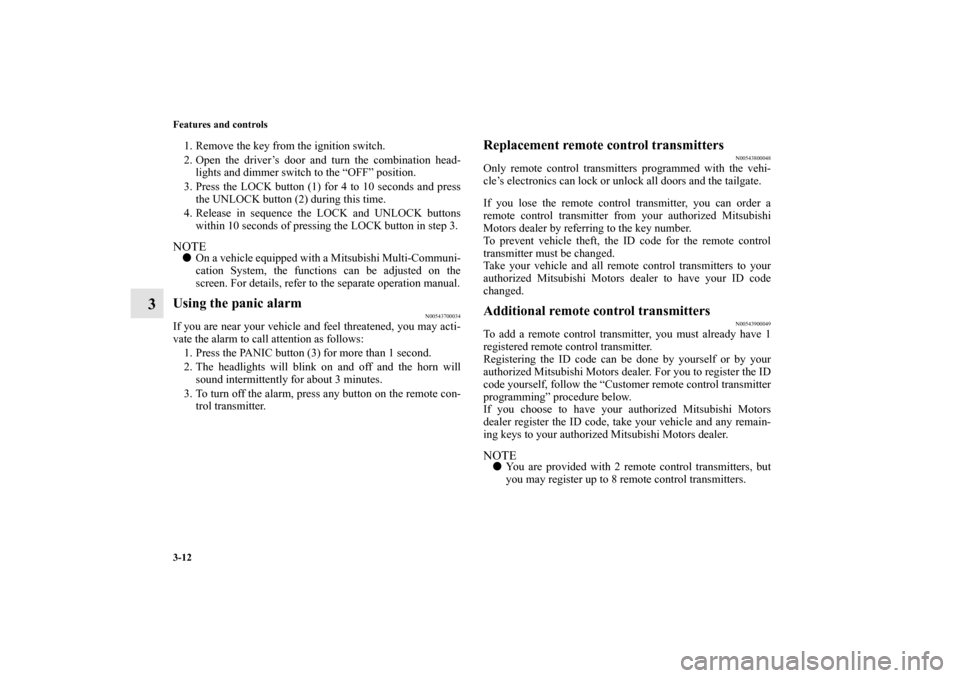

3-12 Features and controls
3
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800048
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the tailgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.Additional remote control transmitters
N00543900049
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE

You are provided with 2 remote control transmitters, but
you may register up to 8 remote control transmitters.
BK0115300US.book 12 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-13
3
Customer remote control transmitter program-
ming
N00544000063
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE

For verification purposes, try to lock and unlock the doors
after the registration is completed.


The indicator light (4) comes on each time a button is
pressed.


The keyless entry system does not work if the key is in the
ignition switch.


The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.


If the UNLOCK button (2) is pressed when all doors and
the tailgate are locked and no doors or the tailgate are
opened within about 30 seconds, the doors and the tailgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.


If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
 The doors and the tailgate cannot be locked or unlocked.
 The panic alarm cannot be operated.
 The indicator light (4) is dim or does not come on.


If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0115300US.book 13 ページ ２００９年７月１６日　木曜日　午前９時１３分

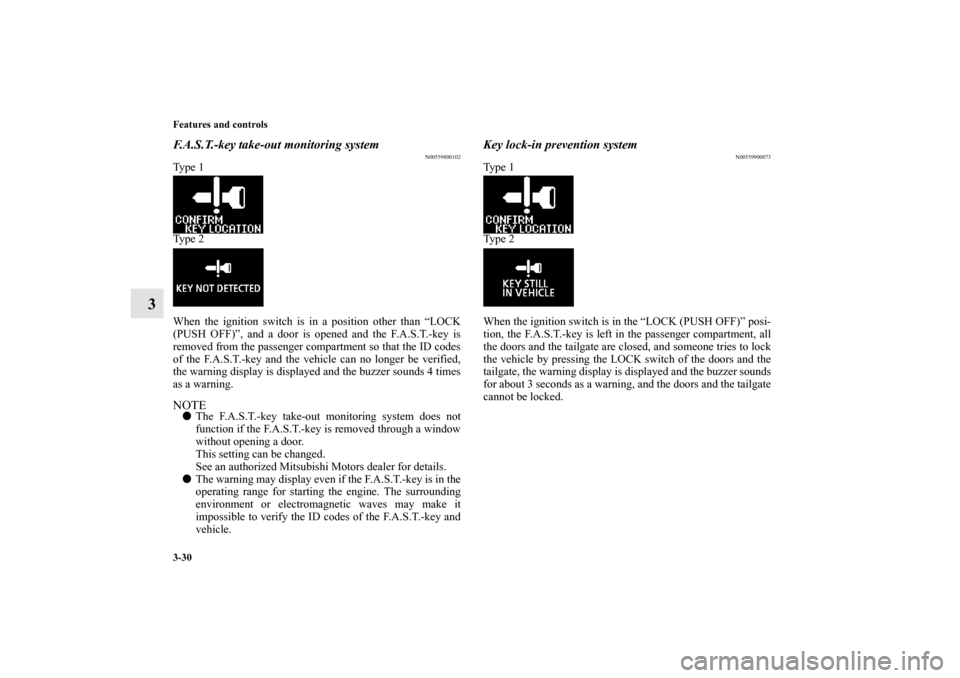

3-30 Features and controls
3
F.A.S.T.-key take-out monitoring system
N00559800102
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, and a door is opened and the F.A.S.T.-key is
removed from the passenger compartment so that the ID codes
of the F.A.S.T.-key and the vehicle can no longer be verified,
the warning display is displayed and the buzzer sounds 4 times
as a warning.NOTE

The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.


The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900073
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors and the tailgate are closed, and someone tries to lock
the vehicle by pressing the LOCK switch of the doors and the
tailgate, the warning display is displayed and the buzzer sounds
for about 3 seconds as a warning, and the doors and the tailgate
cannot be locked.
BK0115300US.book 30 ページ ２００９年７月１６日　木曜日　午前９時１３分

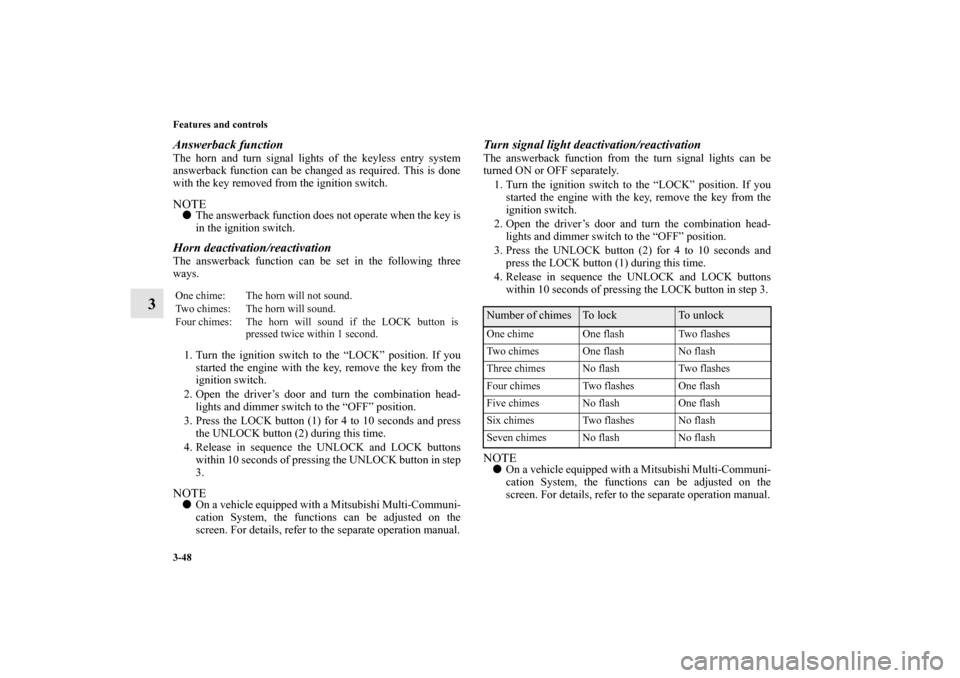

3-48 Features and controls
3
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE

The answerback function does not operate when the key is
in the ignition switch.
Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Turn signal light deactivation/reactivationThe answerback function from the turn signal lights can be
turned ON or OFF separately.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0115300US.book 48 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-49
3
Setting of door and tailgate unlock function
N00544600069
The door and tailgate unlock function can be set to the follow-
ing two conditions.
Each time the door and tailgate unlock function is set, a chime
will sound to tell you the condition of the door and tailgate
unlock function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Using the panic alarm
N00544700031
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.Replacement F.A.S.T.-keys
N00561300016
Only F.A.S.T.-keys, which have been programmed into the
vehicle’s electronics, can lock and unlock all the doors and the
tailgate, and start the engine.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
If you lose your F.A.S.T.-key, to prevent vehicle theft, the ID
code must be changed.
Take your vehicle and all remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID code
changed.
Number of
chimes
Condition
One chime All doors and the tailgate unlock
Two chimes Driver’s door unlock only
BK0115300US.book 49 ページ ２００９年７月１６日　木曜日　午前９時１３分

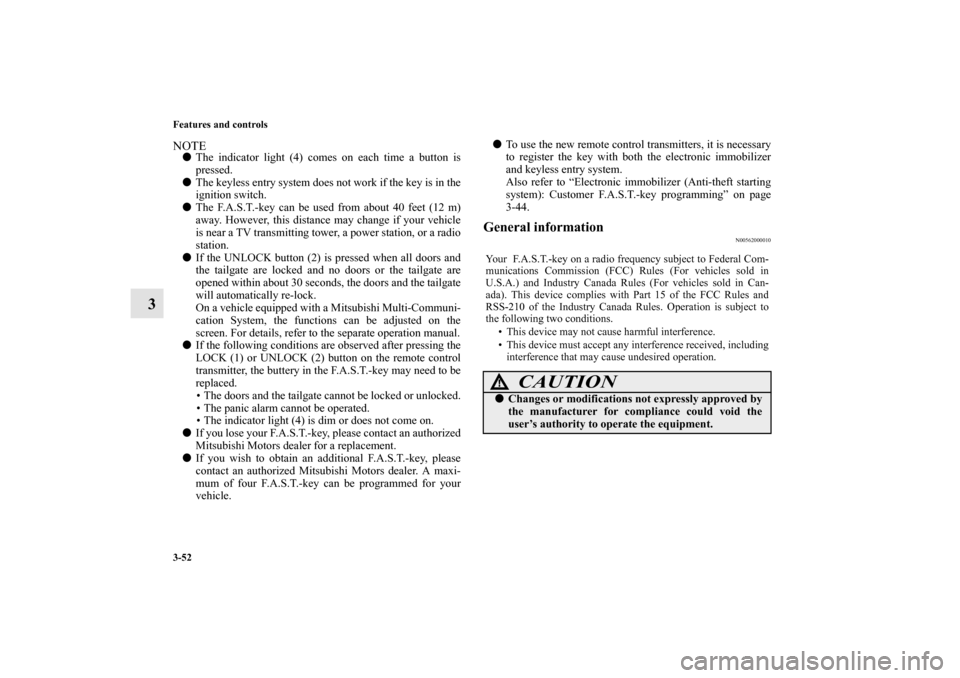

3-52 Features and controls
3
NOTE

The indicator light (4) comes on each time a button is
pressed.


The keyless entry system does not work if the key is in the
ignition switch.


The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.


If the UNLOCK button (2) is pressed when all doors and
the tailgate are locked and no doors or the tailgate are
opened within about 30 seconds, the doors and the tailgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.


If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the buttery in the F.A.S.T.-key may need to be
replaced.
 The doors and the tailgate cannot be locked or unlocked.
 The panic alarm cannot be operated.
 The indicator light (4) is dim or does not come on.


If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.


If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.


To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer F.A.S.T.-key programming” on page
3-44.
General information
N00562000010
Your F.A.S.T.-key on a radio frequency subject to Federal Com-
munications Commission (FCC) Rules (For vehicles sold in
U.S.A.) and Industry Canada Rules (For vehicles sold in Can-
ada). This device complies with Part 15 of the FCC Rules and
RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions.
 This device may not cause harmful interference.
 This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION
!

Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0115300US.book 52 ページ ２００９年７月１６日　木曜日　午前９時１３分

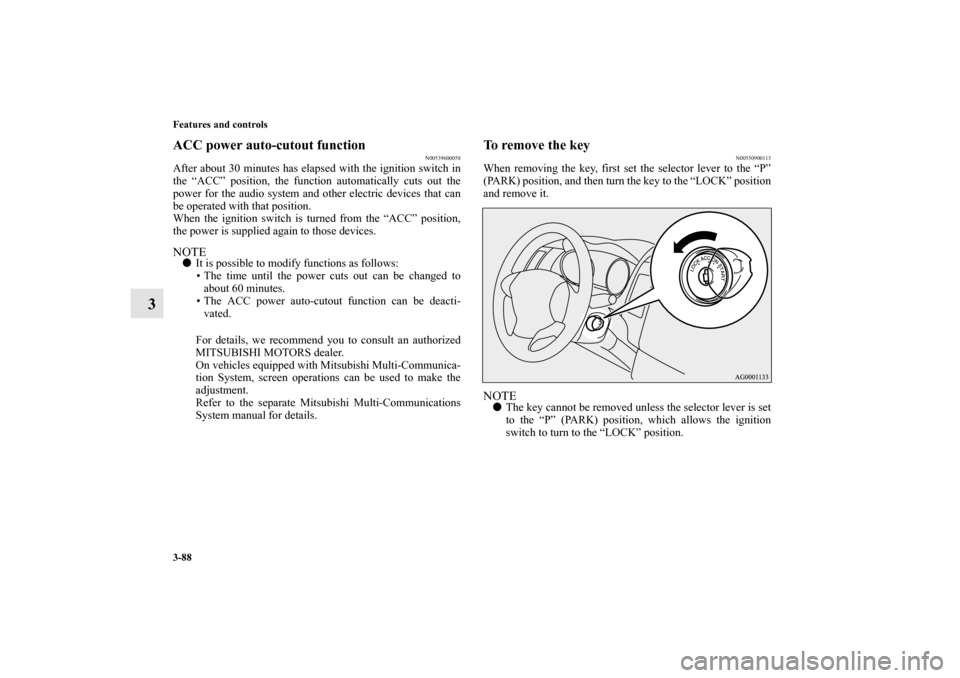

3-88 Features and controls
3
ACC power auto-cutout function
N00539600058
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE

It is possible to modify functions as follows:
 The time until the power cuts out can be changed to
about 60 minutes.
 The ACC power auto-cutout function can be deacti-
vated.
For details, we recommend you to consult an authorized
MITSUBISHI MOTORS dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate Mitsubishi Multi-Communications
System manual for details.
To remove the key
N00550900113
When removing the key, first set the selector lever to the “P”
(PARK) position, and then turn the key to the “LOCK” position
and remove it.NOTE

The key cannot be removed unless the selector lever is set
to the “P” (PARK) position, which allows the ignition
switch to turn to the “LOCK” position.
BK0115300US.book 88 ページ ２００９年７月１６日　木曜日　午前９時１３分

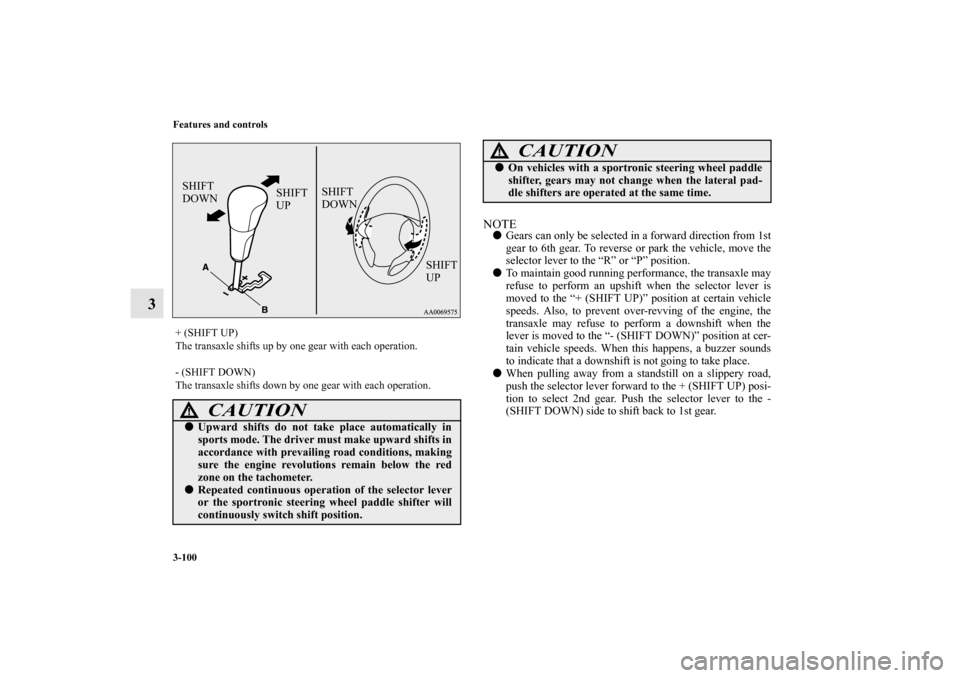

3-100 Features and controls
3
NOTE

Gears can only be selected in a forward direction from 1st
gear to 6th gear. To reverse or park the vehicle, move the
selector lever to the “R” or “P” position.


To maintain good running performance, the transaxle may
refuse to perform an upshift when the selector lever is
moved to the “+ (SHIFT UP)” position at certain vehicle
speeds. Also, to prevent over-revving of the engine, the
transaxle may refuse to perform a downshift when the
lever is moved to the “- (SHIFT DOWN)” position at cer-
tain vehicle speeds. When this happens, a buzzer sounds
to indicate that a downshift is not going to take place.


When pulling away from a standstill on a slippery road,
push the selector lever forward to the + (SHIFT UP) posi-
tion to select 2nd gear. Push the selector lever to the -
(SHIFT DOWN) side to shift back to 1st gear.
+ (SHIFT UP)
The transaxle shifts up by one gear with each operation.
- (SHIFT DOWN)
The transaxle shifts down by one gear with each operation.
CAUTION
!

Upward shifts do not take place automatically in
sports mode. The driver must make upward shifts in
accordance with prevailing road conditions, making
sure the engine revolutions remain below the red
zone on the tachometer.


Repeated continuous operation of the selector lever
or the sportronic steering wheel paddle shifter will
continuously switch shift position.
SHIFT
DOWNSHIFT
DOWN
SHIFT
UP SHIFT
UP


On vehicles with a sportronic steering wheel paddle
shifter, gears may not change when the lateral pad-
dle shifters are operated at the same time. CAUTION
!
BK0115300US.book 100 ページ ２００９年７月１６日　木曜日　午前９時１３分
