MITSUBISHI OUTLANDER 2011 2.G MMCS Manual

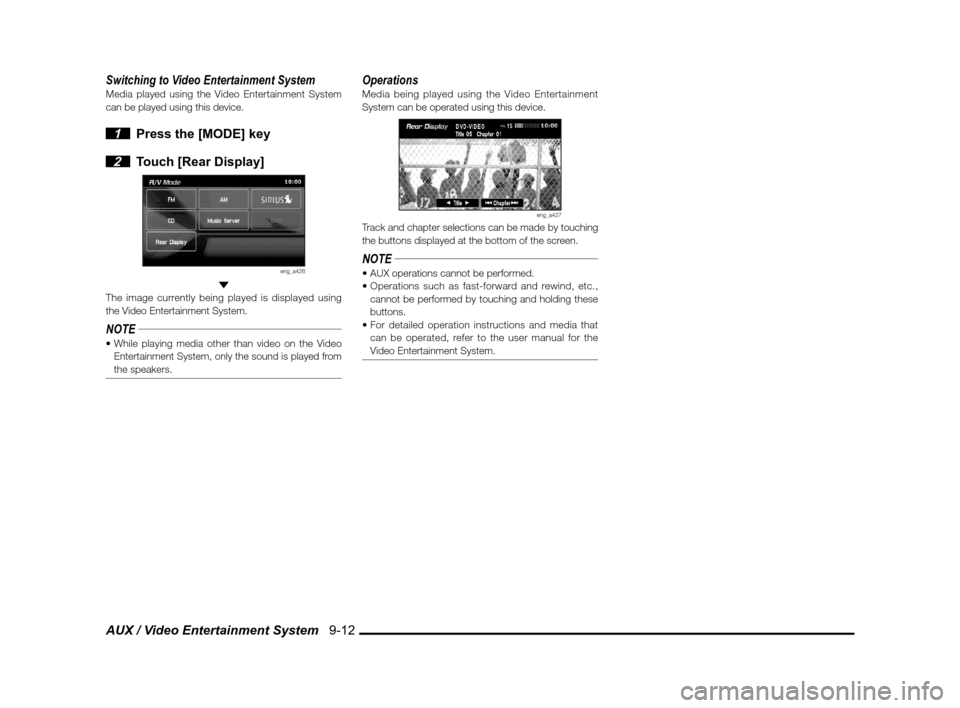

AUX / Video Entertainment System 9-12
Switching to Video Entertainment SystemMedia played using the Video Entertainment System
can be played using this device.
1 Press the [MODE] key

2 Touch [Rear Display]
eng_a426
The image currently being played is displayed using
the Video Entertainment System.
NOTE Entertainment System, only the sound is played from
the speakers.
OperationsMedia being played using the Video Entertainment
System can be operated using this device.
eng_a427Track and chapter selections can be made by touching
the buttons displayed at the bottom of the screen.
NOTE
cannot be performed by touching and holding these
buttons.
can be operated, refer to the user manual for the
Video Entertainment System.
\b \b
\f \


 \b \b

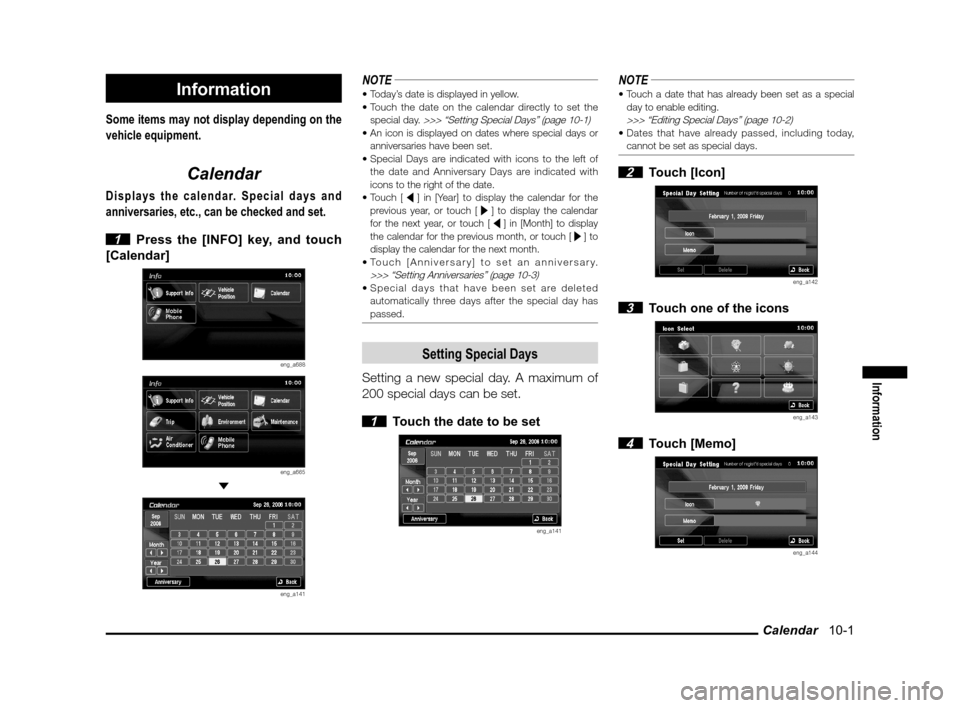

Calendar 10-1
Information
Information
Some items may not display depending on the
vehicle equipment.
Calendar
Displays the calendar. Special days and
anniversaries, etc., can be checked and set.

1 Press the [INFO] key, and touch
[Calendar]
eng_a688
eng_a665
eng_a141
NOTE

special day.
>>> “Setting Special Days” (page 10-1)anniversaries have been set.
the date and Anniversary Days are indicated with
icons to the right of the date.

Touch [ ] in [Year] to display the calendar for the
previous year, or touch [ ] to display the calendar
for the next year, or touch [ ] in [Month] to display
the calendar for the previous month, or touch [ ] to
display the calendar for the next month.
>>> “Setting Anniversaries” (page 10-3) automatically three days after the special day has
passed.
Setting Special Days
Setting a new special day. A maximum of
200 special days can be set.

1 Touch the date to be set
eng_a141
NOTEday to enable editing.

>>> “Editing Special Days” (page 10-2) cannot be set as special days.
2 Touch [Icon]
eng_a142
3 Touch one of the icons
eng_a143
4 Touch [Memo]
eng_a144
\b \b
\f \



 \b \b
\f

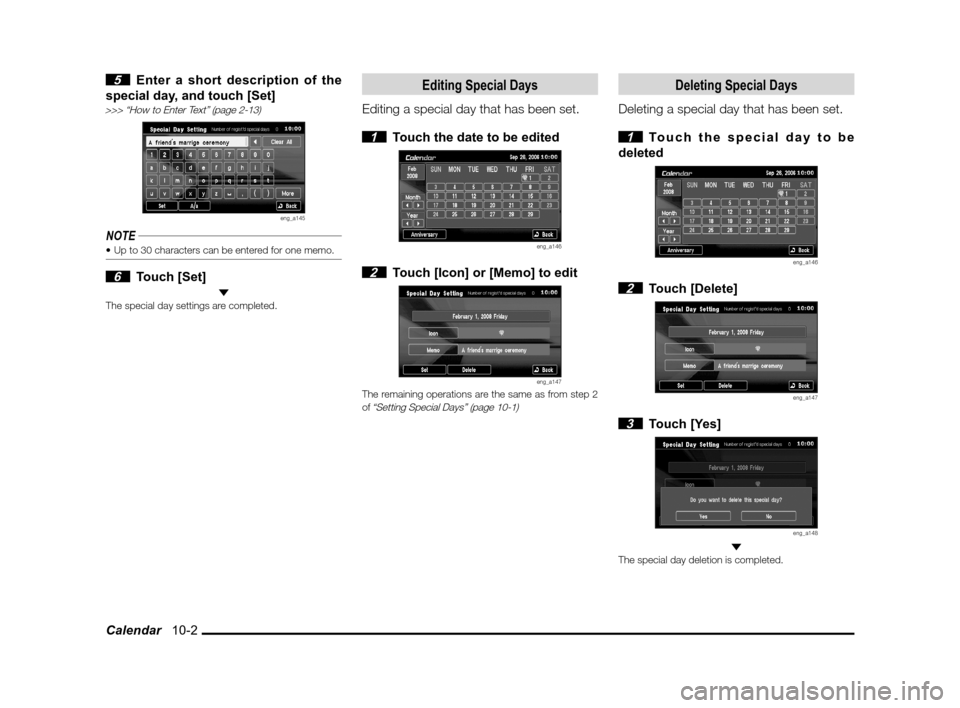

Calendar 10-2
5 Enter a short description of the
special day, and touch [Set]
>>> “How to Enter Text” (page 2-13)
eng_a145
NOTE
6 Touch [Set] The special day settings are completed.
Editing Special Days
Editing a special day that has been set.

1 Touch the date to be edited
eng_a146
2 Touch [Icon] or [Memo] to edit
eng_a147The remaining operations are the same as from step 2
of “Setting Special Days” (page 10-1)
Deleting Special Days
Deleting a special day that has been set.

1 Touch the special day to be
deleted
eng_a146
2 Touch [Delete]
eng_a147
3 Touch [Yes]
eng_a148
The special day deletion is completed.
\b \b
\f \


 \b \b
\f

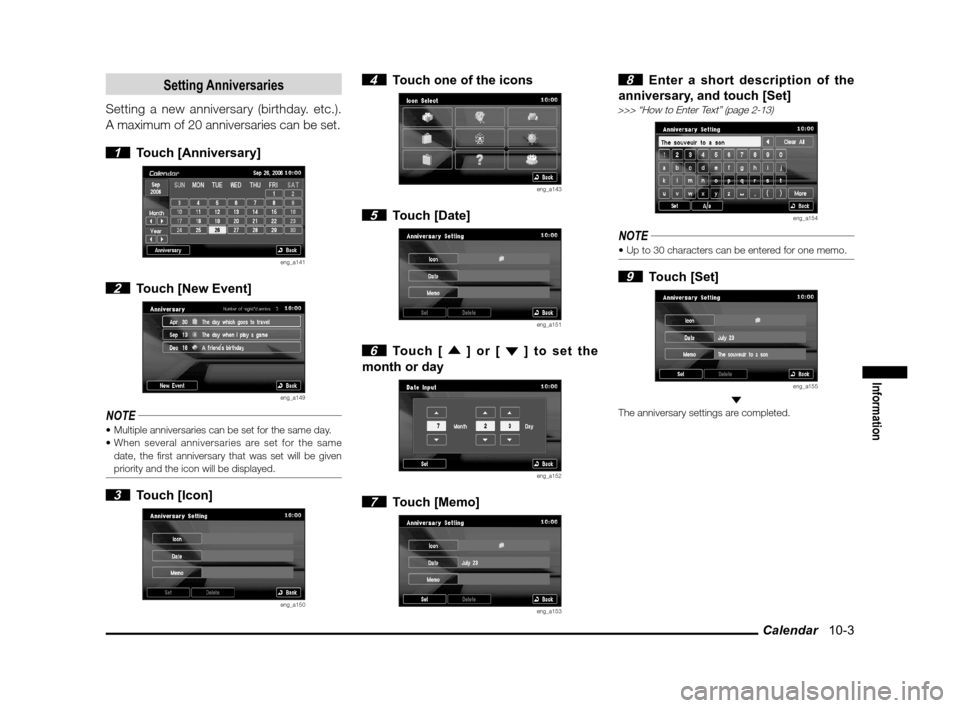

Calendar 10-3
Information
Setting Anniversaries
Setting a new anniversary (birthday. etc.).
A maximum of 20 anniversaries can be set.
1 Touch [Anniversary]
eng_a141
2 Touch [New Event]
eng_a149
NOTE
date, the rst anniversary that was set will be given
priority and the icon will be displayed.
3 Touch [Icon]
eng_a150
4 Touch one of the icons
eng_a143
5 Touch [Date]
eng_a151
6 Touch [ ] or [ ] to set the
month or day
eng_a152
7 Touch [Memo]
eng_a153
8 Enter a short description of the
anniversary, and touch [Set]
>>> “How to Enter Text” (page 2-13)
eng_a154
NOTE
9 Touch [Set]
eng_a155
The anniversary settings are completed.
\b \b
\f \


 \b \b
\f

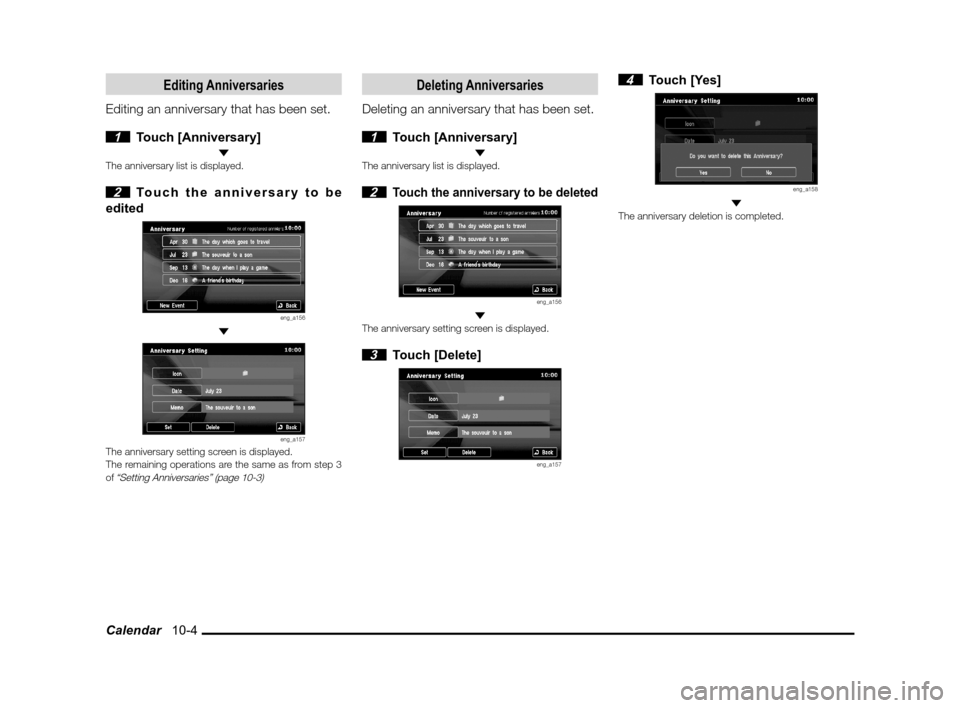

Calendar 10-4
Editing Anniversaries
Editing an anniversary that has been set.

1 Touch [Anniversary] The anniversary list is displayed.
2 Touch the anniversary to be
edited
eng_a156
eng_a157The anniversary setting screen is displayed.
The remaining operations are the same as from step 3
of
“Setting Anniversaries” (page 10-3)
Deleting Anniversaries
Deleting an anniversary that has been set.

1 Touch [Anniversary] The anniversary list is displayed.
2 Touch the anniversary to be deleted
eng_a156
The anniversary setting screen is displayed.
3 Touch [Delete]
eng_a157
4 Touch [Yes]
eng_a158
The anniversary deletion is completed.
\b \b
\f \


\b \b \b
\f

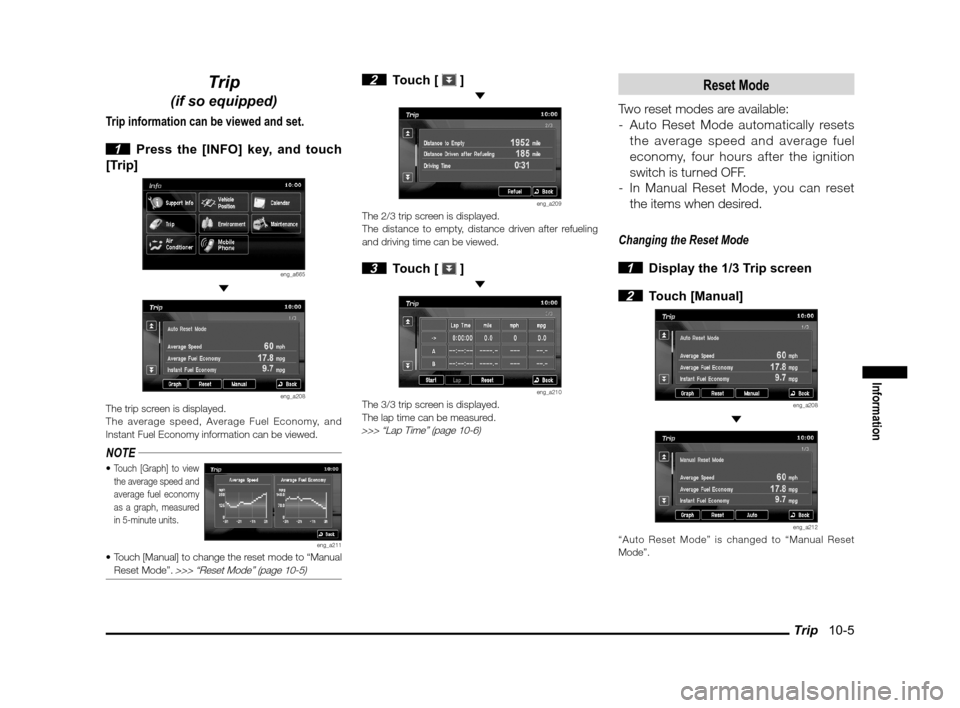

Trip 10-5
Information
Trip
(if so equipped)
Trip information can be viewed and set.

1 Press the [INFO] key, and touch
[Trip]
eng_a665
eng_a208The trip screen is displayed.
The average speed, Average Fuel Economy, and
Instant Fuel Economy information can be viewed.
NOTE
Touch [Graph] to view
the average speed and
average fuel economy
as a graph, measured
in 5-minute units.
eng_a211
Reset Mode”. >>> “Reset Mode” (page 10-5)
2 Touch [ ]
eng_a209The 2/3 trip screen is displayed.
The distance to empty, distance driven after refueling
and driving time can be viewed.
3 Touch [ ]
eng_a210The 3/3 trip screen is displayed.
The lap time can be measured.
>>> “Lap Time” (page 10-6)
Reset Mode
Two reset modes are available:
- Auto Reset Mode automatically resets the average speed and average fuel
economy, four hours after the ignition
switch is turned OFF.
- In Manual Reset Mode, you can reset the items when desired.
Changing the Reset Mode

1 Display the 1/3 Trip screen

2 Touch [Manual]
eng_a208
eng_a212“Auto Reset Mode” is changed to “Manual Reset
Mode”.
\b \b
\f \


  \b \b
\f

Trip 10-6
NOTE

touch [Reset] to reset the average speed and
average fuel economy.
Driving Distance and Time
The distance to empty, distance driven
after refueling and driving time can be
viewed on the 2/3 Trip screen.
Distance to Empty
The displayed distance to empty is calculated from
the current remaining fuel and the recent average fuel
economy.
Distance Driven After RefuelingDisplays automatically the distance driven after
refueling.
It is reset when the vehicle is refueled.
NOTE2.6 gallons (10 litres), automatic reset will not be
performed. Press [Refuel] to reset.
Driving TimeMeasures the time from when the ignition switch is
turned “ON” to when it is turned “OFF”.
It is reset when the ignition switch is turned from “OFF”
to “ON”.
Lap Time
Time, distance, speed and mileage can be
measured.

1 Display the 3/3 Trip screen

2 Touch [Start]
eng_a210
Total Line
eng_a213The measurement starts. At this time, the speed and
mileage are being measured, so they are not displayed.
3 Touch [Lap]
eng_a214The current measurement results are displayed in “A”.
NOTE
Touch [Lap] again
and the measurement
results displayed in
“A” are moved to
“B”, and the current
measurement results
are displayed in “A”.
eng_a215
4 Touch [Stop]
eng_a216The measurements stop and the measurement results
are displayed in the total line.
NOTE
where they stopped.
turned “OFF” during measurement. If this happens,
the measurements restart when the ignition switch is
turned “ON”.
5 Touch [Reset]
\b \b
\f \


 \b \b
\f

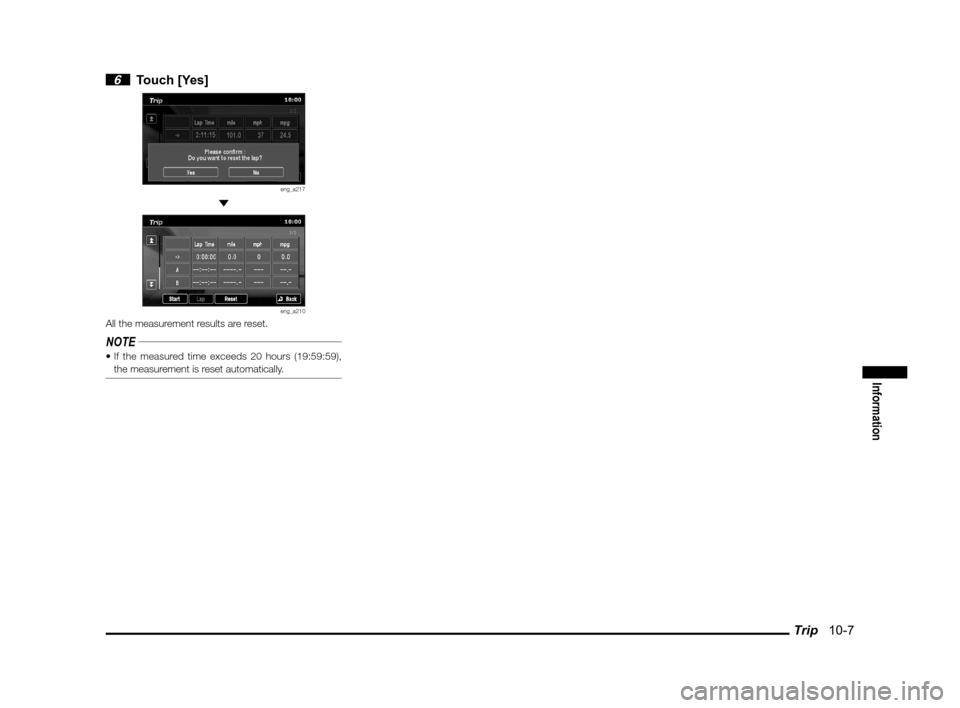

Trip 10-7
Information
6 Touch [Yes]
eng_a217
eng_a210All the measurement results are reset.
NOTE
the measurement is reset automatically.
\b \b
\f \


 \b \b

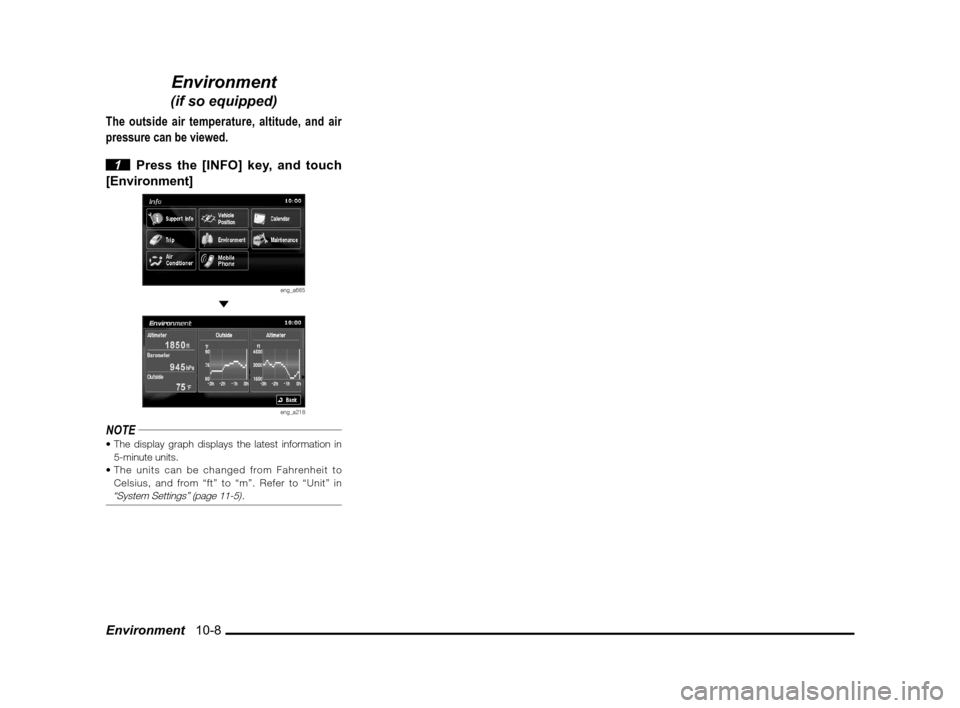

Environment 10-8
Environment
(if so equipped)
The outside air temperature, altitude, and air
pressure can be viewed.

1 Press the [INFO] key, and touch
[Environment]
eng_a665
eng_a218
NOTE
5-minute units.
Celsius, and from “ft” to “m”. Refer to “Unit” in
“System Settings” (page 11-5).
\b \b
\f \


 \b \b

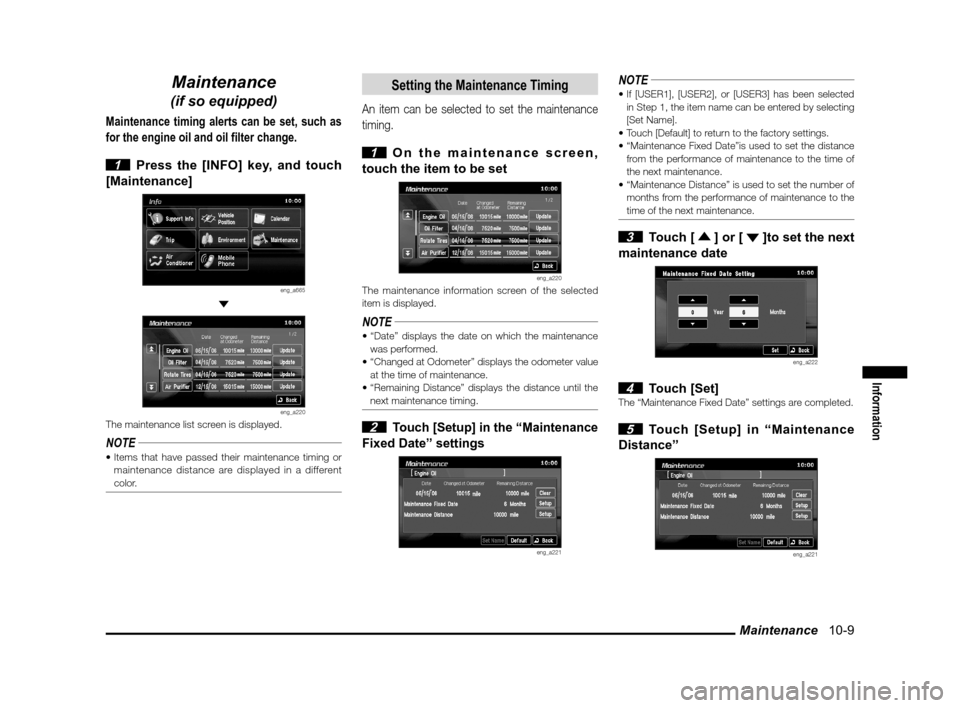

Maintenance 10-9
Information
Maintenance
(if so equipped)
Maintenance timing alerts can be set, such as
for the engine oil and oil filter change.

1 Press the [INFO] key, and touch
[Maintenance]
eng_a665
eng_a220The maintenance list screen is displayed.
NOTE
maintenance distance are displayed in a different
color.
Setting the Maintenance Timing
An item can be selected to set the maintenance
timing.
1 On the maintenance screen,
touch the item to be set
eng_a220The maintenance information screen of the selected
item is displayed.
NOTE
was performed.
at the time of maintenance.
next maintenance timing.
2 Touch [Setup] in the “Maintenance
Fixed Date” settings
eng_a221
NOTE
in Step 1, the item name can be entered by selecting
[Set Name].

from the performance of maintenance to the time of
the next maintenance.
months from the performance of maintenance to the
time of the next maintenance.
3 Touch [ ] or [ ]to set the next
maintenance date
eng_a222
4 Touch [Set]The “Maintenance Fixed Date” settings are completed.
5 Touch [Setup] in “Maintenance
Distance”
eng_a221
