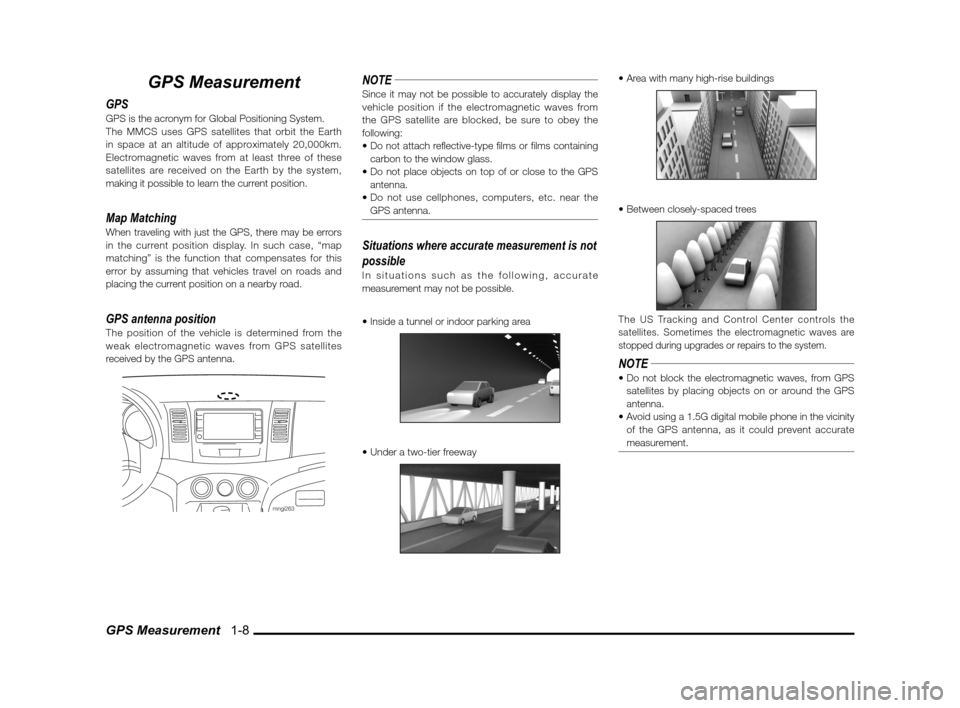

GPS Measurement 1-8
GPS Measurement
GPSGPS is the acronym for Global Positioning System.
The MMCS uses GPS satellites that orbit the Earth
in space at an altitude of approximately 20,000km.
Electromagnetic waves from at least three of these
satellites are received on the Earth by the system,
making it possible to learn the current position.
Map MatchingWhen traveling with just the GPS, there may be errors
in the current position display. In such case, “map
matching” is the function that compensates for this
error by assuming that vehicles travel on roads and
placing the current position on a nearby road.
GPS antenna positionThe position of the vehicle is determined from the
weak electromagnetic waves from GPS satellites
received by the GPS antenna.
mngi263
NOTESince it may not be possible to accurately display the
vehicle position if the electromagnetic waves from
the GPS satellite are blocked, be sure to obey the
following:
carbon to the window glass.
antenna.
GPS antenna.
Situations where accurate measurement is not
possible
In situations such as the following, accurate
measurement may not be possible.




The US Tracking and Control Center controls the
satellites. Sometimes the electromagnetic waves are
stopped during upgrades or repairs to the system.
NOTEsatellites by placing objects on or around the GPS
antenna.
of the GPS antenna, as it could prevent accurate
measurement.
\b \b
\f \


 \b
\b \f

GPS Measurement 1-9

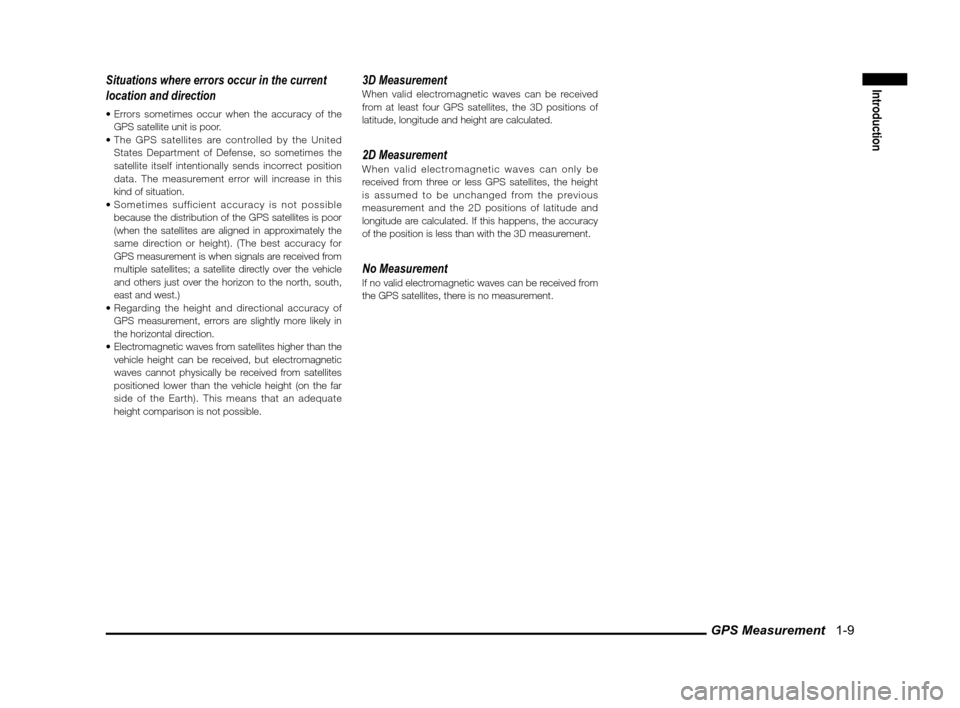

IntroductionSituations where errors occur in the current
location and direction
GPS satellite unit is poor.
States Department of Defense, so sometimes the
satellite itself intentionally sends incorrect position
data. The measurement error will increase in this
kind of situation.
because the distribution of the GPS satellites is poor
(when the satellites are aligned in approximately the
same direction or height). (The best accuracy for
GPS measurement is when signals are received from
multiple satellites; a satellite directly over the vehicle
and others just over the horizon to the north, south,
east and west.)
GPS measurement, errors are slightly more likely in
the horizontal direction.
vehicle height can be received, but electromagnetic
waves cannot physically be received from satellites
positioned lower than the vehicle height (on the far
side of the Earth). This means that an adequate
height comparison is not possible.
3D MeasurementWhen valid electromagnetic waves can be received
from at least four GPS satellites, the 3D positions of
latitude, longitude and height are calculated.
2D MeasurementWhen valid electromagnetic waves can only be
received from three or less GPS satellites, the height
is assumed to be unchanged from the previous
measurement and the 2D positions of latitude and
longitude are calculated. If this happens, the accuracy
of the position is less than with the 3D measurement.
No MeasurementIf no valid electromagnetic waves can be received from
the GPS satellites, there is no measurement.
\b \b
\f \


 \b
\b \f

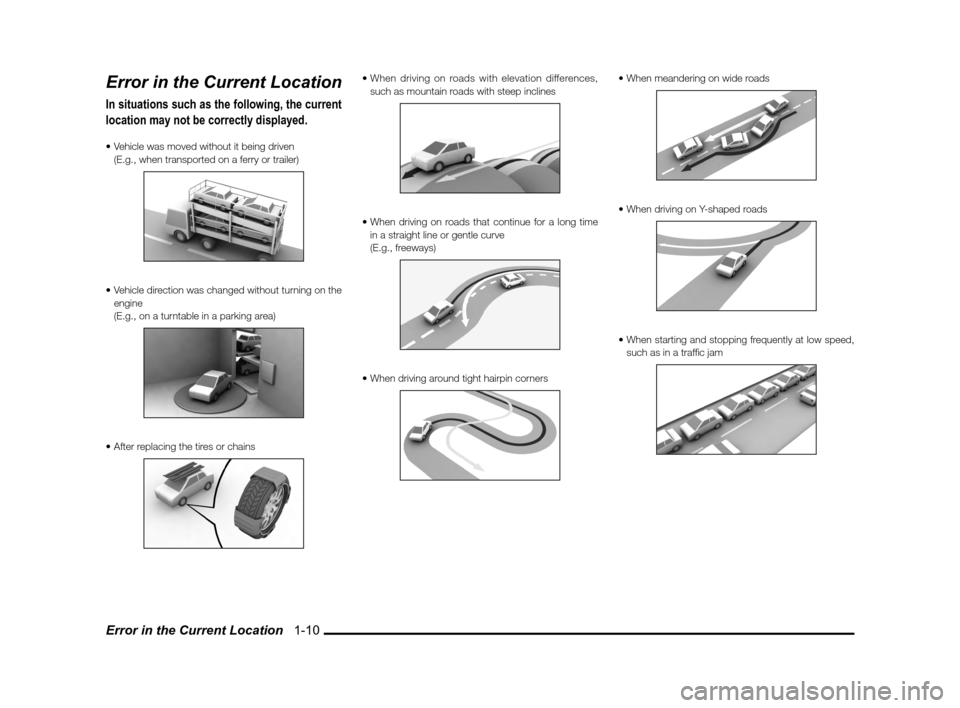

Error in the Current Location 1-10
Error in the Current Location
In situations such as the following, the current
location may not be correctly displayed.

(E.g., when transported on a ferry or trailer)

engine
(E.g., on a turntable in a parking area)

such as mountain roads with steep inclines
in a straight line or gentle curve
(E.g., freeways)



such as in a traf c jam
\b \b
\f \



 \b
\b \f

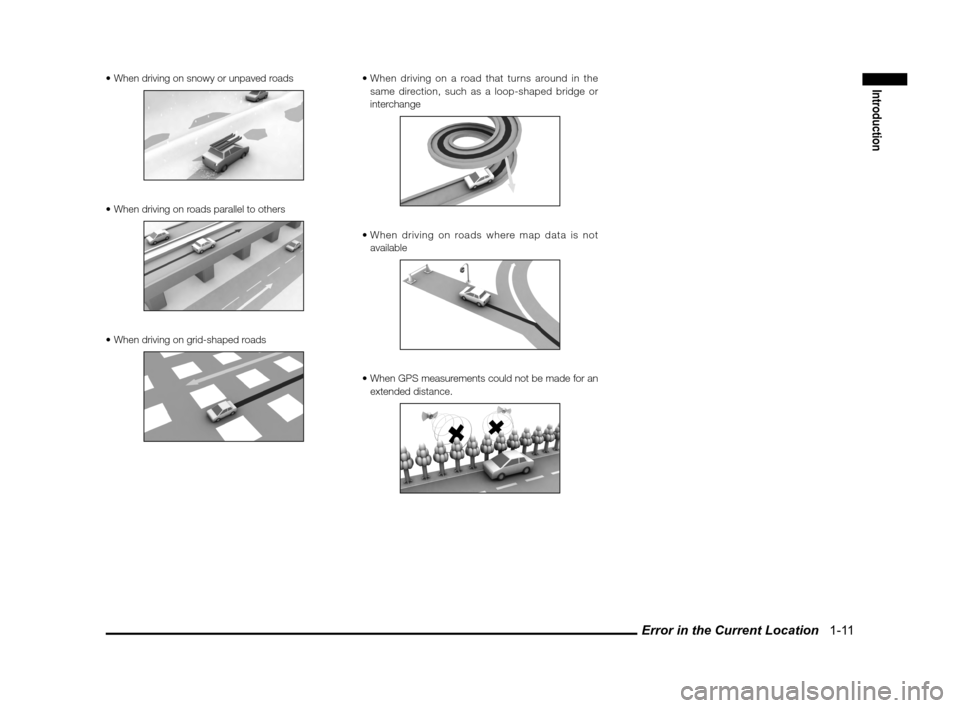

Error in the Current Location 1-11
Introduction



same direction, such as a loop-shaped bridge or
interchange
available
extended distance.
\b \b
\f \




 \b
\b \f

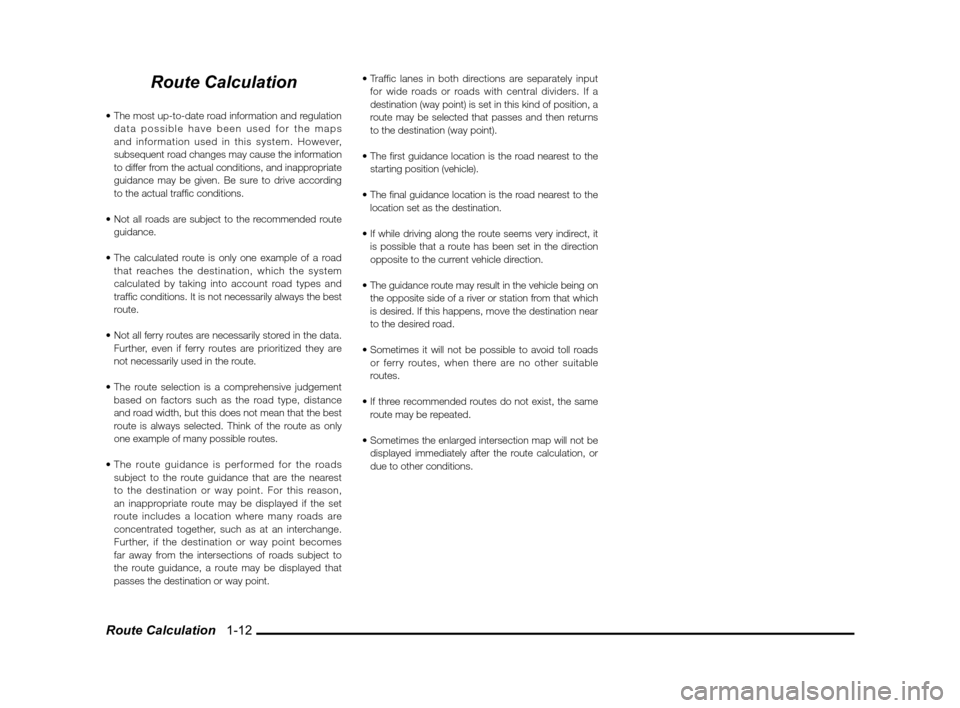

Route Calculation 1-12
Route Calculation

data possible have been used for the maps
and information used in this system. However,
subsequent road changes may cause the information
to differ from the actual conditions, and inappropriate
guidance may be given. Be sure to drive according
to the actual traf c conditions.
guidance.
that reaches the destination, which the system
calculated by taking into account road types and
traf c conditions. It is not necessarily always the best
route.
Further, even if ferry routes are prioritized they are
not necessarily used in the route.
based on factors such as the road type, distance
and road width, but this does not mean that the best
route is always selected. Think of the route as only
one example of many possible routes.
subject to the route guidance that are the nearest
to the destination or way point. For this reason,
an inappropriate route may be displayed if the set
route includes a location where many roads are
concentrated together, such as at an interchange.
Further, if the destination or way point becomes
far away from the intersections of roads subject to
the route guidance, a route may be displayed that
passes the destination or way point.
for wide roads or roads with central dividers. If a
destination (way point) is set in this kind of position, a
route may be selected that passes and then returns
to the destination (way point).
starting position (vehicle).
location set as the destination.
is possible that a route has been set in the direction
opposite to the current vehicle direction.
the opposite side of a river or station from that which
is desired. If this happens, move the destination near
to the desired road.
or ferry routes, when there are no other suitable
routes.
route may be repeated.
displayed immediately after the route calculation, or
due to other conditions.
\b \b
\f \



 \b
\b \f

Gracenote® music recognition service 1-13
IntroductionGracenote® music
recognition service
Music and video recognition technology and related
data are provided by Gracenote®. Gracenote is the
industry standard in music recognition technology and
related content delivery. For more information, please
visit www.gracenote.com.
CD, DVD, Blu-ray Disc, and music and video-related
data from Gracenote, Inc., copyright © 2000 to
present Gracenote. Gracenote Software, copyright
© 2000 to present Gracenote. One or more patents
owned by Gracenote apply to this product and service.
See the Gracenote website for a non-exhaustive
list of applicable Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS, the Gracenote logo
and logotype, and the “Powered by Gracenote” logo
are either registered trademarks or trademarks of
Gracenote in the United States and/or other countries.
EndUser License Agreement
This application or device contains software from
Gracenote, Inc. of Emeryville, California (“Gracenote”).
The software from Gracenote (the “Gracenote
Software”) enables this application to perform disc
and/or file identification and obtain music-related
information, including name, artist, track, and title
information (“Gracenote Data”) from online servers
or embedded databases (collectively, “Gracenote
Servers”) and to perform other functions. You may use
Gracenote Data only by means of the intended End-
User functions of this application or device.
You agree that you will use Gracenote Data, the
Gracenote Software, and Gracenote Servers for
your own personal non-commercial use only. You
agree not to assign, copy, transfer or transmit the
Gracenote Software or any Gracenote Data to any
third party. YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE SOFTWARE,
OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY
PERMITTED HEREIN.
You agree that your non-exclusive license to use
the Gracenote Data, the Gracenote Software, and
Gracenote Servers will terminate if you violate these
restrictions. If your license terminates, you agree
to cease any and all use of the Gracenote Data,
the Gracenote Software, and Gracenote Servers.
Gracenote reserves all rights in Gracenote Data, the
Gracenote Software, and the Gracenote Servers,
including all ownership rights. Under no circumstances
will Gracenote become liable for any payment to
you for any information that you provide. You agree
that Gracenote, Inc. may enforce its rights under this
Agreement against you directly in its own name. The Gracenote service uses a unique identifier to
track queries for statistical purposes. The purpose of
a randomly assigned numeric identi er is to allow the
Gracenote service to count queries without knowing
anything about who you are. For more information,
see the web page for the Gracenote Privacy Policy for
the Gracenote service.
The Gracenote Software and each item of Gracenote
Data are licensed to you “AS IS.” Gracenote makes
no representations or warranties, express or implied,
regarding the accuracy of any Gracenote Data from
in the Gracenote Servers. Gracenote reserves the
right to delete data from the Gracenote Servers or to
change data categories for any cause that Gracenote
deems sufficient. No warranty is made that the
Gracenote Software or Gracenote Servers are error-
free or that functioning of Gracenote Software or
Gracenote Servers will be uninterrupted. Gracenote
is not obligated to provide you with new enhanced
or additional data types or categories that Gracenote
may provide in the future and is free to discontinue its
services at any time.
GRACENOTE DISCLAIMS ALL WARRANTIES
EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, TITLE, AND NON-INFRINGEMENT.

GRACENOTE DOES NOT WARRANT THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE OF THE
GRACENOTE SOFTWARE OR ANY GRACENOTE
SERVER. IN NO CASE WILL GRACENOTE BE
LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS OR LOST
REVENUES.
© Gracenote 2011
\b \b
\f \



 \b
\b \f

Gracenote® music recognition service 1-14
\b \b
\f \



\b \b
\b \f

Starting the MMCS 2-1
Basic Operation
Basic Operation

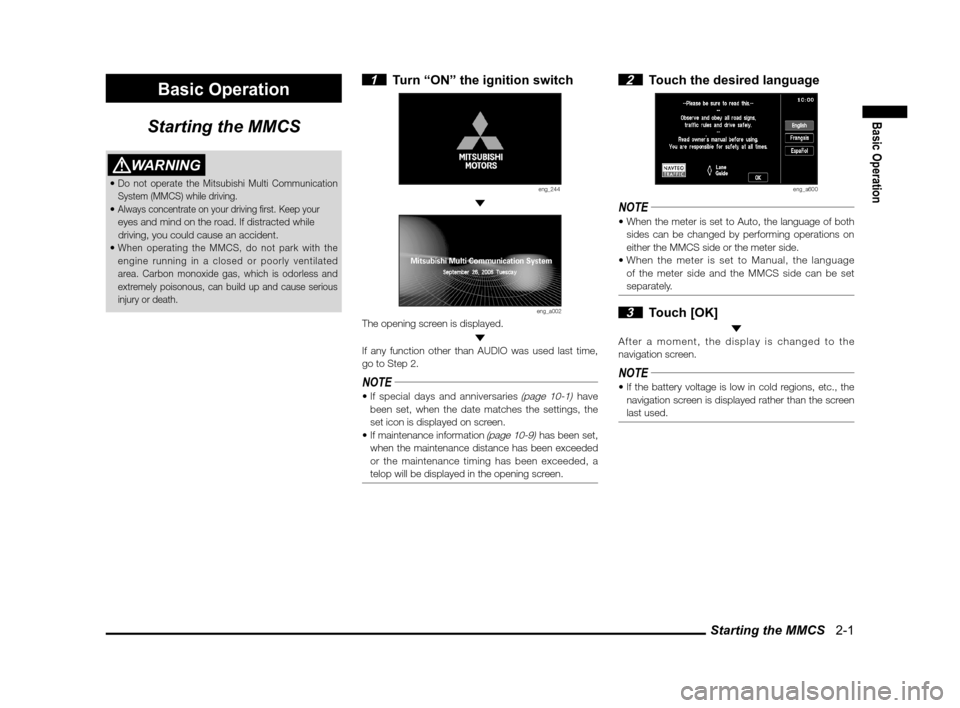

Starting the MMCS
WARNING
Do not operate the Mitsubishi Multi Communication
System (MMCS) while driving.
Always concentrate on your driving rst. Keep your eyes and mind on the road. If distracted while
driving, you could cause an accident.

When operating the MMCS, do not park with the
engine running in a closed or poorly ventilated
area. Carbon monoxide gas, which is odorless and
extremely poisonous, can build up and cause serious
injury or death.
1 Turn “ON” the ignition switch
eng_244
eng_a002The opening screen is displayed.

If any function other than AUDIO was used last time,
go to Step 2.
NOTE(page 10-1) have
been set, when the date matches the settings, the
set icon is displayed on screen.

(page 10-9) has been set,
when the maintenance distance has been exceeded
or the maintenance timing has been exceeded, a
telop will be displayed in the opening screen.
2 Touch the desired language
eng_a600
NOTE sides can be changed by performing operations on
either the MMCS side or the meter side.
of the meter side and the MMCS side can be set
separately.
3 Touch [OK] After a moment, the display is changed to the
navigation screen.
NOTEnavigation screen is displayed rather than the screen
last used.
\b \b
\f \


 \b
\b \f

Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING

operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.
NOTEit with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.
Scrolls forward through a list one page
at a time.
Scrolls back through a list one line at a
time.
Scrolls back through a list one page at
a time.
\b \b
\f \

  \b
\b \f

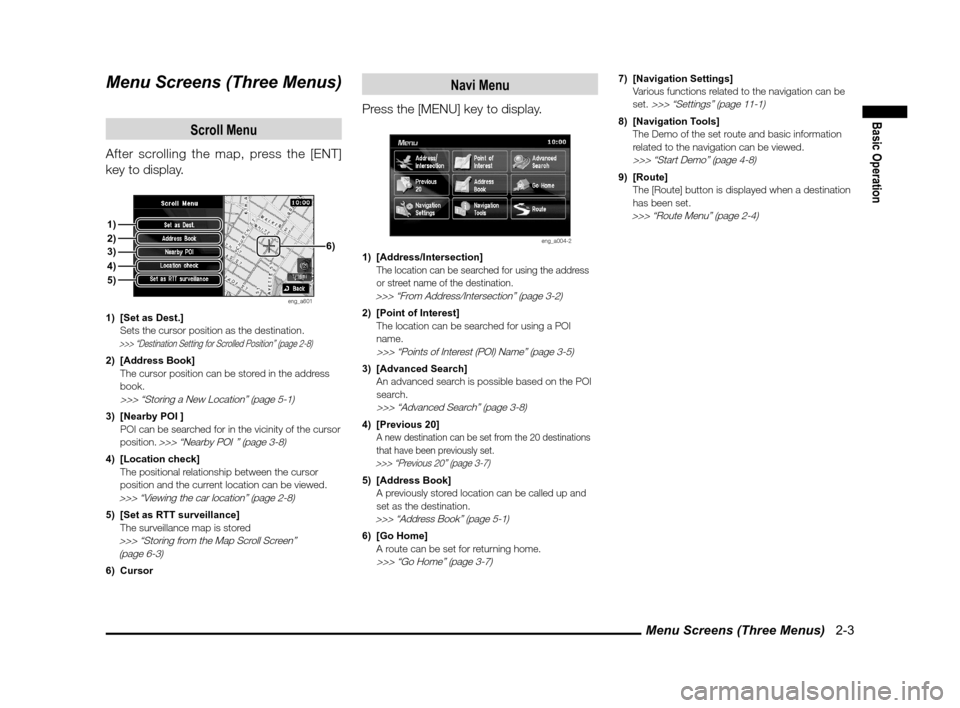

Menu Screens (Three Menus) 2-3
Basic Operation
Menu Screens (Three Menus)
Scroll Menu
After scrolling the map, press the [ENT]
key to display.
eng_a601
1) [Set as Dest.]
Sets the cursor position as the destination.
>>> “Destination Setting for Scrolled Position” (page 2-8)
2) [Address Book]
The cursor position can be stored in the address
book.

>>> “Storing a New Location” (page 5-1)
3) [Nearby POI ]
POI can be searched for in the vicinity of the cursor position.
>>> “Nearby POI ” (page 3-8)
4) [Location check]
The positional relationship between the cursor position and the current location can be viewed.
>>> “Viewing the car location” (page 2-8)
5) [Set as RTT surveillance]
The surveillance map is stored
>>> “Storing from the Map Scroll Screen” (page 6-3)
6) Cursor
Navi Menu
Press the [MENU] key to display.
eng_a004-2
1) [Address/Intersection] The location can be searched for using the address or street name of the destination.
>>> “From Address/Intersection” (page 3-2)
2) [Point of Interest]
The location can be searched for using a POI name.

>>> “Points of Interest (POI) Name” (page 3-5)
3) [Advanced Search]
An advanced search is possible based on the POI search.

>>> “Advanced Search” (page 3-8)
4) [Previous 20] A new destination can be set from the 20 destinations that have been previously set.
>>> “Previous 20” (page 3-7)
5) [Address Book] A previously stored location can be called up and set as the destination.

>>> “Address Book” (page 5-1)
6) [Go Home]
A route can be set for returning home.

>>> “Go Home” (page 3-7)
7) [Navigation Settings]
Various functions related to the navigation can be set.
>>> “Settings” (page 11-1)
8) [Navigation Tools]
The Demo of the set route and basic information related to the navigation can be viewed.

>>> “Start Demo” (page 4-8)
9) [Route]
The [Route] button is displayed when a destination has been set.

>>> “Route Menu” (page 2-4)1)2)3)
4)
6)
5)
\b \b
\f \

  \b
\b \f
