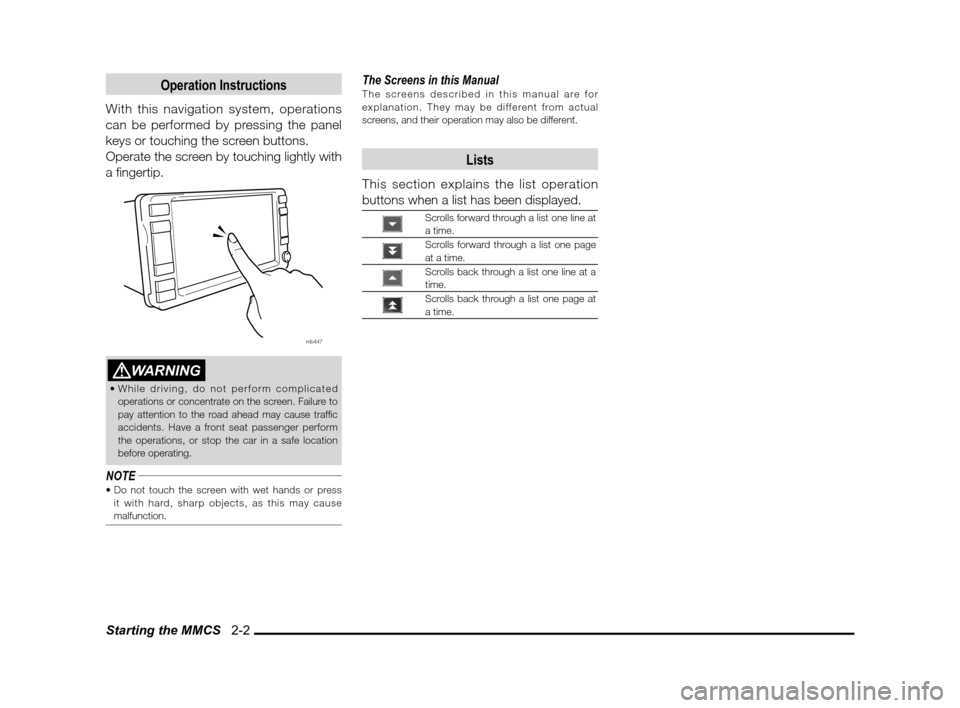

Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING

operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.
NOTEit with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.
Scrolls forward through a list one page
at a time.
Scrolls back through a list one line at a
time.
Scrolls back through a list one page at
a time.
\b \b
\f \

  \b
\b \f

Start Demo 4-8
Start Demo
The set route can be viewed with a demo.

1 Display the Navi Menu, and touch
[Navigation Tools]
eng_a004-2The navigation tools screen is displayed
2 Touch [Start Demo]
eng_a672
eng_a649The demo is started.
Stop DemoStopping the demo that is operating.
1 Display the Navigation Tools
screen during the demo

2 Touch [Stop Demo]
eng_a673The demo is stopped.
\b \b
\f \

 \b \b
\b\f


Listening to SIRIUS 7-12
9) [Text]
This switches the text display.
10) [
Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is displayed.
12) Playback Mode

The currently selected playback mode is displayed.
13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439
eng_a438
1) Category List This displays the category button. Touch the button to display the channel list.
2) Channel List This displays the channel button. Touch the button to start receiving the relevant channel.
3) [CAT-Scan]
This scans the channels in the currently selected category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
1)
2)
3)
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
(if so equipped) Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the preset number is displayed.
2) Band

Displays the band which is currently being listened to.
3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display

Information about the current channel is displayed.
5) Preset Button
The preset number, channel number and channel name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct]
The channel number entered to the screen directly is displayed.
8) [Category]
The category screen is displayed.
2)
3)
4)
5)
6) 7) 8) 9) 10)
12) 13)
1)
11 )
\b \b
\f \


 \b
\b
 \f

Listening to SIRIUS 7-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE
switched.
2 Touch either [ Channel] or
[Channel
] to select the channel to
be received
eng_a440
The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]

2 Touch [Category]
eng_a440The category list is displayed.
3 Touch the category button
eng_a439The list of channels within the selected category is
displayed.
4 Touch the channel button
eng_a441
The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning Channels
Scan all channels.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [ ]
eng_a440
\b \b
\f \


 \b
\b
 \f

Recording to the Music Server 7-23
Audio
3 Touch one of the settings
eng_a321-2
4 Touch [Back] The recording settings are completed.[Auto REC.] R e c o r ding to the music server is
performed automatically when a music
CD is inserted.
>>> “Auto Recording” (page 7-23)
[Manual
REC.] Tracks can be recorded individually
during playback.
>>> “Manual Recording” (page 7-23)
[Single REC.]
Only one track from the music CD is
recorded.
>>> “Single Recording” (page 7-24)
Auto RecordingRecording to the music server is performed
automatically when a music CD is inserted.
NOTE
advance. >>> “Recording Settings” (page 7-22)
1 Insert a CDAll the tracks on the music CD are recorded
automatically on the HDD and played back as the
recording proceeds without waiting for the recording
to complete.
NOTE
during recording, the recording is continued, and
the selected track is played. If a track that has
not yet been recorded is selected, the recording
underway is stopped and recording of the selected
track is started, then the track is played back as the
recording proceeds without waiting for the recording
to complete.
Manual RecordingTracks can be recorded individually during playback.
NOTEadvance. >>> “Recording Settings” (page 7-22)
1 Play the music CD track to be
recorded

2 Touch [REC. start]
eng_a316
eng_a320Recording is started, and the track is played from the
start.
NOTE
recording is stopped, and the selected track is
played.
\b \b
\f \

  \b \b


Recording to the Music Server 7-24
Single RecordingOnly one track from the music CD is recorded.
NOTEadvance. >>> “Recording Settings” (page 7-22)
1 Play the music CD to be recorded

2 Touch [REC. start]
eng_a316
eng_a322If the track being played is the rst track, recording is
started.
NOTE recording is stopped, and the selected track is
played.
even if [REC. start] is touched when any track other
than the rst track is being played.
Stopping Recording
1 During music CD recording (page
7-19)
, touch [ ]
eng_a320
2 Touch [REC. stop]
eng_a323
eng_a443Recording is stopped.
\b \b
\f \

 \b \b \b


Listening to MP3/WMA Disks 7-29
Audio
3 Touch [Repeat] again
REPEAT
eng_a332
FOLDER-REPEAT
eng_a333Each time [Repeat] is touched, the playback mode
changes.REPEAT The track currently being played plays repeatedly.
FOLDER-
REPEAT All tracks in the folder currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track.
1 Touch [ ]
eng_a328
2 Touch [Scan]
eng_a331Scan playback is started.
3 Touch [Scan] again
SCAN
eng_a334
FOLDER-SCAN
eng_a335Each time [Scan] is touched, the playback mode
changes.SCAN Performs scan playback on all the tracks in the folder currently being played.
FOLDER-
SCANPerforms scan playback on the first
track in all the folders on the disk.
(OFF) Cancels the scan playback.
4 Touch the name of the track
during playback
Scanning is stopped, and the selected track is played.
NOTE
returns to the rst track.
\b \b
\f \

  \b \b

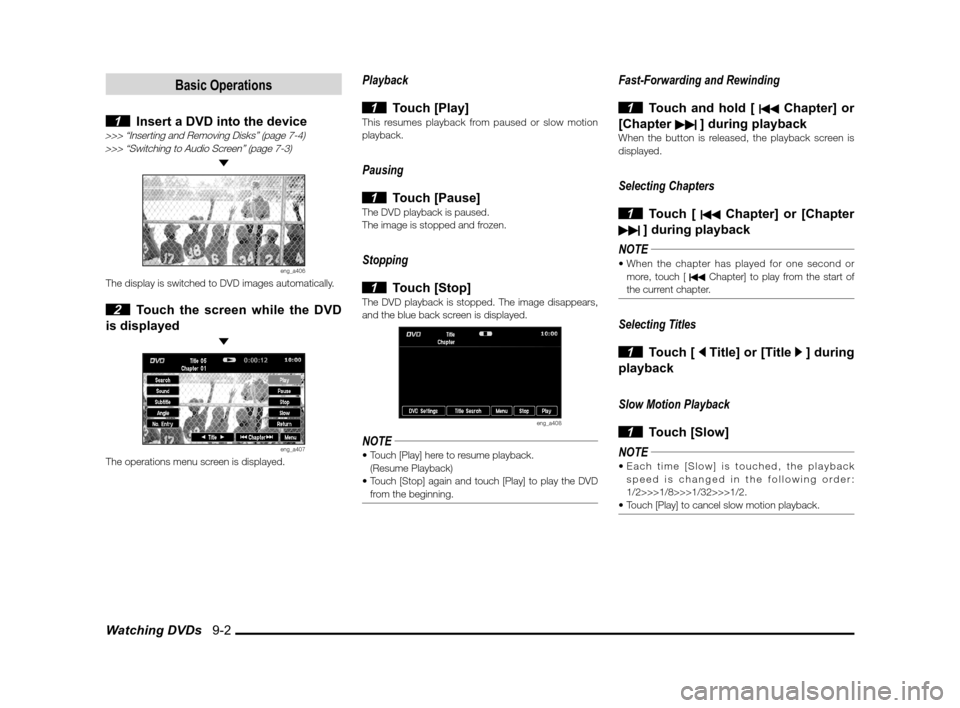

Watching DVDs 9-2
Basic Operations
1 Insert a DVD into the device>>> “Inserting and Removing Disks” (page 7-4)>>> “Switching to Audio Screen” (page 7-3)

eng_a406The display is switched to DVD images automatically.
2 Touch the screen while the DVD
is displayed

eng_a407The operations menu screen is displayed.
Playback

1 Touch [Play]This resumes playback from paused or slow motion
playback.
Pausing

1 Touch [Pause]The DVD playback is paused.
The image is stopped and frozen.
Stopping

1 Touch [Stop]The DVD playback is stopped. The image disappears,
and the blue back screen is displayed.
eng_a408
NOTE
(Resume Playback)
from the beginning.
Fast-Forwarding and Rewinding

1 Touch and hold [ Chapter] or
[Chapter
] during playbackWhen the button is released, the playback screen is
displayed.
Selecting Chapters

1 Touch [ Chapter] or [Chapter
] during playback
NOTE
more, touch [ Chapter] to play from the start of
the current chapter.
Selecting Titles

1 Touch [ Title] or [Title ] during
playback
Slow Motion Playback

1 Touch [Slow]
NOTE
speed is changed in the following order:
1/2>>>1/8>>>1/32>>>1/2.

\b \b
\f \

  \b \b
\f

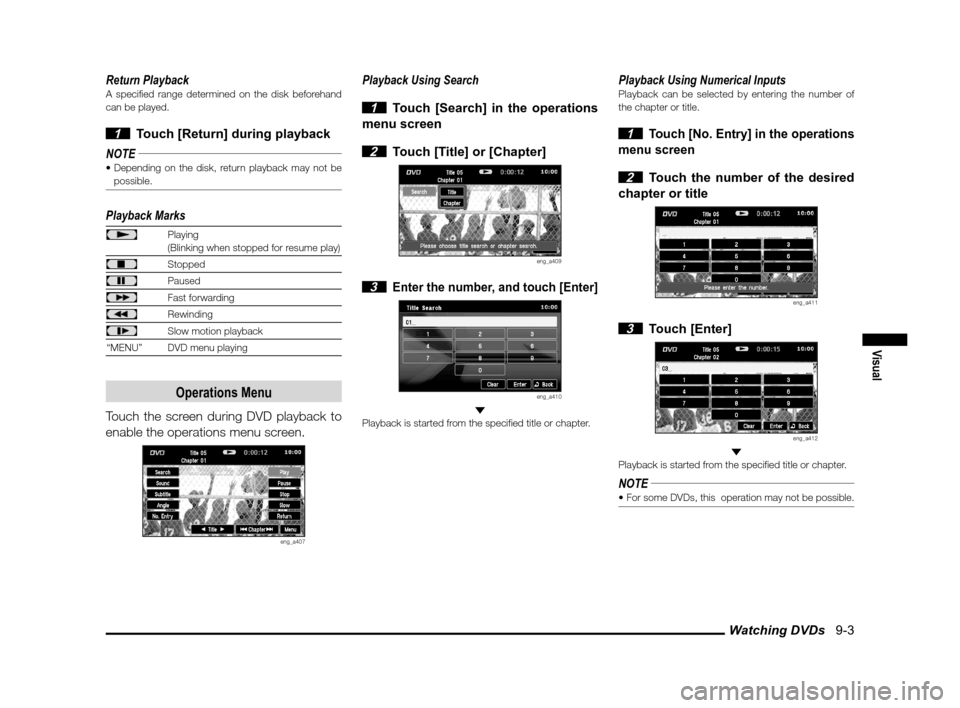

Watching DVDs 9-3
Visual
Return PlaybackA speci ed range determined on the disk beforehand
can be played.
1 Touch [Return] during playback
NOTE
possible.
Playback Marks
Playing
(Blinking when stopped for resume play)
Stopped
Paused
Fast forwarding
Rewinding
Slow motion playback
“MENU” DVD menu playing
Operations Menu
Touch the screen during DVD playback to
enable the operations menu screen.
eng_a407
Playback Using Search

1 Touch [Search] in the operations
menu screen

2 Touch [Title] or [Chapter]
eng_a409
3 Enter the number, and touch [Enter]
eng_a410
Playback is started from the speci ed title or chapter.
Playback Using Numerical InputsPlayback can be selected by entering the number of
the chapter or title.
1 Touch [No. Entry] in the operations
menu screen
2 Touch the number of the desired
chapter or title
eng_a411
3 Touch [Enter]
eng_a412
Playback is started from the speci ed title or chapter.
NOTE
\b \b
\f \

  \b \b
\f

Trip 10-6
NOTE

touch [Reset] to reset the average speed and
average fuel economy.
Driving Distance and Time
The distance to empty, distance driven
after refueling and driving time can be
viewed on the 2/3 Trip screen.
Distance to Empty
The displayed distance to empty is calculated from
the current remaining fuel and the recent average fuel
economy.
Distance Driven After RefuelingDisplays automatically the distance driven after
refueling.
It is reset when the vehicle is refueled.
NOTE2.6 gallons (10 litres), automatic reset will not be
performed. Press [Refuel] to reset.
Driving TimeMeasures the time from when the ignition switch is
turned “ON” to when it is turned “OFF”.
It is reset when the ignition switch is turned from “OFF”
to “ON”.
Lap Time
Time, distance, speed and mileage can be
measured.

1 Display the 3/3 Trip screen

2 Touch [Start]
eng_a210
Total Line
eng_a213The measurement starts. At this time, the speed and
mileage are being measured, so they are not displayed.
3 Touch [Lap]
eng_a214The current measurement results are displayed in “A”.
NOTE
Touch [Lap] again
and the measurement
results displayed in
“A” are moved to
“B”, and the current
measurement results
are displayed in “A”.
eng_a215
4 Touch [Stop]
eng_a216The measurements stop and the measurement results
are displayed in the total line.
NOTE
where they stopped.
turned “OFF” during measurement. If this happens,
the measurements restart when the ignition switch is
turned “ON”.
5 Touch [Reset]
