MITSUBISHI OUTLANDER 2011 2.G Owners Manual

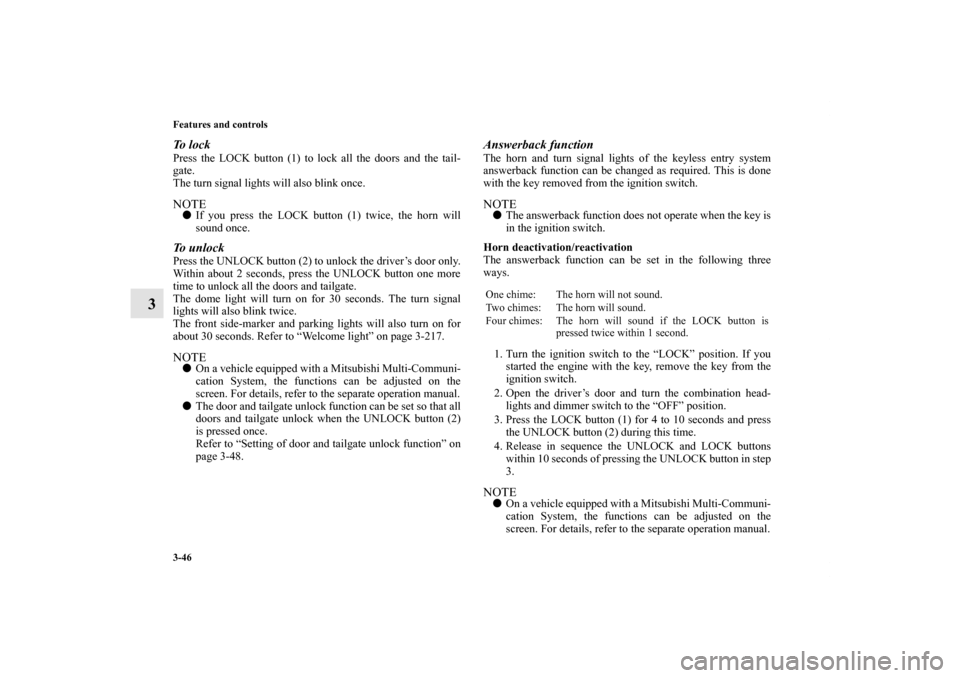

3-46 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the tail-
gate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice, the horn will
sound once.To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and tailgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-217.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The door and tailgate unlock function can be set so that all
doors and tailgate unlock when the UNLOCK button (2)
is pressed once.
Refer to “Setting of door and tailgate unlock function” on
page 3-48.
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE
The answerback function does not operate when the key is
in the ignition switch.
Horn deactivation/reactivation
The answerback function can be set in the following three
ways.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
BK0122500US.book 46 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-47
3

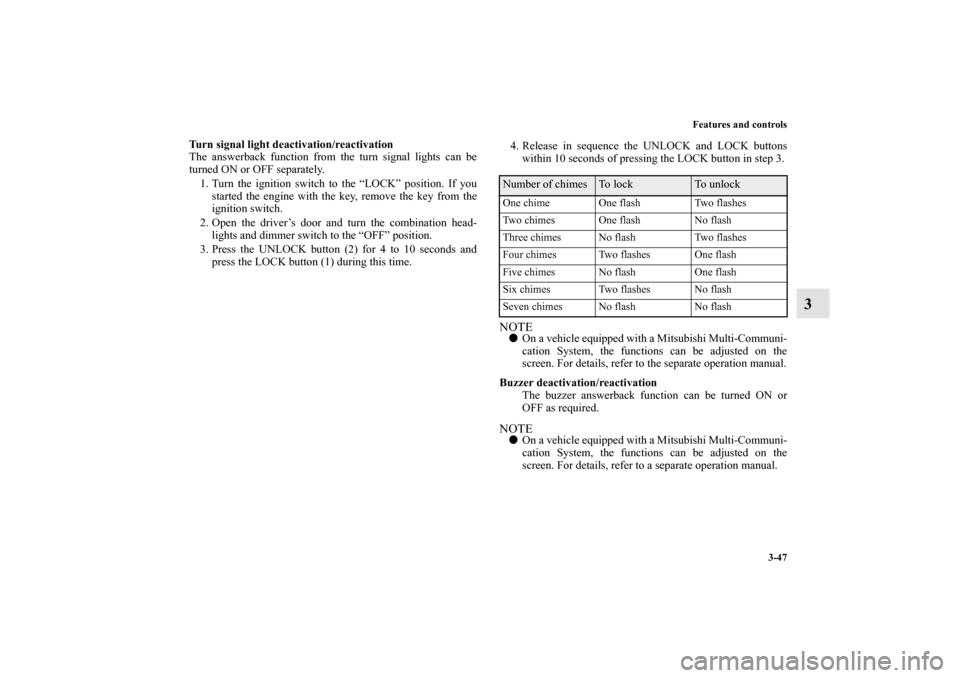

Turn signal light deactivation/reactivation
The answerback function from the turn signal lights can be
turned ON or OFF separately.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or
OFF as required.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0122500US.book 47 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-48 Features and controls
3

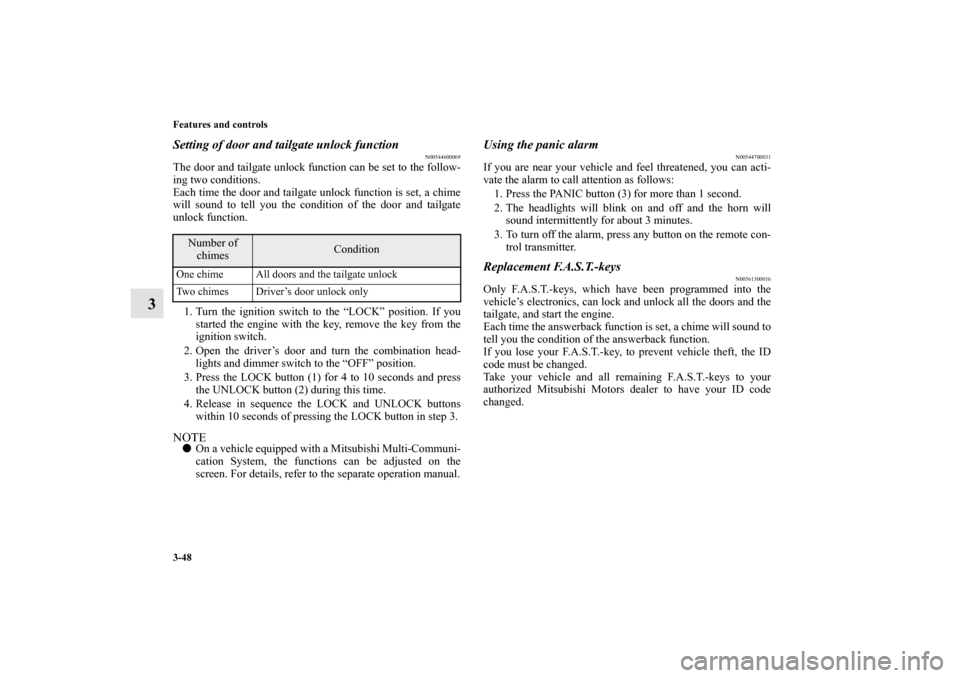

Setting of door and tailgate unlock function
N00544600069
The door and tailgate unlock function can be set to the follow-
ing two conditions.
Each time the door and tailgate unlock function is set, a chime
will sound to tell you the condition of the door and tailgate
unlock function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Using the panic alarm
N00544700031
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.Replacement F.A.S.T.-keys
N00561300016
Only F.A.S.T.-keys, which have been programmed into the
vehicle’s electronics, can lock and unlock all the doors and the
tailgate, and start the engine.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
If you lose your F.A.S.T.-key, to prevent vehicle theft, the ID
code must be changed.
Take your vehicle and all remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID code
changed.
Number of
chimes
Condition
One chime All doors and the tailgate unlock
Two chimes Driver’s door unlock onlyBK0122500US.book 48 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-49
3

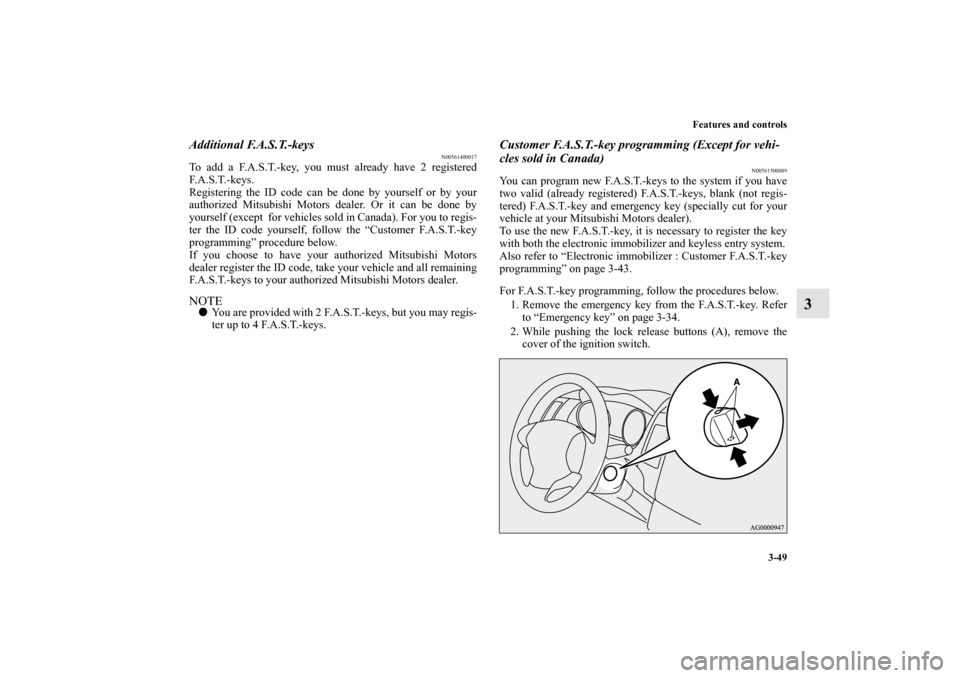

Additional F.A.S.T.-keys
N00561400017
To add a F.A.S.T.-key, you must already have 2 registered
F. A . S . T. - k e y s .
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. Or it can be done by
yourself (except for vehicles sold in Canada). For you to regis-
ter the ID code yourself, follow the “Customer F.A.S.T.-key
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 F.A.S.T.-keys, but you may regis-
ter up to 4 F.A.S.T.-keys.
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561500089
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Electronic immobilizer : Customer F.A.S.T.-key
programming” on page 3-43.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-34.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.
BK0122500US.book 49 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-50 Features and controls
3

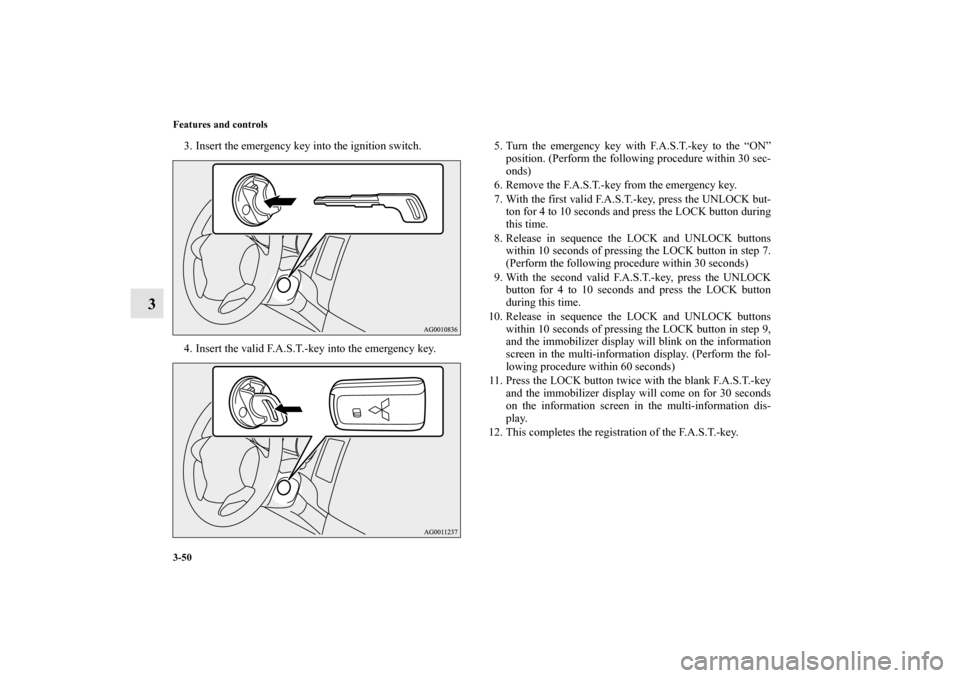

3. Insert the emergency key into the ignition switch.
4. Insert the valid F.A.S.T.-key into the emergency key.5. Turn the emergency key with F.A.S.T.-key to the “ON”
position. (Perform the following procedure within 30 sec-
onds)
6. Remove the F.A.S.T.-key from the emergency key.
7. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton for 4 to 10 seconds and press the LOCK button during
this time.
8. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 7.
(Perform the following procedure within 30 seconds)
9. With the second valid F.A.S.T.-key, press the UNLOCK
button for 4 to 10 seconds and press the LOCK button
during this time.
10. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 9,
and the immobilizer display will blink on the information
screen in the multi-information display. (Perform the fol-
lowing procedure within 60 seconds)
11. Press the LOCK button twice with the blank F.A.S.T.-key
and the immobilizer display will come on for 30 seconds
on the information screen in the multi-information dis-
play.
12. This completes the registration of the F.A.S.T.-key.
BK0122500US.book 50 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-51
3
NOTE
The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the UNLOCK button (2) is pressed when all doors and
the tailgate are locked and no doors or the tailgate are
opened within about 30 seconds, the doors and the tailgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the buttery in the F.A.S.T.-key may need to be
replaced.
• The doors and the tailgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer F.A.S.T.-key programming” on page
3-43.
General information
N00562000049
Your F.A.S.T.-key operates on a radio frequency subject to Fed-
eral Communications Commission (FCC) Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules (For vehicles sold in
Canada). This device complies with Part 15 of the FCC Rules and
RSS-Gen of the Industry Canada Rules. Operation is subject to
the following two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0122500US.book 51 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-52 Features and controls
3

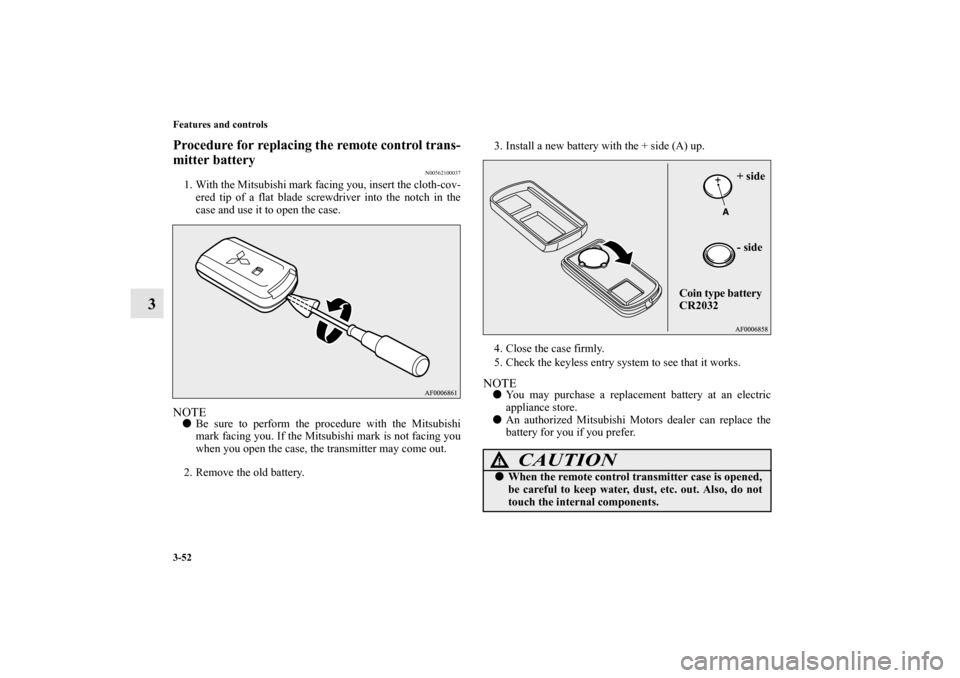

Procedure for replacing the remote control trans-
mitter battery
N00562100037
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the case, the transmitter may come out.
2. Remove the old battery.3. Install a new battery with the + side (A) up.
4. Close the case firmly.
5. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
+ side
- side
Coin type battery
CR2032
BK0122500US.book 52 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-53

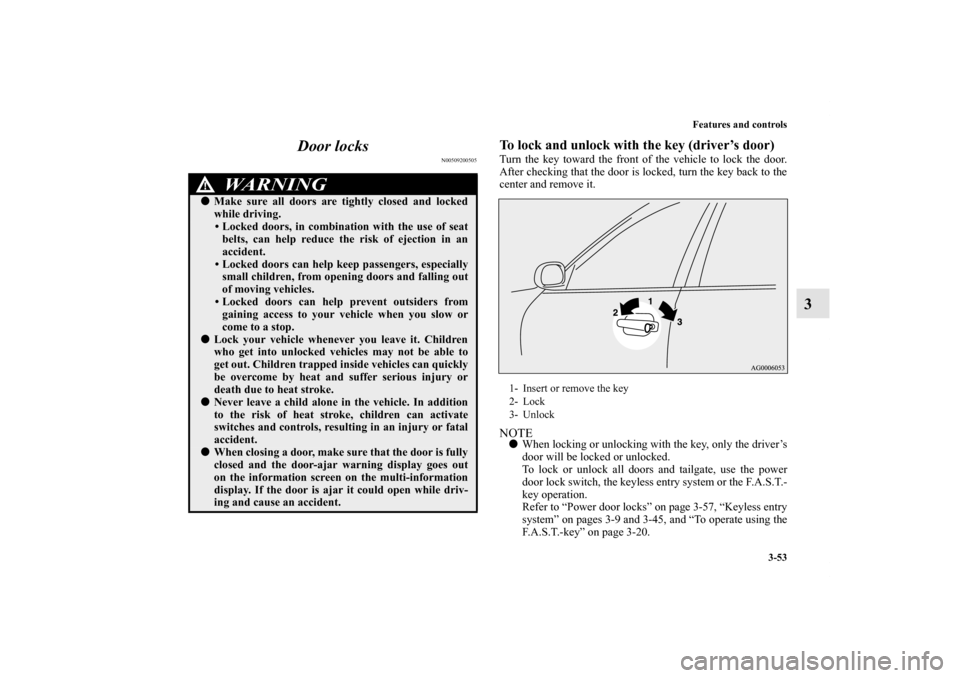

3 Door locks
N00509200505
To lock and unlock with the key (driver’s door)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.NOTE
When locking or unlocking with the key, only the driver’s
door will be locked or unlocked.
To lock or unlock all doors and tailgate, use the power
door lock switch, the keyless entry system or the F.A.S.T.-
key operation.
Refer to “Power door locks” on page 3-57, “Keyless entry
system” on pages 3-9 and 3-45, and “To operate using the
F.A.S.T.-key” on page 3-20.
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave a child alone in the vehicle. In addition
to the risk of heat stroke, children can activate
switches and controls, resulting in an injury or fatal
accident.
When closing a door, make sure that the door is fully
closed and the door-ajar warning display goes out
on the information screen on the multi-information
display. If the door is ajar it could open while driv-
ing and cause an accident.
1- Insert or remove the key
2- Lock
3- Unlock
BK0122500US.book 53 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-54 Features and controls
3

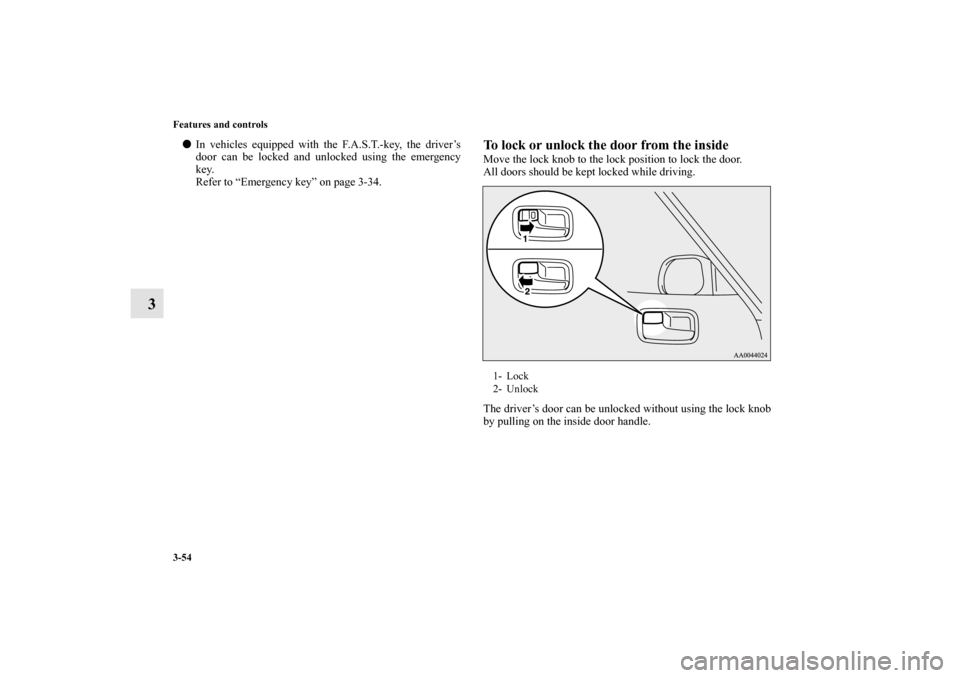

In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-34.
To lock or unlock the door from the insideMove the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.1- Lock
2- Unlock
BK0122500US.book 54 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-55
3

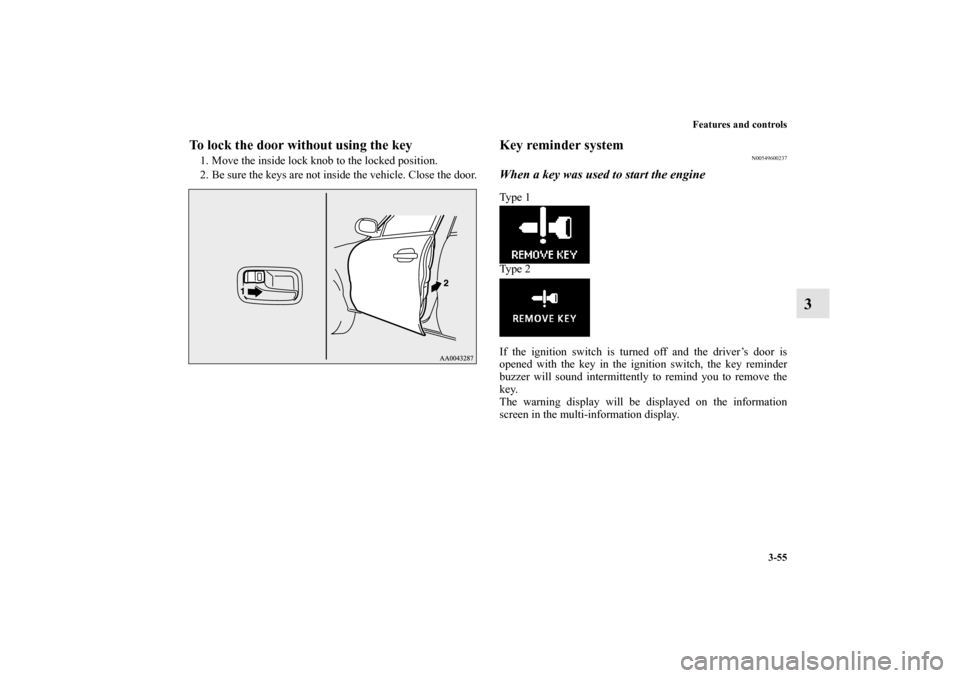

To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
Key reminder system
N00549600237
When a key was used to start the engineTy p e 1
Ty p e 2
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.
BK0122500US.book 55 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
