MITSUBISHI OUTLANDER 2011 2.G Owners Manual

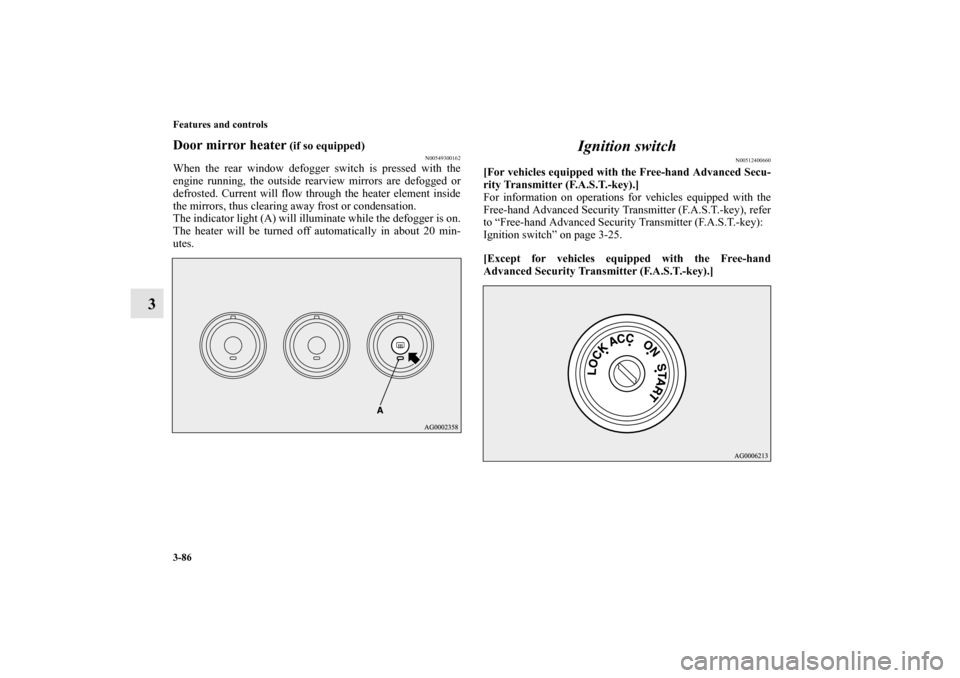

3-86 Features and controls
3
Door mirror heater
(if so equipped)
N00549300162
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
Ignition switch
N00512400660
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Ignition switch” on page 3-25.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]
BK0122500US.book 86 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

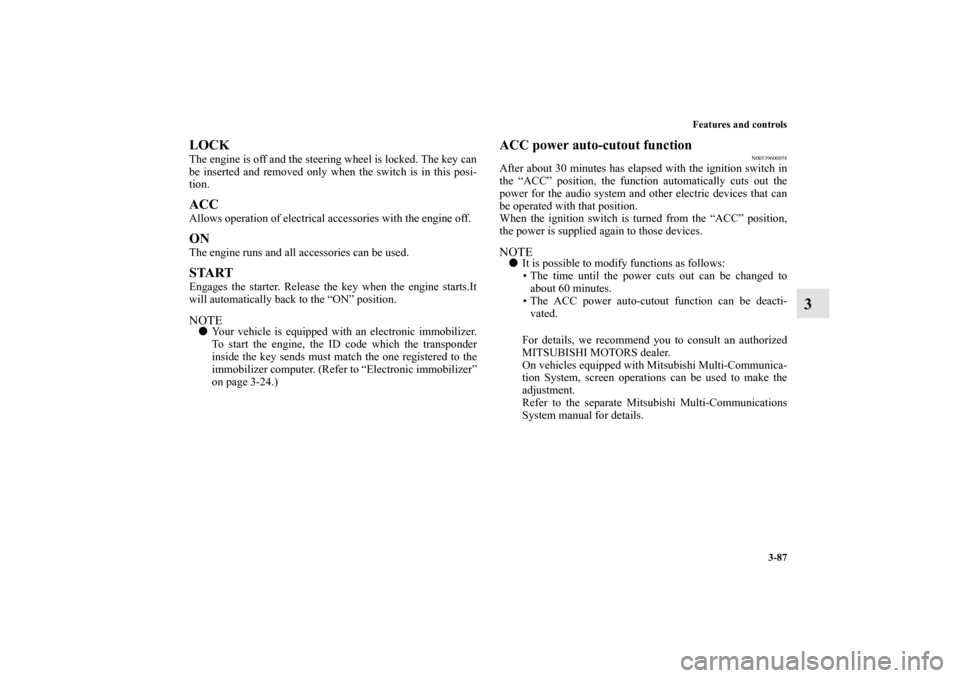

Features and controls
3-87
3
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion.ACCAllows operation of electrical accessories with the engine off.ONThe engine runs and all accessories can be used.STARTEngages the starter. Release the key when the engine starts.It
will automatically back to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer. (Refer to “Electronic immobilizer”
on page 3-24.)
ACC power auto-cutout function
N00539600058
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
about 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, we recommend you to consult an authorized
MITSUBISHI MOTORS dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate Mitsubishi Multi-Communications
System manual for details.
BK0122500US.book 87 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

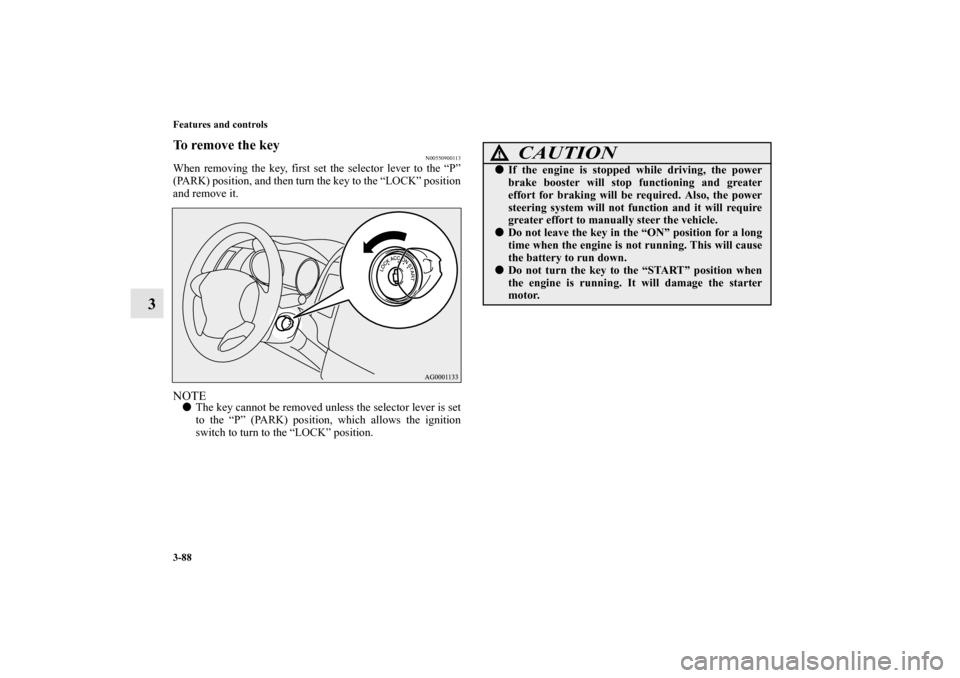

3-88 Features and controls
3
To remove the key
N00550900113
When removing the key, first set the selector lever to the “P”
(PARK) position, and then turn the key to the “LOCK” position
and remove it.NOTE
The key cannot be removed unless the selector lever is set
to the “P” (PARK) position, which allows the ignition
switch to turn to the “LOCK” position.
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.
Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0122500US.book 88 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

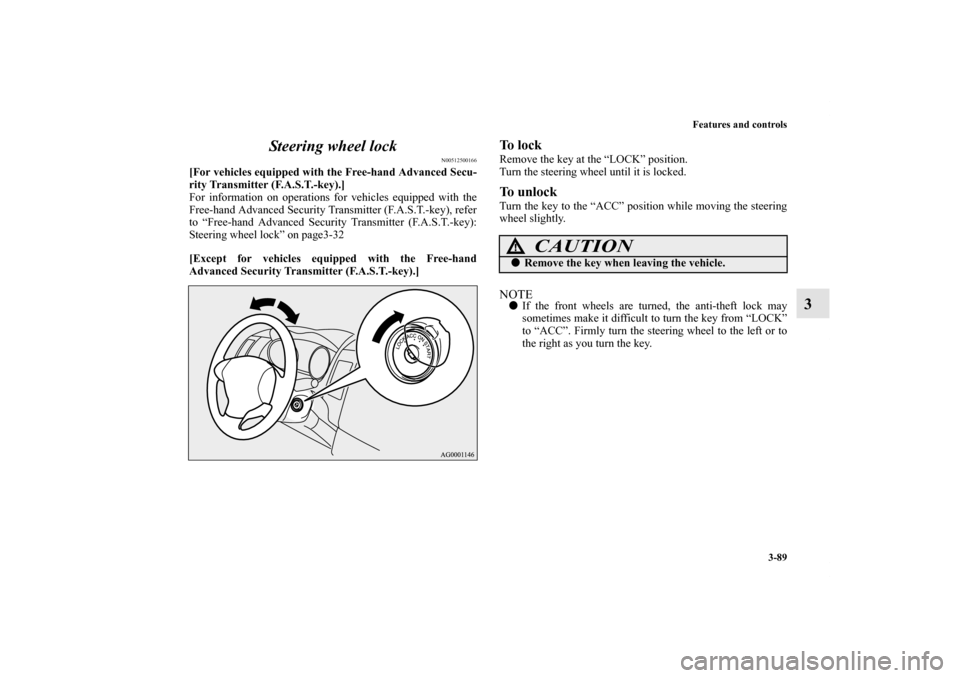

Features and controls
3-89
3 Steering wheel lock
N00512500166
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Steering wheel lock” on page3-32
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]
To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To u n l o c kTurn the key to the “ACC” position while moving the steering
wheel slightly.NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
to “ACC”. Firmly turn the steering wheel to the left or to
the right as you turn the key.
CAUTION
!
Remove the key when leaving the vehicle.
BK0122500US.book 89 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-90 Features and controls
3Starting the engine
N00512600721
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Starting” on page3-16.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Refer to “Interrupt display screen (When the igni-
tion switch is in the “ON” position)” on page 3-172.
Starting the engineThis model is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Insert the ignition key.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0122500US.book 90 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

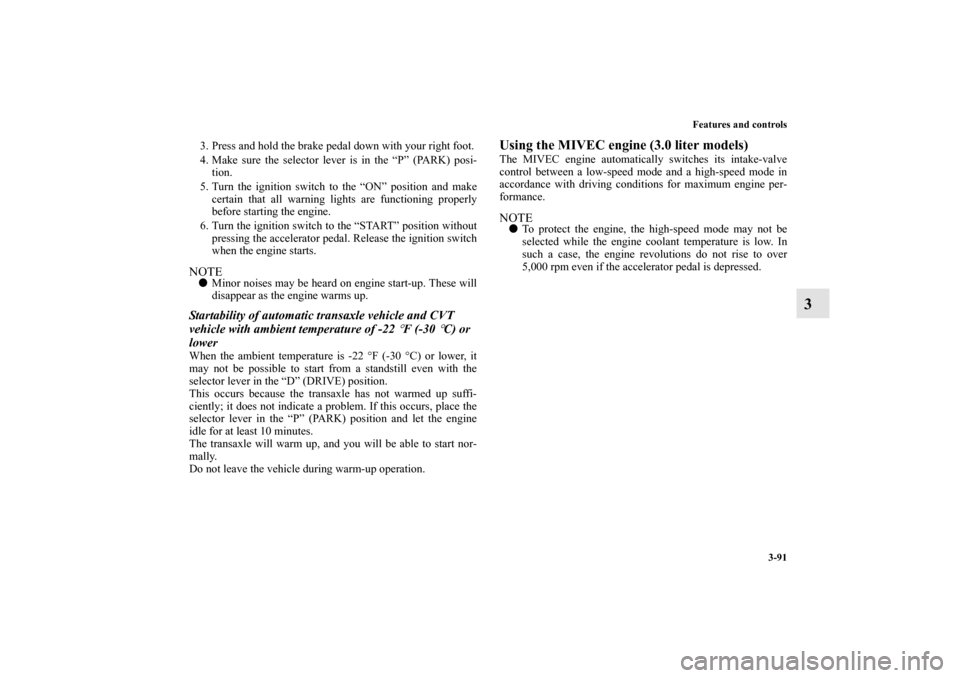

Features and controls
3-91
3
3. Press and hold the brake pedal down with your right foot.
4. Make sure the selector lever is in the “P” (PARK) posi-
tion.
5. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
6. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the ignition switch
when the engine starts.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.Startability of automatic transaxle vehicle and CVT
vehicle with ambient temperature of -22
°F (-30
°C) or
lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This occurs because the transaxle has not warmed up suffi-
ciently; it does not indicate a problem. If this occurs, place the
selector lever in the “P” (PARK) position and let the engine
idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
Using the MIVEC engine (3.0 liter models)The MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.NOTE
To protect the engine, the high-speed mode may not be
selected while the engine coolant temperature is low. In
such a case, the engine revolutions do not rise to over
5,000 rpm even if the accelerator pedal is depressed.
BK0122500US.book 91 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-92 Features and controls
3Automatic transaxle
(if so equipped)
N00513200173
Designed for the most efficient control and equipped with self-
adapting capabilities, the electronically controlled transaxle
used in your vehicle selects the most favorable gear for each
type of driving and road condition.DRIVING UPHILLThe transaxle may not shift to a higher gear if the computer
determines your current speed would be affected.
For smoother operation, the transaxle may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal gear shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically select a lower gear. This helps
engine braking efforts, reducing your need to use the brakes.
NOTE
During the break-in period or immediately after recon-
necting the battery, your vehicle may not shift smoothly.
This does not indicate a problem in the transaxle. Shifting
will become smoother once the transaxle has been shifted
several times by the electronic control system.
CAUTION
!
The electronically controlled transaxle system is
strictly intended to provide supplementary func-
tions. When driving downhill under certain condi-
tions, when the automatic transaxle is cold
immediately after starting, no automatic downshift
may be made. The driver should move the selector
lever to use sports mode to downshift a lower gear.
This will permit the engine to begin braking.
BK0122500US.book 92 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

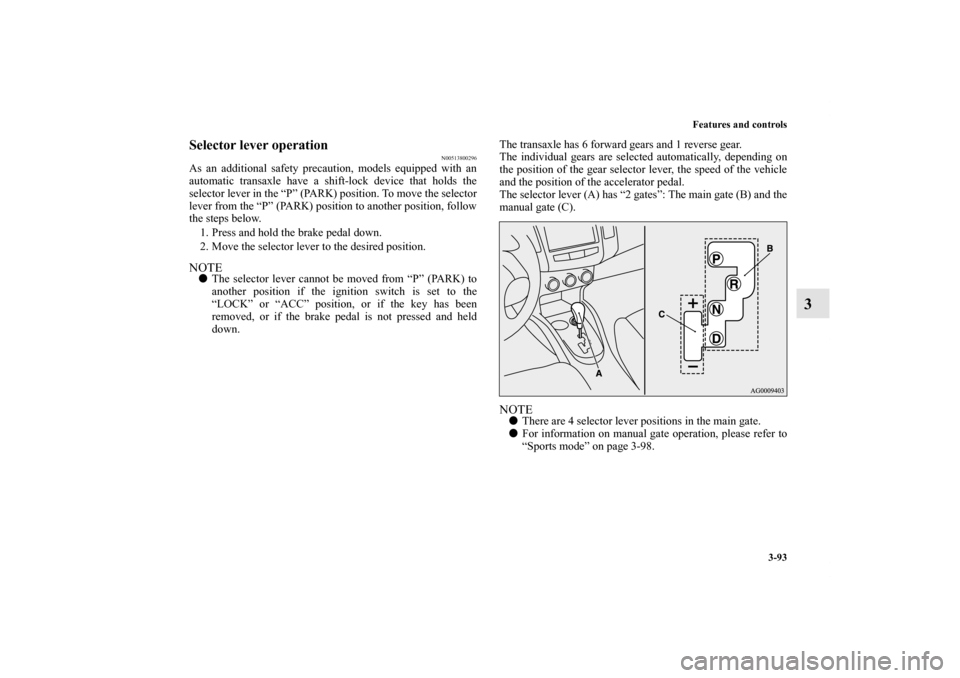

Features and controls
3-93
3
Selector lever operation
N00513800296
As an additional safety precaution, models equipped with an
automatic transaxle have a shift-lock device that holds the
selector lever in the “P” (PARK) position. To move the selector
lever from the “P” (PARK) position to another position, follow
the steps below.
1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.NOTE
The selector lever cannot be moved from “P” (PARK) to
another position if the ignition switch is set to the
“LOCK” or “ACC” position, or if the key has been
removed, or if the brake pedal is not pressed and held
down.The transaxle has 6 forward gears and 1 reverse gear.
The individual gears are selected automatically, depending on
the position of the gear selector lever, the speed of the vehicle
and the position of the accelerator pedal.
The selector lever (A) has “2 gates”: The main gate (B) and the
manual gate (C).
NOTE
There are 4 selector lever positions in the main gate.

For information on manual gate operation, please refer to
“Sports mode” on page 3-98.
BK0122500US.book 93 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

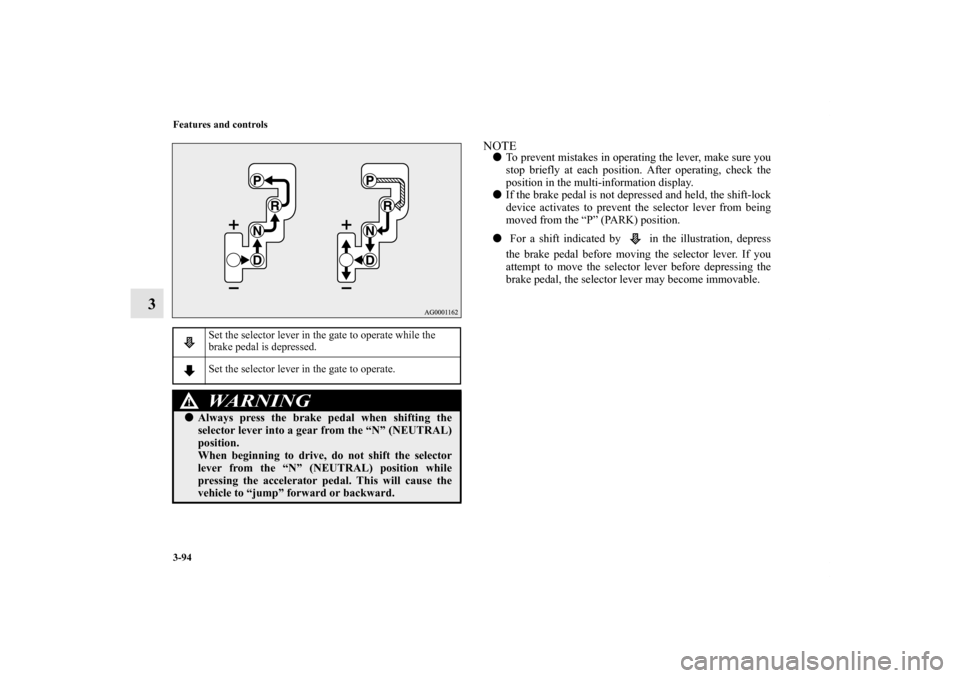

3-94 Features and controls
3
NOTE
To prevent mistakes in operating the lever, make sure you
stop briefly at each position. After operating, check the
position in the multi-information display.

If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.

For a shift indicated by in the illustration, depress
the brake pedal before moving the selector lever. If you
attempt to move the selector lever before depressing the
brake pedal, the selector lever may become immovable.
Set the selector lever in the gate to operate while the
brake pedal is depressed.
Set the selector lever in the gate to operate.WA R N I N G
!
Always press the brake pedal when shifting the
selector lever into a gear from the “N” (NEUTRAL)
position.
When beginning to drive, do not shift the selector
lever from the “N” (NEUTRAL) position while
pressing the accelerator pedal. This will cause the
vehicle to “jump” forward or backward.
BK0122500US.book 94 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-95
3

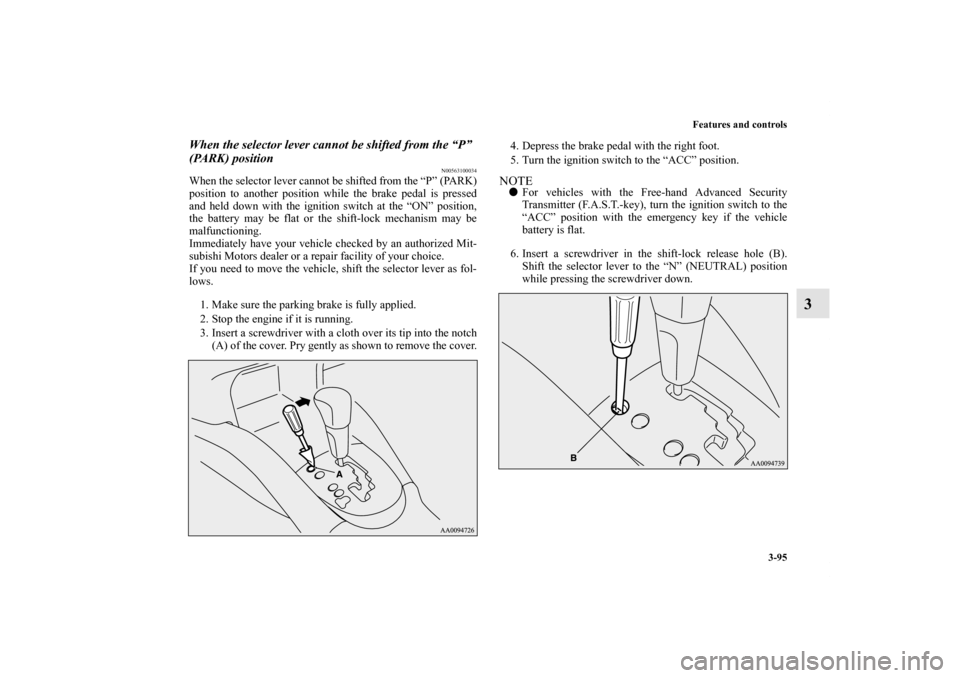

When the selector lever cannot be shifted from the “P”
(PARK) position
N00563100034
When the selector lever cannot be shifted from the “P” (PARK)
position to another position while the brake pedal is pressed
and held down with the ignition switch at the “ON” position,
the battery may be flat or the shift-lock mechanism may be
malfunctioning.
Immediately have your vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
If you need to move the vehicle, shift the selector lever as fol-
lows.
1. Make sure the parking brake is fully applied.
2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch
(A) of the cover. Pry gently as shown to remove the cover.4. Depress the brake pedal with the right foot.
5. Turn the ignition switch to the “ACC” position.
NOTE
For vehicles with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key), turn the ignition switch to the
“ACC” position with the emergency key if the vehicle
battery is flat.
6. Insert a screwdriver in the shift-lock release hole (B).
Shift the selector lever to the “N” (NEUTRAL) position
while pressing the screwdriver down.
BK0122500US.book 95 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
