Page 211 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 3-96 Features and controls
3

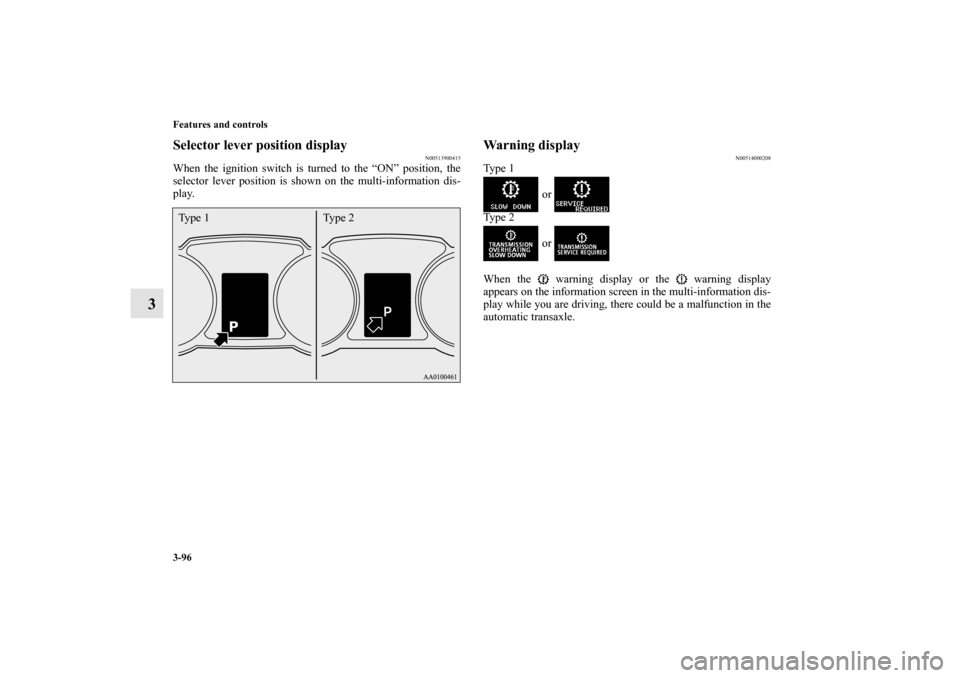

Selector lever position display
N00513900415
When the ignition switch is turned to the “ON” position, the
selector lever position is shown on the multi-information dis

Page 212 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Features and controls
3-97
3

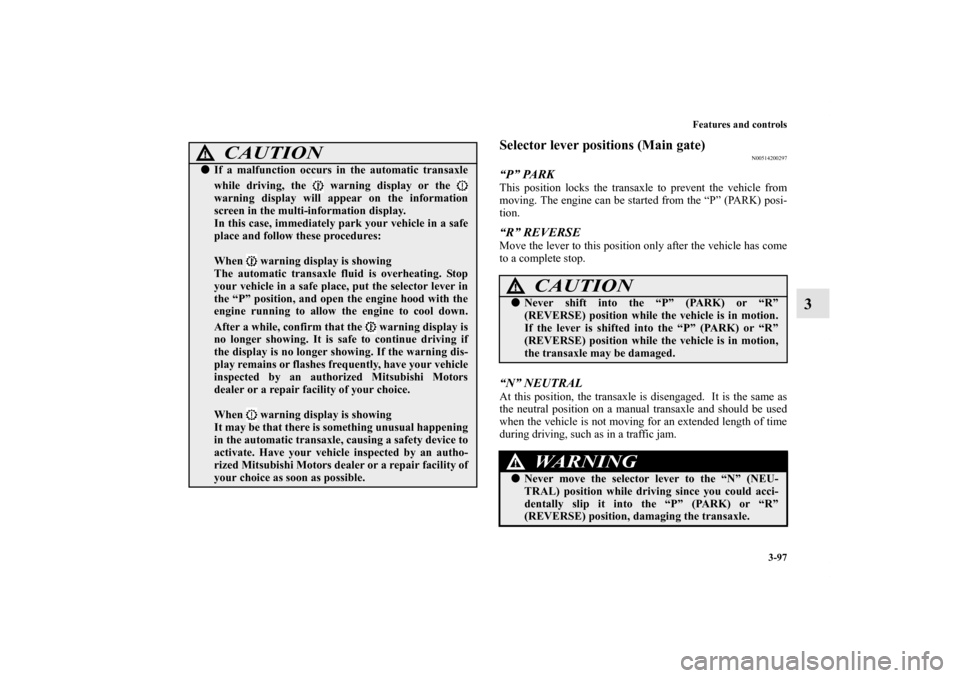

Selector lever positions (Main gate)
N00514200297
“P” PARKThis position locks the transaxle to prevent the vehicle from
moving. The engine can be started from the “P

Page 213 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 3-98 Features and controls
3
“D” DRIVEThis position is used for most city and highway driving. Engine
shifting and braking are done automatically as needed, depend-
ing on road conditions.NOTEFor

Page 214 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Features and controls
3-99
3
NOTEGears can only be selected in a forward direction from 1st
gear to 6th gear. To reverse or park the vehicle, move the
selector lever to the “R” or “P” positio

Page 215 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 3-100 Features and controls
3

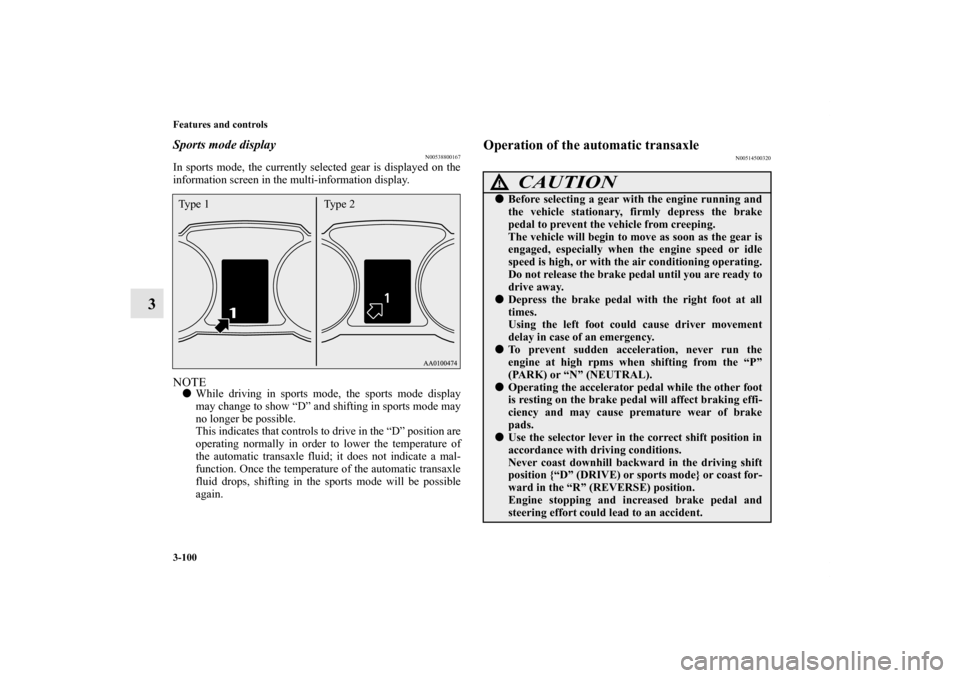

Sports mode display
N00538800167
In sports mode, the currently selected gear is displayed on the
information screen in the multi-information display.NOTEWhile driving in

Page 216 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Features and controls
3-101
3

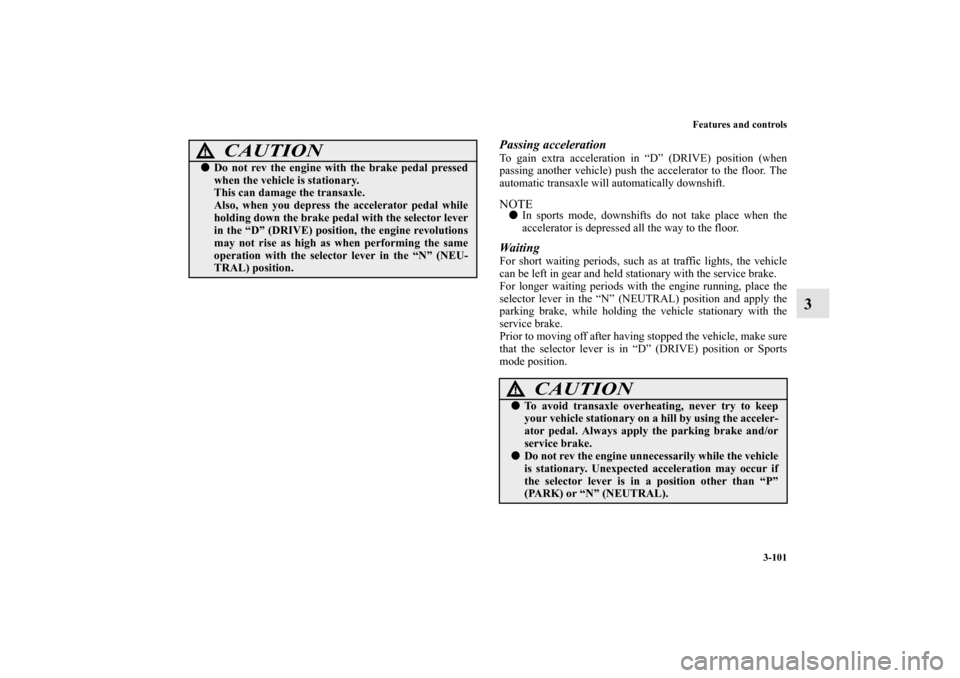

Passing accelerationTo gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor. The
automatic transaxle will

Page 217 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 3-102 Features and controls
3

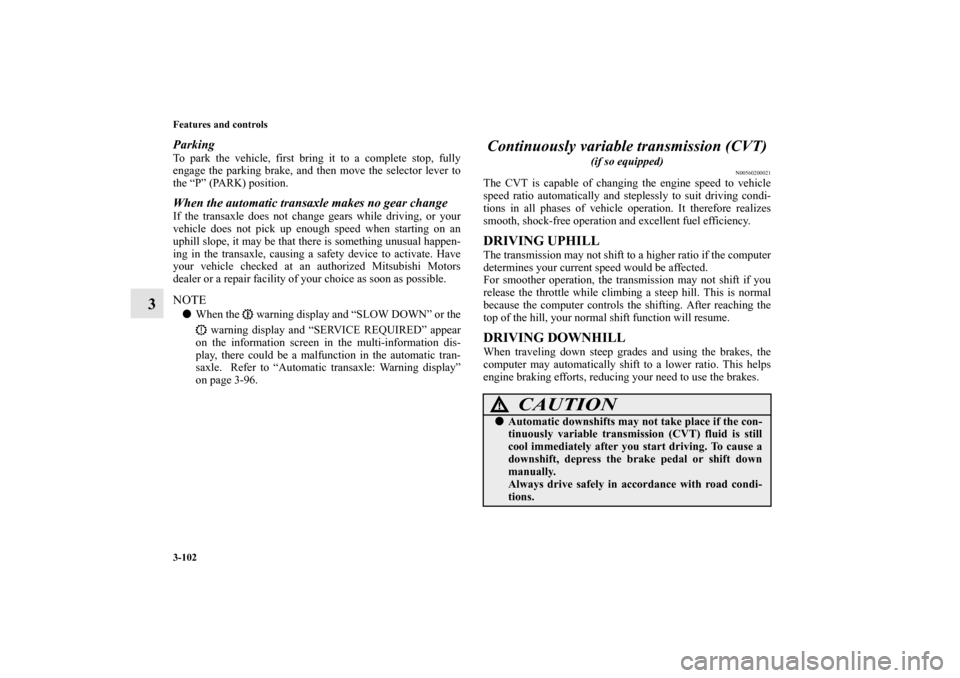

ParkingTo park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the au

Page 218 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Features and controls
3-103
3

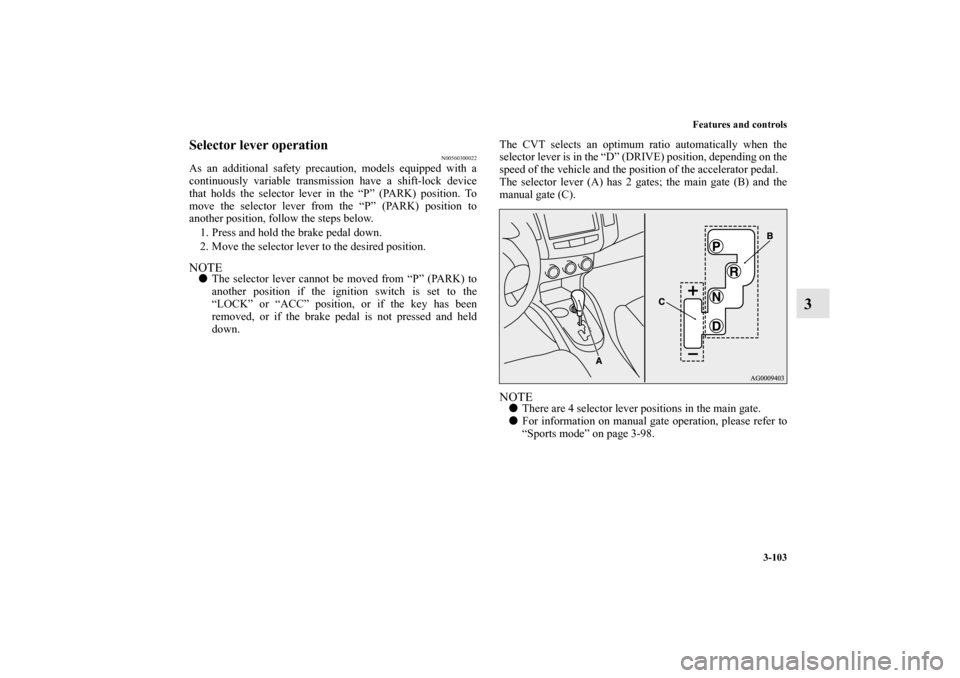

Selector lever operation
N00560300022
As an additional safety precaution, models equipped with a
continuously variable transmission have a shift-lock device
that holds th

Page 219 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 3-104 Features and controls
3

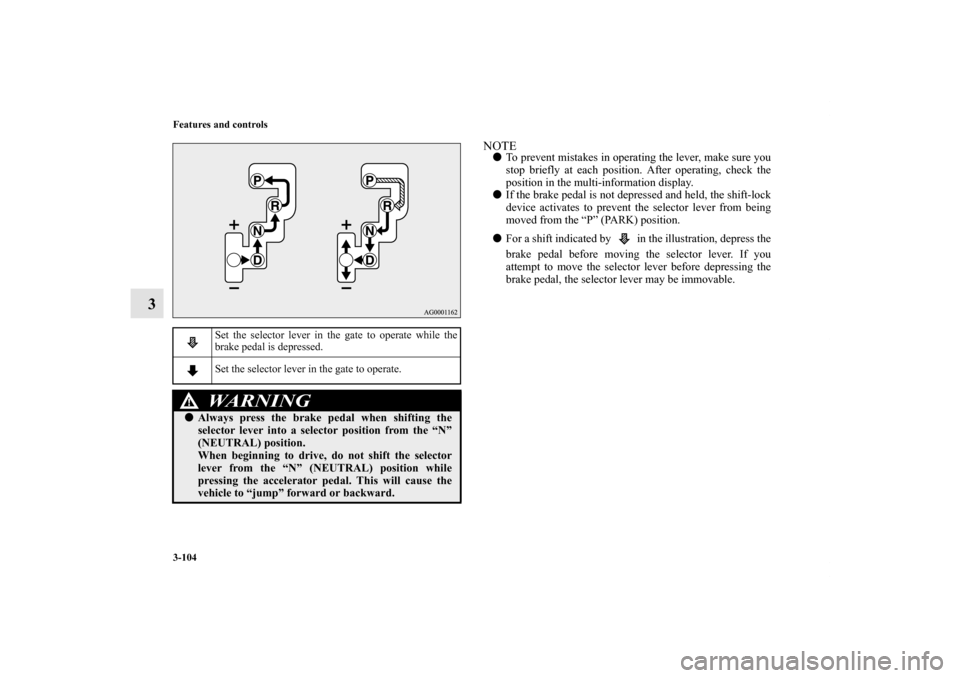

NOTETo prevent mistakes in operating the lever, make sure you
stop briefly at each position. After operating, check the
position in the multi-information display.
If t

Page 220 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Features and controls
3-105
3

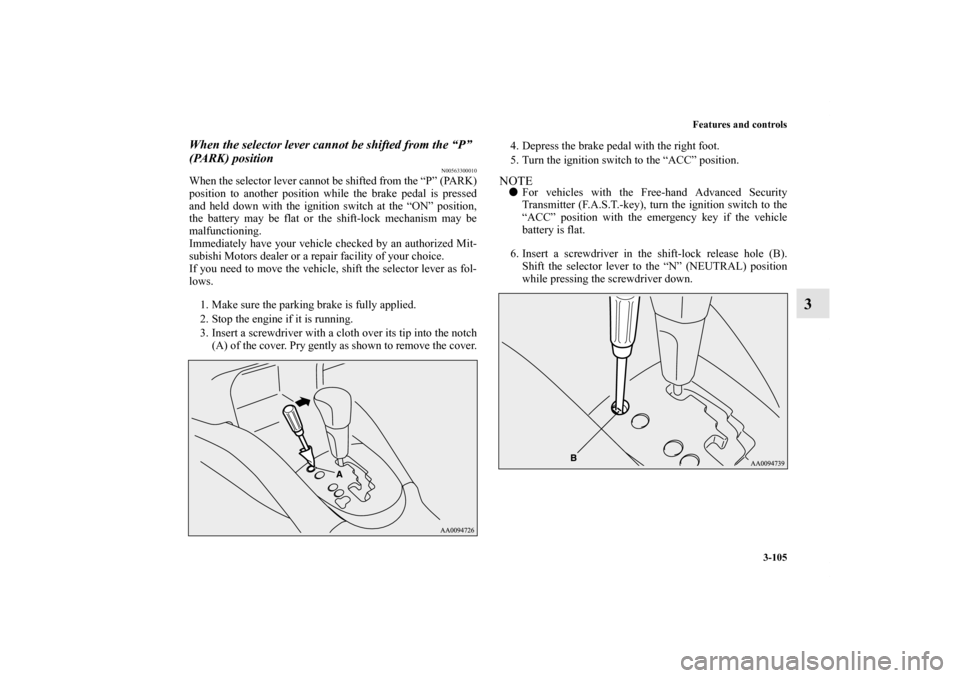

When the selector lever cannot be shifted from the “P”
(PARK) position
N00563300010
When the selector lever cannot be shifted from the “P” (PARK)
position to ano
