MITSUBISHI OUTLANDER 2011 2.G Owners Manual

3-276 Features and controls
3

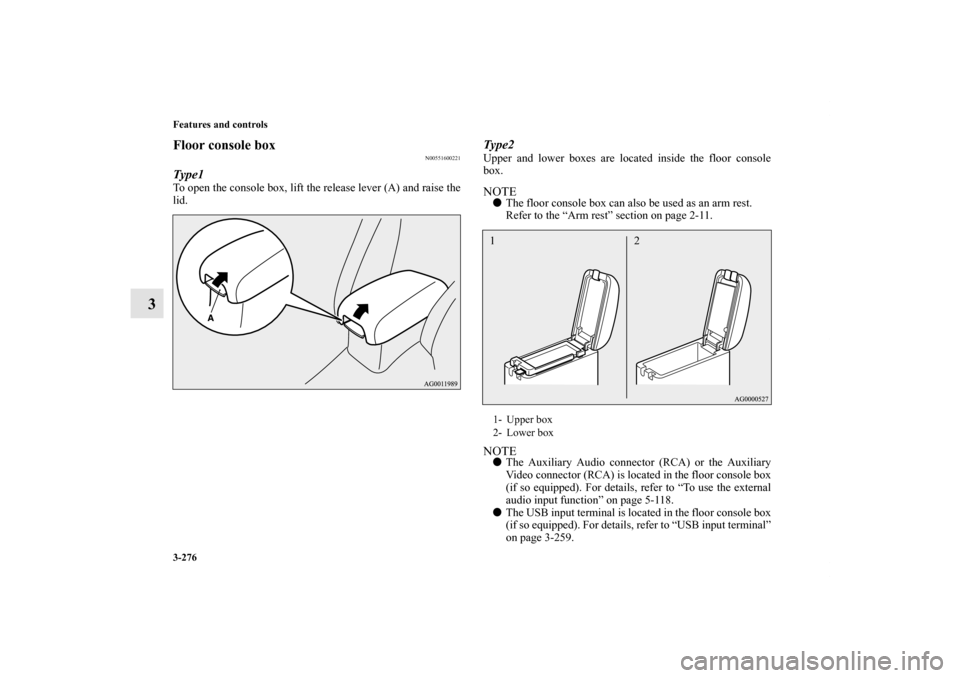

Floor console box
N00551600221
Type1To open the console box, lift the release lever (A) and raise the
lid.
Type2Upper and lower boxes are located inside the floor console
box.NOTE
The floor console box can also be used as an arm rest.
Refer to the “Arm rest” section on page 2-11.NOTE
The Auxiliary Audio connector (RCA) or the Auxiliary
Video connector (RCA) is located in the floor console box
(if so equipped). For details, refer to “To use the external
audio input function” on page 5-118.

The USB input terminal is located in the floor console box
(if so equipped). For details, refer to “USB input terminal”
on page 3-259.1- Upper box
2- Lower box12
BK0122500US.book 276 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-277
3

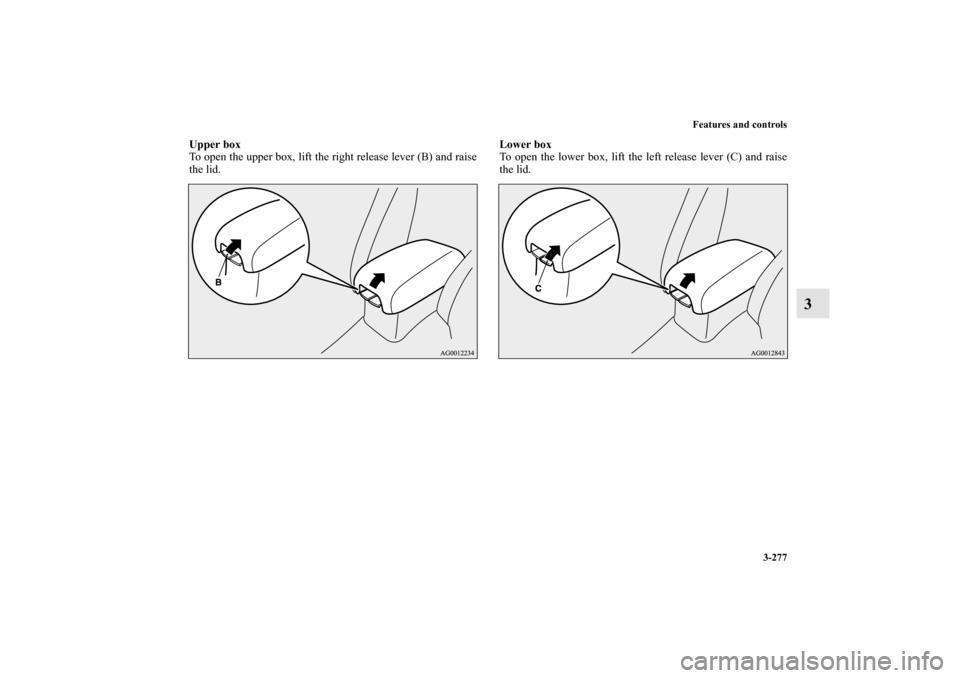

Upper box
To open the upper box, lift the right release lever (B) and raise
the lid.Lower box
To open the lower box, lift the left release lever (C) and raise
the lid.
BK0122500US.book 277 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-278 Features and controls
3

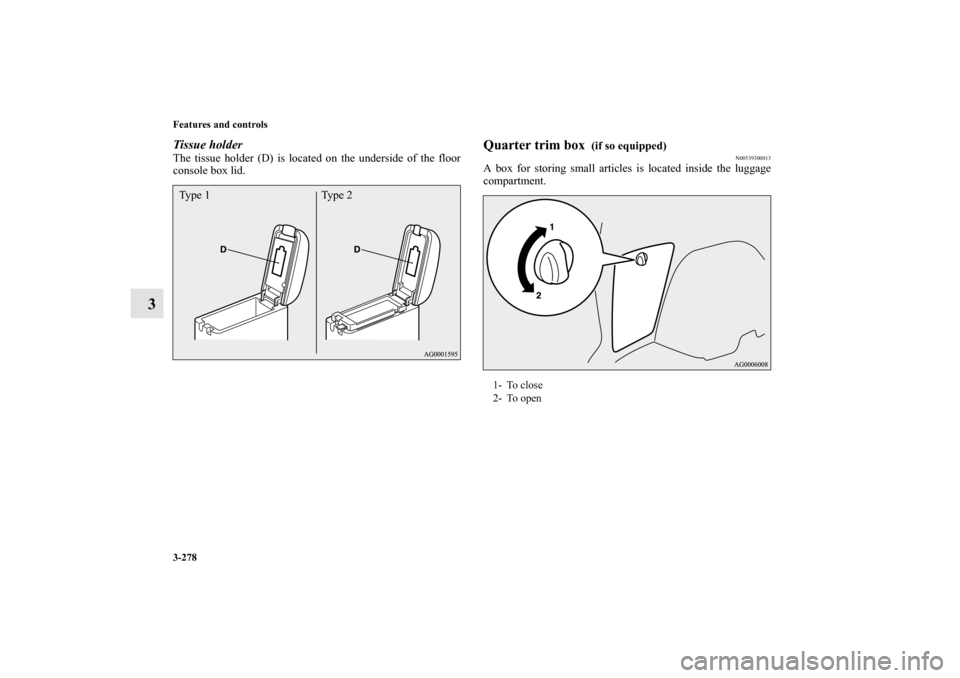

Tissue holderThe tissue holder (D) is located on the underside of the floor
console box lid.
Quarter trim box
(if so equipped)
N00539300013
A box for storing small articles is located inside the luggage
compartment.
Type 1 Type 2
1- To close
2- To open
BK0122500US.book 278 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-279
3

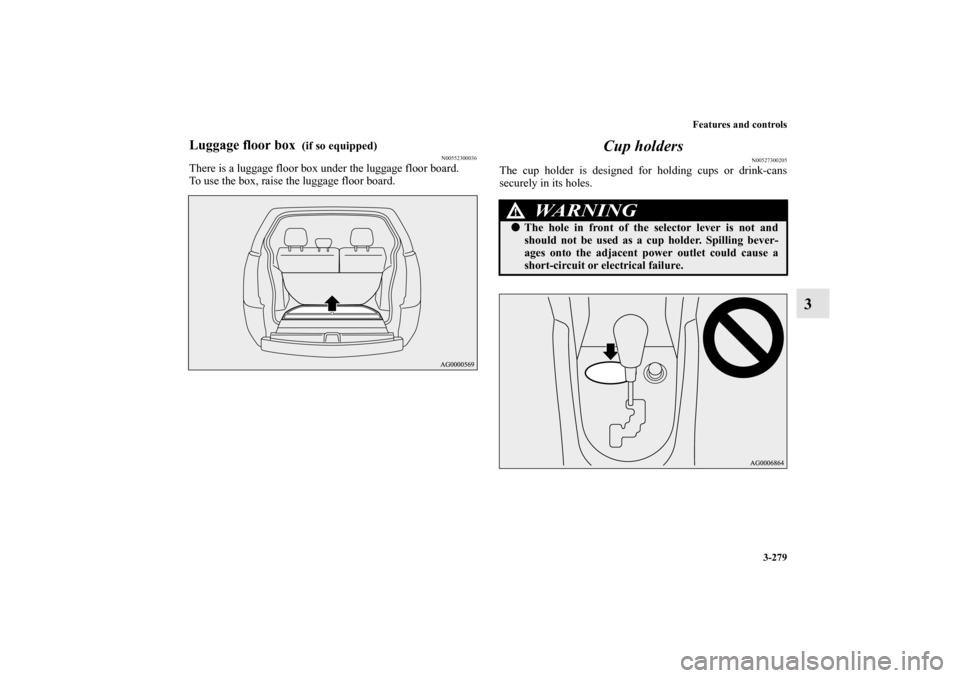

Luggage floor box
(if so equipped)
N00552300036
There is a luggage floor box under the luggage floor board.
To use the box, raise the luggage floor board.
Cup holders
N00527300205
The cup holder is designed for holding cups or drink-cans
securely in its holes.
WA R N I N G
!
The hole in front of the selector lever is not and
should not be used as a cup holder. Spilling bever-
ages onto the adjacent power outlet could cause a
short-circuit or electrical failure.
BK0122500US.book 279 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-280 Features and controls
3
For driver’s seatThere is a built-in cup holder in the driver seat instrument
panel.
If the center part of the lid is pressed, it will eject slightly so
that it can be pulled out and used.NOTE
Press in to store the holder when not in use.
For the front seatThe cup holder is located in front of the floor console.
CAUTION
!
Drink beverages while driving your vehicle is dis-
tracting and can cause an accident.
BK0122500US.book 280 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-281
3

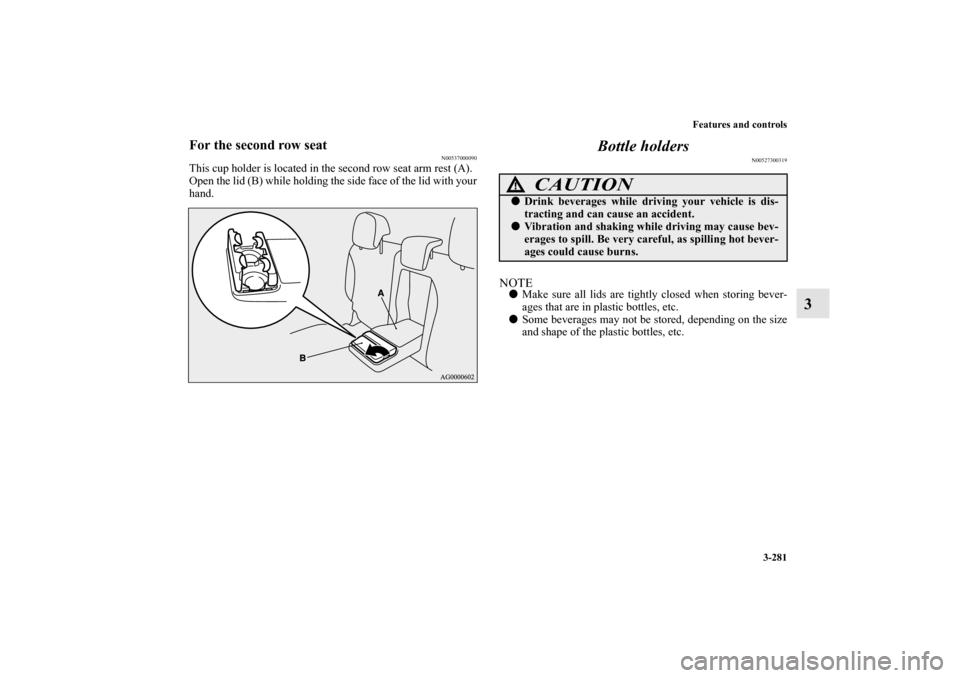

For the second row seat
N00537000090
This cup holder is located in the second row seat arm rest (A).
Open the lid (B) while holding the side face of the lid with your
hand.
Bottle holders
N00527300319
NOTE
Make sure all lids are tightly closed when storing bever-
ages that are in plastic bottles, etc.

Some beverages may not be stored, depending on the size
and shape of the plastic bottles, etc.
CAUTION
!
Drink beverages while driving your vehicle is dis-
tracting and can cause an accident.
Vibration and shaking while driving may cause bev-
erages to spill. Be very careful, as spilling hot bever-
ages could cause burns.
BK0122500US.book 281 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-282 Features and controls
3

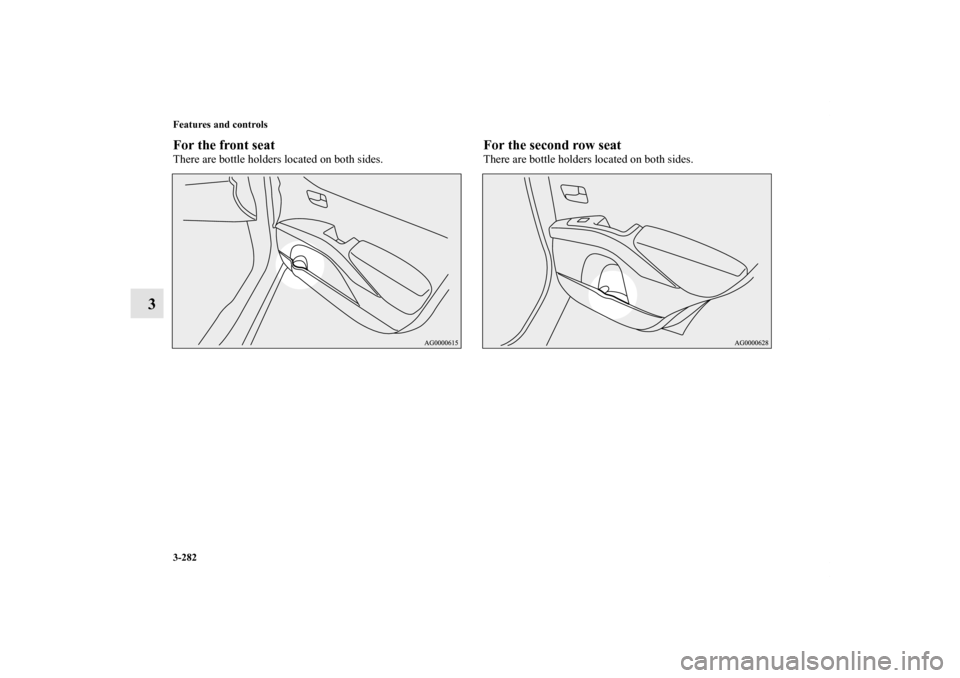

For the front seatThere are bottle holders located on both sides.
For the second row seatThere are bottle holders located on both sides.
BK0122500US.book 282 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-283

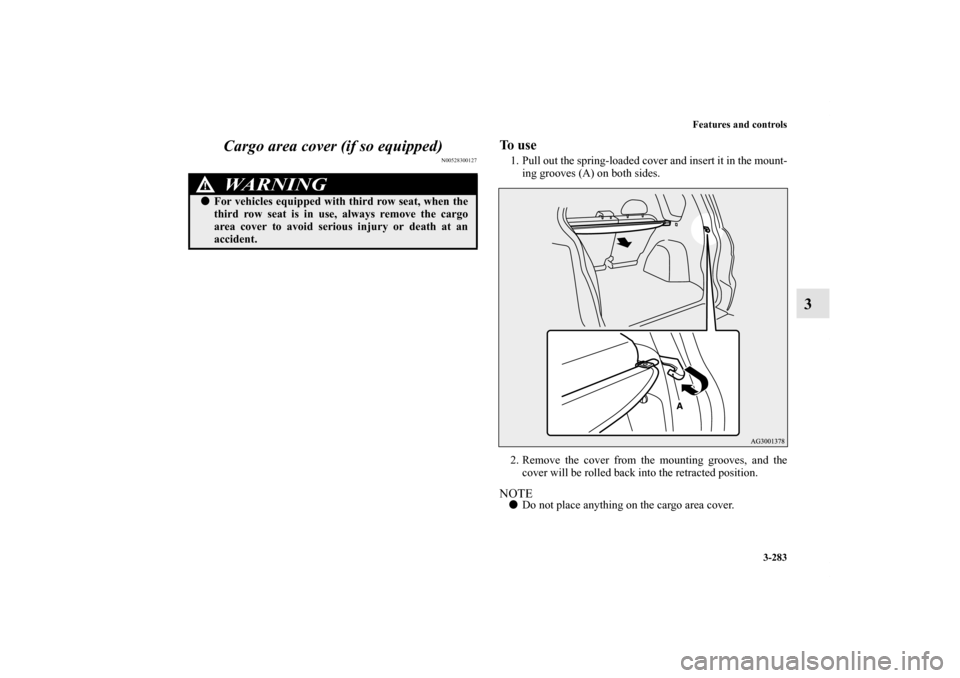

3 Cargo area cover (if so equipped)
N00528300127
To u s e1. Pull out the spring-loaded cover and insert it in the mount-
ing grooves (A) on both sides.
2. Remove the cover from the mounting grooves, and the
cover will be rolled back into the retracted position.NOTE
Do not place anything on the cargo area cover.
WA R N I N G
!
For vehicles equipped with third row seat, when the
third row seat is in use, always remove the cargo
area cover to avoid serious injury or death at an
accident.
BK0122500US.book 283 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-284 Features and controls
3

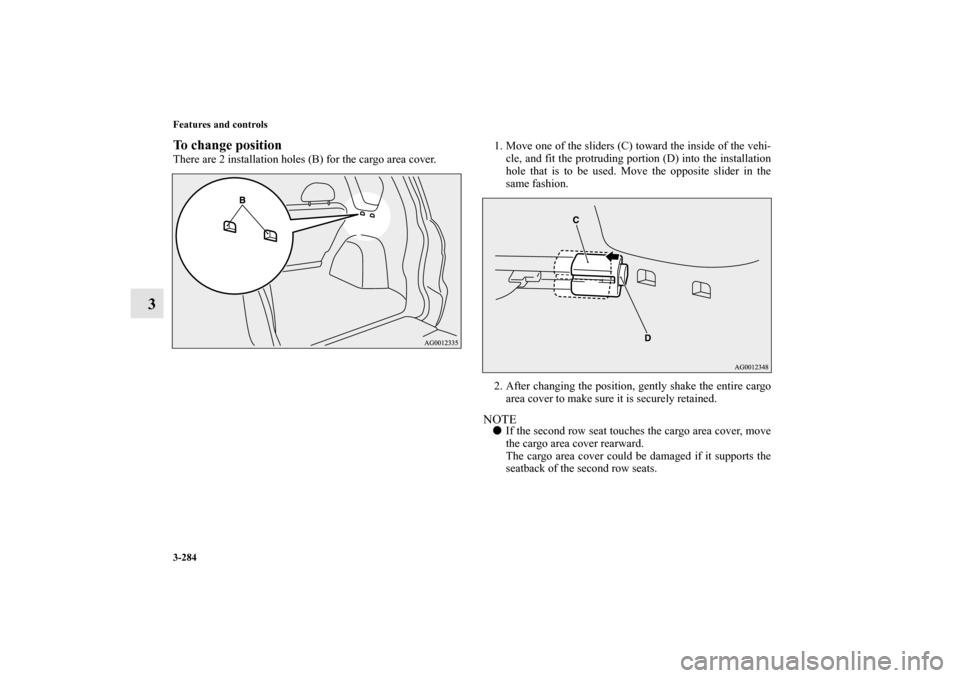

To change positionThere are 2 installation holes (B) for the cargo area cover.1. Move one of the sliders (C) toward the inside of the vehi-
cle, and fit the protruding portion (D) into the installation
hole that is to be used. Move the opposite slider in the
same fashion.
2. After changing the position, gently shake the entire cargo
area cover to make sure it is securely retained.
NOTE
If the second row seat touches the cargo area cover, move
the cargo area cover rearward.
The cargo area cover could be damaged if it supports the
seatback of the second row seats.
BK0122500US.book 284 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-285
3

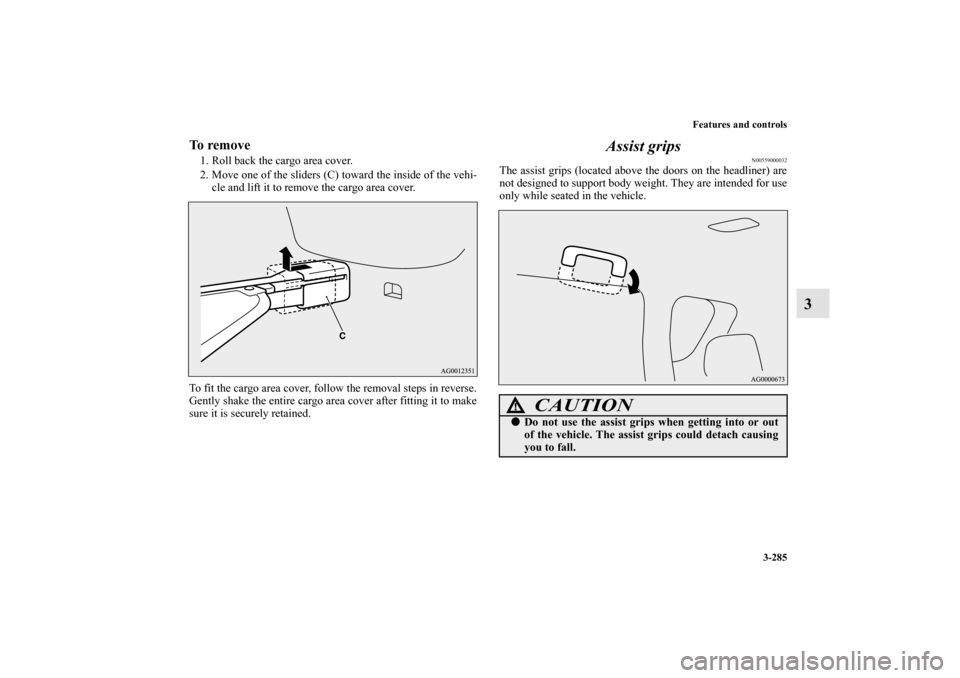

To remove1. Roll back the cargo area cover.
2. Move one of the sliders (C) toward the inside of the vehi-
cle and lift it to remove the cargo area cover.
To fit the cargo area cover, follow the removal steps in reverse.
Gently shake the entire cargo area cover after fitting it to make
sure it is securely retained.
Assist grips
N00559000032
The assist grips (located above the doors on the headliner) are
not designed to support body weight. They are intended for use
only while seated in the vehicle.
CAUTION
!
Do not use the assist grips when getting into or out
of the vehicle. The assist grips could detach causing
you to fall.
BK0122500US.book 285 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
