Page 431 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 5-4 Comfort controls
5

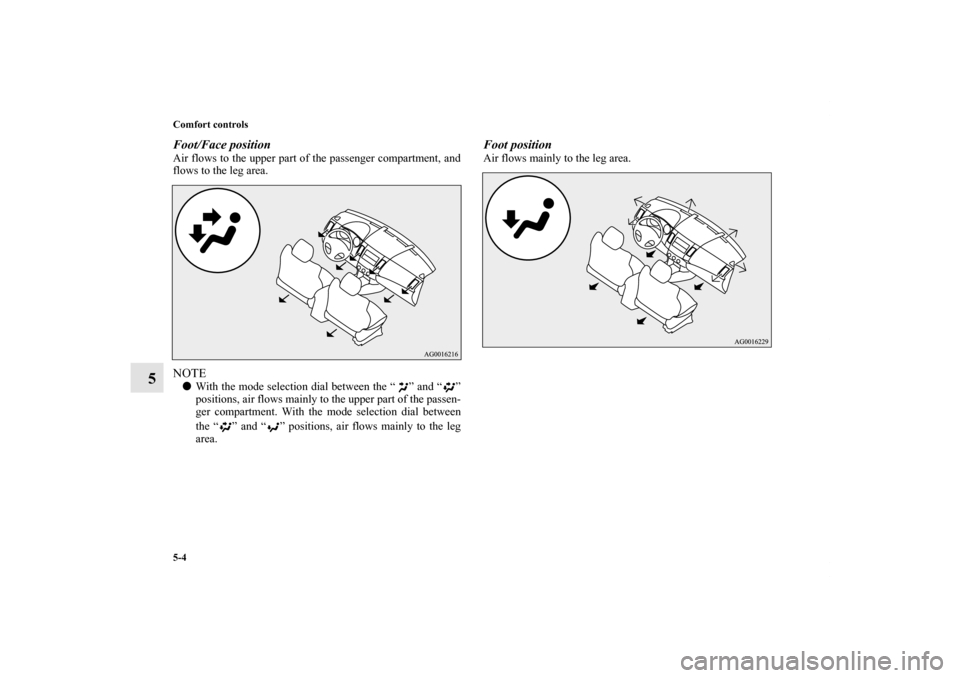

Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTEWith the mode selection dial between the “ ” and “ ”
positions

Page 432 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Comfort controls
5-5
5

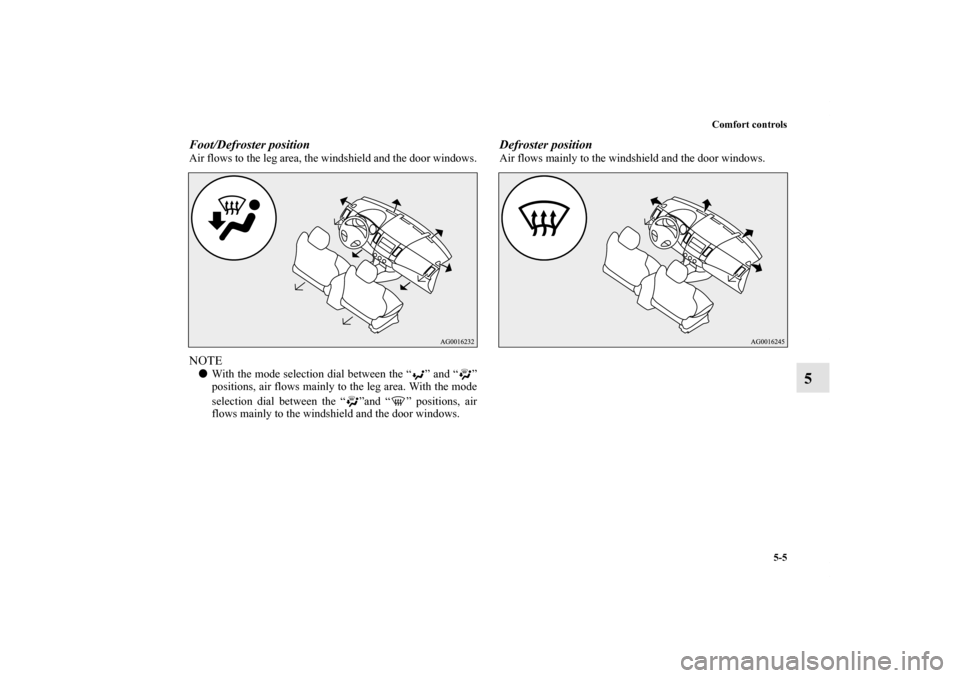

Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTEWith the mode selection dial between the “ ” and “ ”
positions, air flows main

Page 433 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 5-6 Comfort controls

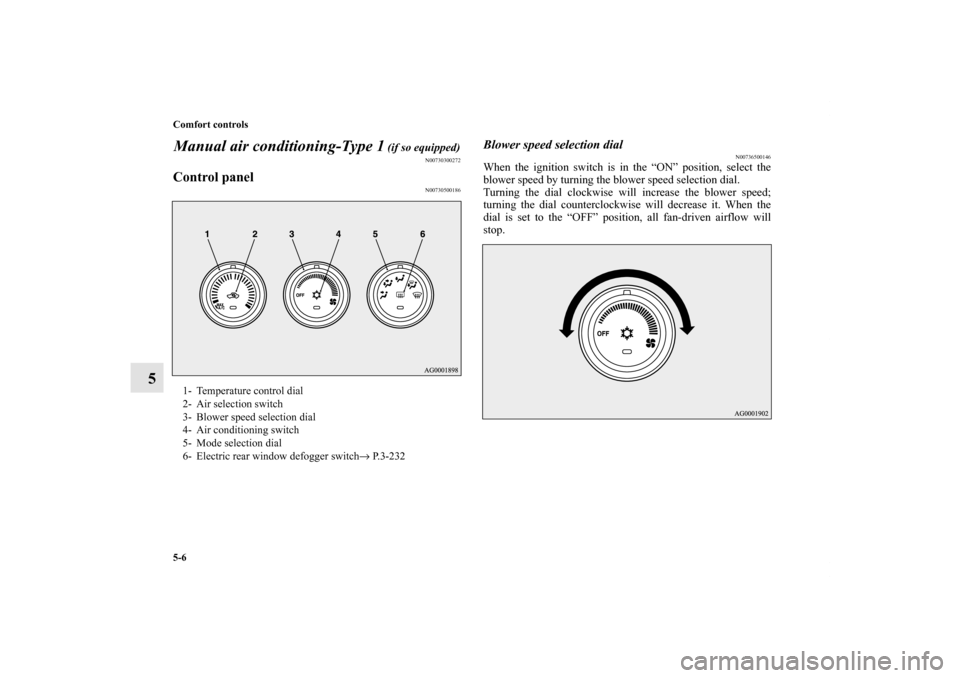

5Manual air conditioning-Type 1
 (if so equipped)
N00730300272
Control panel
N00730500186
Blower speed selection dial
N00736500146
When the ignition switch is in the “ON” posi

Page 434 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Comfort controls
5-7
5

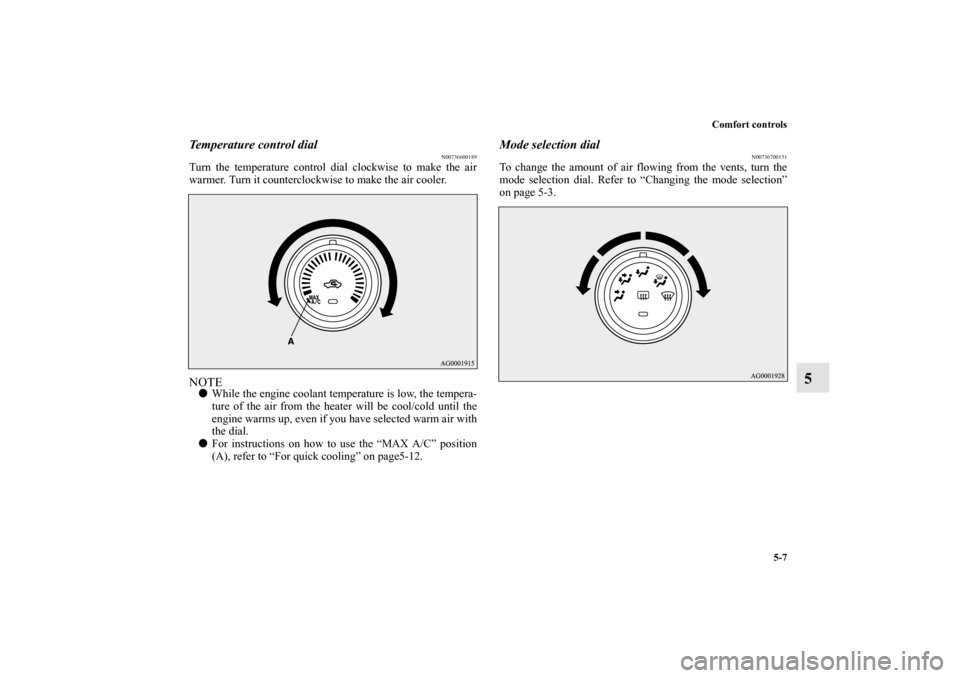

Temperature control dial
N00736600189
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTEWhile the engine c

Page 435 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 5-8 Comfort controls
5

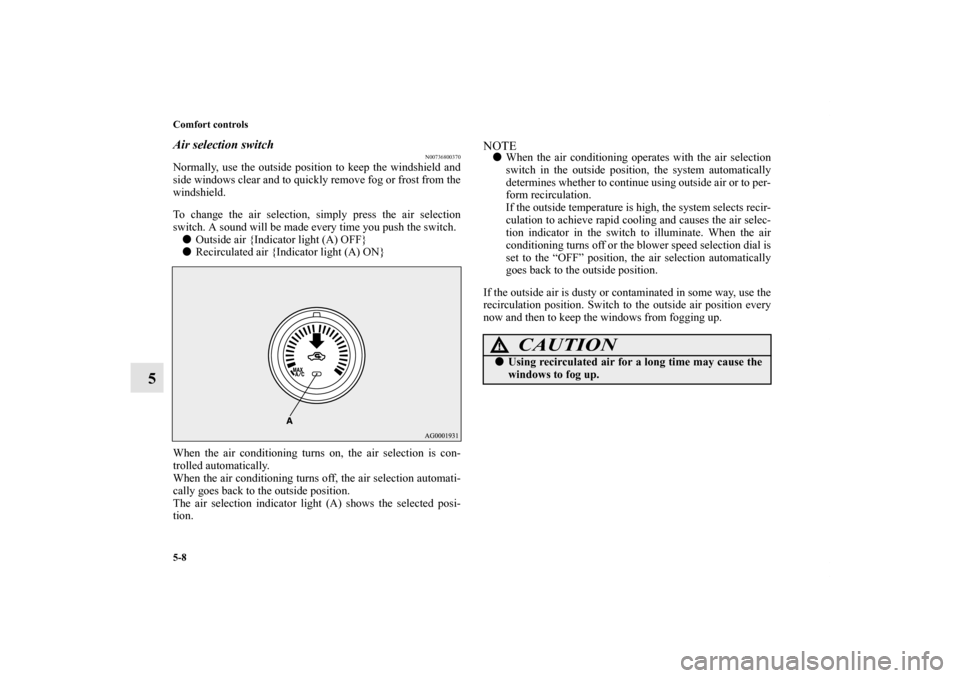

Air selection switch
N00736800370
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To cha

Page 436 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Comfort controls
5-9
5

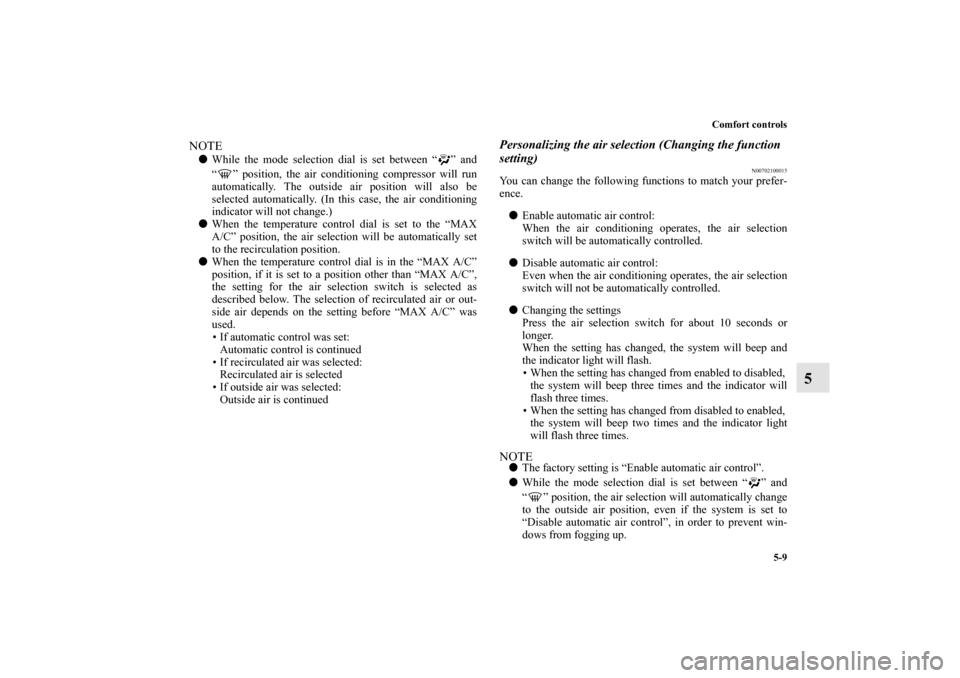

NOTEWhile the mode selection dial is set between “ ” and
“ ” position, the air conditioning compressor will run
automatically. The outside air position will also be
sel

Page 437 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 5-10 Comfort controls
5

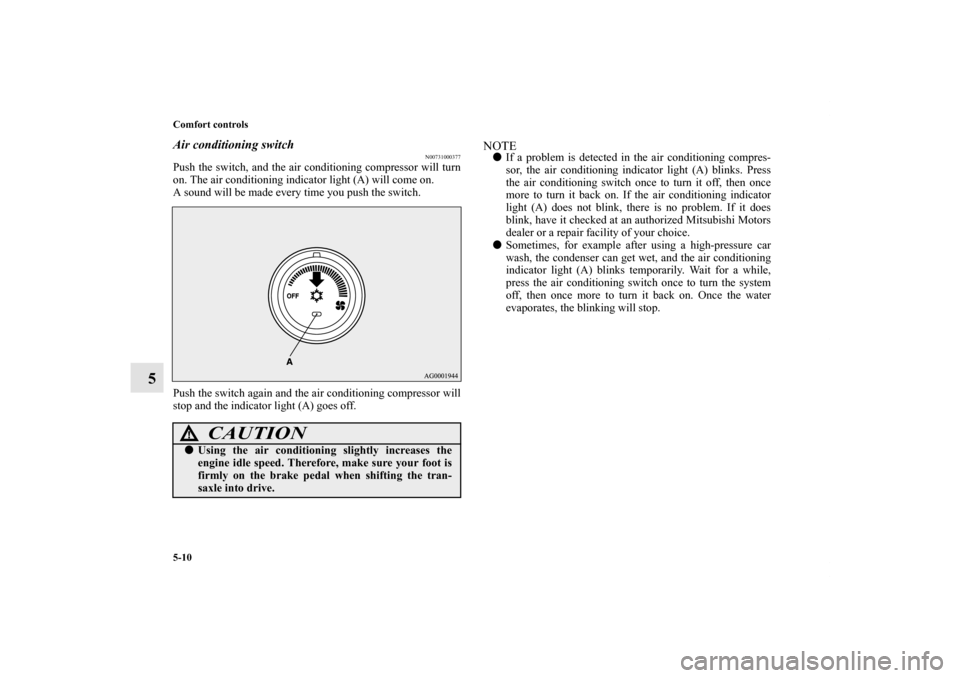

Air conditioning switch
N00731000377
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be m

Page 438 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Comfort controls
5-11
5

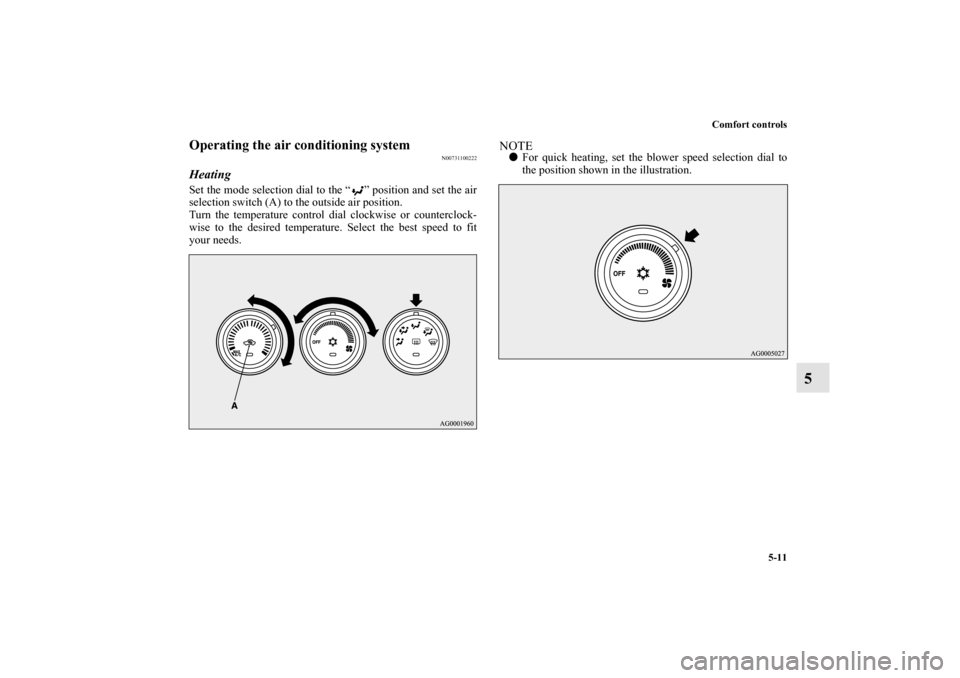

Operating the air conditioning system
N00731100222
HeatingSet the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside air position.

Page 439 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual 5-12 Comfort controls
5

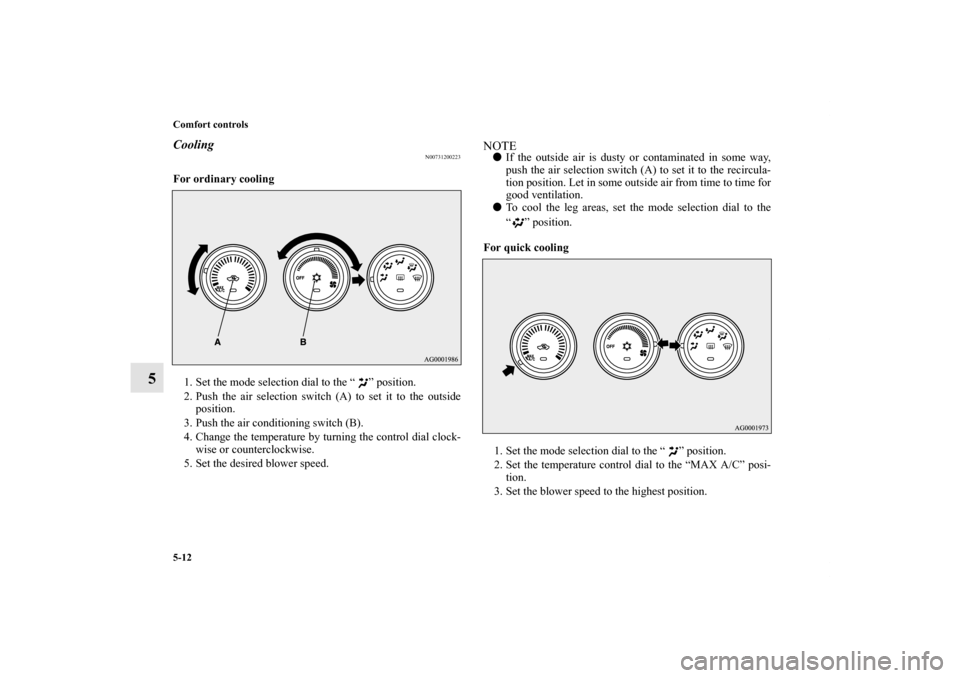

Cooling
N00731200223
For ordinary cooling

1. Set the mode selection dial to the “ ” position.
2. Push the air selection switch (A) to set it to the outside
position.
3.

Page 440 of 714

MITSUBISHI OUTLANDER 2011 2.G Owners Manual Comfort controls
5-13
5

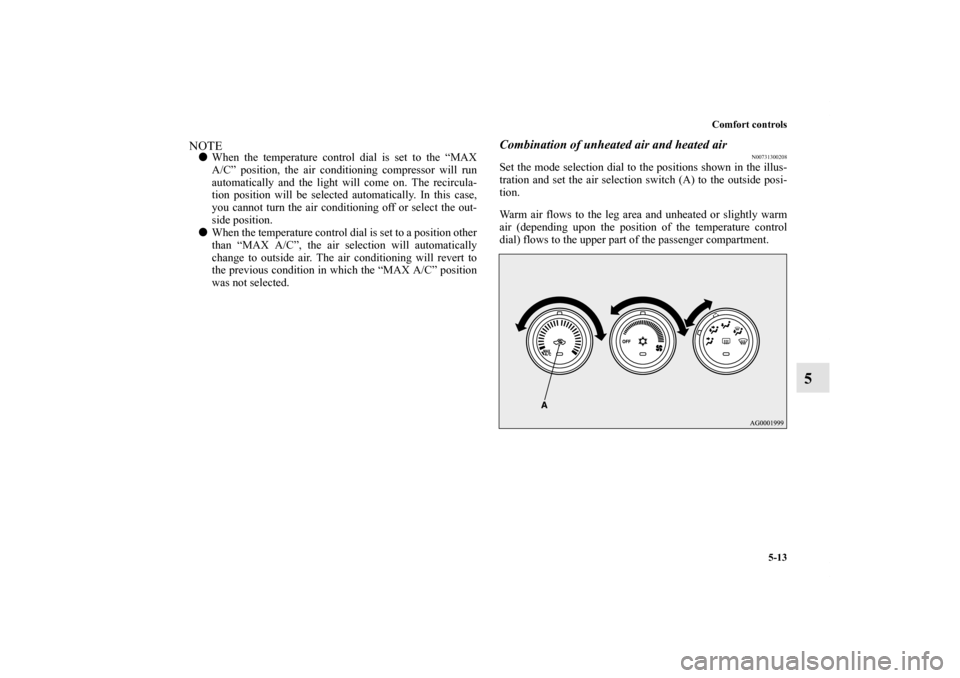

NOTEWhen the temperature control dial is set to the “MAX
A/C” position, the air conditioning compressor will run
automatically and the light will come on. The recircula-
t
