5-14 Comfort controls
5

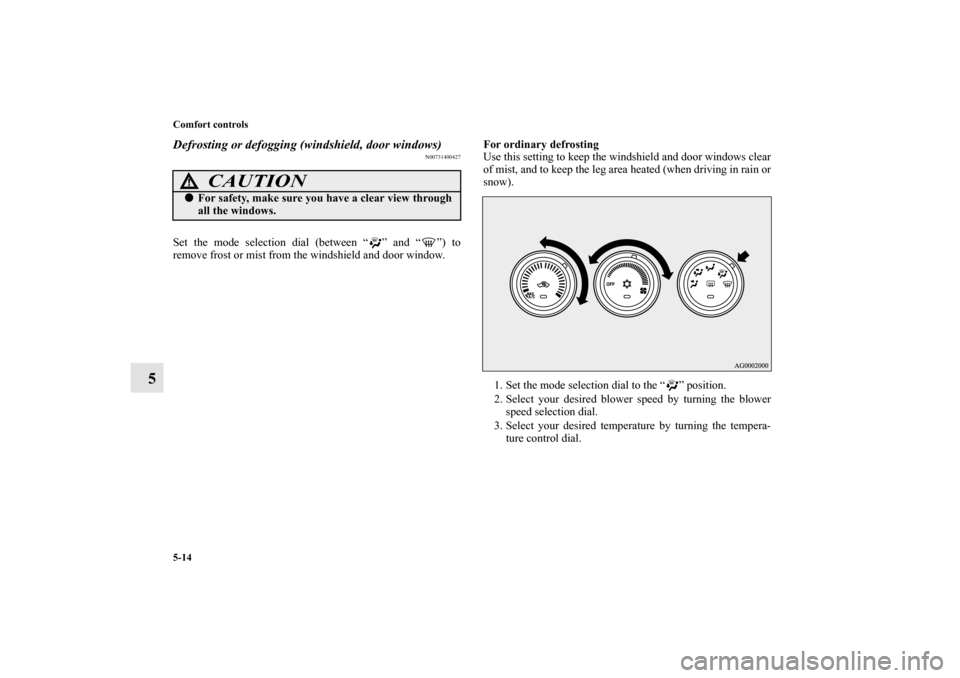

Defrosting or defogging (windshield, door windows)
N00731400427
Set the mode selection dial (between “ ” and “ ”) to
remove frost or mist from the windshield and door window.For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0122500US.book 14 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Comfort controls
5-15
5

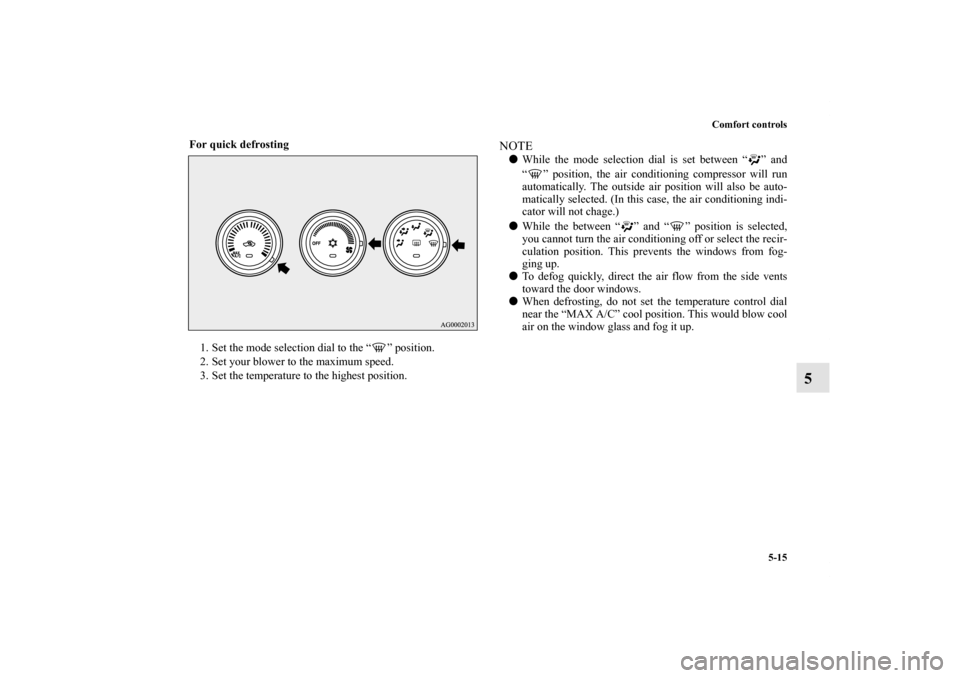

For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
While the mode selection dial is set between “ ” and
“ ” position, the air conditioning compressor will run
automatically. The outside air position will also be auto-
matically selected. (In this case, the air conditioning indi-
cator will not chage.)

While the between “ ” and “ ” position is selected,
you cannot turn the air conditioning off or select the recir-
culation position. This prevents the windows from fog-
ging up.

To defog quickly, direct the air flow from the side vents
toward the door windows.

When defrosting, do not set the temperature control dial
near the “MAX A/C” cool position. This would blow cool
air on the window glass and fog it up.
BK0122500US.book 15 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

5-16 Comfort controls

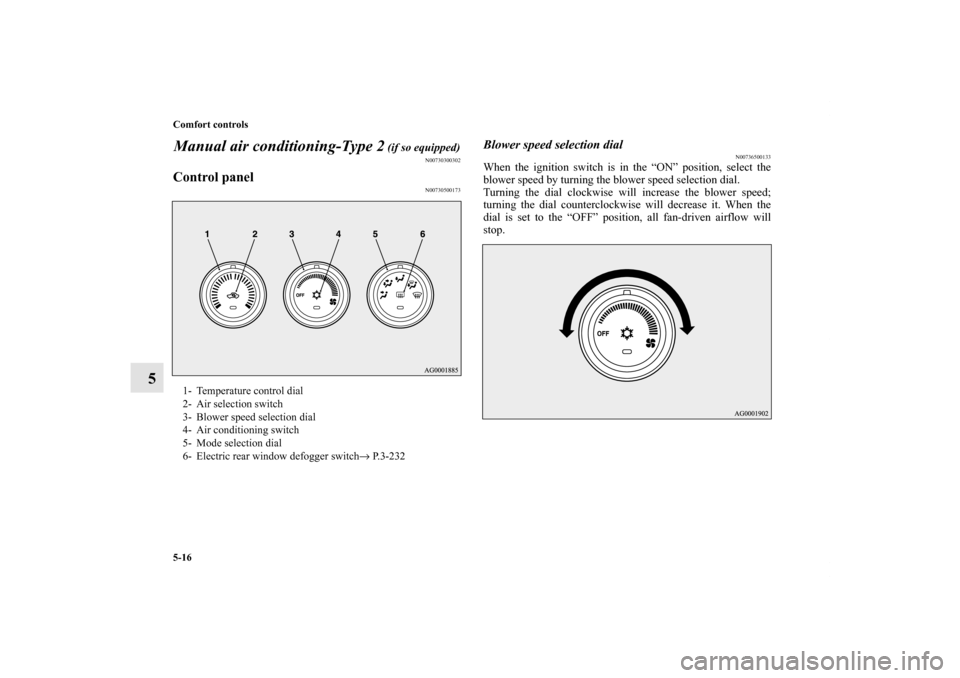

5Manual air conditioning-Type 2
(if so equipped)
N00730300302
Control panel
N00730500173
Blower speed selection dial
N00736500133
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Mode selection dial
6- Electric rear window defogger switch→ P. 3 - 2 3 2
BK0122500US.book 16 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Comfort controls
5-17
5

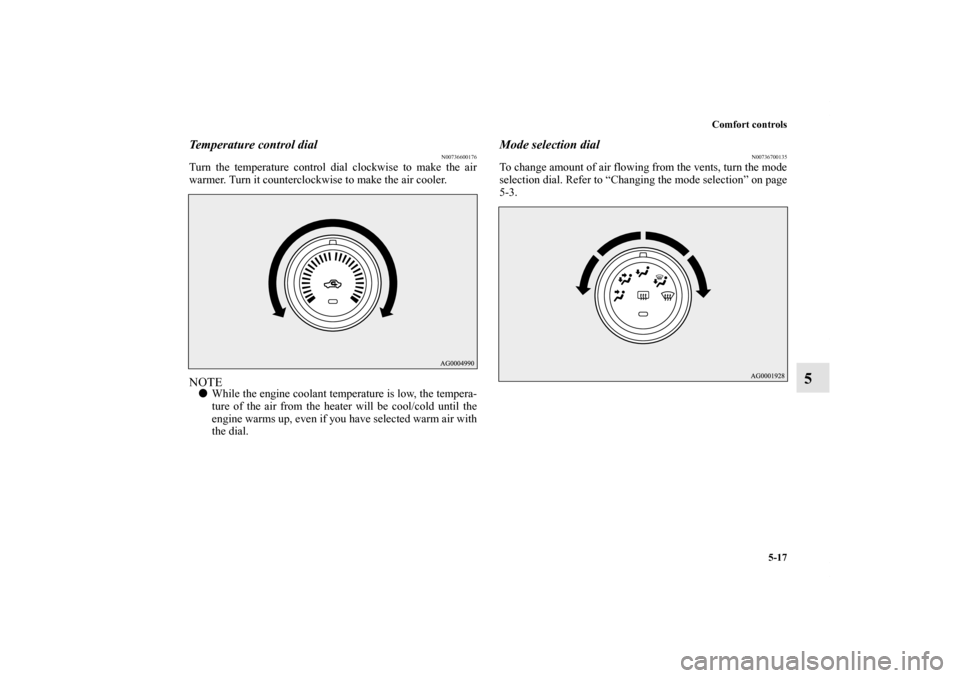

Temperature control dial
N00736600176
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Mode selection dial
N00736700135
To change amount of air flowing from the vents, turn the mode
selection dial. Refer to “Changing the mode selection” on page
5-3.
BK0122500US.book 17 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

5-18 Comfort controls
5

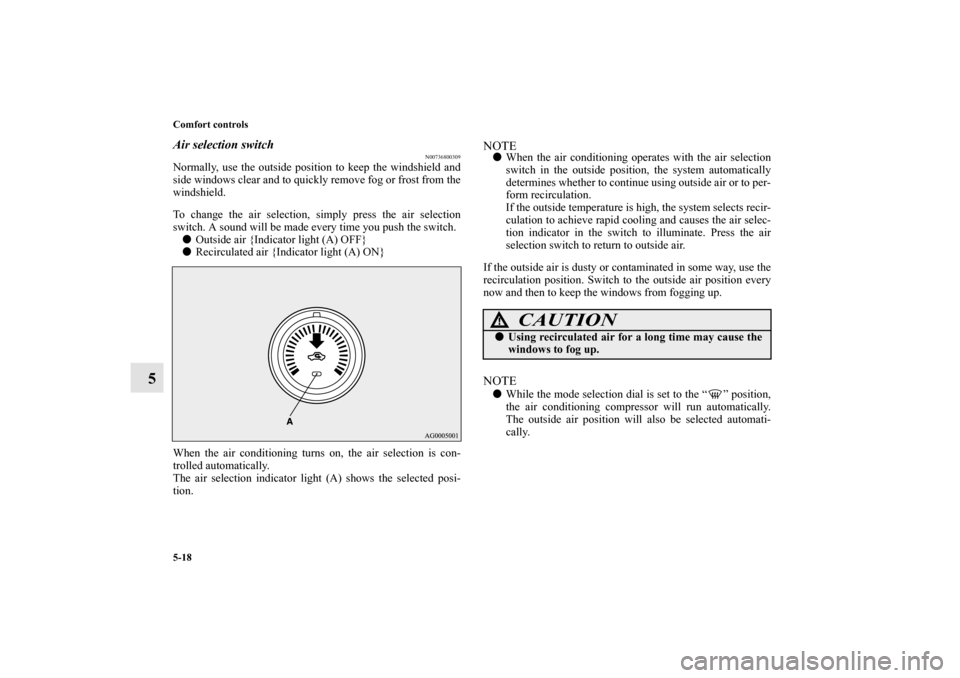

Air selection switch
N00736800309
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you push the switch.

Outside air {Indicator light (A) OFF}

Recirculated air {Indicator light (A) ON}
When the air conditioning turns on, the air selection is con-
trolled automatically.
The air selection indicator light (A) shows the selected posi-
tion.
NOTE
When the air conditioning operates with the air selection
switch in the outside position, the system automatically
determines whether to continue using outside air or to per-
form recirculation.
If the outside temperature is high, the system selects recir-
culation to achieve rapid cooling and causes the air selec-
tion indicator in the switch to illuminate. Press the air
selection switch to return to outside air.
If the outside air is dusty or contaminated in some way, use the
recirculation position. Switch to the outside air position every
now and then to keep the windows from fogging up.NOTE
While the mode selection dial is set to the “ ” position,
the air conditioning compressor will run automatically.
The outside air position will also be selected automati-
cally.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0122500US.book 18 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Comfort controls
5-19
5

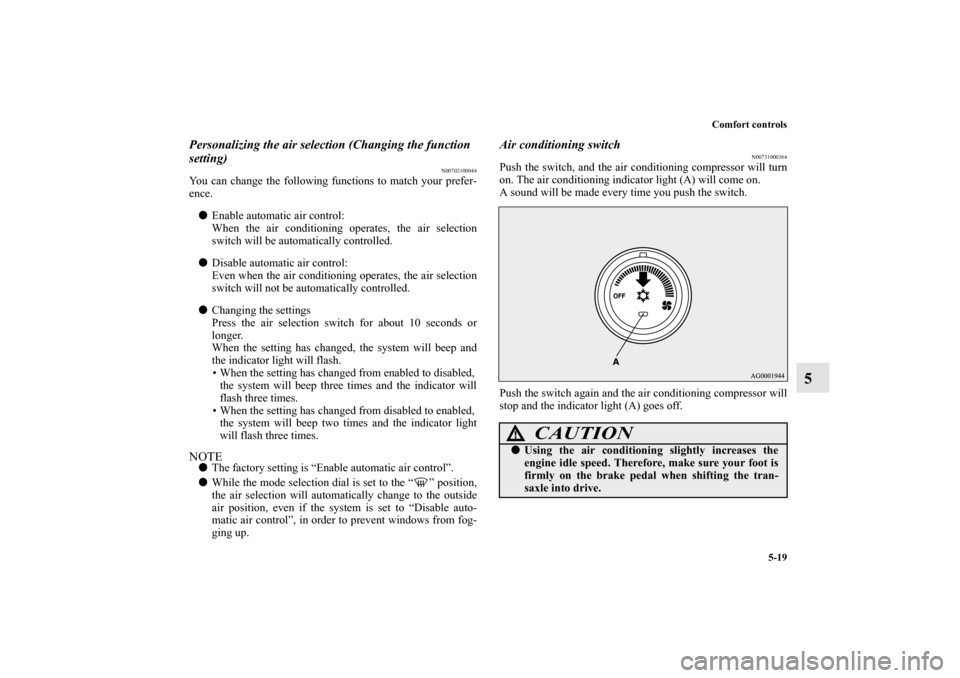

Personalizing the air selection (Changing the function
setting)
N00702100044
You can change the following functions to match your prefer-
ence.

Enable automatic air control:
When the air conditioning operates, the air selection
switch will be automatically controlled.

Disable automatic air control:
Even when the air conditioning operates, the air selection
switch will not be automatically controlled.

Changing the settings
Press the air selection switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
• When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
• When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.NOTE
The factory setting is “Enable automatic air control”.

While the mode selection dial is set to the “ ” position,
the air selection will automatically change to the outside
air position, even if the system is set to “Disable auto-
matic air control”, in order to prevent windows from fog-
ging up.
Air conditioning switch
N00731000364
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be made every time you push the switch.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
CAUTION
!
Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
BK0122500US.book 19 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

5-20 Comfort controls
5

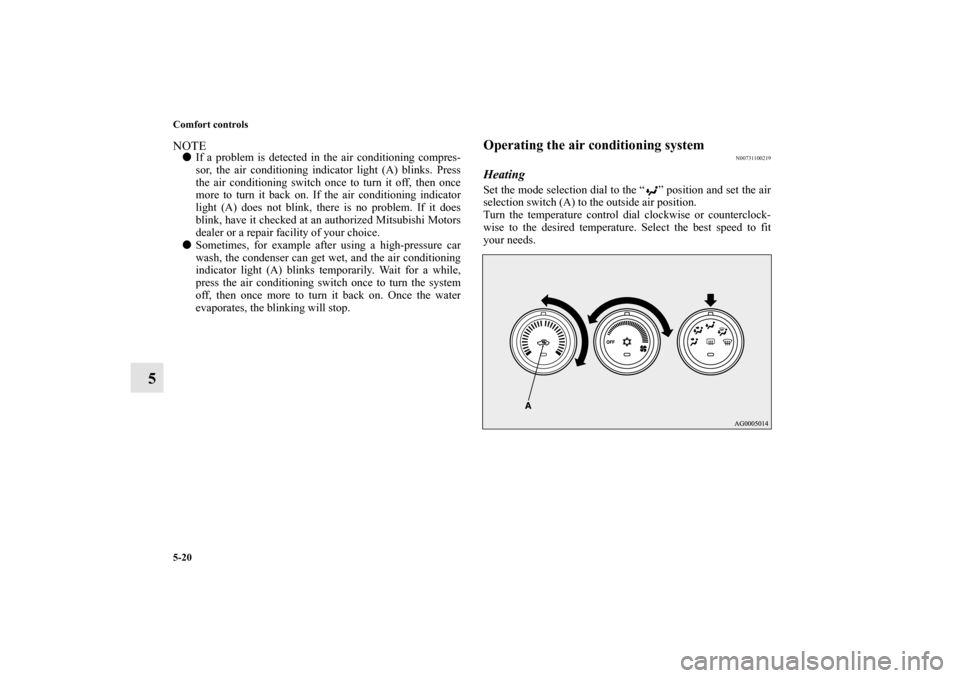

NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light (A) does not blink, there is no problem. If it does
blink, have it checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. Wait for a while,
press the air conditioning switch once to turn the system
off, then once more to turn it back on. Once the water
evaporates, the blinking will stop.
Operating the air conditioning system
N00731100219
HeatingSet the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside air position.
Turn the temperature control dial clockwise or counterclock-
wise to the desired temperature. Select the best speed to fit
your needs.
BK0122500US.book 20 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Comfort controls
5-21
5

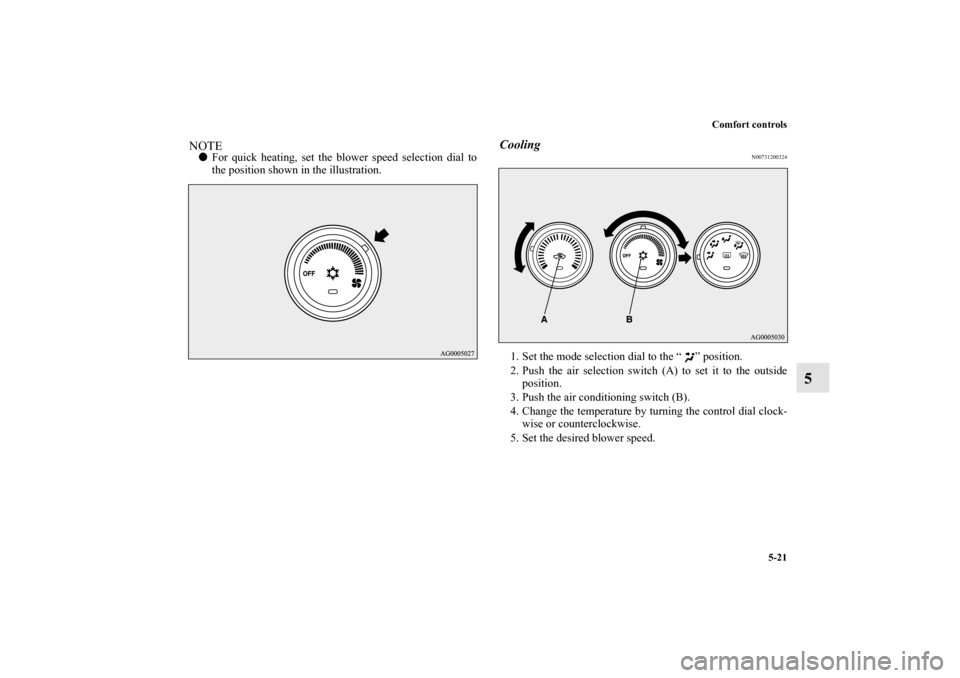

NOTE
For quick heating, set the blower speed selection dial to
the position shown in the illustration.
Cooling
N00731200324
1. Set the mode selection dial to the “ ” position.
2. Push the air selection switch (A) to set it to the outside
position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clock-
wise or counterclockwise.
5. Set the desired blower speed.
BK0122500US.book 21 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

5-22 Comfort controls
5
NOTE
If the outside air is dusty or contaminated in some way,
push the air selection switch (A) to set it to the recircula-
tion position. Let in some outside air from time to time for
good ventilation.

To cool the leg areas, set the mode selection dial to the
“ ” position.

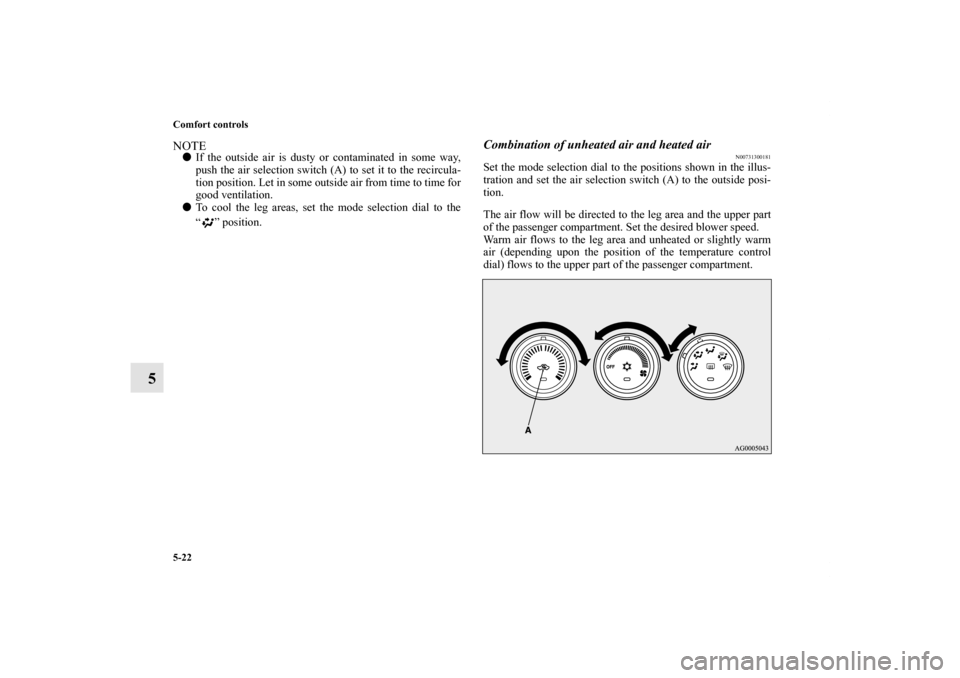

Combination of unheated air and heated air
N00731300181
Set the mode selection dial to the positions shown in the illus-
tration and set the air selection switch (A) to the outside posi-
tion.
The air flow will be directed to the leg area and the upper part
of the passenger compartment. Set the desired blower speed.
Warm air flows to the leg area and unheated or slightly warm
air (depending upon the position of the temperature control
dial) flows to the upper part of the passenger compartment.
BK0122500US.book 22 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Comfort controls
5-23
5

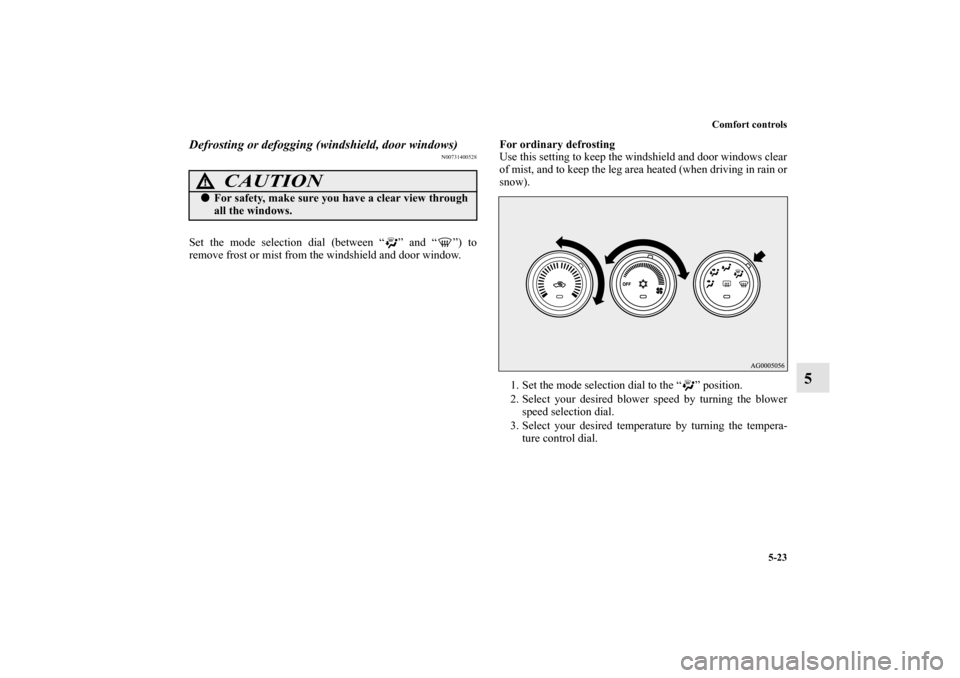

Defrosting or defogging (windshield, door windows)
N00731400528
Set the mode selection dial (between “ ” and “ ”) to
remove frost or mist from the windshield and door window.For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0122500US.book 23 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
