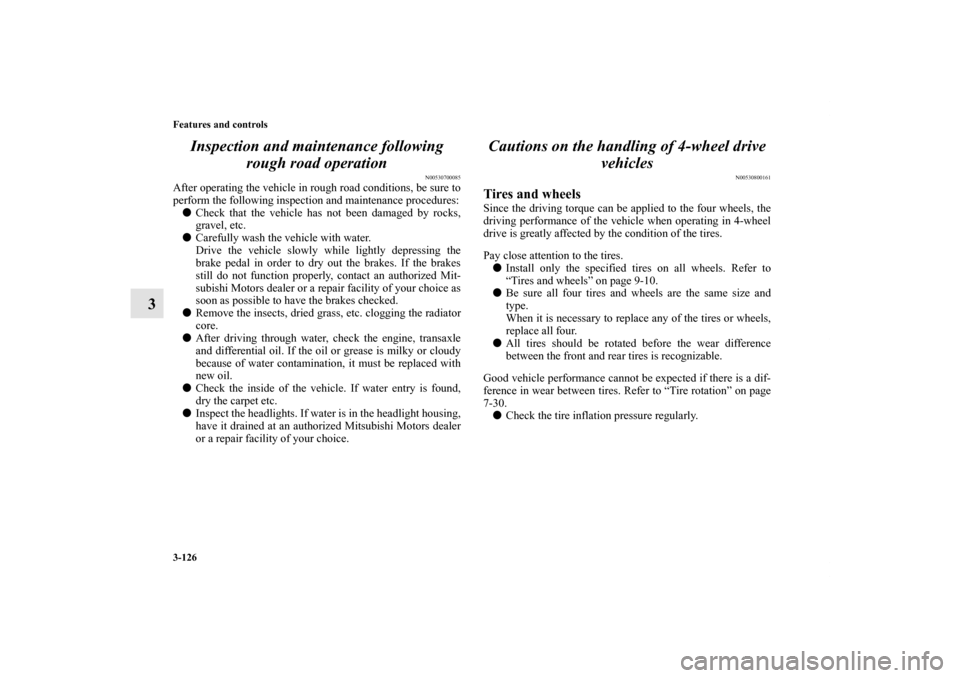

Page 241 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 3-126 Features and controls
3Inspection and maintenance following
rough road operation
N00530700085
After operating the vehicle in rough road conditions, be sure to
perform the following inspection a

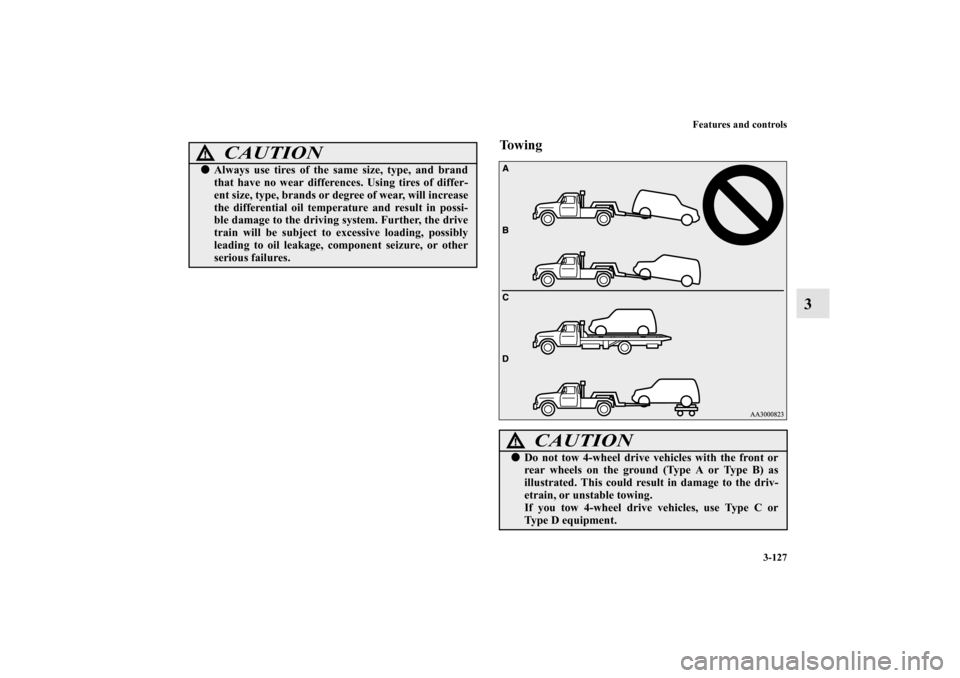

Page 242 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual Features and controls
3-127
3
To w i n g
CAUTION
!Always use tires of the same size, type, and brand
that have no wear differences. Using tires of differ-
ent size, type, brands or degree of wear, wi

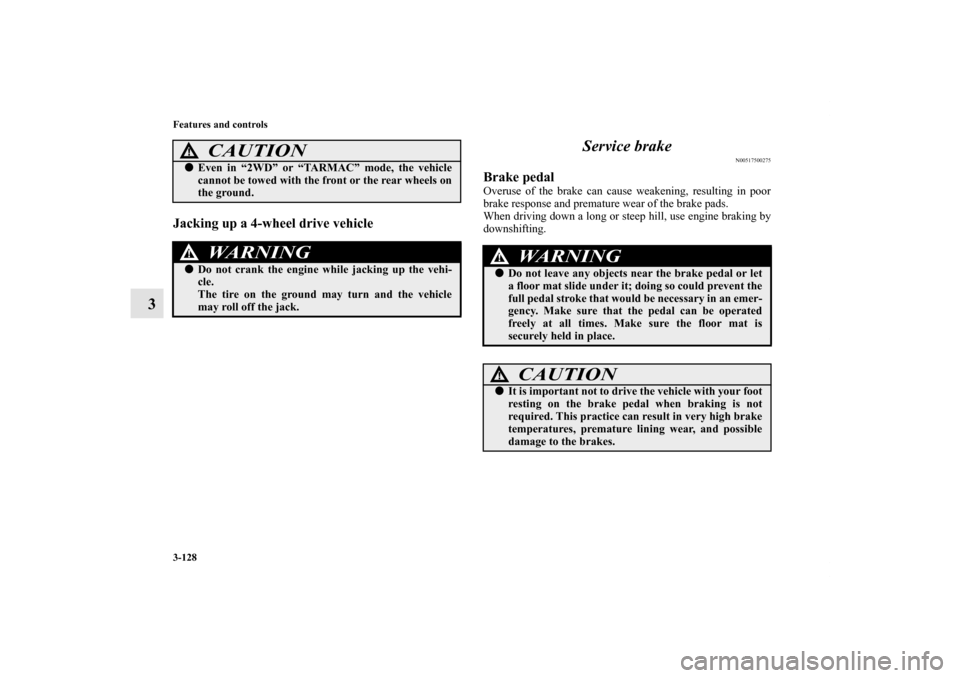

Page 243 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 3-128 Features and controls
3
Jacking up a 4-wheel drive vehicle
Service brake
N00517500275
Brake pedalOveruse of the brake can cause weakening, resulting in poor
brake response and premature wear of

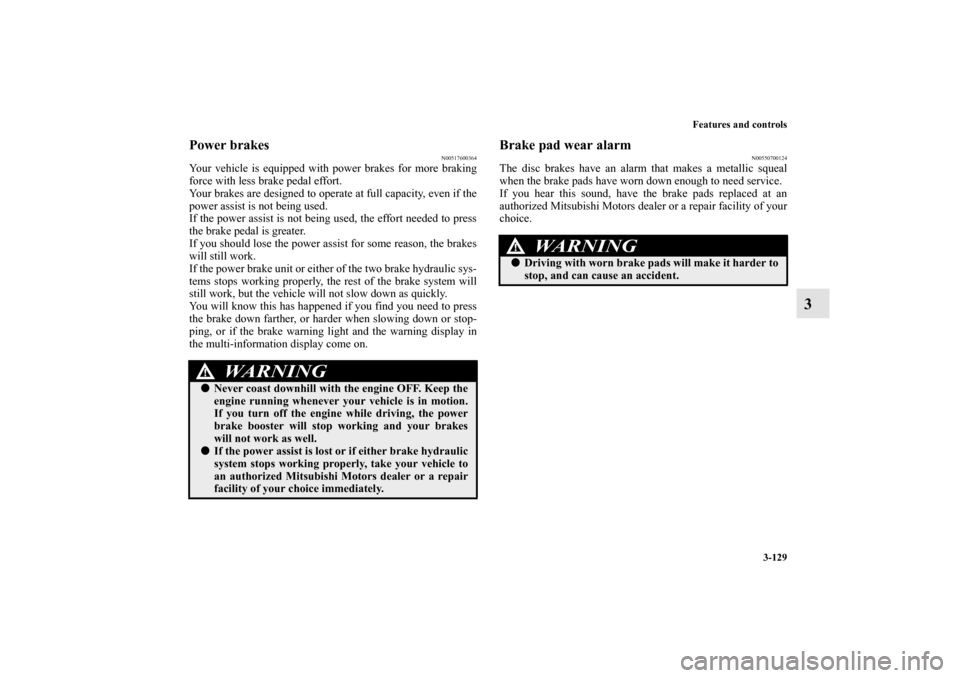

Page 244 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual Features and controls
3-129
3
Power brakes
N00517600364
Your vehicle is equipped with power brakes for more braking
force with less brake pedal effort.
Your brakes are designed to operate at full capa

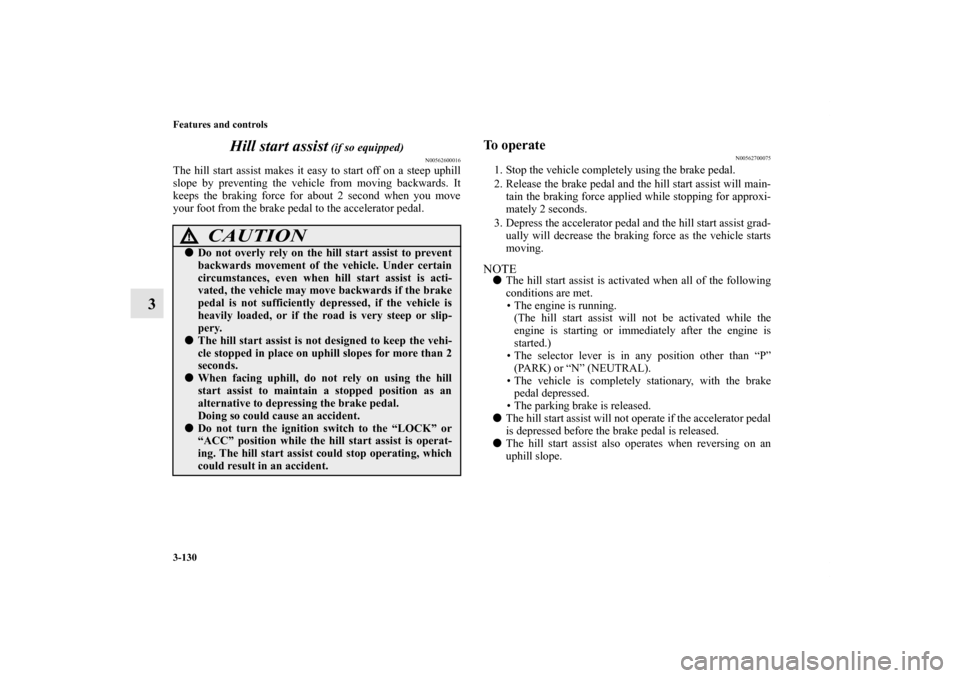

Page 245 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 3-130 Features and controls
3Hill start assist
 (if so equipped)
N00562600016
The hill start assist makes it easy to start off on a steep uphill
slope by preventing the vehicle from moving backwards.

Page 246 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual Features and controls
3-131
3
Warning display
N00562800076
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display type 1
Warning display  type 2NO

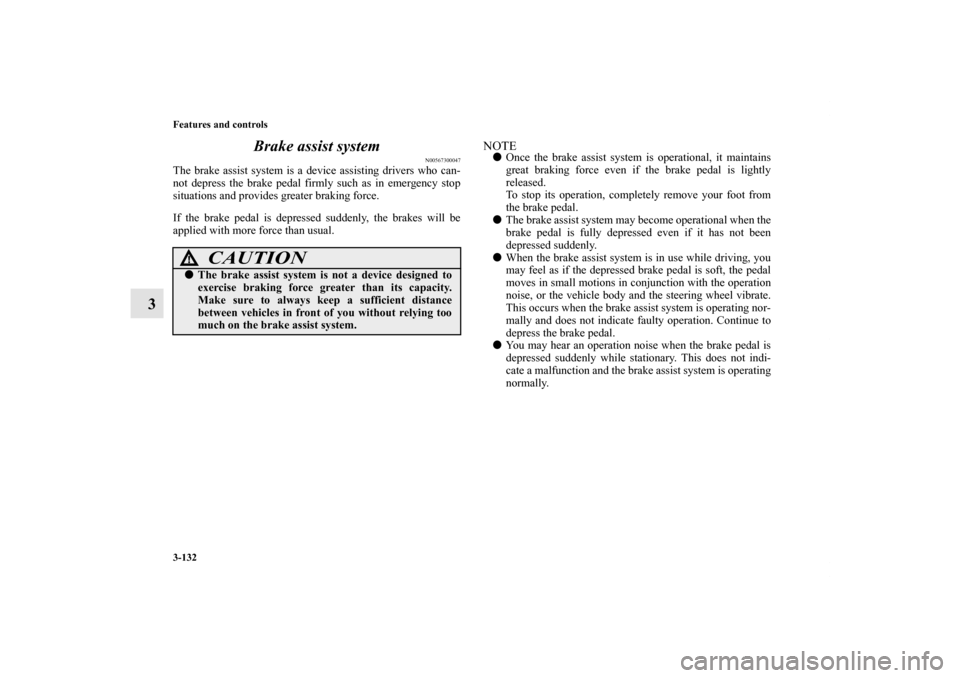

Page 247 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 3-132 Features and controls
3Brake assist system
N00567300047
The brake assist system is a device assisting drivers who can-
not depress the brake pedal firmly such as in emergency stop
situations and

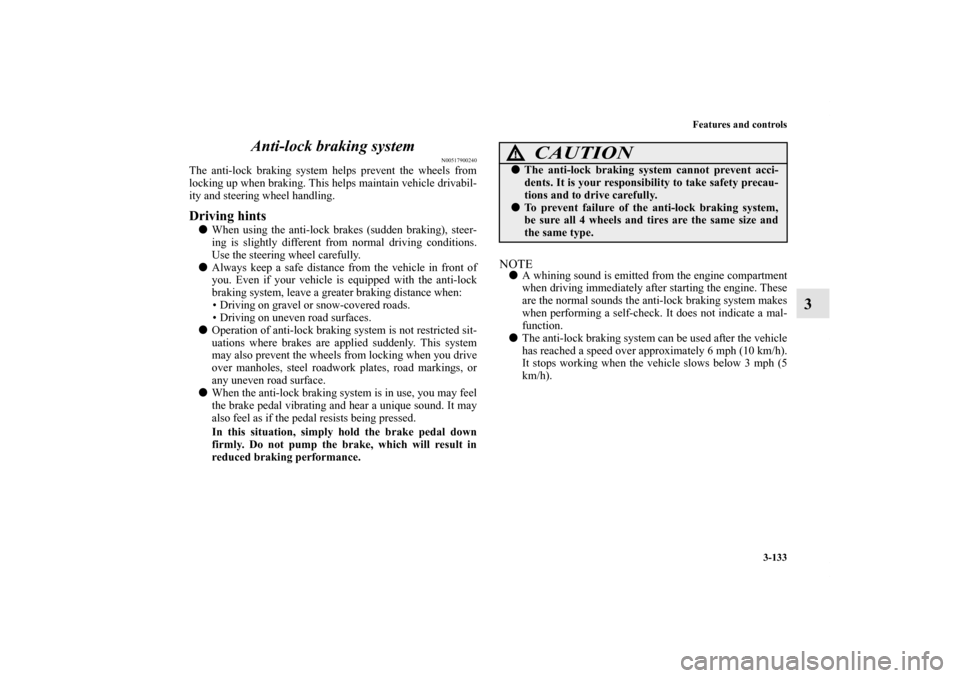

Page 248 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual Features and controls
3-133
3 Anti-lock braking system
N00517900240
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps maintain vehicle drivabil-
ity and st

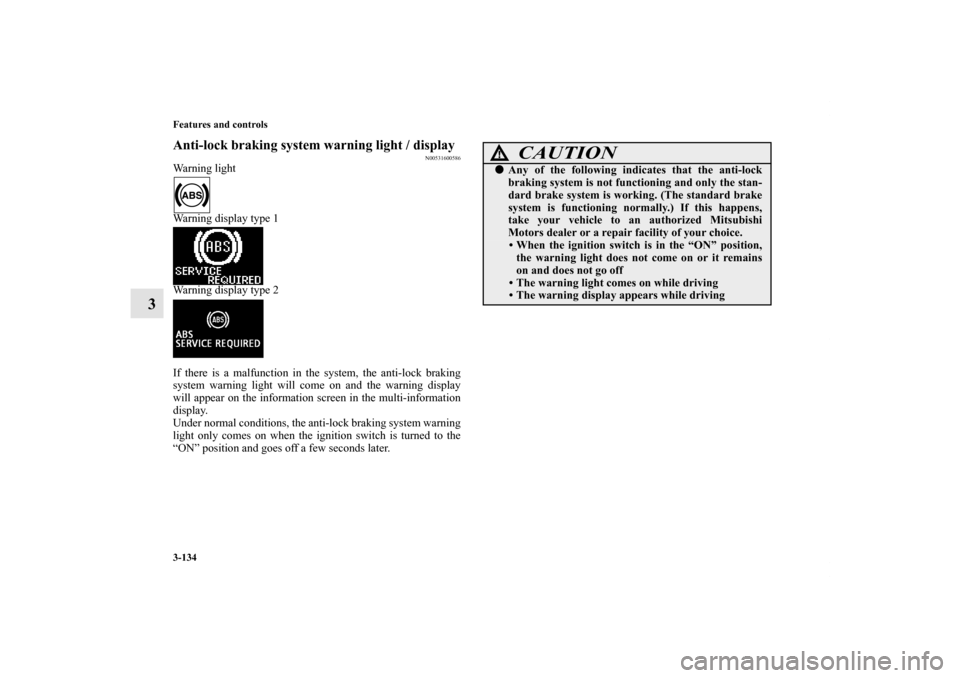

Page 249 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 3-134 Features and controls
3
Anti-lock braking system warning light / display
N00531600586
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the ant

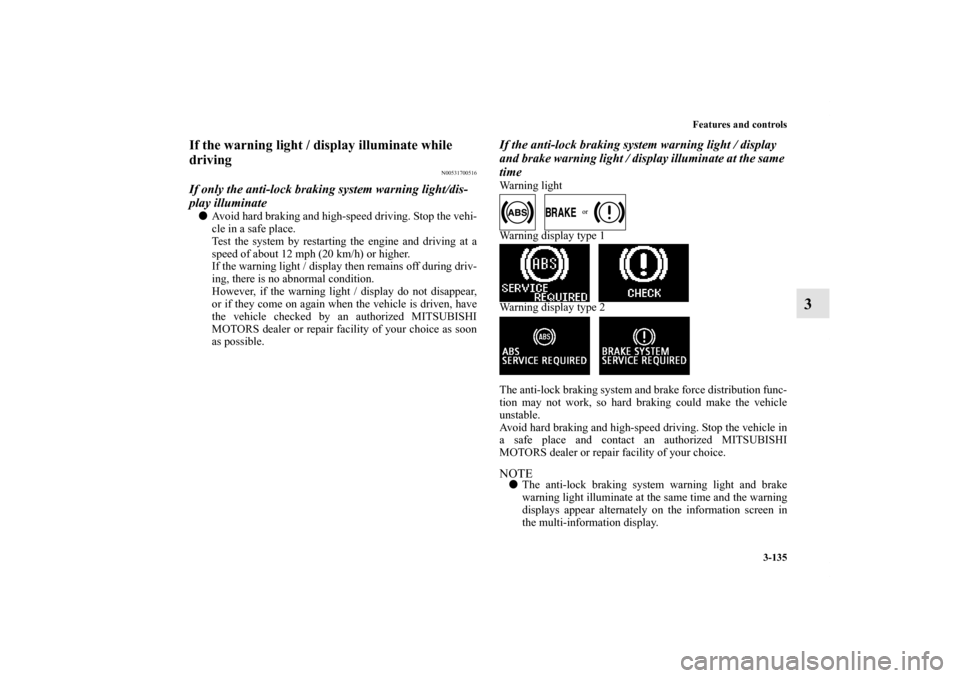

Page 250 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual Features and controls
3-135
3
If the warning light / display illuminate while
driving
N00531700516
If only the anti-lock braking system warning light/dis-
play illuminateAvoid hard braking and high-
