3-166 Features and controls
3
NOTEThe fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.
The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-199.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-171.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-173.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-202.Multi-information meter switch
N00555100152

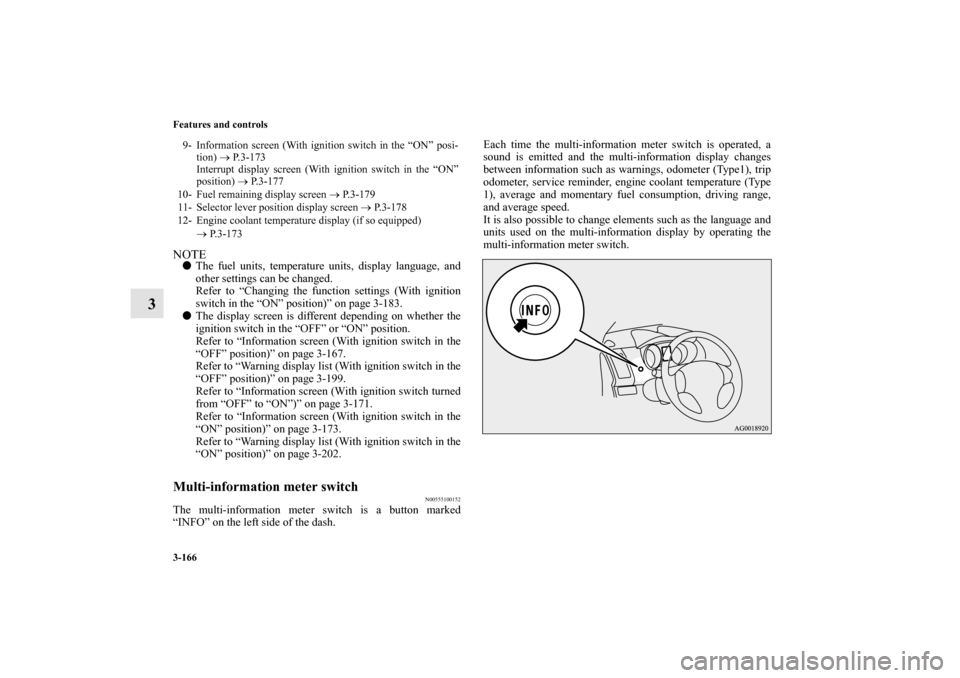

The multi-information meter switch is a button marked
“INFO” on the left side of the dash.Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer (Type1), trip
odometer, service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.9- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-173
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-177
10- Fuel remaining display screen → P. 3 - 1 7 9
11- Selector lever position display screen → P.3-178
12- Engine coolant temperature display (if so equipped)
→ P. 3 - 1 7 3
BK0138000US.book 166 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 282 of 714
Features and controls
3-167
3
“!” Warning display screen (With ignition switch
in the “OFF” position)
N00555200166
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the “!”
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-169.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the “!” warning goes out automatically.NOTEWhen the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Refer to “Information screen (With ignition switch in the

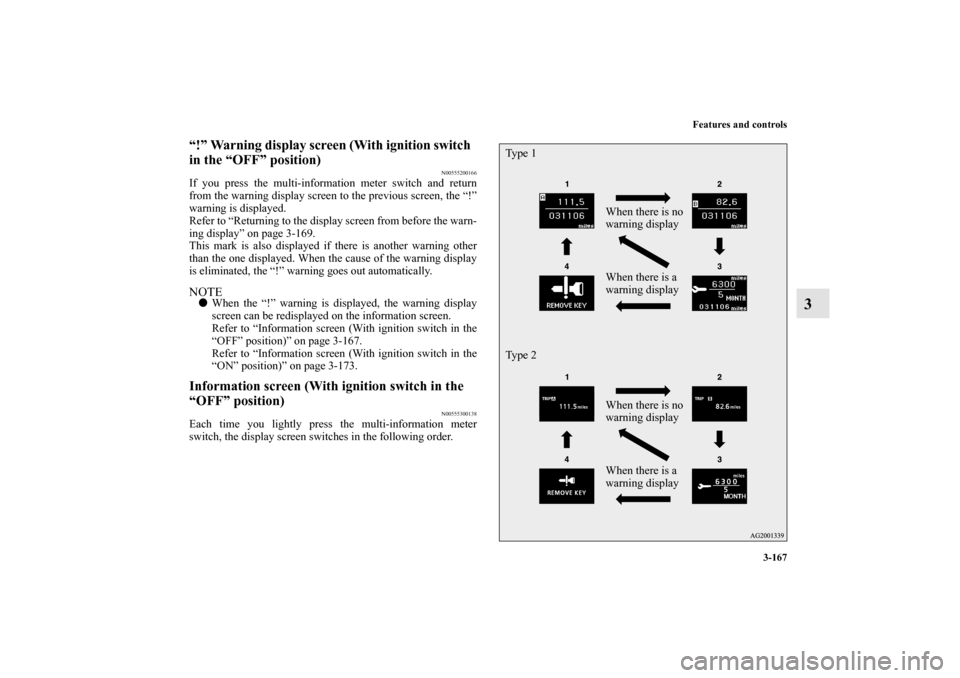

“ON” position)” on page 3-173.Information screen (With ignition switch in the
“OFF” position)
N00555300138
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
When there is no
warning display
When there is a
warning display Ty p e 1
Ty p e 2
When there is no
warning display
When there is a
warning display
BK0138000US.book 167 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 283 of 714
3-168 Features and controls
3
Odometer/Trip odometer
N00555400126
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If trip odometer is displayed, only trip odometer will
be reset.1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
Ty p e 1
Ty p e 2
BK0138000US.book 168 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 284 of 714
Features and controls
3-169
3
NOTEIf there is no warning display, the switching sequence is:
odometer/trip odometer → odometer/trip odometer
→ service reminder → odometer/trip odometer .
Both trip odometers and can count up to 9999.9
miles/kilometers.
When a trip odometer goes past 9999.9 miles/kilometers,
it returns to 0.0 miles/kilometers.
When disconnecting the battery terminal, the memories of
trip odometer displays and are cleared, and their
displays return to “0.0 miles/kilometers”.Service reminder
N00555500013
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-180.

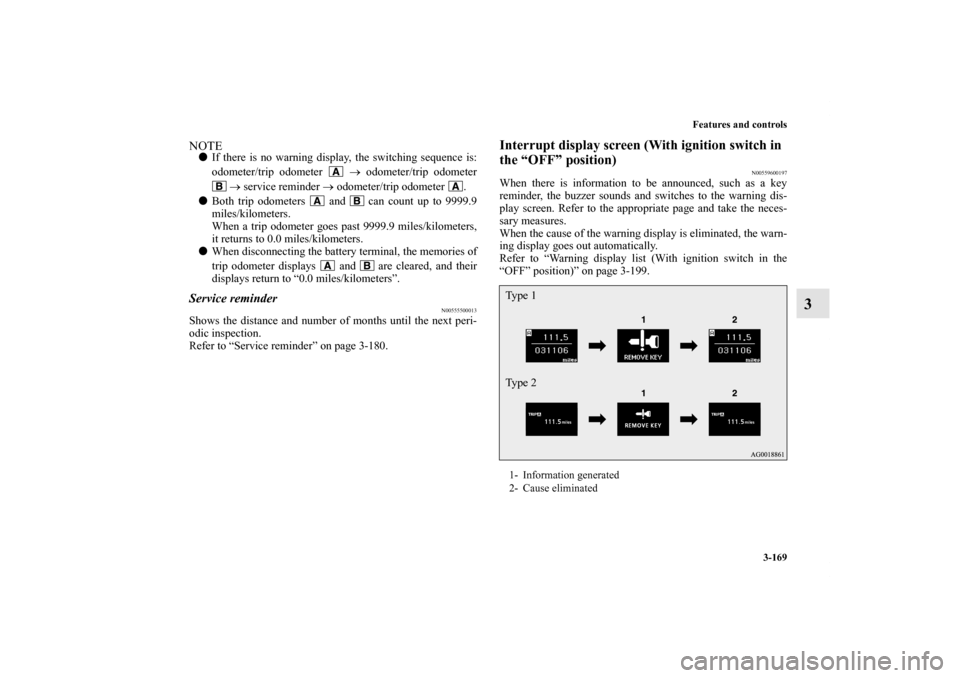

Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600197
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-199.1- Information generated
2- Cause eliminatedTy p e 1
Ty p e 2
BK0138000US.book 169 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 285 of 714
3-170 Features and controls
3

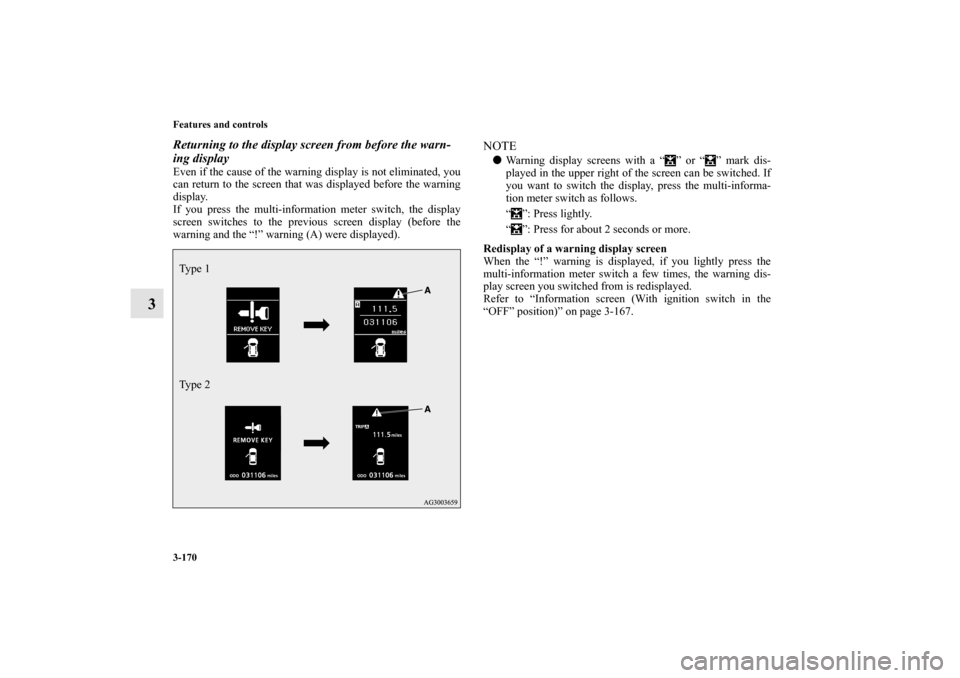

Returning to the display screen from before the warn-
ing displayEven if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the previous screen display (before the
warning and the “!” warning (A) were displayed).
NOTEWarning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the “!” warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Ty p e 1
Ty p e 2BK0138000US.book 170 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 286 of 714
Features and controls
3-171
3

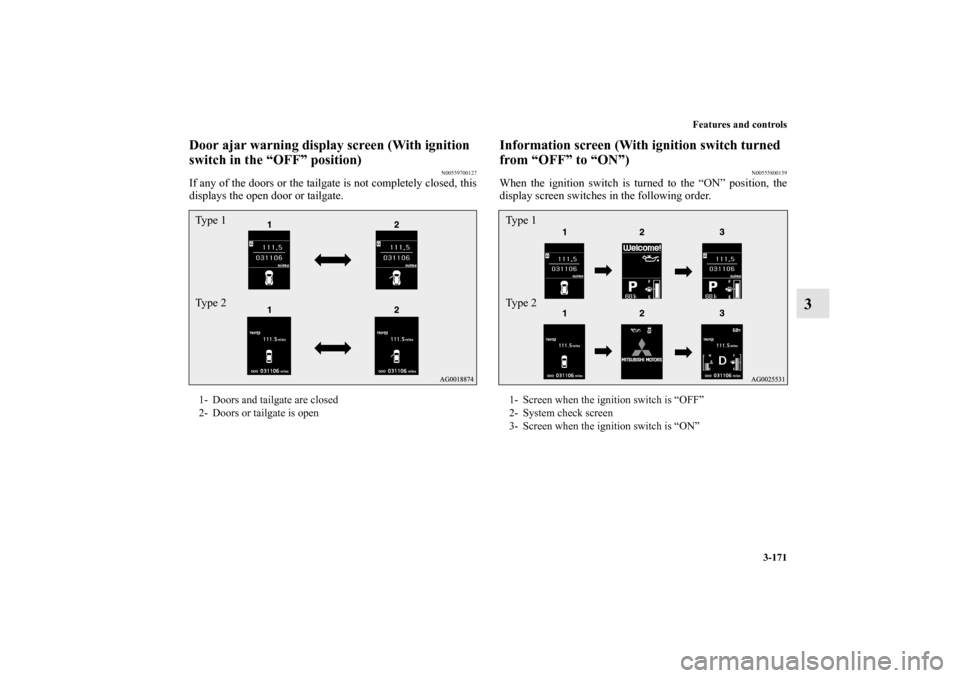

Door ajar warning display screen (With ignition
switch in the “OFF” position)
N00559700127
If any of the doors or the tailgate is not completely closed, this
displays the open door or tailgate.
Information screen (With ignition switch turned
from “OFF” to “ON”)
N00555800159
When the ignition switch is turned to the “ON” position, the
display screen switches in the following order.
1- Doors and tailgate are closed
2- Doors or tailgate is openTy p e 1
Ty p e 2
1- Screen when the ignition switch is “OFF”
2- System check screen
3- Screen when the ignition switch is “ON”Type 1
Type 2
BK0138000US.book 171 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 287 of 714
3-172 Features and controls
3

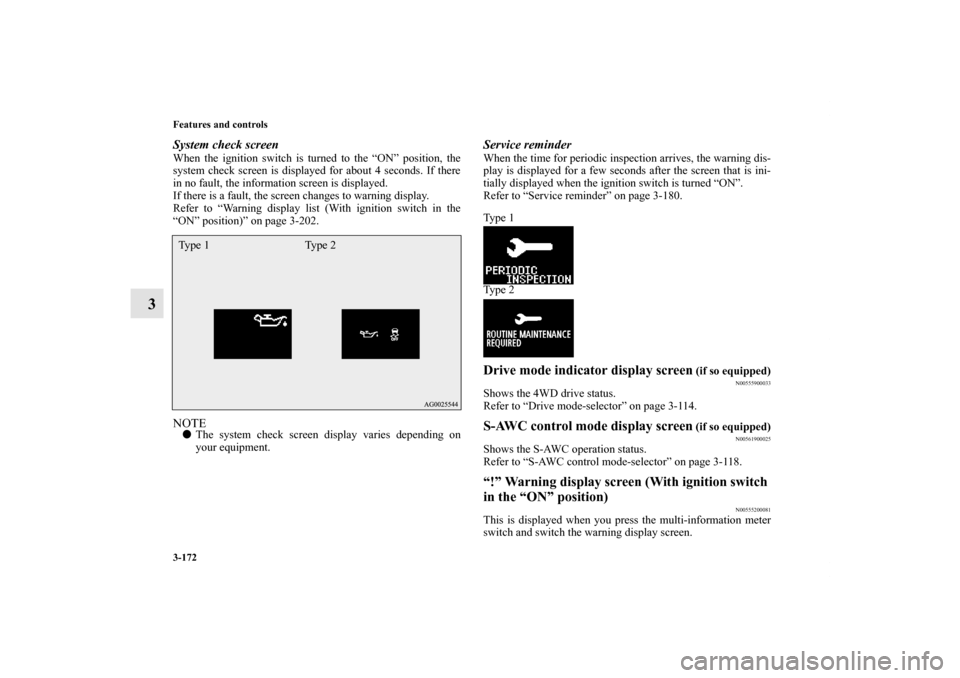

System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
in no fault, the information screen is displayed.
If there is a fault, the screen changes to warning display.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-202.NOTEThe system check screen display varies depending on
your equipment.
Service reminderWhen the time for periodic inspection arrives, the warning dis-
play is displayed for a few seconds after the screen that is ini-
tially displayed when the ignition switch is turned “ON”.
Refer to “Service reminder” on page 3-180.
Ty p e 1
Ty p e 2Drive mode indicator display screen
(if so equipped)
N00555900033
Shows the 4WD drive status.
Refer to “Drive mode-selector” on page 3-114.S-AWC control mode display screen
(if so equipped)
N00561900025
Shows the S-AWC operation status.
Refer to “S-AWC control mode-selector” on page 3-118.“!” Warning display screen (With ignition switch
in the “ON” position)
N00555200081
This is displayed when you press the multi-information meter
switch and switch the warning display screen.
Ty p e 1 Ty p e 2BK0138000US.book 172 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 288 of 714
Features and controls
3-173
3
This mark is also displayed if there is another warning other
than the one displayed.
When the cause of the warning display is eliminated, the “!”
warning goes out automatically.NOTEWhen the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-173.“Active stability control (ASC) OFF” display
screen
(if so equipped)
N00556100090
This is displayed when the Active stability control (ASC) is
turned “OFF” with the “ASC OFF” switch.
Also, if an abnormal condition is occurred in the ASC while
driving, the “ASC OFF” display illuminates.
Refer to “ASC OFF switch” on page 3-139.Information screen (With ignition switch in the
“ON” position)
N00556200192

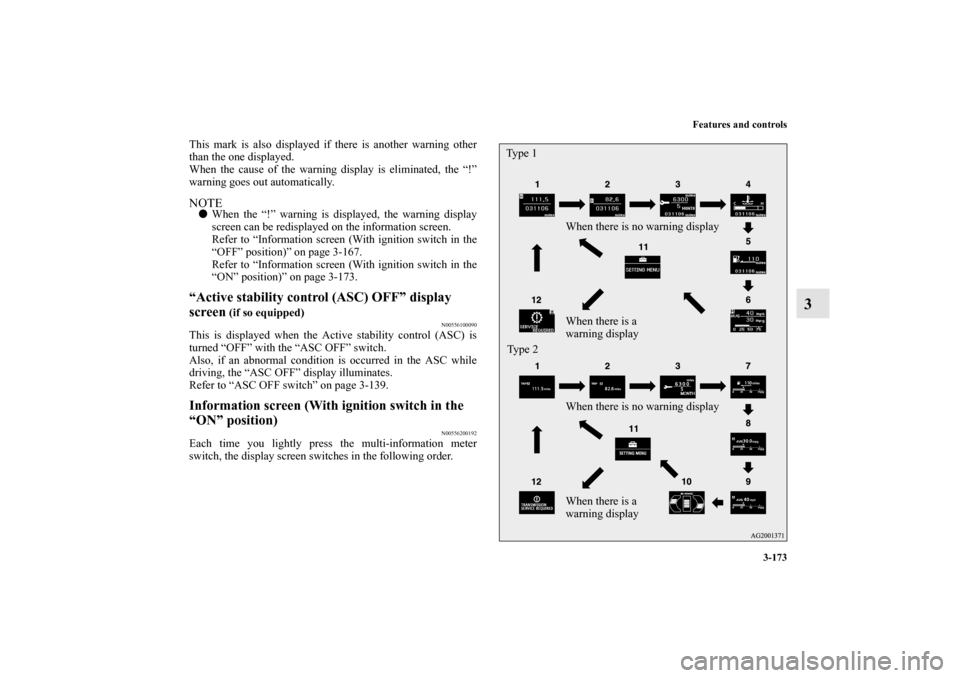

Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
When there is no warning display
When there is a
warning display
When there is no warning display
When there is a
warning display Type 1
Ty p e 2
BK0138000US.book 173 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 289 of 714
3-174 Features and controls
3
NOTEWhile driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.
When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
switched.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-177.
Odometer/Trip odometerThe operation method is the same as when the ignition switch
is in the “OFF” position.
For further details, refer to “Odometer/Trip odometer” on page
3-168.Service reminderShows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-180.Engine coolant temperature displayShows the engine coolant temperature.
If the coolant becomes hot, “ ” will blink.
Pay careful attention to the engine coolant temperature display
while you are driving.
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder
4- Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)
6- Average speed display, average fuel consumption display,
momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel consumption display
(Type 2)
8- Average fuel consumption display, momentary fuel con-
sumption display (Type 2)
9- Average speed display, momentary fuel consumption display
(Type 2)
10- S-AWC operation display (Type 2 if so equipped) → P.3-120
11- Function setting screen
12- Redisplay of a warning display screen
CAUTION
!If the engine is overheating, “ ” will blink. In this
case, the bar graph is on the red zone. Immediately
park the vehicle in a safe place and take the required
measures. Refer to “Engine overheating” on page 6-
5.
BK0138000US.book 174 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 290 of 714

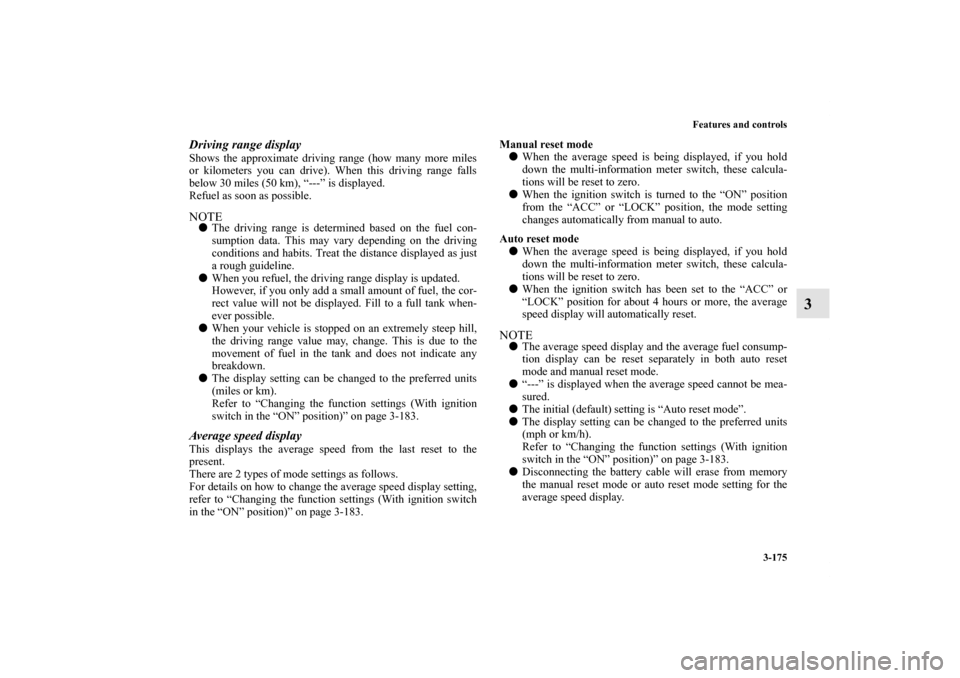

Features and controls
3-175
3
Driving range displayShows the approximate driving range (how many more miles
or kilometers you can drive). When this driving range falls
below 30 miles (50 km), “---” is displayed.
Refuel as soon as possible.NOTEThe driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.
When you refuel, the driving range display is updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.
When your vehicle is stopped on an extremely steep hill,
the driving range value may, change. This is due to the
movement of fuel in the tank and does not indicate any
breakdown.
The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.Average speed displayThis displays the average speed from the last reset to the
present.
There are 2 types of mode settings as follows.
For details on how to change the average speed display setting,
refer to “Changing the function settings (With ignition switch
in the “ON” position)” on page 3-183.Manual reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.
When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Auto reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.
When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset.
NOTEThe average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.
“---” is displayed when the average speed cannot be mea-
sured.
The initial (default) setting is “Auto reset mode”.
The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.
Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average speed display.
BK0138000US.book 175 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
