MITSUBISHI OUTLANDER 2012 3.G Owners Manual

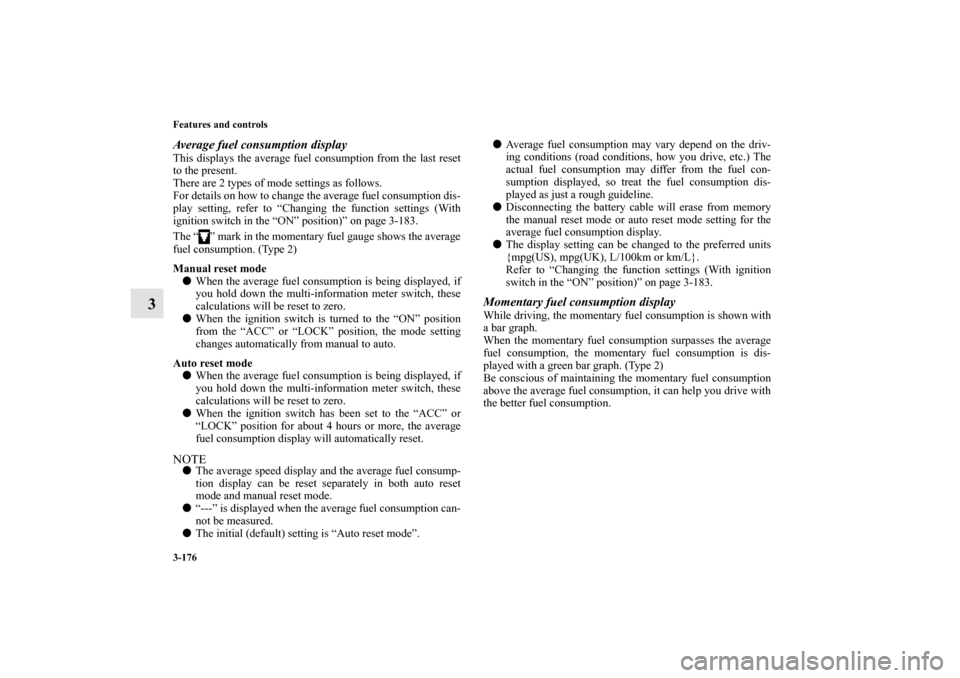

3-176 Features and controls
3
Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch in the “ON” position)” on page 3-183.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption. (Type 2)
Manual reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.

When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Auto reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display will automatically reset. NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.

“---” is displayed when the average fuel consumption can-
not be measured.

The initial (default) setting is “Auto reset mode”.
Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.

Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average fuel consumption display.

The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.
Momentary fuel consumption displayWhile driving, the momentary fuel consumption is shown with
a bar graph.
When the momentary fuel consumption surpasses the average
fuel consumption, the momentary fuel consumption is dis-
played with a green bar graph. (Type 2)
Be conscious of maintaining the momentary fuel consumption
above the average fuel consumption, it can help you drive with
the better fuel consumption.
BK0138000US.book 176 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-177
3

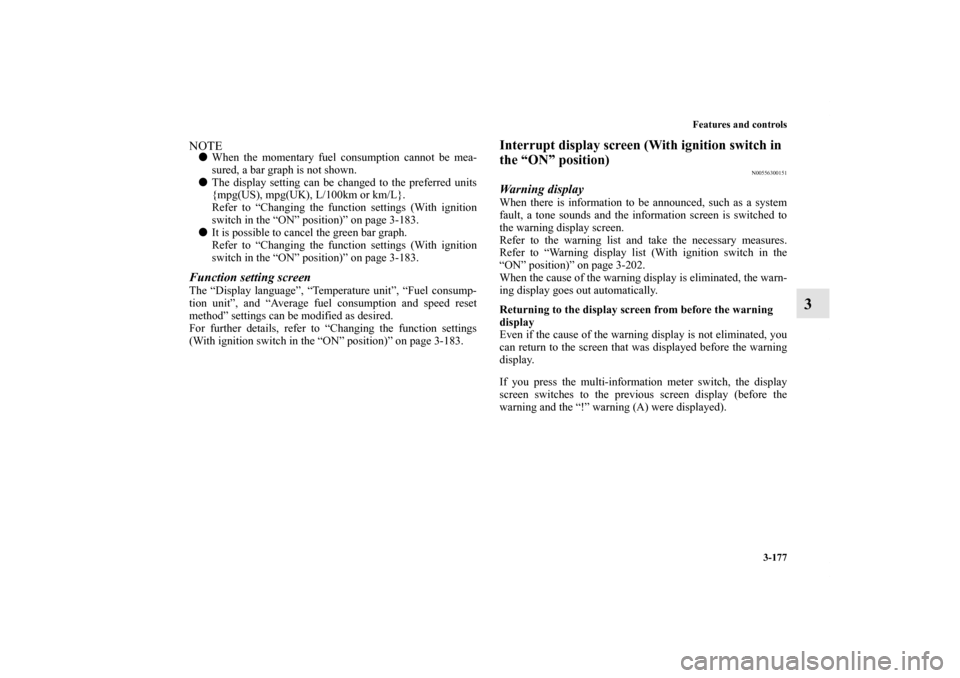

NOTE
When the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.

The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.

It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch in the “ON” position)” on page 3-183.
Interrupt display screen (With ignition switch in
the “ON” position)
N00556300151
Warning displayWhen there is information to be announced, such as a system
fault, a tone sounds and the information screen is switched to
the warning display screen.
Refer to the warning list and take the necessary measures.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-202.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Returning to the display screen from before the warning
display
Even if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the previous screen display (before the
warning and the “!” warning (A) were displayed).
BK0138000US.book 177 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-178 Features and controls
3

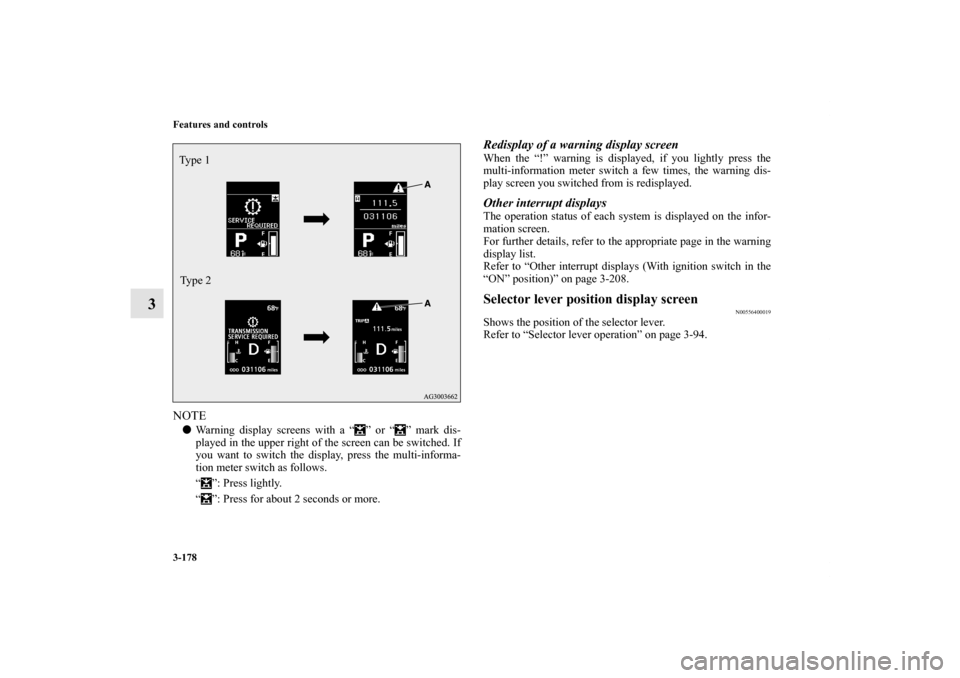

NOTE
Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screenWhen the “!” warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.Other interrupt displaysThe operation status of each system is displayed on the infor-
mation screen.
For further details, refer to the appropriate page in the warning
display list.
Refer to “Other interrupt displays (With ignition switch in the
“ON” position)” on page 3-208.Selector lever position display screen
N00556400019
Shows the position of the selector lever.
Refer to “Selector lever operation” on page 3-94.
Ty p e 1
Type 2BK0138000US.book 178 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-179
3

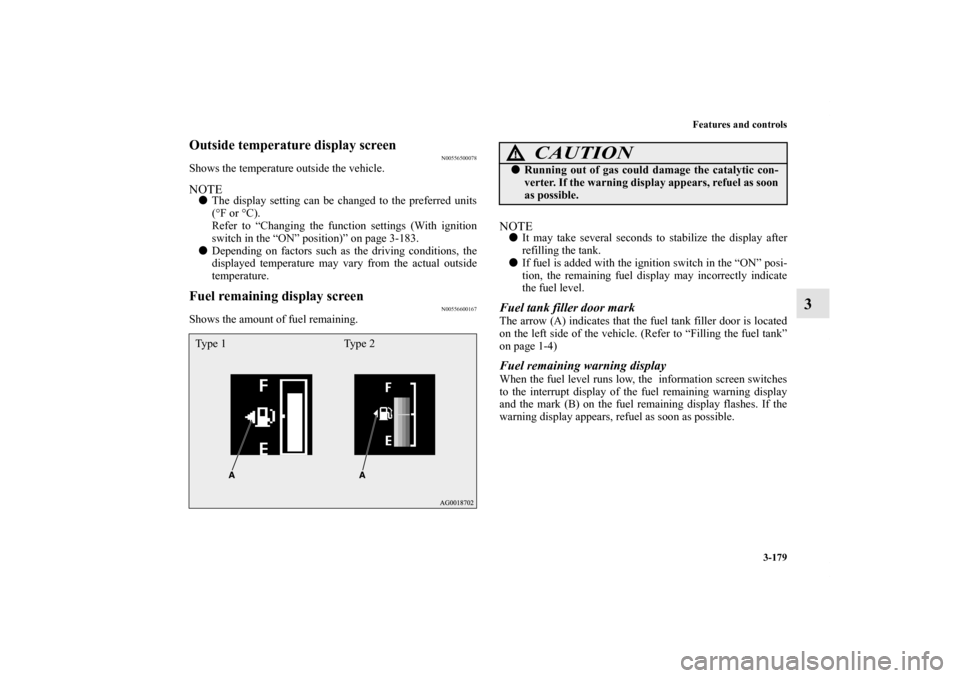

Outside temperature display screen
N00556500078
Shows the temperature outside the vehicle.NOTE
The display setting can be changed to the preferred units
(°F or °C).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.

Depending on factors such as the driving conditions, the
displayed temperature may vary from the actual outside
temperature.Fuel remaining display screen
N00556600167
Shows the amount of fuel remaining.
NOTE
It may take several seconds to stabilize the display after
refilling the tank.

If fuel is added with the ignition switch in the “ON” posi-
tion, the remaining fuel display may incorrectly indicate
the fuel level.Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle. (Refer to “Filling the fuel tank”
on page 1-4)Fuel remaining warning displayWhen the fuel level runs low, the information screen switches
to the interrupt display of the fuel remaining warning display
and the mark (B) on the fuel remaining display flashes. If the
warning display appears, refuel as soon as possible.
Type 1 Type 2
CAUTION
!
Running out of gas could damage the catalytic con-
verter. If the warning display appears, refuel as soon
as possible.
BK0138000US.book 179 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

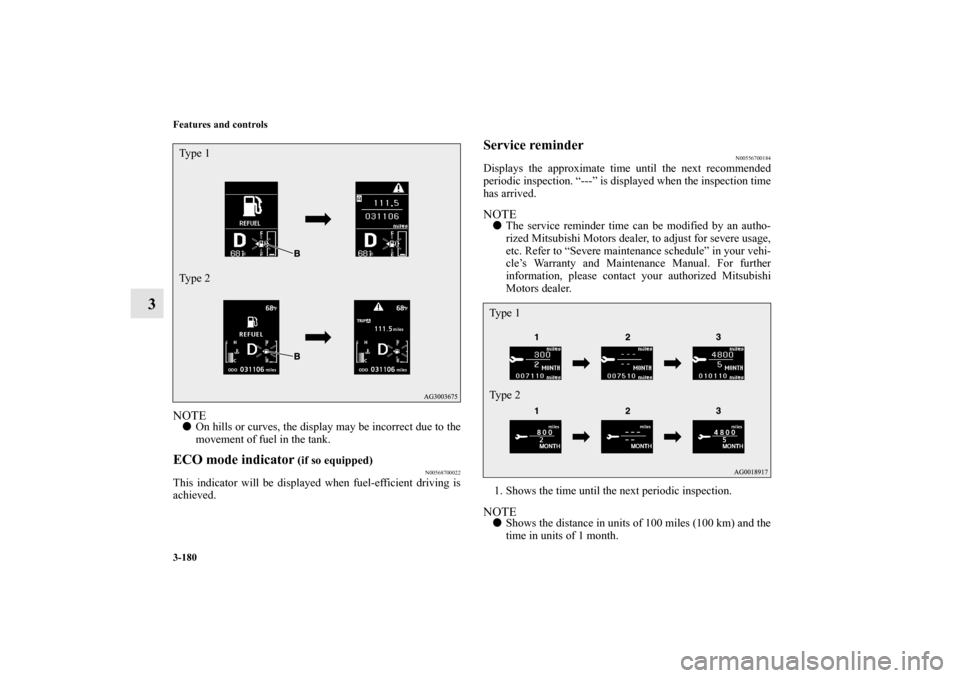

3-180 Features and controls
3
NOTE
On hills or curves, the display may be incorrect due to the
movement of fuel in the tank.ECO mode indicator
(if so equipped)
N00568700022
This indicator will be displayed when fuel-efficient driving is
achieved.
Service reminder
N00556700184
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
The service reminder time can be modified by an autho-
rized Mitsubishi Motors dealer, to adjust for severe usage,
etc. Refer to “Severe maintenance schedule” in your vehi-
cle’s Warranty and Maintenance Manual. For further
information, please contact your authorized Mitsubishi
Motors dealer.
1. Shows the time until the next periodic inspection.NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0138000US.book 180 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-181
3

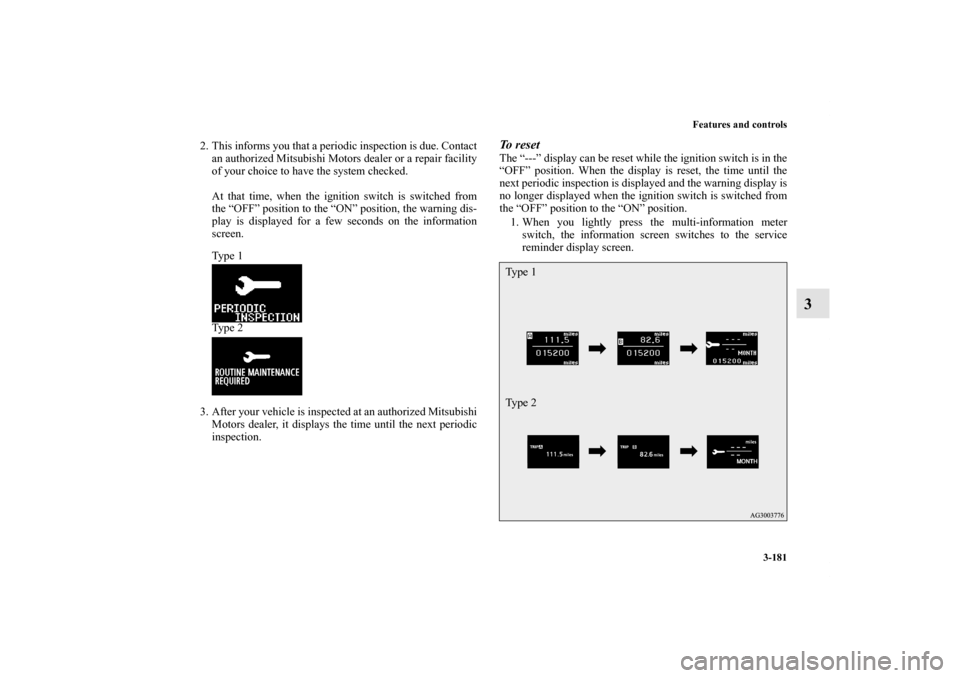

2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
At that time, when the ignition switch is switched from
the “OFF” position to the “ON” position, the warning dis-
play is displayed for a few seconds on the information
screen.
Ty p e 1
Ty p e 2
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.
To reset The “---” display can be reset while the ignition switch is in the
“OFF” position. When the display is reset, the time until the
next periodic inspection is displayed and the warning display is
no longer displayed when the ignition switch is switched from
the “OFF” position to the “ON” position.
1. When you lightly press the multi-information meter
switch, the information screen switches to the service
reminder display screen.Ty p e 1
Ty p e 2
BK0138000US.book 181 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-182 Features and controls
3

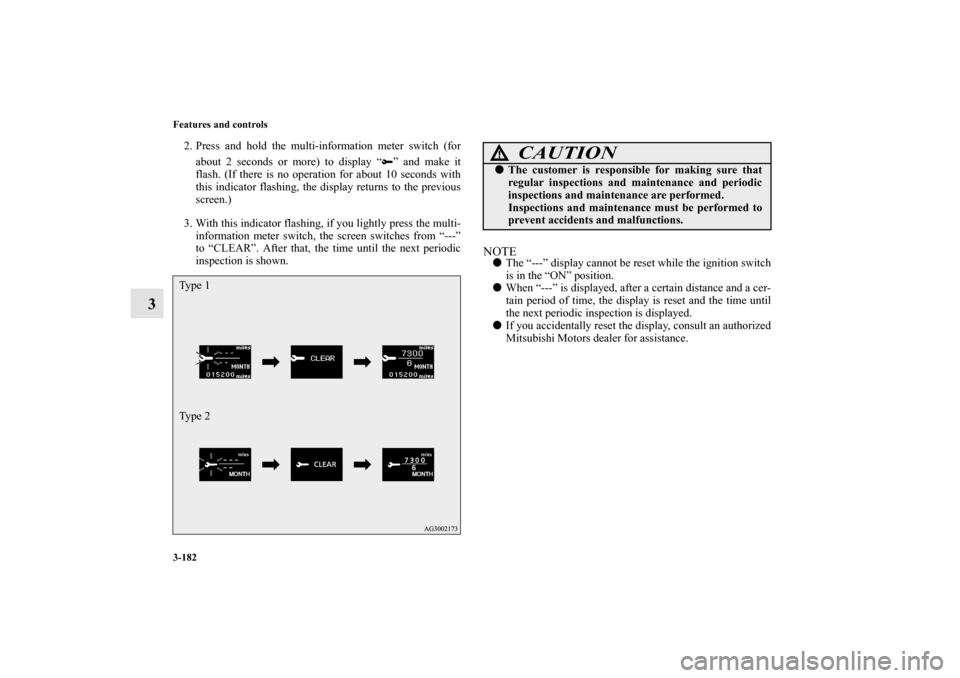

2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.
NOTE
The “---” display cannot be reset while the ignition switch
is in the “ON” position.

When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.

If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.
Ty p e 1
Ty p e 2
CAUTION
!
The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
BK0138000US.book 182 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-183
3

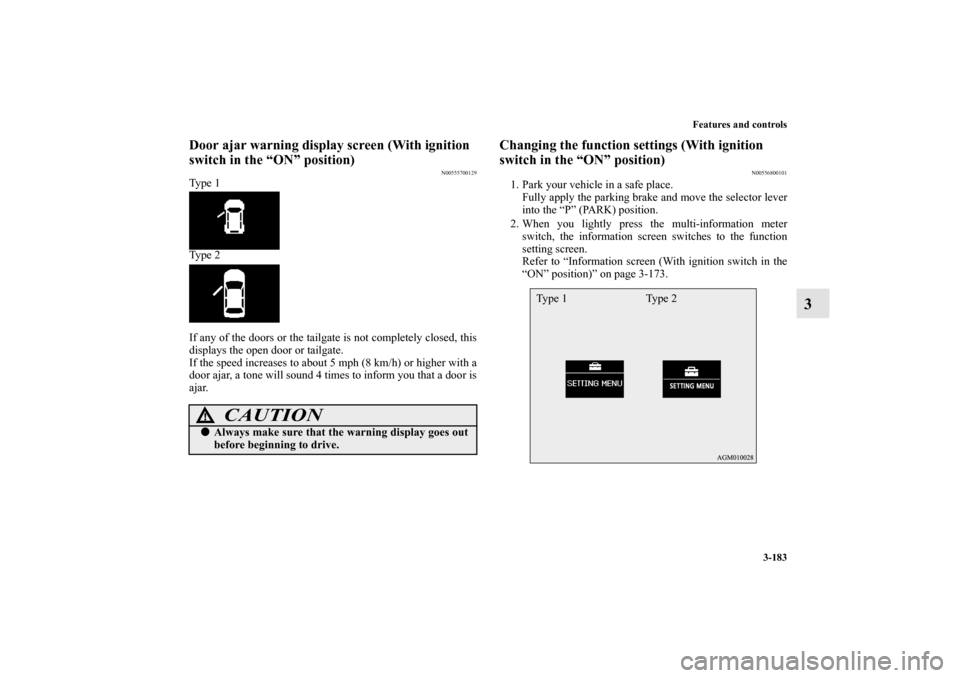

Door ajar warning display screen (With ignition
switch in the “ON” position)
N00555700129
Ty p e 1
Ty p e 2
If any of the doors or the tailgate is not completely closed, this
displays the open door or tailgate.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a tone will sound 4 times to inform you that a door is
ajar.
Changing the function settings (With ignition
switch in the “ON” position)
N00556800101
1. Park your vehicle in a safe place.
Fully apply the parking brake and move the selector lever
into the “P” (PARK) position.
2. When you lightly press the multi-information meter
switch, the information screen switches to the function
setting screen.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-173.
CAUTION
!
Always make sure that the warning display goes out
before beginning to drive.
Ty p e 1 Ty p e 2
BK0138000US.book 183 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-184 Features and controls
3

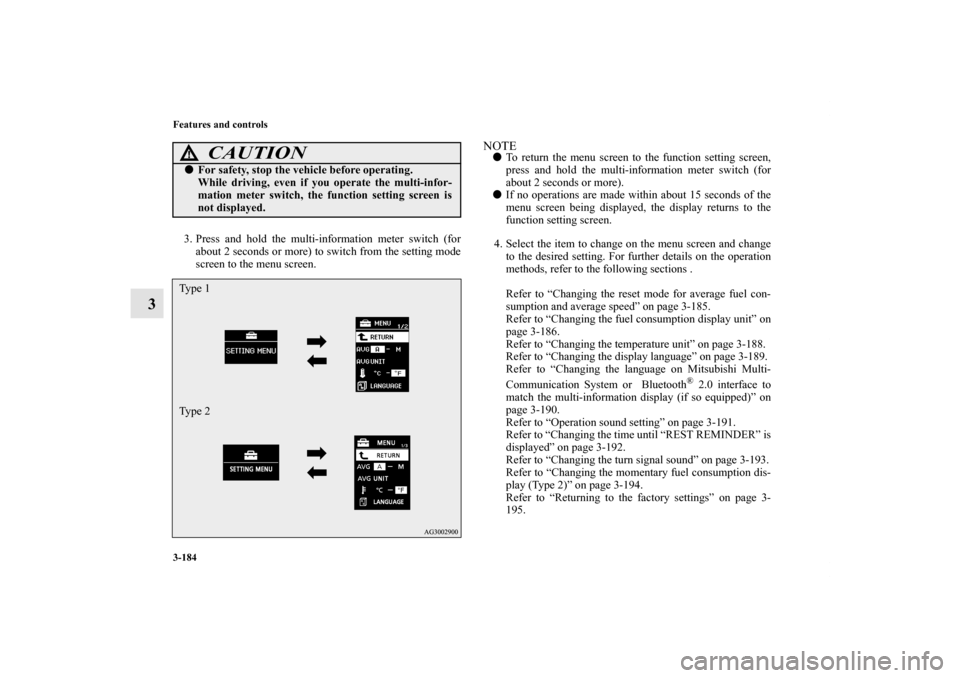

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections .
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-185.
Refer to “Changing the fuel consumption display unit” on
page 3-186.
Refer to “Changing the temperature unit” on page 3-188.
Refer to “Changing the display language” on page 3-189.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-190.
Refer to “Operation sound setting” on page 3-191.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-192.
Refer to “Changing the turn signal sound” on page 3-193.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-194.
Refer to “Returning to the factory settings” on page 3-
195.
CAUTION
!
For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.Type 1
Type 2BK0138000US.book 184 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-185
3
Changing the reset mode for average fuel consumption
and average speed
N00557000171
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A or
1 (Auto reset) → M, 2 or P (Manual reset) → A or 1 (Auto
reset).
The setting is changed to the selected reset condition.
Type 1
Type 2
BK0138000US.book 185 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
