Page 591 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 6-18 For emergencies
6

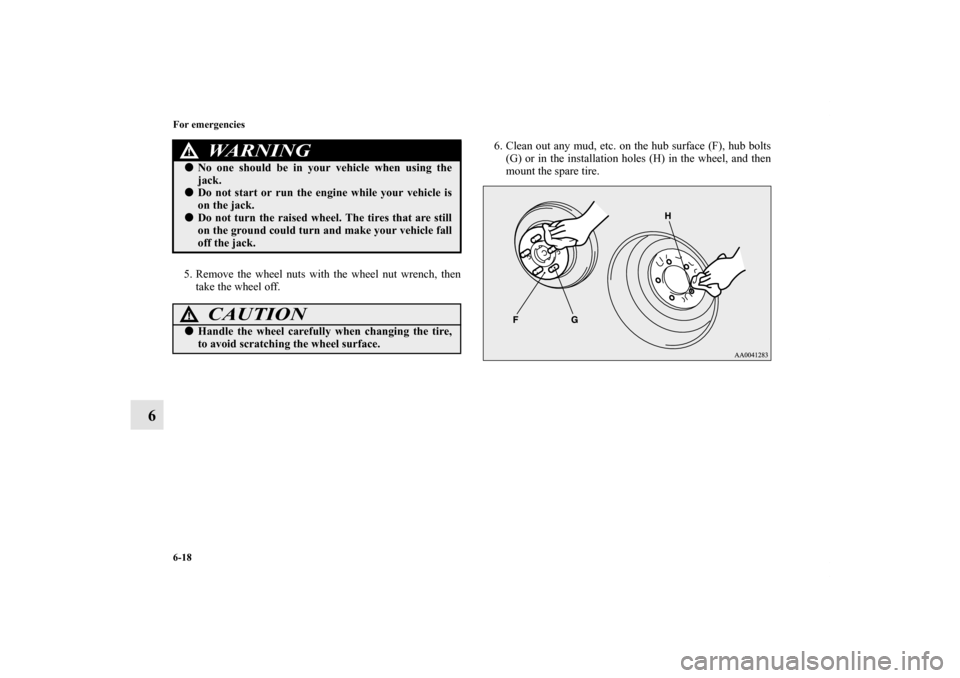

5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off.6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in

Page 592 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual For emergencies
6-19
6

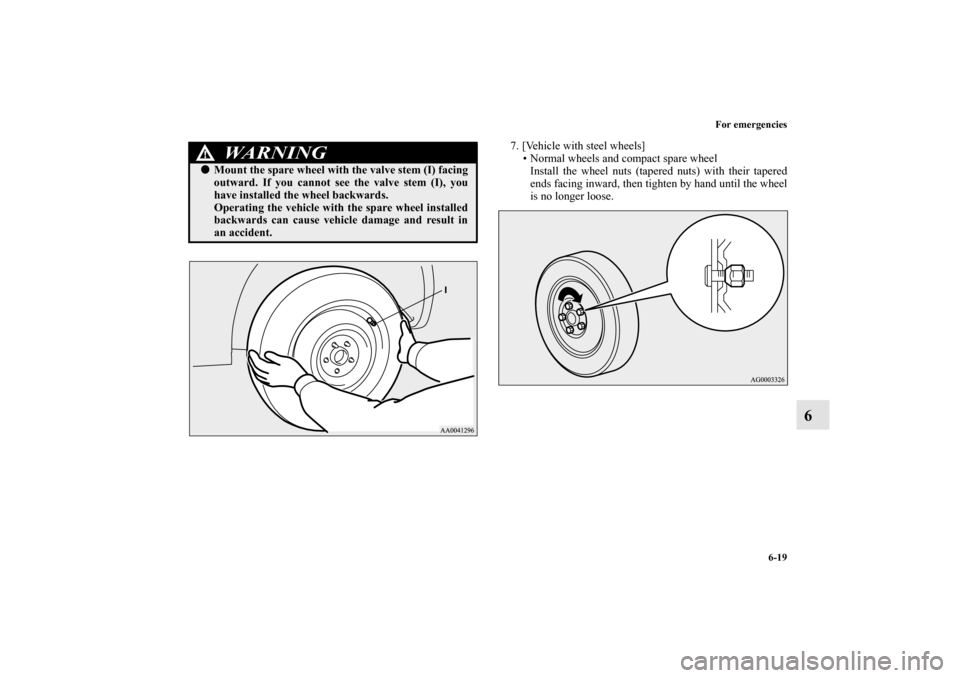

7. [Vehicle with steel wheels]
• Normal wheels and compact spare wheel
Install the wheel nuts (tapered nuts) with their tapered
ends facing inward, then tighten by hand until

Page 593 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 6-20 For emergencies
6

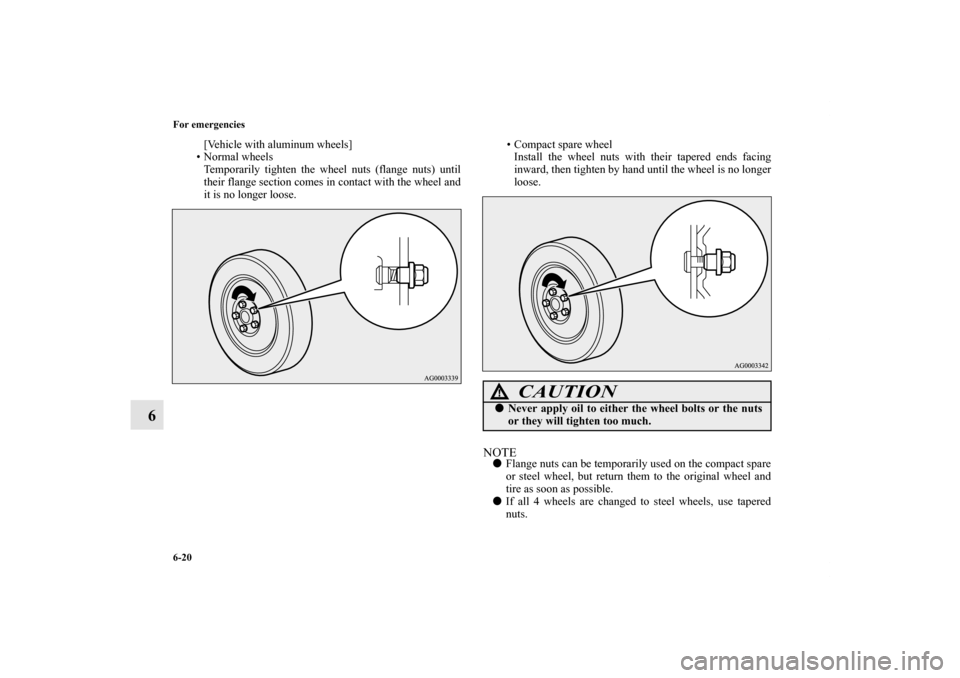

[Vehicle with aluminum wheels]
• Normal wheels
Temporarily tighten the wheel nuts (flange nuts) until
their flange section comes in contact with the wheel and
it is no longer

Page 594 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual For emergencies
6-21
6

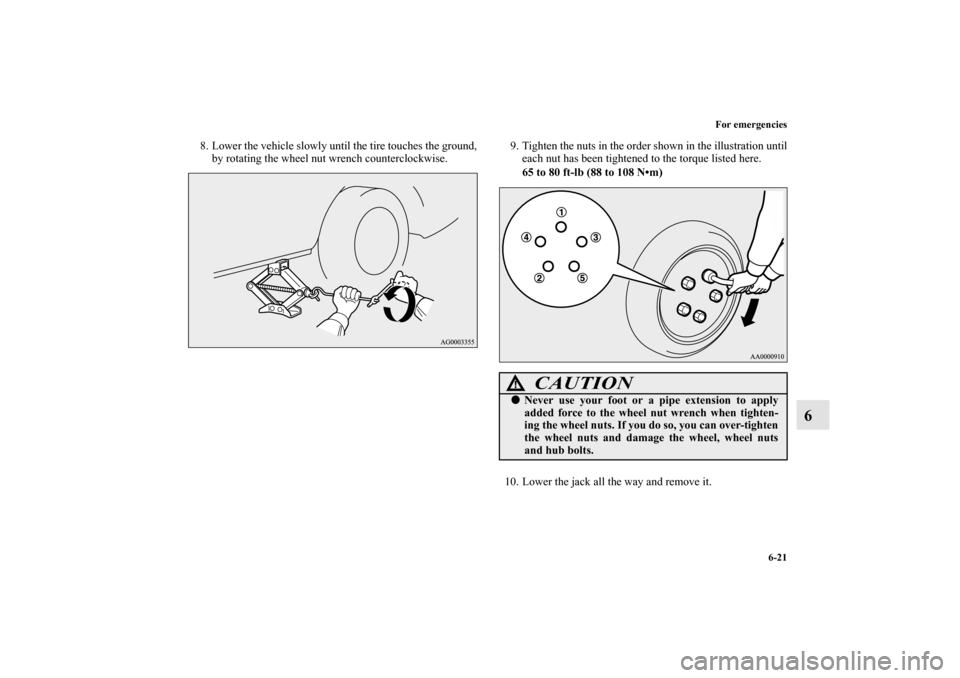

8. Lower the vehicle slowly until the tire touches the ground,
by rotating the wheel nut wrench counterclockwise.9. Tighten the nuts in the order shown in the illustration until

Page 595 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 6-22 For emergencies
6

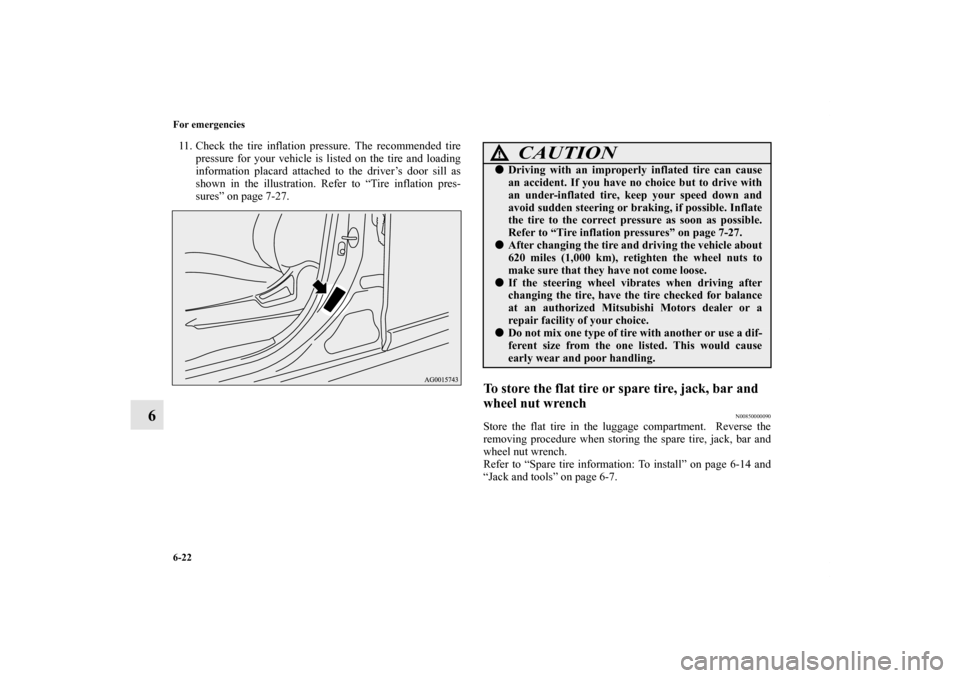

11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill

Page 596 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual For emergencies
6-23
6

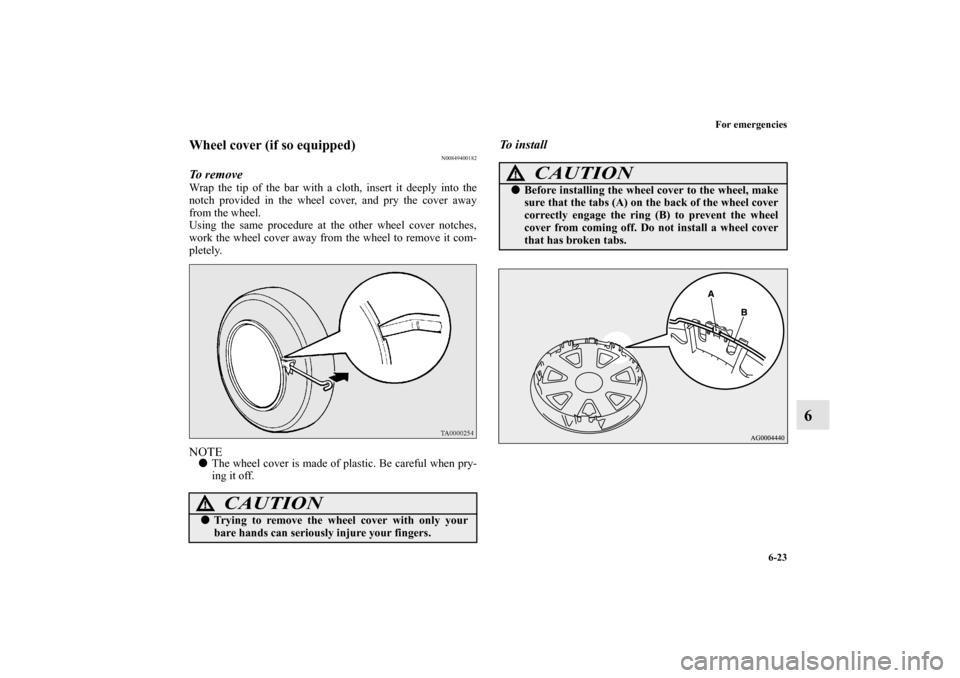

Wheel cover (if so equipped)
N00849400182
To  r e m o v eWrap the tip of the bar with a cloth, insert it deeply into the
notch provided in the wheel cover, and pry the cover awa

Page 597 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 6-24 For emergencies
6

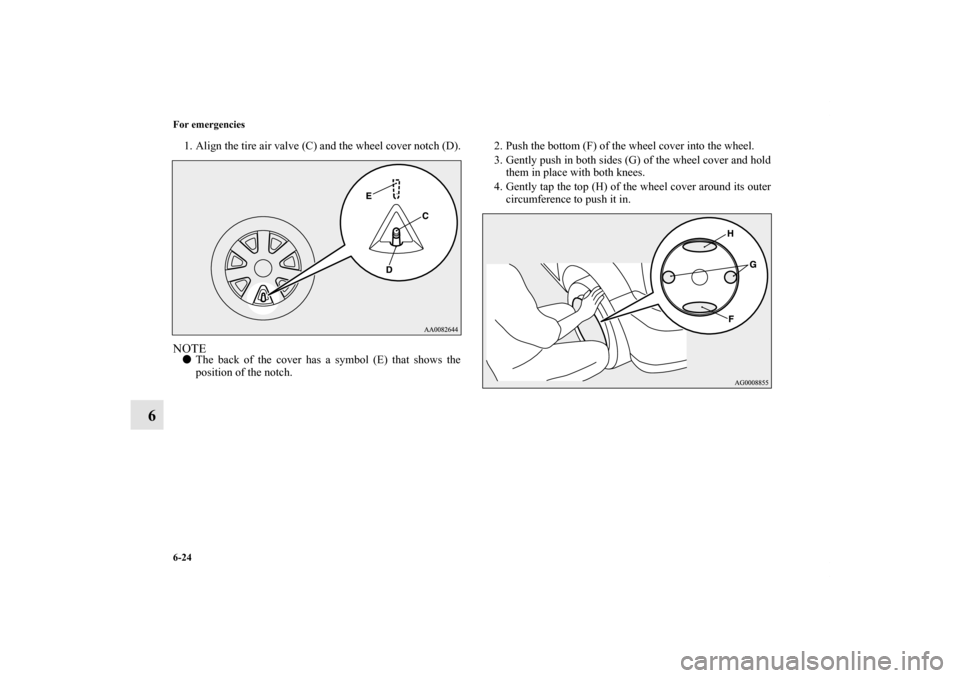

1. Align the tire air valve (C) and the wheel cover notch (D).NOTEThe back of the cover has a symbol (E) that shows the
position of the notch.2. Push the bottom (F) of the whee

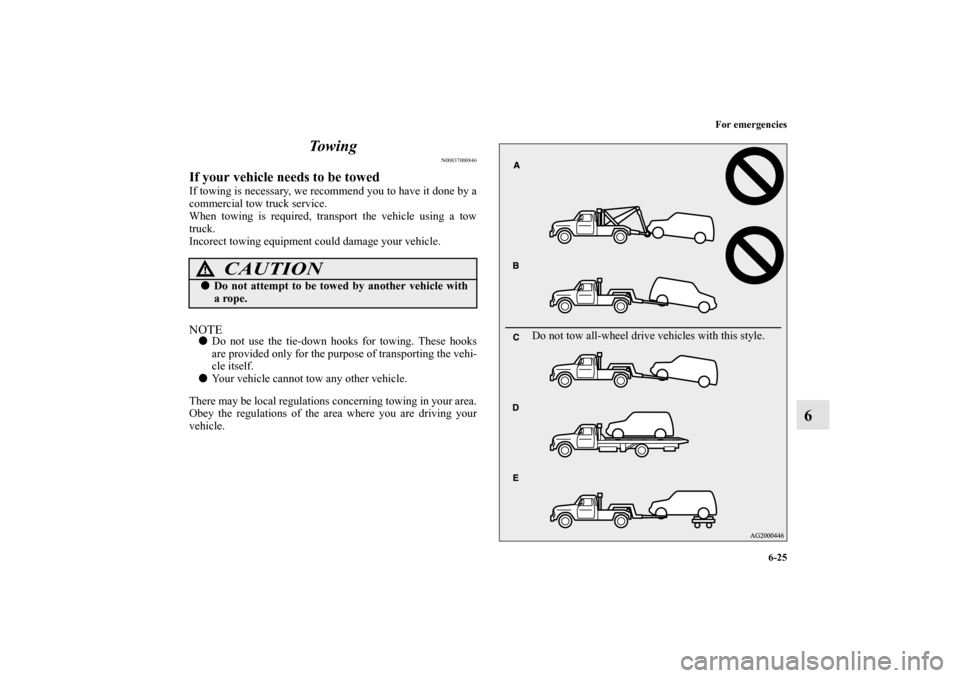

Page 598 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual For emergencies
6-25
6 To w i n g
N00837000846
If your vehicle needs to be towedIf towing is necessary, we recommend you to have it done by a
commercial tow truck service.
When towing is required, tra

Page 599 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual 6-26 For emergencies
6

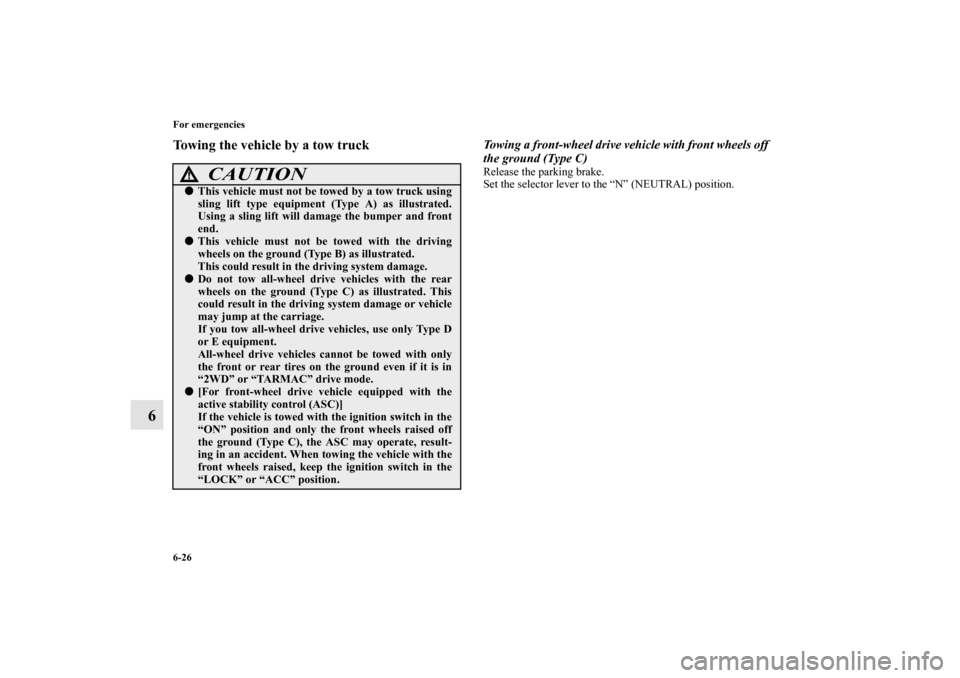

Towing the vehicle by a tow truck
Towing a front-wheel drive vehicle with front wheels off
the ground (Type C)Release the parking brake.
Set the selector lever to the “N” (

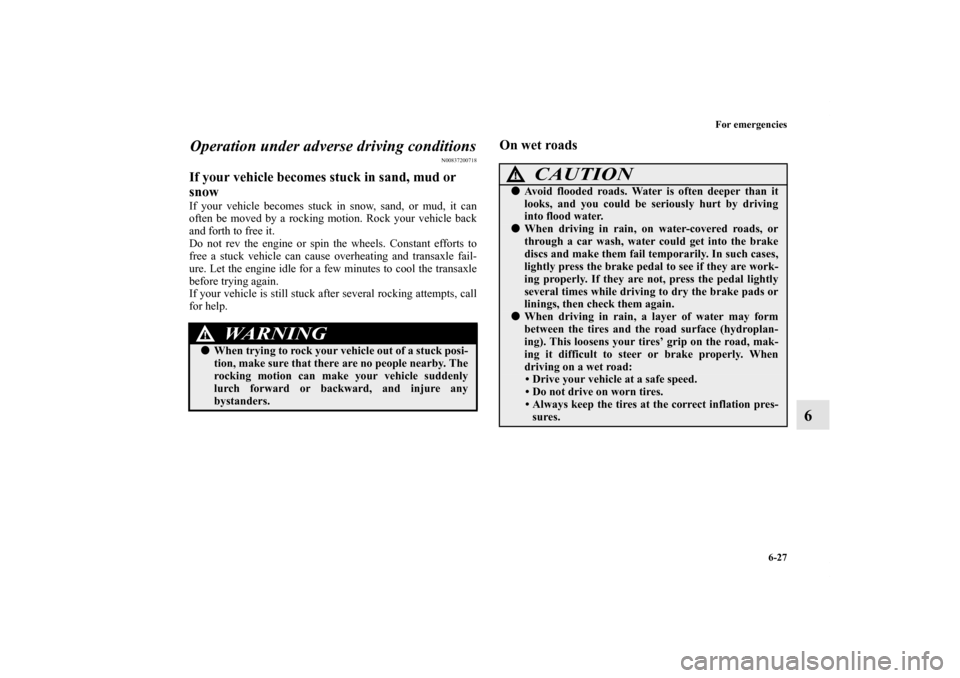

Page 600 of 714

MITSUBISHI OUTLANDER 2012 3.G Owners Manual For emergencies
6-27
6 Operation under adverse driving conditions
N00837200718
If your vehicle becomes stuck in sand, mud or
snowIf your vehicle becomes stuck in snow, sand, or mud, it can
often be m
