MITSUBISHI OUTLANDER 2013 3.G Owners Manual

3-56 Features and controls
3

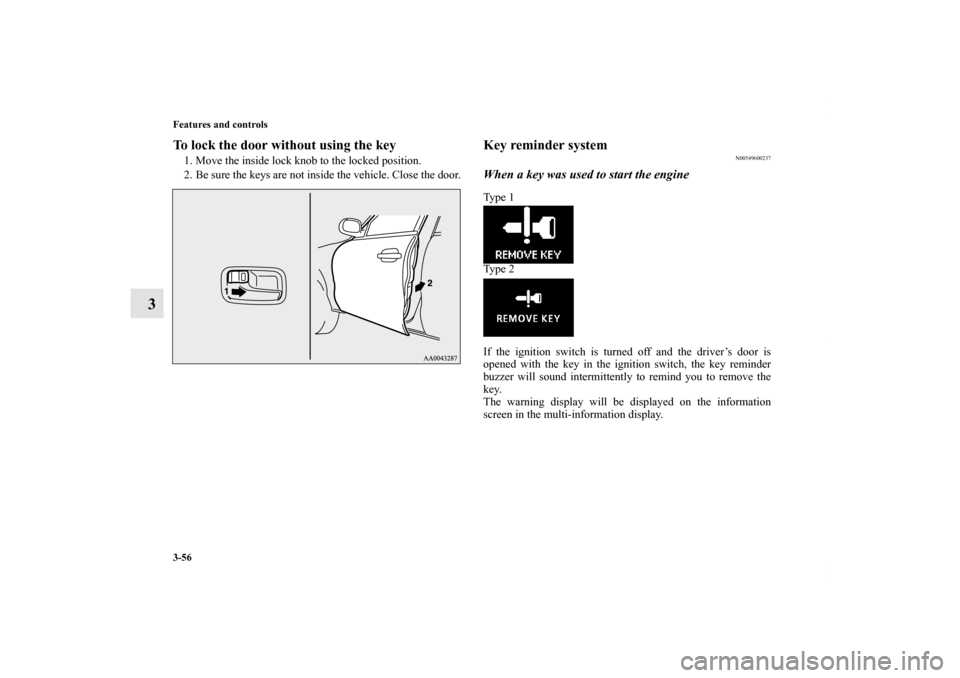

To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
Key reminder system
N00549600237
When a key was used to start the engineTy p e 1
Ty p e 2
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.
BK0150600US.book 56 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-57
3

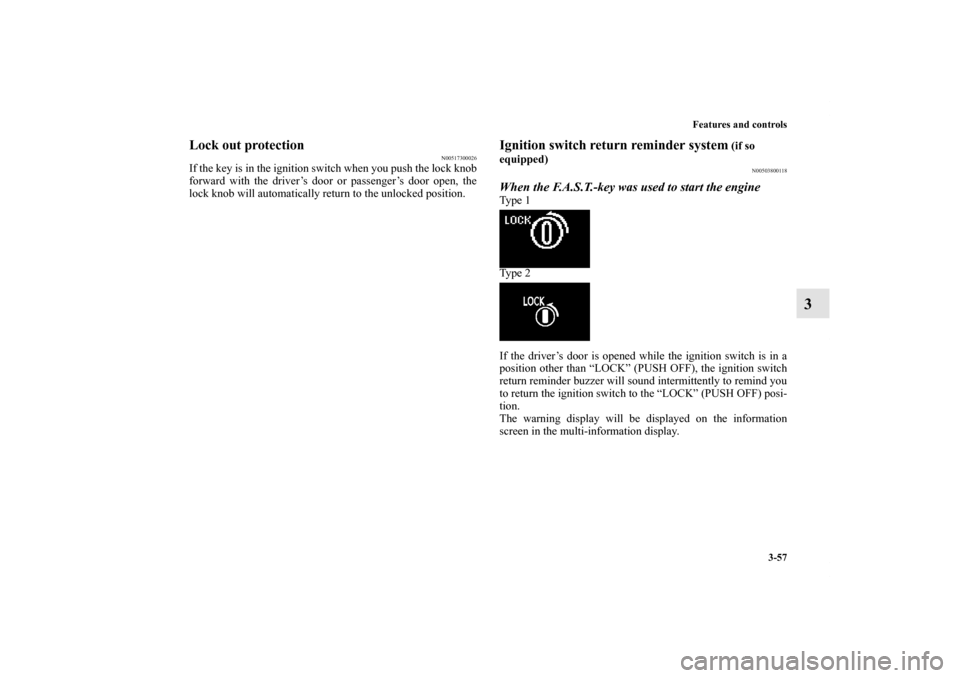

Lock out protection
N00517300026
If the key is in the ignition switch when you push the lock knob
forward with the driver’s door or passenger’s door open, the
lock knob will automatically return to the unlocked position.
Ignition switch return reminder system
(if so
equipped)
N00503800118
When the F.A.S.T.-key was used to start the engineTy p e 1
Ty p e 2
If the driver’s door is opened while the ignition switch is in a
position other than “LOCK” (PUSH OFF), the ignition switch
return reminder buzzer will sound intermittently to remind you
to return the ignition switch to the “LOCK” (PUSH OFF) posi-
tion.
The warning display will be displayed on the information
screen in the multi-information display.
BK0150600US.book 57 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-58 Features and controls

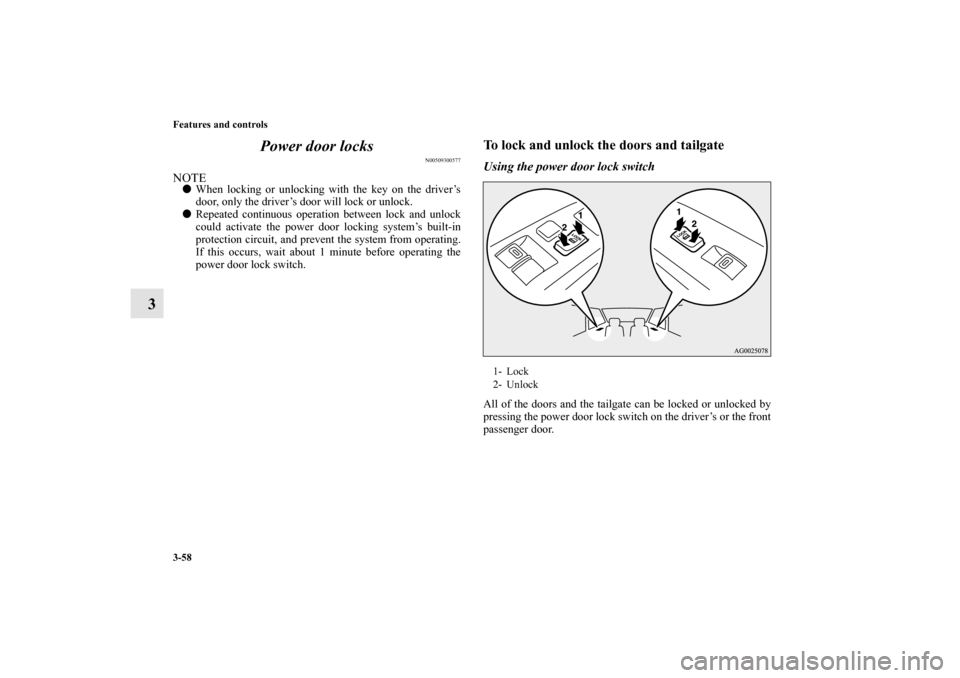

3Power door locks
N00509300577
NOTE
When locking or unlocking with the key on the driver’s
door, only the driver’s door will lock or unlock.

Repeated continuous operation between lock and unlock
could activate the power door locking system’s built-in
protection circuit, and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
power door lock switch.
To lock and unlock the doors and tailgateUsing the power door lock switchAll of the doors and the tailgate can be locked or unlocked by
pressing the power door lock switch on the driver’s or the front
passenger door.1- Lock
2- Unlock
BK0150600US.book 58 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-59
3

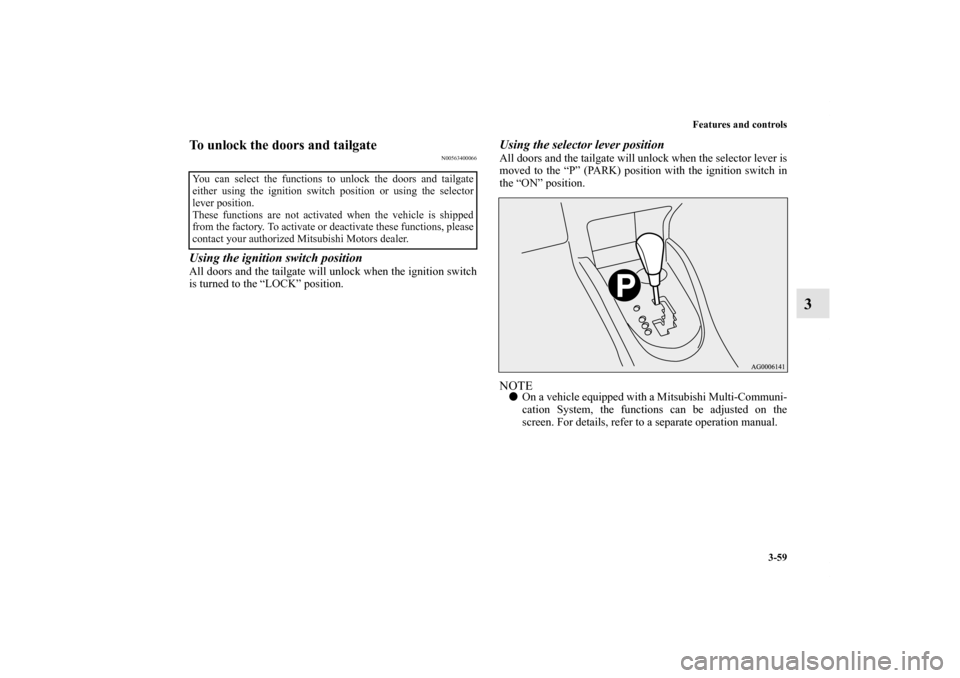

To unlock the doors and tailgate
N00563400066
Using the ignition switch positionAll doors and the tailgate will unlock when the ignition switch
is turned to the “LOCK” position.
Using the selector lever positionAll doors and the tailgate will unlock when the selector lever is
moved to the “P” (PARK) position with the ignition switch in
the “ON” position.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
You can select the functions to unlock the doors and tailgate
either using the ignition switch position or using the selector
lever position.
These functions are not activated when the vehicle is shipped
from the factory. To activate or deactivate these functions, please
contact your authorized Mitsubishi Motors dealer.
BK0150600US.book 59 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-60 Features and controls

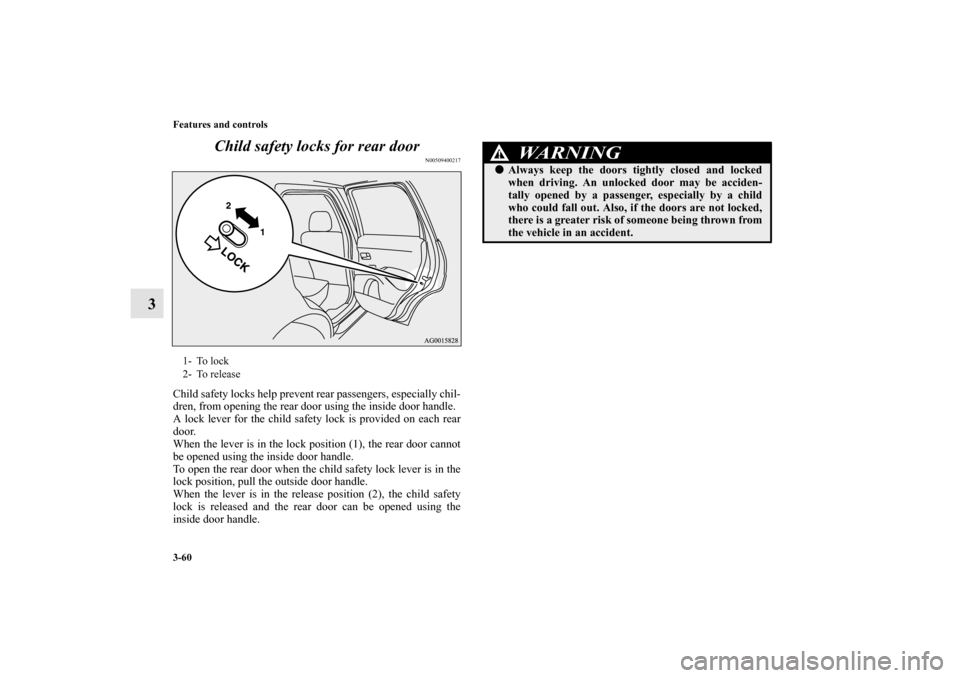

3Child safety locks for rear door
N00509400217
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.1- To lock
2- To release
WA R N I N G
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
BK0150600US.book 60 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-61

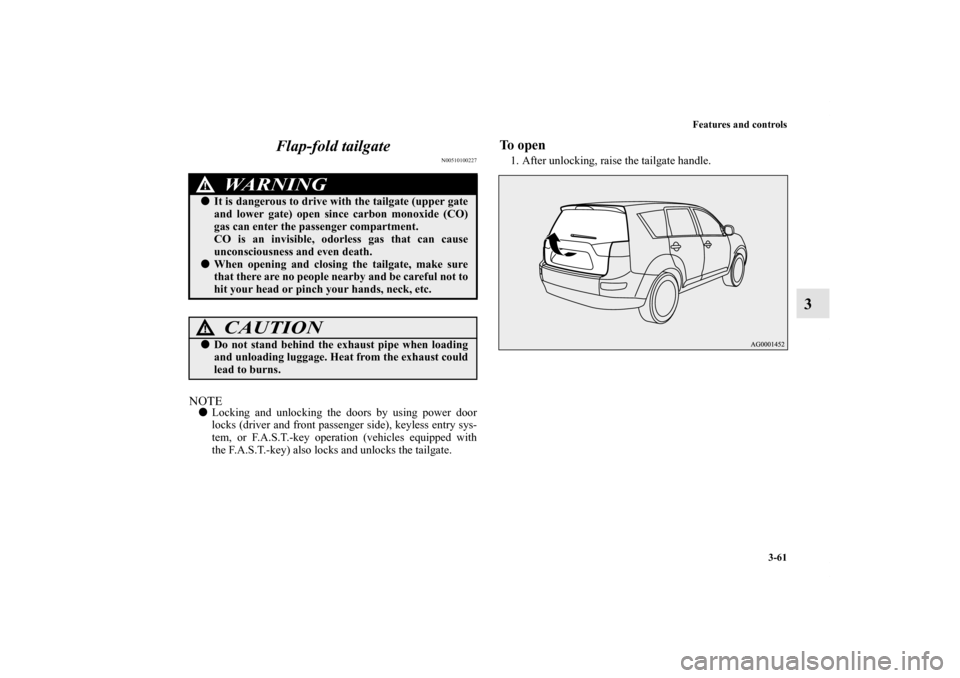

3 Flap-fold tailgate
N00510100227
NOTE
Locking and unlocking the doors by using power door
locks (driver and front passenger side), keyless entry sys-
tem, or F.A.S.T.-key operation (vehicles equipped with
the F.A.S.T.-key) also locks and unlocks the tailgate.
To open1. After unlocking, raise the tailgate handle.
WA R N I N G
!
It is dangerous to drive with the tailgate (upper gate
and lower gate) open since carbon monoxide (CO)
gas can enter the passenger compartment.
CO is an invisible, odorless gas that can cause
unconsciousness and even death.
When opening and closing the tailgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0150600US.book 61 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-62 Features and controls
3

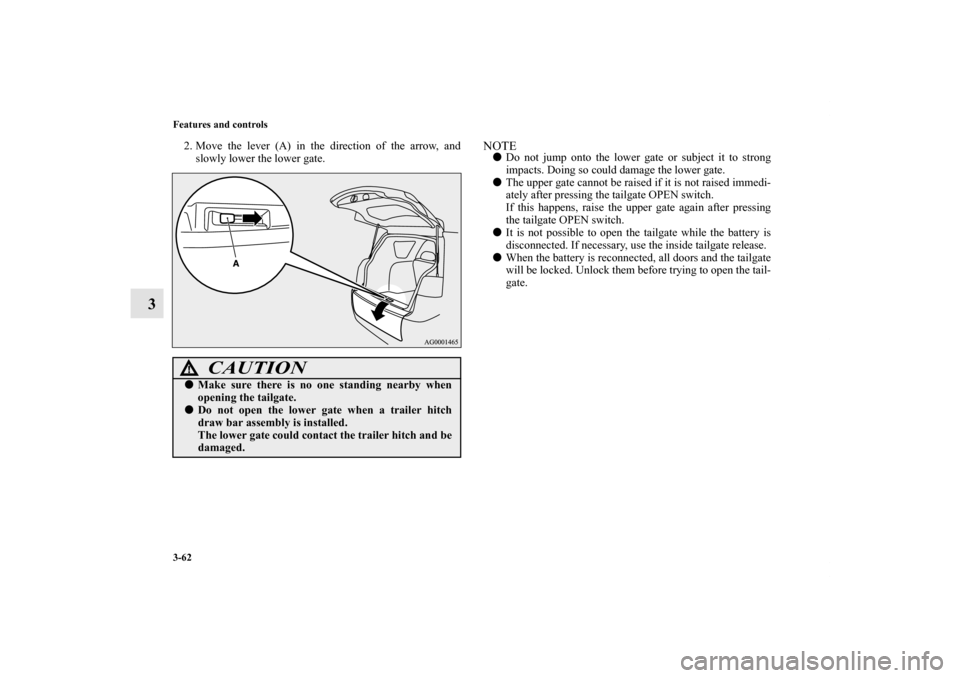

2. Move the lever (A) in the direction of the arrow, and
slowly lower the lower gate.
NOTE
Do not jump onto the lower gate or subject it to strong
impacts. Doing so could damage the lower gate.

The upper gate cannot be raised if it is not raised immedi-
ately after pressing the tailgate OPEN switch.
If this happens, raise the upper gate again after pressing
the tailgate OPEN switch.

It is not possible to open the tailgate while the battery is
disconnected. If necessary, use the inside tailgate release.

When the battery is reconnected, all doors and the tailgate
will be locked. Unlock them before trying to open the tail-
gate.
CAUTION
!
Make sure there is no one standing nearby when
opening the tailgate.
Do not open the lower gate when a trailer hitch
draw bar assembly is installed.
The lower gate could contact the trailer hitch and be
damaged.
BK0150600US.book 62 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-63
3

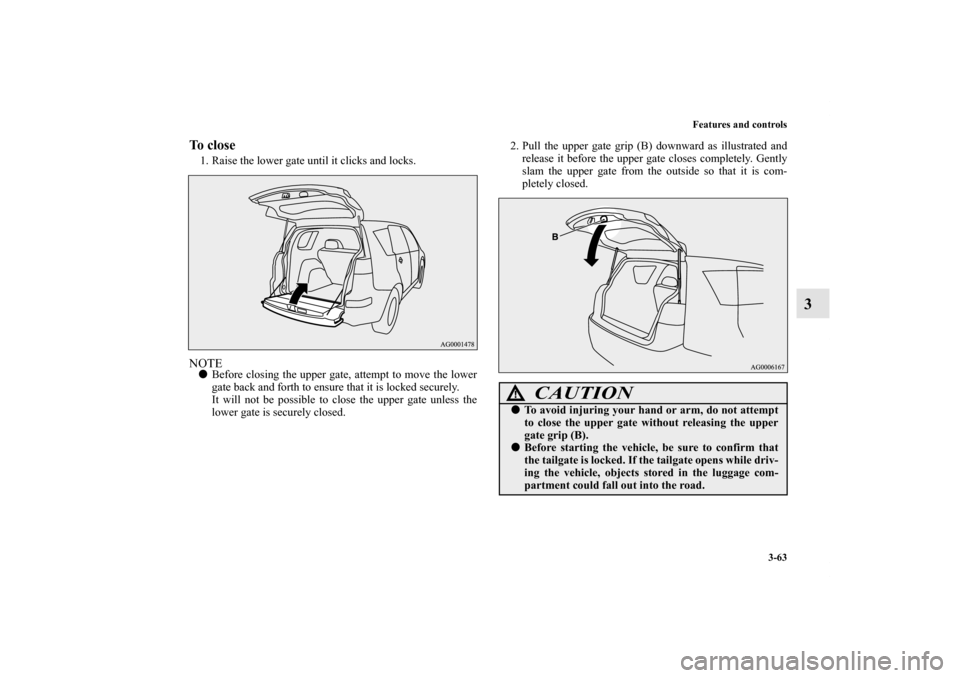

To close1. Raise the lower gate until it clicks and locks.NOTE
Before closing the upper gate, attempt to move the lower
gate back and forth to ensure that it is locked securely.
It will not be possible to close the upper gate unless the
lower gate is securely closed.2. Pull the upper gate grip (B) downward as illustrated and
release it before the upper gate closes completely. Gently
slam the upper gate from the outside so that it is com-
pletely closed.
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the upper gate without releasing the upper
gate grip (B).
Before starting the vehicle, be sure to confirm that
the tailgate is locked. If the tailgate opens while driv-
ing the vehicle, objects stored in the luggage com-
partment could fall out into the road.
BK0150600US.book 63 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-64 Features and controls
3

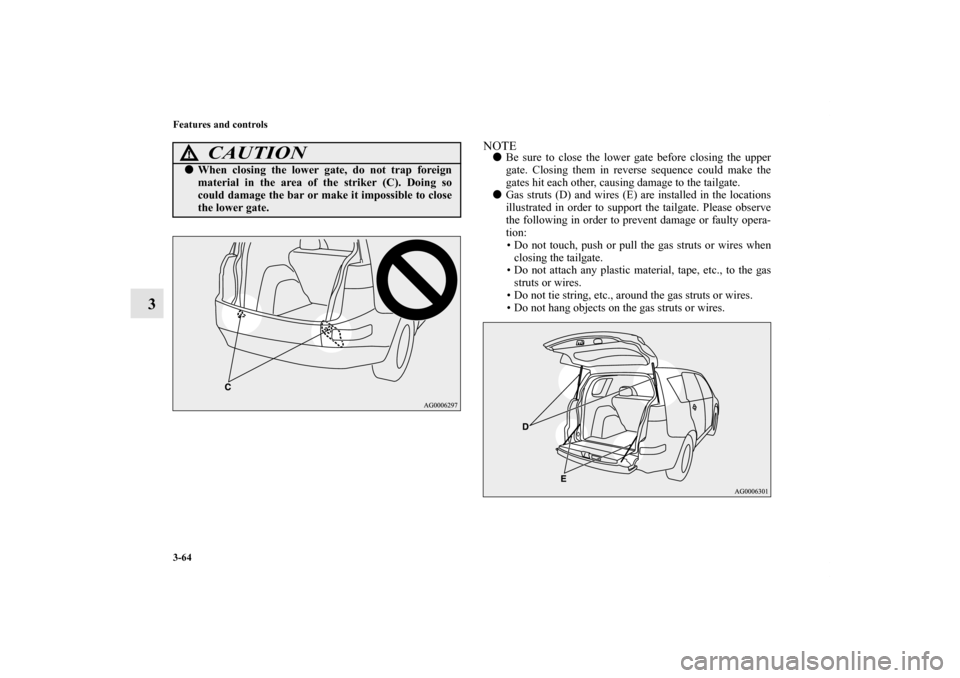

NOTE
Be sure to close the lower gate before closing the upper
gate. Closing them in reverse sequence could make the
gates hit each other, causing damage to the tailgate.

Gas struts (D) and wires (E) are installed in the locations
illustrated in order to support the tailgate. Please observe
the following in order to prevent damage or faulty opera-
tion:
• Do not touch, push or pull the gas struts or wires when
closing the tailgate.
• Do not attach any plastic material, tape, etc., to the gas
struts or wires.
• Do not tie string, etc., around the gas struts or wires.
• Do not hang objects on the gas struts or wires.
CAUTION
!
When closing the lower gate, do not trap foreign
material in the area of the striker (C). Doing so
could damage the bar or make it impossible to close
the lower gate.
BK0150600US.book 64 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-65

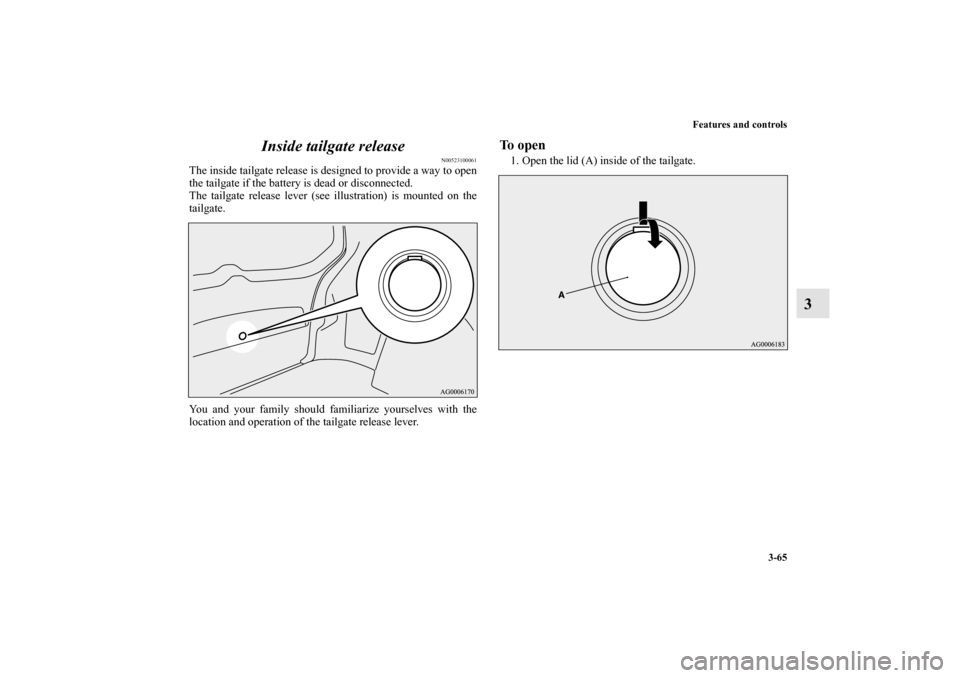

3 Inside tailgate release
N00523100061
The inside tailgate release is designed to provide a way to open
the tailgate if the battery is dead or disconnected.
The tailgate release lever (see illustration) is mounted on the
tailgate.
You and your family should familiarize yourselves with the
location and operation of the tailgate release lever.
To open1. Open the lid (A) inside of the tailgate.
