MITSUBISHI OUTLANDER 2013 3.G Owners Manual

3-26 Features and controls
3

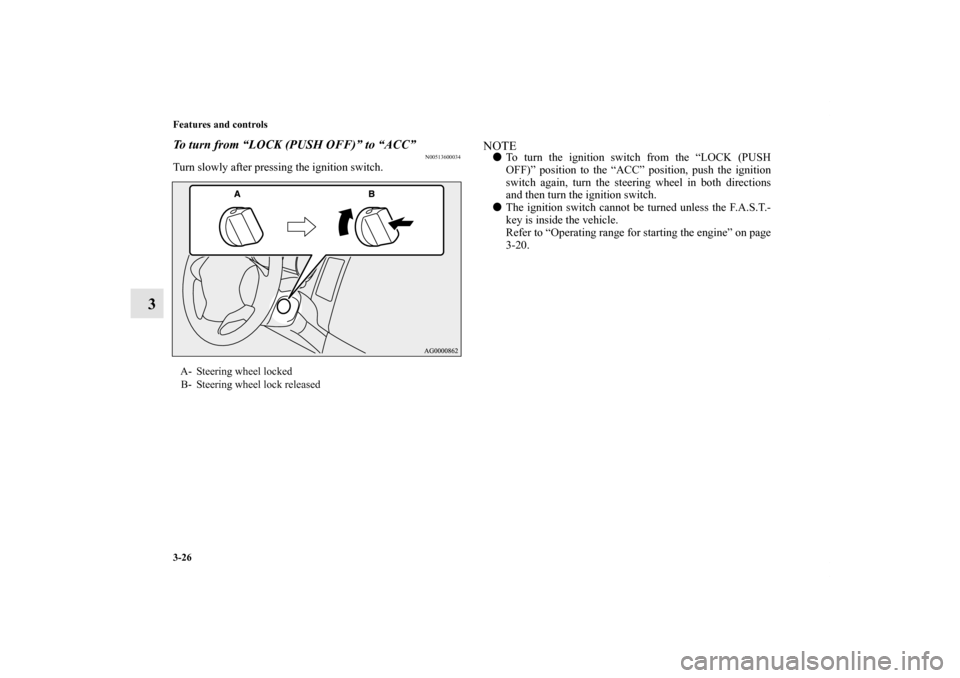

To turn from “LOCK (PUSH OFF)” to “ACC”
N00513600034
Turn slowly after pressing the ignition switch.
NOTE
To turn the ignition switch from the “LOCK (PUSH
OFF)” position to the “ACC” position, push the ignition
switch again, turn the steering wheel in both directions
and then turn the ignition switch.

The ignition switch cannot be turned unless the F.A.S.T.-
key is inside the vehicle.
Refer to “Operating range for starting the engine” on page
3-20.
A- Steering wheel locked
B- Steering wheel lock released
BK0150600US.book 26 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-27
3

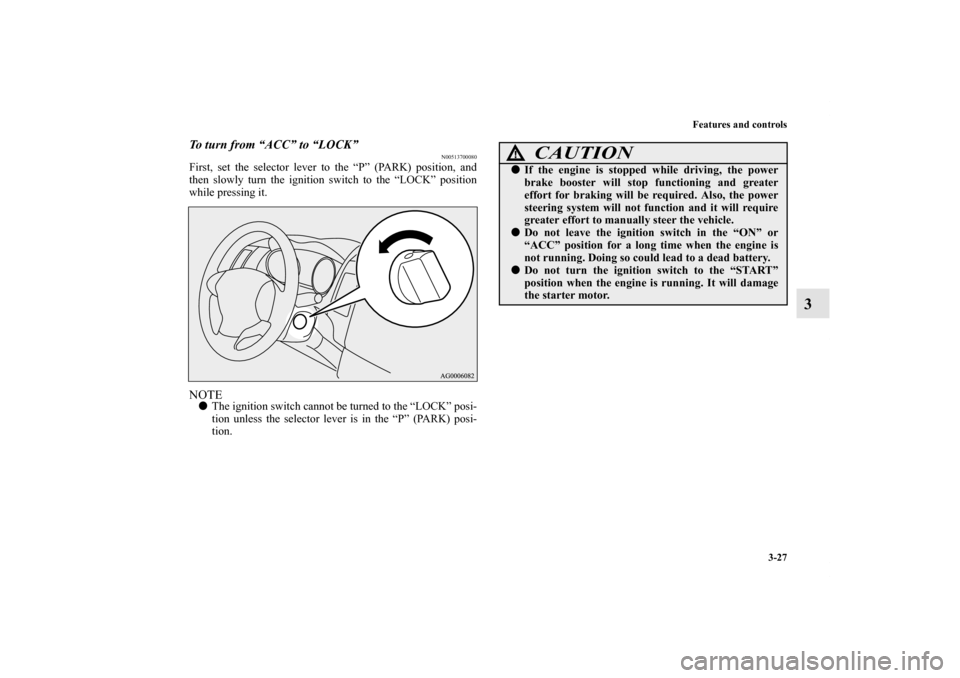

To turn from “ACC” to “LOCK”
N00513700080
First, set the selector lever to the “P” (PARK) position, and
then slowly turn the ignition switch to the “LOCK” position
while pressing it.NOTE
The ignition switch cannot be turned to the “LOCK” posi-
tion unless the selector lever is in the “P” (PARK) posi-
tion.
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the ignition switch in the “ON” or
“ACC” position for a long time when the engine is
not running. Doing so could lead to a dead battery.
Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
BK0150600US.book 27 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-28 Features and controls
3

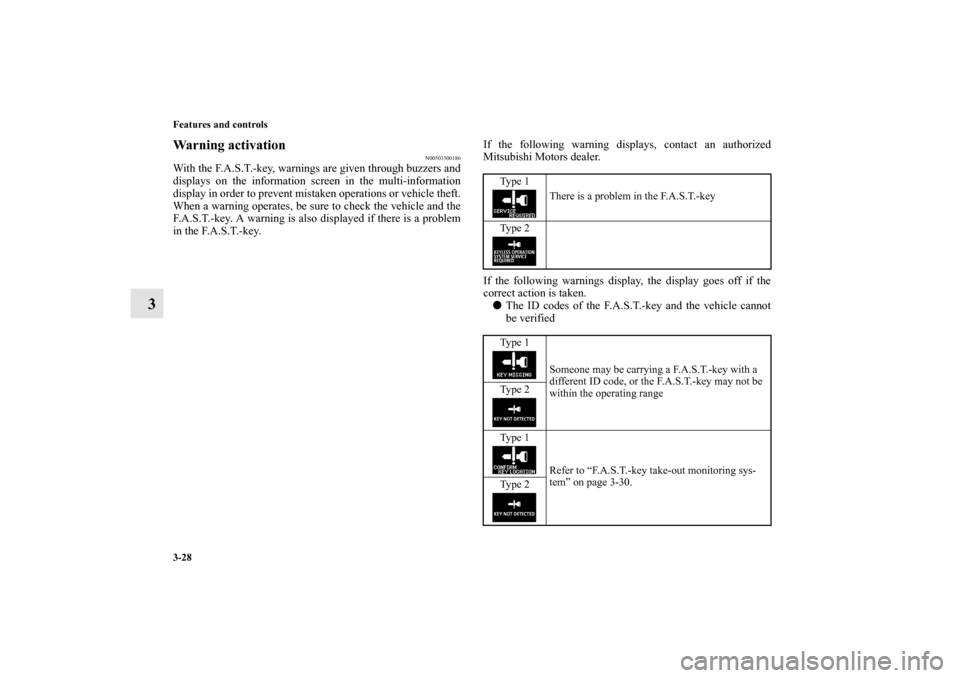

Warning activation
N00503500186
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.If the following warning displays, contact an authorized
Mitsubishi Motors dealer.
If the following warnings display, the display goes off if the
correct action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified
Ty p e 1
There is a problem in the F.A.S.T.-key
Ty p e 2
Ty p e 1
Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range Ty p e 2
Ty p e 1
Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-30.
Ty p e 2
BK0150600US.book 28 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-29
3

A door or the tailgate cannot be locked even when the
driver’s or front passenger’s door lock/unlock switch, or
the tailgate LOCK switch is pressedTy p e 1
The battery of the F.A.S.T.-key is run down
Ty p e 2
Ty p e 1
Refer to “Key lock-in prevention system” on page
3-30.
Ty p e 2
Ty p e 1
Refer to “Door ajar prevention system” on page 3-
31.
Ty p e 2
Ty p e 1
Refer to “Ignition switch turn-off reminder sys-
tem” on page 3-31.
Ty p e 2
BK0150600US.book 29 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-30 Features and controls
3

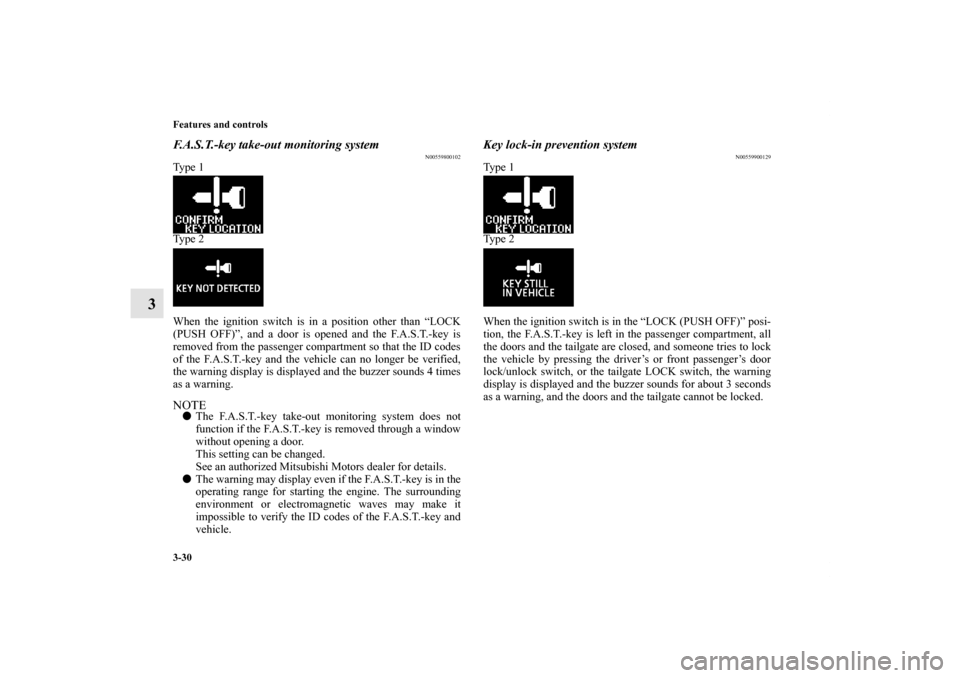

F.A.S.T.-key take-out monitoring system
N00559800102
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, and a door is opened and the F.A.S.T.-key is
removed from the passenger compartment so that the ID codes
of the F.A.S.T.-key and the vehicle can no longer be verified,
the warning display is displayed and the buzzer sounds 4 times
as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.

The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900129
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors and the tailgate are closed, and someone tries to lock
the vehicle by pressing the driver’s or front passenger’s door
lock/unlock switch, or the tailgate LOCK switch, the warning
display is displayed and the buzzer sounds for about 3 seconds
as a warning, and the doors and the tailgate cannot be locked.
BK0150600US.book 30 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-31
3

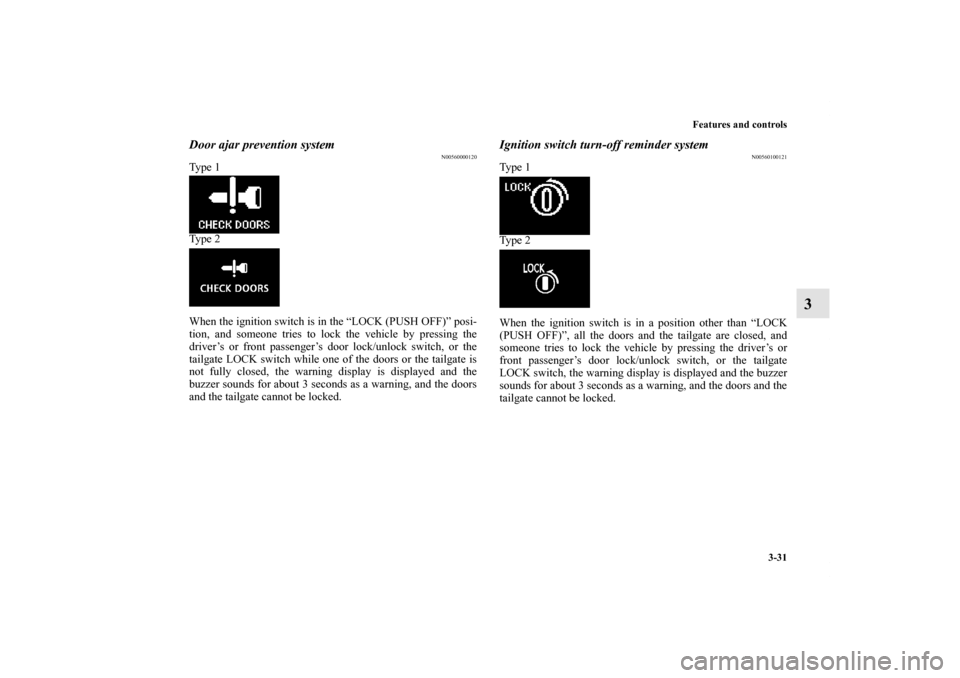

Door ajar prevention system
N00560000120
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, and someone tries to lock the vehicle by pressing the
driver’s or front passenger’s door lock/unlock switch, or the
tailgate LOCK switch while one of the doors or the tailgate is
not fully closed, the warning display is displayed and the
buzzer sounds for about 3 seconds as a warning, and the doors
and the tailgate cannot be locked.
Ignition switch turn-off reminder system
N00560100121
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, all the doors and the tailgate are closed, and
someone tries to lock the vehicle by pressing the driver’s or
front passenger’s door lock/unlock switch, or the tailgate
LOCK switch, the warning display is displayed and the buzzer
sounds for about 3 seconds as a warning, and the doors and the
tailgate cannot be locked.
BK0150600US.book 31 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-32 Features and controls
3

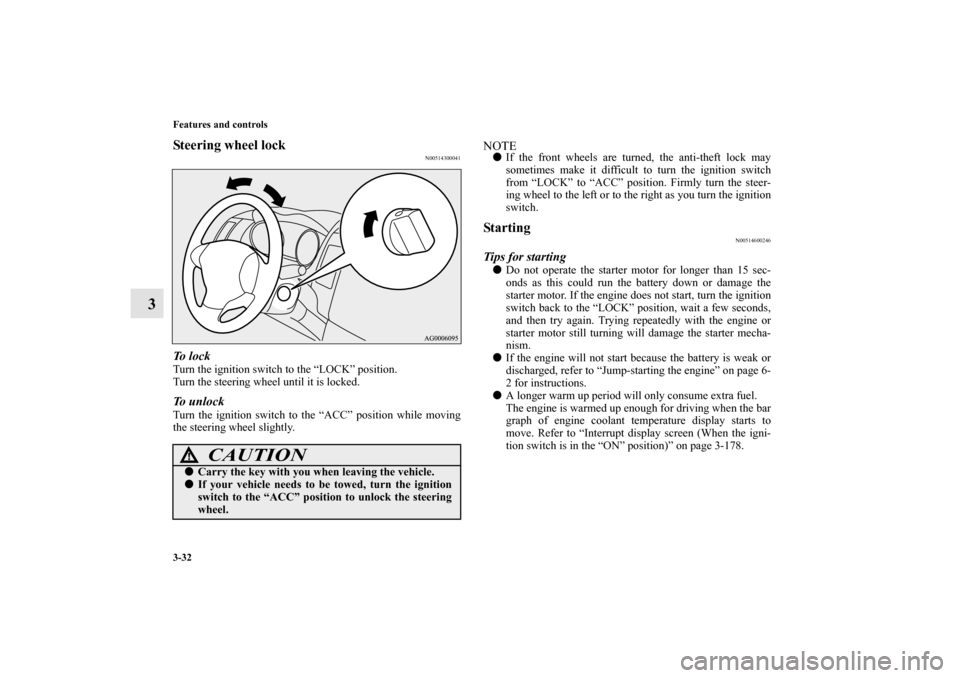

Steering wheel lock
N00514300041
To l o c kTurn the ignition switch to the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the ignition switch to the “ACC” position while moving
the steering wheel slightly.
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the ignition switch
from “LOCK” to “ACC” position. Firmly turn the steer-
ing wheel to the left or to the right as you turn the ignition
switch.Starting
N00514600246
Tips for starting
Do not operate the starter motor for longer than 15 sec-
onds as this could run the battery down or damage the
starter motor. If the engine does not start, turn the ignition
switch back to the “LOCK” position, wait a few seconds,
and then try again. Trying repeatedly with the engine or
starter motor still turning will damage the starter mecha-
nism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Refer to “Interrupt display screen (When the igni-
tion switch is in the “ON” position)” on page 3-178.
CAUTION
!
Carry the key with you when leaving the vehicle.
If your vehicle needs to be towed, turn the ignition
switch to the “ACC” position to unlock the steering
wheel.
BK0150600US.book 32 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

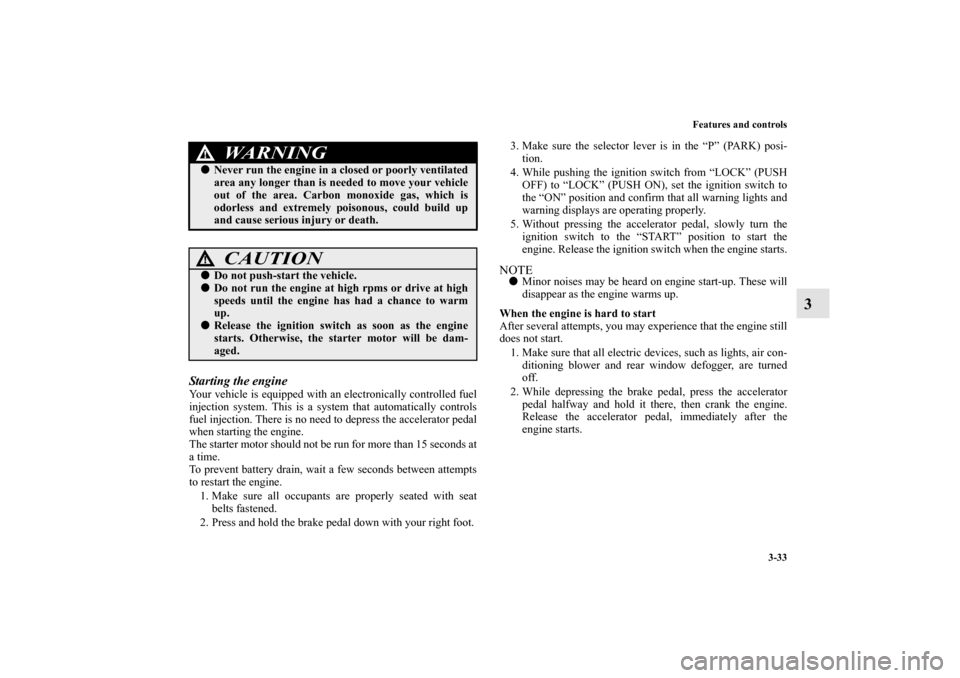

Features and controls
3-33
3
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is no need to depress the accelerator pedal
when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Press and hold the brake pedal down with your right foot.3. Make sure the selector lever is in the “P” (PARK) posi-
tion.
4. While pushing the ignition switch from “LOCK” (PUSH
OFF) to “LOCK” (PUSH ON), set the ignition switch to
the “ON” position and confirm that all warning lights and
warning displays are operating properly.
5. Without pressing the accelerator pedal, slowly turn the
ignition switch to the “START” position to start the
engine. Release the ignition switch when the engine starts.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
When the engine is hard to start
After several attempts, you may experience that the engine still
does not start.
1. Make sure that all electric devices, such as lights, air con-
ditioning blower and rear window defogger, are turned
off.
2. While depressing the brake pedal, press the accelerator
pedal halfway and hold it there, then crank the engine.
Release the accelerator pedal, immediately after the
engine starts.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0150600US.book 33 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-34 Features and controls
3

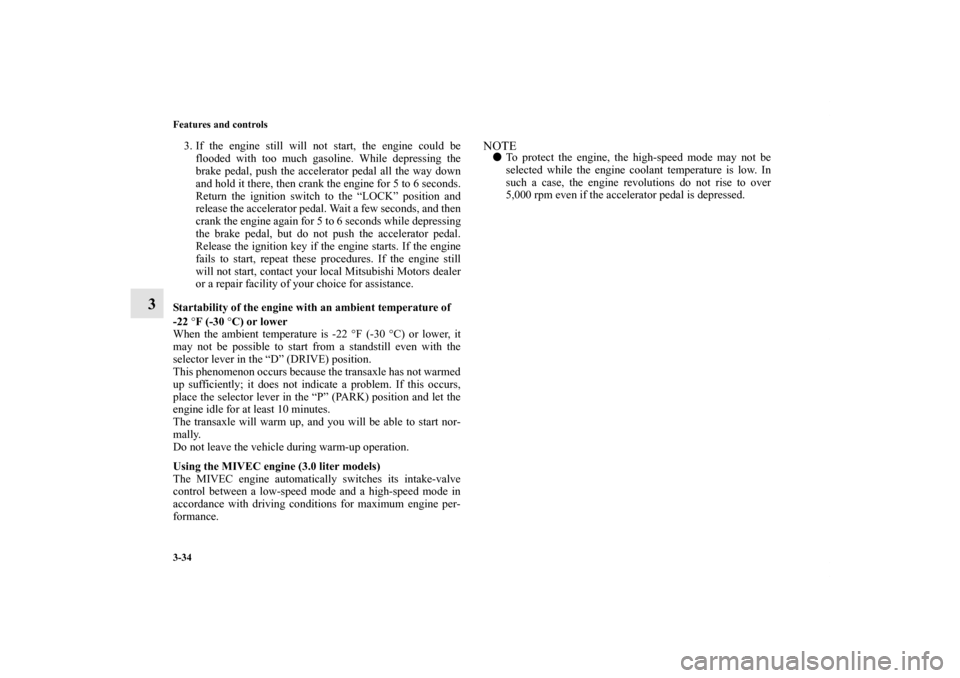

3. If the engine still will not start, the engine could be
flooded with too much gasoline. While depressing the
brake pedal, push the accelerator pedal all the way down
and hold it there, then crank the engine for 5 to 6 seconds.
Return the ignition switch to the “LOCK” position and
release the accelerator pedal. Wait a few seconds, and then
crank the engine again for 5 to 6 seconds while depressing
the brake pedal, but do not push the accelerator pedal.
Release the ignition key if the engine starts. If the engine
fails to start, repeat these procedures. If the engine still
will not start, contact your local Mitsubishi Motors dealer
or a repair facility of your choice for assistance.
Startability of the engine with an ambient temperature of
-22 °F (-30 °C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
Using the MIVEC engine (3.0 liter models)
The MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.
NOTE
To protect the engine, the high-speed mode may not be
selected while the engine coolant temperature is low. In
such a case, the engine revolutions do not rise to over
5,000 rpm even if the accelerator pedal is depressed.
BK0150600US.book 34 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-35
3

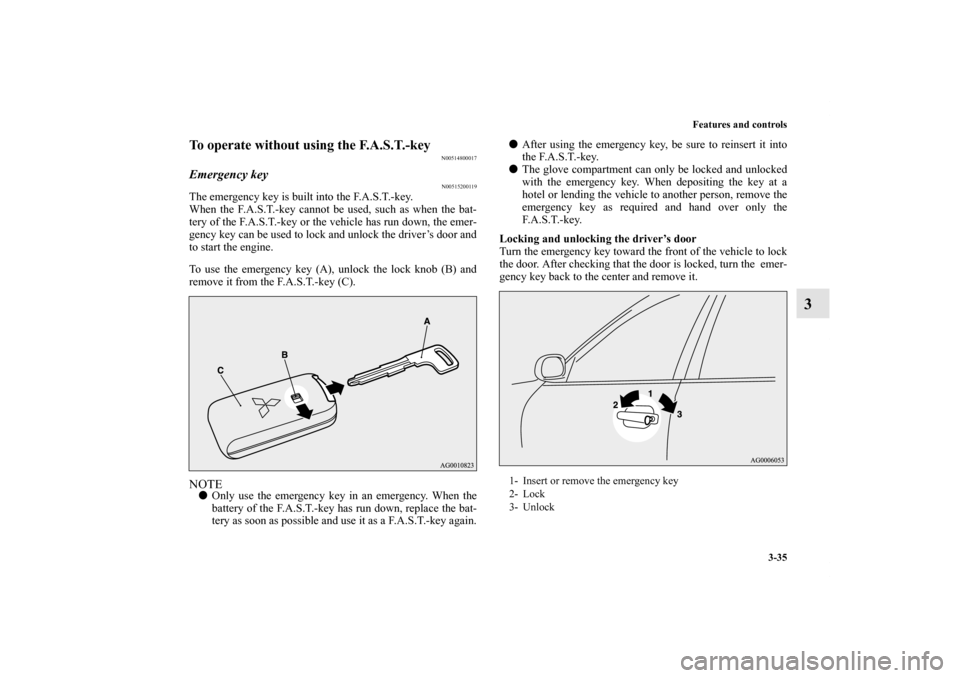

To operate without using the F.A.S.T.-key
N00514800017
Emergency key
N00515200119
The emergency key is built into the F.A.S.T.-key.
When the F.A.S.T.-key cannot be used, such as when the bat-
tery of the F.A.S.T.-key or the vehicle has run down, the emer-
gency key can be used to lock and unlock the driver’s door and
to start the engine.
To use the emergency key (A), unlock the lock knob (B) and
remove it from the F.A.S.T.-key (C).NOTE
Only use the emergency key in an emergency. When the
battery of the F.A.S.T.-key has run down, replace the bat-
tery as soon as possible and use it as a F.A.S.T.-key again.
After using the emergency key, be sure to reinsert it into
the F.A.S.T.-key.

The glove compartment can only be locked and unlocked
with the emergency key. When depositing the key at a
hotel or lending the vehicle to another person, remove the
emergency key as required and hand over only the
F. A . S . T. - k e y.
Locking and unlocking the driver’s door
Turn the emergency key toward the front of the vehicle to lock
the door. After checking that the door is locked, turn the emer-
gency key back to the center and remove it.
1- Insert or remove the emergency key
2- Lock
3- Unlock
BK0150600US.book 35 ページ ２０１２年３月３０日　金曜日　午前１０時４３分
