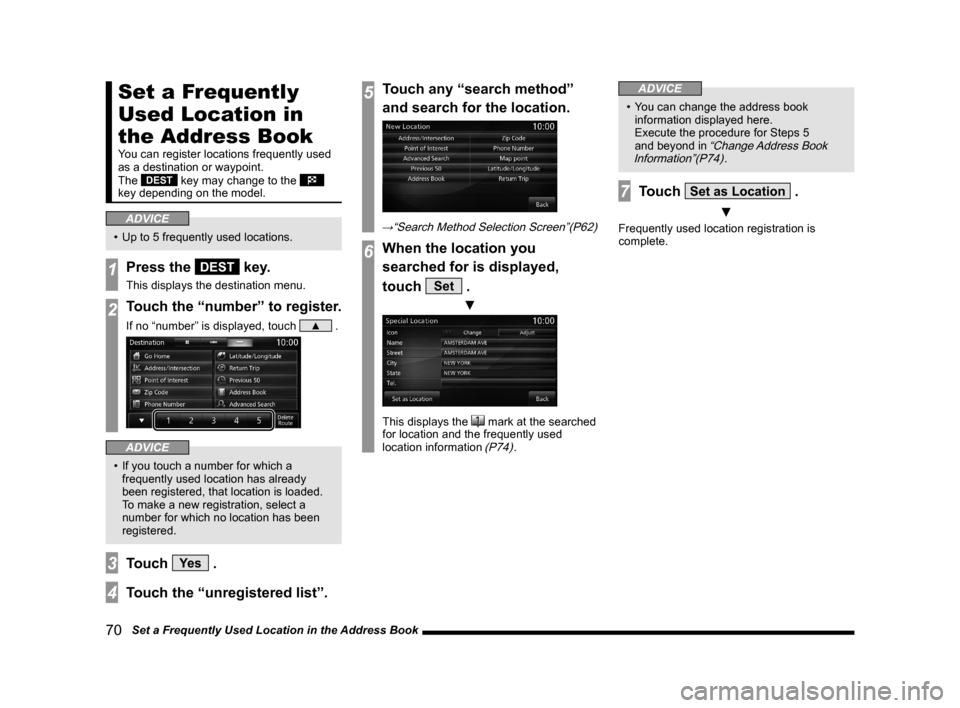

70 Set a Frequently Used Location in the Address Book
Set a Frequently
Used Location in
the Address Book
You can register locations frequently used
as a destination or waypoint.
The
DEST key may change to the
key depending on the model.
ADVICE
• Up to 5 frequently used locations.
1Press the DEST key.
This displays the destination menu.
2Touch the “number” to register.
If no “number” is displayed, touch ▲ .
ADVICE
• If you touch a number for which a
frequently used location has already
been registered, that location is loaded.
To make a new registration, select a
number for which no location has been
registered.
3Touch Ye s .
4Touch the “unregistered list”.
5Touch any “search method”
and search for the location.
→“Search Method Selection Screen”(P62)
6When the location you
searched for is displayed,
touch
Set .
▼
This displays the mark at the searched
for location and the frequently used
location information
(P74).
ADVICE
• You can change the address book
information displayed here.
Execute the procedure for Steps 5
and beyond in
“Change Address Book
Information”(P74).
7Touch Set as Location .
▼
Frequently used location registration is
complete.

Set a Frequently Used Location in the Address Book
71
NAVI Set an Address in the Address Book

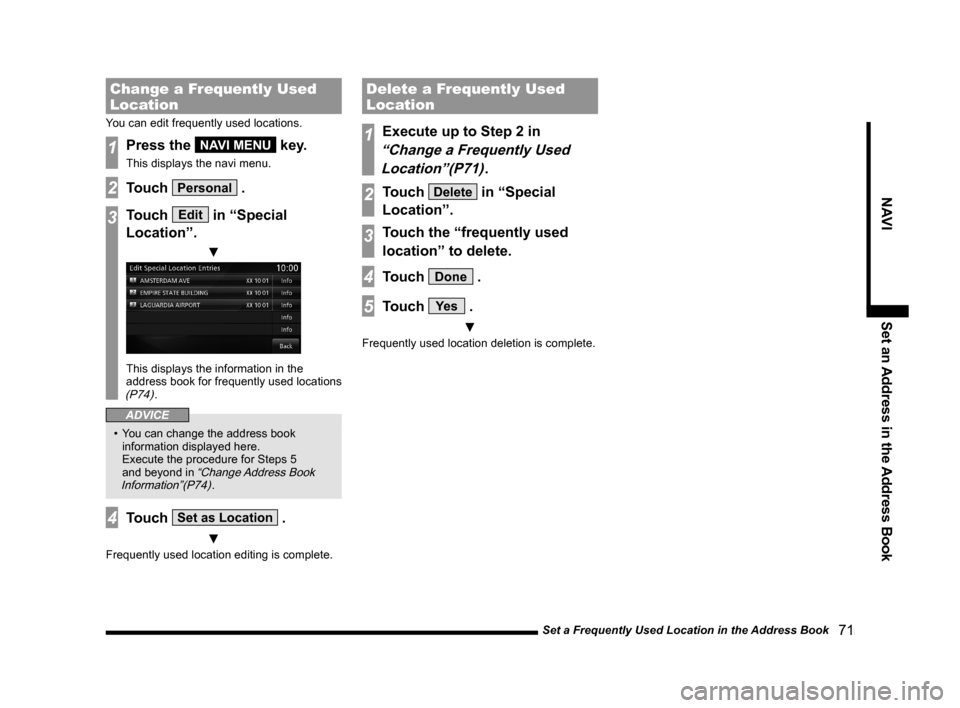

Change a Frequently Used
Location
You can edit frequently used locations.
1Press the NAVI MENU key.
This displays the navi menu.
2Touch Personal .
3Touch Edit in “Special
Location”.
▼
This displays the information in the
address book for frequently used locations
(P74).
ADVICE
• You can change the address book
information displayed here.
Execute the procedure for Steps 5
and beyond in
“Change Address Book
Information”(P74).
4Touch Set as Location .
▼
Frequently used location editing is complete.
Delete a Frequently Used
Location
1Execute up to Step 2 in
“Change a Frequently Used
Location”(P71)
.
2Touch Delete in “Special
Location”.
3Touch the “frequently used
location” to delete.
4Touch Done .
5Touch Ye s .
▼
Frequently used location deletion is complete.

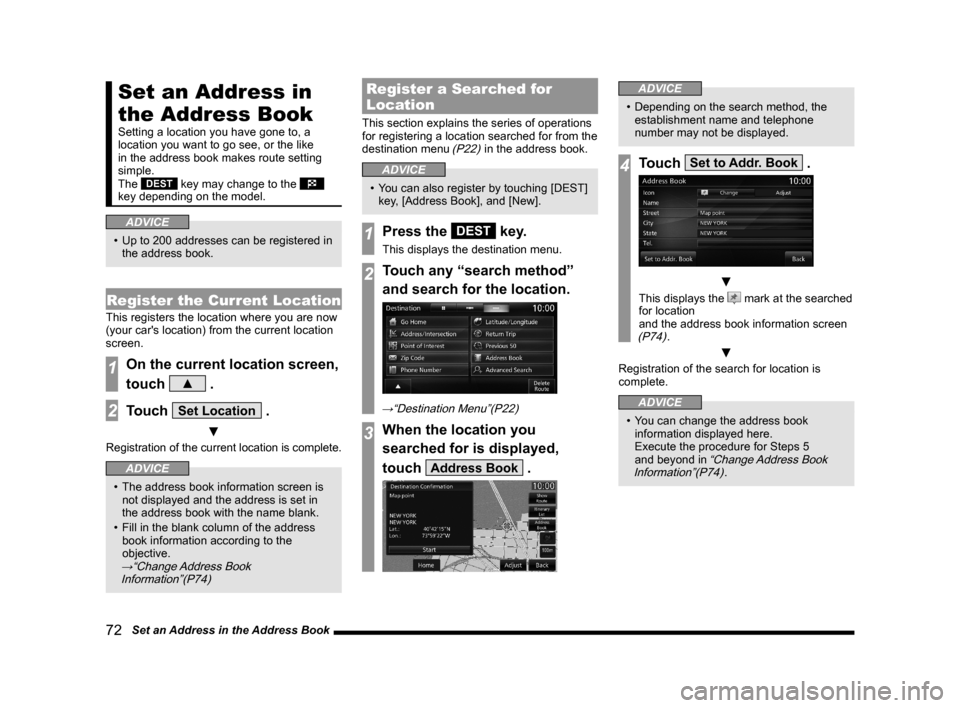

72 Set an Address in the Address Book
Set an Address in
the Address Book
Setting a location you have gone to, a
location you want to go see, or the like
in the address book makes route setting
simple.
The
DEST key may change to the
key depending on the model.
ADVICE
• Up to 200 addresses can be registered in
the address book.
Register the Current Location
This registers the location where you are now
(your car's location) from the current location
screen.
1On the current location screen,
touch
▲ .
2Touch Set Location .
▼
Registration of the current location is complete.
ADVICE
• The address book information screen is
not displayed and the address is set in
the address book with the name blank.
• Fill in the blank column of the address
book information according to the
objective.
→“Change Address Book
Information”(P74)
Register a Searched for
Location
This section explains the series of operations
for registering a location searched for from the
destination menu
(P22) in the address book.
ADVICE
• You can also register by touching [DEST]
key, [Address Book], and [New].
1Press the DEST key.
This displays the destination menu.
2Touch any “search method”
and search for the location.
→“Destination Menu”(P22)
3When the location you
searched for is displayed,
touch
Address Book .
ADVICE
• Depending on the search method, the
establishment name and telephone
number may not be displayed.
4Touch Set to Addr. Book .
▼
This displays the mark at the searched
for location
and the address book information screen
(P74).
▼
Registration of the search for location is
complete.
ADVICE
• You can change the address book
information displayed here.
Execute the procedure for Steps 5
and beyond in
“Change Address Book
Information”(P74).

Set an Address in the Address Book
73
NAVI Set an Address in the Address Book

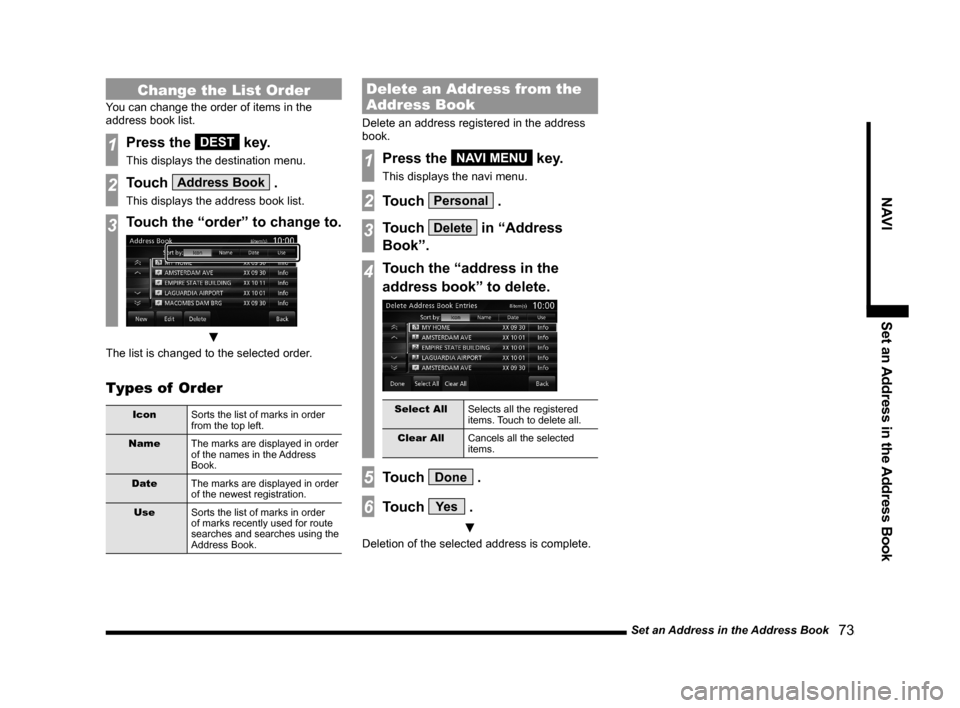

Change the List Order
You can change the order of items in the
address book list.
1Press the DEST key.
This displays the destination menu.
2Touch Address Book .
This displays the address book list.
3Touch the “order” to change to.
▼
The list is changed to the selected order.
Types of Order
Icon
Sorts the list of marks in order
from the top left.
Name
The marks are displayed in order
of the names in the Address
Book.
Date
The marks are displayed in order
of the newest registration.
Use
Sorts the list of marks in order
of marks recently used for route
searches and searches using the
Address Book.
Delete an Address from the
Address Book
Delete an address registered in the address
book.
1Press the NAVI MENU key.
This displays the navi menu.
2Touch Personal .
3Touch Delete in “Address
Book”.
4Touch the “address in the
address book” to delete.
Select All
Selects all the registered
items. Touch to delete all.
Clear All
Cancels all the selected
items.
5Touch Done .
6Touch Ye s .
▼
Deletion of the selected address is complete.

74 Change Address Book Information

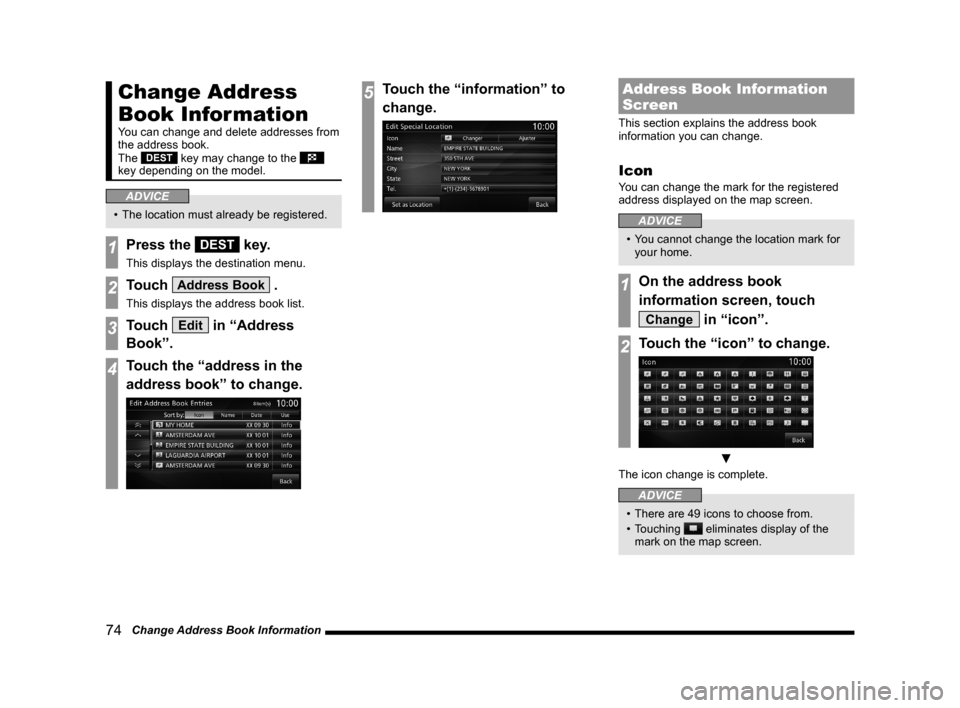

Change Address
Book Information
You can change and delete addresses from
the address book.
The
DEST key may change to the
key depending on the model.
ADVICE
• The location must already be registered.
1Press the DEST key.
This displays the destination menu.
2Touch Address Book .
This displays the address book list.
3Touch Edit in “Address
Book”.
4Touch the “address in the
address book” to change.
5Touch the “information” to
change.Address Book Information
Screen
This section explains the address book
information you can change.
Icon
You can change the mark for the registered
address displayed on the map screen.
ADVICE
• You cannot change the location mark for
your home.
1On the address book
information screen, touch
Change in “icon”.
2Touch the “icon” to change.
▼
The icon change is complete.
ADVICE
• There are 49 icons to choose from.
• Touching
eliminates display of the
mark on the map screen.

Change Address Book Information
75
NAVI Set an Address in the Address Book

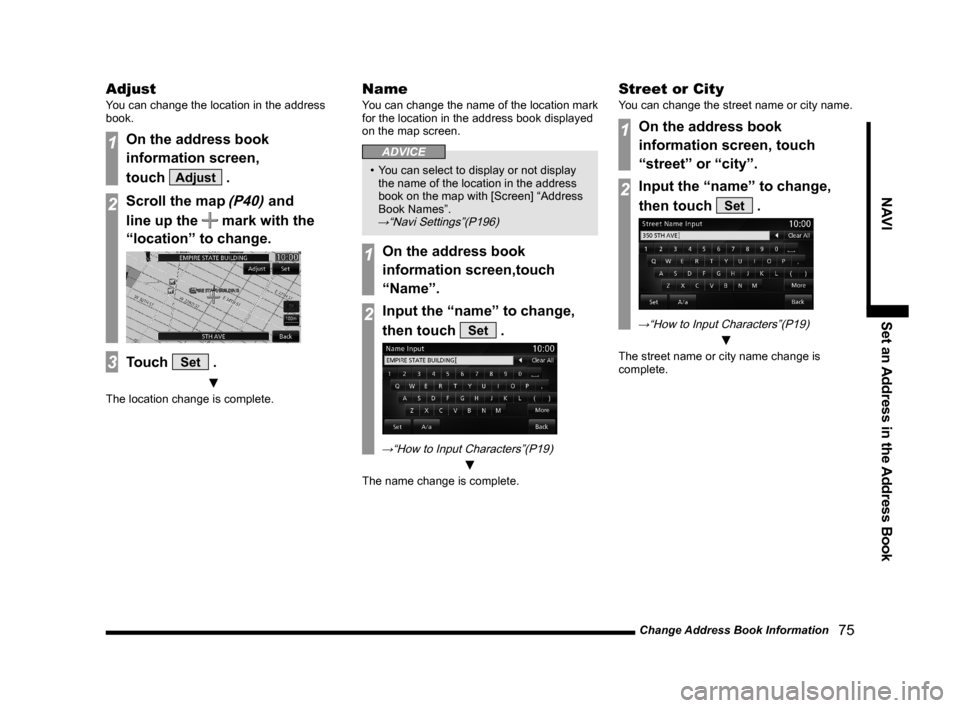

Adjust
You can change the location in the address
book.
1On the address book
information screen,
touch
Adjust .
2Scroll the map (P40) and
line up the
mark with the
“location” to change.
3Touch Set .
▼
The location change is complete.
Name
You can change the name of the location mark
for the location in the address book displayed
on the map screen.
ADVICE
• You can select to display or not display
the name of the location in the address
book on the map with [Screen] “Address
Book Names”.
→“Navi Settings”(P196)
1On the address book
information screen,touch
“Name”.
2Input the “name” to change,
then touch
Set .
→“How to Input Characters”(P19)
▼
The name change is complete.
Street or City
You can change the street name or city name.
1On the address book
information screen, touch
“street” or “city”.
2Input the “name” to change,
then touch
Set .
→“How to Input Characters”(P19)
▼
The street name or city name change is
complete.

RTT
77
NAVI RTT

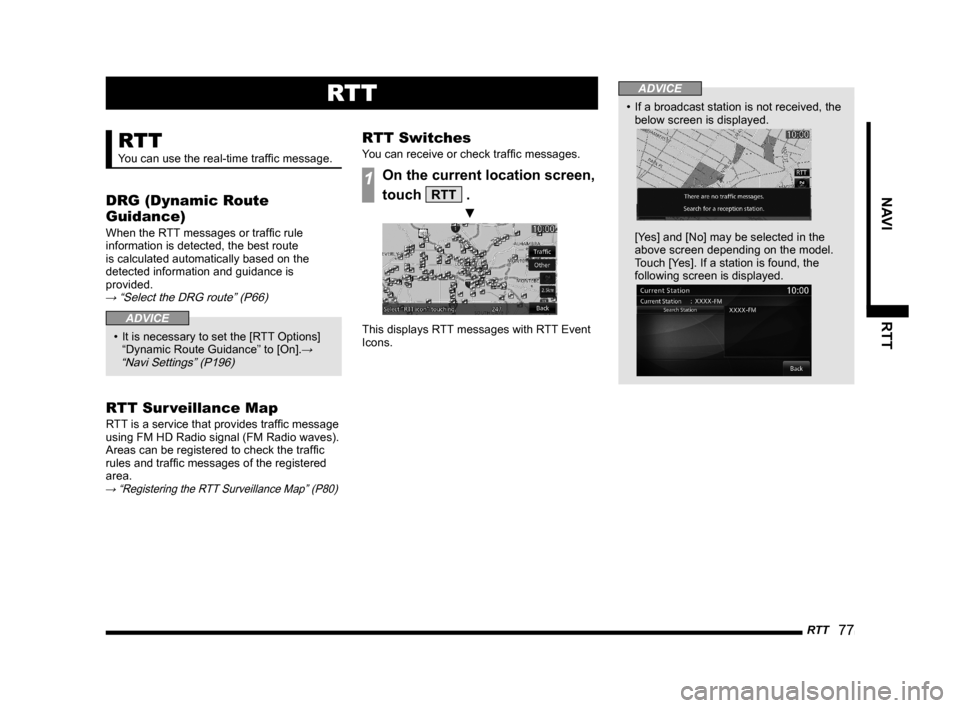

RTT
RTT
You can use the real-time traffi c message.
DRG (Dynamic Route
Guidance)
When the RTT messages or traffi c rule
information is detected, the best route
is calculated automatically based on the
detected information and guidance is
provided.
→ “Select the DRG route” (P66)
ADVICE
• It is necessary to set the [RTT Options]
“Dynamic Route Guidance” to [On].→
“Navi Settings” (P196)
RTT Sur veillance Map
RTT is a service that provides traffi c message
using FM HD Radio signal (FM Radio waves).
Areas can be registered to check the traffi c
rules and traffi c messages of the registered
area.
→ “Registering the RTT Surveillance Map” (P80)
RTT Switches
You can receive or check traffi c messages.
1On the current location screen,
touch
RTT .
▼
This displays RTT messages with RTT Event
Icons.
ADVICE
• If a broadcast station is not received, the
below screen is displayed.

[Yes] and [No] may be selected in the
above screen depending on the model.
Touch [Yes]. If a station is found, the
following screen is displayed.

78 RTT

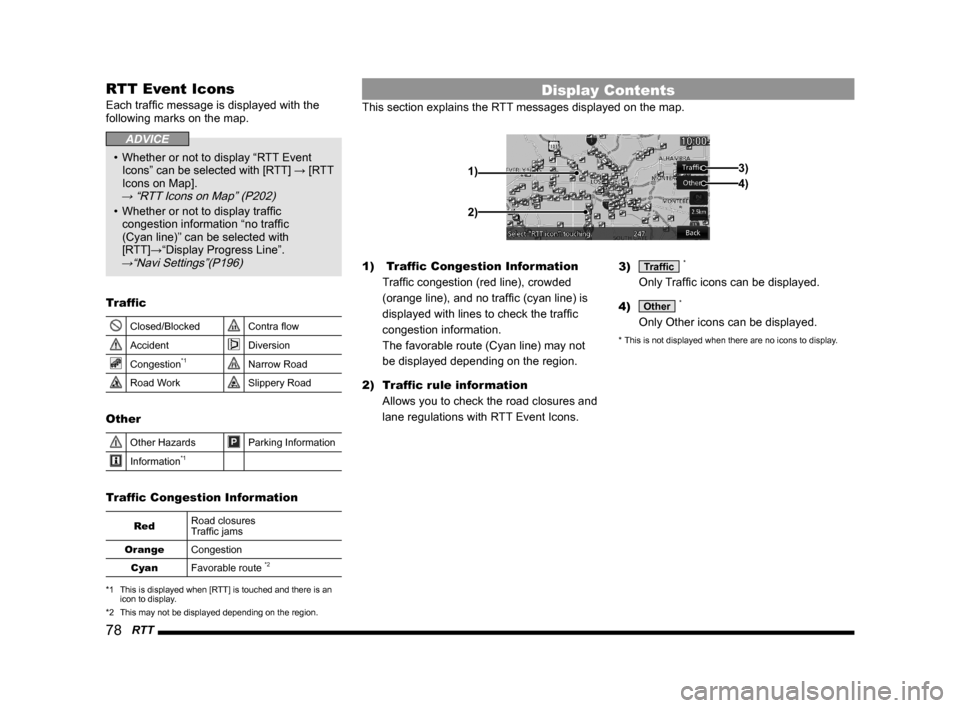

RTT Event Icons
Each traffi c message is displayed with the
following marks on the map.
ADVICE
• Whether or not to display “RTT Event
Icons” can be selected with [RTT] → [RTT
Icons on Map].
→ “RTT Icons on Map” (P202)
• Whether or not to display traffi c
congestion information “no traffi c
(Cyan line)” can be selected with
[RTT]→“Display Progress Line”.
→“Navi Settings”(P196)
Tr affi c
Closed/BlockedContra fl ow
AccidentDiversion
Congestion*1Narrow Road
Road WorkSlippery Road
Other
Other HazardsParking Information
Information*1
Tr affi c Congestion Information
RedRoad closures
Traffi c jams
Orange
Congestion
Cyan
Favorable route
*2
*1 This is displayed when [RTT] is touched and there is an
icon to display.
*2 This may not be displayed depending on the region.
1) Traffi c Congestion Information
Traffi c congestion (red line), crowded
(orange line), and no traffi c (cyan line) is
displayed with lines to check the traffi c
congestion information.
The favorable route (Cyan line) may not
be displayed depending on the region.
2) Traffi c rule information
Allows you to check the road closures and
lane regulations with RTT Event Icons.3) Traffi c *
Only Traffi c icons can be displayed.
4)
Other *
Only Other icons can be displayed.
* This is not displayed when there are no icons to display.
Display Contents
This section explains the RTT messages displayed on the map.
1)
2)4)
3)

Checking the RTT Traffi c Messages
79
NAVI RTT

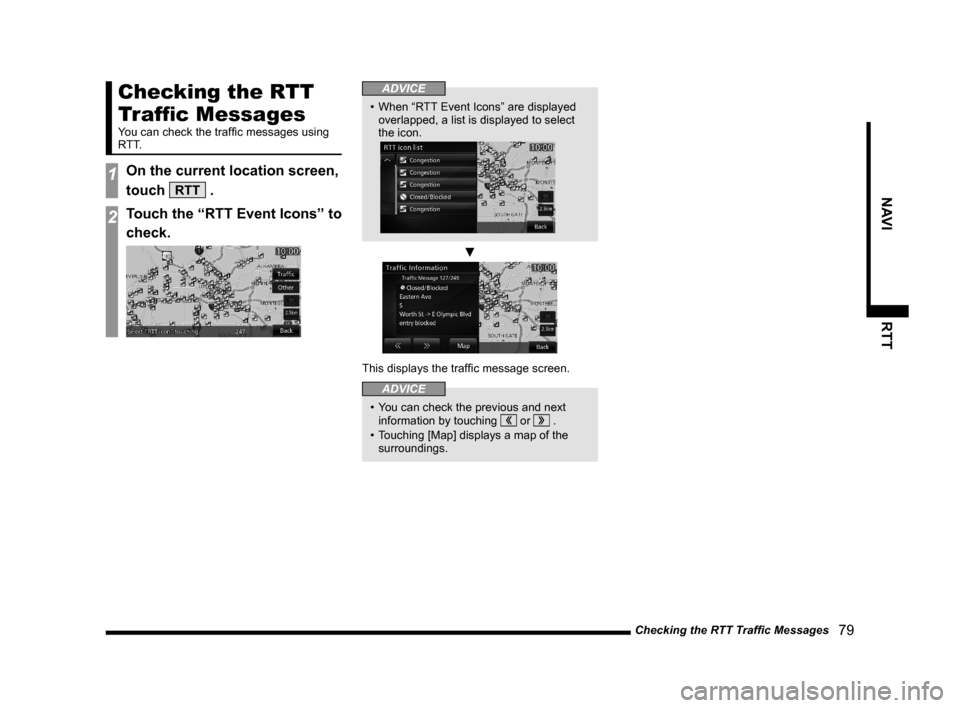

Checking the RTT
Tr affi c Messages
You can check the traffi c messages using
RTT.
1On the current location screen,
touch
RTT .
2Touch the “RTT Event Icons” to
check.
ADVICE
• When “RTT Event Icons” are displayed
overlapped, a list is displayed to select
the icon.

▼
This displays the traffi c message screen.
ADVICE
• You can check the previous and next
information by touching or .
• Touching [Map] displays a map of the
surroundings.

Basic Operation
81

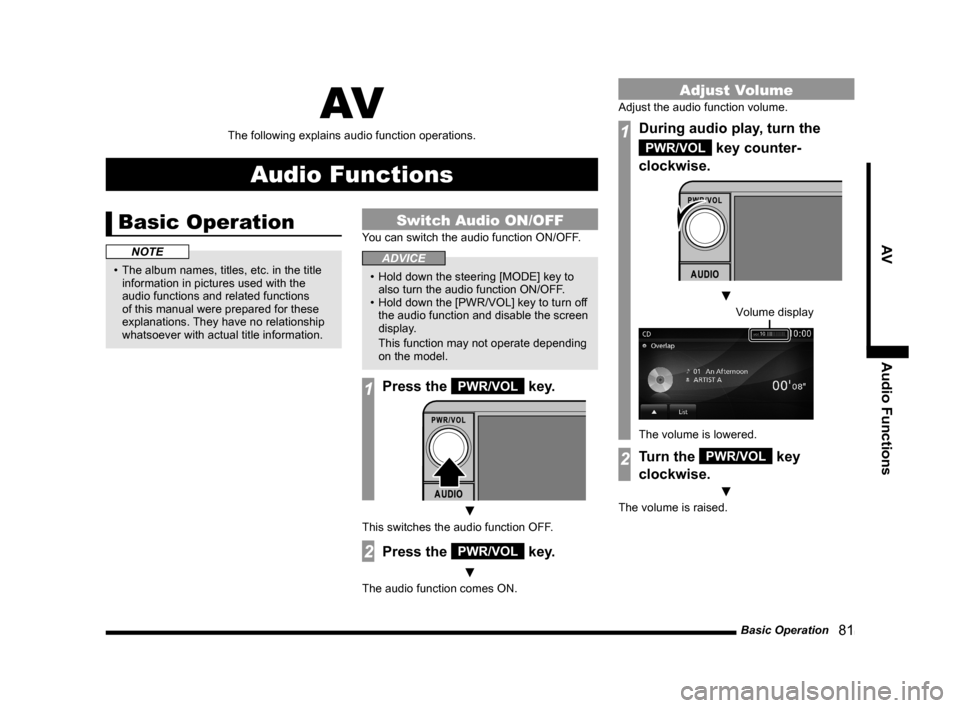

AV Audio Functions
AV
The following explains audio function operations.
Audio Functions
Basic Operation
NOTE
• The album names, titles, etc. in the title
information in pictures used with the
audio functions and related functions
of this manual were prepared for these
explanations. They have no relationship
whatsoever with actual title information.
Switch Audio ON/OFF
You can switch the audio function ON/OFF.
ADVICE
• Hold down the steering [MODE] key to
also turn the audio function ON/OFF.
• Hold down the [PWR/VOL] key to turn off
the audio function and disable the screen
display.
This function may not operate depending
on the model.
1Press the PWR/VOL key.
▼
This switches the audio function OFF.
2Press the PWR/VOL key.
▼
The audio function comes ON.
Adjust Volume
Adjust the audio function volume.
1During audio play, turn the
PWR/VOL key counter-
clockwise.
▼
Volume display
The volume is lowered.
2Turn the PWR/VOL key
clockwise.
▼
The volume is raised.
