Break-in recommendations
Features and controls 5-3
5
N00508701366
Advanced automobile
manufacturing tech-
niques permit you to operate your new vehi-cle without requiring a long break-in periodof low-speed driving.However, you can add to the future perfor-mance and economy of your vehicle byobserving the following precautions duringthe first 300 miles (500 km).Drive your vehicle at m
oderate speeds during
the break-in period.Avoid revving the engine.Avoid rough driving such as sudden starts,sudden accelerati
on, prolonged high-
speed driving and sudden braking. Theseactions would have a detrimental effect onthe engine and lead to increased fuel andoil consumption; th
is could ultimately
result in the malfunction of engine com-ponents. Be particularly careful to avoidfull acceleration while in low shift posi-tion (low gears).Do not overload the vehicle. Stay withinthe seating capacity. (Refer to “Cargo loadprecautions” on page 6-10.)Refrain from towing a trailer or othervehicle (Refer to “T
railer towing” on page
6-11).
N00508801716
Two keys are provided. The keys fit all locks.Keep one in a safe place as a spare key.
Two F.A.S.T.-keys and two emergency keysare provided.Keep one F.A.S.T.-key and one emergencykey in a safe pl
ace together as a set of spare
keys.
Break-in recommendations
Keys Ty p e 1 1- Key for the electronic immobilizer and
keyless entry system
2- Key number plate
Type 2 1- F.A.S.T.-key
(with electronic im
mobilizer and key-
less entry system function)
3- Key number plate
NOTE
The key is a precision
electronic device with
a built-in signal transm
itter. Please observe
the following in order to prevent damage.• Do not leave where it may be exposed toheat caused by direct
sunlight, such as on
top of the dashboard.
BK0249100US.book 3 ページ ２０１７年５月１０日　水曜日　午前８時４９分

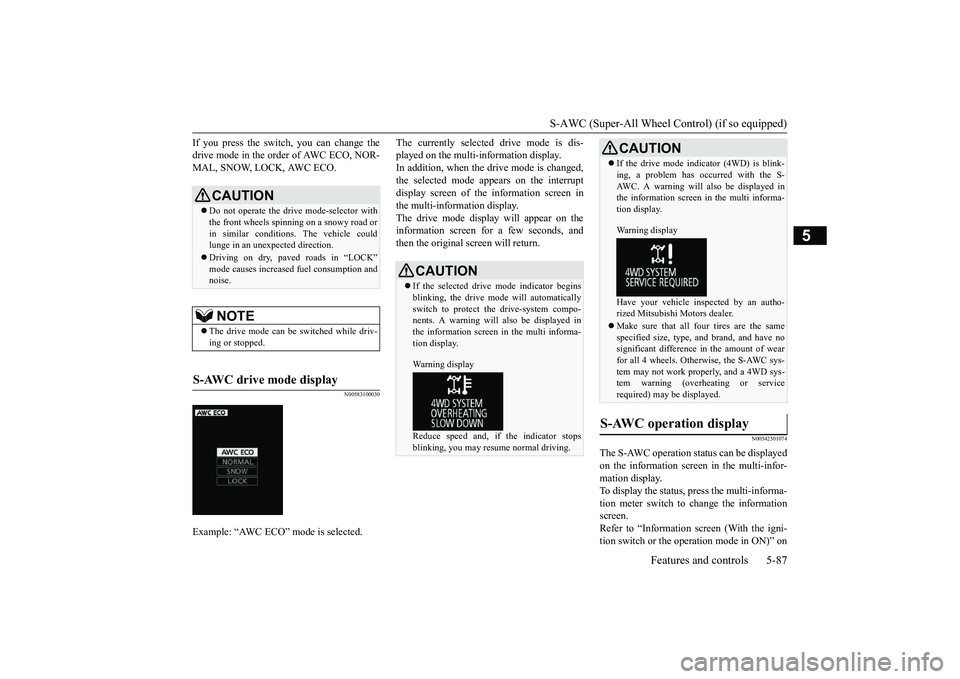

S-AWC (Super-All Wheel Co
ntrol) (if so equipped)
Features and controls 5-87
5
If you press the switch, you can change thedrive mode in the order of AWC ECO, NOR-MAL, SNOW, LOCK, AWC ECO.
N00583100030
The currently selected drive mode is dis-played on the multi-information display.In addition, when the drive mode is changed,the selected mode appears on the interruptdisplay screen of the information screen inthe multi-information display.The drive mode display
will appear on the
information screen for a few seconds, andthen the original screen will return.
N00542501074
The S-AWC operation stat
us can be displayed
on the information screen in the multi-infor-mation display.To display the status, press the multi-informa-tion meter switch to change the informationscreen.Refer to “Information screen (With the igni-tion switch or the operation mode in ON)” on
CAUTIONDo not operate the drive mode-selector withthe front wheels spinning on a snowy road orin similar conditions
. The vehicle could
lunge in an unexpe
cted direction.
Driving on dry, paved roads in “LOCK”
fuel consumption and
noise.NOTE
The drive mode can be switched while driv-ing or stopped.
S-AWC drive mode display

Example: “AWC ECO” mode is selected.
CAUTIONIf the selected drive
mode indicator begins
blinking, the drive m
ode will automatically
switch to protect the drive-system compo-nents. A warning will
also be displayed in
the information screen in the multi informa-tion display.Warning displayReduce speed and, if the indicator stopsblinking, you may resume normal driving.
If the drive mode indicator (4WD) is blink-ing, a problem has oc
curred with the S-
AWC. A warning will
also be displayed in
the information screen in the multi informa-tion display.Warning displayHave your vehicle insp
ected by an autho-
rized Mitsubishi Motors dealer.Make sure that all four tires are the samespecified size, type, a
nd brand, and have no
significant difference in the amount of wearfor all 4 wheels. Otherwise, the S-AWC sys-tem may not work properly, and a 4WD sys-tem warning (overheating or servicerequired) may
be displayed.
S-AWC operation display

CAUTION
BK0249100US.book 87 ページ ２０１７年５月１０日　水曜日　午前８時４９分

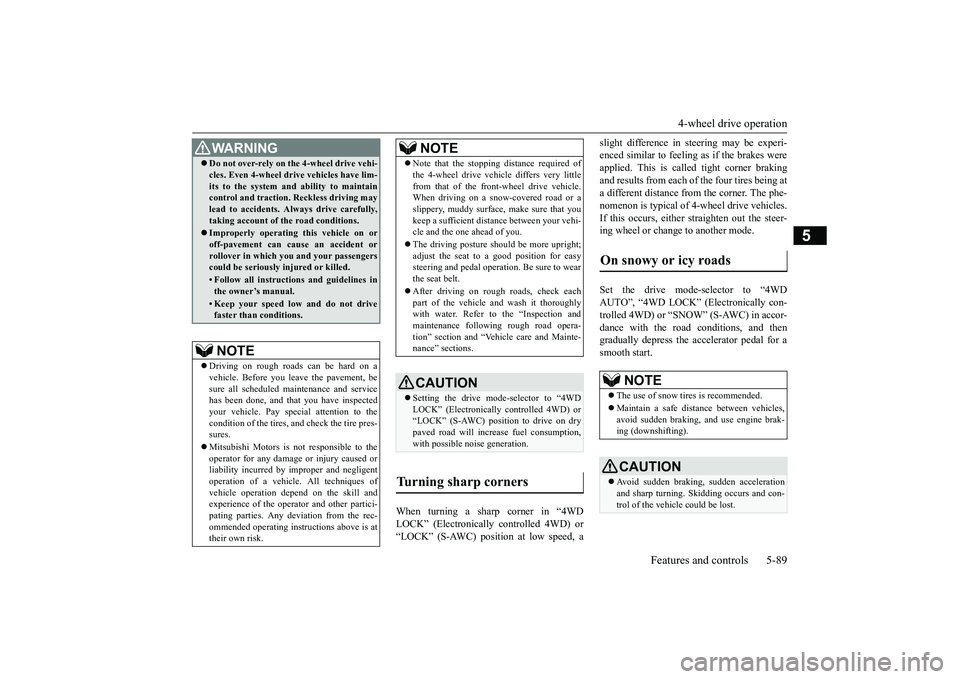

4-wheel drive operation
Features and controls 5-89
5
When turning a sharp corner in “4WDLOCK” (Electronically
controlled 4WD) or
“LOCK” (S-AWC) position at low speed, a
slight difference in
steering may be experi-
enced similar to feeling as if the brakes wereapplied. This is called tight corner brakingand results from each of the four tires being ata different distance from the corner. The phe-nomenon is typical of 4-wheel drive vehicles.If this occurs, either straighten out the steer-ing wheel or change to another mode.Set the drive mode-selector to “4WDAUTO”, “4WD LOCK” (Electronically con-trolled 4WD) or “SNOW” (S-AWC) in accor-dance with the road conditions, and thengradually depress the ac
celerator pedal for a
smooth start.
WA R N I N GDo not over-rely on th
e 4-wheel drive vehi-
cles. Even 4-wheel drive vehicles have lim-its to the system and ability to maintaincontrol and traction.
Reckless driving may
lead to accidents. Always drive carefully,taking account of the road conditions.Improperly operating
this vehicle on or
off-pavement can cause an accident orrollover in which you
and your passengers
could be seriously
injured or killed.
• Follow all instructions and guidelines inthe owner’s manual.• Keep your speed low and do not drivefaster than conditions.NOTE
Driving on rough roads can be hard on avehicle. Before you le
ave the pavement, be
sure all scheduled ma
intenance and service
has been done, and that
you have inspected
your vehicle. Pay spec
ial attention to the
condition of the ti
res, and check the tire pres-
sures.Mitsubishi Motors is not responsible to theoperator for any damage or injury caused orliability incurred by improper and negligentoperation of a vehicl
e. All techniques of
vehicle operation depend on the skill andexperience of the opera
tor and other partici-
pating parties. Any de
viation from the rec-
ommended operating instru
ctions above is at
their own risk.
Note that the stopping distance required ofthe 4-wheel drive vehicl
e differs very little
from that of the front-wheel drive vehicle.When driving on a snow-covered road or aslippery, muddy surface,
make sure that you
keep a sufficient dist
ance between your vehi-
cle and the one ahead of you.The driving posture should be more upright;adjust the seat to a good position for easysteering and pedal operati
on. Be sure to wear
the seat belt.After driving on rough roads, check eachpart of the vehicle and wash it thoroughlywith water. Refer to the “Inspection andmaintenance following rough road opera-tion” section and “Vehic
le care and Mainte-
nance” sections.CAUTIONSetting the drive mode-selector to “4WDLOCK” (Electronically
controlled 4WD) or
“LOCK” (S-AWC) position to drive on drypaved road will increa
se fuel consumption,
with possible noise generation.
Turning sharp corners
NOTE
On snowy or icy roads
NOTE
The use of snow tires is recommended.Maintain a safe distan
ce between
vehicles,
avoid sudden braking, and use engine brak-ing (downshifting).CAUTIONAvoid sudden braking,
sudden acceleration
and sharp turning. Sk
idding occurs and con-
trol of the vehicle could be lost.
BK0249100US.book 89 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-157
5
N00555101205
Each time the multi information displayswitch is operated, th
e buzzer sounds and the
multi information disp
lay changes between
information such as wa
rnings, trip odometer,
average and momentary fuel consumption,distance range, etc.
It is also possible to change elements such asthe language and units used on the multiinformation display by operating the multiinformation display switch.
N00555301177
Each time you lightly press the multi in
formation display switch, th
e display screen switches
in the following order.
Multi information display switch Information screen (With the igniti
on switch in “OFF” or “LOCK” po
sition or the operation mode in
OFF) *: When there is a warning display
BK0249100US.book 157 ページ ２０１７年５月１０日　水曜日　午前８時４９分

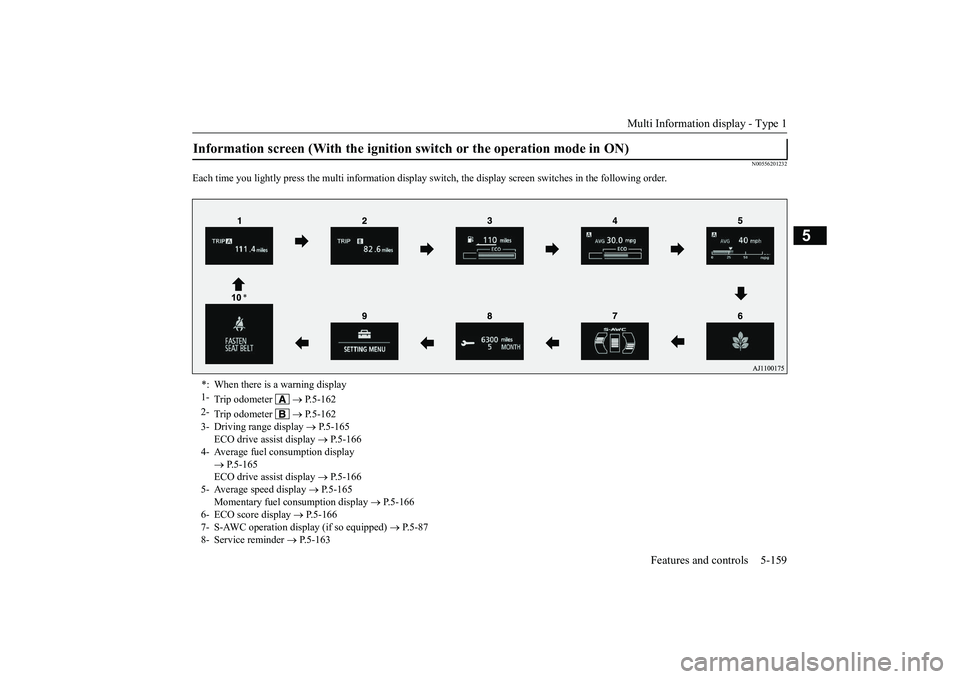

Multi Information display - Type 1
Features and controls 5-159
5
N00556201232
Each time you lightly press the multi in
formation display switch, th
e display screen switches
in the following order.
Information screen (With the ignition
switch or the operation mode in ON)
*: When there is a warning display1-
Trip odometer
 P.5-162
2-
Trip odometer
 P.5-162
3- Driving range display
 P.5-165
ECO drive assist display
 P.5-166
4- Average fuel consumption display
 P.5-165ECO drive assist display
 P.5-166
5- Average speed display
 P.5-165
Momentary fuel consumption display
 P.5-166
6- ECO score display
 P.5-166
7- S-AWC operation displa
y (if so equipped)
 P.5-87
8- Service reminder
 P.5-163
BK0249100US.book 159 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-165
5
N00575201026
Shows the approximate driving range (howmany more miles or
kilometers you can
drive). When this driving range falls below30 miles (50 km),
“---” is displayed.
Refuel as soon as possible.
N00575301027
This displays the average fuel consumptionfrom the last reset to the present.There are 2 types of mode settings of manualreset and automatic reset.Refer to “Changing the reset mode for aver-age fuel consumption and average speed” onpage 5-168.For information on how to change the aver-age fuel consumption di
splay setting, refer to
“Changing the function settings” on page5-167.
N00578500023
This displays the average speed from the lastreset to the present.There are 2 types of mode setting of manualreset and automatic reset.Refer to “Changing the
reset mode for aver-
age fuel consumption
and average speed” on
page 5-168.For the method for changing the averagespeed display setting, refer to “Changing thefunction settings
” on page 5-167.
Driving range display
NOTE
The driving range is determined based on thefuel consumption da
ta. This may vary
depending on the drivi
ng conditions and hab-
its. Treat the distance displayed as just arough guideline.When you refuel, the driving range display isupdated.However, if you only add a small amount offuel, the correct value
will not be displayed.
Fill to a full tank whenever possible.When your vehicle is stopped on anextremely steep hill, the driving range valuemay, change. This is due to the movement offuel in the tank and does not indicate anybreakdown.The display setting ca
n be changed to the
preferred units (miles or km).Refer to “Changing the
function settings” on
page 5-167.
Average fuel consumption dis-play
NOTE
The average fuel cons
umption display can be
reset separately in both auto reset mode andmanual reset mode.“---” is displayed when the average fuel con-sumption cannot be measured.The initial (default) setting is “Auto resetmode”.Average fuel consumption may vary depend-ing on the driving conditions (road condi-tions, how you drive, etc.) The actual fuelconsumption may differ from the fuel con-sumption displayed, so
treat the fuel con-
sumption displayed as
just a rough guideline.
Disconnecting the batter
y cable wi
ll erase
from memory the manual reset mode or autoreset mode setting for the average fuel con-sumption display.The display setting ca
n be changed to the
preferred units {mpg (US), mpg (UK),L/100km or km/L}.Refer to “Changing the function settings” onpage 5-167.
Average speed display
NOTE
The average speed display can be reset sepa-rately in both auto reset mode and manualreset mode.“---” is displayed when the average speedcannot be measured.The initial (default) setting is “Auto resetmode”.NOTE
BK0249100US.book 165 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 15-166 Features and controls
5
N00578600024
While driving, the momentary fuel consump-tion is shown with a bar graph.The “ ” mark in the momentary fuel gaugeshows the average fuel consumption.When the momentary fuel consumption sur-passes the average fuel consumption, themomentary fuel consumption is displayedwith a green bar graph.Be conscious of maintaining the momentaryfuel consumption above the average fuel con-sumption, it can help you drive with the betterfuel consumption.
N00568701032
This indicator will be displayed when fuel-efficient driving is achieved.
N00578700038
This function displays
how fuel-efficiently
you are driving under different driving condi-tions.The ECO drive assist display will change asfollows if you do fuel-efficient driving usingthe accelerator in a way well matched withthe vehicle speed.
N00578800042
ECO score indicates the points you havescored on fuel-efficient driving by the num-ber of leaves as follows:[When the ignition switch or the operationmode is ON]The display shows the score you achieved inthe last several minutes.
The display setting can be changed to thepreferred units (mph or km/h).Refer to “Changing th
e function settings” on
page 5-167.Disconnecting the batt
ery cable will erase
from memory the manual reset mode or autoreset mode setting for the average speed dis-play.
Momentary fuel consumption display
NOTE
When the momentary fuel consumption can-not be measured, a ba
r graph is not shown.
NOTE
The display setting can be changed to thepreferred units {mpg (US), mpg (UK),L/100km or km/L}.Refer to “Changing the
function settings” on
page 5-167.It is possible to cancel the green bar graph.Refer to “Changing the
function settings” on
page 5-167.
ECO indicator ECO Drive Assist
NOTE
NOTE
The ECO drive assist is displayed only whenvehicle is driven with
the selector lever in
the “D” (DRIVE) positi
on or when vehicle is
driven in the sport mode (for vehiclesequipped with sportroni
c steering wheel pad-
dle shifter).
ECO Score
ECO drive level
Low High
BK0249100US.book 166 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-167
5
[When the ignition switch is turned to the“OFF” or “LOCK” position or the operationmode is put in OFF]The display shows the overall ECO score thefunction has counted from the time when theignition switch is turn
ed to the “ON” position
to the time when it is turned to the “OFF” or“LOCK” or “ACC” position, or from the timewhen the operation mode is set to “ON” tothe time when it is set to “OFF”.
N00556801270
1. Park your vehicle in a safe place.Firmly apply the parking brake and movethe selector lever into the “P” (PARK)position.
2. When you lightly press the multi informa-tion meter switch, the information screenswitches to the function setting screen.Refer to “Information screen” on page5-159.3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.
4. Select the item to change on the menuscreen and change to
the desired setting.
For further details on the operation meth-ods, refer to the following sections.Refer to “Changing the reset mode foraverage fuel consumption and averagespeed” on page 5-168.Refer to “Changing the fuel consumptiondisplay unit” on page 5-169.Refer to “Changing the temperature unit”on page 5-170.Refer to “Changing the display language”on page 5-170.Refer to “Changing the language on othersystem to match the multi informationdisplay” on page 5-171.Refer to “Operation
sound setting” on
page 5-171.
Changing the function settings
ECO drive level
Low High
CAUTIONFor safety, stop the vehicle before operating.While driving, even if you operate the multiinformation display switch, the function set-ting screen is not displayed.
NOTE
To return the menu screen to the function set-ting screen, press and hold the multi infor-mation display switch
(for about 2 seconds
or more).If no operations are made within about 30seconds of the menu screen being displayed,the display returns to the function settingscreen.
BK0249100US.book 167 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 15-168 Features and controls
5
Refer to “Changing the time until “RESTREMINDER” is displayed” on page5-172.Refer to “Changing the turn signal sound”on page 5-172.Refer to “Changing the momentary fuelconsumption display” on page 5-172.Refer to “Tire ID set change” on page5-141.Refer to “Returning to the factory set-tings” on page 5-172.
N00557001240
You can change the mode condition for theaverage fuel consumption and average speeddisplay to “Auto reset”
or “Manual reset.”
1. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing th
e function settings”
on page 5-167.2. Lightly press the multi information dis-play switch to select “AVG” (average fuelconsumption and average speed setting).3. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch in sequence from A or 1 (Autoreset)
 M, 2 or P (Manual reset)
 A or
1 (Auto reset).The setting is changed to the selectedreset condition.
If you press and hold the multi informa-tion meter switch when the average fuelconsumption and average speed are dis-played, these calculati
ons will be reset to
zero.When the following operation is per-formed, the mode setting changes auto-matically from manual to auto.[Except for vehicles
equipped with the
F. A . S . T. - k e y ]Turn the ignition switch to the “ON” posi-tion from the “ACC”, “LOCK” or “OFF”position.[For vehicles equipped
with the F.A.S.T.-
key]Change the operation mode to ON fromACC or OFF.When the average fuel consumption andaverage speed are being displayed, if youhold down the multi in
formation display
switch, these calculations will be reset tozero.
NOTE
If the battery is disc
onnected, these function
settings are reset from
memory and is auto-
matically to the factory settings (except thetire ID set).You cannot select an it
em that is displayed
dimly on the menu.
Changing the reset mode for aver-age fuel consumption and average speed
Manual reset modeAuto reset mode
BK0249100US.book 168 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-169
5
When the engine switch or the operationmode is in the following conditions, theaverage fuel consumption display and theaverage speed display will automaticallyreset.[Except for vehicles equipped with theF. A . S . T. - k e y ]The ignition switch has been set to the“ACC”, “LOCK” or
“OFF” position for
about 4 hours or more.[For vehicles equipped with the F.A.S.T.-key]The operation mode has been in ACC orOFF for about 4 hours or more.
N00557101166
The fuel consumption display unit can bechanged. The distan
ce, speed, and amount
units are also changed to match the selectedfuel consumption unit.1. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change from the setting mode screen tothe menu screen.Refer to “Changing the function settings”on page 5-167.2. Lightly press the multi information dis-play switch to select “AVG UNIT” (fuelconsumption display unit setting).3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to display “AVG UNIT” (fuel consump-tion display unit setting).
4. Lightly press the multi information dis-play switch to switch to select the units.5. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change the setting to the selected unit.
The distance and speed units are also changedin the following combinations to match theselected fuel consumption unit.
NOTE
The average fuel consumption display andaverage speed display ca
n be reset separately
in both auto reset mode and manual resetmode.Disconnecting the batter
y cable wi
ll erase
from memory the manual reset mode or autoreset mode setting for
the average speed dis-
play and average fuel consumption display.The initial (default) setting is “Auto resetmode”.
Changing the fuel consumption display unit
NOTE
The display units for the driving range, theaverage fuel consumption, the average speedand the momentary fuel consumption arechanged, but the units
for the indicating nee-
dle (speedometer), the odometer and the tripodometer will remain unchanged.If the battery is disconnected, the memory ofthe unit setting is erased and is automaticallyset to {mpg (US) or L/100 km}.Fuel economy
Distance (driving range)
Speed (average speed)
mpg (UK) mile (s) mphkm /L km km /hL /100 km km km /h
BK0249100US.book 169 ページ ２０１７年５月１０日　水曜日　午前８時４９分
