Page 15 of 441
If this warning light comes on or flashes while you’re driving...2-4 Quick index
2
and
ASC indicator and ASC OFF indicator
Park your vehicle in a safe
place and stop the engine.
Restart the engine and check wh
ether the indicator goes out.
If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of
your choice as soon
as possible.When this indicator comes on, the active
stability control is
not functioning and
normal operation of the vehi
cle will not be affected.
P. 5-102
ASC indicator
Park your vehicle in a safe
place and stop the engine.
Restart the engine and check wh
ether the indicator goes out.
If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of
your choice as soon
as possible.When this indicator comes on, the hi
ll start assist
is not functioning.
Start off carefully on a steep uphill slope.
P. 5-96
Tire pressure monito
ring system warn-
ing light
If the warning light comes
on, you should stop and adju
st the tires to the proper
inflation pressure as
soon as possible.
(See
Page 19 of 441
If this problem occurs...2-8 Quick index
2
If your vehicle becomes stuck in sand, mud or snow
1. Slowly press down on the accelerator pedal to
get your vehicle moving again. For an all-
wheel drive vehicle, set the drive mode-sel
ector to the “4WD AUTO” or “4WD LOCK”
position (Electronically cont
rolled 4WD), “SNOW” or “L
then slowly press down on the accelera
tor pedal to get your vehicle moving.
2. If there is nothing to stop your tires from sli
pping, rock your vehicle out of the stuck posi-
tion.
P. 8-15
WA R N I N GWhen attempting to rock your vehi
cle out of a stuck position, be su
re that no one is near the ve
hicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders.Avoid revving the engine or spinning the wh
eels. Prolonged efforts to free a stuck ve
hicle may result in
overheating and transa
xle failure.
If the vehicle remains stuck after
several rocking attempts
, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
The brakes are not functioning properly after crossing a puddle or stream.
Dry out the brakes by driving slowly
while lightly pressing the brake pedal.
P. 5-90,6-5
The automatic transaxle makes no gear change when accelerat-ing. The initial movement of the vehicle is slow when the vehicle starts moving.(for vehicles with automatic transaxle)
There may be a problem in the automatic transaxle.Have the system inspected by your
authorized Mitsubishi Motors de
aler or a repair facility of
your choice.
P. 5-74
Problem
Do this
Ref. Page
BK0249100US.book 8 ページ 2017年5月10日 水曜日 午前8時49分
Page 52 of 441
Seat belts
Seat and restraint systems 4-23
4
N00418401394
A tone and warning light are used to remindthe driver to fasten the seat belt.If the ignition switch is turned to the “ON”without the driver’s seat belt being fastened, a
warning light will co
me on and a tone will
sound for approximately
6 seconds to remind
you to fasten your seat belt.If the vehicle is driven with the seat belt stillunfastened, the warning light will blink andthe tone will sound inte
rmittently until the
seat belt is fastened. At the same time, “FAS-TEN SEAT BELT” is displayed on the infor-mation screen in the multi informationdisplay (Type 1 only).
N00418301247
The front passenger seat
belt warning light is
located in the instrument panel.When the ignition switch is turned to the“ON” position or the operation mode is put inON, this indicator
normally comes on and
goes off a few seconds later.The light comes on when a person sits on thefront passenger seat bu
t does not fasten the
seat belt. It goes off when the seat belt is sub-sequently fastened.
Driver’s seat belt reminder/warning light and display Type 1Type 2
WA R N I N GIn order to reduce the risk of seriousinjury or death in an
accident, always fas-
ten your own seat belt
. Do not allow any-
one to ride in your ve
hicle unless he or she
is also seated and fastening a seat belt.Children should additi
onally be restrained
in a secure child restraint system.NOTE
If the seat belt subse
quently remains unfas-
tened, the warning li
ght and the tone will
issue further warnings
each time the vehicle
starts moving from a stop.
Front passenger seat belt warn-ing light
BK0249100US.book 23 ページ 2017年5月10日 水曜日 午前8時49分
Page 105 of 441
Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00514301080
After pressing the e
ngine switch and opera-
tion mode in OFF, when driver’s door isopened, the steering wheel is locked.Warning display
The following methods ca
n be used to unlock
the steering wheel.Put the operation mode in ACC.Start the engine.
Steering wheel lock
(if so equipped)
To l o c k
NOTE
When the following ope
ration is performed
with the operation mode
in OFF, the steering
wheel is locked.• Open or close one of the doors. (except theliftgate)F.A.S.T.-key operation or the remote con-trol transmitter of the F.A.S.T.-key.
When the driver’s door is opened while thesteering wheel does not
unlock, warning dis-
play will appear and the buzzer sounds toalert the steering wheel is unlocked.
To u n l o c k
WA R N I N GIf the engine is stopped while driving, donot open a door or press the LOCK switchon the remote control switch until thevehicle stops in a safe
place. This could
cause the steering wheel to lock, making itimpossible to operate the vehicle.CAUTIONCarry the F.A.S.T.-key with you when leav-ing the vehicle.If your vehicle needs to
be towed, put the
operation mode in ACC to unlock the steer-ing wheel.
NOTE
When the steering wheel does not unlock,the warning display wi
ll appear. Press the
engine switch again wh
ile moving the steer-
ing wheel slightly right and left.Warning displayWhen the steering wheel lock is abnormal,the warning display will
appear and the inner
buzzer will sounds. Put the operation modein OFF and then press the lock switch of theF.A.S.T.-key. If the warning will appearagain, contact an authorized MitsubishiMotors dealer.warning display
BK0249100US.book 24 ページ 2017年5月10日 水曜日 午前8時49分

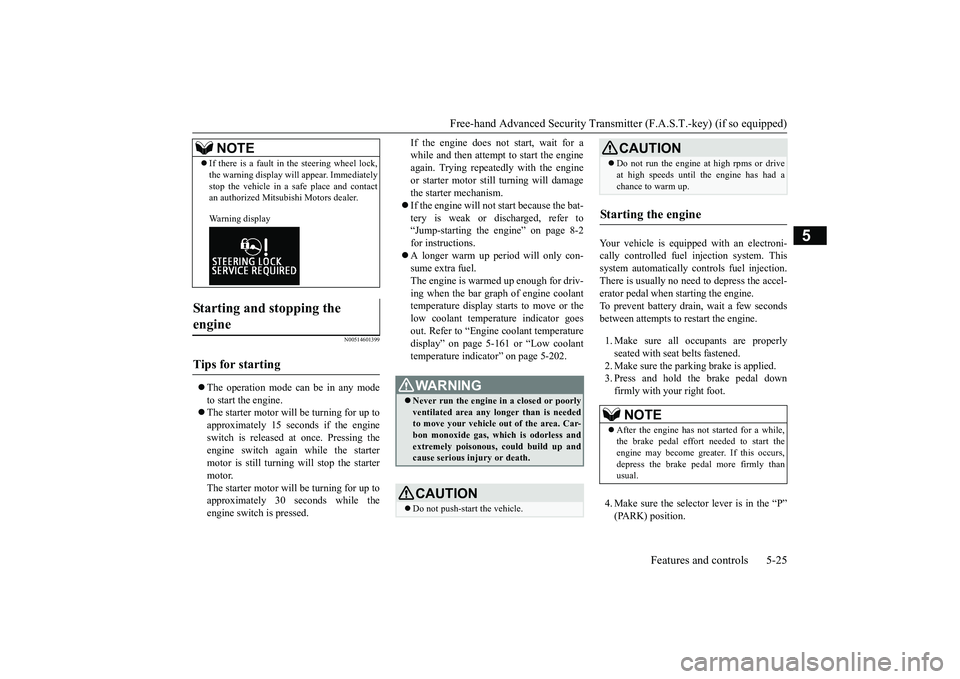

Page 106 of 441
Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-25
5
N00514601399
The operation mode can be in any modeto start the engine.The starter motor will be turning for up toapproximately 15 seconds if the engineswitch is released at once. Pressing theengine switch again while the startermotor is still turning will stop the startermotor.The starter motor will be turning for up toapproximately 30 seconds while theengine switch
is pressed.
If the engine does not start, wait for awhile and then attempt to start the engineagain. Trying repeatedly with the engineor starter motor still turning will damagethe starter mechanism.If the engine will not start because the bat-tery is weak or discharged, refer to“Jump-starting the engine” on page 8-2for instructions.A longer warm up period will only con-sume extra fuel.The engine is warmed up enough for driv-ing when the bar graph of engine coolanttemperature display starts to move or thelow coolant temperature indicator goesout. Refer to “Engine
coolant temperature
display” on page 5-161 or “Low coolanttemperature indica
tor” on page 5-202.
Your vehicle is equipped with an electroni-cally controlled fuel injection system. Thissystem automatically controls fuel injection.There is usually no need
to depress the accel-
erator pedal when starting the engine.To prevent battery drai
n, wait a few seconds
between attempts to restart the engine.1. Make sure all occupants are properlyseated with seat belts fastened.2. Make sure the parking brake is applied.3. Press and hold the brake pedal downfirmly with your right foot.4. Make sure the selector
lever is in the “P”
If there is a fault in the steering wheel lock,the warning display will
appear. Immediately
stop the vehicle in a sa
fe place and contact
an authorized Mitsubishi Motors dealer.Warning display
Starting and stopping the engine
Tips for starting
NOTE
WA R N I N GNever run the engine in
a closed or poorly
ventilated area any longer than is neededto move your vehicle
out of the area. Car-
bon monoxide gas, wh
ich is odorless and
extremely poisonous, could build up andcause serious injury or death.CAUTIONDo not push-start the vehicle.
Do not run the engine at high rpms or driveat high speeds until the engine has had achance to warm up.
Starting the engine
NOTE
After the engine has not started for a while,the brake pedal effort needed to start theengine may become grea
ter. If this occurs,
depress the brake pedal more firmly thanusual.CAUTION
BK0249100US.book 25 ページ 2017年5月10日 水曜日 午前8時49分

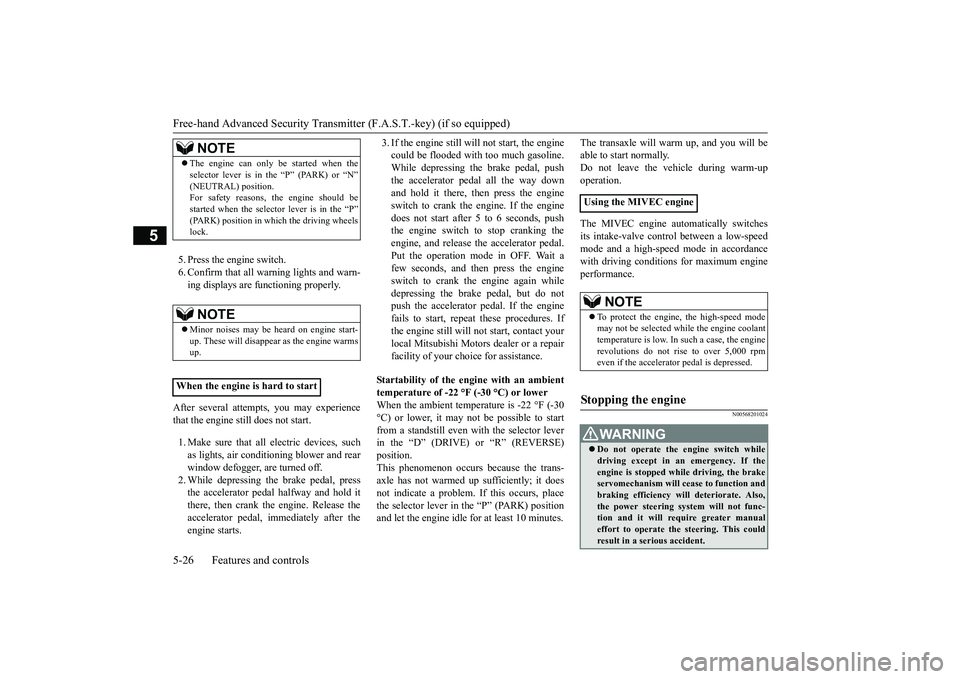

Page 107 of 441
Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
5. Press the engine switch.6. Confirm that all warning lights and warn-ing displays are functioning properly.
After several attempts
, you may experience
that the engine still does not start.1. Make sure that all electric devices, suchas lights, air conditi
oning blower and rear
window defogger, are turned off.2. While depressing the brake pedal, pressthe accelerator peda
l halfway and hold it
there, then crank th
e engine. Release the
accelerator pedal, immediately after theengine starts.
3. If the engine still wi
ll not start, the engine
could be flooded with too much gasoline.While depressing the brake pedal, pushthe accelerator pedal all the way downand hold it there, then press the engineswitch to crank the engine. If the enginedoes not start after 5 to 6 seconds, pushthe engine switch to stop cranking theengine, and release th
e accelerator pedal.
Put the operation mode in OFF. Wait afew seconds, and then press the engineswitch to crank the engine again whiledepressing the brake pedal, but do notpush the accelerator pedal. If the enginefails to start, repeat these procedures. Ifthe engine still will
not start, contact your
local Mitsubishi Motors dealer or a repairfacility of your choi
ce for assistance.
Startability of the en
gine with an ambient
temperature of -22 °F (-30 °C) or lowerWhen the ambient temperature is -22 °F (-30°C) or lower, it may not be possible to startfrom a standstill even wi
th the selector lever
in the

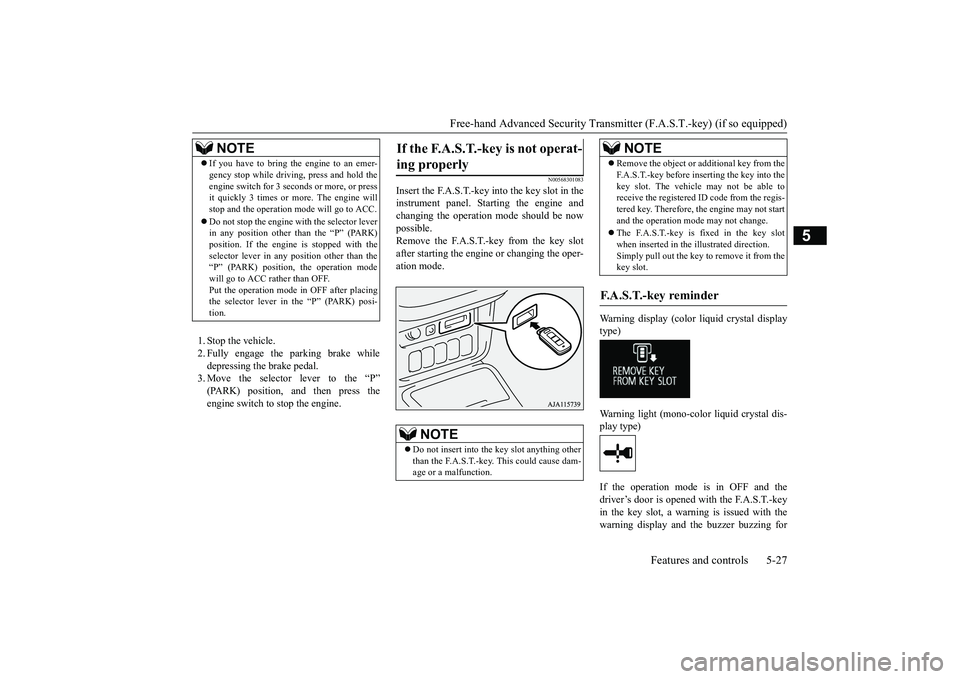

Page 108 of 441
Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-27
5
1. Stop the vehicle.2. Fully engage the parking brake whiledepressing the brake pedal.3. Move the selector lever to the “P”(PARK) position, and then press theengine switch to
stop the engine.
N00568301083
Insert the F.A.S.T.-key into the key slot in theinstrument panel. St
arting the engine and
changing the operation mode should be nowpossible.Remove the F.A.S.T.-key from the key slotafter starting the engine or changing the oper-ation mode.
Warning display (color liquid crystal displaytype)Warning light (mono-color liquid crystal dis-play type)If the operation mode is in OFF and thedriver’s door is opened with the F.A.S.T.-keyin the key slot, a warning is issued with thewarning display and the buzzer buzzing for
NOTE
If you have to bring the engine to an emer-gency stop while drivi
ng, press and hold the
engine switch for 3 sec
onds or more, or press
it quickly 3 times or more. The engine willstop and the operation mode will go to ACC.Do not stop the engine wi
th the selector lever
in any position other than the “P” (PARK)position. If the engine
is stopped with the
selector lever in any
position other than the
“P” (PARK) position, the operation modewill go to ACC rather than OFF.Put the operation mode
in OFF after placing
the selector lever in the

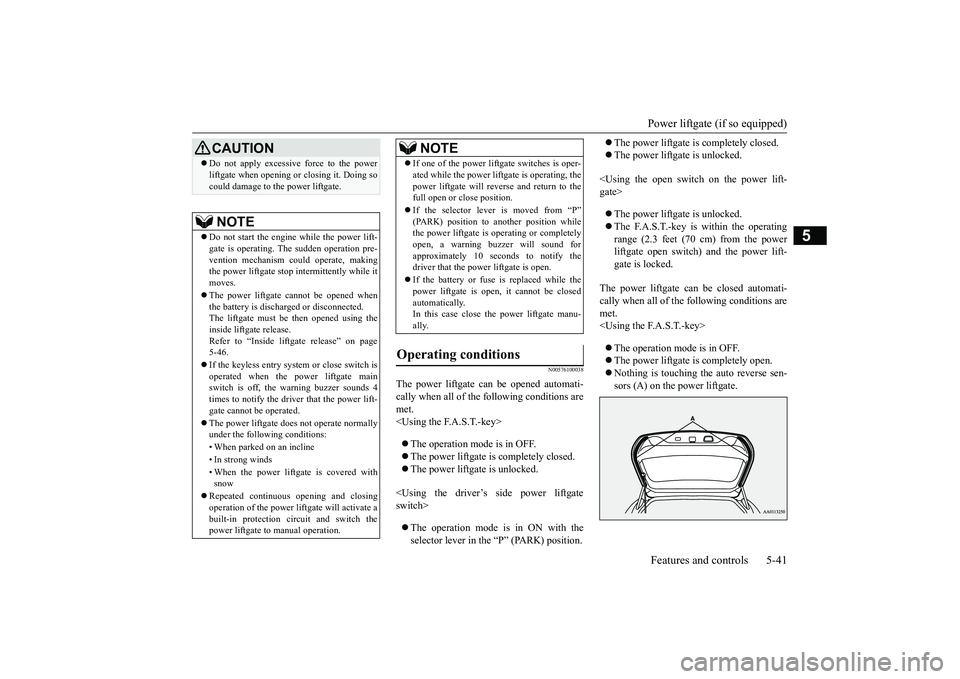

Page 122 of 441
Power liftgate (if so equipped)Features and controls 5-41
5
N00576100038
The power liftgate ca
n be opened automati-
cally when all of the
following conditions are
met.
The power liftgate is completely closed.The power liftgate is unlocked.
The power liftgate can be closed automati-cally when all of the following conditions aremet.
e auto reverse sen-
sors (A) on the power liftgate.
CAUTIONDo not apply excessive force to the powerliftgate when opening or closing it. Doing socould damage to th
e power liftgate.
NOTE
Do not start the engine while the power lift-gate is operating. The sudden operation pre-vention mechanism c
ould operate, making
the power liftgate stop intermittently while itmoves.The power liftgate cannot be opened whenthe battery is discha
rged or disconnected.
The liftgate must be then opened using theinside liftgate release.Refer to “Inside lift
gate release” on page
5-46.If the keyless entry system or close switch isoperated when the pow
er liftgate main
switch is off, the warning buzzer sounds 4times to notify the driver that the power lift-gate cannot
be operated.
The power liftgate does not operate normallyunder the following conditions:• When parked on an incline• In strong winds• When the power liftga
te is covered with
snow
Repeated continuous
opening and closing
operation of the power lif
tgate will activate a
built-in protection ci
rcuit and switch the
power liftgate to
manual operation.
If one of the power lift
gate switches is oper-
ated while the power lift
gate is operating, the
power liftgate will reve
rse and return to the
full open or close position.If the selector lever is moved from “P”the power liftgate is operating or completelyopen, a warning buzzer will sound forapproximately 10 sec
onds to notify the
driver that the power liftgate is open.If the battery or fuse is replaced while thepower liftgate is open,
it cannot be closed
automatically.In this case close the power liftgate manu-ally.
Operating conditions
NOTE
BK0249100US.book 41 ページ 2017年5月10日 水曜日 午前8時49分

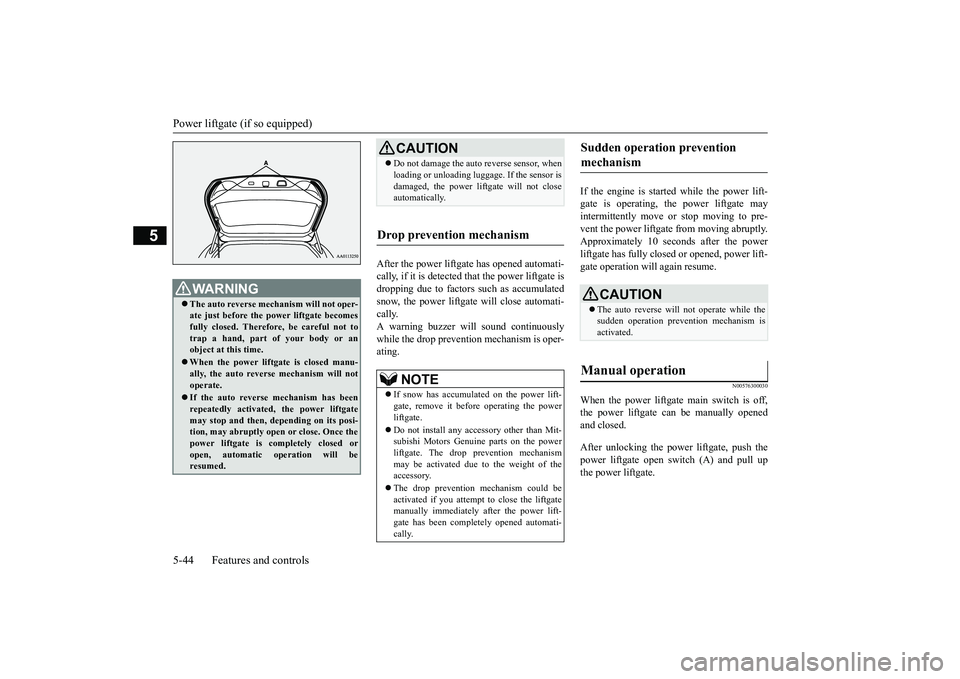

Page 125 of 441
Power liftgate (if so equipped)5-44 Features and controls
5
After the power liftgate has opened automati-cally, if it is detected that the power liftgate isdropping due to factors such as accumulatedsnow, the power liftgate will close automati-cally.A warning buzzer w
ill sound continuously
while the drop prevention mechanism is oper-ating.
If the engine is starte
d while the power lift-
gate is operating, the power liftgate mayintermittently move or stop moving to pre-vent the power liftgate
from moving abruptly.
Approximately 10 seconds after the powerliftgate has fully closed
or opened, power lift-
gate operation will again resume.
N00576300030
When the power liftgate main switch is off,the power liftgate can be manually openedand closed.After unlocking the power
liftgate, push the
power liftgate open
switch (A) and pull up
the power liftgate.
WA R N I N GThe auto reverse mech
anism will not oper-
ate just before the power liftgate becomesfully closed. Therefore, be careful not totrap a hand, part of your body or anobject at this time.When the power liftgate is closed manu-ally, the auto reverse mechanism will notoperate. If the auto reverse mechanism has beenrepeatedly activated
, the power liftgate
may stop and then, de
pending on its posi-
tion, may abruptly open
or close. Once the
power liftgate is completely closed oropen, automatic operation will beresumed.
CAUTIONDo not damage the auto reverse sensor, whenloading or unloading luggage. If the sensor isdamaged, the power lift
gate will not close
automatically.
Drop prevention mechanism
NOTE
If snow has accumula
ted on the power lift-
gate, remove it befo
re operating the power
liftgate.Do not install any accessory other than Mit-subishi Motors Genui
ne parts on the power
liftgate. The drop prevention mechanismmay be activated due to
the weight of the
accessory.The drop prevention mechanism could beactivated if you attempt to close the liftgatemanually immediately af
ter the power lift-
gate has been comple
tely opened automati-
cally.
Sudden operation prevention mechanism
CAUTIONThe auto reverse will not operate while thesudden operation preven
tion mechanism is
activated.
Manual operation
BK0249100US.book 44 ページ 2017年5月10日 水曜日 午前8時49分
Page 136 of 441

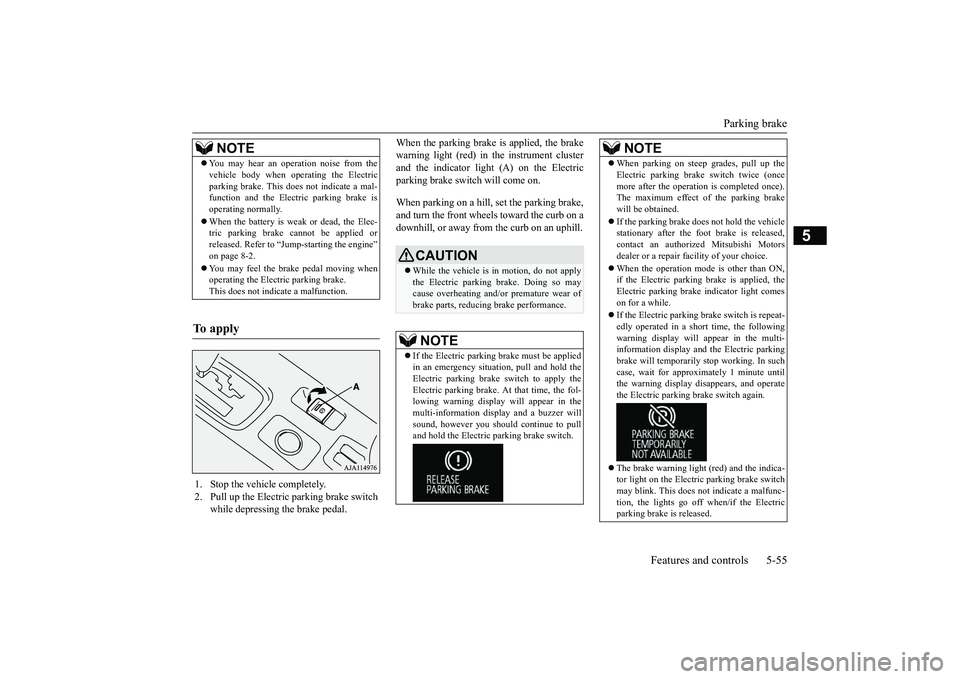

Parking brake
Features and controls 5-55
5
When the parking brake is applied, the brakewarning light (red) in
the instrument cluster
and the indicator light (A) on the Electricparking brake switch will come on.When parking on a hill, set the parking brake,and turn the front wheels toward the curb on adownhill, or away from
the curb on an uphill.
NOTE
You may hear an operation noise from thevehicle body when operating the Electricparking brake. This do
es not indicate a mal-
function and the Elec
tric parking brake is
operating normally.When the battery is weak or dead, the Elec-tric parking brake cannot be applied orreleased. Refer to “Jum
p-starting the engine”
on page 8-2.You may feel the brake pedal moving whenoperating the Electr
ic parking brake.
This does not indi
cate a malfunction.
To apply
1. Stop the vehicle completely.2. Pull up the Electric parking brake switch
while depressing the brake pedal.
CAUTIONWhile the vehicle is in motion, do not applythe Electric parking
brake. Doing so may
cause overheating and/or
premature wear of
brake parts, reducing brake performance. NOTE
If the Electric parking
brake must be applied
in an emergency situa
tion, pull and hold the
Electric parking brake
switch to apply the
Electric parking brake. At that time, the fol-lowing warning display
will appear in the
multi-information disp
lay and a buzzer will
sound, however you should continue to pulland hold the Electric
parking brake switch.
When parking on stee
p grades, pull up the
Electric parking brak
e switch twice (once
more after the operati
on is completed once).
The maximum effect of the parking brakewill be obtained.If the parking brake does not hold the vehiclestationary after the f
oot brake is released,
contact an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
When the operation mode is other than ON,if the Electric parking brake is applied, theElectric parking brake
indicator light comes
on for a while.If the Electric parking brake switch is repeat-edly operated in a short time, the followingwarning display will appear in the multi-information display and the Electric parkingbrake will temporarily stop working. In suchcase, wait for approxima
tely 1 minute until
the warning display di
sappears, and operate
the Electric parking
brake switch again.
The brake warning light (red) and the indica-tor light on the Electric
parking brake switch
may blink. This does no
t indicate a malfunc-
tion, the lights go off when/if the Electricparking brake is released.NOTE
BK0249100US.book 55 ページ 2017年5月10日 水曜日 午前8時49分
