MITSUBISHI OUTLANDER 2019 Owner's Manual (in English)

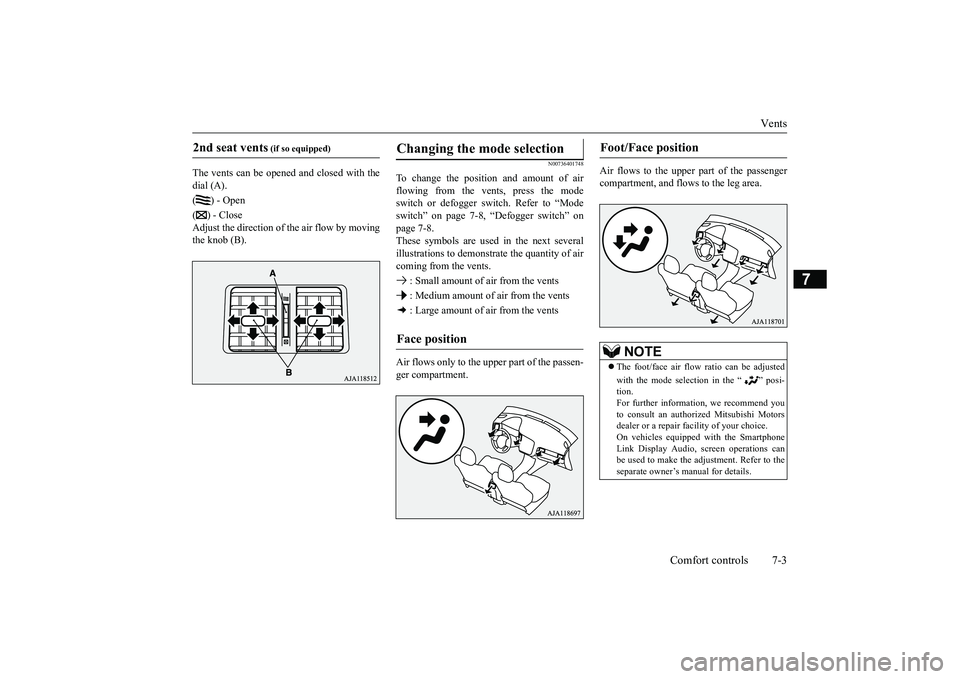

Vents
Comfort controls 7-3
7
The vents can be opened and closed with the dial (A). () - Open( ) - Close Adjust the direction of the air flow by movingthe knob (B).
N00736401748
To change the position and amount of air flowing from the vents, press the mode switch or defogger switch. Refer to “Modeswitch” on page 7-8, “Defogger switch” on page 7-8. These symbols are used in the next severalillustrations to demonstrate the quantity of air coming from the vents. : Small amount of air from the vents : Medium amount of air from the vents : Large amount of air from the vents Air flows only to the upper part of the passen- ger compartment.
Air flows to the upper part of the passenger compartment, and flows to the leg area.
2nd seat vents
(if so equipped)
Changing the mode selection Face position
Foot/Face position
NOTE
 The foot/face air flow
ratio can be adjusted
with the mode selection in the “ ” posi- tion. For further information, we recommend you to consult an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
On vehicles equipped with the Smartphone Link Display Audio, sc
reen operations can
be used to make the adjustment. Refer to the separate owner’s manual for details.
BK0264300US.book 3 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Vents 7-4 Comfort controls
7
Air flows mainly to the leg area. Air flows to the leg area, the windshield and
the door windows.
Air flows mainly to the windshield and the door windows.
Foot position
Foot/Defroster position
NOTE
 The foot/defroster ai
r flow ratio can be
adjusted with the mode selection in the “ ” position. For further information, we recommend you to consult an authorized Mitsubishi Motorsdealer or a repair facility of your choice. On vehicles equipped with the Smartphone Link Display Audio, sc
reen operations can
be used to make the adjustment. Refer to the separate owner’s manual for details.
Defroster position
BK0264300US.book 4 ページ ２０１８年２月２８日　水曜日　午後５時１６分

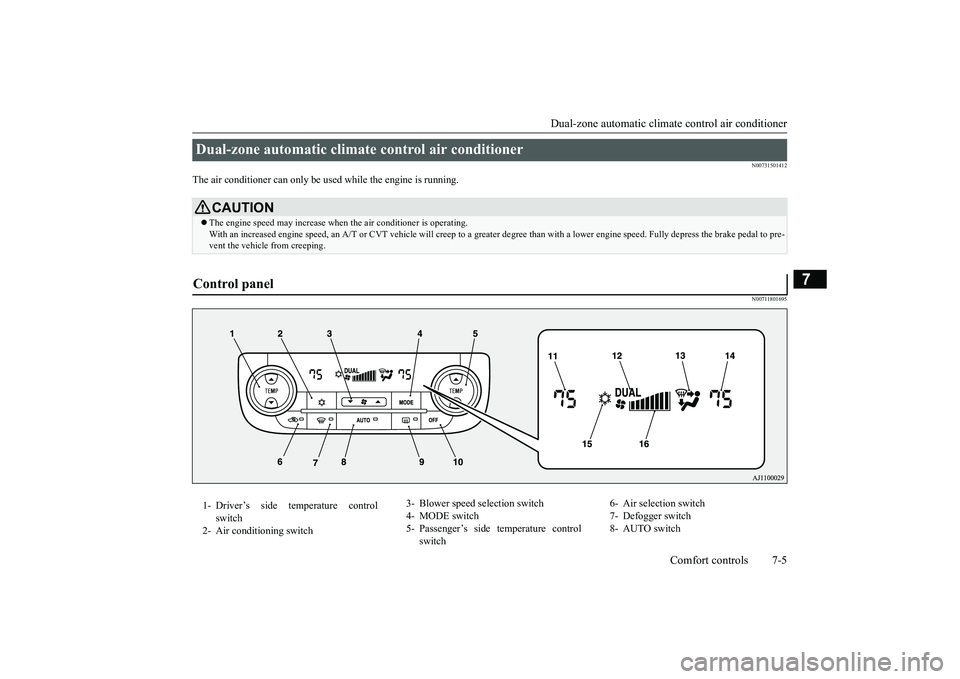

Dual-zone automatic climat
e control air conditioner Comfort controls 7-5
7
N00731501412
The air conditioner can only be us
ed while the engine is running.
N00711801695
Dual-zone automatic climat
e control air conditioner
CAUTIONThe engine speed may increase when
the air conditioner is operating.
With an increased engine speed, an A/T or
CVT vehicle will creep to a gr
eater degree than with a lo
wer engine speed. Fully depr
ess the brake pedal to pre-
vent the vehicl
e from creeping.
Control panel 1- Driver’s side temperature control
switch
2- Air conditioning switch
3- Blower speed
selection switch
4- MODE switch 5- Passenger’s side temperature control
switch
6- Air selection switch 7- Defogger switch 8- AUTO switch
BK0264300US.book 5 ページ ２０１８年２月２８日　水曜日　午後５時１６分

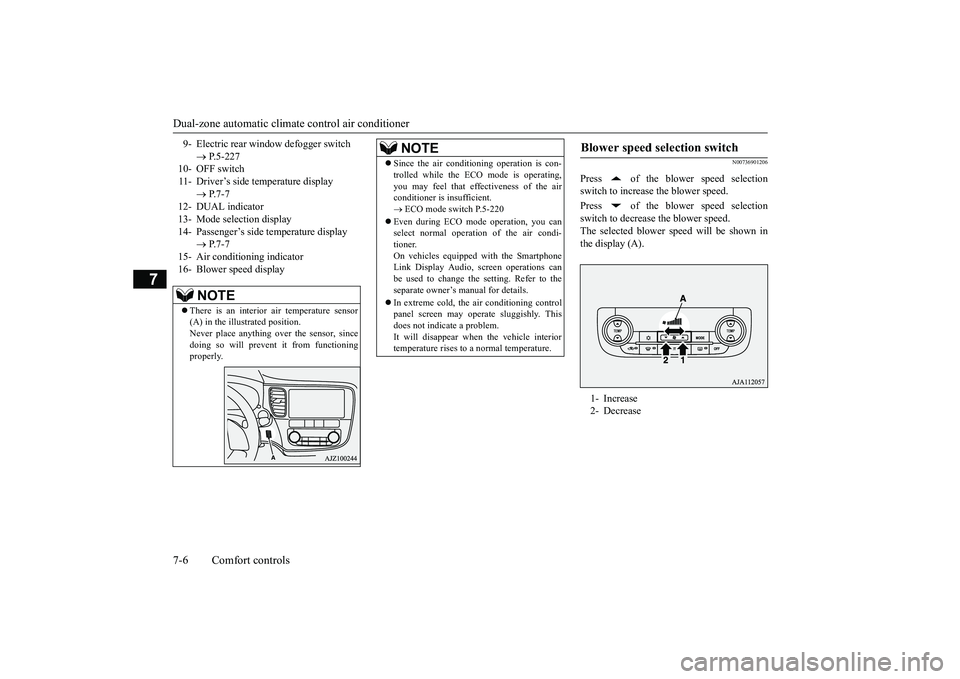

Dual-zone automatic climate
control air conditioner
7-6 Comfort controls
7
N00736901206
Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed. The selected blower sp
eed will be shown in
the display (A).
9- Electric rear window
defogger switch
 P.5-227
10- OFF switch11- Driver’s side temperature display
 P.7-7
12- DUAL indicator13- Mode selection display 14- Passenger’s side temperature display
 P.7-7
15- Air conditioning indicator 16- Blower speed display
NOTE
 There is an interior air temperature sensor (A) in the illustrated position. Never place anything ove
r the sensor, since
doing so will prevent it from functioning properly.
NOTE
 Since the air conditi
oning operation is con-
trolled while the ECO mode is operating,you may feel that effectiveness of the airconditioner is insufficient.  ECO mode switch P.5-220
 Even during ECO mode operation, you can select normal operati
on of the air condi-
tioner.On vehicles equipped with the Smartphone Link Display Audio, sc
reen operations can
be used to change the setting. Refer to theseparate owner’s manual for details.  In extreme cold, the air conditioning control panel screen may ope
rate sluggishly. This
does not indicate a problem. It will disappear when the vehicle interiortemperature rises to a normal temperature.
Blower speed selection switch 1- Increase 2- Decrease
BK0264300US.book 6 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Dual-zone automatic climat
e control air conditioner Comfort controls 7-7
7
N00737001448
Press or of the temperature control switch to the desired temperature. The selected temperature will be shown in the display (A).
The above indicates the
factory settings. You
can personalize the air
selection switch and
air conditioning switch to match your per- sonal preferences.Contact your Mitsubishi
Motors dealer or a
repair facility of your
choice for assistance.
Refer to “Personalizi
ng the air conditioning
switch (Changing the function setting)” on page7-10. Refer to “Personalizing the air selection(Changing the function setting)” on page7-9. The driver’s side and the passenger’s side temperature can be controlled independently.At this time, the “
DUAL” indicato
r will be
shown in the display (A).
Temperature control switch
NOTE
 The temperature value
of air conditioner is
switched in conjunction
with outside temper-
ature display unit of the multi informationdisplay. On vehicles equipped with multi information display - Type 1, refer to “Changing the tem-perature unit” on page 5-172. On vehicles equipped with multi information display - Type 2, refer to “Changing the tem-perature unit” on page 5-182.
 When the engine coolan
t temperature is low,
the air temperature from the heater will becool/cold until the engi
ne warms up, even if
you have selected warm
air with the switch.
To prevent the windshield and windows from fogging up, the vent mode will be changed to “ ” and the blower speed will be reduced while the system is operating in the AUTO mode.  When you feel that it is hotter or colder than the set temperature, you may adjust it to yourpreference. For further information, we recommend you to consult an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
 When the temperature is set to the highest or the lowest setting, the air selection and the air conditioner will be automatically changed as follows.Also, if the air select
ion is operated manually
after an automatic ch
angeover, manual oper-
ation will be selected. • Quick Heating (When th
e temperature is set
to the highest setting)Outside air will be introduced and the air conditioner will stop. • Quick Cooling (When the temperature is set to the lowest setting) Inside air will be reci
rculated and the air
conditioner wi
ll operate.
NOTE

Synchronized mode and dual mode
BK0264300US.book 7 ページ ２０１８年２月２８日　水曜日　午後５時１６分

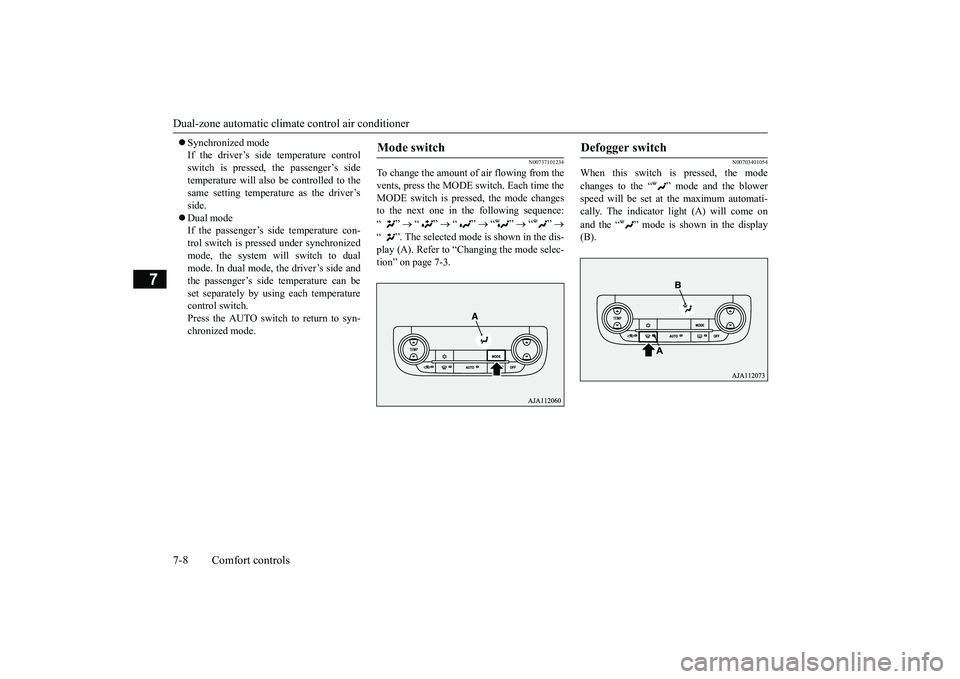

Dual-zone automatic climate
control air conditioner
7-8 Comfort controls
7
 Synchronized mode If the driver’s side temperature controlswitch is pressed, the passenger’s side temperature will also be controlled to the same setting temperature as the driver’sside.  Dual mode If the passenger’s side temperature con-trol switch is pressed under synchronized mode, the system will switch to dual mode. In dual mode, the driver’s side and the passenger’s side
temperature can be
set separately by usi
ng each temperature
control switch. Press the AUTO switch to return to syn- chronized mode.
N00737101234
To change the amount of air flowing from the vents, press the MODE switch. Each time the MODE switch is pressed, the mode changesto the next one in the following sequence: “”
 “”
 “”
 “”
 “”

“ ”. The selected mode is shown in the dis- play (A). Refer to “C
hanging the mode selec-
tion” on page 7-3.
N00703401054
When this switch is pressed, the mode changes to the “ ”
mode and the blower
speed will be set at the maximum automati- cally. The indicator light (A) will come on and the “ ” mode is shown in the display (B).
Mode switch
Defogger switch
BK0264300US.book 8 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Dual-zone automatic climat
e control air conditioner Comfort controls 7-9
7
N00737201378
Normally, use the outside
air position to keep
the windshield and side windows clear and to quickly remove fog or frost from the wind-shield. To change the air selection, simply press the air selection switch.  Outside air {Indicator light (A) OFF} Outside air is introduced into the passen-ger compartment.  Recirculated air {Indicator light (A) ON} Air is recirculated
inside the passenger
compartment.
When the air conditioning turns on, the air selection is controlled automatically. Whenthe air conditioning turns
off, the air selection
automatically goes back to the outside posi- tion.If high cooling performanc
e is desired, or if
the outside air is dusty or contaminated in some way, use the
recirculat
ion position.
Switch to the outside position every now and then to keep the windows from fogging up.
N00712300049
You can change the following functions tomatch your preference.  Enable automatic air selection control: When the AUTO switch is pressed, the airselection switch will also be automatically controlled.  Disable automatic air selection control: Even when the AUTO switch is pressed,the air selection switch
will not be auto-
matically controlled.  Changing the settings Press the air selection switch for approxi-mately 10 seconds or longer. When the setting has changed, the system will beep and the indi
cator light will flash.
NOTE
When the defogger switch
is pressed, the air
conditioning system au
tomatically operates
and outside air (as opposed to recirculatedair) is selected. This automatic switching control is carried out to prevent misting of the windows even if “D
isable automatic air
conditioning control” or
“Disable
automatic
air selection control” is
set. Refer to “Person-
alizing the air conditi
oning switch (Changing
the function setting)” on page 7-10, “Person- alizing the air selecti
on (Changing the func-
tion setting)” on page 7-9.  The indicator light
(A) will go off when
adjusting the blower speed.
Air selection switch
CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 If the mode selection is set “ ” position, you cannot turn the air conditioner off orselect the recirc
ulation position.
This prevents the windows from fogging up.
 When the engine coolan
t temperature rises to
a certain level, the air selection is automati-cally switched to the recirculation positionand the indicator light
(A) comes on. At this
time, the system will not switch to the out- side position even if th
e air selection switch
is pushed.

Personalizing th
e air selection
(Changing the function setting) NOTE
BK0264300US.book 9 ページ ２０１８年２月２８日　水曜日　午後５時１６分

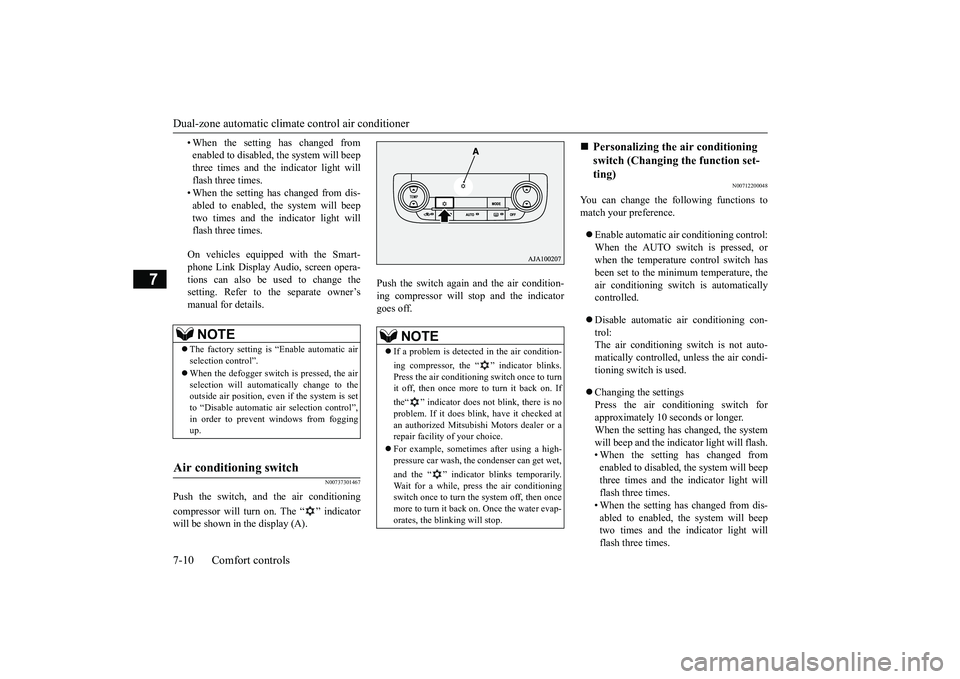

Dual-zone automatic climate
control air conditioner
7-10 Comfort controls
7
• When the setting has changed from enabled to disabled,
the system will beep
three times and the indicator light will flash three times. • When the setting has changed from dis-abled to enabled, the system will beep two times and the i
ndicator light will
flash three times. On vehicles equipped with the Smart- phone Link Display Audi
o, screen opera-
tions can also be used to change the setting. Refer to th
e separate owner’s
manual for details.
N00737301467
Push the switch, and the air conditioning compressor will turn on. The “ ” indicator will be shown in the display (A).
Push the switch again and the air condition- ing compressor will st
op and the indicator
goes off.
N00712200048
You can change the following functions tomatch your preference.  Enable automatic air conditioning control: When the AUTO switch is pressed, or when the temperature control switch hasbeen set to the minimum temperature, the air conditioning switch is automatically controlled.  Disable automatic air conditioning con- trol: The air conditioning switch is not auto-matically controlled,
unless the air condi-
tioning switch is used.  Changing the settings Press the air conditioning switch forapproximately 10
seconds or longer.
When the setting has changed, the system will beep and the indi
cator light will flash.
• When the setting has changed from enabled to disabled, the system will beep three times and the indicator light willflash three times. • When the setting has changed from dis- abled to enabled, the system will beeptwo times and the i
ndicator light will
flash three times.
NOTE
 The factory setting is “Enable automatic air selection control”.  When the defogger switch is pressed, the air selection will automatically change to theoutside air position, even if the system is set to “Disable automatic air selection control”, in order to prevent windows from foggingup.
Air conditioning switch
NOTE
 If a problem is detect
ed in the air condition-
ing compressor, the “ ” indicator blinks. Press the air conditioni
ng switch once to turn
it off, then once more to turn it back on. If the“ ” indicator does not blink, there is no problem. If it does blink,
have it checked at
an authorized Mitsubish
i Motors dealer or a
repair facility of your choice.  For example, sometimes after using a high- pressure car wash, the
condenser can get wet,
and the “ ” indicator blinks temporarily. Wait for a while, pres
s the air conditioning
switch once to turn the system off, then once more to turn it back on. Once the water evap-orates, the blinking will stop.

Personalizing the air conditioning switch (Changing the function set-ting)
BK0264300US.book 10 ページ ２０１８年２月２８日　水曜日　午後５時１６分

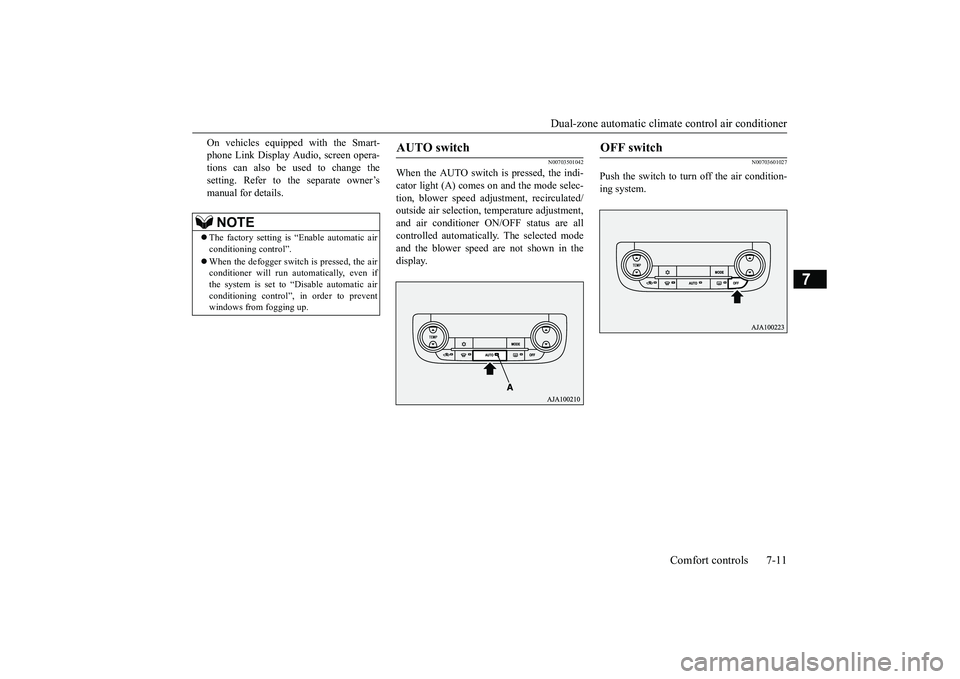

Dual-zone automatic climat
e control air conditioner Comfort controls 7-11
7
On vehicles equipped with the Smart- phone Link Display A
udio, screen opera-
tions can also be used to change the setting. Refer to th
e separate owner’s
manual for details.
N00703501042
When the AUTO switch is pressed, the indi- cator light (A) comes on and the mode selec- tion, blower speed adju
stment, recirculated/
outside air selection,
temperature adjustment,
and air conditioner ON/OFF status are all controlled automatically. The selected modeand the blower speed are not shown in the display.
N00703601027
Push the switch to turn off the air condition-ing system.
NOTE
 The factory setting is
“Enable automatic air
conditioning control”.  When the defogger switch
is pressed, the air
conditioner will run au
tomatically, even if
the system is set to “Disable automatic air conditioning control”, in order to preventwindows from fogging up.
AUTO switch
OFF switch
BK0264300US.book 11 ページ ２０１８年２月２８日　水曜日　午後５時１６分

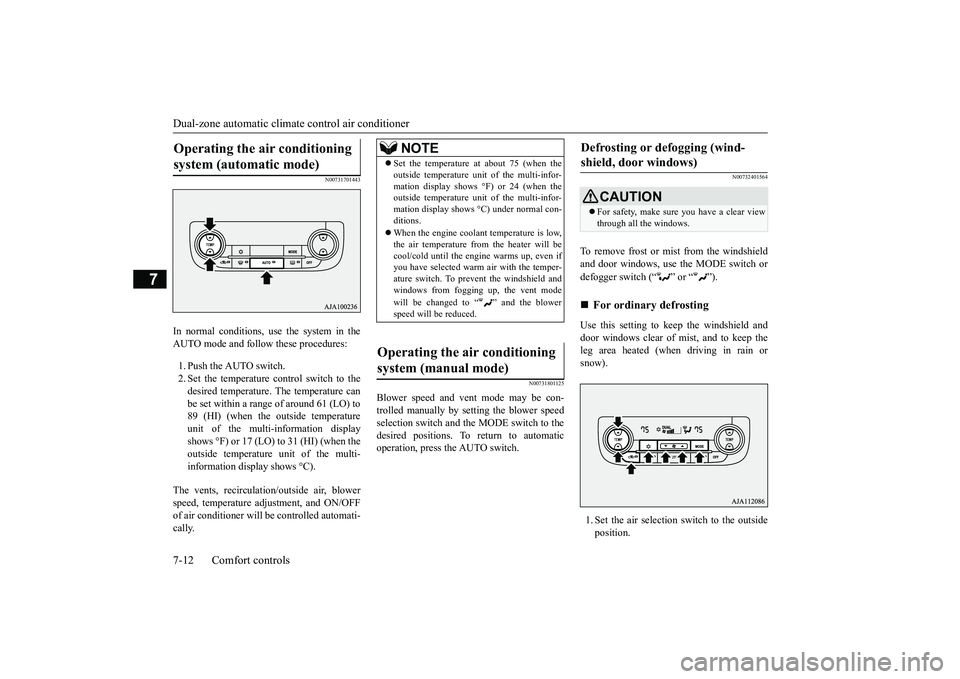

Dual-zone automatic climate
control air conditioner
7-12 Comfort controls
7
N00731701443
In normal conditions, use the system in the AUTO mode and follow these procedures: 1. Push the AUTO switch. 2. Set the temperature control switch to the desired temperature. The temperature can be set within a range of around 61 (LO) to89 (HI) (when the outside temperature unit of the multi-information display shows °F) or 17 (LO) to 31 (HI) (when theoutside temperature
unit of the multi-
information display shows °C).
The vents, recirculati
on/outside air, blower
speed, temperature ad
justment, and ON/OFF
of air conditioner will
be controlled automati-
cally.
N00731801125
Blower speed and vent
mode may be con-
trolled manually by setting the blower speedselection switch and the MODE switch to the desired positions. To return to automatic operation, press the AUTO switch.
N00732401564
To remove frost or mist from the windshieldand door windows, use the MODE switch or defogger switch (“ ” or “ ”). Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep theleg area heated (when driving in rain or snow). 1. Set the air selection switch to the outside position.
Operating the ai
r conditioning
system (automatic mode)
NOTE
 Set the temperature at
about 75 (when the
outside temperature uni
t of the multi-infor-
mation display shows °F) or 24 (when theoutside temperature uni
t of the multi-infor-
mation display shows
°C) under normal con-
ditions.  When the engine coolan
t temperature is low,
the air temperature from the heater will becool/cold until the engine warms up, even if you have selected warm
air with the temper-
ature switch. To prevent the windshield andwindows from fogging up, the vent mode will be changed to “ ” and the blower speed will be reduced.
Operating the air conditioning system (manual mode)
Defrosting or defogging (wind- shield, door windows)
CAUTION For safety, make sure you have a clear view through all the windows.

For ordinary defrosting
BK0264300US.book 12 ページ ２０１８年２月２８日　水曜日　午後５時１６分
