MITSUBISHI OUTLANDER 2019 (in English) Owner's Guide

4

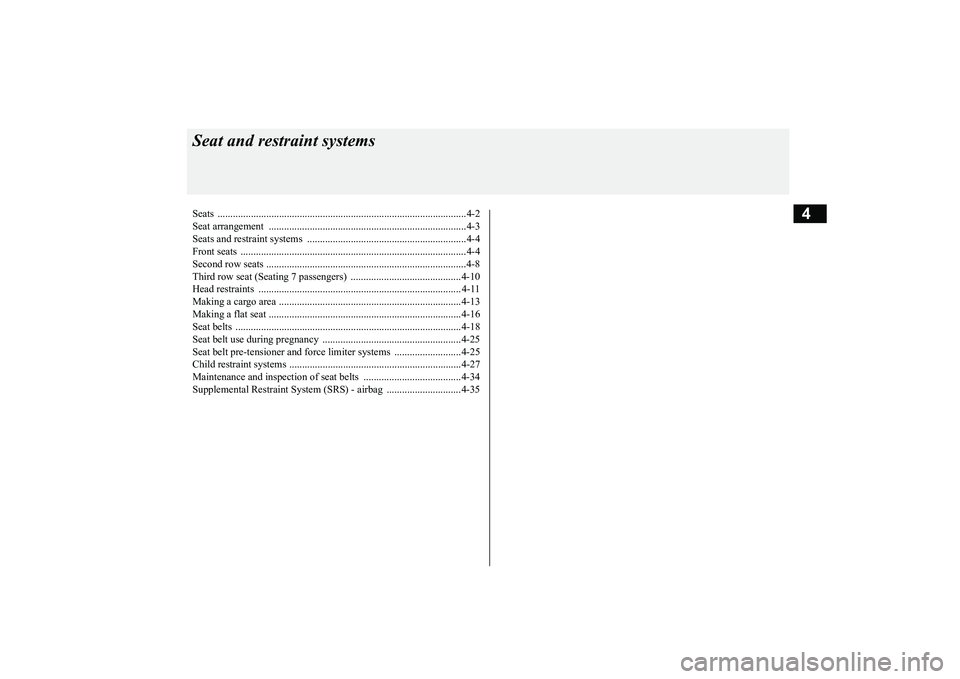

Seat and restraint systemsSeats .................................................................................................4-2 Seat arrangement .............................................................................4-3 Seats and restraint systems ..............................................................4-4Front seats ........................................................................................4-4 Second row seats .........
...........
...........
...........
...........
...........
.........
.....4-8
Third row seat (Seating 7 passengers) ...........................................4-10Head restraints ............................................................................... 4-11 Making a cargo area .......................................................................4-13 Making a flat seat ...........................................................................4-16Seat belts ........................................................................................4-18 Seat belt use during pregnancy ......................................................4-25 Seat belt pre-tensioner and force limiter systems ..........................4-25Child restraint systems ...................................................................4-27 Maintenance and inspection of seat belts ......................................4-34 Supplemental Restraint Syst
em (SRS) - airbag ......
.........
.........
.....4-35
BK0264300US.book 1 ページ ２０１８年２月２８日　水曜日　午後５時１６分

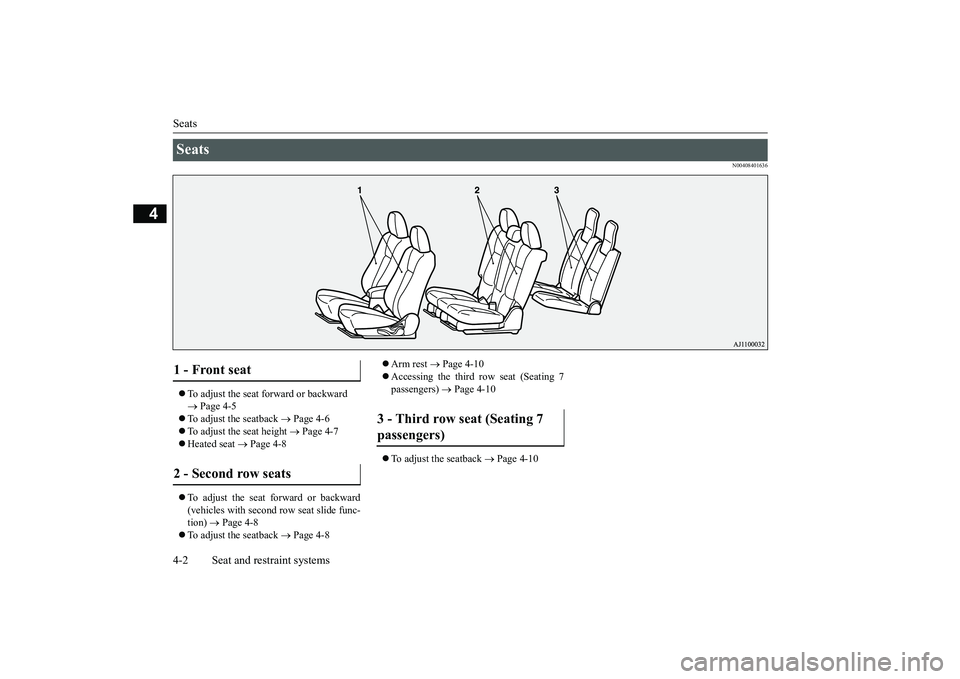

Seats 4-2 Seat and restraint systems
4
N00408401636
 To adjust the seat forward or backward  Page 4-5
 To adjust the seatback
 Page 4-6
 To adjust the seat height
 Page 4-7
 Heated seat
 Page 4-8
 To adjust the seat forward or backward (vehicles with second
row seat slide func-
tion)
 Page 4-8
 To adjust the seatback
 Page 4-8
 Arm rest
 Page 4-10
 Accessing the third row seat (Seating 7 passengers)
 Page 4-10
 To adjust the seatback
 Page 4-10
Seats 1 - Front seat 2 - Second row seats
3 - Third row seat (Seating 7 passengers)
BK0264300US.book 2 ページ ２０１８年２月２８日　水曜日　午後５時１６分

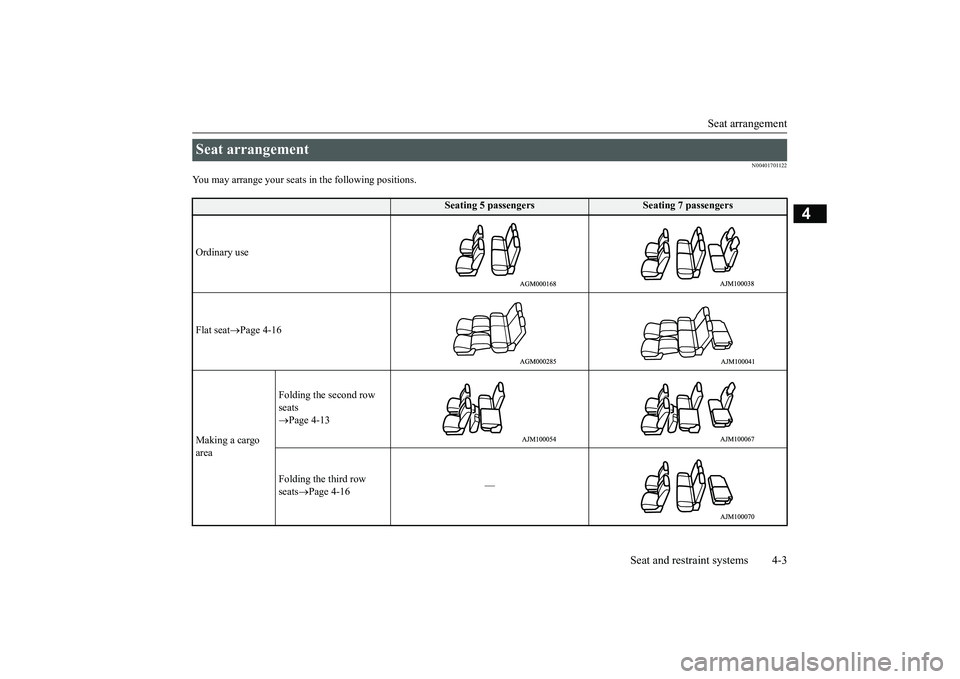

Seat arrangement
Seat and restraint systems 4-3
4
N00401701122
You may arrange your seats
in the following positions.
Seat arrangement
Seating 5 passengers
Seating 7 passengers
Ordinary use Flat seat
Page 4-16
Making a cargo area
Folding the second row seats  Page 4-13 Folding the third row seats
Page 4-16
—
BK0264300US.book 3 ページ ２０１８年２月２８日　水曜日　午後５時１６分

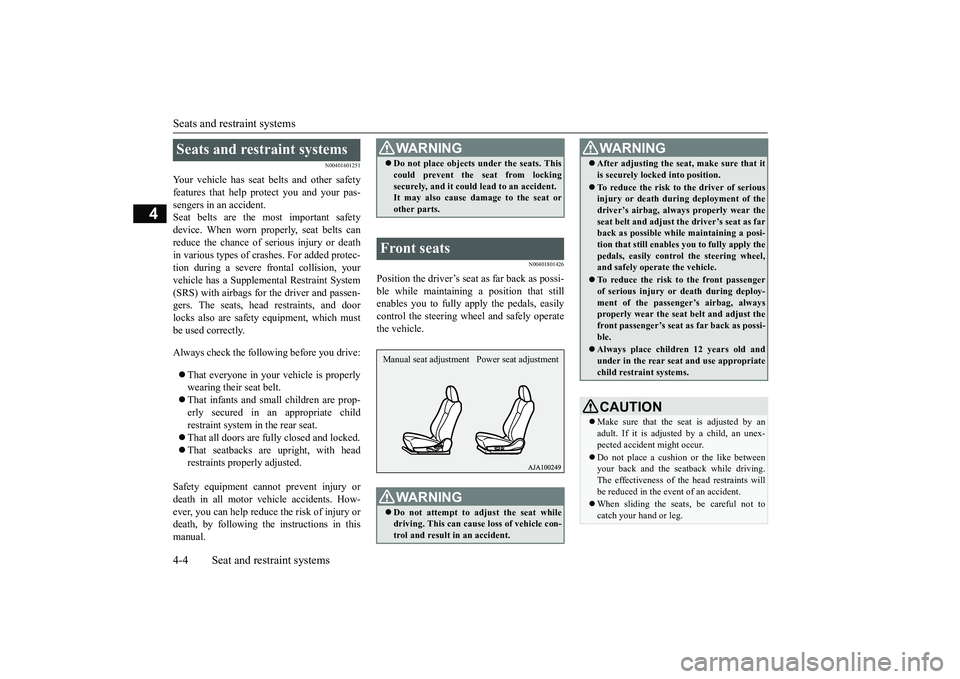

Seats and restraint systems 4-4 Seat and restraint systems
4
N00401601251
Your vehicle has seat
belts and other safety
features that help protect you and your pas- sengers in an accident.Seat belts are the most important safety device. When worn properly, seat belts can reduce the chance of serious injury or deathin various types of crashes. For added protec- tion during a severe fr
ontal collision, your
vehicle has a Supplemental Restraint System (SRS) with airbags for the driver and passen- gers. The seats, head restraints, and doorlocks also are safety equipment, which must be used correctly. Always check the following before you drive: That everyone in your vehicle is properly wearing their seat belt. That infants and small children are prop- erly secured in an appropriate child restraint system in the rear seat. That all doors are fully closed and locked.  That seatbacks are upright, with head restraints properly adjusted.
Safety equipment cannot prevent injury or death in all motor ve
hicle accidents. How-
ever, you can help reduce the risk of injury or death, by following the instructions in thismanual.
N00401801426
Position the driver’s seat
as far back as possi-
ble while maintaining a position that stillenables you to fully apply the pedals, easily control the steering wh
eel and safely operate
the vehicle.
Seats and restraint systems
WA R N I N G Do not place objects under the seats. This could prevent the seat from lockingsecurely, and it could
lead to an accident.
It may also cause damage to the seat or other parts.
Front seats
WA R N I N G Do not attempt to adjust the seat while driving. This can cause loss of vehicle con- trol and result
in an accident.
Manual seat adjustment Power seat adjustment
After adjusting the seat, make sure that it is securely locked into position. To reduce the risk to the driver of serious injury or death duri
ng deployment of the
driver’s airbag, always
properly wear the
seat belt and adjust th
e driver’s seat as far
back as possible while maintaining a posi- tion that still enables
you to fully apply the
pedals, easily control the steering wheel, and safely operate the vehicle. To reduce the risk to the front passenger of serious injury or
death during deploy-
ment of the passeng
er’s airbag, always
properly wear the seat
belt and adjust the
front passenger’s seat as far back as possi- ble. Always place childr
en 12 years old and
under in the rear seat
and use appropriate
child restraint systems.CAUTION Make sure that the seat is adjusted by an adult. If it is adjusted by a child, an unex- pected accident might occur. Do not place a cushion
or the like between
your back and the seatback while driving. The effectiveness of the head restraints will be reduced in the event of an accident. When sliding the seat
s, be careful not to
catch your hand or leg.WA R N I N G
BK0264300US.book 4 ページ ２０１８年２月２８日　水曜日　午後５時１６分

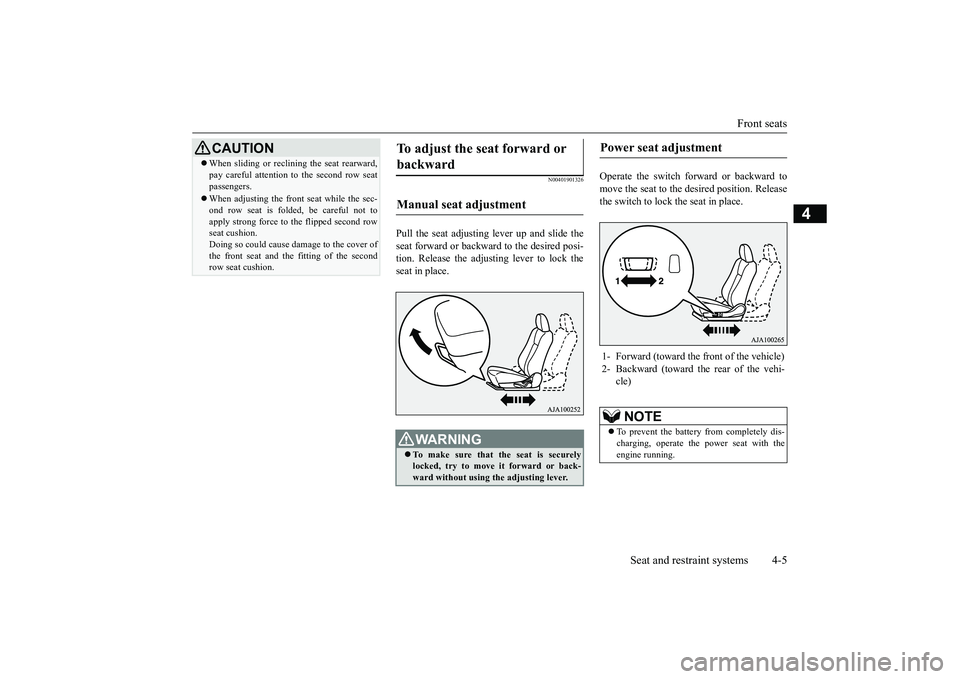

Front seats
Seat and restraint systems 4-5
4
N00401901326
Pull the seat adjusting lever up and slide the seat forward or backward to the desired posi-tion. Release the adjusting lever to lock the seat in place.
Operate the switch forward or backward to move the seat to the de
sired position. Release
the switch to lock the seat in place.
 When sliding or reclin
ing the seat rearward,
pay careful attention
to the second row seat
passengers. When adjusting the front seat while the sec- ond row seat is folded, be careful not toapply strong force to the flipped second row seat cushion. Doing so could cause da
mage to the cover of
the front seat and the
fitting of the second
row seat cushion.CAUTION
To adjust the seat forward or backward Manual seat adjustment
WA R N I N G To make sure that the seat is securely locked, try to move
it forward or back-
ward without using
the adjusting lever.
Power seat adjustment 1- Forward (toward the front of the vehicle) 2- Backward (toward the rear of the vehi-
cle)NOTE
 To prevent the battery from completely dis- charging, operate the
power seat with the
engine running.
BK0264300US.book 5 ページ ２０１８年２月２８日　水曜日　午後５時１６分

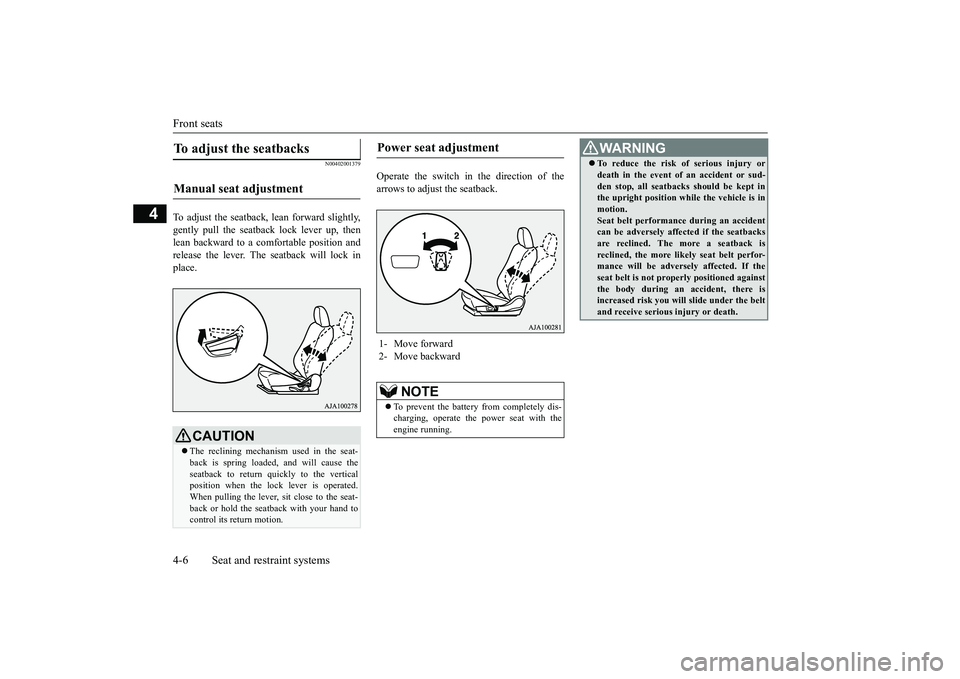

Front seats 4-6 Seat and restraint systems
4
N00402001379
To adjust the seatback, lean forward slightly, gently pull the seatback lock lever up, then lean backward to a comfortable position andrelease the lever. The seatback will lock in place.
Operate the switch in the direction of the arrows to adjust the seatback.
To adjust the seatbacks Manual seat adjustment
CAUTION The reclining mechanism used in the seat- back is spring loaded, and will cause theseatback to return quickly to the vertical position when the lock lever is operated. When pulling the lever, sit close to the seat-back or hold the seatback with your hand to control its return motion.
Power seat adjustment 1- Move forward 2- Move backward
NOTE
 To prevent the battery from completely dis- charging, operate the
power seat with the
engine running.
WA R N I N G To reduce the risk of serious injury or death in the event of
an accident or sud-
den stop, all seatbacks should be kept inthe upright position while the vehicle is in motion. Seat belt performance during an accidentcan be adversely affect
ed if the seatbacks
are reclined. The more a seatback is reclined, the more likely seat belt perfor-mance will be adversely affected. If the seat belt is not proper
ly positioned against
the body during an accident, there isincreased risk you will slide under the belt and receive serious
injury or death.
BK0264300US.book 6 ページ ２０１８年２月２８日　水曜日　午後５時１６分

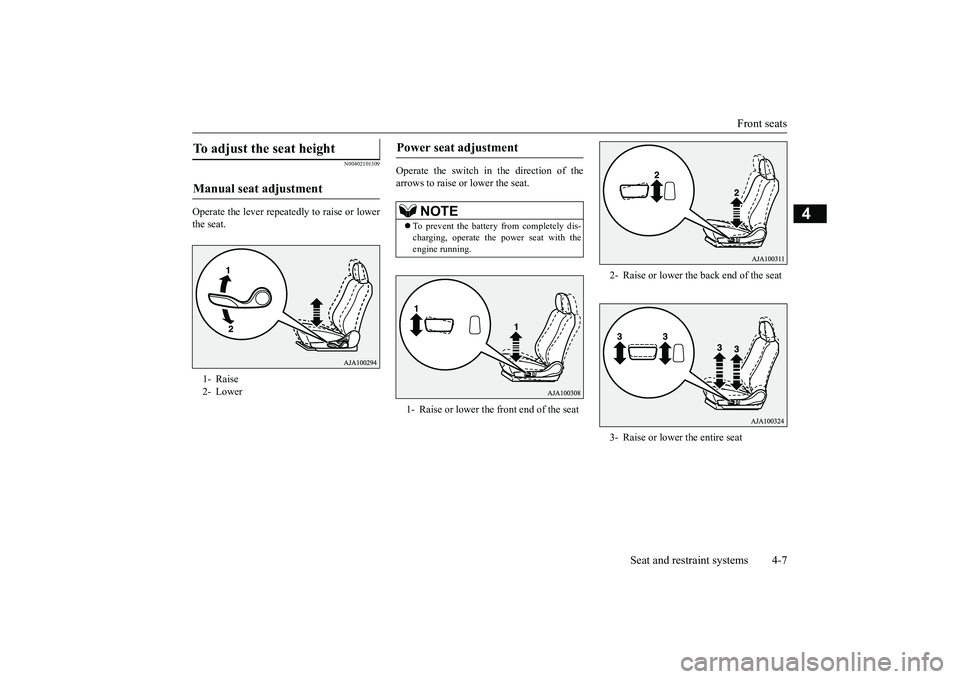

Front seats
Seat and restraint systems 4-7
4
N00402101309
Operate the lever repeatedly to raise or lower the seat.
Operate the switch in the direction of the arrows to raise or lower the seat.
To adjust the seat height Manual seat adjustment 1- Raise2- Lower
Power seat adjustment
NOTE
 To prevent the battery
from completely dis-
charging, operate the power seat with theengine running.1- Raise or lower the
front end of the seat
2- Raise or lower the back end of the seat 3- Raise or lower the entire seat
BK0264300US.book 7 ページ ２０１８年２月２８日　水曜日　午後５時１６分

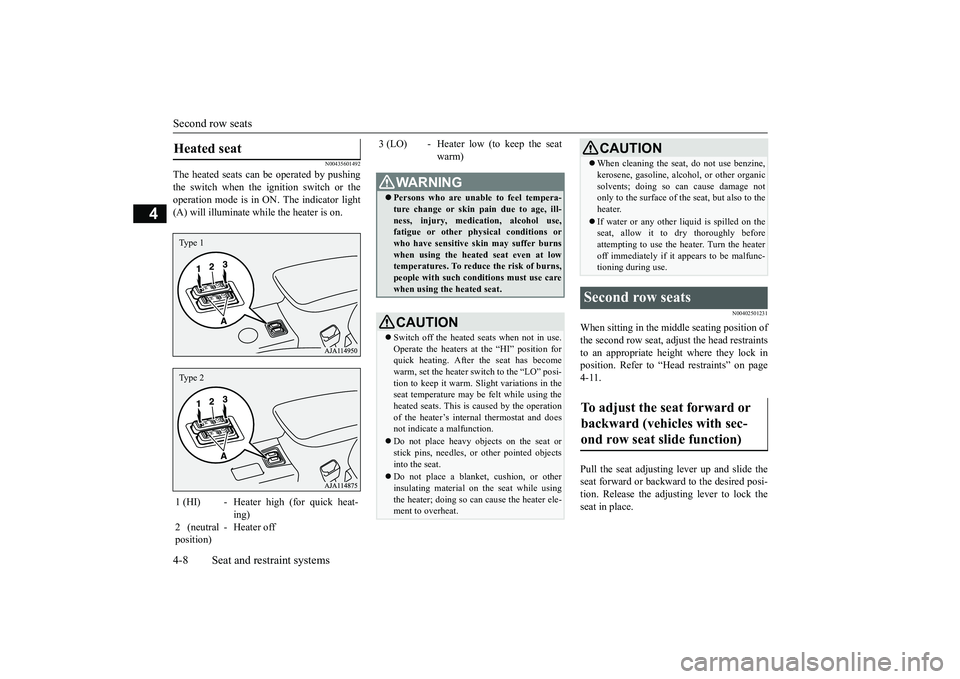

Second row seats 4-8 Seat and restraint systems
4
N00435601492
The heated seats can
be operated by pushing
the switch when the ignition switch or the operation mode is in ON. The indicator light(A) will illuminate while the heater is on.
N00402501231
When sitting in the mi
ddle seating position of
the second row seat, adjust the head restraints to an appropriate height where they lock inposition. Refer to “Hea
d restraints” on page
4-11. Pull the seat adjusting lever up and slide the seat forward or backward to the desired posi- tion. Release the adjusting lever to lock the seat in place.
Heated seat 1 (HI) - Heater high (for quick heat-
ing)
2 (neutral position)
- Heater off
Type 1Type 2
3 (LO) - Heater low (to keep the seat
warm)
WA R N I N G Persons who are unable to feel tempera- ture change or skin
pain due to age, ill-
ness, injury, medication, alcohol use,fatigue or other phys
ical conditions or
who have sensitive sk
in may suffer burns
when using the heated seat even at lowtemperatures. To reduce the risk of burns, people with such conditions must use care when using the heated seat.CAUTION Switch off the heated seats when not in use. Operate the heaters at the “HI” position for quick heating. After the seat has becomewarm, set the heater switch to the “LO” posi- tion to keep it warm. Sl
ight variations in the
seat temperature may be felt while using theheated seats. This is caused by the operation of the heater’s internal thermostat and does not indicate a malfunction. Do not place heavy obj
ects on the seat or
stick pins, needles, or
other pointed objects
into the seat. Do not place a blanket,
cushion, or other
insulating material on the seat while usingthe heater; doing so can
cause the heater ele-
ment to overheat.
 When cleaning the seat, do not use benzine, kerosene, gasoline, alc
ohol, or other organic
solvents; doing so can cause damage notonly to the surface of the seat, but also to the heater. If water or any other li
quid is spilled on the
seat, allow it to dry thoroughly before attempting to use the heater. Turn the heateroff immediately if it
appears to be malfunc-
tioning during use.
Second row seats To adjust the seat forward or backward (vehicles with sec-ond row seat slide function)
CAUTION
BK0264300US.book 8 ページ ２０１８年２月２８日　水曜日　午後５時１６分

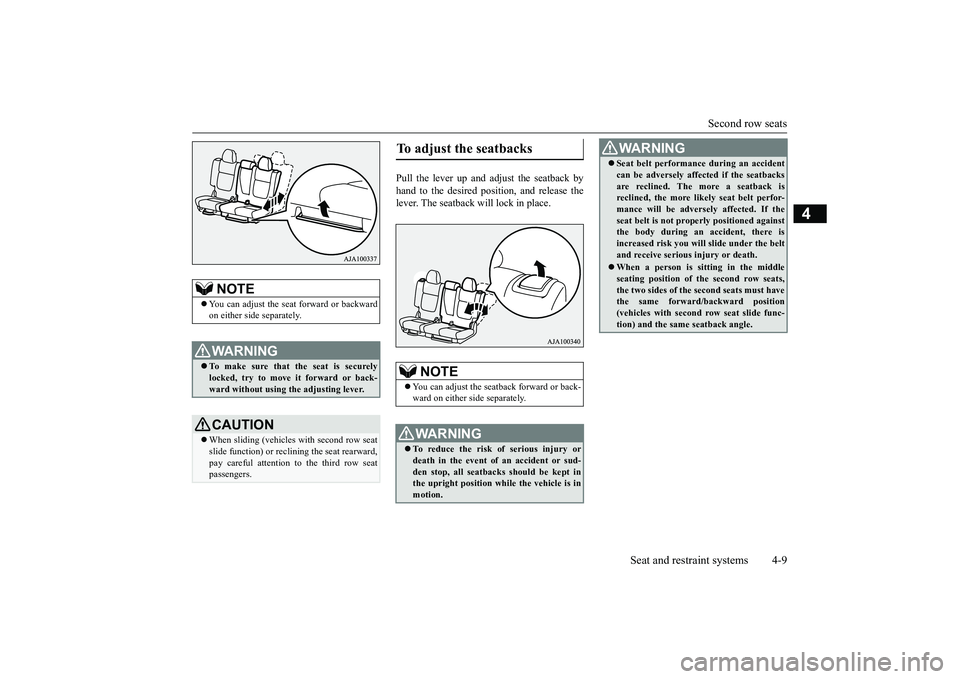

Second row seats
Seat and restraint systems 4-9
4
Pull the lever up and adjust the seatback by hand to the desired position, and release the lever. The seatback will lock in place.
NOTE
 You can adjust the seat forward or backward on either side separately.WA R N I N G To make sure that the seat is securely locked, try to move
it forward or back-
ward without using
the adjusting lever.
CAUTIONWhen sliding (vehicles with second row seat slide function) or reclin
ing the seat rearward,
pay careful attention to the third row seatpassengers.
To adjust the seatbacks
NOTE
 You can adjust the seat
back forward or back-
ward on either side separately.WA R N I N G To reduce the risk of serious injury or death in the event of
an accident or sud-
den stop, all seatbacks should be kept inthe upright position while the vehicle is in motion.
 Seat belt performance during an accident can be adversely affect
ed if the seatbacks
are reclined. The more a seatback isreclined, the more likely seat belt perfor- mance will be advers
ely affected. If the
seat belt is not prop
erly positioned against
the body during an accident, there is increased risk you will slide under the belt and receive serious
injury or death.
When a person is sitting in the middle seating position of the second row seats,the two sides of the second seats must have the same forward/backward position (vehicles with second row seat slide func-tion) and the same seatback angle.WA R N I N G
BK0264300US.book 9 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Third row seat (Seating 7 passengers) 4-10 Seat and restraint systems
4
N00403001318
To use the armrest, tilt the arm rest down for use as shown. The arm rest includes a cup holder.
N00400101031
For third row seat passenger entry or exit, thesecond row seats can be moved forward.Pull up the lever (A) and tilt the seatback for- ward. Then slide the entire seat forward.
To return the seat, slide the entire seat back- ward to the desired pos
ition and then raise the
seatback until it locks securely. After returning the seat, gently try to move it forward and backward to check that it issecurely retained and adjust the seatback to the normal seating position.
N00419501073
Pull up the strap and ad
just the seatback by
hand to the desired position, and release thestrap.
Arm rest
NOTE
 Never sit on an arm rest. Doing so could damage the arm rest.
Accessing the third row seat (Walk-in function, Seating 7 passengers)
WA R N I N G To make sure that the seat is securely locked, try to move it forward or back-ward without using the lever. To reduce the risk of serious in
jury or death in the
event of an accident
or sudden stop, all
seatbacks should be kept in the upright position while the ve
hicle is in motion.
Third row seat (Seating 7 passengers)
WA R N I N G The third row seats are intended for use by no more than two belted occupants,each of which does not exceed 160 cm (63 inches) in height. Exceeding these limitations can result inan increased risk of
personal injury or
death in the event
of an accident.
To adjust the seatback
