Parking 6-6 Driving safety
6
On snowy roads, ice can form on the braking system, making the brakes less effective. While driving in such conditions, pay closeattention to surrounding
vehicles and to the
condition of the road surface. From time to time, lightly depress the brake pedal andcheck how effective the brakes are. It is important to take
advantage of the engine
braking by downshifting while driving on steep downhill roads in order to prevent thebrakes from overheating.
N00629601385
When parking on a hill, set the parking brake,and turn the front wheels toward the curb on a downhill, or away from
the curb on an uphill.
If necessary, apply chocks to the wheels.Be sure that the parki
ng brake is firmly set
when parked and that the selector lever is in the “P” (PARK) position.
When parking on a hill, it is important to set the parking brake befo
re moving the selector
lever to the “P” (PARK) position. This pre- vents loading the parking brake against the transaxle. When this ha
ppens, it is difficult to
move the selector lever out of the “P” (PARK) position. Never leave the engine running while you take a short nap or rest. Also, never leave the engine running in a closed or poorly venti- lated place. Your front bumper can be damaged if you scrape it over curbs or parking stop blocks.Be careful when traveling up or down steep slopes where your bumper can scrape the road.
Always carry the key and lock all doors and the liftgate when leaving the vehicle unat- tended. Always try to park your vehicle in a well litarea. Move effort could be required to turn the steering wheel. Refer to “Electric power steering system(EPS)” on page 5-99.
N00629901434
It is very important to know how muchweight your vehicle can carry. This weight is called the vehicle ca
pacity weight and
includes the weight of
all occupants, cargo
(including the roof load), non-factory-
When driving in cold weather When driving downhill Parking Parking on a hill
Parking with the engine run- ning
WA R N I N G Leaving the engine ru
nning risks injury or
death from accidentally moving the selec- tor lever or the accumulation of toxicexhaust fumes in the passenger compart- ment.
Where you park
WA R N I N G Do not park your vehicle in areas where combustible materials
such as dry grass or
leaves can come in contact with a hotexhaust, since a fire could occur.
When leaving the vehicle Do not keep the steering wheel fully turned for a long time Loading information
BK0278200US.book 6 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Trailer towing
Driving safety 6-13
6
tribution of the load in the trailer. This can be checked by separately
weighing the loaded
trailer and then the tongue. The GAWRs are printed on the certification label which is riveted on the door sill on the driver’s side. Refer to “Vehicle labeling” on page 11-2. Choose a proper hitch and ball, and make sure it is installed at a height that is compati- ble with the trailer. Use a good equalizing hitch which uniformlydistributes the trailer tongue load throughout the frame.
A safety chain must al
ways be used between
the towing vehicle and the trailer. Leave suf-ficient slack in the chain for turns. The chain should cross under the trailer tongue to pre- vent the tongue from dropping to the groundin case it becomes damaged or separated. For correct safety chai
n procedures, consult
your authorized Mitsub
ishi Motors dealer.
Your vehicle will need service more often when you’re towing a trailer. Refer to “WAR-RANTY AND MAINTENANCE MAN- UAL”. Especially important in trailer operation are automatic transaxle fluid,engine oil, rear axle
oil, belt, c
ooling system
and brake system. Each
of these is covered in
this manual. For details, please refer to the “Vehicle care and maintenance” section.Check periodically to see that all hitch nuts and bolts are tight. Mitsubishi Motors recommends that any trailer having a total we
ight of 1,250 lb (567
kg) or more (2.4 liter models), 1,400 lb (635kg) or more (3.0 lite
r models) be equipped
with its own electric or surge-type brakes. If you choose electric br
akes, be sure they are
electrically actuated. Do not attempt to tapinto your vehicle’s hydraulic system. No mat- ter how successful it
may seem, any attempt
to attach trailer brakes to your vehicle’shydraulic system will lower braking effec- tiveness and create a potential hazard.
Gross axle weight rating (GAWR) Trailer hitches
WA R N I N G If you make any holes in the body of your vehicle for installing
a trailer hitch, be
sure to seal the holes later when you remove the hitch. If
you don’t seal them,
deadly carbon monoxide (CO) from yourexhaust can enter your vehicle. Refer to “Exhaust system” on page 9-26.
NOTE
 Mitsubishi Motors recommends that sway control be used whenever you are towing, toimprove towing stability.For further informati
on, please contact your
authorized Mitsubishi Motors dealer.
Safety chains
CAUTION Never tow a trailer wi
thout using a safety
chain securely attached to both the trailer and the vehicle. If the
coupling unit or hitch
ball experiences a probl
em, the trailer may
separate from
your vehicle.
Maintenance when trailer tow- ing Trailer brakes
BK0278200US.book 13 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Trailer towing
Driving safety 6-15
6
You’ll need more passing distance up ahead when you’re towing a trailer. And, because you’re a good deal longer, you’ll need to gomuch farther beyond the passed vehicle before you can return to your lane. Hold the bottom of the steering wheel with one hand. Then, to move the trailer to the left,just move that hand to the left. To move the trailer to the right, move your hand to the right. Always back up sl
owly and, if possible,
have someone guide you. When you’re turning with a trailer, make wider than normal turns to help prevent the trailer from striking shoulders, curbs, roadsigns, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well in advance. Towing a trailer puts additional burden on the engine and transaxle,
which may cause over-
heating. Following ar
e some suggestions to
reduce overheating: When towing at high al
titudes, engine coolant
and automatic transaxle oil will overheat at a lower temperature than at normal altitudes. If you turn your engine off immediately aftertowing at high altitude
on steep uphill grades,
your vehicle may show
signs similar to over-
heating. To avoid this
, let the engine run
while parked (preferably on level ground) with the automatic transaxle in the “P” (PARK) position for a few minutes beforeturning the engine off.
 If the engine coolant temperature indica- tor flashes on the information screen in the multi-information display or the engine power drops suddenly, refer to “Engine overheati
ng” on page 8-4.
 If the warning display or warning display illuminates, re
fer to “Warning dis-
play” on page 5-72, 5-79.
Reduce speed and downshift before you start down a long or steep downgrade. If you don’t downshift, over using the brakes can cause reduced brake efficiency. You can tow in “D” (DRIVE) position. You may want to shift the selector lever to the 3rd or a lower position, under heavy loads or hilly conditions. Always place chocks or blocks under both the vehicle and trailer wheels when parking. Besure that the parking brake is firmly set and that the selector lever is in the “P” (PARK) position. Avoid parki
ng on a hill with a
trailer, but if it cannot be avoided, do so only after performing the following:
Passing Backing up Making turns
CAUTION Making sharp turns while towing a trailer could cause the
trailer to come in contact
with the vehicle. Your
vehicle could be dam-
aged. Avoid making sharp turns while tow- ing a trailer.
Overheating Cause of overheating
Solution
Air conditioning on Turn off Highway speeds Reduce speed Going up hills Select lower gear posi-
tion
Stop-and-go city traf- fic
With the vehicle stopped, shift to the “N” (NEUTRAL) position and idle the engine at high idle.
Driving on hills Parking
BK0278200US.book 15 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Trailer towing 6-16 Driving safety
6
1. Apply the brakes a
nd keep them applied.
2. Have someone plac
e chocks or blocks
under both the vehicle and trailer wheels. 3. When the chocks or blocks are in place, release your brakes slowly until thechocks or blocks absorb the load. 4. Apply the parking brake firmly. 5. Set the selector lever to the “P” (PARK)position and turn off the engine.
When restarting out after parking on a hill: 1. Check that the selector lever is set to the “P” (PARK) position.2. Start the engine. Be sure to keep the brake pedal depressed. 3. Set the selector lever to the “D” (DRIVE)position or “R” (REVERSE) position. 4. Release the parking brake and brake pedal and slowly pull or back away from thechocks or blocks. Stop and apply your brakes. 5. Have someone retrieve the chocks orblocks.
BK0278200US.book 16 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Dual-zone automatic climat
e control air conditioner Comfort controls 7-5
7
N00731501412
The air conditioner can only be us
ed while the engine is running.
N00711801783
Dual-zone automatic climat
e control air conditioner
CAUTIONThe engine speed may increase when
the air conditioner is operating.
With an increased engine speed, an A/T or
CVT vehicle will creep to a gr
eater degree than with a lo
wer engine speed. Fully depr
ess the brake pedal to pre-
vent the vehicl
e from creeping.

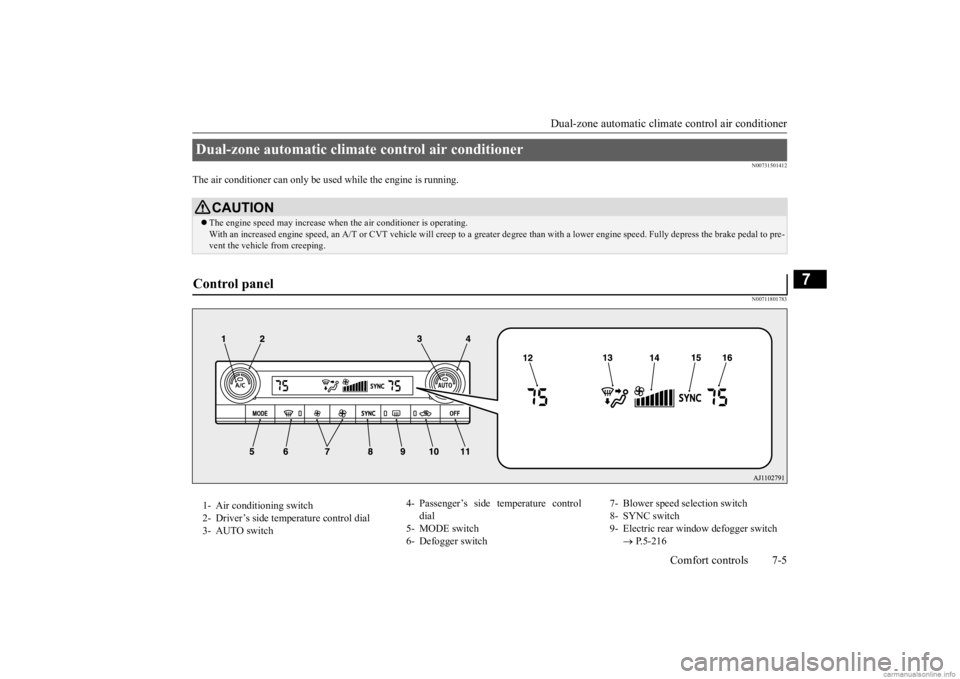

Control panel 1- Air conditioning switch 2- Driver’s side temperature control dial 3- AUTO switch
4- Passenger’s side temperature control
dial
5- MODE switch 6- Defogger switch
7- Blower speed
selection switch
8- SYNC switch 9- Electric rear win
dow defogger switch
 P.5-216
BK0278200US.book 5 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Dual-zone automatic climat
e control air conditioner Comfort controls 7-7
7
N00737001536
Turn the temperature control dial clockwise to make the air warmer. Turn it counterclock- wise to make the air cooler.The selected temperature will be shown in the display (A).
The above indicates th
e factory settings. You
can personalize the air selection switch and
NOTE
 Due to a drop in the battery voltage or some other problem, the blower speed may tempo-rarily become less than the selected blowerspeed display setting or the fan may stop. If the fan stops, turn the ignition switch to the “OFF” position or
set the operation mode
to OFF, wait a few minutes, and then turn the ignition switch back to
the “ON” position or
set the operation m
ode back to ON.
In the following cases, have the system inspected by your authorized Mitsubishi Motors dealer or a repair facility of yourchoice. • The blower speed remains lower than the blower speed set using the blower speed display or the blower
speed decreases fre-
quently. • The fan does not operate even after stop- ping and restarting the engine or the fanstops frequently.
Temperature control dial
NOTE
 The temperature value
of air conditioner is
switched in conjunction
with outside temper-
ature display unit of
the multi information
display. Refer to “Changing the temperature unit” onpage 5-172.
 When the engine coolant temperature is low, the air temperature from the heater will becool/cold until the engine warms up, even ifyou have selected warm
air with the dial.
To prevent the windshield and windows from fogging up, the vent mode
will be changed to
“ ” and the blower sp
eed will be reduced
while the system is operating in the AUTO mode.  When you feel that it is hotter or colder than the set temperature, you may adjust it to yourpreference. For further information, we recommend you to consult an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
 When the temperature is set to the highest or the lowest setting, the air selection and the air conditioner will be
automatically changed
as follows.Also, if the air select
ion is operated manually
after an automatic ch
angeover, manual oper-
ation will be
selected.
• Quick Heating (When the temperature is set to the highest setting)Outside air will be introduced and the air conditioner will stop. • Quick Cooling (When th
e temperature is set
to the lowest setting) Inside air will be re
circulated and the air
conditioner will operate.NOTE
SC00000700-5.fm 7 ページ ２０１９年４月１５日　月曜日　午後２時０分

Dual-zone automatic climate
control air conditioner
7-10 Comfort controls
7
N00712300094
You can change the following functions to match your preference.  Enable automatic air selection control: When the AUTO switch is pressed, the airselection switch will also be automatically controlled.  Disable automatic ai
r selection control:
Even when the AUTO switch is pressed,the air selection switch will not be auto- matically controlled.  Changing the settings Press the air selecti
on switch for approxi-
mately 10 seconds or longer. When the setting has changed, the system will beep and the i
ndicator light (A) will
flash.
• When the setting has changed from enabled to disabled,
the system will beep
three times and the
indicator light (A)
will flash three times. • When the setting has changed from dis-abled to enabled, the system will beep two times and the indicator light (A) will flash three times. On vehicles equipped with the Smart- phone-link Display Audio (SDA), screen operations can also be used to change the setting. Refer to th
e separate owner’s
manual for details.
N00737301500
Push the switch, and the air conditioningcompressor will turn on. The indicator light (A) will come on. Push the switch again and the air condition- ing compressor will stop and the indicatorlight goes off.
 When the engine coolan
t temperature rises to
a certain level, the air selection is automati-cally switched to the
recirculation position
and the indicator light
(A) comes on. At this
time, the system will not switch to the out- side position even if
the air selection switch
is pushed.

Personalizing the air selection (Changing the function setting) NOTE
NOTE
 The factory setting is
“Enable automatic air
selection control”.  When the defogger switch is pressed, the air selection will automatically change to theoutside air position, even if the system is set to “Disable automatic air selection control”, in order to prevent windows from foggingup.
Air conditioning switch
NOTE
 If a problem is detected in the air condition- ing compressor, the indicator light blinks. Press the air conditioni
ng switch once to turn
it off, then once more to turn it back on. Ifthe indicator li
ght does not blink, there is no
problem. If it does blink,
have it checked at
an authorized Mitsubish
i Motors dealer or a
repair facility
of your choice.
BK0278200US.book 10 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Dual-zone automatic climate
control air conditioner
7-12 Comfort controls
7
N00703601072
Push the switch to turn off the air condition- ing system.
N00731701629
In normal conditions, use the system in the AUTO mode and follow these procedures: 1. Push the AUTO switch. 2. Set the temperature control dial to the desired temperature. The temperature can be set within a range of around 61 (LO) to89 (HI) (when the outside temperature unit of the multi-information display shows °F) or 17 (LO) to 31 (HI) (when theoutside temperature unit of the multi- information display shows °C).
The vents, recirculati
on/outside air, blower
speed, temperature ad
justment, and ON/OFF
of air conditioner will be
controlled automati-
cally.
N00731801125
Blower speed and vent mode may be con- trolled manually by setting the blower speedselection switch and the MODE switch to the desired positions. To
return to automatic
operation, press the AUTO switch.
OFF switch
Operating the air conditioning system (automatic mode)
NOTE
 Set the temperature at approximately 75 (when the outside temp
erature unit of the
multi-information display shows °F) or 24(when the outside temp
erature unit of the
multi-information display shows °C) under normal conditions.  When the engine coolan
t temperature is low,
the air temperature from the heater will becool/cold until the engi
ne warms up, even if
you have selected warm
air with th
e temper-
ature dial. To prevent the windshield andwindows from fogging up, the vent mode will be changed to “ ” and the blower speed will be reduced.
Operating the air conditioning system (manual mode)
BK0278200US.book 12 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

8
For emergenciesIf the vehicle breaks down ...............................................................8-2 If the operation mode ca
nnot be changed to OFF
(vehicles equipped with the F.A.S.T.-key) ...................................8-2Jump-starting the engine ..................................................................8-2 Engine overheating ..........................................................................8-4 Jack and tools ...................................................................................8-5Tire repair kit (if so equipped) ..........................................................8-6 How to change a tire ...................................................................... 8-11 Towing ...........................................................................................8-18Operation under adverse driving conditions
...........
.........
.........
.....8-19
Fuel Pump Shut-off System ...........................................................8-20
BK0278200US.book 1 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

If the vehicle breaks down 8-2 For emergencies
8
N00836301230
If your vehicle breaks down on the road, move to the shoulder and turn on the hazard warning flashers. If there is no shoulder, orthe shoulder is not safe, drive in the right lane slowly with the hazard
lights flashing, until
you come to a safe stopping place. Keep theflashers flashing. If the engine stops, there will be no power assist to the steering and brakes, making these difficult to use.  The brake booster will not work, so the brakes will not grip well. The brake pedal will be harder to press than usual.  Since there is no power steering assist, the steering wheel will be hard to turn.
Get help from your passengers, bystanders, etc. to push the vehicle
and move it to a safe
area.
N00860700104
If the operation mode
cannot be changed to
OFF, perform the following procedure. 1. Move the selector lever to the “P” (PARK) position, and then change the operation mode to OFF. 2. One of the other causes could be low bat-tery voltage. If this occurs, the keyless entry system, the F.A.S.T.-key operation and the steering wheel lock (if soequipped) will also
not operate. Contact
an authorized Mitsubishi Motors dealer.
N00836401778
If the engine cannot be started because thebattery is weak or de
ad, you can start it with
the battery from anothe
r vehicle using jumper
cables.
1. Take off any metal jewelry such as watch bands or bracelets th
at might create an
accidental electrical contact. 2. Position the vehicles close enoughtogether so that the jumper cables can reach, but be sure the vehicles aren’t touching each other. 3. Set the parking brake firmly on your vehi- cle and move the selector lever into the“P” (PARK) position.
If the vehicle breaks down If the engine stops/fails When the engine fails at the intersection
If the operation mode can- not be changed to OFF (vehicles equipped with the F.A.S.T.-key) Jump-starting the engine
WA R N I N G To reduce the risk of igniting flammable gas that may be emi
tted from the battery,
carefully read this section before jump-starting the vehicle. Do not try to start you
r vehicle by pushing
or towing. This can cause an accident resulting in serious
injury or death and
can damage the vehicle.NOTE
 Do not use jumper cables if they have dam- age or corrosion.CAUTION Check the other vehicle.
It must have a 12-
volt battery. If the other system isn’t 12-volt,both systems can be damaged.
BK0278200US.book 2 ページ ２０１９年４月１０日　水曜日　午前１０時５９分
