Theft-alarm system 5-50 Features and controls
5
N00510401230
The alarm will be activated if any of the fol- lowing occur while the vehicle is parked andthe system is armed.  One of the doors and the liftgate is opened without using the keyless entry system or the F.A.S.T.-key operation. The engine hood is opened.
N00582500040
When the alarm is activated: 1. The headlights blink on and off for 3 min- utes. After 3 minutes the headlights automati-cally shut off. 2. The horn will sound intermittently for 3 minutes.
N00582600025
The alarm can be deactivated in the following ways.  By using the keyless entry system or the F.A.S.T.-key operation to lock or unlockthe doors and liftgate.  Turn the ignition switch to the “ON” posi- tion or put the operation mode in ON.
N00510501244
The system will be disarmed if the followingoperation is performed.  Except for vehicles
equipped with the
F.A.S.T.-key, if the ignition switch is turned to the “ON” position. For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.  All doors and the lift
gate are unlocked by
using the keyless entry system or the F.A.S.T.-key operation.
 The system will be disarmed if, while the theft-alarm indicator is illuminated, the fol-lowing operation is performed. • Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turnedto the “ON” position. • For vehicles equippe
d with the F.A.S.T.-
key, if the operation mode is put in ON.
 The system will not be armed if a door, the liftgate or the engine
hood is not completely
closed. If this happens, rearm the system as described above.  The theft-alarm system can be activated when people are riding inside the vehicle orwhen the windows are open. To prevent acci- dental activation of the alarm, do not set the system to the system armed mode while peo-ple are riding in the vehicle.
Alarm stage
NOTE
Type of alarm
NOTE
 The alarm will continue to operate for 3 min- utes. At the end of that
period, the alarm will
automatically shut off
to save battery power.
The system will then
be rearmed until the
proper disarming step is taken.  The alarm will resu
me if unauthorized
actions are taken again, even if the alarm has stopped.Horn sounds! Headlights blink on and off!
Alarm deactivation Disarmed stage
BK0278200US.book 50 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Power window control
Features and controls 5-51
5
N00510601157
Use the following procedure to test the sys- tem: 1. Lower the driver’s window. 2. Arm the system as explained in “Armedstage”. 3. Make sure that the theft-alarm indicator comes on and flashes for approximately 20 seconds. 4. Wait a few seconds and then unlock thedriver’s side door by using the inside door lock knob. Open the door. 5. Make sure that the horn sounds intermit-tently and the headlights blink when a door is opened. 6. Disarm the system by unlocking all doorsand the liftgate by using the keyless entry system or the F.A.S.T.-key operation.
N00510800383
NOTE
 If the UNLOCK button on the remote control transmitter, or the driver’s or front passen-ger’s door lock/unloc
k switch is pressed
when all doors and the liftgate are closed and no door is opened within approximately 30seconds, re-arming will
automatically occur.
 The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details.On a vehicle equipped
with the Smartphone-
link Display Audio (SDA
), the functions can
be adjusted on the screen. For details, referto a separate owner’s manual.  Once the system has been disarmed, it can- not be rearmed except
by repeating the arm-
ing procedure.Disarm...by using the keyless entry system or F.A.S.T.-key operation
Testing the theft-alarm system
Power window control 1- Open (down) 2- Close (up)
NOTE
 Never try to operate the main switch and sub-switch in different directions at the same time. This will freeze the window in posi- tion.  Operating the power
windows repeatedly
with the engine st
opped will run down the
battery. Use the window
switches only while
the engine is running.WA R N I N G Before operating the power windows, make sure that nothing can be trapped (head, hands, fingers, etc.) in the window.
BK0278200US.book 51 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Power window control 5-52 Features and controls
5
N00548701212
The main switch located on the driver’s door can be used to operate all the windows. A window can be opened or closed by operat-ing the corresponding switch. Press the switch down to open the window, and pull up the switch to close it.If the switch is fully pressed down/pulled up, the door window automatically opens/closes completely.If you want to stop the window movement, operate the switch lightly in the reverse direc- tion.
N00548800102
Each sub-switch can be
used for it’s own pas-
senger door window, unless the driver’s win-dow lock switch is activated.
N00548901155
The power windows can be run up or downwhen the ignition switch or the operationmode is in ON. The door windows can be opened or closed for a 30-second period after the engine is
 Never leave the vehi
cle without carrying
the key. Never leave children
or unreliable adults
unattended inside the vehicle.
Main switch
WA R N I N G
1- Driver’s door window switch 2- Front passenger door window switch 3- Left rear door window switch 4- Right rear door window switch5- Lock switch
NOTE
 If the switch is operated continuously, the electric window protecti
on function wi
ll acti-
vate and the door window may not be opened and closed automatically even if the switch is fully pressed down/pulled up.In such a case, pull up the door window switch until the wi
ndow has been fully
closed.You should now be able to operate the door window in a normal fashion.
Sub switch 1- Close 2- Open
NOTE
 The rear door windows open only half-way.
Power window timer function
BK0278200US.book 52 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Sunroof (if so equipped) 5-54 Features and controls
5
N00551400014
Wind buffeting can be de
scribed as the per-
ception of pressure on the ears or a boomingor rumbling sound. Your
vehicle may exhibit
wind buffeting when driving with one or both rear door windows down or partially opened.This is a normal occurre
nce that can be mini-
mized. If the buffeting
occurs with the rear
door windows open, open the front door win-dows as well as the rear door windows to minimize the condition.
N00511001738
The sunroof can be opened and closed withthe ignition switch or the operation mode in ON. Press the switch (1), the sunroof automati- cally opens. To stop the moving sunroof, press the switch.
Press the switch (3), the sunroof automati- cally closes. To stop the moving sunroof, press the switch. When the switch (2) is pressed, the rear of the sunroof raises for ventilation. Press the switch (3). The sunroof can be operated when the igni- tion switch or the operation mode is in ON.The sunroof can be opened or closed for a 30- second period after th
e engine is stopped.
However, when the driver’s door or the frontpassenger door is opened, the sunroof cannot
In such a case, the
following procedure
should be implemented to rectify this situa-tion.If the window is open,
repeatedly raise the
appropriate wi
ndow switch until that win-
dow has been fully closed.Following this, release the switch, raise the switch once again and hold it in this condi- tion for at least 1 second, then release it. Youshould now be able to
operate all windows in
the normal function.
What to do if you hear wind buffeting when driving
NOTE

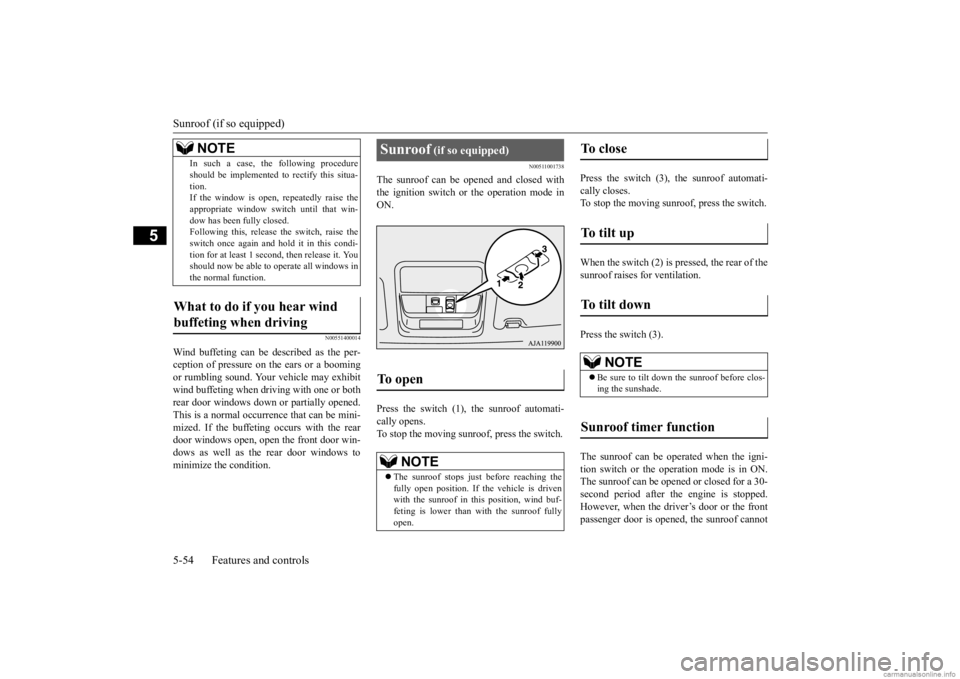

Sunroof
(if so equipped)
To open

NOTE
 The sunroof stops just before reaching the fully open position. If the vehicle is drivenwith the sunroof in this position, wind buf- feting is lower than with the sunroof fully open.
To close

To t i l t u p

To t i l t d o w n

NOTE
 Be sure to tilt down the sunroof before clos- ing the sunshade.
Sunroof timer function

BK0278200US.book 54 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Parking brake 5-56 Features and controls
5
N00511401514
To park the vehicle, fi
rst bring it to a com-
plete stop, firmly apply the parking brake,and then move the sele
ctor lever to the “P”
(PARK) position. Make sure the brake warning light is illumi-nated.
N00593100046
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from
the curb on an uphill.
NOTE
When leaving the ve
hicle unattended, be
sure to close the sunr
oof and carry the key.
 Do not try to operate the sunroof if it is fro- zen closed (after snowfall or during extreme cold).  Do not sit on or plac
e heavy luggage on the
sunroof or roof opening edge.  Do not apply any forc
e that may cause dam-
age to the sunroof.  Release the switch when the sunroof has reached a completely open or completelyclosed position.  If the sunroof does not operate when the sun- roof switch is operated, release the switch and check whether something is trapped by the sunroof. If nothing is trapped, have thesunroof checked at an authorized Mitsubishi Motors dealer.  Be careful when tilting up the sunroof if a ski carrier or a roof carrie
r is installed. Depend-
ing on the model of ski carrier or roof carrier,the sunroof may contact
the carrier when the
sunroof is tilted up.  Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.  Do not put any wax on the weatherstrip (black rubber) around the sunroof opening. Ifit is waxed, the weat
herstrip cannot maintain
a weatherproof seal with the sunroof.  After washing the vehicle or after rain be sure to wipe off any water that is on the sun- roof before operating it.
 Operating the sunroof repeatedly with the engine turned off will run down the battery.Operate the sunroof only while the engine isrunning.
Parking brake
NOTE
Lever type parking brake
(if so
equipped)To a p p l y

1- Pull the lever up without pushing the
button at the end of hand grip. When the parking brake is set and the ignition switch is in
the “ON” position,
the brake warning light in the instru- ment cluster will come on.
BK0278200US.book 56 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Parking brake
Features and controls 5-57
5
Before driving, be sure to release the parking brake.
N00593200076
The Electric parking brake is the system thatapplies the parking brake by the electricmotor.
To r e l e a s e

1- Pull the lever up slightly. 2- Press and hold the button at the end of
the hand grip.
3- Push the lever downward.
CAUTION Before driving, be sure that the parking brake is fully released and brake warninglight is off.If you drive without the parking brake fully released, the warning
display will appear on
the information screen
in the multi-informa-
tion display. If a vehicle is driven
without releasing the
parking brake, the brak
es will be overheated,
resulting in ineffectiv
e braking and possible
brake failure. Warning light
or
Warning display
Electric parking brake
(if so
equipped)
NOTE
 You may hear an operation noise from the vehicle body when ope
rating the Electric
parking brake. This do
es not indicate a mal-
function and the Elec
tric parking brake is
operating normally.  When the battery is weak or dead, the Elec- tric parking brake cannot be applied or released. Refer to “Jum
p-starting the engine”
on page 8-2.  You may feel the brake pedal moving when operating the Electr
ic parking brake.
This does not indi
cate a malfunction.
To apply

1. Stop the vehicle completely. 2. Pull up the Electric parking brake switch
while depressing the brake pedal.
BK0278200US.book 57 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Parking brake
Features and controls 5-59
5
When the accelerator pedal is depressed slowly while all of the following conditions are met, the Electric parking brake is auto- matically released.  The engine is running.  The selector lever is in the “D” (DRIVE) or the “R” (REVERSE) position.  The driver’s seat belt is fastened.
When the parking brake is released, the brake warning light and the indicator lamp on theElectric parking brake switch go off. Before driving, be sure that the parking brake is released and brake warning light is off.
To r e l e a s e

Manual operation 1. Make sure that the ignition switch is in
the “ON” position or
the operation mode
is ON.
2. Press down the Electric parking brake
switch while depressing the brake pedal.
Automatic operation
CAUTION After the Electric parking brake switch has been operated to apply
or release the Electric
parking brake, if the brake warning light andthe indicator on the Electric parking brake switch remain blinking
or the Electric park-
ing brake warning light remain illuminated,the Electric parking
brake system may be
malfunctioning and the
Electric parking
brake may not be applie
d or released. Imme-
diately park your vehicle in a safe place and contact the nearest au
thorized Mitsubishi
Motors dealer or a repair facility of yourchoice. If a vehicle is driven
without releasing the
parking brake, the brake will overheat, resulting in ineffectiv
e braking and possible
brake failure. If the brake warning light does not go off after the parking brake has been released, thebrake system may be malfunctioning. Contact the nearest authorized Mitsubishi Motors dealer or a repair facility of yourchoice.
 If the acceleration of the vehicle seems abnormally slow after
the vehicle has been
parked with the Elec
tric parking brake
applied in cold weather,
stop the vehicle in a
safe place, then apply and release the Elec- tric parking brake. If
the vehicle acceleration
is still slow, contact the nearest authorized Mitsubishi Motors dealer or a repair facility of your choice.NOTE
 When the ignition switch or the operation mode is other than ON, the parking brakecannot be released.  If the Electric parki
ng brake does not auto-
matically release, it ma
y be released by man-
ual operation.  When the selector lever is other than “P” (PARK) position, if you try to release the Electric parking brak
e without depressing
the brake pedal, the warning display will appear.CAUTION
BK0278200US.book 59 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Outside rearview mirrors
Features and controls 5-65
5
[Vehicles with the keyless entry system] The mirrors automatically retract or extend when the doors are locked or unlocked usingthe remote control switches of the keyless entry system. Refer to “Keyless entr
y system” on page 5-7.
[Vehicles with the Free-hand Advanced Secu- rity Transmitter (F.A.S.T-key)]The mirrors automatically retract or extend when the doors are locked or unlocked using the remote control switches or the F.A.S.T-key. Refer to “Keyless entry system” on page 5-31 or “To operate using the F.A.S.T.-key” onpage 5-17.
N00549301329
When the rear window defogger switch ispressed with the engine running, the outsiderearview mirrors are defogged or defrosted. Current will flow thr
ough the heater element
inside the mirrors, thus clearing away frost orcondensation. The indicator light (A) will illuminate while the defogger is on. The heater will be turned off automatically in approximately 15 to 20 minutes depending onthe outside temperature.
Retracting and extending the mir- rors without using the mirror retractor switch (automatic exten- sion function)
NOTE
 Functions can be modifi
ed as stated below.
Please consult an au
thorized Mitsubishi
Motors dealer. On vehicles equipped with the Smartphone-link Display Audio (SDA), screen operations can be used to make the adjustment. Refer to the separate owner’
s manual for details.
• Automatically extend when the ignition switch is turned to the “ON” position or theoperation mode is put in ON with thedriver’s door closed, and automatically retract when the ignition switch is turned to the “LOCK” position or the operation modeis put in OFF with the driver’s door opened. • Automatically exte
nd when the vehicle
speed reaches approximately 19 mph (30 km/h). • Deactivate the automatic extension func- tion.NOTE
Heated outside rearview mirror

(if so equipped)
BK0278200US.book 65 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Ignition switch (if so equipped) 5-66 Features and controls
5
N00512401742

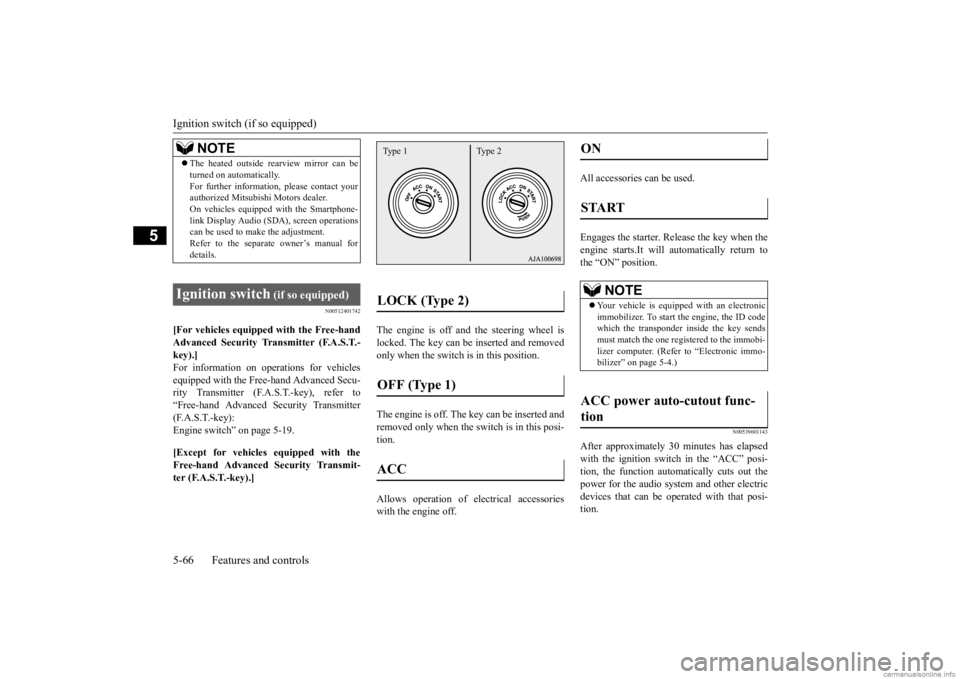

[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key).] For information on operations for vehicles equipped with the Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Se
curity Transmitter
(F.A.S.T.-key):Engine switch” on page 5-19. [Except for vehicles equipped with the Free-hand Advanced Security Transmit- ter (F.A.S.T.-key).]

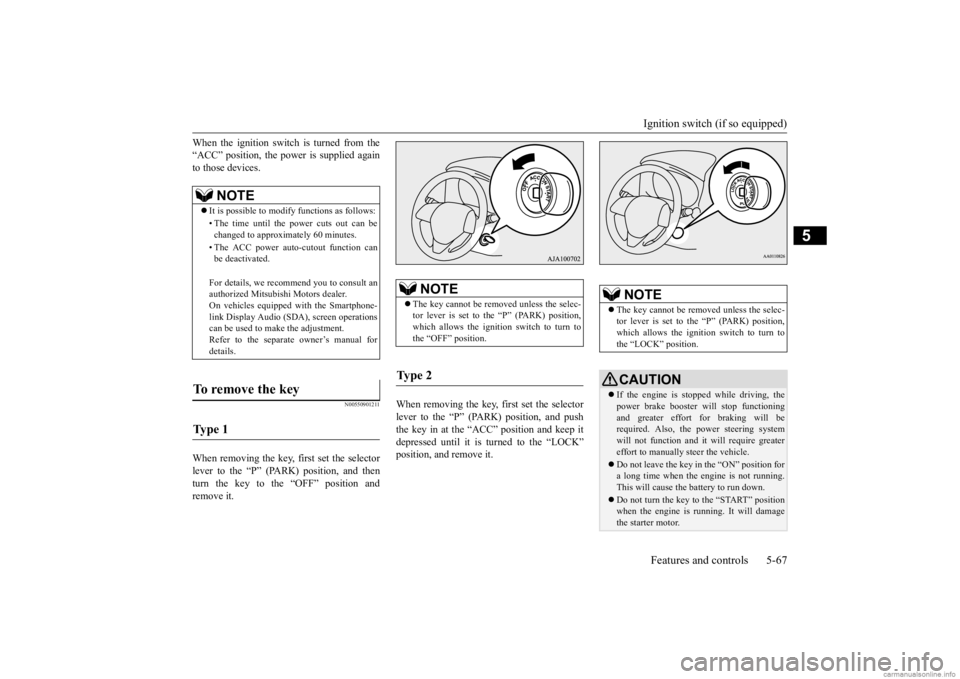

The engine is off and the steering wheel is locked. The key can be inserted and removed only when the switch is in this position. The engine is off. The key can be inserted and removed only when the switch is in this posi- tion. Allows operation of el
ectrical accessories
with the engine off.
All accessories can be used. Engages the starter. Release the key when the engine starts.It will automatically return to the “ON” position.
N00539601143
After approximately 30
minutes has elapsed
with the ignition switch in the “ACC” posi-tion, the function automatically cuts out the power for the audio syst
em and other electric
devices that can be ope
rated with that posi-
tion.
NOTE
 The heated outside re
arview mirror can be
turned on automatically.For further information, please contact yourauthorized Mitsubishi Motors dealer. On vehicles equipped
with the Smartphone-
link Display Audio (SDA
), screen operations
can be used to ma
ke the adjustment.
Refer to the separate
owner’s manual for
details.
Ignition switch
(if so equipped)
LOCK (Type 2)

OFF (Type 1)

ACC

Type 1 Type 2
ON

START

NOTE
 Your vehicle is equippe
d with an electronic
immobilizer. To start
the engine, the ID code
which the transponder inside the key sendsmust match the one regi
stered to the immobi-
lizer computer. (Refer to “Electronic immo- bilizer” on page 5-4.)
ACC power auto-cutout func- tion

BK0278200US.book 66 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Ignition switch (if so equipped) Features and controls 5-67
5
When the ignition switch is turned from the “ACC” position, the pow
er is supplied again
to those devices.
N00550901211
When removing the key, first set the selectorlever to the “P” (PARK) position, and thenturn the key to the “OFF” position and remove it.
When removing the key,
first set the selector
lever to the “P” (PARK) position, and push the key in at the “ACC” position and keep it depressed until it is turned to the “LOCK”position, and remove it.
NOTE
 It is possible to modify functions as follows: • The time until the power cuts out can be changed to approxi
mately 60 minutes.
• The ACC power auto-c
utout function can
be deactivated. For details, we reco
mmend you to consult an
authorized Mitsubish
i Motors dealer.
On vehicles equipped with the Smartphone- link Display Audio (SDA), screen operations can be used to make the adjustment.Refer to the separate owner’s manual for details.
To remove the key

Ty p e 1

NOTE
 The key cannot be rem
oved unless the selec-
tor lever is set to the “P” (PARK) position,which allows the ignition switch to turn to the “OFF” position.
Ty p e 2

NOTE
 The key cannot be rem
oved unless the selec-
tor lever is set to the “P” (PARK) position, which allows the ignition switch to turn tothe “LOCK” position.CAUTION If the engine is stopped while driving, the power brake booster will stop functioning and greater effort for braking will be required. Also, the power steering systemwill not function and it
will require greater
effort to manually steer the vehicle. Do not leave the key in
the “ON” position for
a long time when the engine is not running. This will cause the
battery to run down.
Do not turn the key to the “START” position when the engine is r
unning. It will damage
the starter motor.
BK0278200US.book 67 ページ ２０１９年４月１０日　水曜日　午前１０時５９分
