OUTLANDER PHEVOWNER’S MANUAL
OUTLANDER PHEV - ENGLISH - OGGE14E5
OUTLANDER PHEV - ENGLISH - OGGE14E5
Page 2 of 442
ForewordE09200105969
Thank you for selecting an OUTLANDER PHEV as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg- ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
indicates a strong possibility of severe personal injury or death if in- structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE:gives helpful information.*:indicates optional equipment.
It may differ according to the sales classification; refer to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
Information for station service
E09300103852Fuel
Fuel tank capacity45 litresFuel requirementsUnleaded petrol octane number (EN228)95 RON or higherEngine oilRefer to the “Maintenance” section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.
© 2013 Mitsubishi Motors Corporation
14
OGGE14E5
BLC-14-000978
Page 3 of 442

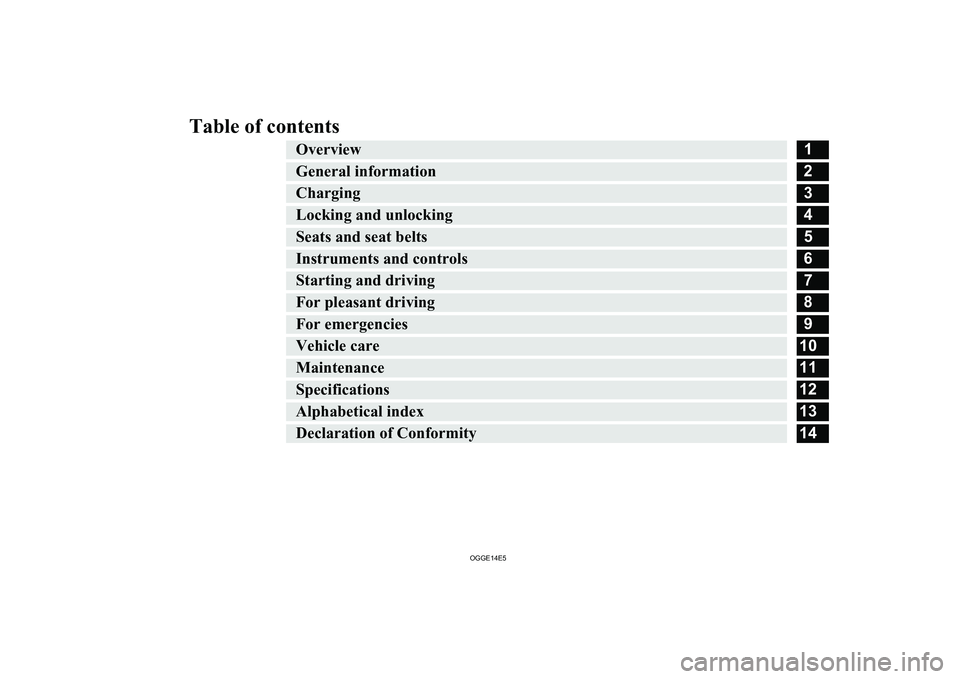

Table of contentsOverview1General information2Charging3Locking and unlocking4Seats and seat belts5Instruments and controls6Starting and driving7For pleasant driving8For emergencies9Vehicle care10Maintenance11Specifications12Alphabetical index13Declaration of Conformity14
OGGE14E5
Page 4 of 442
Instruments and controlsE001001082271. Combination headlamps and dipper switch p. 6-45Turn-signal lever p. 6-50
Front fog lamp switch* p. 6-52
Rear fog lamp switch* p. 6-52
Headlamp washer switch* p. 6-58
2. Instruments p. 6-02
3. Power switch* p. 7-08
4. Regenerative braking level selector (paddle) p. 7-15
5. Windscreen wiper and washer switch p. 6-53 Rear window wiper and washer switch p. 6-57
6. Cruise control switch* p. 7-34
7. Supplemental restraint system - airbag (for driver’s seat) p. 5-26, 5-29
Horn switch p. 6-60
8. Supplemental restraint system (SRS) - front knee airbag (for driv- er’s seat)* p. 5-30
9. Steering wheel audio remote control switches* p. 8-26
10. Steering wheel height and reach adjustment lever p. 7-05
11. Driver’s side electric tailgate switch* p. 4-20
12. Lane depature warning (LDW) switch* p. 7-61
13. Forward collision mitigation system (FCM) ON/OFF switch* p. 7-59
14. Sonar switch* p. 7-71
15. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-24
16. Headlamp levelling switch* p. 6-49
17. Active stability control (ASC) OFF switch* p. 7-32
18. Multi information display switch* p. 6-04
Instruments and controls
1-02OGGE14E5Overview1LHD
Page 5 of 442
1. Regenerative braking level selector (paddle) p. 7-15
2. Power switch p. 7-08
3. Instruments p. 6-02
4. Headlamp levelling switch* p. 6-49
5. Active stability control (ASC) OFF switch* p. 7-32
6. Multi information display switch* p. 6-04
7. Lane Departure Warning (LDW) switch* p. 7-61
8. Sonar switch* p. 7-71
9. Driver’s side electric tailgate switch* p. 4-20
10. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-24
11. Forward Collision Mitigation System (FCM) ON/OFF switch* p. 7-59
12. Combination headlamps and dipper switch p. 6-45 Turn-signal lever p. 6-50
Front fog lamp switch* p. 6-52
Rear fog lamp switch* p. 6-52
Headlamp washer switch* p. 6-58
13. Supplemental restraint system (SRS) - front knee airbag (for driv- er’s seat)* p. 5-30
14. Cruise control switch* p. 7-34
15. Supplemental restraint system - airbag (for driver’s seat) p. 5-26, 5-29
Horn switch p. 6-60
16. Steering wheel height and reach adjustment lever p. 7-05
17. Steering wheel audio remote control switches* p. 8-26
18. Windscreen wiper and washer switch p. 6-53 Rear window wiper and washer switch p. 6-57
Instruments and controls
1-03OGGE14E5Overview1RHD
Page 6 of 442
1. Air conditioner p. 8-04
2. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 5-26
3. Passenger’s ventilators p. 8-02
4. Glove box p. 8-74 Card holder p. 8-74
5. Fuse box p. 11-16
6. Key slot* p. 7-12
7. Accessory socket* p. 8-71 Cigarette lighter* p. 8-70
8. Electric tailgate power switch* p. 4-20
9. Cup holder p. 8-75
10. Parking brake lever p. 7-03
11. Selector Lever (Joystick Type) p. 7-12
12. 4WD lock switch p. 7-18
13. Heated seat switch* p. 5-04
14. Floor console box p. 8-74 Armrest p. 5-03
Accessory socket p. 8-71
USB input terminal p. 8-66
15. Fuel tank filler door release lever p. 2-12
16. Bonnet release lever p. 11-04
17. Rear window demister switch p. 6-59 Wiper de-icer switch* p. 6-58
18. Hazard warning flasher switch p. 6-50
19. LW/MW/FM radio/CD player* p. 8-14 MITSUBISHI Multi Communication System (MMCS)*
[For DISPLAY AUDIO and MMCS, refer to the separate owner’s
manuals.]
Digital clock*
Instruments and controls
1-04OGGE14E5Overview1LHD
Page 7 of 442
1. Hazard warning flasher switch p. 6-50
2. Air conditioner p. 8-04
3. Rear window demister switch p. 6-59 Wiper de-icer switch* p. 6-58
4. Bonnet release lever p. 11-04
5. Key slot* p. 7-12
6. Fuel tank filler door release lever p. 2-12
7. Floor console box p. 8-74 Armrest p. 5-03
Accessory socket p. 8-71
USB input terminal p. 8-66
8. Heated seat switch* p. 5-04
9. 4WD lock switch p. 7-18
10. Parking brake lever p. 7-03
11. Selector Lever (Joystick Type) p. 7-12
12. Cup holder p. 8-75
13. Electric tailgate power switch* p. 4-20
14. Accessory socket* p. 8-71 Cigarette lighter* p. 8-70
15. Fuse box p. 11-16
16. Glove box p. 8-74 Card holder p. 8-74
17. Passenger’s ventilators p. 8-02
18. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 5-26
19. LW/MW/FM radio/CD player* p. 8-14 MITSUBISHI Multi Communication System (MMCS)*
[For DISPLAY AUDIO and MMCS, refer to the separate owner’s
manuals.]
Digital clock*
Instruments and controls
1-05OGGE14E5Overview1RHD
Page 8 of 442
InteriorE001002061231. Electric window control switch p. 4-34
2. Lock switch p. 4-34
3. Electric remote-controlled outside rear-view mirrors switch p. 7-06
4. Central door lock switch p. 4-16
5. Sunroof switch* p. 4-35 Map & room lamps (front) p. 8-72, 8-73
Downlight p. 8-72
Hands-free microphone p. 8-48
6. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 5-26
7. Battery save switch p. 7-21
8. Front seat p. 5-03 Heated seats* p. 5-04
9. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 5-32
10. Tether anchorages for child restraint system p. 5-23
11. Floor console box p. 8-74 Armrest p. 5-05
Accessory socket p. 8-71
USB input terminal p. 8-66
12. Rear seats p. 5-05
13. Auxiliary battery p. 11-09
14. Armrest p. 5-05 Cup holder p. 8-75
15. Room lamp (rear) p. 8-72
16. Head restraints p. 5-05
17. Supplemental restraint system - curtain airbag* p. 5-33
18. Battery charge switch p. 7-22
Interior
1-06OGGE14E5Overview1LHD
Page 9 of 442
1. Battery charge switch p. 7-22
2. Floor console box p. 8-74 Armrest p. 5-05
Accessory socket p. 8-71
USB input terminal p. 8-66
3. Electric remote-controlled outside rear-view mirrors switch p. 7-06
4. Lock switch p. 4-34
5. Central door lock switch p. 4-16
6. Electric window control switch p. 4-34
7. Head restraints p. 5-05
8. Supplemental restraint system - curtain airbag* p. 5-33
9. Room lamp (rear) p. 8-72
10. Armrest* p. 5-05 Cupholder* p. 8-75
11. Auxiliary battery p. 11-09
12. Rear seats p. 5-05
13. Tether anchorages for child restraint system p. 5-23
14. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 5-32
15. Battery charge switch p. 7-22
16. Front seat p. 5-03 Heated seats* p. 5-04
17. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 5-26
18. Sunroof switch* p. 4-35 Map & room lamps (front) p. 8-72, 8-73
Downlight p. 8-72
Hands-free microphone p. 8-48
Interior
1-07OGGE14E5Overview1RHD
Page 10 of 442
1. Bottle holder p. 8-76
2. Inside rear-view mirror p. 7-05
3. Map & room lamps (front) p. 8-72, 11-24
4. Downlight p. 8-72
5. Sunroof switch* p. 4-35
6. Hands-free microphone* p. 8-48
7. Sun visors p. 8-69 Vanity mirror p. 8-69
Card holder p. 8-69
8. Electrical Parking switch p. 7-14
9. Heated seats switch* p. 5-04
10. Cargo area cover p. 8-76
11. Luggage room lamp p. 8-73
12. Assist grips p. 8-78 Coat hook p. 8-78
13. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
Interior
