headlamp MITSUBISHI OUTLANDER PHEV 2014 Owner's Manual (in English)

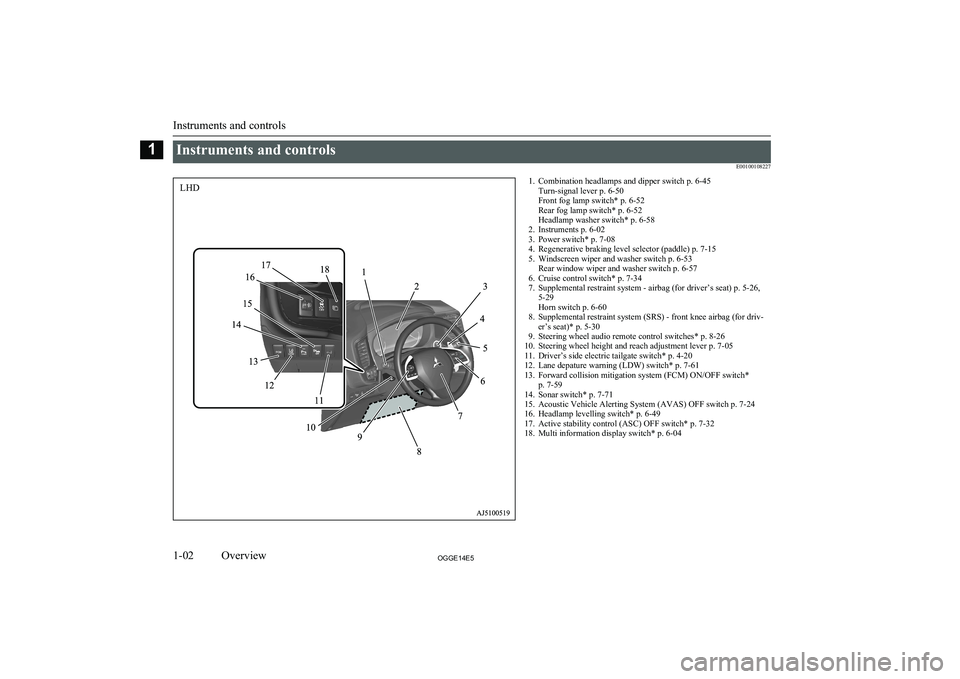

Instruments and controlsE001001082271. Combination headlamps and dipper switch p. 6-45Turn-signal lever p. 6-50
Front fog lamp switch* p. 6-52
Rear fog lamp switch* p. 6-52
Headlamp washer switch* p. 6-58
2. Instruments p. 6-02
3. Power switch* p. 7-08
4. Regenerative braking level selector (paddle) p. 7-15
5. Windscreen wiper and washer switch p. 6-53 Rear window wiper and washer switch p. 6-57
6. Cruise control switch* p. 7-34
7. Supplemental restraint system - airbag (for driver’s seat) p. 5-26, 5-29
Horn switch p. 6-60
8. Supplemental restraint system (SRS) - front knee airbag (for driv- er’s seat)* p. 5-30
9. Steering wheel audio remote control switches* p. 8-26
10. Steering wheel height and reach adjustment lever p. 7-05
11. Driver’s side electric tailgate switch* p. 4-20
12. Lane depature warning (LDW) switch* p. 7-61
13. Forward collision mitigation system (FCM) ON/OFF switch* p. 7-59
14. Sonar switch* p. 7-71
15. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-24
16. Headlamp levelling switch* p. 6-49
17. Active stability control (ASC) OFF switch* p. 7-32
18. Multi information display switch* p. 6-04
Instruments and controls
1-02OGGE14E5Overview1LHD

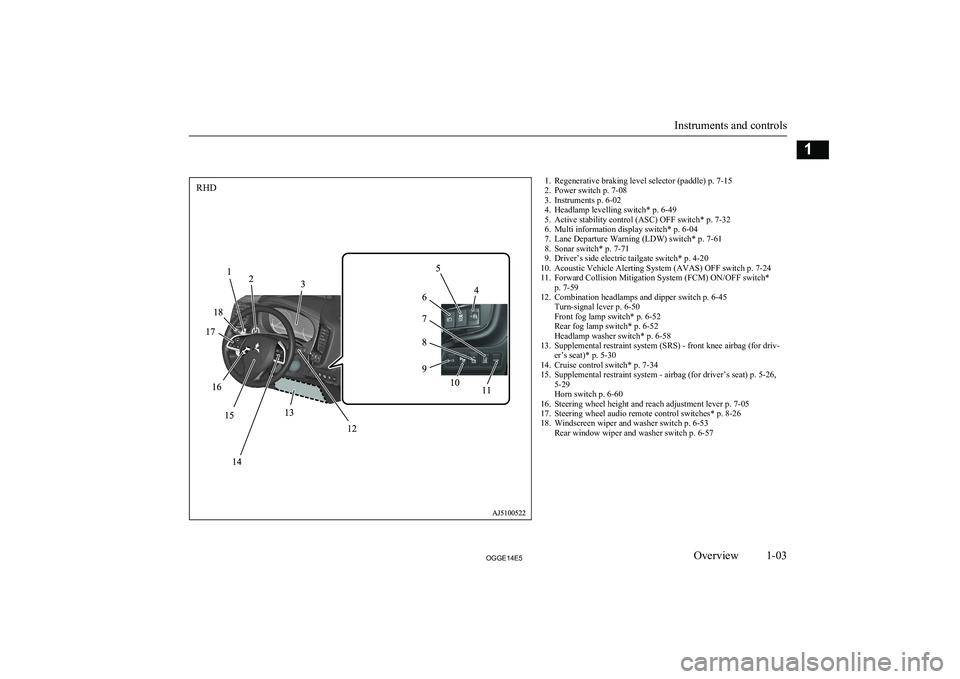

1. Regenerative braking level selector (paddle) p. 7-15
2. Power switch p. 7-08
3. Instruments p. 6-02
4. Headlamp levelling switch* p. 6-49
5. Active stability control (ASC) OFF switch* p. 7-32
6. Multi information display switch* p. 6-04
7. Lane Departure Warning (LDW) switch* p. 7-61
8. Sonar switch* p. 7-71
9. Driver’s side electric tailgate switch* p. 4-20
10. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-24
11. Forward Collision Mitigation System (FCM) ON/OFF switch* p. 7-59
12. Combination headlamps and dipper switch p. 6-45 Turn-signal lever p. 6-50
Front fog lamp switch* p. 6-52
Rear fog lamp switch* p. 6-52
Headlamp washer switch* p. 6-58
13. Supplemental restraint system (SRS) - front knee airbag (for driv- er’s seat)* p. 5-30
14. Cruise control switch* p. 7-34
15. Supplemental restraint system - airbag (for driver’s seat) p. 5-26, 5-29
Horn switch p. 6-60
16. Steering wheel height and reach adjustment lever p. 7-05
17. Steering wheel audio remote control switches* p. 8-26
18. Windscreen wiper and washer switch p. 6-53 Rear window wiper and washer switch p. 6-57
Instruments and controls
1-03OGGE14E5Overview1RHD

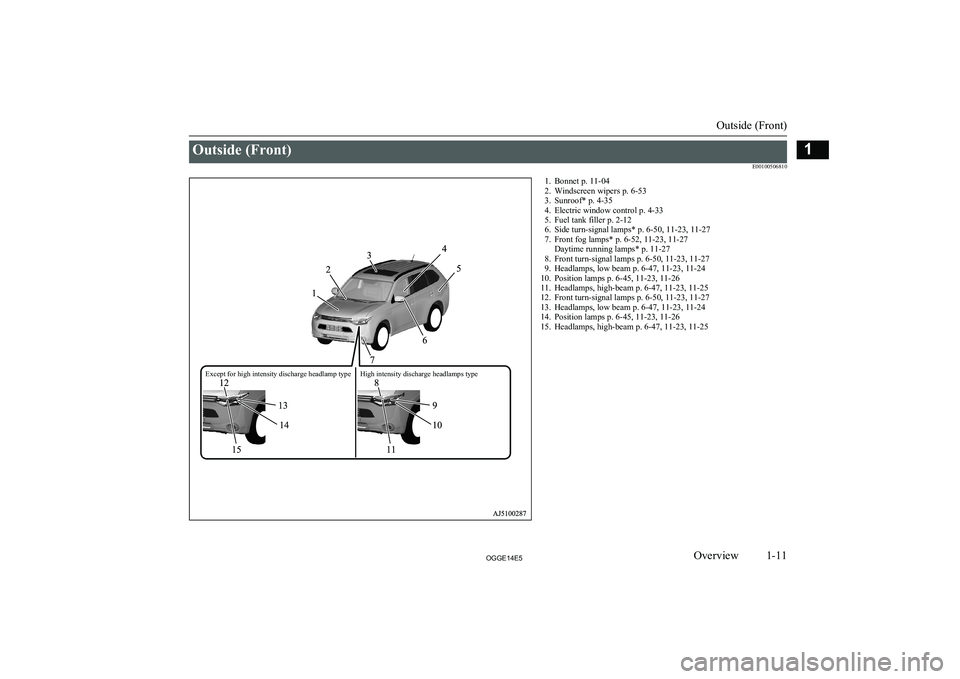

Outside (Front)E001005068101. Bonnet p. 11-042. Windscreen wipers p. 6-53
3. Sunroof* p. 4-35
4. Electric window control p. 4-33
5. Fuel tank filler p. 2-12
6. Side turn-signal lamps* p. 6-50, 11-23, 11-27
7. Front fog lamps* p. 6-52, 11-23, 11-27 Daytime running lamps* p. 11-27
8. Front turn-signal lamps p. 6-50, 11-23, 11-27
9. Headlamps, low beam p. 6-47, 11-23, 11-24
10. Position lamps p. 6-45, 11-23, 11-26
11. Headlamps, high-beam p. 6-47, 11-23, 11-25
12. Front turn-signal lamps p. 6-50, 11-23, 11-27
13. Headlamps, low beam p. 6-47, 11-23, 11-24
14. Position lamps p. 6-45, 11-23, 11-26
15. Headlamps, high-beam p. 6-47, 11-23, 11-25
Outside (Front)
1-11OGGE14E5Overview1Except for high intensity discharge headlamp type High intensity discharge headlamps type

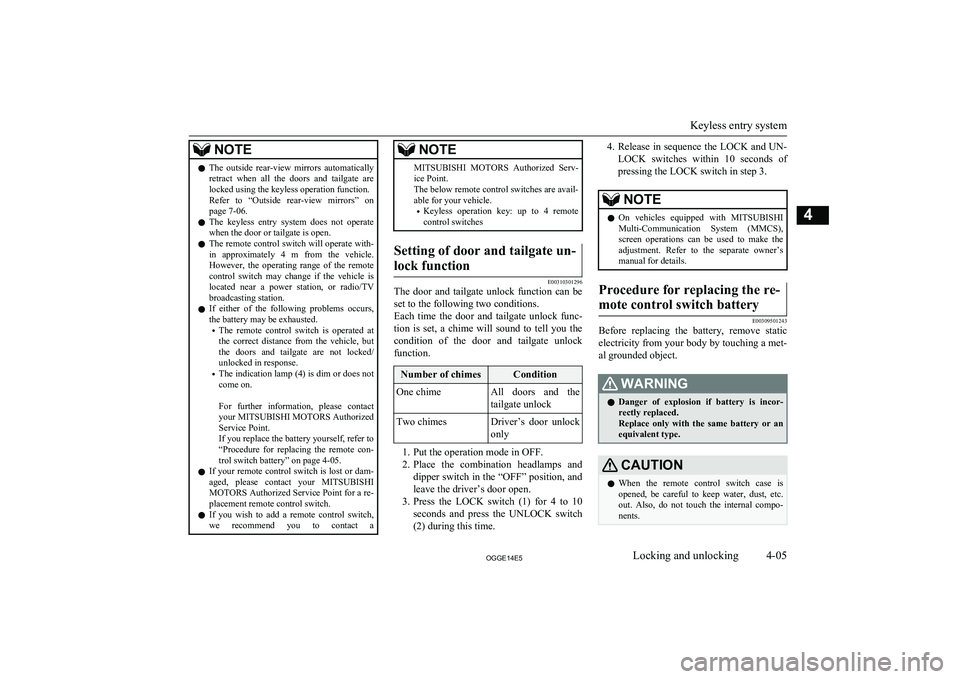

NOTElThe outside rear-view mirrors automatically
retract when all the doors and tailgate are
locked using the keyless operation function.
Refer to “Outside rear-view mirrors” on
page 7-06.
l The keyless entry system does not operate
when the door or tailgate is open.
l The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is
located near a power station, or radio/TV broadcasting station.
l If either of the following problems occurs,
the battery may be exhausted.
• The remote control switch is operated at
the correct distance from the vehicle, but
the doors and tailgate are not locked/
unlocked in response.
• The indication lamp (4) is dim or does not
come on.

For further information, please contact your MITSUBISHI MOTORS Authorized
Service Point.
If you replace the battery yourself, refer to
“Procedure for replacing the remote con- trol switch battery” on page 4-05.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
l If you wish to add a remote control switch,
we recommend you to contact aNOTEMITSUBISHI MOTORS Authorized Serv-
ice Point.
The below remote control switches are avail- able for your vehicle.
• Keyless operation key: up to 4 remote
control switchesSetting of door and tailgate un-
lock function
E00310301296
The door and tailgate unlock function can be set to the following two conditions.
Each time the door and tailgate unlock func-
tion is set, a chime will sound to tell you the condition of the door and tailgate unlock
function.
Number of chimesConditionOne chimeAll doors and the
tailgate unlockTwo chimesDriver’s door unlock only
1. Put the operation mode in OFF.
2. Place the combination headlamps and
dipper switch in the “OFF” position, and leave the driver’s door open.
3. Press the LOCK switch (1) for 4 to 10
seconds and press the UNLOCK switch
(2) during this time.
4. Release in sequence the LOCK and UN-
LOCK switches within 10 seconds of pressing the LOCK switch in step 3.NOTEl On vehicles equipped with
MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.Procedure for replacing the re-
mote control switch battery
E00309501243
Before replacing the battery, remove static
electricity from your body by touching a met- al grounded object.
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an equivalent type.CAUTIONl When the remote control switch case is
opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-
nents.
Keyless entry system
4-05OGGE14E5Locking and unlocking4

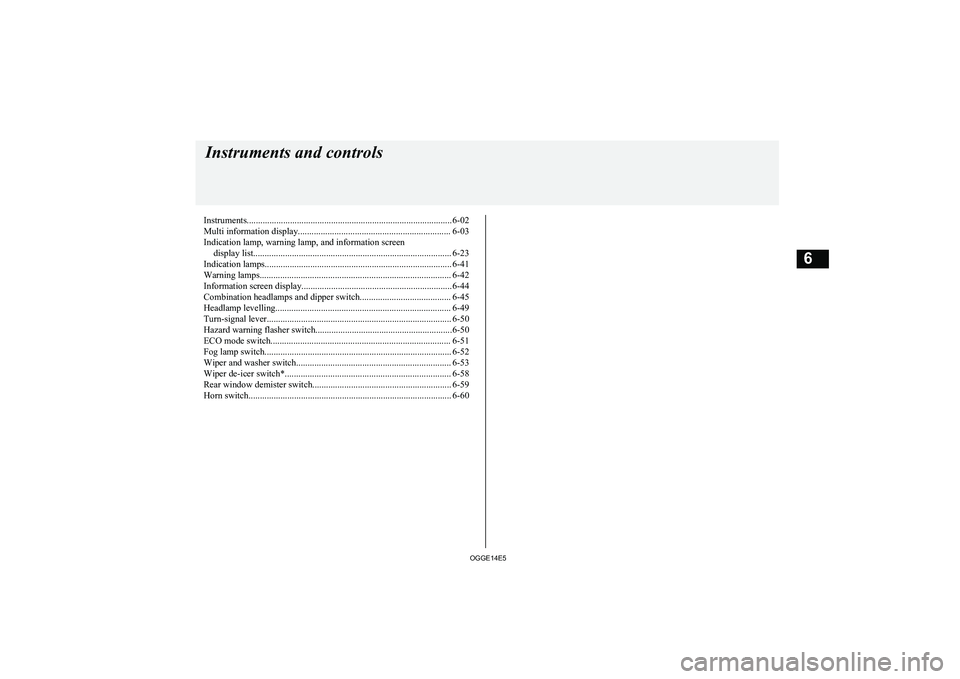

Instruments.......................................................................................... 6-02
Multi information display................................................................... 6-03
Indication lamp, warning lamp, and information screen display list....................................................................................... 6-23
Indication lamps.................................................................................. 6-41
Warning lamps.................................................................................... 6-42
Information screen display.................................................................. 6-44
Combination headlamps and dipper switch........................................ 6-45
Headlamp levelling............................................................................. 6-49
Turn-signal lever................................................................................. 6-50
Hazard warning flasher switch............................................................6-50 ECO mode switch............................................................................... 6-51
Fog lamp switch.................................................................................. 6-52
Wiper and washer switch.................................................................... 6-53
Wiper de-icer switch*......................................................................... 6-58
Rear window demister switch............................................................. 6-59
Horn switch......................................................................................... 6-60Instruments and controls
OGGE14E56

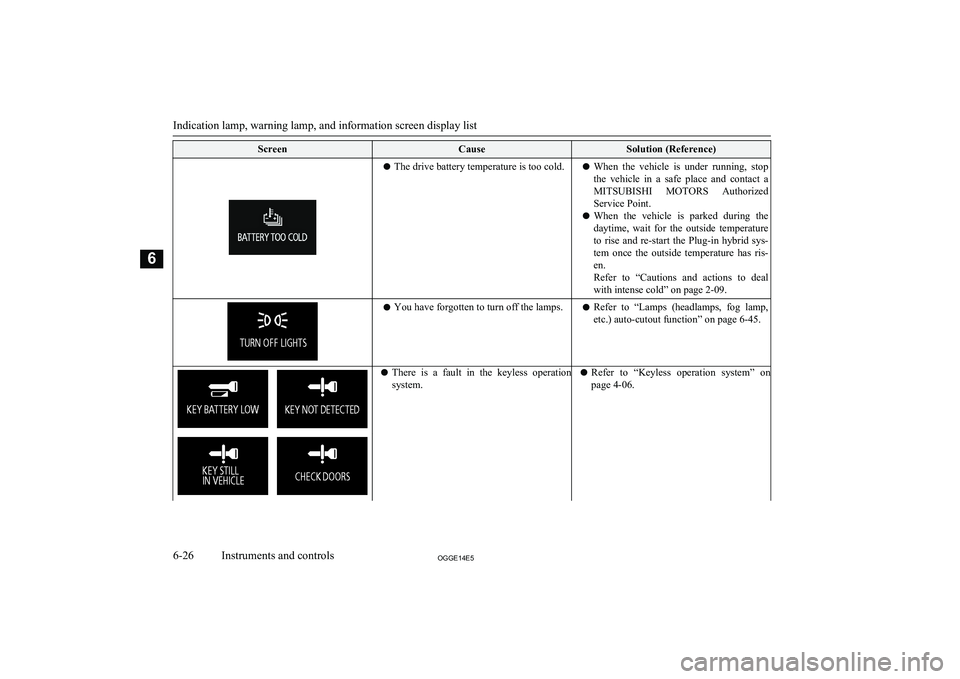

ScreenCauseSolution (Reference)lThe drive battery temperature is too cold.l When the vehicle is under running, stop
the vehicle in a safe place and contact a MITSUBISHI MOTORS Authorized
Service Point.
l When the vehicle is parked during the
daytime, wait for the outside temperature to rise and re-start the Plug-in hybrid sys-tem once the outside temperature has ris-
en.
Refer to “Cautions and actions to deal with intense cold” on page 2-09.l You have forgotten to turn off the lamps.l Refer to “Lamps (headlamps, fog lamp,
etc.) auto-cutout function” on page 6-45.l There is a fault in the keyless operation
system.l Refer to “Keyless operation system” on
page 4-06.
Indication lamp, warning lamp, and information screen display list
6-26OGGE14E5Instruments and controls6

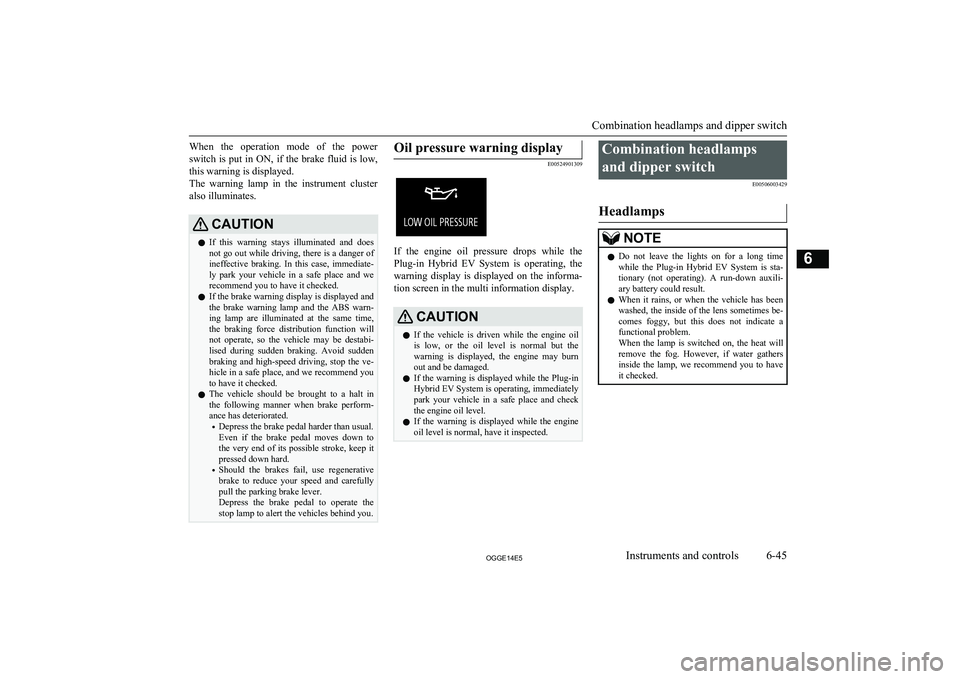

When the operation mode of the power
switch is put in ON, if the brake fluid is low,
this warning is displayed.
The warning lamp in the instrument cluster also illuminates.CAUTIONl If this warning stays illuminated and does
not go out while driving, there is a danger of ineffective braking. In this case, immediate-
ly park your vehicle in a safe place and we recommend you to have it checked.
l If the brake warning display is displayed and
the brake warning lamp and the ABS warn- ing lamp are illuminated at the same time,
the braking force distribution function will
not operate, so the vehicle may be destabi- lised during sudden braking. Avoid sudden
braking and high-speed driving, stop the ve-
hicle in a safe place, and we recommend you to have it checked.
l The vehicle should be brought to a halt in
the following manner when brake perform-
ance has deteriorated.
• Depress the brake pedal harder than usual.
Even if the brake pedal moves down to
the very end of its possible stroke, keep it pressed down hard.
• Should the brakes fail, use regenerative
brake to reduce your speed and carefully
pull the parking brake lever.
Depress the brake pedal to operate the
stop lamp to alert the vehicles behind you.Oil pressure warning display
E00524901309
If the engine oil pressure drops while the
Plug-in Hybrid EV System is operating, thewarning display is displayed on the informa-
tion screen in the multi information display.
CAUTIONl If the vehicle is driven while the engine oil
is low, or the oil level is normal but the warning is displayed, the engine may burn
out and be damaged.
l If the warning is displayed while the Plug-in
Hybrid EV System is operating, immediately
park your vehicle in a safe place and check
the engine oil level.
l If the warning is displayed while the engine
oil level is normal, have it inspected.Combination headlamps
and dipper switch E00506003429
HeadlampsNOTEl Do not leave the lights on for a long time
while the Plug-in Hybrid EV System is sta-tionary (not operating). A run-down auxili- ary battery could result.
l When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a
functional problem.
When the lamp is switched on, the heat will remove the fog. However, if water gathers
inside the lamp, we recommend you to have it checked.
Combination headlamps and dipper switch
6-45OGGE14E5Instruments and controls6

Type 1
Rotate the switch to turn on the lamps.
OFFAll lamps offPosition, tail, licence plate, in-
strument panel lamps and down-
light onHeadlamps and other lamps go
onType 2
Rotate the switch to turn on the lamps.
OFFAll lamps off
AUTO
When the operation mode of the
power switch is ON, headlamps,
position-, tail-, licence plate-, in-
strument panel lamps and down-
light are turned on and off auto-
matically in accordance with out-
side light level. All lamps turn
off automatically when the oper-
ation mode is put in OFF.Position, tail, licence plate, in-
strument panel lamps and down-
light onHeadlamps and other lamps go
onNOTEl The sensitivity of the automatic on/off con-
trol can be adjusted. For further information,contact a MITSUBISHI MOTORS Author-
ized Service Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment.
Refer to the separate owner’s manual for de-
tails.
l When the headlamps are turned off by the
automatic on/off control with the operation
mode in ON, the front fog lamps and rear fog lamps also go off. When the headlamps
are subsequently turned back on by the auto-
matic on/off control, the front fog lamps also come on but the rear fog lamp stays off. If
you wish to turn the rear fog lamp back on, operate the switch again.
l Do not cover the sensor (A) for the automat-
ic on/off control by affixing a sticker or label
to the windscreen.
Combination headlamps and dipper switch
6-46OGGE14E5Instruments and controls6

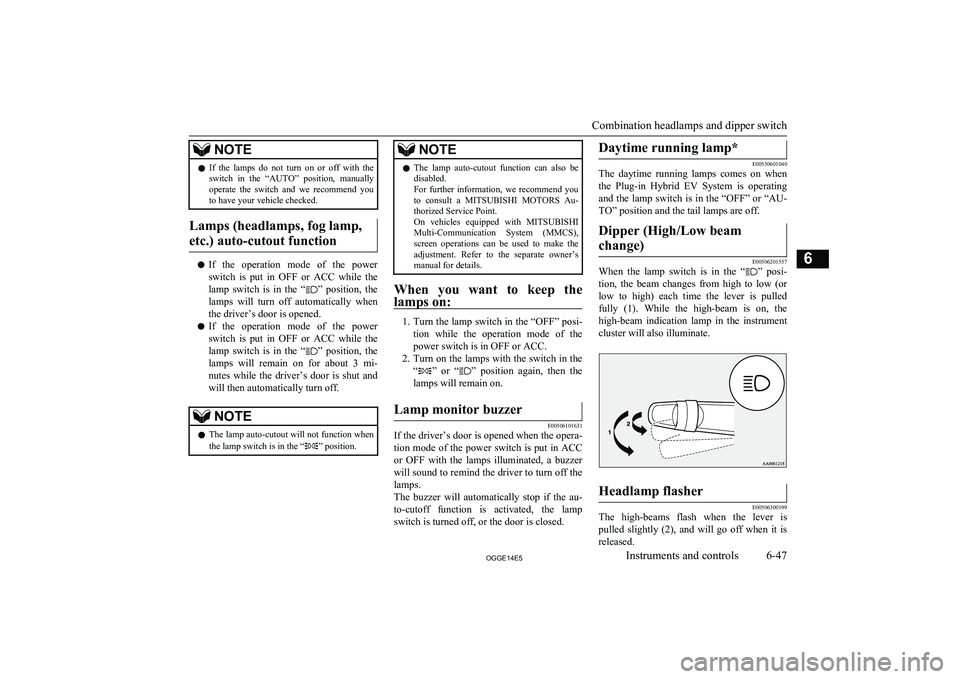

NOTElIf the lamps do not turn on or off with the
switch in the “AUTO” position, manually
operate the switch and we recommend you
to have your vehicle checked.
Lamps (headlamps, fog lamp,
etc.) auto-cutout function
l If the operation mode of the power
switch is put in OFF or ACC while the
lamp switch is in the “
” position, the
lamps will turn off automatically when the driver’s door is opened.
l If the operation mode of the power
switch is put in OFF or ACC while the
lamp switch is in the “
” position, the
lamps will remain on for about 3 mi-
nutes while the driver’s door is shut and will then automatically turn off.
NOTEl The lamp auto-cutout will not function when
the lamp switch is in the “” position.NOTEl The lamp auto-cutout function can also be
disabled.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
When you want to keep the
lamps on:
1. Turn the lamp switch in the “OFF” posi-
tion while the operation mode of the power switch is in OFF or ACC.
2. Turn on the lamps with the switch in the
“
” or “” position again, then the
lamps will remain on.
Lamp monitor buzzer
E00506101631
If the driver’s door is opened when the opera- tion mode of the power switch is put in ACCor OFF with the lamps illuminated, a buzzer
will sound to remind the driver to turn off the
lamps.
The buzzer will automatically stop if the au- to-cutoff function is activated, the lamp switch is turned off, or the door is closed.
Daytime running lamp*
E00530601040
The daytime running lamps comes on when
the Plug-in Hybrid EV System is operatingand the lamp switch is in the “OFF” or “AU-
TO” position and the tail lamps are off.
Dipper (High/Low beam
change)
E00506201557
When the lamp switch is in the “” posi-
tion, the beam changes from high to low (or
low to high) each time the lever is pulled fully (1). While the high-beam is on, the
high-beam indication lamp in the instrument
cluster will also illuminate.
Headlamp flasher
E00506300199
The high-beams flash when the lever is
pulled slightly (2), and will go off when it is
released.
Combination headlamps and dipper switch
6-47OGGE14E5Instruments and controls6

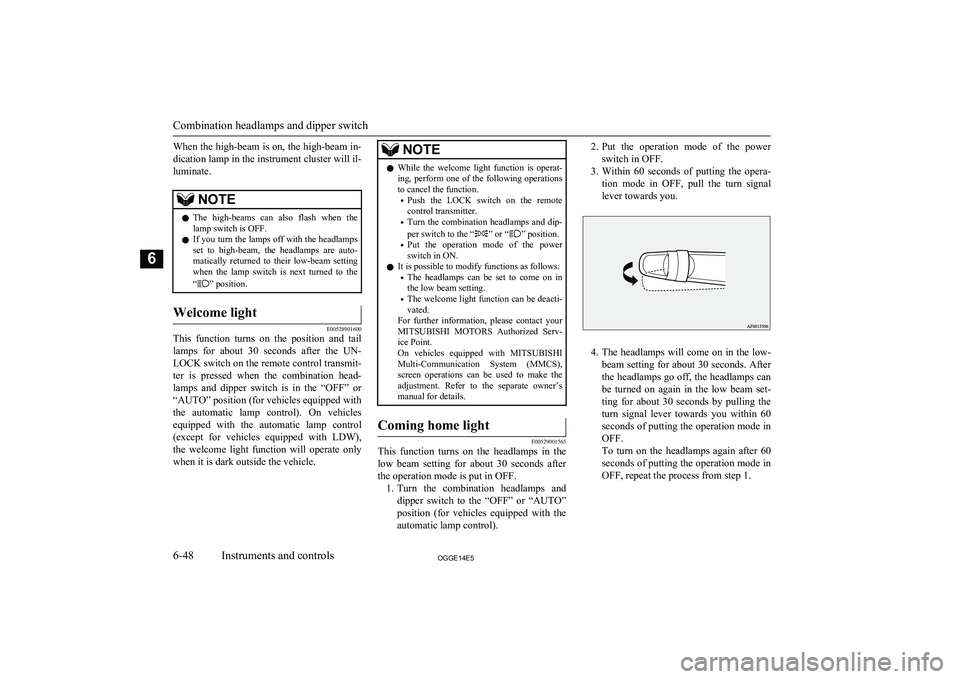

When the high-beam is on, the high-beam in-dication lamp in the instrument cluster will il-
luminate.NOTEl The high-beams can also flash when the
lamp switch is OFF.
l If you turn the lamps off with the headlamps
set to high-beam, the headlamps are auto- matically returned to their low-beam setting
when the lamp switch is next turned to the
“
” position.
Welcome light
E00528901600
This function turns on the position and tail
lamps for about 30 seconds after the UN- LOCK switch on the remote control transmit-
ter is pressed when the combination head-
lamps and dipper switch is in the “OFF” or
“AUTO” position (for vehicles equipped with
the automatic lamp control). On vehicles equipped with the automatic lamp control
(except for vehicles equipped with LDW),
the welcome light function will operate only
when it is dark outside the vehicle.
NOTEl While the welcome light function is operat-
ing, perform one of the following operations to cancel the function.
• Push the LOCK switch on the remote
control transmitter.
• Turn the combination headlamps and dip-
per switch to the “
” or “” position.
• Put the operation mode of the power
switch in ON.
l It is possible to modify functions as follows:
• The headlamps can be set to come on in
the low beam setting.
• The welcome light function can be deacti-
vated.
For further information, please contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the adjustment. Refer to the separate owner’s
manual for details.
Coming home light
E00529001565
This function turns on the headlamps in the
low beam setting for about 30 seconds after the operation mode is put in OFF. 1. Turn the combination headlamps and
dipper switch to the “OFF” or “AUTO”
position (for vehicles equipped with the
automatic lamp control).
2. Put the operation mode of the power
switch in OFF.
3. Within 60 seconds of putting the opera-
tion mode in OFF, pull the turn signal
lever towards you.
4. The headlamps will come on in the low-
beam setting for about 30 seconds. After
the headlamps go off, the headlamps can be turned on again in the low beam set-
ting for about 30 seconds by pulling the turn signal lever towards you within 60seconds of putting the operation mode in
OFF.
To turn on the headlamps again after 60 seconds of putting the operation mode in
OFF, repeat the process from step 1.
Combination headlamps and dipper switch
6-48OGGE14E5Instruments and controls6
