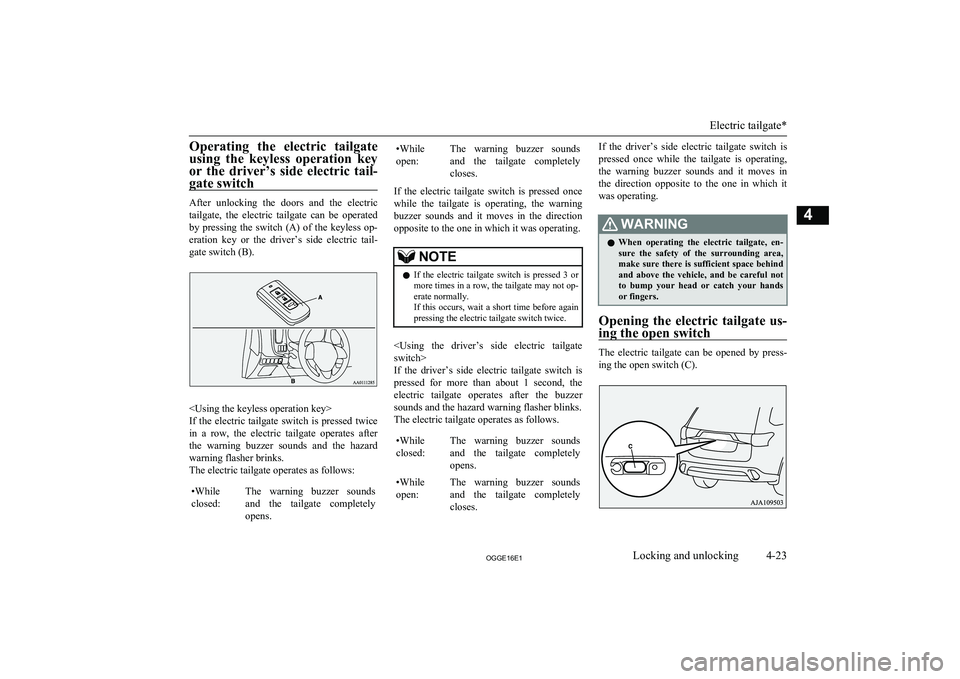

Operating the electric tailgateusing the keyless operation key
or the driver’s side electric tail- gate switch
After unlocking the doors and the electric
tailgate, the electric tailgate can be operated
by pressing the switch (A) of the keyless op- eration key or the driver’s side electric tail-
gate switch (B).

If the electric tailgate switch is pressed twice
in a row, the electric tailgate operates after
the warning buzzer sounds and the hazardwarning flasher brinks.
The electric tailgate operates as follows:
•While
closed:The warning buzzer sounds
and the tailgate completely
opens.•While
open:The warning buzzer sounds and the tailgate completely
closes.
If the electric tailgate switch is pressed once while the tailgate is operating, the warning
buzzer sounds and it moves in the direction
opposite to the one in which it was operating.
NOTEl If the electric tailgate switch is pressed 3 or
more times in a row, the tailgate may not op-
erate normally.
If this occurs, wait a short time before again pressing the electric tailgate switch twice.
switch>
If the driver’s side electric tailgate switch is
pressed for more than about 1 second, the electric tailgate operates after the buzzer
sounds and the hazard warning flasher blinks.
The electric tailgate operates as follows.
•While
closed:The warning buzzer sounds and the tailgate completely
opens.•While
open:The warning buzzer sounds and the tailgate completely
closes.If the driver’s side electric tailgate switch is
pressed once while the tailgate is operating, the warning buzzer sounds and it moves inthe direction opposite to the one in which it
was operating.WARNINGl When operating the electric tailgate, en-
sure the safety of the surrounding area,
make sure there is sufficient space behind and above the vehicle, and be careful not to bump your head or catch your handsor fingers.
Opening the electric tailgate us-
ing the open switch
The electric tailgate can be opened by press-
ing the open switch (C).
Electric tailgate*
4-23OGGE16E1Locking and unlocking4

If the open switch is pressed with the tailgate
and all doors are unlocked, the electric tail- gate opens after the warning buzzer sounds and the hazard warning flasher blinks.
When the tailgate and all doors are locked,
the warning buzzer will not sound.NOTEl When you are carrying the keyless operation
key with the tailgate is locked, the electric tailgate can be opened by pressing the open
switch even if the tailgate is locked. The factory setting of the function is “Inac- tive”.
To modify the setting to “Active”, please
contact an authorized MITSUBISHI
MOTORS dealer.Closing the electric tailgate us-
ing the close switch
The electric tailgate can be closed by press-
ing the close switch (D) on the inside of the electric tailgate.
If the close switch on the inside of the elec-tric tailgate is pressed, the electric tailgate
closes after the warning buzzer sounds and the hazard warning flasher blinks.
If the close switch is pressed once while the
tailgate is closing, the warning buzzer sounds
and the electric tailgate opens.
NOTEl If the close switch is again pressed once
while the electric tailgate is operating in the
opening direction, the warning buzzer sounds once and the electric tailgate closes.Safety mechanism
E00313200013
The safety mechanism is activated if the elec-
tric tailgate should trap a person or an object
during automatic operation, or if the sensors (A) on either side of the electric tailgate are
hit. The warning buzzer sounds once for safe- ty and the electric tailgate automatically moves in the direction opposite to the one in which it was operating.
CAUTIONl The safety mechanism will sometimes not
operate depending on the condition of the
trapped object or how it is trapped. There- fore, be especially careful not to trap a hand,
part of your body or an object at this time.
Electric tailgate*
4-24OGGE16E1Locking and unlocking4

CAUTIONlThe safety mechanism is cancelled just be-
fore the electric tailgate is fully closed to al- low it to close completely. Therefore be es-
pecially careful not to trap a hand or finger
at this time.
l The safety mechanism is deactivated when
the electric tailgate is closed manually. Therefore be especially careful not to trap ahand or finger at this time.
l If the safety mechanism is repeatedly operat-
ed, the tailgate could be switched to manual operation. Be careful at this time, as the
electric tailgate could open or close sudden-
ly, depending on its position.
Once the electric tailgate is completely open or closed, normal automatic operation is
again possible.NOTEl If the environment or usage conditions sub-
ject the sensors to the same kind of force as
that of trapping a person or object, the safety mechanism could be activated.
l Do not damage the sensors when loading or
unloading luggage, or when cleaning therear window. Doing so could prevent the tailgate from closing automatically.Drop prevention mechanism
After the electric tailgate is opened automati-
cally, if it is detected that the tailgate is drop- ping due to factors such as accumulated
snow, the electric tailgate is closed automati- cally.
A warning buzzer sounds continuously while
the drop prevention mechanism operates.
NOTEl If snow has accumulated on the electric tail-
gate, remove it before operation.
l Do not install accessories other than
MITSUBISHI MOTORS GENUINE parts
on the electric tailgate. Some accessories could be too heavy, causing the drop preven-
tion mechanism to operate.
l The drop prevention mechanism could be
activated if manual operation is attempted immediately after the electric tailgate is
completely opened automatically.Sudden operation prevention
mechanism
If the engine is started while the electric tail-
gate is operating automatically, it may switch to manual operation due to insufficient bat-
tery voltage, making the electric tailgate stop intermittently while it moves. This is to stop
the electric tailgate from operating suddenly. When the tailgate is completely closed or
opened, automatic operation is again possible after approximately 10 seconds.
CAUTIONl The safety mechanism is deactivated while
the sudden operation prevention mechanism
is operating. Therefore be especially careful
not to trap a hand or finger at this time.Manual operation
E00313401067
If the electric tailgate power switch is off, the
electric tailgate can be operated by manual
operation.

Electric tailgate*
4-25OGGE16E1Locking and unlocking4

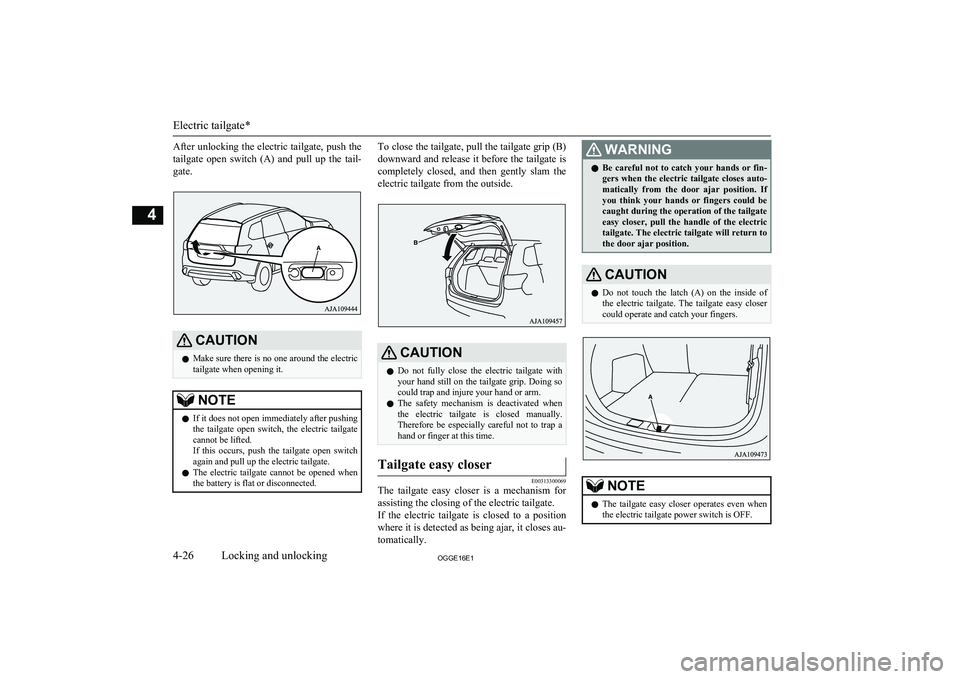

After unlocking the electric tailgate, push thetailgate open switch (A) and pull up the tail- gate.CAUTIONl Make sure there is no one around the electric
tailgate when opening it.NOTEl If it does not open immediately after pushing
the tailgate open switch, the electric tailgatecannot be lifted.
If this occurs, push the tailgate open switch
again and pull up the electric tailgate.
l The electric tailgate cannot be opened when
the battery is flat or disconnected.To close the tailgate, pull the tailgate grip (B)
downward and release it before the tailgate is completely closed, and then gently slam the
electric tailgate from the outside.CAUTIONl Do not fully close the electric tailgate with
your hand still on the tailgate grip. Doing socould trap and injure your hand or arm.
l The safety mechanism is deactivated when
the electric tailgate is closed manually.
Therefore be especially careful not to trap a hand or finger at this time.Tailgate easy closer
E00313300069
The tailgate easy closer is a mechanism for
assisting the closing of the electric tailgate.
If the electric tailgate is closed to a position
where it is detected as being ajar, it closes au- tomatically.
WARNINGl Be careful not to catch your hands or fin-
gers when the electric tailgate closes auto- matically from the door ajar position. If
you think your hands or fingers could be caught during the operation of the tailgate
easy closer, pull the handle of the electric tailgate. The electric tailgate will return to
the door ajar position.CAUTIONl Do not touch the latch (A) on the inside of
the electric tailgate. The tailgate easy closer
could operate and catch your fingers.NOTEl The tailgate easy closer operates even when
the electric tailgate power switch is OFF.
Electric tailgate*
4-26OGGE16E1Locking and unlocking4

NOTElRepeated continuous operation of the handle
could activate the protection circuit and tem-
porarily prevent the tailgate easy closer from
operating.
If this occurs, wait about 1 minute before

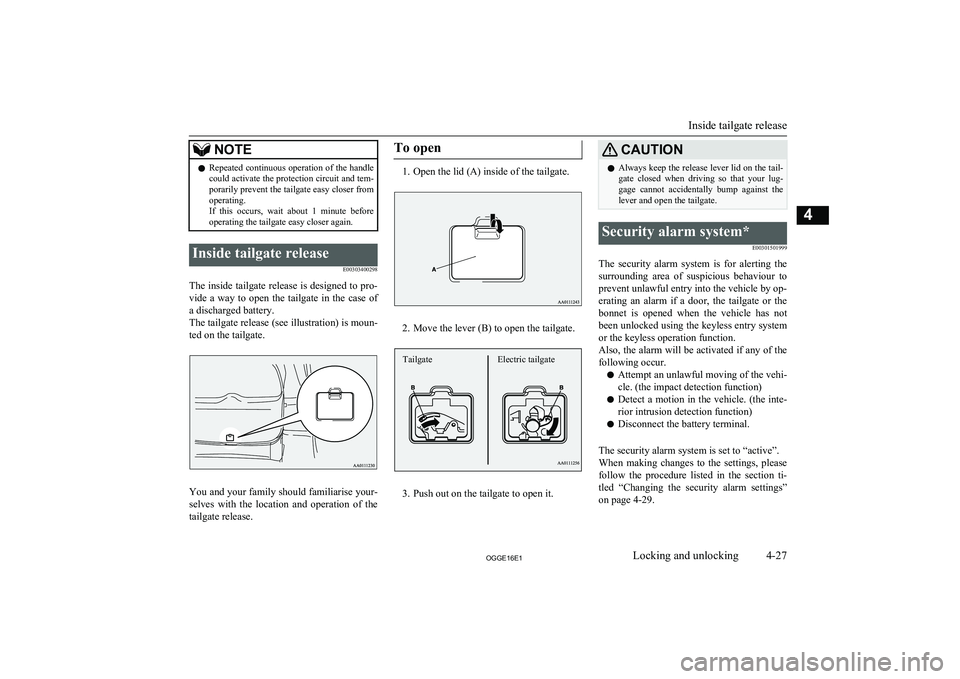

operating the tailgate easy closer again.Inside tailgate release
E00303400298
The inside tailgate release is designed to pro-
vide a way to open the tailgate in the case of a discharged battery.
The tailgate release (see illustration) is moun- ted on the tailgate.
You and your family should familiarise your- selves with the location and operation of the
tailgate release.
To open
1. Open the lid (A) inside of the tailgate.
2. Move the lever (B) to open the tailgate.
3. Push out on the tailgate to open it.
CAUTIONl Always keep the release lever lid on the tail-
gate closed when driving so that your lug- gage cannot accidentally bump against thelever and open the tailgate.Security alarm system*
E00301501999
The security alarm system is for alerting thesurrounding area of suspicious behaviour to
prevent unlawful entry into the vehicle by op- erating an alarm if a door, the tailgate or the bonnet is opened when the vehicle has not
been unlocked using the keyless entry system or the keyless operation function.
Also, the alarm will be activated if any of the
following occur.
l Attempt an unlawful moving of the vehi-
cle. (the impact detection function)
l Detect a motion in the vehicle. (the inte-
rior intrusion detection function)
l Disconnect the battery terminal.
The security alarm system is set to “active”.
When making changes to the settings, please follow the procedure listed in the section ti-
tled “Changing the security alarm settings” on page 4-29.
Inside tailgate release
4-27OGGE16E1Locking and unlocking4 Electric tailgateTailgate

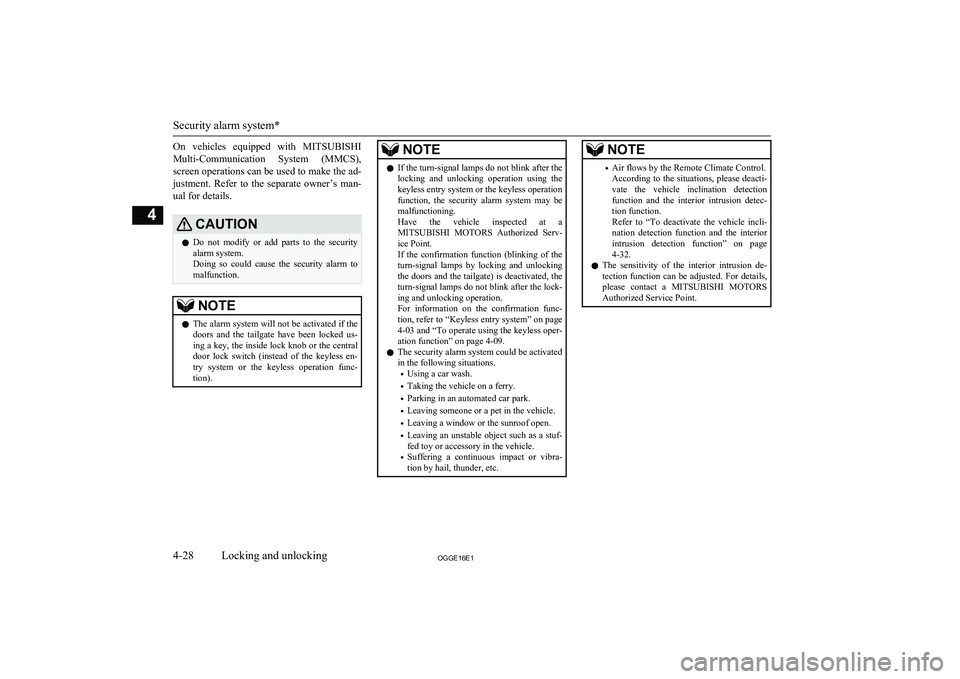

On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the ad- justment. Refer to the separate owner’s man-
ual for details.CAUTIONl Do not modify or add parts to the security
alarm system.
Doing so could cause the security alarm to malfunction.NOTEl The alarm system will not be activated if the
doors and the tailgate have been locked us-ing a key, the inside lock knob or the central
door lock switch (instead of the keyless en- try system or the keyless operation func-
tion).NOTEl If the turn-signal lamps do not blink after the
locking and unlocking operation using thekeyless entry system or the keyless operation
function, the security alarm system may be malfunctioning.
Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If the confirmation function (blinking of the
turn-signal lamps by locking and unlocking
the doors and the tailgate) is deactivated, the turn-signal lamps do not blink after the lock- ing and unlocking operation.
For information on the confirmation func- tion, refer to “Keyless entry system” on page
4-03 and “To operate using the keyless oper-
ation function” on page 4-09.
l The security alarm system could be activated
in the following situations.
• Using a car wash.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.
• Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuf-
fed toy or accessory in the vehicle.
• Suffering a continuous impact or vibra-
tion by hail, thunder, etc.NOTE• Air flows by the Remote Climate Control.
According to the situations, please deacti-
vate the vehicle inclination detection function and the interior intrusion detec-
tion function.
Refer to “To deactivate the vehicle incli-
nation detection function and the interior intrusion detection function” on page 4-32.
l The sensitivity of the interior intrusion de-
tection function can be adjusted. For details,
please contact a MITSUBISHI MOTORS
Authorized Service Point.
Security alarm system*
4-28OGGE16E1Locking and unlocking4

The security alarm has fourmodes:
System preparation mode (ap- prox. 20 seconds)
(The buzzer sounds intermittently and the se-curity indicator (A) blinks.)
The system preparation time extends fromthe point at which all of the doors and the
tailgate are locked by pressing the LOCK
switch on the remote control switch or the
keyless operation function to the point at which the system armed mode goes into ef- fect.
During this time, it is possible to temporarily
open a door or the tailgate without using the
keyless entry system or the keyless operation function and without causing the alarm tosound (for example, when you forget some-
thing inside the vehicle or realize that a win- dow is open).
System armed mode
(The buzzer stops and the security indicator continues to blink with the indicator’s re-
duced lit-up duration time.)
Once the system preparation mode has ended,
the system armed mode starts.
If an unlawful opening of any of the doors,
tailgate or bonnet is detected during the sys- tem armed mode, the alarm will be activated
to warn people around the vehicle of an ab-
normal condition.
Also, if unlawful moving of the vehicle is at- tempted or a vehicle intrusion is detected, thealarm will be activated.
Alarm activation
The turn-signal lamps blink and the siren
sounds for approximately 30 seconds.
Refer to “Alarm activation” on page 4-33.
NOTEl The alarm will resume if unlawful actions
are taken again, even if the alarm has stop-
ped.
System cancellation
It is possible to cancel the system activation
during the system preparation mode or the system armed mode.
In addition, it is possible to cancel the alarm
once it has been activated.
Refer to “Cancelling the system” on page 4-32, “Cancelling the alarm” on page 4-33.
NOTEl When lending the vehicle to another person
or allowing the vehicle to be driven bysomeone who is unfamiliar with the securityalarm system, be sure to give the person a
proper explanation of the security alarm sys- tem.
If a person who is unfamiliar with the securi-
ty alarm system accidentally unlocked the vehicle, causing the alarm to sound, the
alarm would be a nuisance to people nearby.Changing the security alarm
settings
E00301601365
It is possible to set the security alarm to the “active” mode or “inactive” mode.
Security alarm system*
4-29OGGE16E1Locking and unlocking4

Follow the procedure below.1. Put the operation mode in OFF.
2. Place the lamp switch in the “OFF” posi- tion, and leave the driver’s door open.3.Pull the windscreen wiper and washer
switch towards you and hold it there. (Since the operation mode in OFF,
washer fluid will not be sprayed.)
4. After approximately 10 seconds, the
buzzer will make a sound. Keep the windscreen wiper and washer switch
pulled towards you. (If the windscreen
wiper and washer switch was released,
the setting change mode would be can-
celled. To start over, perform the proce- dure again from step 3.)
5. When the buzzer stops, with the wind-
screen wiper and washer switch still
pulled towards you, press the UNLOCK switch (A) on the remote control switch to select the security alarm settings
mode.
The settings mode can be toggled by
pressing the UNLOCK switch. The mode can be confirmed from the numberof times the buzzer sounds.
Number of
times the buzzer
sounds
Security alarm settings mode
1Alarm inactive2Alarm active
6.Any of the following operations can be
used to terminate the system settings change mode.
• Releasing the windscreen wiper and
washer switch.
• Closing the driver’s door.
Security alarm system*
4-30OGGE16E1Locking and unlocking4

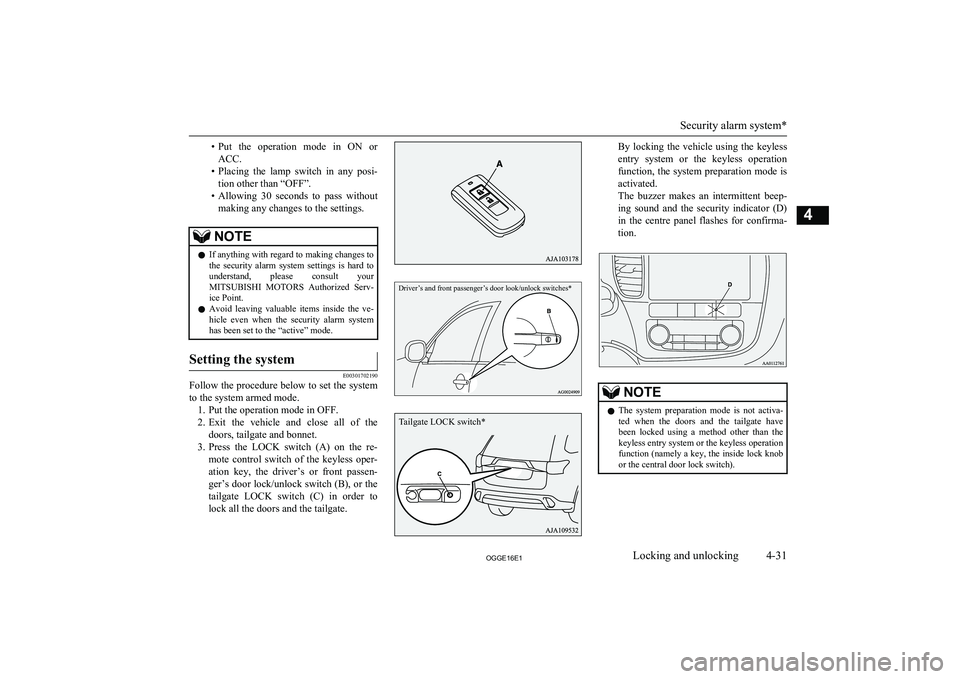

•Put the operation mode in ON or
ACC.
• Placing the lamp switch in any posi-
tion other than “OFF”.
• Allowing 30 seconds to pass without
making any changes to the settings.NOTEl If anything with regard to making changes to
the security alarm system settings is hard to understand, please consult yourMITSUBISHI MOTORS Authorized Serv-
ice Point.
l Avoid leaving valuable items inside the ve-
hicle even when the security alarm system
has been set to the “active” mode.Setting the system
E00301702190
Follow the procedure below to set the system
to the system armed mode. 1. Put the operation mode in OFF.
2. Exit the vehicle and close all of the
doors, tailgate and bonnet.
3. Press the LOCK switch (A) on the re-
mote control switch of the keyless oper-
ation key, the driver’s or front passen- ger’s door lock/unlock switch (B), or the tailgate LOCK switch (C) in order to
lock all the doors and the tailgate.
Driver’s and front passenger’s door look/unlock switches*By locking the vehicle using the keyless
entry system or the keyless operation
function, the system preparation mode is activated.
The buzzer makes an intermittent beep-
ing sound and the security indicator (D) in the centre panel flashes for confirma-
tion.NOTEl The system preparation mode is not activa-
ted when the doors and the tailgate havebeen locked using a method other than the
keyless entry system or the keyless operation
function (namely a key, the inside lock knob or the central door lock switch).
Security alarm system*
4-31OGGE16E1Locking and unlocking4 Tailgate LOCK switch*

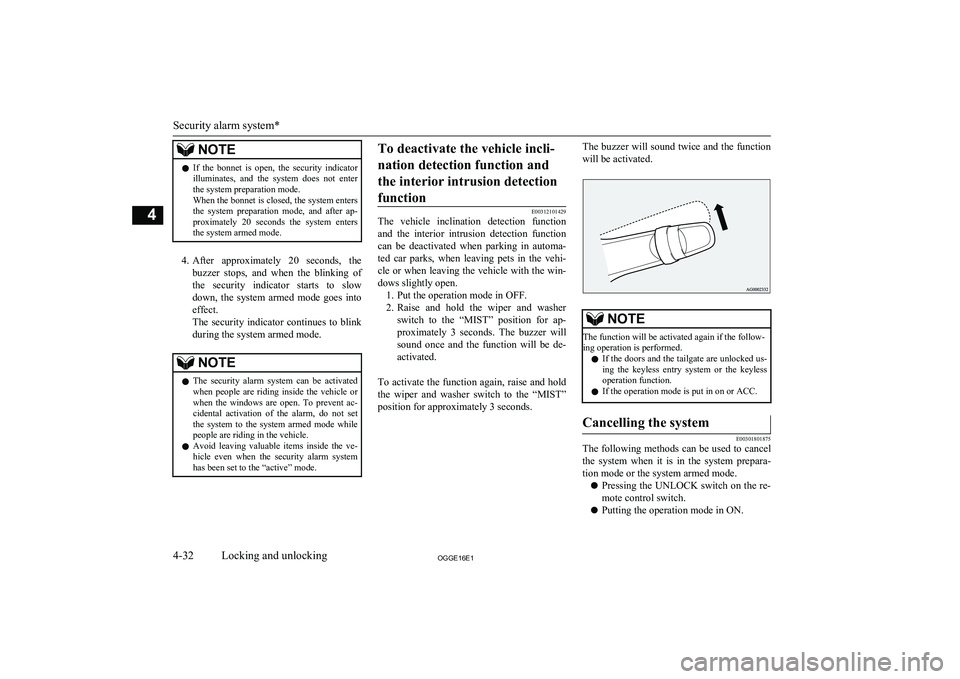

NOTElIf the bonnet is open, the security indicator
illuminates, and the system does not enter the system preparation mode.
When the bonnet is closed, the system enters the system preparation mode, and after ap-
proximately 20 seconds the system enters the system armed mode.
4. After approximately 20 seconds, the
buzzer stops, and when the blinking of
the security indicator starts to slow
down, the system armed mode goes into effect.
The security indicator continues to blink
during the system armed mode.
NOTEl The security alarm system can be activated
when people are riding inside the vehicle or when the windows are open. To prevent ac-cidental activation of the alarm, do not set
the system to the system armed mode while people are riding in the vehicle.
l Avoid leaving valuable items inside the ve-
hicle even when the security alarm system
has been set to the “active” mode.To deactivate the vehicle incli-
nation detection function and the interior intrusion detectionfunction
E00312101429
The vehicle inclination detection function
and the interior intrusion detection function
can be deactivated when parking in automa-
ted car parks, when leaving pets in the vehi- cle or when leaving the vehicle with the win-
dows slightly open. 1. Put the operation mode in OFF.
2. Raise and hold the wiper and washer
switch to the “MIST” position for ap- proximately 3 seconds. The buzzer will
sound once and the function will be de-
activated.
To activate the function again, raise and hold
the wiper and washer switch to the “MIST” position for approximately 3 seconds.
The buzzer will sound twice and the function
will be activated.NOTEThe function will be activated again if the follow-
ing operation is performed.
l If the doors and the tailgate are unlocked us-
ing the keyless entry system or the keyless
operation function.
l If the operation mode is put in on or ACC.Cancelling the system
E00301801875
The following methods can be used to cancel
the system when it is in the system prepara- tion mode or the system armed mode.
l Pressing the UNLOCK switch on the re-
mote control switch.
l Putting the operation mode in ON.
Security alarm system*
4-32OGGE16E1Locking and unlocking4
