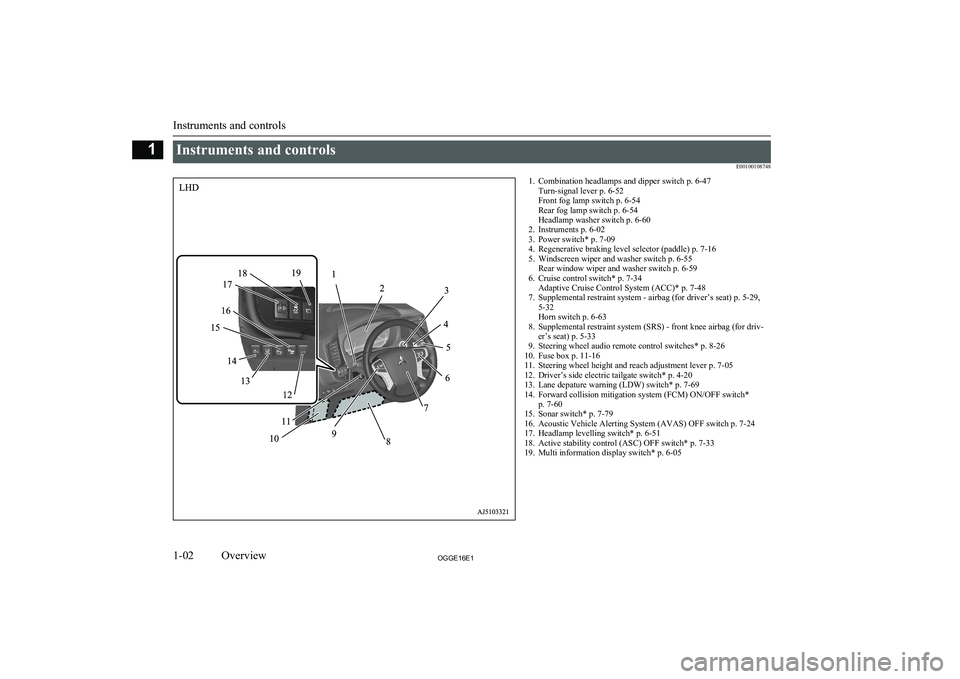

Instruments and controlsE001001087481. Combination headlamps and dipper switch p. 6-47Turn-signal lever p. 6-52
Front fog lamp switch p. 6-54
Rear fog lamp switch p. 6-54
Headlamp washer switch p. 6-60
2. Instruments p. 6-02
3. Power switch* p. 7-09
4. Regenerative braking level selector (paddle) p. 7-16
5. Windscreen wiper and washer switch p. 6-55 Rear window wiper and washer switch p. 6-59
6. Cruise control switch* p. 7-34 Adaptive Cruise Control System (ACC)* p. 7-48
7. Supplemental restraint system - airbag (for driver’s seat) p. 5-29, 5-32
Horn switch p. 6-63
8. Supplemental restraint system (SRS) - front knee airbag (for driv- er’s seat) p. 5-33
9. Steering wheel audio remote control switches* p. 8-26
10. Fuse box p. 11-16
11. Steering wheel height and reach adjustment lever p. 7-05
12. Driver’s side electric tailgate switch* p. 4-20
13. Lane depature warning (LDW) switch* p. 7-69
14. Forward collision mitigation system (FCM) ON/OFF switch* p. 7-60
15. Sonar switch* p. 7-79
16. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-24
17. Headlamp levelling switch* p. 6-51
18. Active stability control (ASC) OFF switch* p. 7-33
19. Multi information display switch* p. 6-05
Instruments and controls
1-02OGGE16E1Overview1

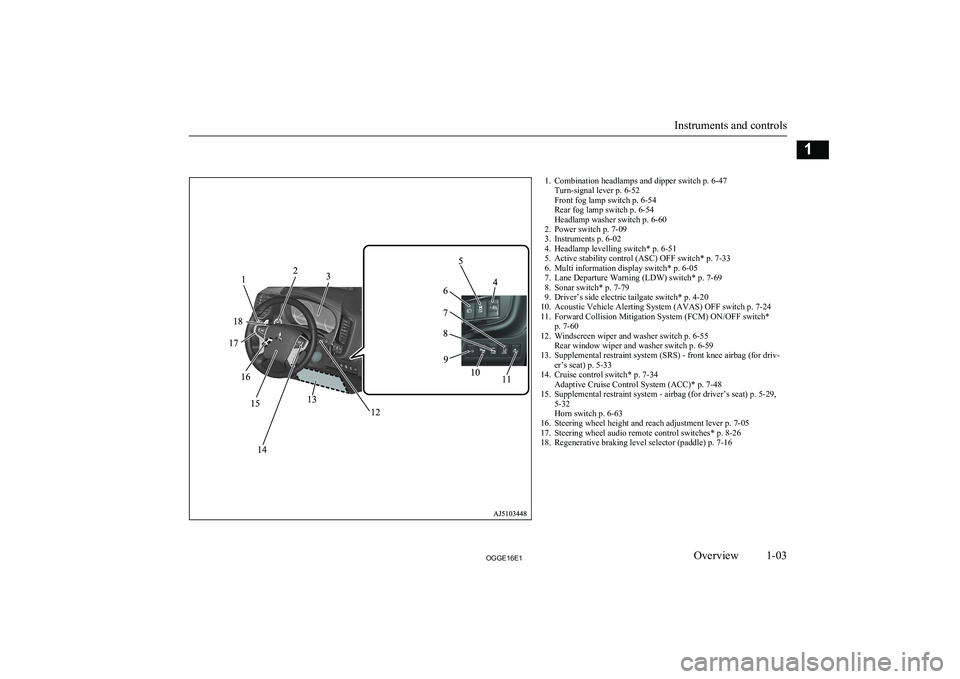

1. Combination headlamps and dipper switch p. 6-47Turn-signal lever p. 6-52
Front fog lamp switch p. 6-54
Rear fog lamp switch p. 6-54
Headlamp washer switch p. 6-60
2. Power switch p. 7-09
3. Instruments p. 6-02
4. Headlamp levelling switch* p. 6-51
5. Active stability control (ASC) OFF switch* p. 7-33
6. Multi information display switch* p. 6-05
7. Lane Departure Warning (LDW) switch* p. 7-69
8. Sonar switch* p. 7-79
9. Driver’s side electric tailgate switch* p. 4-20
10. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-24
11. Forward Collision Mitigation System (FCM) ON/OFF switch* p. 7-60
12. Windscreen wiper and washer switch p. 6-55 Rear window wiper and washer switch p. 6-59
13. Supplemental restraint system (SRS) - front knee airbag (for driv- er’s seat) p. 5-33
14. Cruise control switch* p. 7-34 Adaptive Cruise Control System (ACC)* p. 7-48
15. Supplemental restraint system - airbag (for driver’s seat) p. 5-29, 5-32
Horn switch p. 6-63
16. Steering wheel height and reach adjustment lever p. 7-05
17. Steering wheel audio remote control switches* p. 8-26
18. Regenerative braking level selector (paddle) p. 7-16
Instruments and controls
1-03OGGE16E1Overview1

Outside (Front)E001005073381. Multi Around Monitor* p. 7-88Front view camera* p. 7-88
2. Bonnet p. 11-04
3. Windscreen wipers p. 6-55
4. Sunroof* p. 4-36
5. Electric window control p. 4-34
6. Fuel tank filler p. 2-13
7. Side turn-signal lamps p. 6-52, 11-23, 11-26 Multi Around Monitor* p. 7-88
Side view camera* p. 7-88
8. Sensor system* p. 7-81
9. Front fog lamps p. 6-54, 11-23, 11-27
10. Headlamps, high-beam p. 6-49, 11-23, 11-25
11. Headlamps, low beam p. 6-49, 11-23, 11-24
12. Position lamps p. 6-47, 11-27 Daytime running lamps p. 11-27
13. Front turn-signal lamps p. 6-52, 11-23, 11-26
14. Position lamps p. 6-47, 11-27 Daytime running lamps p. 11-27
15. Front turn-signal lamps p. 6-52, 11-23, 11-26
16. Headlamps, high-beam p. 6-49, 11-23, 11-25
17. Headlamps, low beam p. 6-49, 11-23, 11-24
Outside (Front)
1-11OGGE16E1Overview1Halogen headlamps type LED headlamps type

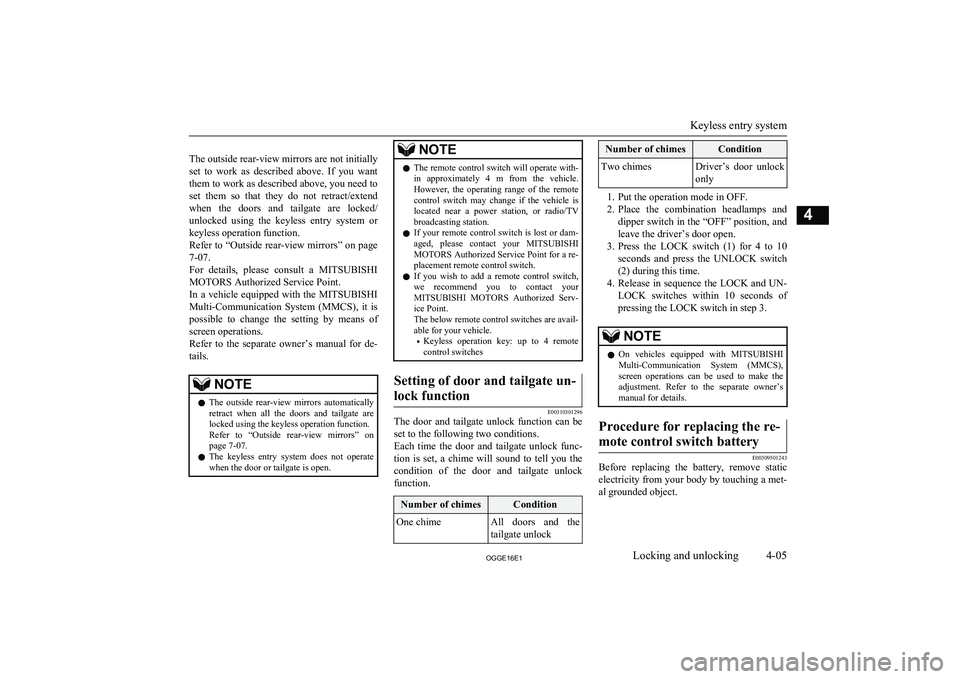

The outside rear-view mirrors are not initially
set to work as described above. If you want them to work as described above, you need to
set them so that they do not retract/extend when the doors and tailgate are locked/unlocked using the keyless entry system or keyless operation function.
Refer to “Outside rear-view mirrors” on page
7-07.
For details, please consult a MITSUBISHI
MOTORS Authorized Service Point.
In a vehicle equipped with the MITSUBISHI
Multi-Communication System (MMCS), it is
possible to change the setting by means of screen operations.
Refer to the separate owner’s manual for de-
tails.NOTEl The outside rear-view mirrors automatically
retract when all the doors and tailgate are
locked using the keyless operation function.
Refer to “Outside rear-view mirrors” on
page 7-07.
l The keyless entry system does not operate
when the door or tailgate is open.NOTEl The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is
located near a power station, or radio/TV broadcasting station.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
l If you wish to add a remote control switch,
we recommend you to contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
The below remote control switches are avail-
able for your vehicle.
• Keyless operation key: up to 4 remote
control switchesSetting of door and tailgate un-
lock function
E00310301296
The door and tailgate unlock function can be set to the following two conditions.
Each time the door and tailgate unlock func-
tion is set, a chime will sound to tell you the condition of the door and tailgate unlock
function.
Number of chimesConditionOne chimeAll doors and the
tailgate unlockNumber of chimesConditionTwo chimesDriver’s door unlock
only
1. Put the operation mode in OFF.
2. Place the combination headlamps and
dipper switch in the “OFF” position, and leave the driver’s door open.
3. Press the LOCK switch (1) for 4 to 10
seconds and press the UNLOCK switch
(2) during this time.
4. Release in sequence the LOCK and UN-
LOCK switches within 10 seconds of pressing the LOCK switch in step 3.
NOTEl On vehicles equipped with
MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.Procedure for replacing the re-
mote control switch battery
E00309501243
Before replacing the battery, remove static
electricity from your body by touching a met- al grounded object.
Keyless entry system
4-05OGGE16E1Locking and unlocking4

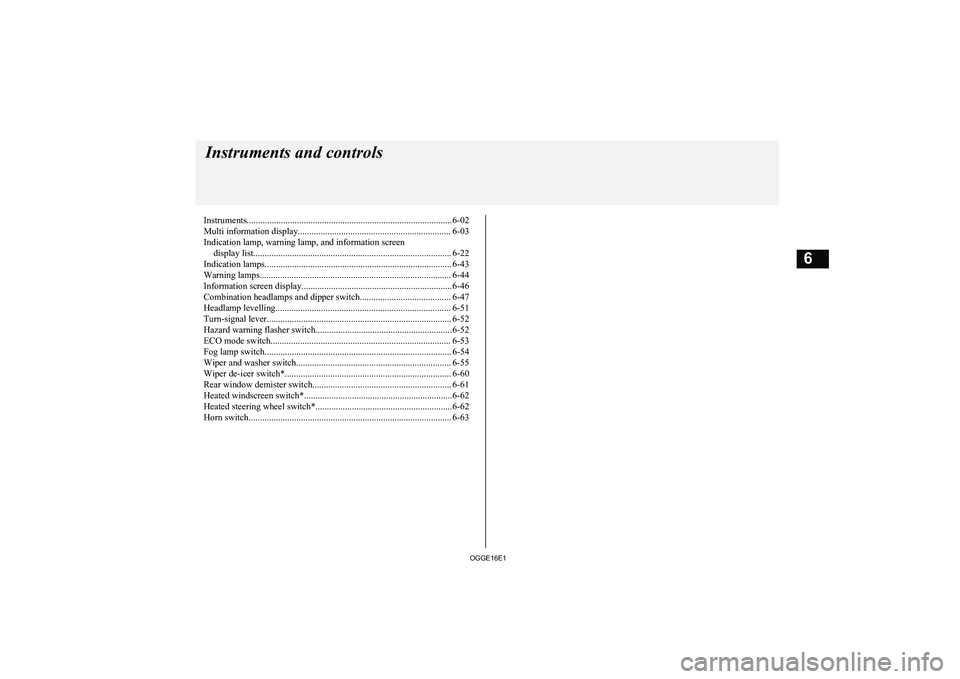

Instruments.......................................................................................... 6-02
Multi information display................................................................... 6-03
Indication lamp, warning lamp, and information screen display list....................................................................................... 6-22
Indication lamps.................................................................................. 6-43
Warning lamps.................................................................................... 6-44
Information screen display.................................................................. 6-46
Combination headlamps and dipper switch........................................ 6-47
Headlamp levelling............................................................................. 6-51
Turn-signal lever................................................................................. 6-52
Hazard warning flasher switch............................................................6-52 ECO mode switch............................................................................... 6-53
Fog lamp switch.................................................................................. 6-54
Wiper and washer switch.................................................................... 6-55
Wiper de-icer switch*......................................................................... 6-60
Rear window demister switch............................................................. 6-61
Heated windscreen switch*.................................................................6-62 Heated steering wheel switch*............................................................6-62Horn switch......................................................................................... 6-63Instruments and controls
OGGE16E16

Indication lamp, warning lamp, and information screen display listE00523701267

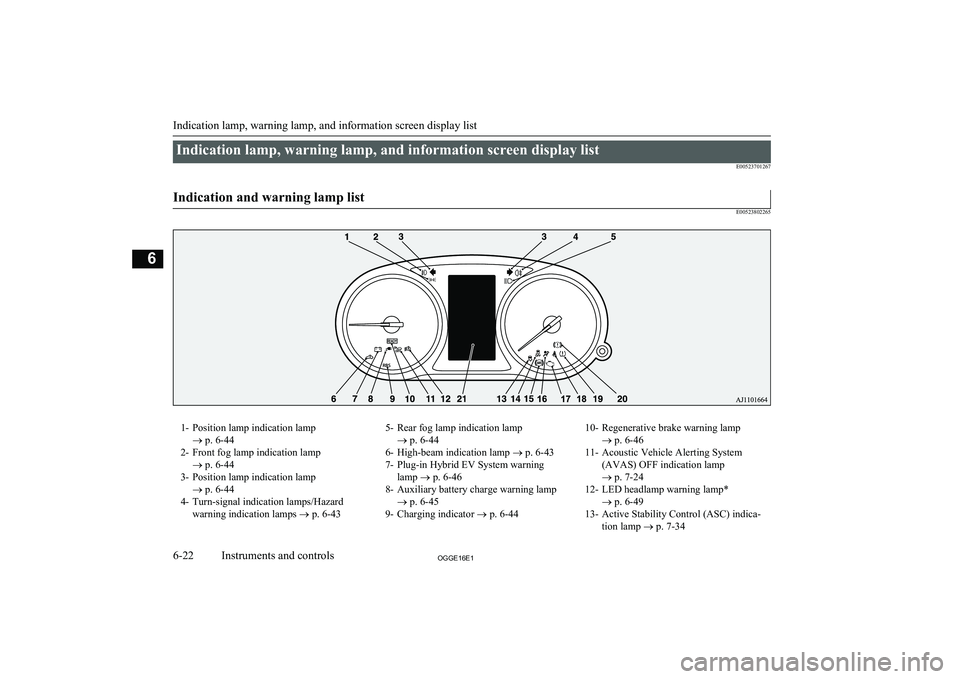

Indication and warning lamp list
E00523802265
1- Position lamp indication lamp ® p. 6-44
2- Front fog lamp indication lamp ® p. 6-44
3- Position lamp indication lamp ® p. 6-44
4- Turn-signal indication lamps/Hazard warning indication lamps ® p. 6-435- Rear fog lamp indication lamp
® p. 6-44
6- High-beam indication lamp ® p. 6-43
7- Plug-in Hybrid EV System warning lamp ® p. 6-46
8- Auxiliary battery charge warning lamp ® p. 6-45
9- Charging indicator ® p. 6-4410- Regenerative brake warning lamp
® p. 6-46
11- Acoustic Vehicle Alerting System (AVAS) OFF indication lamp
® p. 7-24
12- LED headlamp warning lamp* ® p. 6-49
13- Active Stability Control (ASC) indica- tion lamp ® p. 7-34
Indication lamp, warning lamp, and information screen display list
6-22OGGE16E1Instruments and controls6

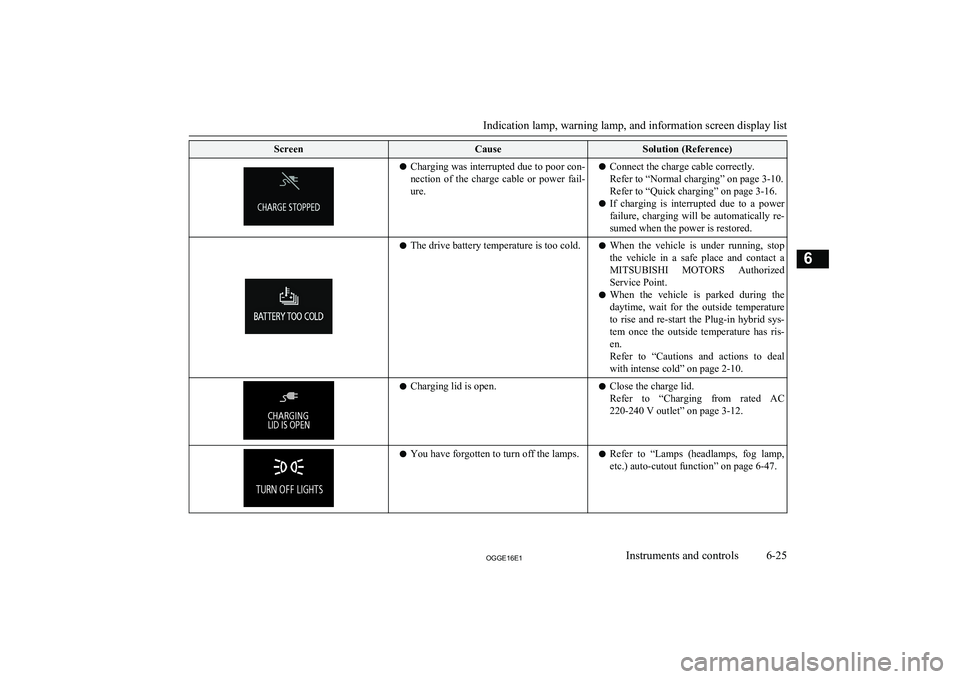

ScreenCauseSolution (Reference)lCharging was interrupted due to poor con-
nection of the charge cable or power fail- ure.l Connect the charge cable correctly.
Refer to “Normal charging” on page 3-10.
Refer to “Quick charging” on page 3-16.
l If charging is interrupted due to a power
failure, charging will be automatically re-sumed when the power is restored.l The drive battery temperature is too cold.l When the vehicle is under running, stop
the vehicle in a safe place and contact a MITSUBISHI MOTORS Authorized
Service Point.
l When the vehicle is parked during the
daytime, wait for the outside temperature to rise and re-start the Plug-in hybrid sys-tem once the outside temperature has ris-
en.
Refer to “Cautions and actions to deal with intense cold” on page 2-10.l Charging lid is open.l Close the charge lid.
Refer to “Charging from rated AC
220-240 V outlet” on page 3-12.l You have forgotten to turn off the lamps.l Refer to “Lamps (headlamps, fog lamp,
etc.) auto-cutout function” on page 6-47.
Indication lamp, warning lamp, and information screen display list
6-25OGGE16E1Instruments and controls6

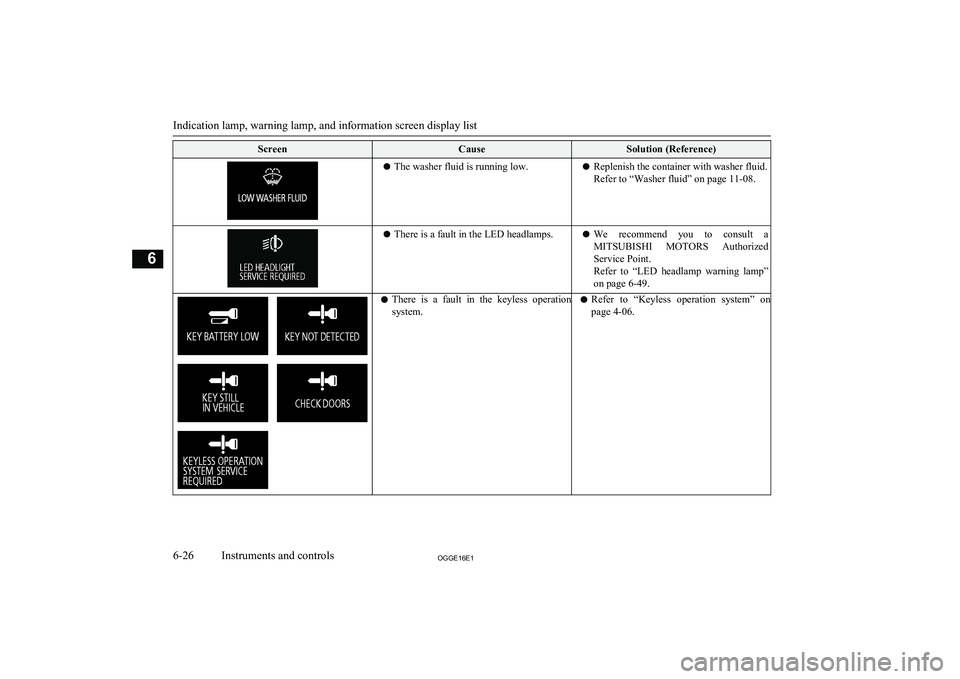

ScreenCauseSolution (Reference)lThe washer fluid is running low.lReplenish the container with washer fluid.
Refer to “Washer fluid” on page 11-08.l There is a fault in the LED headlamps.lWe recommend you to consult a
MITSUBISHI MOTORS Authorized
Service Point.
Refer to “LED headlamp warning lamp”
on page 6-49.l There is a fault in the keyless operation
system.l Refer to “Keyless operation system” on
page 4-06.
Indication lamp, warning lamp, and information screen display list
6-26OGGE16E1Instruments and controls6

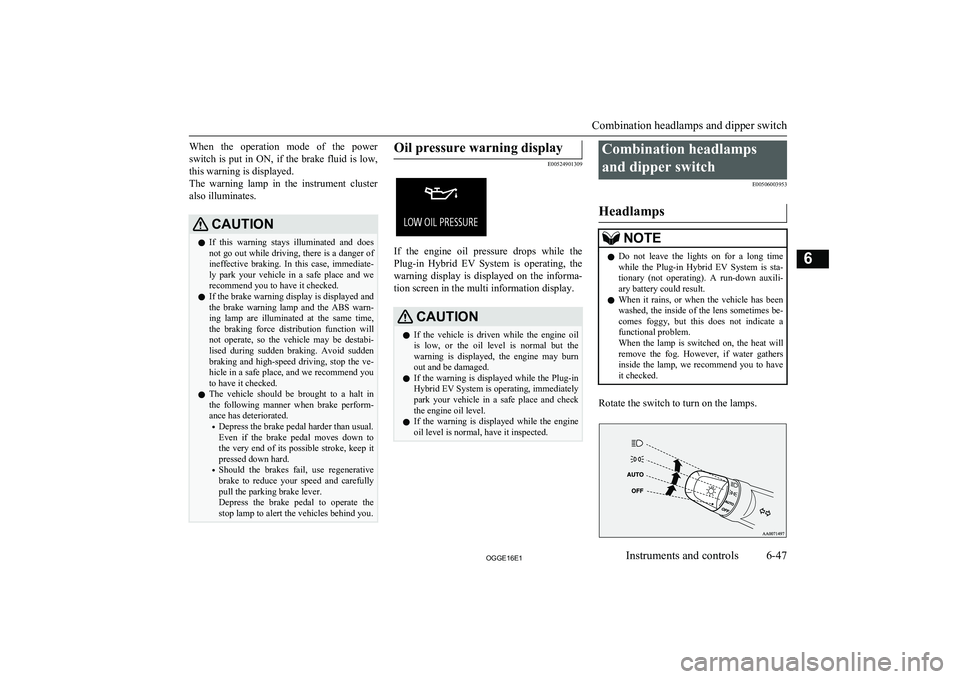

When the operation mode of the power
switch is put in ON, if the brake fluid is low,
this warning is displayed.
The warning lamp in the instrument cluster also illuminates.CAUTIONl If this warning stays illuminated and does
not go out while driving, there is a danger of ineffective braking. In this case, immediate-
ly park your vehicle in a safe place and we recommend you to have it checked.
l If the brake warning display is displayed and
the brake warning lamp and the ABS warn- ing lamp are illuminated at the same time,
the braking force distribution function will
not operate, so the vehicle may be destabi- lised during sudden braking. Avoid sudden
braking and high-speed driving, stop the ve-
hicle in a safe place, and we recommend you to have it checked.
l The vehicle should be brought to a halt in
the following manner when brake perform-
ance has deteriorated.
• Depress the brake pedal harder than usual.
Even if the brake pedal moves down to
the very end of its possible stroke, keep it pressed down hard.
• Should the brakes fail, use regenerative
brake to reduce your speed and carefully
pull the parking brake lever.
Depress the brake pedal to operate the
stop lamp to alert the vehicles behind you.Oil pressure warning display
E00524901309
If the engine oil pressure drops while the
Plug-in Hybrid EV System is operating, thewarning display is displayed on the informa-
tion screen in the multi information display.
CAUTIONl If the vehicle is driven while the engine oil
is low, or the oil level is normal but the warning is displayed, the engine may burn
out and be damaged.
l If the warning is displayed while the Plug-in
Hybrid EV System is operating, immediately
park your vehicle in a safe place and check
the engine oil level.
l If the warning is displayed while the engine
oil level is normal, have it inspected.Combination headlamps
and dipper switch E00506003953
HeadlampsNOTEl Do not leave the lights on for a long time
while the Plug-in Hybrid EV System is sta-tionary (not operating). A run-down auxili- ary battery could result.
l When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a
functional problem.
When the lamp is switched on, the heat will remove the fog. However, if water gathers
inside the lamp, we recommend you to have it checked.
Rotate the switch to turn on the lamps.
Combination headlamps and dipper switch
6-47OGGE16E1Instruments and controls6

OFFAll lamps off {except daytime
running lamps}
AUTO
When the operation mode of the
power switch is ON, headlamps,
position-, tail-, licence plate-, in-
strument panel lamps and down-
light are turned on and off auto-
matically in accordance with out-
side light level. {Daytime run-
ning lamps will be turned on
while the tail lamps are off.} All
lamps turn off automatically
when the operation mode is put
in OFF.Position, tail, licence plate, in-
strument panel lamps and down-
light onHeadlamps and other lamps go
onNOTEl The sensitivity of the automatic on/off con-
trol can be adjusted. For further information,contact a MITSUBISHI MOTORS Author-
ized Service Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment.
Refer to the separate owner’s manual for de-
tails.NOTEl When the headlamps are turned off by the
automatic on/off control with the operation
mode in ON, the front fog lamps and rear fog lamps also go off. When the headlamps
are subsequently turned back on by the auto- matic on/off control, the front fog lamps also
come on but the rear fog lamp stays off. If you wish to turn the rear fog lamp back on,
operate the switch again.
l Do not cover the sensor (A) for the automat-
ic on/off control by affixing a sticker or labelto the windscreen.
l If the lamps do not turn on or off with the
switch in the “AUTO” position, manually
operate the switch and we recommend you
to have your vehicle checked.
Lamps (headlamps, fog lamp,
etc.) auto-cutout function
l If the operation mode of the power
switch is put in OFF or ACC while the
lamp switch is in the “
” position, the
lamps will turn off automatically when the driver’s door is opened.
l If the operation mode of the power
switch is put in OFF or ACC while the
lamp switch is in the “
” position, the
lamps will remain on for about 3 mi-
nutes while the driver’s door is shut and will then automatically turn off.
NOTEl The lamp auto-cutout will not function when
the lamp switch is in the “” position.
l The lamp auto-cutout function can also be
disabled.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the adjustment. Refer to the separate owner’s
manual for details.
Combination headlamps and dipper switch
6-48OGGE16E1Instruments and controls6
