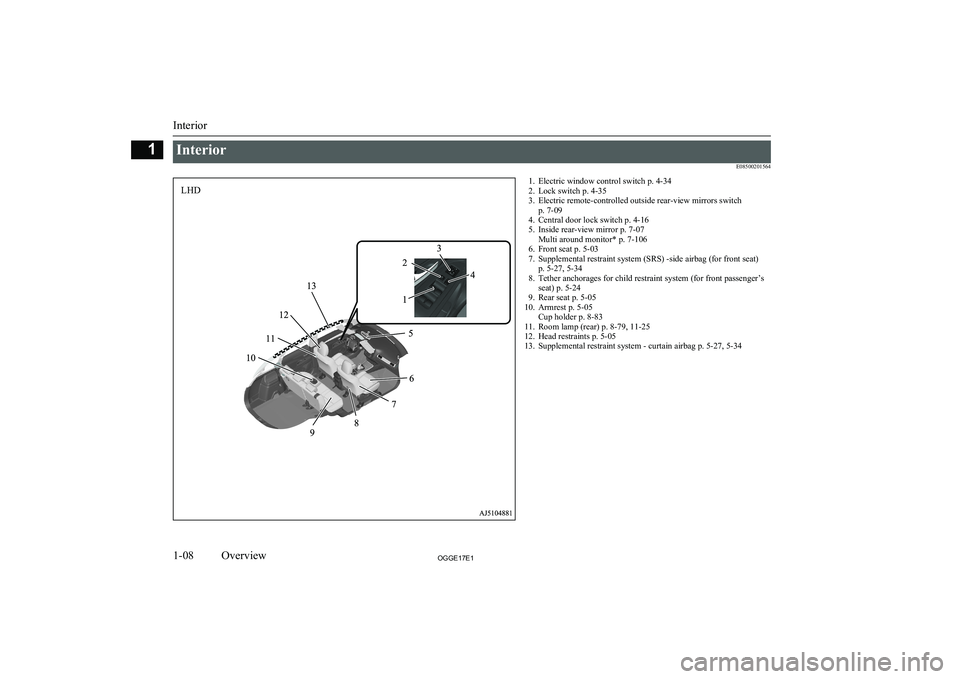

InteriorE085002015641. Electric window control switch p. 4-34
2. Lock switch p. 4-35
3. Electric remote-controlled outside rear-view mirrors switch p. 7-09
4. Central door lock switch p. 4-16
5. Inside rear-view mirror p. 7-07 Multi around monitor* p. 7-106
6. Front seat p. 5-03
7. Supplemental restraint system (SRS) -side airbag (for front seat) p. 5-27, 5-34
8. Tether anchorages for child restraint system (for front passenger’s seat) p. 5-24
9. Rear seat p. 5-05
10. Armrest p. 5-05 Cup holder p. 8-83
11. Room lamp (rear) p. 8-79, 11-25
12. Head restraints p. 5-05
13. Supplemental restraint system - curtain airbag p. 5-27, 5-34
Interior
1-08OGGE17E1Overview1LHD

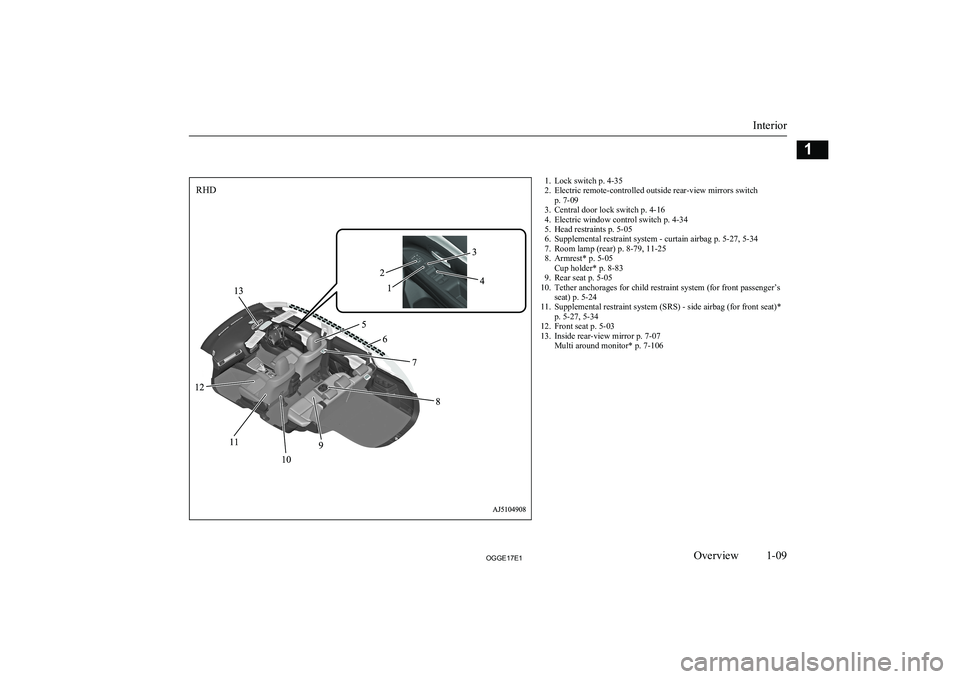

1. Lock switch p. 4-35
2. Electric remote-controlled outside rear-view mirrors switch p. 7-09
3. Central door lock switch p. 4-16
4. Electric window control switch p. 4-34
5. Head restraints p. 5-05
6. Supplemental restraint system - curtain airbag p. 5-27, 5-34
7. Room lamp (rear) p. 8-79, 11-25
8. Armrest* p. 5-05 Cup holder* p. 8-83
9. Rear seat p. 5-05
10. Tether anchorages for child restraint system (for front passenger’s seat) p. 5-24
11. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 5-27, 5-34
12. Front seat p. 5-03
13. Inside rear-view mirror p. 7-07 Multi around monitor* p. 7-106
Interior
1-09OGGE17E1Overview1RHD

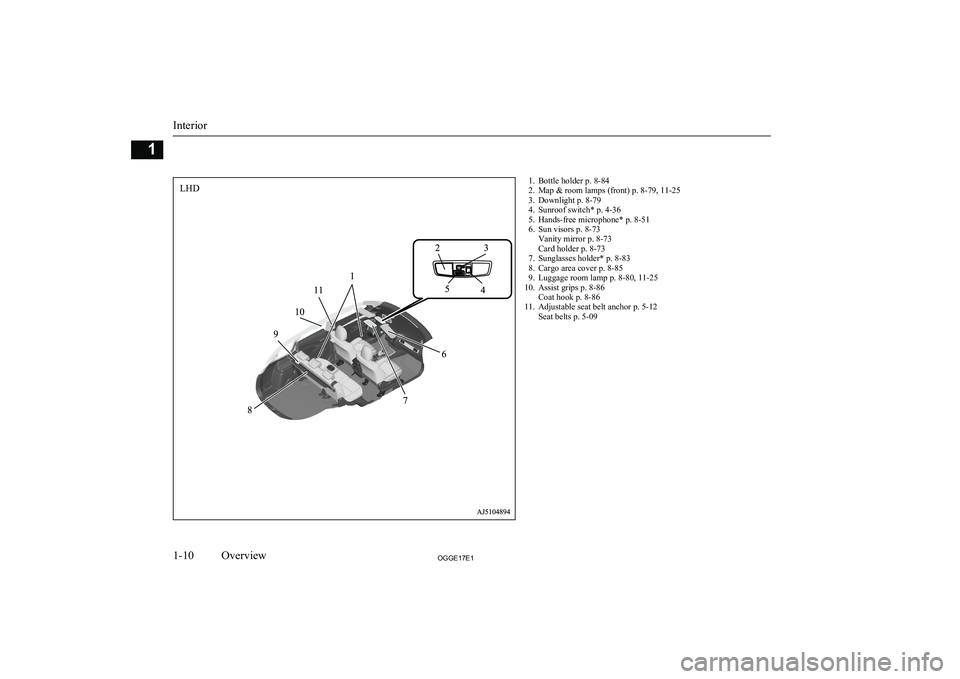

1. Bottle holder p. 8-84
2. Map & room lamps (front) p. 8-79, 11-25
3. Downlight p. 8-79
4. Sunroof switch* p. 4-36
5. Hands-free microphone* p. 8-51
6. Sun visors p. 8-73 Vanity mirror p. 8-73
Card holder p. 8-73
7. Sunglasses holder* p. 8-83
8. Cargo area cover p. 8-85
9. Luggage room lamp p. 8-80, 11-25
10. Assist grips p. 8-86 Coat hook p. 8-86
11. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
Interior
1-10OGGE17E1Overview1LHD

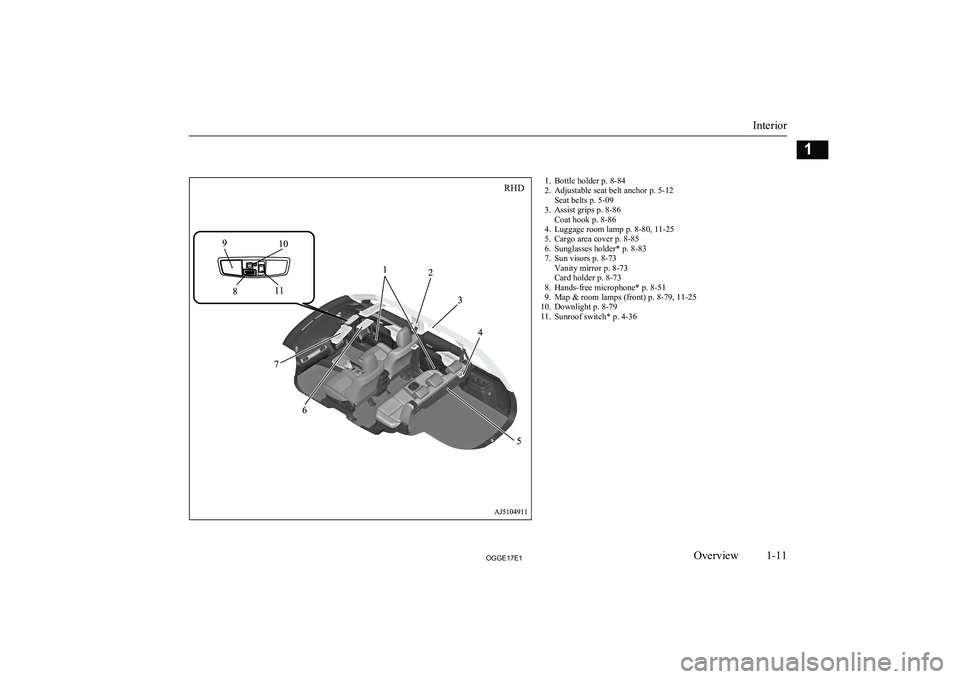

1. Bottle holder p. 8-84
2. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
3. Assist grips p. 8-86 Coat hook p. 8-86
4. Luggage room lamp p. 8-80, 11-25
5. Cargo area cover p. 8-85
6. Sunglasses holder* p. 8-83
7. Sun visors p. 8-73 Vanity mirror p. 8-73
Card holder p. 8-73
8. Hands-free microphone* p. 8-51
9. Map & room lamps (front) p. 8-79, 11-25
10. Downlight p. 8-79
11. Sunroof switch* p. 4-36
Interior
1-11OGGE17E1Overview1RHD

Luggage areaE085003012591. Tether anchorages for child restraint system p. 5-24
2. Tools p. 9-11
3. Accessory socket* p. 8-75 220-240 V AC power supply* p. 8-76
4. Luggage hook p. 8-87
5. Jack p. 9-11
6. Luggage floor box p. 8-82
7. EV charging cable p. 3-07
8. Auxiliary battery p. 11-09
9. Tyre repair kit p. 9-12
Luggage area
1-12OGGE17E1Overview1

Outside (Front)E085004020391. Front-view camera* p. 7-1062. Bonnet p. 11-04
3. Windscreen wipers p. 6-64
4. Sensor* [for Automatic high-beam system, Forward Collision Mit- igation System (FCM) and Lane Departure Warning (LDW)]
p. 6-56, 7-64, 7-85
Rain sensor p. 6-64
5. Sunroof* p. 4-36
6. Electric window control p. 4-34
7. Fuel tank filler p. 2-15
8. Side turn-signal lamps p. 6-61, 11-24 Side view camera* p. 7-106
9. Ultrasonic misacceleration Mitigation System* p. 7-74 Parking sensors* p. 7-98
10. Front fog lamps p. 6-63, 11-24, 11-27
11. Headlamps, high-beam p. 6-56, 11-24, 11-26
12. Headlamps, low beam p. 6-56, 11-24, 11-25
13. Position lamps p. 6-53, 11-24 Daytime running lamps p. 11-27, 11-24
14. Front turn-signal lamps p. 6-61, 11-24, 11-27
15. Headlamps, high-beam p. 6-56, 11-24, 11-26
16. Headlamps, low beam p. 6-56, 11-24, 11-25
17. Position lamps p. 6-53, 11-24 Daytime running lamps p. 6-55, 11-24
18. Front turn-signal lamps p. 6-61, 11-24, 11-27
Outside (Front)
1-13OGGE17E1Overview1Halogen headlamps type LED headlamps type

Outside (Rear)E085004020421. Antenna2. Tail lamps p. 11-24, 11-29
3. Keyless entry system p. 4-03 Keyless operation system p. 4-06
Locking and unlocking the doors p. 4-14
4. Changing tyres p. 9-18 Tyre pressure monitoring system (TPMS) p. 7-89
Tyre inflation pressures p. 11-10
Tyre rotation p. 11-11
Snow traction device (tyre chains) p. 11-13
Size of tyres and wheels p. 12-08
5. Charging lid p. 3-12 Charging port courtesy lamp p. 3-06
6. Stop lamps p. 11-24, 11-29
7. Rear turn-signal lamps p. 6-61, 11-24, 11-29
8. Reversing lamp (passenger’s side) p. 11-24, 11-29
9. Ultrasonic misacceleration Mitigation System* p. 7-74 Reversing sensor system* p. 7-94
Parking sensors* p. 7-98
10. Rear fog lamp (driver’s side) p. 6-63, 11-24, 11-29
11. Licence plate lamps p. 11-24, 11-30
12. Rear-view camera* p. 7-102, 7-106
13. Rear window wiper p. 6-67
14. Tailgate p. 4-19 Electric tailgate p. 4-20
15. High-mounted stop lamp p. 11-24
Outside (Rear)
1-14OGGE17E1Overview1

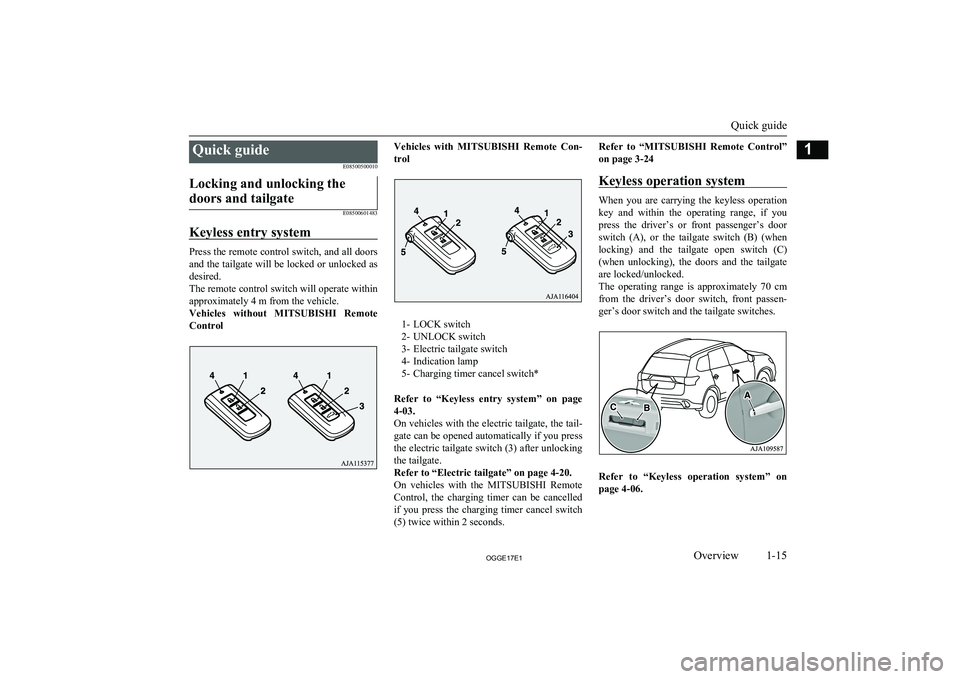

Quick guideE08500500010Locking and unlocking the
doors and tailgate
E08500601483
Keyless entry system
Press the remote control switch, and all doors and the tailgate will be locked or unlocked as
desired.
The remote control switch will operate within
approximately 4 m from the vehicle.
Vehicles without MITSUBISHI Remote
Control
Vehicles with MITSUBISHI Remote Con-
trol
1- LOCK switch
2- UNLOCK switch
3- Electric tailgate switch
4- Indication lamp
5- Charging timer cancel switch*
Refer to “Keyless entry system” on page 4-03.
On vehicles with the electric tailgate, the tail-
gate can be opened automatically if you press
the electric tailgate switch (3) after unlocking the tailgate.
Refer to “Electric tailgate” on page 4-20.
On vehicles with the MITSUBISHI Remote
Control, the charging timer can be cancelled if you press the charging timer cancel switch (5) twice within 2 seconds.
Refer to “MITSUBISHI Remote Control”
on page 3-24
Keyless operation system
When you are carrying the keyless operation
key and within the operating range, if you
press the driver’s or front passenger’s door switch (A), or the tailgate switch (B) (when locking) and the tailgate open switch (C)(when unlocking), the doors and the tailgate
are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s door switch, front passen- ger’s door switch and the tailgate switches.
Refer to “Keyless operation system” onpage 4-06.
Quick guide
1-15OGGE17E1Overview1

Around the driver’s seat
E08500801557
1-Combination headlamps
Rotate the switch to turn on the lamps.
OFFAll lamps off {except daytimerunning lamps}
AUTO
With the operation mode of the
power switch in the “ON” posi- tion, head-lamps, position, tail,
licence plate, instrument panel lamps and downlight turn on and off automatically in accord-
ance with outside light level. {The daytime running lamps
will be turned on while the tail lamps are off.} All lamps turn
off automatically when the oper- ation mode is put in OFF.Position, tail, licence plate, in-
strument panel lamps and down- light onHeadlamps and other lamps go
on
Refer to “Combination headlamps and dipper switch” on page 6-53.
1-Turn-signal lever
The turn-signal lamps flash when the lever is
operated
1- Turn-signals
2- Lane-change signals
Refer to “Turn-signal lever” on page 6-61.
2-Steering wheel height and
reach adjustment
1. Release the lever while holding the
steering wheel up.
Quick guide
1-16OGGE17E1Overview1

2.Adjust the steering wheel to the desired
position.
3. Securely lock the steering wheel by pull-
ing the lever fully upward.A-LockedB-Release
Refer to “Steering wheel height and reach adjustment” on page 7-07.
3-Power switch
If you are carrying the keyless operation key,
you can start the Plug-in Hybrid EV System.
If you press the power switch without de-
pressing the brake pedal, you can change the
operation mode in the order of OFF, ACC,
ON, OFF.OFF-The indication lamp (A) on the
power switch turns off.ACC-The indication lamp on the en-
gine switch illuminates orange.ON-The indication lamp on the pow-
er switch illuminates blue.
Refer to “Power switch” on page 7-12.
4-Wiper and washer switchMIST-Misting function
The wipers will operate
once.OFF-OffAUTO-Auto-wiper control
The wipers will automati- cally operate depending on
the degree of wetness on the windscreen.LO-SlowHI-Fast
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
Refer to “Wiper and washer switch” on page 6-64.
Quick guide
