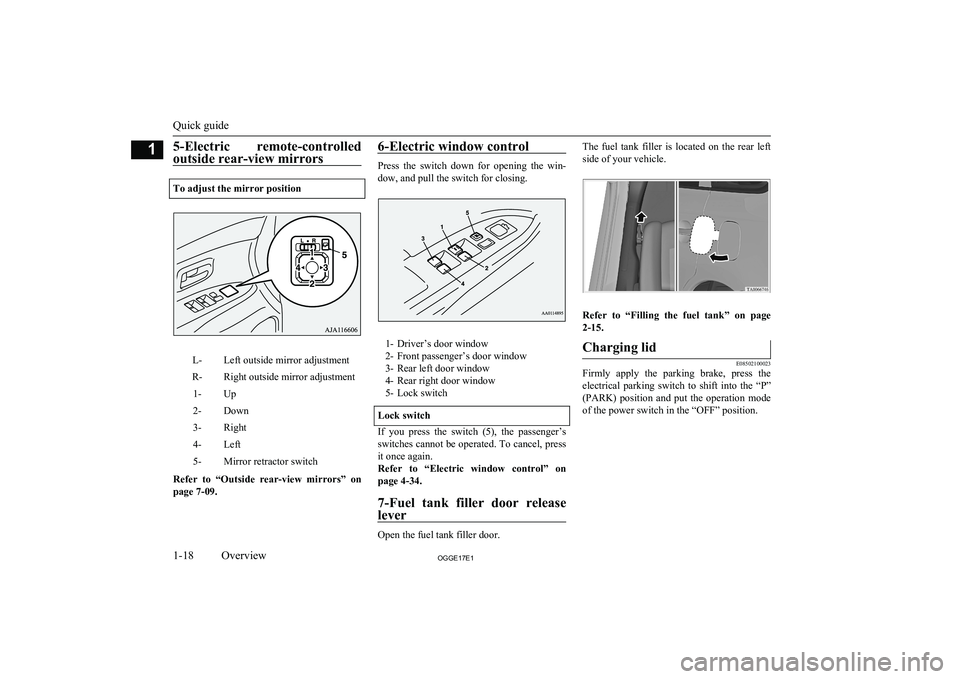

5-Electric remote-controlledoutside rear-view mirrors
To adjust the mirror position
L-Left outside mirror adjustmentR-Right outside mirror adjustment1-Up2-Down3-Right4-Left5-Mirror retractor switch
Refer to “Outside rear-view mirrors” on
page 7-09.
6-Electric window control
Press the switch down for opening the win-
dow, and pull the switch for closing.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
Lock switch
If you press the switch (5), the passenger’s switches cannot be operated. To cancel, press
it once again.
Refer to “Electric window control” on
page 4-34.
7-Fuel tank filler door release
lever
Open the fuel tank filler door.
The fuel tank filler is located on the rear left
side of your vehicle.
Refer to “Filling the fuel tank” on page 2-15.
Charging lid
E08502100023
Firmly apply the parking brake, press the electrical parking switch to shift into the “P”
(PARK) position and put the operation mode of the power switch in the “OFF” position.
Quick guide
1-18OGGE17E1Overview1

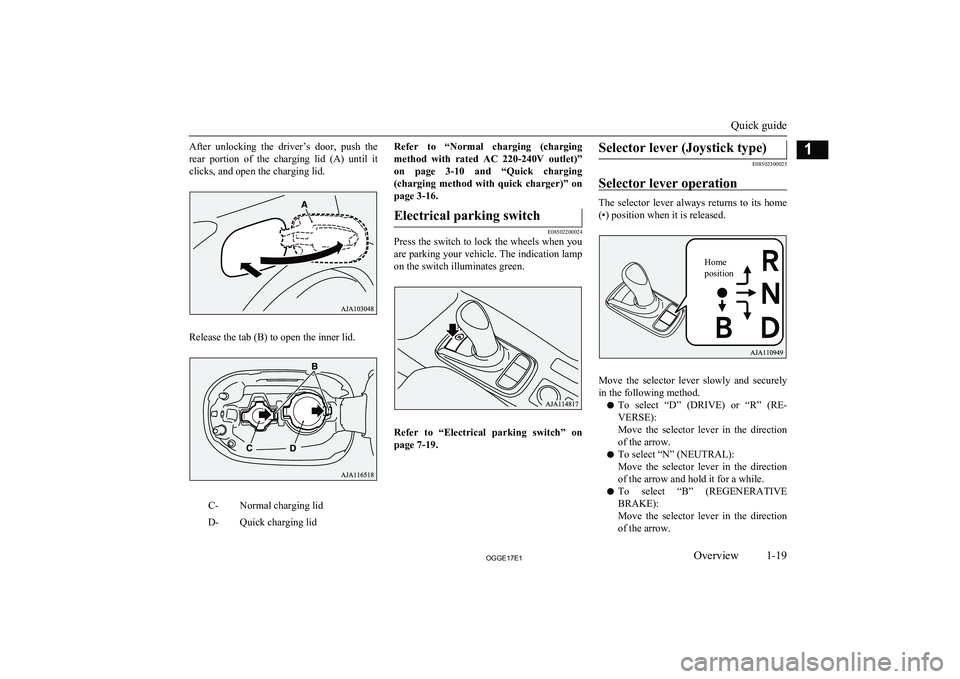

After unlocking the driver’s door, push the
rear portion of the charging lid (A) until it clicks, and open the charging lid.
Release the tab (B) to open the inner lid.
C-Normal charging lidD-Quick charging lidRefer to “Normal charging (charging method with rated AC 220-240V outlet)”
on page 3-10 and “Quick charging
(charging method with quick charger)” on
page 3-16.Electrical parking switch
E08502200024
Press the switch to lock the wheels when you
are parking your vehicle. The indication lamp on the switch illuminates green.
Refer to “Electrical parking switch” on
page 7-19.
Selector lever (Joystick type)
E08502300025
Selector lever operation
The selector lever always returns to its home
(•) position when it is released.
Move the selector lever slowly and securely
in the following method.
l To select “D” (DRIVE) or “R” (RE-
VERSE):
Move the selector lever in the direction
of the arrow.
l To select “N” (NEUTRAL):
Move the selector lever in the direction
of the arrow and hold it for a while.
l To select “B” (REGENERATIVE
BRAKE):
Move the selector lever in the direction
of the arrow.
Quick guide
1-19OGGE17E1Overview1 Home
position

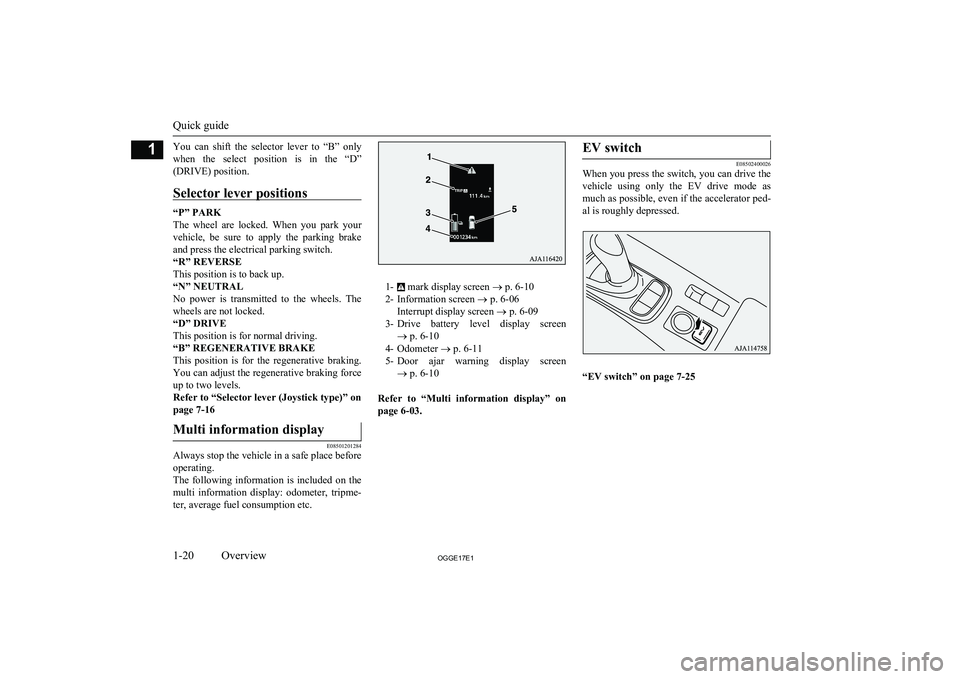

You can shift the selector lever to “B” onlywhen the select position is in the “D”
(DRIVE) position.
Selector lever positions
“P” PARK
The wheel are locked. When you park your
vehicle, be sure to apply the parking brake and press the electrical parking switch.
“R” REVERSE
This position is to back up.
“N” NEUTRAL
No power is transmitted to the wheels. The wheels are not locked.
“D” DRIVE
This position is for normal driving.
“B” REGENERATIVE BRAKE
This position is for the regenerative braking.
You can adjust the regenerative braking force up to two levels.
Refer to “Selector lever (Joystick type)” on
page 7-16
Multi information display
E08501201284
Always stop the vehicle in a safe place before operating.
The following information is included on the multi information display: odometer, tripme-
ter, average fuel consumption etc.
1- mark display screen ® p. 6-10
2- Information screen ® p. 6-06
Interrupt display screen ® p. 6-09
3- Drive battery level display screen
® p. 6-10
4- Odometer ® p. 6-11
5- Door ajar warning display screen
® p. 6-10
Refer to “Multi information display” on page 6-03.
EV switch
E08502400026
When you press the switch, you can drive the
vehicle using only the EV drive mode as
much as possible, even if the accelerator ped- al is roughly depressed.
“EV switch” on page 7-25
Quick guide
1-20OGGE17E1Overview1

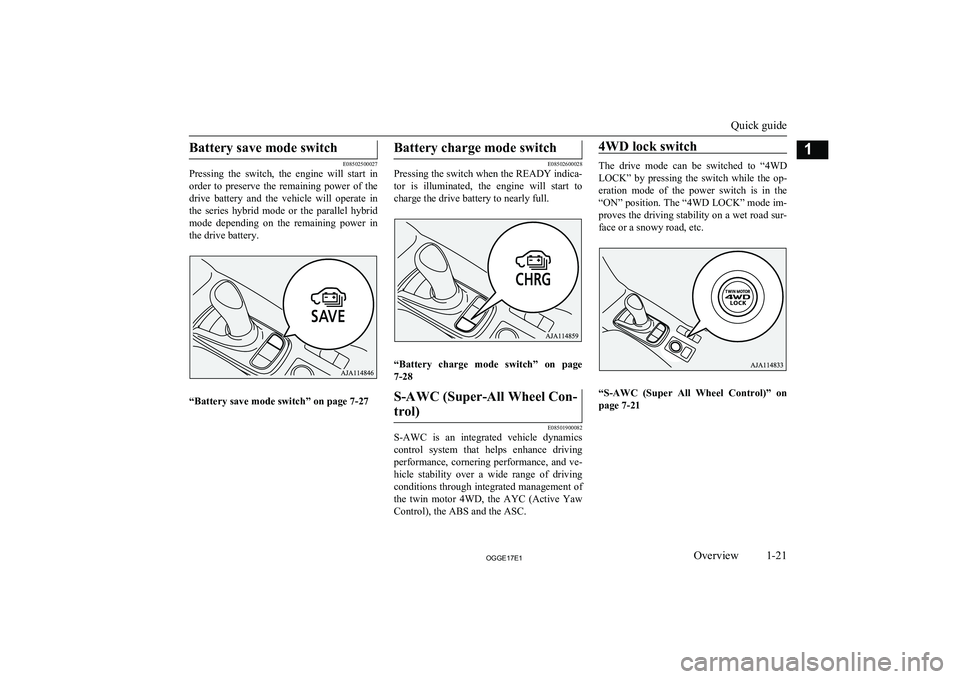

Battery save mode switch
E08502500027
Pressing the switch, the engine will start in
order to preserve the remaining power of the
drive battery and the vehicle will operate in the series hybrid mode or the parallel hybrid mode depending on the remaining power in
the drive battery.
“Battery save mode switch” on page 7-27
Battery charge mode switch
E08502600028
Pressing the switch when the READY indica-
tor is illuminated, the engine will start to
charge the drive battery to nearly full.
“Battery charge mode switch” on page
7-28
S-AWC (Super-All Wheel Con-
trol)
E08501900082
S-AWC is an integrated vehicle dynamics control system that helps enhance driving
performance, cornering performance, and ve-
hicle stability over a wide range of driving
conditions through integrated management of the twin motor 4WD, the AYC (Active Yaw
Control), the ABS and the ASC.
4WD lock switch
The drive mode can be switched to “4WD
LOCK” by pressing the switch while the op-
eration mode of the power switch is in the “ON” position. The “4WD LOCK” mode im-proves the driving stability on a wet road sur-
face or a snowy road, etc.
“S-AWC (Super All Wheel Control)” on page 7-21
Quick guide
1-21OGGE17E1Overview1

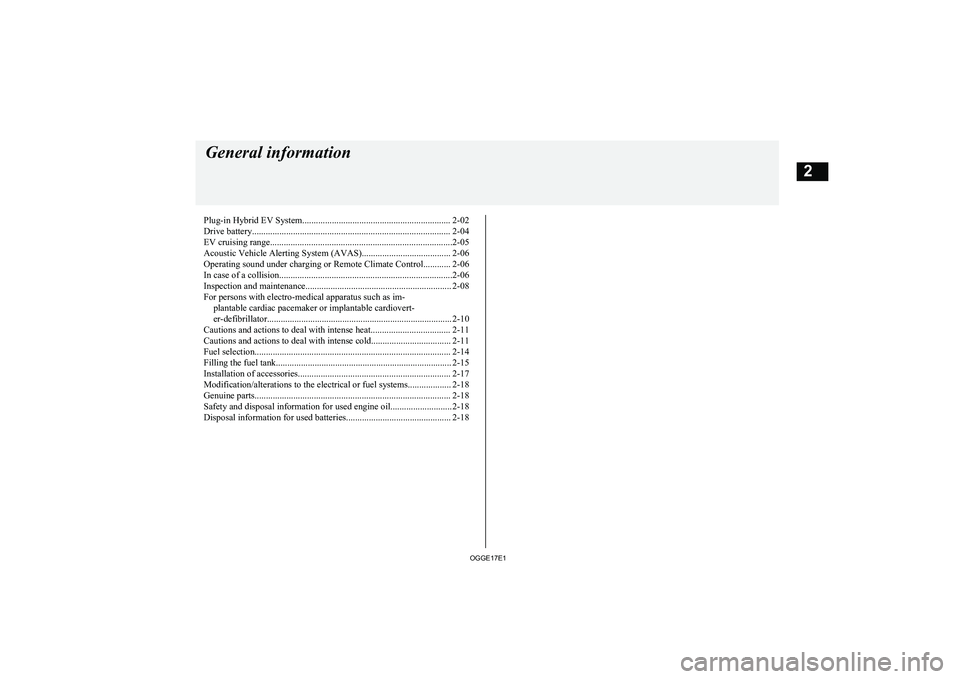

OGGE17E1

Plug-in Hybrid EV System................................................................. 2-02
Drive battery....................................................................................... 2-04
EV cruising range................................................................................2-05
Acoustic Vehicle Alerting System (AVAS)....................................... 2-06
Operating sound under charging or Remote Climate Control............ 2-06
In case of a collision............................................................................2-06
Inspection and maintenance................................................................ 2-08
For persons with electro-medical apparatus such as im- plantable cardiac pacemaker or implantable cardiovert-
er-defibrillator................................................................................. 2-10
Cautions and actions to deal with intense heat................................... 2-11 Cautions and actions to deal with intense cold................................... 2-11Fuel selection...................................................................................... 2-14Filling the fuel tank............................................................................. 2-15Installation of accessories................................................................... 2-17
Modification/alterations to the electrical or fuel systems................... 2-18
Genuine parts...................................................................................... 2-18 Safety and disposal information for used engine oil........................... 2-18
Disposal information for used batteries.............................................. 2-18General information
OGGE17E12

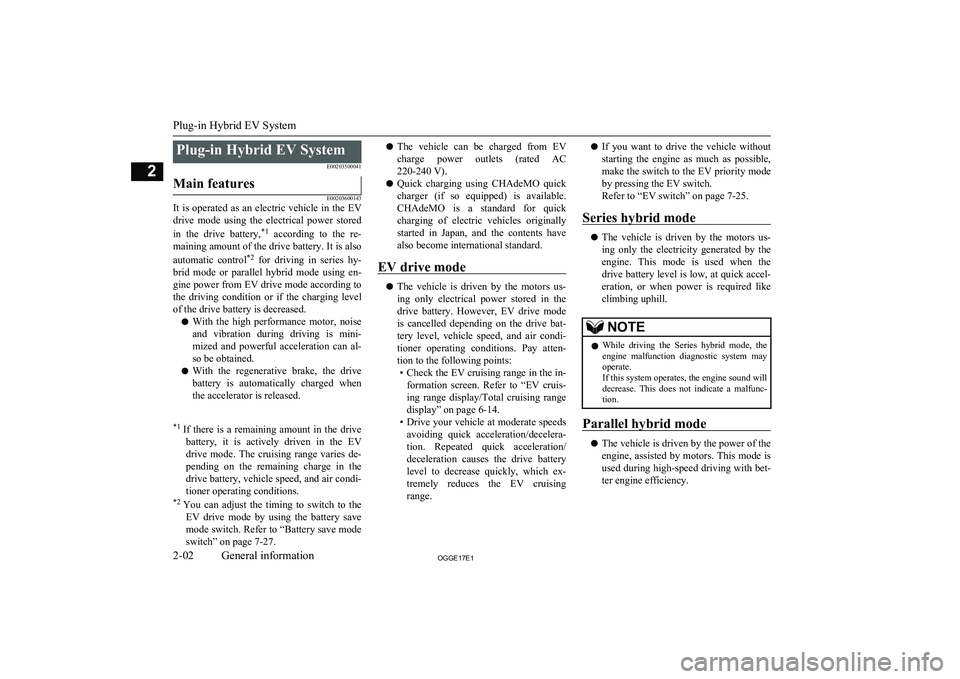

Plug-in Hybrid EV SystemE00203500041Main features
E00203600143
It is operated as an electric vehicle in the EVdrive mode using the electrical power stored
in the drive battery, *1
according to the re-
maining amount of the drive battery. It is also
automatic control *2
for driving in series hy-
brid mode or parallel hybrid mode using en-
gine power from EV drive mode according to the driving condition or if the charging level
of the drive battery is decreased.
l With the high performance motor, noise
and vibration during driving is mini-
mized and powerful acceleration can al-
so be obtained.
l With the regenerative brake, the drive
battery is automatically charged when
the accelerator is released.
*1 If there is a remaining amount in the drive
battery, it is actively driven in the EV
drive mode. The cruising range varies de-
pending on the remaining charge in the drive battery, vehicle speed, and air condi-
tioner operating conditions.
*2 You can adjust the timing to switch to the
EV drive mode by using the battery save
mode switch. Refer to “Battery save mode switch” on page 7-27.l The vehicle can be charged from EV
charge power outlets (rated AC 220-240 V).
l Quick charging using CHAdeMO quick
charger (if so equipped) is available.
CHAdeMO is a standard for quick charging of electric vehicles originally
started in Japan, and the contents have
also become international standard.
EV drive mode
l The vehicle is driven by the motors us-
ing only electrical power stored in the drive battery. However, EV drive mode
is cancelled depending on the drive bat- tery level, vehicle speed, and air condi-
tioner operating conditions. Pay atten- tion to the following points: • Check the EV cruising range in the in-
formation screen. Refer to “EV cruis-
ing range display/Total cruising range display” on page 6-14.
• Drive your vehicle at moderate speeds
avoiding quick acceleration/decelera- tion. Repeated quick acceleration/deceleration causes the drive battery
level to decrease quickly, which ex- tremely reduces the EV cruising
range.
l If you want to drive the vehicle without
starting the engine as much as possible,
make the switch to the EV priority mode by pressing the EV switch.
Refer to “EV switch” on page 7-25.
Series hybrid mode
l The vehicle is driven by the motors us-
ing only the electricity generated by the engine. This mode is used when the drive battery level is low, at quick accel-
eration, or when power is required like
climbing uphill.
NOTEl While driving the Series hybrid mode, the
engine malfunction diagnostic system may operate.
If this system operates, the engine sound will
decrease. This does not indicate a malfunc-
tion.
Parallel hybrid mode
l The vehicle is driven by the power of the
engine, assisted by motors. This mode is used during high-speed driving with bet-ter engine efficiency.
Plug-in Hybrid EV System
2-02OGGE17E1General information2

The roles of the motors and en-gine in each drive mode MotorEngine
Driving condi- tionsEV Drive ModeDrive thevehicleOFF
Normal street
driving
Series
Hybrid ModeDrive the vehicleGenerates
electricity
At quick
accelera-
tion on an uphillroad
ParallelHybrid ModeDrive the vehicle
Drivers front
wheels
and gen- erates
electricity
High- speed
driving
Regenerative braking
Motion energy is converted into electric ener-
gy using the motor as a power generator.
Then a braking force generates and converted electric energy will be charged to the drive
battery.
l If you lift your foot off the accelerator
pedal during driving, a braking force that
is equivalent to engine braking of a com- bustion engine vehicle will be generated.
Also, if you shift the select position into “B” (BRAKE) from “D” (DRIVE), ef-
fectiveness of the regenerative braking is getting stronger. Shift the selector lever into “B” (BRAKE) position according to
the driving condition.
l When you depress the brake pedal, the
regenerative braking force may be in-creased.
l If a problem occurs in the Plug-in hybrid
EV system, or if the ABS and/or the
ASC have been activated, the regenera- tive braking will be restricted. The foot brake will still operate.
l When stronger regenerative braking is
generated, the stop lamps will illuminate even when the brake pedal is not de- pressed.Operation of gasoline engine
E00203700098
l Even when the vehicle is driving in EV
drive mode, it may be automatically
changed to series hybrid mode or paral-
lel hybrid mode in the following cases: • The plug-in hybrid EV system is too
hot or too cold.
• Quick acceleration is applied.
• The air conditioner is operating.
• The accelerator pedal is depressed
hard on an uphill road or expressway.
• In cold weather.
• The vehicle has not been refueled for
a long time.
• The drive battery level is low.
In addition to the above, there are more
cases where EV drive mode is automati-
cally changed to series or parallel hybrid mode.
l Even while the vehicle is stopped, the
engine may automatically be started in
the following cases: • The drive battery level is low.
• The plug-in hybrid EV system is too
hot or too cold.
• The air conditioner is used.
• The vehicle has not been used for a
long time.
• The engine has not been operated for a long time.
• Refuelling has not been performed for
a long time.
Plug-in Hybrid EV System
2-03OGGE17E1General information2

NOTElDepending on the usage of the vehicle, the
engine may not start for a long period of
time and unused fuel will remain in the fuel tank. Fuel can deteriorate over time, which
can adversely affect the engine and/or the
fuel system.
If the vehicle is not refueled with more than
15 litres at least once every 3 months, the engine will automatically start, while the ready indicator is illuminated, to help pre-vent deterioration of the fuel. At that time,
charging of the drive battery will start and the battery charge mode display will appear
on the information screen in the multi infor-
mation display. The charging will stop, how-
ever, before the drive battery is fully charg- ed.
The engine may also start even while the EV drive mode is selected or the vehicle is sta-
tionary.
To stop the engine from starting automati-
cally when the vehicle is operated on the drive battery power only for a long time,start the engine and drive the vehicle enough
to reduce the fuel level to approximately half
tank. Refill the fuel tank with at least 15 li- tres of unleaded petrol.Refueling (gasoline)
E00203800060
CAUTIONl If the warning display appears, refuel imme-
diately.
If the vehicle runs out of fuel, the engine will not start even in a situation need to be
generated electricity, the following condi- tions will occur.
• The driving performance falls (since only
the electrical power stored in the drive battery can be used for the driving).
• The heating performance is not available
(except vehicles with electric heater).
• The effectiveness of the heater is insuffi-
cient (vehicles with electric heater).
• The catalytic converter may be damaged
due to excessive high temperature.
Refer to “Filling the fuel tank” on page
2-15.
Refer to “Fuel remaining display screen” on page 6-10.CAUTIONl The fuel in the fuel tank may not be con-
sumed and it may stagnate for a long time
depending on the use situation of the vehi- cle, the quality of fuel may change, and it
may have a bad influence on the engine or the parts of a fuel system.
Observe the following instructions for pre-
vention.
• Press the battery charge mode switch to
start the engine within 3 months at once.
Refer to “Battery charge mode switch” on page 7-28.
• Refill the fuel more than 15 litres at once
within 3 months. If the fuel remaining dis-
play will be below half, you can refill the
fuel more than 15 litres certainly.
Refer to “Fuel remaining display screen” on page 6-10.Drive battery
E00205000066WARNINGlA sealed lithium ion high voltage battery
(drive battery) is adopted for OUTLAND-
ER PHEV . If the drive battery is disposed
of improperly, there is a risk of severe burns and electrical shock that may resultin serious injury or death and there is also
a risk of environmental damage.
l Never attempt to use the drive battery for
any other purpose.
Drive battery
2-04OGGE17E1General information2

lIt is the battery to operate the motor and
the air conditioning.
In addition to the drive battery, OUT-
LANDER PHEV has the auxiliary bat-
tery to operate lamps, wipers, etc.
l Compact, light-weight lithium ion bat-
tery with high energy density is used for the drive battery.
l The drive battery has the following char-
acteristics.
Please read this carefully paying atten-
tion to the following:
Characteristics
l The same as ordinary lithium-ion batter-
ies, the battery capacity of the drive bat-
tery gradually reduces with time. As the
drive battery capacity decreases, the ini- tial EV cruising range and the vehicle
performance will similarly decrease.
Depending on the usage conditions, such as frequent quick acceleration/decelera- tion, extremely hot weather, storing the
vehicle in high ambient temperatures, etc., the rate of battery capacity drop will
increase.
l The performance may be changed due to
the ambient temperature.
At low ambient temperature, in particu- lar, the EV cruising range is short and
the charging time is long, compared to operation at normal temperature. Also,charging may be stopped before com-
plete charging.
l When the ambient temperature lowers,
the engine will start frequently, even if there remains much power in the drive
battery.
l Because the engine starts frequently, the
fuel consumption will increase.
l The battery is gradually discharged with-
out use and the battery charge is low-
ered.
l It is not necessary to consume the bat-
tery completely before charging.Precautions for operation
l If your vehicle is not used for a long
time, check the drive battery level dis-
play every 3 months.
If the drive battery level display shows
0, charge the battery until some indica- tion appears. Alternatively, start the
Plug-in Hybrid EV System and turn on the ready indicator.
The engine will then automatically start to charge the drive battery.
Wait until the engine automatically
stops, then put the operation mode of the
power switch in OFF.
l MITSUBISHI
Motors collects drive bat-
teries. If you scrap your vehicle, please
consult a MITSUBISHI MOTORS Au-
thorized Service Point.
EV cruising range
E00205100025
lEven if the charge level is the same, the
EV cruising range may vary depending on driving conditions. Since driving at
high speed or climbing on a hill requires higher consumption of the drive batterythan usual, the EV cruising range is shortened.
EV cruising range
2-05OGGE17E1General information2
