MITSUBISHI OUTLANDER PHEV 2017 Owner's Manual (in English)

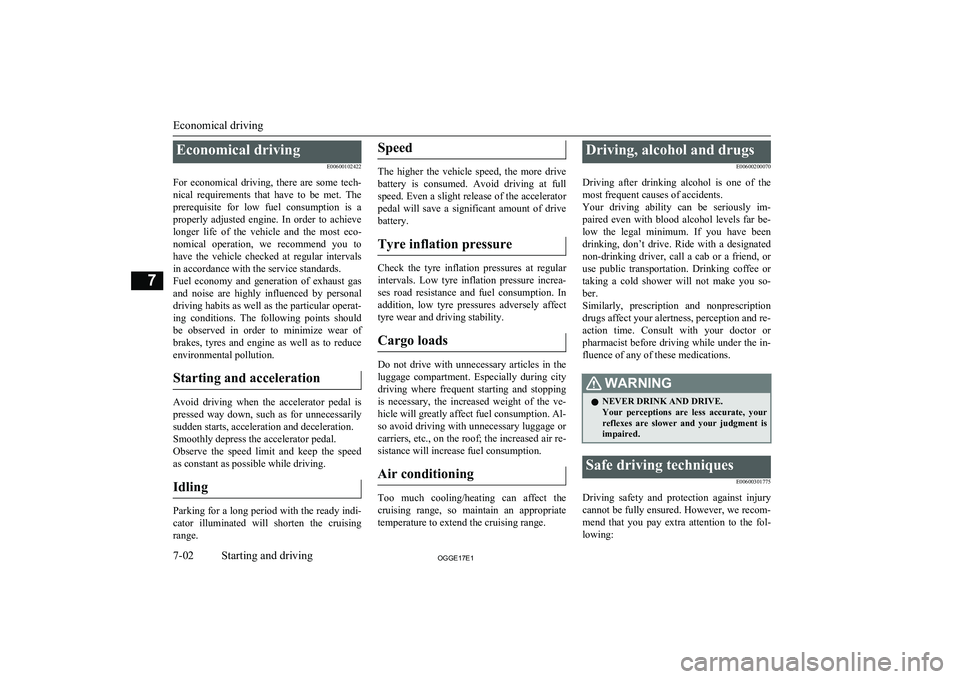

Economical drivingE00600102422
For economical driving, there are some tech- nical requirements that have to be met. Theprerequisite for low fuel consumption is a
properly adjusted engine. In order to achieve longer life of the vehicle and the most eco- nomical operation, we recommend you tohave the vehicle checked at regular intervals in accordance with the service standards.
Fuel economy and generation of exhaust gas
and noise are highly influenced by personal
driving habits as well as the particular operat- ing conditions. The following points shouldbe observed in order to minimize wear of
brakes, tyres and engine as well as to reduce
environmental pollution.
Starting and acceleration
Avoid driving when the accelerator pedal ispressed way down, such as for unnecessarily sudden starts, acceleration and deceleration.
Smoothly depress the accelerator pedal.
Observe the speed limit and keep the speed
as constant as possible while driving.
Idling
Parking for a long period with the ready indi-
cator illuminated will shorten the cruising
range.
Speed
The higher the vehicle speed, the more drive
battery is consumed. Avoid driving at full speed. Even a slight release of the accelerator
pedal will save a significant amount of drive battery.
Tyre inflation pressure
Check the tyre inflation pressures at regular intervals. Low tyre inflation pressure increa-ses road resistance and fuel consumption. In addition, low tyre pressures adversely affect
tyre wear and driving stability.
Cargo loads
Do not drive with unnecessary articles in the
luggage compartment. Especially during city
driving where frequent starting and stopping is necessary, the increased weight of the ve-
hicle will greatly affect fuel consumption. Al- so avoid driving with unnecessary luggage or carriers, etc., on the roof; the increased air re- sistance will increase fuel consumption.
Air conditioning
Too much cooling/heating can affect the cruising range, so maintain an appropriatetemperature to extend the cruising range.
Driving, alcohol and drugs
E00600200070
Driving after drinking alcohol is one of the
most frequent causes of accidents.
Your driving ability can be seriously im- paired even with blood alcohol levels far be-
low the legal minimum. If you have been drinking, don’t drive. Ride with a designated non-drinking driver, call a cab or a friend, or
use public transportation. Drinking coffee or
taking a cold shower will not make you so- ber.
Similarly, prescription and nonprescription
drugs affect your alertness, perception and re- action time. Consult with your doctor or
pharmacist before driving while under the in- fluence of any of these medications.WARNINGl NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your
reflexes are slower and your judgment is impaired.Safe driving techniques
E00600301775
Driving safety and protection against injury
cannot be fully ensured. However, we recom- mend that you pay extra attention to the fol-
lowing:
Economical driving
7-02OGGE17E1Starting and driving7

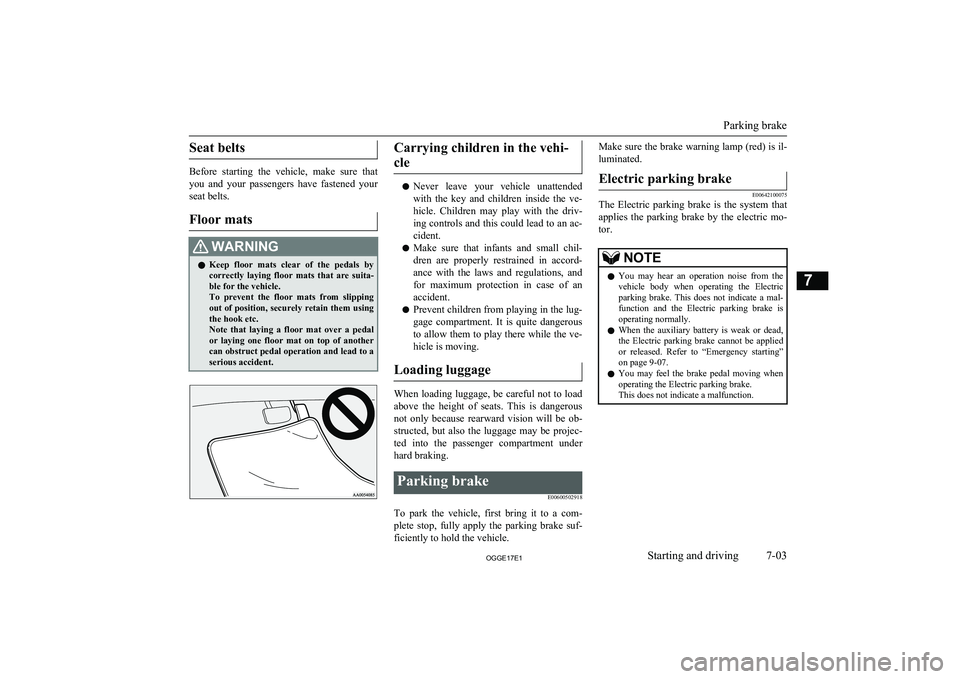

Seat belts
Before starting the vehicle, make sure that
you and your passengers have fastened your seat belts.
Floor mats
WARNINGl Keep floor mats clear of the pedals by
correctly laying floor mats that are suita-
ble for the vehicle.
To prevent the floor mats from slipping out of position, securely retain them usingthe hook etc.
Note that laying a floor mat over a pedal
or laying one floor mat on top of another can obstruct pedal operation and lead to a
serious accident.Carrying children in the vehi-
cle
l Never leave your vehicle unattended
with the key and children inside the ve-hicle. Children may play with the driv-
ing controls and this could lead to an ac- cident.
l Make sure that infants and small chil-
dren are properly restrained in accord-
ance with the laws and regulations, and
for maximum protection in case of an accident.
l Prevent children from playing in the lug-
gage compartment. It is quite dangerous
to allow them to play there while the ve- hicle is moving.
Loading luggage
When loading luggage, be careful not to load above the height of seats. This is dangerous
not only because rearward vision will be ob- structed, but also the luggage may be projec-ted into the passenger compartment underhard braking.
Parking brake
E00600502918
To park the vehicle, first bring it to a com-plete stop, fully apply the parking brake suf-
ficiently to hold the vehicle.
Make sure the brake warning lamp (red) is il-
luminated.Electric parking brake
E00642100075
The Electric parking brake is the system that
applies the parking brake by the electric mo- tor.
NOTEl You may hear an operation noise from the
vehicle body when operating the Electric
parking brake. This does not indicate a mal-
function and the Electric parking brake is operating normally.
l When the auxiliary battery is weak or dead,
the Electric parking brake cannot be applied
or released. Refer to “Emergency starting” on page 9-07.
l You may feel the brake pedal moving when
operating the Electric parking brake.
This does not indicate a malfunction.
Parking brake
7-03OGGE17E1Starting and driving7

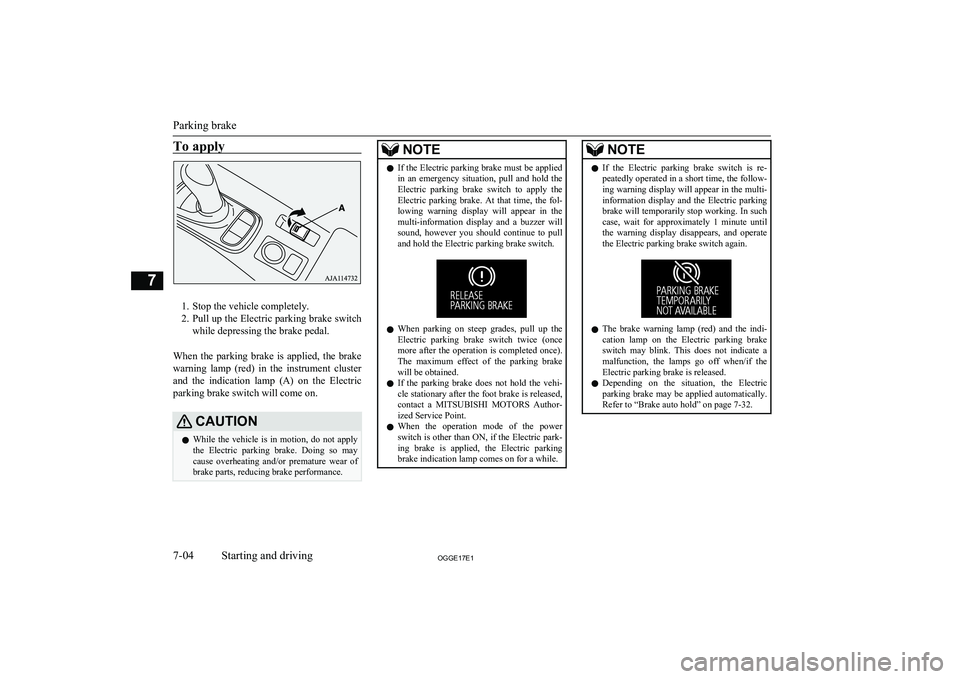

To apply
1. Stop the vehicle completely.
2. Pull up the Electric parking brake switch
while depressing the brake pedal.
When the parking brake is applied, the brake
warning lamp (red) in the instrument cluster and the indication lamp (A) on the Electric
parking brake switch will come on.
CAUTIONl While the vehicle is in motion, do not apply
the Electric parking brake. Doing so may cause overheating and/or premature wear of
brake parts, reducing brake performance.NOTEl If the Electric parking brake must be applied
in an emergency situation, pull and hold the
Electric parking brake switch to apply the
Electric parking brake. At that time, the fol- lowing warning display will appear in the
multi-information display and a buzzer will
sound, however you should continue to pull and hold the Electric parking brake switch.
l When parking on steep grades, pull up the
Electric parking brake switch twice (once
more after the operation is completed once).
The maximum effect of the parking brake will be obtained.
l If the parking brake does not hold the vehi-
cle stationary after the foot brake is released,
contact a MITSUBISHI MOTORS Author-
ized Service Point.
l When the operation mode of the power
switch is other than ON, if the Electric park- ing brake is applied, the Electric parking
brake indication lamp comes on for a while.
NOTEl If the Electric parking brake switch is re-
peatedly operated in a short time, the follow-
ing warning display will appear in the multi- information display and the Electric parkingbrake will temporarily stop working. In such
case, wait for approximately 1 minute until
the warning display disappears, and operate the Electric parking brake switch again.
l The brake warning lamp (red) and the indi-
cation lamp on the Electric parking brakeswitch may blink. This does not indicate a malfunction, the lamps go off when/if theElectric parking brake is released.
l Depending on the situation, the Electric
parking brake may be applied automatically.
Refer to “Brake auto hold” on page 7-32.
Parking brake
7-04OGGE17E1Starting and driving7

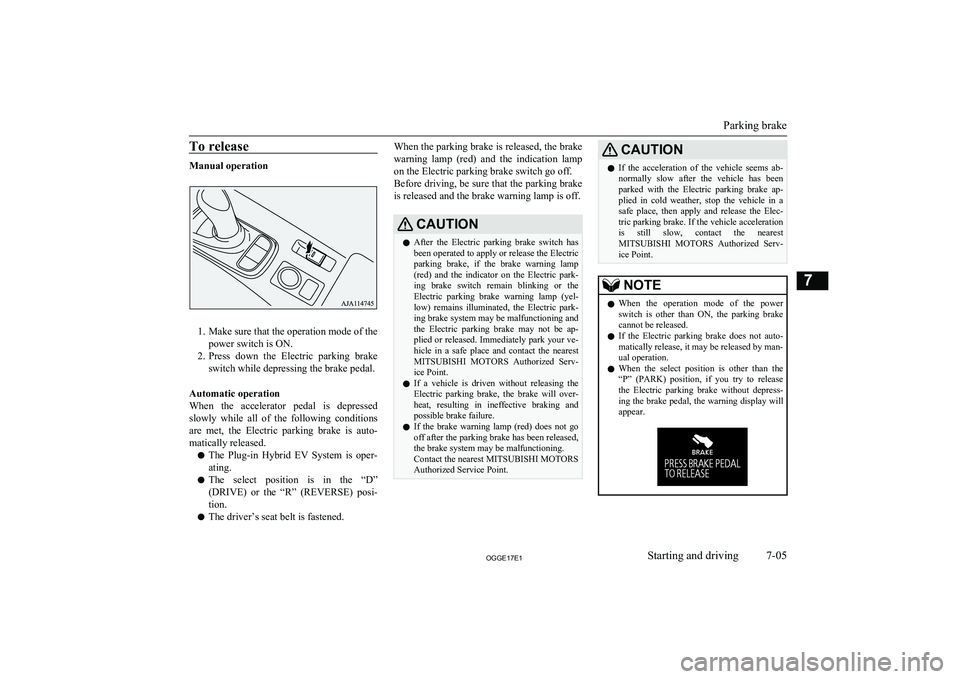

To release
Manual operation
1. Make sure that the operation mode of thepower switch is ON.
2. Press down the Electric parking brake
switch while depressing the brake pedal.
Automatic operation
When the accelerator pedal is depressed
slowly while all of the following conditions are met, the Electric parking brake is auto-
matically released.
l The Plug-in Hybrid EV System is oper-
ating.
l The select position is in the “D”
(DRIVE) or the “R” (REVERSE) posi-
tion.
l The driver’s seat belt is fastened.
When the parking brake is released, the brake
warning lamp (red) and the indication lamp on the Electric parking brake switch go off.
Before driving, be sure that the parking brake
is released and the brake warning lamp is off.CAUTIONl After the Electric parking brake switch has
been operated to apply or release the Electric parking brake, if the brake warning lamp
(red) and the indicator on the Electric park-
ing brake switch remain blinking or the Electric parking brake warning lamp (yel-
low) remains illuminated, the Electric park- ing brake system may be malfunctioning and
the Electric parking brake may not be ap- plied or released. Immediately park your ve-
hicle in a safe place and contact the nearest MITSUBISHI MOTORS Authorized Serv-
ice Point.
l If a vehicle is driven without releasing the
Electric parking brake, the brake will over-
heat, resulting in ineffective braking and possible brake failure.
l If the brake warning lamp (red) does not go
off after the parking brake has been released,the brake system may be malfunctioning.
Contact the nearest MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl If the acceleration of the vehicle seems ab-
normally slow after the vehicle has been parked with the Electric parking brake ap-
plied in cold weather, stop the vehicle in a
safe place, then apply and release the Elec- tric parking brake. If the vehicle acceleration is still slow, contact the nearest
MITSUBISHI MOTORS Authorized Serv-
ice Point.NOTEl When the operation mode of the power
switch is other than ON, the parking brake
cannot be released.
l If the Electric parking brake does not auto-
matically release, it may be released by man-ual operation.
l When the select position is other than the
“P” (PARK) position, if you try to releasethe Electric parking brake without depress-
ing the brake pedal, the warning display will appear.
Parking brake
7-05OGGE17E1Starting and driving7

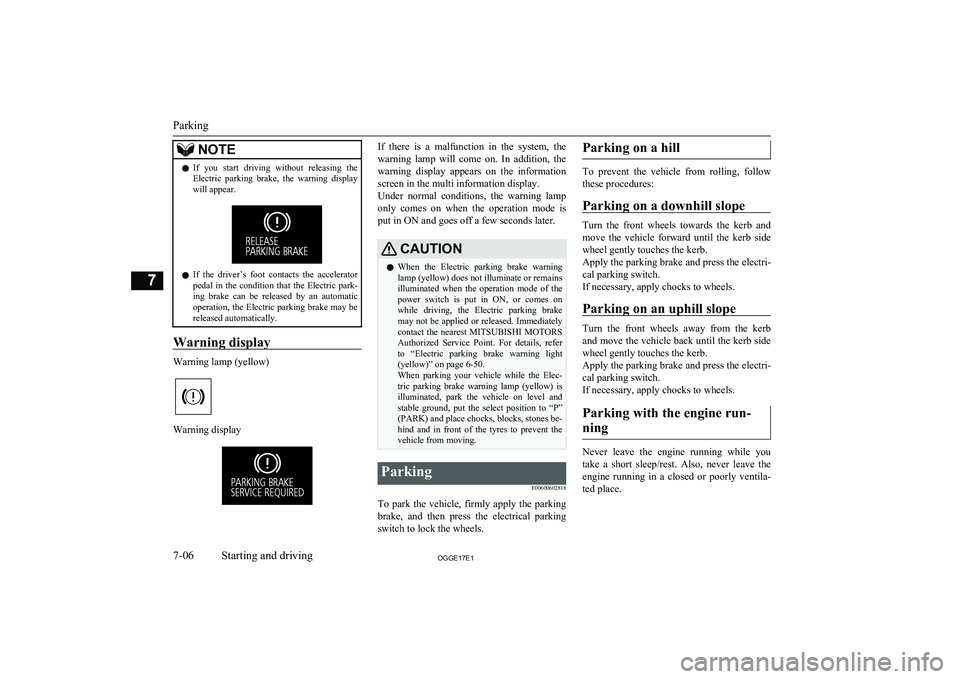

NOTElIf you start driving without releasing the
Electric parking brake, the warning display
will appear.
l If the driver’s foot contacts the accelerator
pedal in the condition that the Electric park-
ing brake can be released by an automatic
operation, the Electric parking brake may be released automatically.
Warning display
Warning lamp (yellow)
Warning display
If there is a malfunction in the system, the
warning lamp will come on. In addition, thewarning display appears on the information
screen in the multi information display.
Under normal conditions, the warning lamp
only comes on when the operation mode is put in ON and goes off a few seconds later.CAUTIONl When the Electric parking brake warning
lamp (yellow) does not illuminate or remainsilluminated when the operation mode of the
power switch is put in ON, or comes on while driving, the Electric parking brake
may not be applied or released. Immediately contact the nearest MITSUBISHI MOTORS
Authorized Service Point. For details, refer
to “Electric parking brake warning light (yellow)” on page 6-50.
When parking your vehicle while the Elec-
tric parking brake warning lamp (yellow) is illuminated, park the vehicle on level and stable ground, put the select position to “P”(PARK) and place chocks, blocks, stones be-
hind and in front of the tyres to prevent the vehicle from moving.Parking
E00600602818
To park the vehicle, firmly apply the parkingbrake, and then press the electrical parking
switch to lock the wheels.
Parking on a hill
To prevent the vehicle from rolling, follow
these procedures:
Parking on a downhill slope
Turn the front wheels towards the kerb and move the vehicle forward until the kerb side wheel gently touches the kerb.
Apply the parking brake and press the electri-
cal parking switch.
If necessary, apply chocks to wheels.
Parking on an uphill slope
Turn the front wheels away from the kerb
and move the vehicle back until the kerb side wheel gently touches the kerb.
Apply the parking brake and press the electri-
cal parking switch.
If necessary, apply chocks to wheels.
Parking with the engine run- ning
Never leave the engine running while you
take a short sleep/rest. Also, never leave the engine running in a closed or poorly ventila-
ted place.
Parking
7-06OGGE17E1Starting and driving7

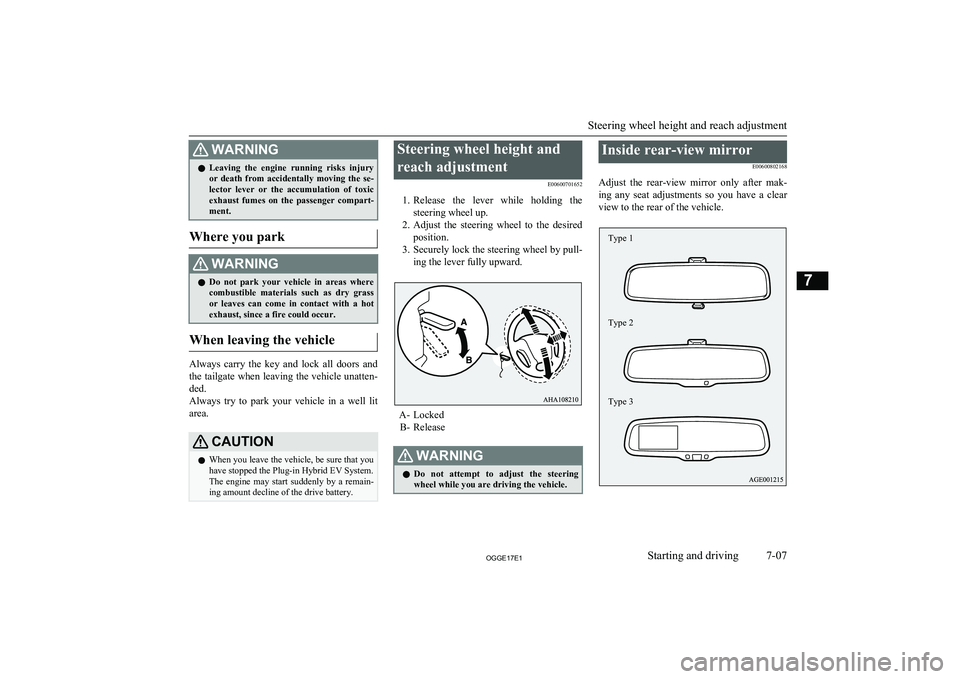

WARNINGlLeaving the engine running risks injury
or death from accidentally moving the se-
lector lever or the accumulation of toxic
exhaust fumes on the passenger compart- ment.
Where you park
WARNINGl Do not park your vehicle in areas where
combustible materials such as dry grass
or leaves can come in contact with a hot exhaust, since a fire could occur.
When leaving the vehicle
Always carry the key and lock all doors and
the tailgate when leaving the vehicle unatten-
ded.
Always try to park your vehicle in a well lit
area.
CAUTIONl When you leave the vehicle, be sure that you
have stopped the Plug-in Hybrid EV System.
The engine may start suddenly by a remain-
ing amount decline of the drive battery.Steering wheel height and
reach adjustment E00600701652
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
3. Securely lock the steering wheel by pull-
ing the lever fully upward.
A- Locked B- Release
WARNINGl Do not attempt to adjust the steering
wheel while you are driving the vehicle.Inside rear-view mirror
E00600802168
Adjust the rear-view mirror only after mak-
ing any seat adjustments so you have a clear
view to the rear of the vehicle.
Steering wheel height and reach adjustment
7-07OGGE17E1Starting and driving7 Type 1
Type 2
Type 3

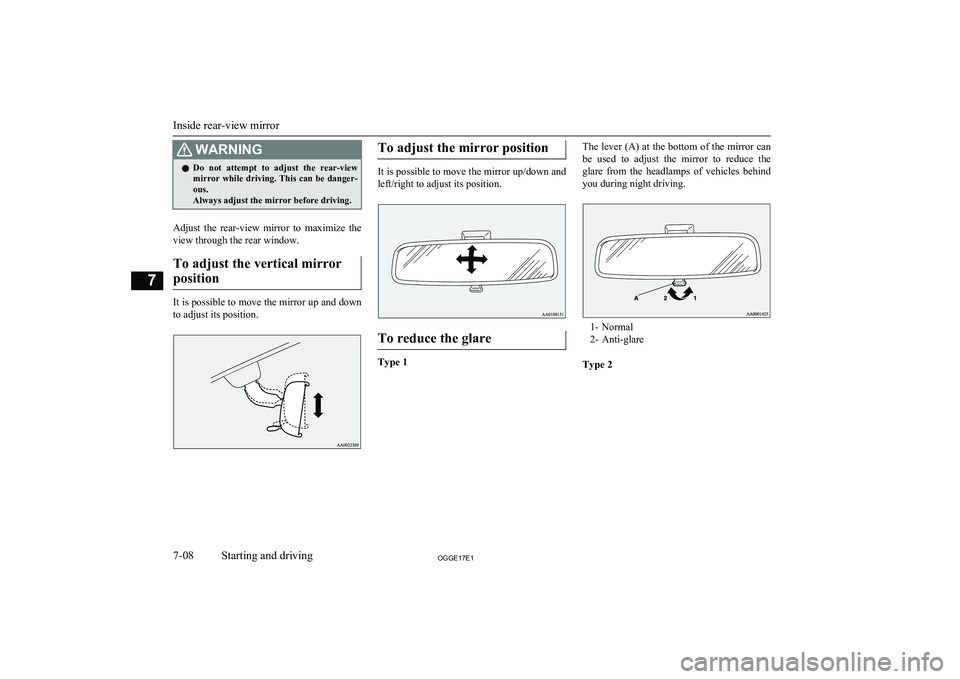

WARNINGlDo not attempt to adjust the rear-view
mirror while driving. This can be danger-
ous.
Always adjust the mirror before driving.
Adjust the rear-view mirror to maximize the
view through the rear window.
To adjust the vertical mirror position
It is possible to move the mirror up and down
to adjust its position.
To adjust the mirror position
It is possible to move the mirror up/down and
left/right to adjust its position.
To reduce the glare
Type 1
The lever (A) at the bottom of the mirror can be used to adjust the mirror to reduce the
glare from the headlamps of vehicles behind
you during night driving.
1- Normal
2- Anti-glare
Type 2
Inside rear-view mirror
7-08OGGE17E1Starting and driving7

When the headlamps of the vehicles behindyou are very bright, the reflection factor ofthe rear-view mirror is automatically changed
to reduce the glare.
When the operation mode of the power
switch is put in ON, the reflection factor of the mirror is automatically changed.
NOTEl Do not hang items on, or spray glass cleaner
on the sensor (1), as reduced sensitivitycould result.
Type 3

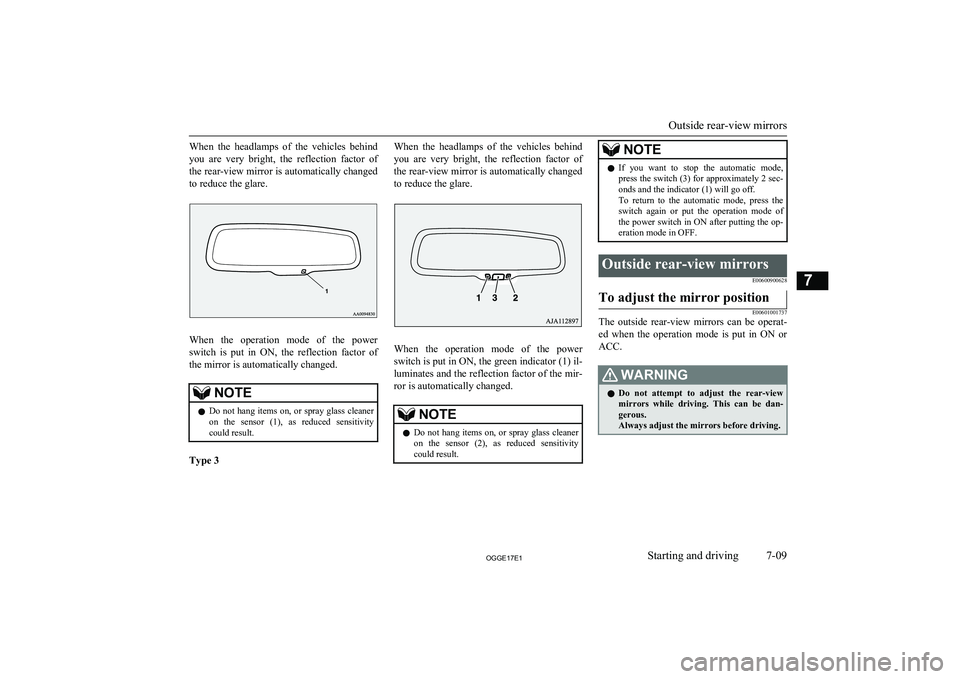

When the headlamps of the vehicles behind
you are very bright, the reflection factor ofthe rear-view mirror is automatically changed
to reduce the glare.
When the operation mode of the power
switch is put in ON, the green indicator (1) il- luminates and the reflection factor of the mir-ror is automatically changed.
NOTEl Do not hang items on, or spray glass cleaner
on the sensor (2), as reduced sensitivitycould result.NOTEl If you want to stop the automatic mode,
press the switch (3) for approximately 2 sec- onds and the indicator (1) will go off.
To return to the automatic mode, press the
switch again or put the operation mode of the power switch in ON after putting the op- eration mode in OFF.Outside rear-view mirrors
E00600900628To adjust the mirror position
E00601001737
The outside rear-view mirrors can be operat-
ed when the operation mode is put in ON or ACC.
WARNINGl Do not attempt to adjust the rear-view
mirrors while driving. This can be dan-
gerous.
Always adjust the mirrors before driving.
Outside rear-view mirrors
7-09OGGE17E1Starting and driving7

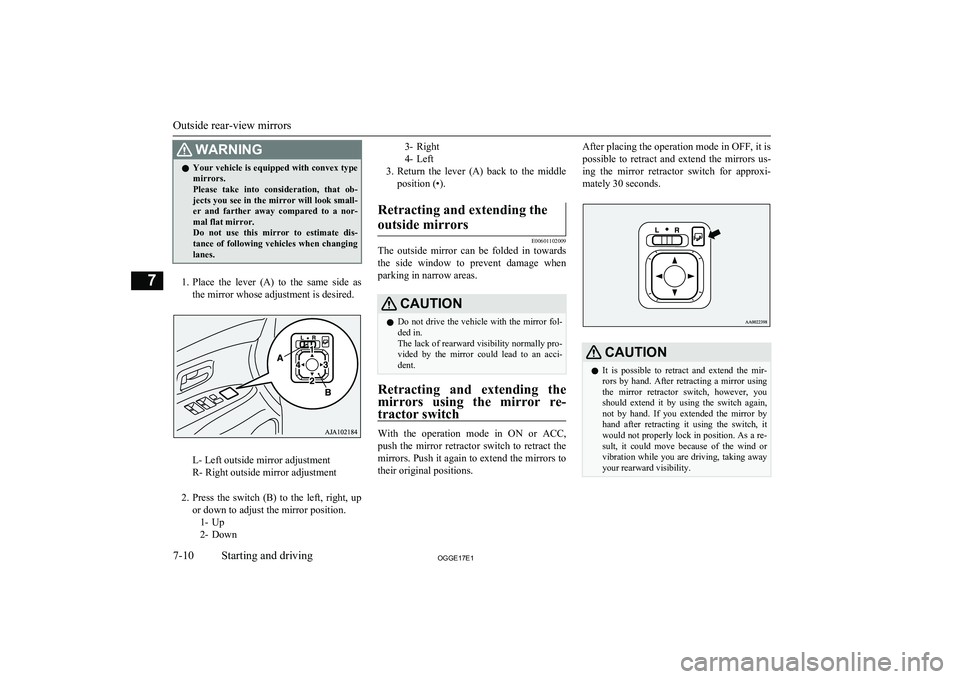

WARNINGlYour vehicle is equipped with convex type
mirrors.
Please take into consideration, that ob- jects you see in the mirror will look small-er and farther away compared to a nor-mal flat mirror.
Do not use this mirror to estimate dis-
tance of following vehicles when changing lanes.
1. Place the lever (A) to the same side as
the mirror whose adjustment is desired.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
2. Press the switch (B) to the left, right, up
or down to adjust the mirror position. 1- Up
2- Down
3- Right
4- Left
3. Return the lever (A) back to the middle
position (•).Retracting and extending the
outside mirrors
E00601102009
The outside mirror can be folded in towards the side window to prevent damage when
parking in narrow areas.
CAUTIONl Do not drive the vehicle with the mirror fol-
ded in.
The lack of rearward visibility normally pro-
vided by the mirror could lead to an acci- dent.
Retracting and extending the
mirrors using the mirror re- tractor switch
With the operation mode in ON or ACC,push the mirror retractor switch to retract the
mirrors. Push it again to extend the mirrors to their original positions.
After placing the operation mode in OFF, it is
possible to retract and extend the mirrors us-
ing the mirror retractor switch for approxi-
mately 30 seconds.CAUTIONl It is possible to retract and extend the mir-
rors by hand. After retracting a mirror using
the mirror retractor switch, however, you should extend it by using the switch again,
not by hand. If you extended the mirror by
hand after retracting it using the switch, it would not properly lock in position. As a re-
sult, it could move because of the wind or
vibration while you are driving, taking away your rearward visibility.
Outside rear-view mirrors
7-10OGGE17E1Starting and driving7

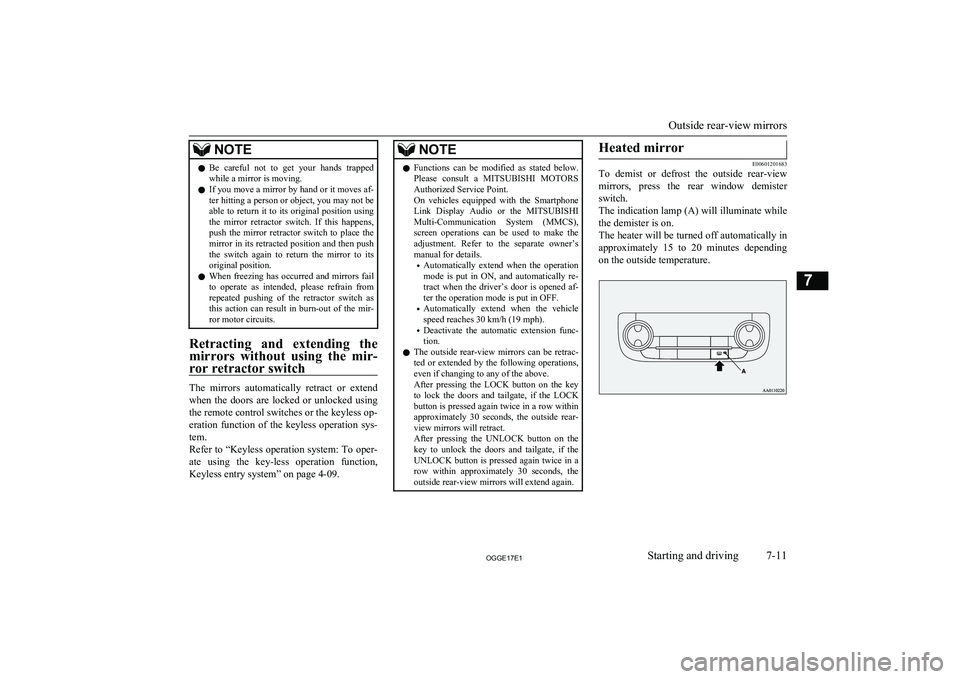

NOTElBe careful not to get your hands trapped
while a mirror is moving.
l If you move a mirror by hand or it moves af-
ter hitting a person or object, you may not be
able to return it to its original position using the mirror retractor switch. If this happens,
push the mirror retractor switch to place the mirror in its retracted position and then push
the switch again to return the mirror to its original position.
l When freezing has occurred and mirrors fail
to operate as intended, please refrain from repeated pushing of the retractor switch as
this action can result in burn-out of the mir- ror motor circuits.
Retracting and extending the
mirrors without using the mir- ror retractor switch
The mirrors automatically retract or extendwhen the doors are locked or unlocked using the remote control switches or the keyless op-eration function of the keyless operation sys-
tem.
Refer to “Keyless operation system: To oper-
ate using the key-less operation function, Keyless entry system” on page 4-09.
NOTEl Functions can be modified as stated below.
Please consult a MITSUBISHI MOTORS
Authorized Service Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
• Automatically extend when the operation
mode is put in ON, and automatically re- tract when the driver’s door is opened af- ter the operation mode is put in OFF.
• Automatically extend when the vehicle
speed reaches 30 km/h (19 mph).
• Deactivate the automatic extension func-
tion.
l The outside rear-view mirrors can be retrac-
ted or extended by the following operations,even if changing to any of the above.
After pressing the LOCK button on the key
to lock the doors and tailgate, if the LOCK button is pressed again twice in a row within approximately 30 seconds, the outside rear-view mirrors will retract.
After pressing the UNLOCK button on the
key to unlock the doors and tailgate, if the
UNLOCK button is pressed again twice in a row within approximately 30 seconds, the outside rear-view mirrors will extend again.Heated mirror
E00601201683
To demist or defrost the outside rear-view
mirrors, press the rear window demister
switch.
The indication lamp (A) will illuminate while the demister is on.
The heater will be turned off automatically in
approximately 15 to 20 minutes depending
on the outside temperature.
Outside rear-view mirrors
7-11OGGE17E1Starting and driving7
