CAUTIONlControl of the braking force does not en-
hance the stopping performance of the vehi-
cle, therefore, pay careful attention to the safety of your surroundings when driving.
Left-right differential limiting
function
The left-right differential limiting function is
a function that enhances driving performance and vehicle stability by preventing idle spin-
ning of a wheel when driving on a slippery road or when the road surfaces of left andright wheels are different.
Yaw control function
The yaw control function is a function thatenhances vehicle cornering performance and vehicle stability with management of vehicle
turning power (yaw moment) by controlling the brake force when the vehicle does not
turn in response to steering input, such as
when the steering wheel is turned quickly or when driving on a slippery road.
4WD lock switch
E00637000063
If the 4WD lock switch is pressed when the
power mode is “ON”, it will switch to “4WD LOCK.”
It can be used from a low-speed to high-
speed operation, and the driving stability im- proves on a wet road surface or a snowyroad, etc.
If the 4WD lock switch is pressed once again, it will return to “NORMAL”.
When the 4WD LOCK mode is activated, the
following display appears on the information
screen in the multi-information display for a few seconds.
CAUTIONl Use tyres of the same specified size, same
type, same brand and with no wear differ- ence. If tyres of a different size, type, brandor degree of wear are used, a warning of EVsystem abnormality may be displayed.S-AWC operation display
E00623101217
The S-AWC operation status can be dis-
played on the information screen in the multi-
information display.
To display the status, press the multi-infor-
mation display switch to change the informa- tion screen.
Refer to “Information screen (when the oper- ation mode is ON)” on page 6-08.
Display example
The S-AWC operation status is displayed.
S-AWC (Super All Wheel Control)
7-22OGGE17E1Starting and driving7

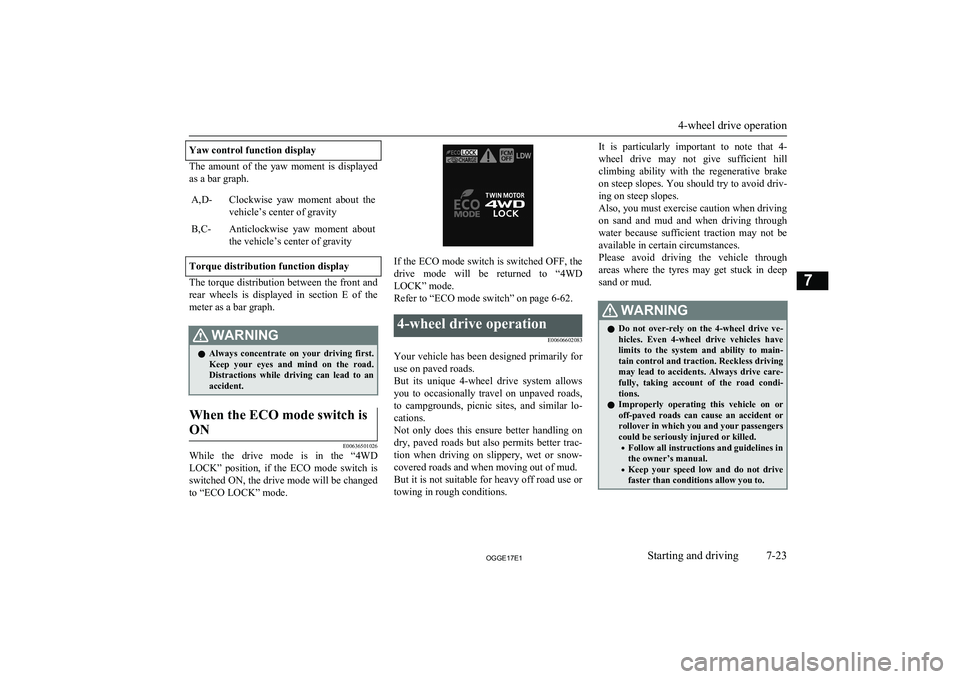

Yaw control function display
The amount of the yaw moment is displayed
as a bar graph.
A,D-Clockwise yaw moment about the vehicle’s center of gravityB,C-Anticlockwise yaw moment about
the vehicle’s center of gravity
Torque distribution function display
The torque distribution between the front and rear wheels is displayed in section E of the
meter as a bar graph.
WARNINGl Always concentrate on your driving first.
Keep your eyes and mind on the road.
Distractions while driving can lead to an accident.When the ECO mode switch is
ON
E00636501026
While the drive mode is in the “4WD
LOCK” position, if the ECO mode switch is switched ON, the drive mode will be changed to “ECO LOCK” mode.
If the ECO mode switch is switched OFF, the
drive mode will be returned to “4WD LOCK” mode.
Refer to “ECO mode switch” on page 6-62.
4-wheel drive operation
E00606602083
Your vehicle has been designed primarily foruse on paved roads.
But its unique 4-wheel drive system allows
you to occasionally travel on unpaved roads, to campgrounds, picnic sites, and similar lo-
cations.
Not only does this ensure better handling on
dry, paved roads but also permits better trac-
tion when driving on slippery, wet or snow- covered roads and when moving out of mud.
But it is not suitable for heavy off road use or
towing in rough conditions.
It is particularly important to note that 4-
wheel drive may not give sufficient hill
climbing ability with the regenerative brake on steep slopes. You should try to avoid driv- ing on steep slopes.
Also, you must exercise caution when driving on sand and mud and when driving through
water because sufficient traction may not be
available in certain circumstances.
Please avoid driving the vehicle through
areas where the tyres may get stuck in deep sand or mud.WARNINGl Do not over-rely on the 4-wheel drive ve-
hicles. Even 4-wheel drive vehicles have
limits to the system and ability to main- tain control and traction. Reckless driving may lead to accidents. Always drive care-
fully, taking account of the road condi-
tions.
l Improperly operating this vehicle on or
off-paved roads can cause an accident or
rollover in which you and your passengers
could be seriously injured or killed.
• Follow all instructions and guidelines in
the owner’s manual.
• Keep your speed low and do not drive
faster than conditions allow you to.
4-wheel drive operation
7-23OGGE17E1Starting and driving7

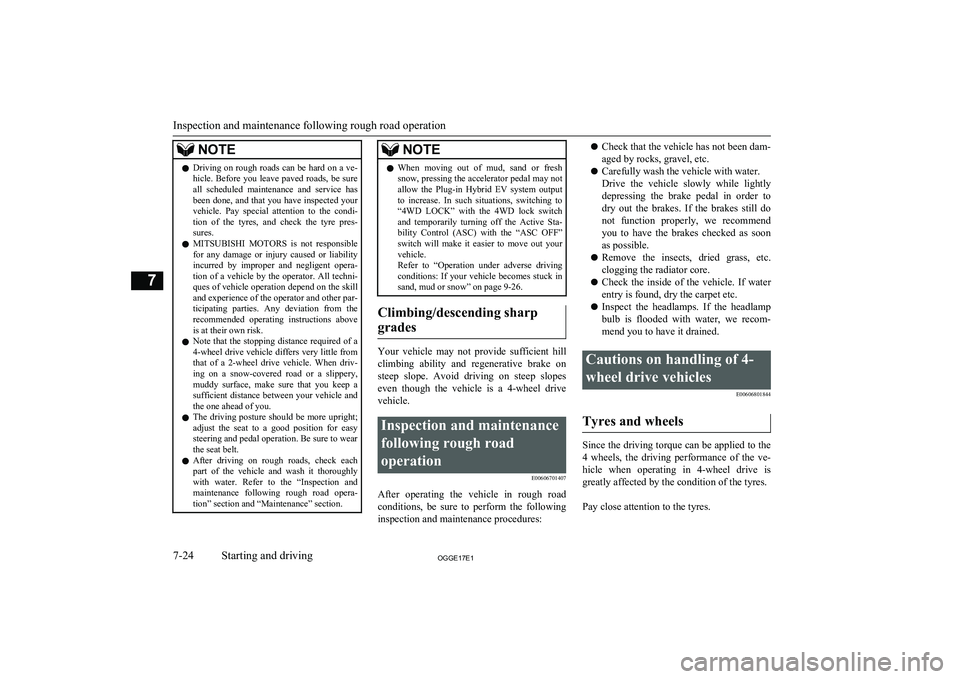

NOTElDriving on rough roads can be hard on a ve-
hicle. Before you leave paved roads, be sure all scheduled maintenance and service has
been done, and that you have inspected your vehicle. Pay special attention to the condi- tion of the tyres, and check the tyre pres-
sures.
l MITSUBISHI
MOTORS is not responsible
for any damage or injury caused or liability
incurred by improper and negligent opera- tion of a vehicle by the operator. All techni-
ques of vehicle operation depend on the skill and experience of the operator and other par- ticipating parties. Any deviation from the
recommended operating instructions above is at their own risk.
l Note that the stopping distance required of a
4-wheel drive vehicle differs very little from
that of a 2-wheel drive vehicle. When driv- ing on a snow-covered road or a slippery,muddy surface, make sure that you keep a
sufficient distance between your vehicle and
the one ahead of you.
l The driving posture should be more upright;
adjust the seat to a good position for easy steering and pedal operation. Be sure to wear
the seat belt.
l After driving on rough roads, check each
part of the vehicle and wash it thoroughlywith water. Refer to the “Inspection andmaintenance following rough road opera-
tion” section and “Maintenance” section.NOTEl When moving out of mud, sand or fresh
snow, pressing the accelerator pedal may not
allow the Plug-in Hybrid EV system output to increase. In such situations, switching to
“4WD LOCK” with the 4WD lock switch and temporarily turning off the Active Sta- bility Control (ASC) with the “ASC OFF”
switch will make it easier to move out your vehicle.
Refer to “Operation under adverse driving
conditions: If your vehicle becomes stuck in sand, mud or snow” on page 9-26.
Climbing/descending sharp
grades
Your vehicle may not provide sufficient hill
climbing ability and regenerative brake on steep slope. Avoid driving on steep slopes
even though the vehicle is a 4-wheel drive vehicle.
Inspection and maintenance
following rough roadoperation E00606701407
After operating the vehicle in rough road
conditions, be sure to perform the following inspection and maintenance procedures:
l Check that the vehicle has not been dam-
aged by rocks, gravel, etc.
l Carefully wash the vehicle with water.
Drive the vehicle slowly while lightly
depressing the brake pedal in order to dry out the brakes. If the brakes still do
not function properly, we recommend you to have the brakes checked as soon
as possible.
l Remove the insects, dried grass, etc.
clogging the radiator core.
l Check the inside of the vehicle. If water
entry is found, dry the carpet etc.
l Inspect the headlamps. If the headlamp
bulb is flooded with water, we recom-
mend you to have it drained.Cautions on handling of 4-
wheel drive vehicles E00606801844
Tyres and wheels
Since the driving torque can be applied to the
4 wheels, the driving performance of the ve- hicle when operating in 4-wheel drive is
greatly affected by the condition of the tyres.

Pay close attention to the tyres.
Inspection and maintenance following rough road operation
7-24OGGE17E1Starting and driving7

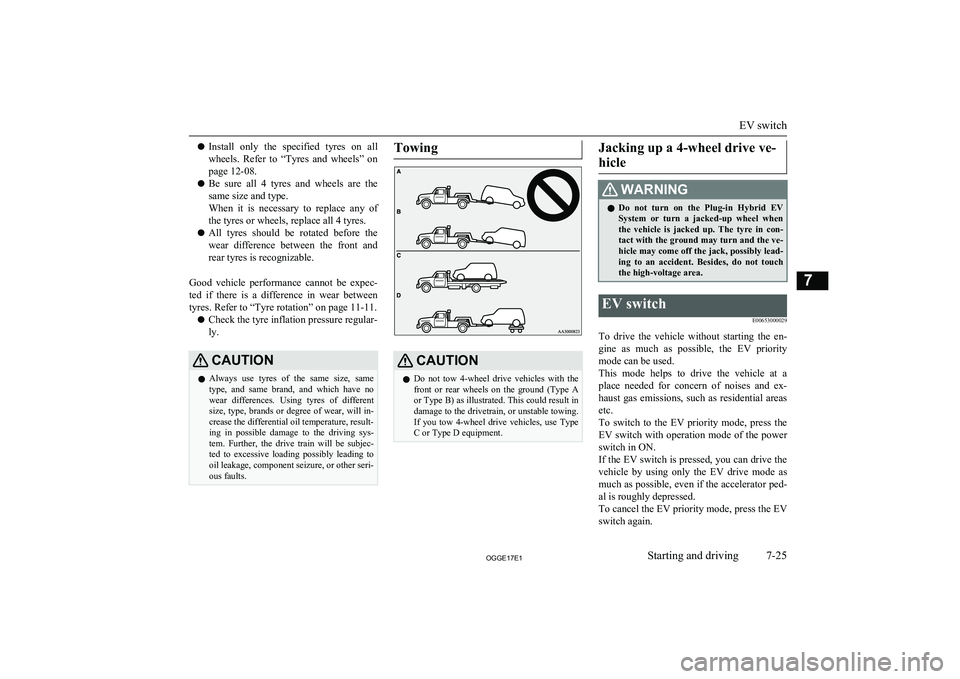

lInstall only the specified tyres on all
wheels. Refer to “Tyres and wheels” on page 12-08.
l Be sure all 4 tyres and wheels are the
same size and type.
When it is necessary to replace any of
the tyres or wheels, replace all 4 tyres.
l All tyres should be rotated before the
wear difference between the front and
rear tyres is recognizable.
Good vehicle performance cannot be expec- ted if there is a difference in wear between tyres. Refer to “Tyre rotation” on page 11-11.
l Check the tyre inflation pressure regular-
ly.CAUTIONl Always use tyres of the same size, same
type, and same brand, and which have no
wear differences. Using tyres of different size, type, brands or degree of wear, will in-
crease the differential oil temperature, result-
ing in possible damage to the driving sys- tem. Further, the drive train will be subjec-
ted to excessive loading possibly leading to oil leakage, component seizure, or other seri-
ous faults.TowingCAUTIONl Do not tow 4-wheel drive vehicles with the
front or rear wheels on the ground (Type Aor Type B) as illustrated. This could result in
damage to the drivetrain, or unstable towing. If you tow 4-wheel drive vehicles, use Type
C or Type D equipment.Jacking up a 4-wheel drive ve-
hicleWARNINGl Do not turn on the Plug-in Hybrid EV
System or turn a jacked-up wheel whenthe vehicle is jacked up. The tyre in con-
tact with the ground may turn and the ve- hicle may come off the jack, possibly lead-
ing to an accident. Besides, do not touch
the high-voltage area.EV switch
E00653000029
To drive the vehicle without starting the en-
gine as much as possible, the EV priority mode can be used.
This mode helps to drive the vehicle at a place needed for concern of noises and ex-
haust gas emissions, such as residential areas etc.
To switch to the EV priority mode, press the
EV switch with operation mode of the power switch in ON.
If the EV switch is pressed, you can drive the vehicle by using only the EV drive mode as much as possible, even if the accelerator ped-
al is roughly depressed.
To cancel the EV priority mode, press the EV
switch again.
EV switch
7-25OGGE17E1Starting and driving7

When the operation mode of the power
switch is put in OFF, the EV priority mode will be cancelled.

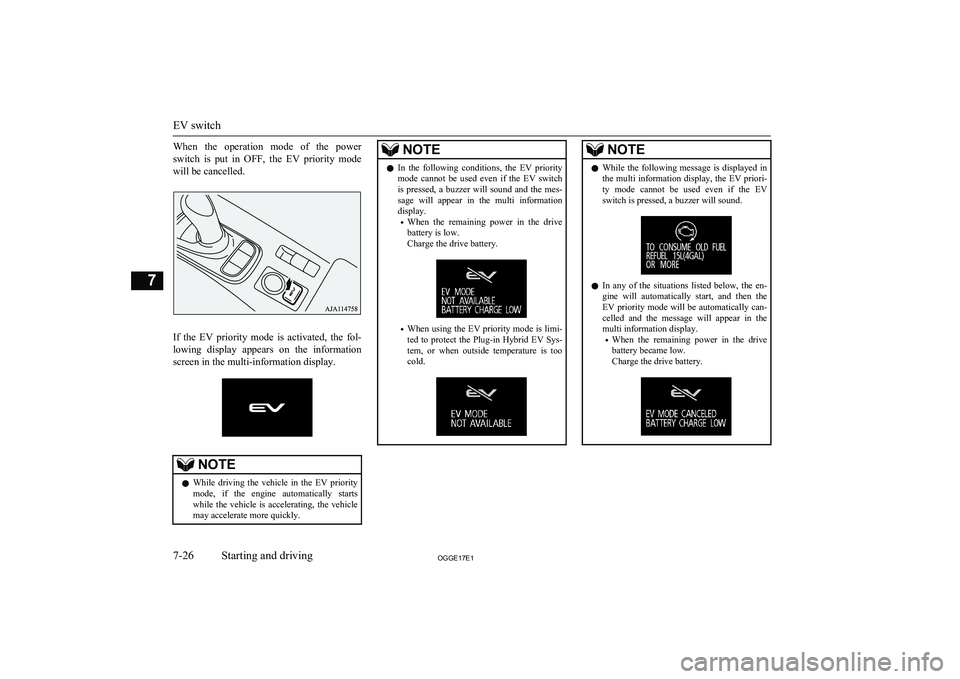

If the EV priority mode is activated, the fol-lowing display appears on the information
screen in the multi-information display.
NOTEl While driving the vehicle in the EV priority
mode, if the engine automatically startswhile the vehicle is accelerating, the vehicle
may accelerate more quickly.NOTEl In the following conditions, the EV priority
mode cannot be used even if the EV switch
is pressed, a buzzer will sound and the mes-
sage will appear in the multi information
display.
• When the remaining power in the drive
battery is low.
Charge the drive battery.
• When using the EV priority mode is limi-
ted to protect the Plug-in Hybrid EV Sys- tem, or when outside temperature is toocold.
NOTEl While the following message is displayed in
the multi information display, the EV priori- ty mode cannot be used even if the EV
switch is pressed, a buzzer will sound.
l In any of the situations listed below, the en-
gine will automatically start, and then the EV priority mode will be automatically can-celled and the message will appear in the
multi information display.
• When the remaining power in the drive
battery became low.
Charge the drive battery.
EV switch
7-26OGGE17E1Starting and driving7

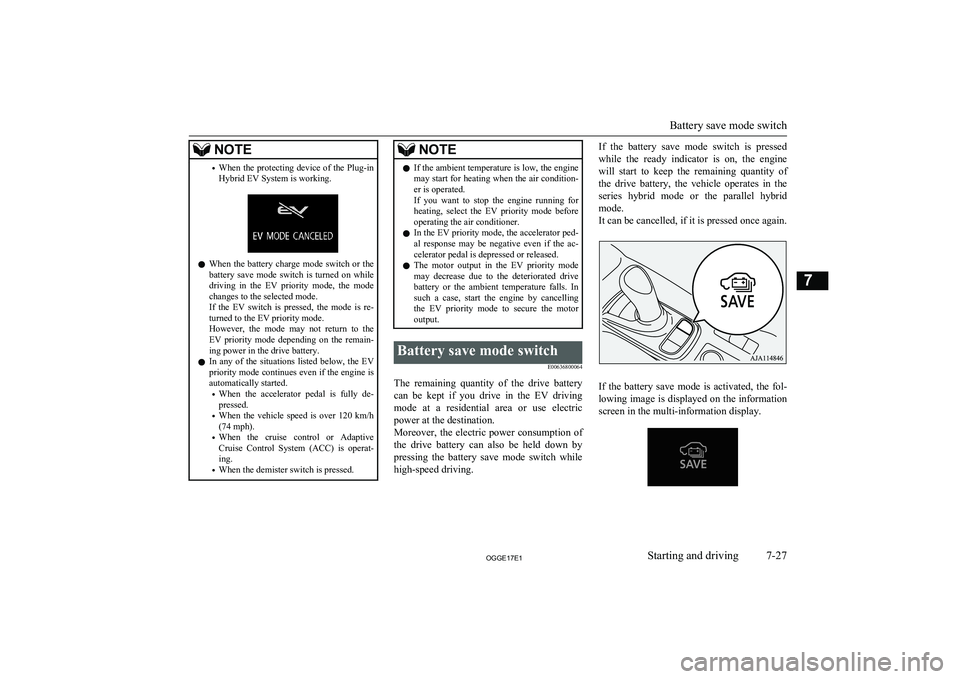

NOTE•When the protecting device of the Plug-in
Hybrid EV System is working.
l When the battery charge mode switch or the
battery save mode switch is turned on while
driving in the EV priority mode, the mode changes to the selected mode.
If the EV switch is pressed, the mode is re- turned to the EV priority mode.
However, the mode may not return to the
EV priority mode depending on the remain- ing power in the drive battery.
l In any of the situations listed below, the EV
priority mode continues even if the engine is automatically started.
• When the accelerator pedal is fully de-
pressed.
• When the vehicle speed is over 120 km/h
(74 mph).
• When the cruise control or Adaptive
Cruise Control System (ACC) is operat-
ing.
• When the demister switch is pressed.
NOTEl If the ambient temperature is low, the engine
may start for heating when the air condition- er is operated.
If you want to stop the engine running for heating, select the EV priority mode before
operating the air conditioner.
l In the EV priority mode, the accelerator ped-
al response may be negative even if the ac-
celerator pedal is depressed or released.
l The motor output in the EV priority mode
may decrease due to the deteriorated drive
battery or the ambient temperature falls. In such a case, start the engine by cancelling
the EV priority mode to secure the motor output.Battery save mode switch

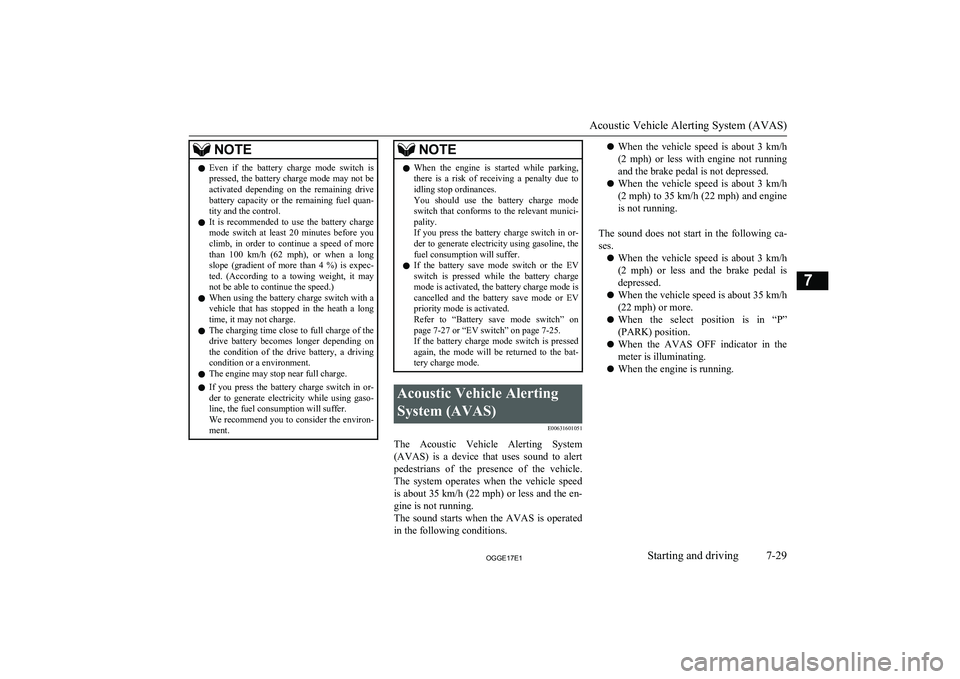

E00636800064
The remaining quantity of the drive battery
can be kept if you drive in the EV driving mode at a residential area or use electric
power at the destination.
Moreover, the electric power consumption of
the drive battery can also be held down by
pressing the battery save mode switch while high-speed driving.
If the battery save mode switch is pressed
while the ready indicator is on, the engine will start to keep the remaining quantity of
the drive battery, the vehicle operates in the series hybrid mode or the parallel hybrid mode.
It can be cancelled, if it is pressed once again.
If the battery save mode is activated, the fol-
lowing image is displayed on the information
screen in the multi-information display.
Battery save mode switch
7-27OGGE17E1Starting and driving7

NOTElThe engine may stop when the vehicle stops
or is running.
l Even if the battery save mode switch is
pressed, the battery save mode may not beactivated depending on the remaining drive
battery capacity or the remaining fuel quan- tity.
l When the battery charge mode switch or the
EV switch is turned on while driving in the
battery save mode, the mode changes to se- lected mode.
Refer to “Battery charge mode switch” on page 7-28 or “EV switch” on page 7-25.
If the battery save mode switch is pressed,
the mode is returned to the battery save mode.Battery charge mode switch
E00636900065
It can be used when increasing the remainingquantity of the drive battery.
Use the battery charge mode switch before
driving at long up hills, such as mountains with a steep slope.
By charging the drive battery before driving, it becomes possible to continue hill-climbing
performance (driving force).
If the battery charge mode switch is pressed
while the ready indicator is on, the engine
will start and it can charge the drive battery
to near the full charge during the vehicle is run and stopped.
It can be cancelled if pressed once again.
If the battery charge mode is activated, the
following image is displayed on the informa-
tion screen in the multi-information display.
WARNINGl When you leave the vehicle, be sure that
you have stopped the Plug-in Hybrid EV
System. Refer to “Parking” on page 7-06.
l Since the engine will start also in the vehi-
cle stops if the battery charge mode
switch is pressed, do not use it for the around of the garage or the vehicle in the
situation such as snow lay etc. while stop- ping and parking.
Doing so, the exhaust gas enters into the vehicle and there is a possibility of becom-
ing carbon monoxide poisoning.
Be sure to use at the well-ventilated place.
l Do not use the battery charge switch near
flammable objects such as dried grass or
a paper etc.
There is a possibility of becoming a fire
because the exhaust pipe is high tempera-
ture.CAUTIONl While the battery charge mode is activated,
do not cover the front of the vehicle withanything including a car cover. Doing so
could cause the engine to overheat.NOTEl Use the battery charge mode switch before
the uphill climb.
Battery charge mode switch
7-28OGGE17E1Starting and driving7

NOTElEven if the battery charge mode switch is
pressed, the battery charge mode may not beactivated depending on the remaining drive
battery capacity or the remaining fuel quan- tity and the control.
l It is recommended to use the battery charge
mode switch at least 20 minutes before youclimb, in order to continue a speed of more
than 100 km/h (62 mph), or when a long slope (gradient of more than 4 %) is expec-
ted. (According to a towing weight, it may not be able to continue the speed.)
l When using the battery charge switch with a
vehicle that has stopped in the heath a long
time, it may not charge.
l The charging time close to full charge of the
drive battery becomes longer depending on the condition of the drive battery, a driving
condition or a environment.
l The engine may stop near full charge.
l If you press the battery charge switch in or-
der to generate electricity while using gaso-
line, the fuel consumption will suffer.
We recommend you to consider the environ- ment.NOTEl When the engine is started while parking,
there is a risk of receiving a penalty due to idling stop ordinances.
You should use the battery charge mode
switch that conforms to the relevant munici- pality.
If you press the battery charge switch in or-
der to generate electricity using gasoline, the fuel consumption will suffer.
l If the battery save mode switch or the EV
switch is pressed while the battery charge
mode is activated, the battery charge mode is
cancelled and the battery save mode or EV
priority mode is activated.
Refer to “Battery save mode switch” on page 7-27 or “EV switch” on page 7-25.
If the battery charge mode switch is pressed
again, the mode will be returned to the bat- tery charge mode.Acoustic Vehicle Alerting
System (AVAS) E00631601051
The Acoustic Vehicle Alerting System(AVAS) is a device that uses sound to alert
pedestrians of the presence of the vehicle. The system operates when the vehicle speed
is about 35 km/h (22 mph) or less and the en-
gine is not running.
The sound starts when the AVAS is operated
in the following conditions.
l When the vehicle speed is about 3 km/h
(2 mph) or less with engine not runningand the brake pedal is not depressed.
l When the vehicle speed is about 3 km/h
(2 mph) to 35 km/h (22 mph) and engine
is not running.
The sound does not start in the following ca-
ses.
l When the vehicle speed is about 3 km/h
(2 mph) or less and the brake pedal is depressed.
l When the vehicle speed is about 35 km/h
(22 mph) or more.
l When the select position is in “P”
(PARK) position.
l When the AVAS OFF indicator in the
meter is illuminating.
l When the engine is running.
Acoustic Vehicle Alerting System (AVAS)
7-29OGGE17E1Starting and driving7

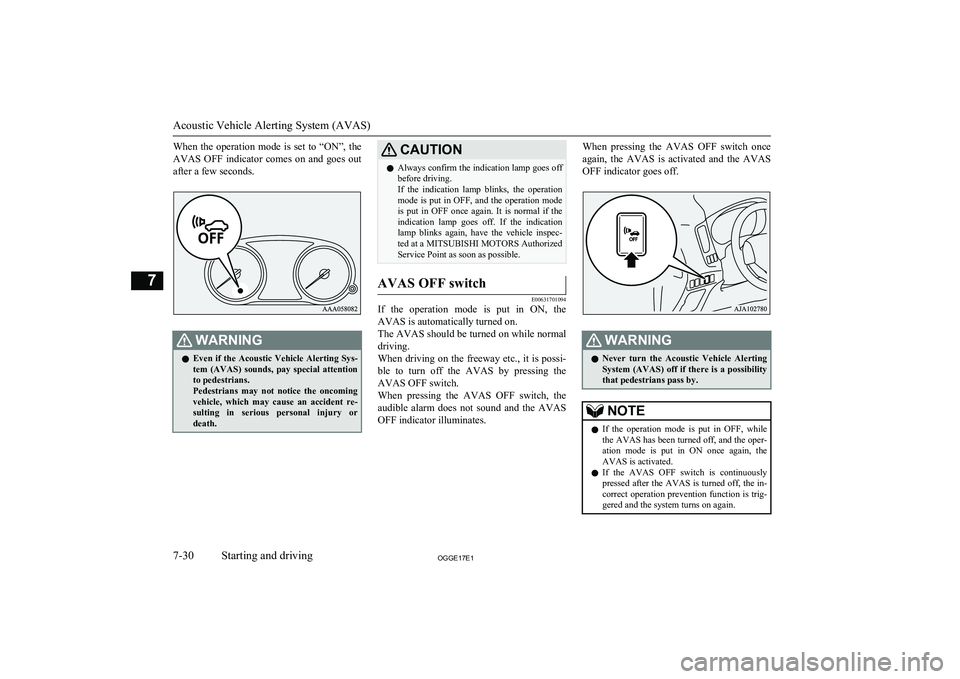

When the operation mode is set to “ON”, the
AVAS OFF indicator comes on and goes out after a few seconds.WARNINGl Even if the Acoustic Vehicle Alerting Sys-
tem (AVAS) sounds, pay special attention
to pedestrians.
Pedestrians may not notice the oncoming vehicle, which may cause an accident re-
sulting in serious personal injury or death.CAUTIONl Always confirm the indication lamp goes off
before driving.
If the indication lamp blinks, the operation
mode is put in OFF, and the operation mode is put in OFF once again. It is normal if the
indication lamp goes off. If the indication
lamp blinks again, have the vehicle inspec-
ted at a MITSUBISHI MOTORS Authorized Service Point as soon as possible.AVAS OFF switch
E00631701094
If the operation mode is put in ON, the
AVAS is automatically turned on.
The AVAS should be turned on while normal
driving.
When driving on the freeway etc., it is possi- ble to turn off the AVAS by pressing the
AVAS OFF switch.
When pressing the AVAS OFF switch, the audible alarm does not sound and the AVAS
OFF indicator illuminates.
When pressing the AVAS OFF switch once
again, the AVAS is activated and the AVAS
OFF indicator goes off.WARNINGl Never turn the Acoustic Vehicle Alerting
System (AVAS) off if there is a possibility
that pedestrians pass by.NOTEl If the operation mode is put in OFF, while
the AVAS has been turned off, and the oper-
ation mode is put in ON once again, the
AVAS is activated.
l If the AVAS OFF switch is continuously
pressed after the AVAS is turned off, the in-
correct operation prevention function is trig-
gered and the system turns on again.
Acoustic Vehicle Alerting System (AVAS)
7-30OGGE17E1Starting and driving7

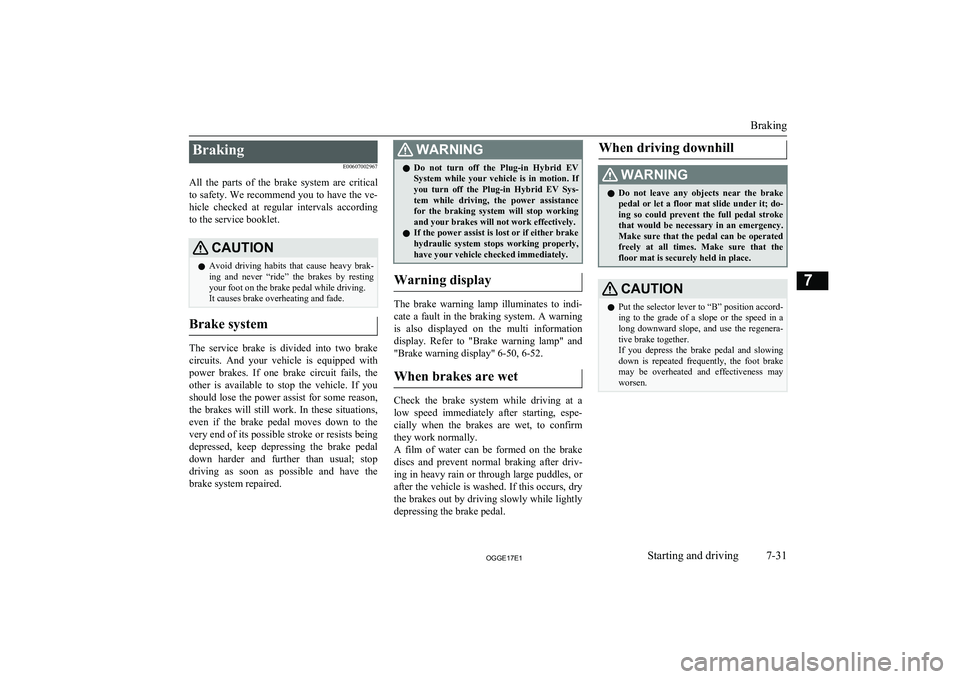

BrakingE00607002967
All the parts of the brake system are critical
to safety. We recommend you to have the ve- hicle checked at regular intervals according
to the service booklet.CAUTIONl Avoid driving habits that cause heavy brak-
ing and never “ride” the brakes by resting
your foot on the brake pedal while driving.
It causes brake overheating and fade.
Brake system
The service brake is divided into two brake
circuits. And your vehicle is equipped with
power brakes. If one brake circuit fails, the other is available to stop the vehicle. If you
should lose the power assist for some reason, the brakes will still work. In these situations,
even if the brake pedal moves down to the very end of its possible stroke or resists being
depressed, keep depressing the brake pedal
down harder and further than usual; stop
driving as soon as possible and have the brake system repaired.
WARNINGl Do not turn off the Plug-in Hybrid EV
System while your vehicle is in motion. If
you turn off the Plug-in Hybrid EV Sys- tem while driving, the power assistancefor the braking system will stop working
and your brakes will not work effectively.
l If the power assist is lost or if either brake
hydraulic system stops working properly,
have your vehicle checked immediately.
Warning display
The brake warning lamp illuminates to indi-
cate a fault in the braking system. A warning
is also displayed on the multi information display. Refer to "Brake warning lamp" and "Brake warning display" 6-50, 6-52.
When brakes are wet
Check the brake system while driving at a
low speed immediately after starting, espe- cially when the brakes are wet, to confirm
they work normally.
A film of water can be formed on the brake discs and prevent normal braking after driv-
ing in heavy rain or through large puddles, or after the vehicle is washed. If this occurs, dry
the brakes out by driving slowly while lightly
depressing the brake pedal.
When driving downhillWARNINGl Do not leave any objects near the brake
pedal or let a floor mat slide under it; do- ing so could prevent the full pedal stroke
that would be necessary in an emergency. Make sure that the pedal can be operated freely at all times. Make sure that thefloor mat is securely held in place.CAUTIONl Put the selector lever to “B” position accord-
ing to the grade of a slope or the speed in along downward slope, and use the regenera-
tive brake together.
If you depress the brake pedal and slowing down is repeated frequently, the foot brake
may be overheated and effectiveness may worsen.
Braking
7-31OGGE17E1Starting and driving7
