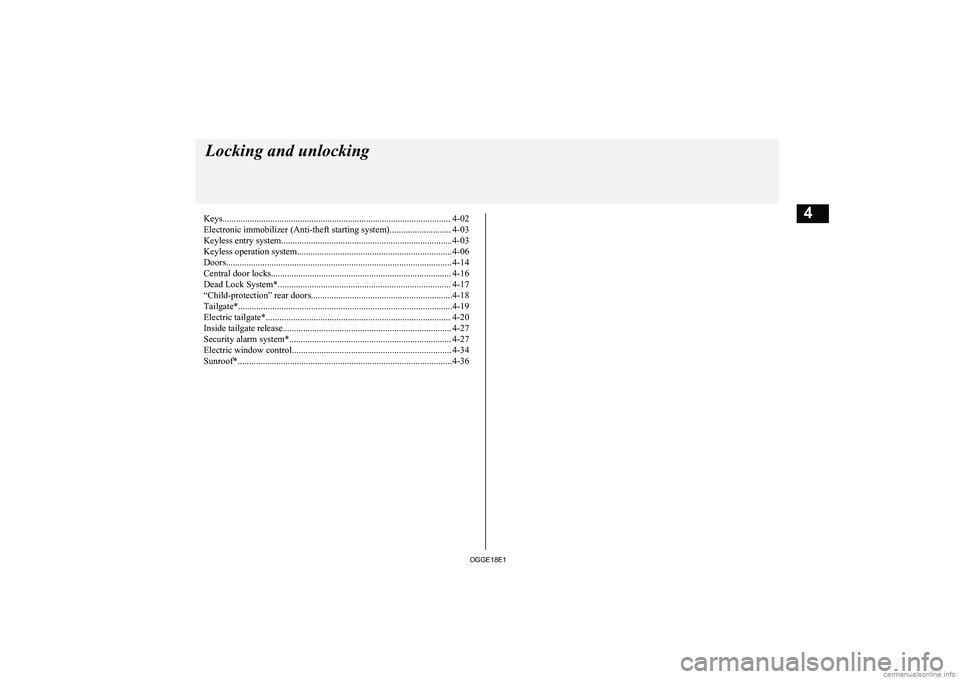

Keys.................................................................................................... 4-02Electronic immobilizer (Anti-theft starting system)........................... 4-03
Keyless entry system...........................................................................4-03
Keyless operation system.................................................................... 4-06
Doors................................................................................................... 4-14
Central door locks............................................................................... 4-16
Dead Lock System*............................................................................ 4-17
“Child-protection” rear doors..............................................................4-18
Tailgate*..............................................................................................4-19
Electric tailgate*................................................................................. 4-20
Inside tailgate release.......................................................................... 4-27
Security alarm system*....................................................................... 4-27
Electric window control...................................................................... 4-34
Sunroof*.............................................................................................. 4-36Locking and unlocking
OGGE18E14

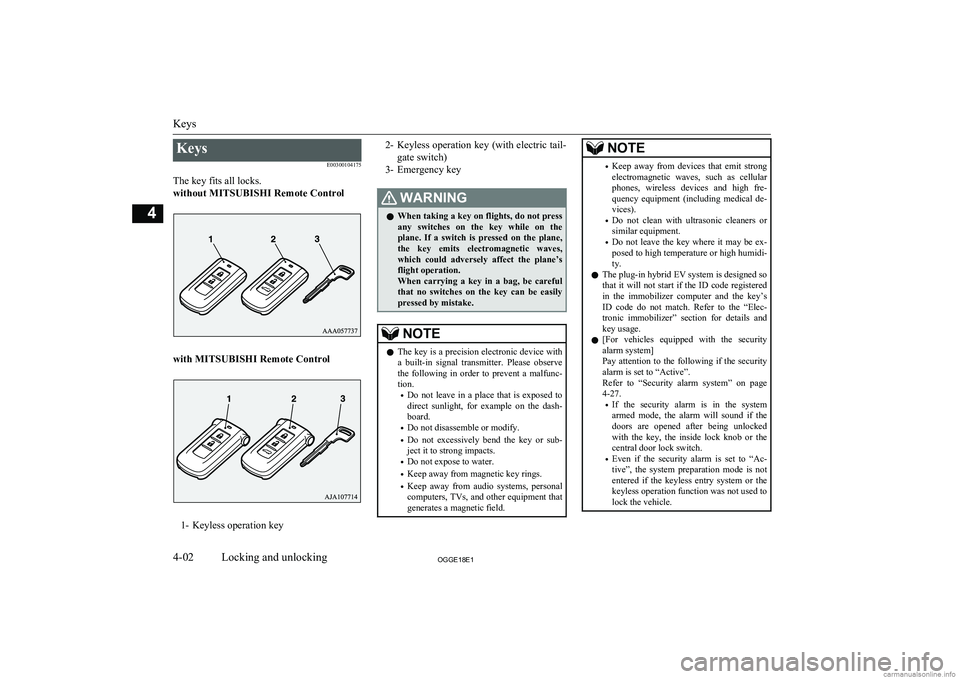

KeysE00300104175
The key fits all locks.
without MITSUBISHI Remote Control
with MITSUBISHI Remote Control
1- Keyless operation key
2- Keyless operation key (with electric tail-
gate switch)
3- Emergency keyWARNINGl When taking a key on flights, do not press
any switches on the key while on the plane. If a switch is pressed on the plane,
the key emits electromagnetic waves, which could adversely affect the plane’s flight operation.
When carrying a key in a bag, be careful that no switches on the key can be easily
pressed by mistake.NOTEl The key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent a malfunc- tion.
• Do not leave in a place that is exposed to
direct sunlight, for example on the dash- board.
• Do not disassemble or modify.
• Do not excessively bend the key or sub-
ject it to strong impacts.
• Do not expose to water.
• Keep away from magnetic key rings.
• Keep away from audio systems, personal
computers, TVs, and other equipment that generates a magnetic field.NOTE• Keep away from devices that emit strong
electromagnetic waves, such as cellular
phones, wireless devices and high fre- quency equipment (including medical de-
vices).
• Do not clean with ultrasonic cleaners or
similar equipment.
• Do not leave the key where it may be ex-
posed to high temperature or high humidi- ty.
l The plug-in hybrid EV system is designed so
that it will not start if the ID code registered
in the immobilizer computer and the key’s ID code do not match. Refer to the “Elec-
tronic immobilizer” section for details and key usage.
l [For vehicles equipped with the security
alarm system]
Pay attention to the following if the security
alarm is set to “Active”.
Refer to “Security alarm system” on page 4-27.
• If the security alarm is in the system
armed mode, the alarm will sound if the
doors are opened after being unlocked with the key, the inside lock knob or the
central door lock switch.
• Even if the security alarm is set to “Ac-
tive”, the system preparation mode is not entered if the keyless entry system or thekeyless operation function was not used to
lock the vehicle.
Keys
4-02OGGE18E1Locking and unlocking4

Key number tag
The key number is stamped on the tag as in-dicated in the illustration.
Make a record of the key number and store
the key and key number tag in separate pla- ces, so that you can order a key from yourMITSUBISHI MOTORS Authorized Service
Point in the event the original keys are lost.
Electronic immobilizer
(Anti-theft starting system) E00300203791
The electronic immobilizer has been de-signed to significantly reduce the possibility
of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system.
CAUTIONl Do not modify or add parts to the immobiliz-
er system. Doing so could cause the immo- bilizer to malfunction.NOTEl If the plug-in hybrid EV system does not
start, we recommend you to contact yourMITSUBISHI MOTORS Authorized Serv-
ice Point.
l If you lose one of keyless operation keys,
contact your MITSUBISHI MOTORS Au-
thorized Service Point as soon as possible. To obtain a replacement or extra spare key,
take your vehicle and all remaining keys to
your MITSUBISHI MOTORS Authorized
Service Point. All the keys have to be re-reg- istered in the immobilizer computer unit.
The immobilizer can register as follows.
• Keyless operation key: up to 4 different
keysKeyless entry system
E00300304438
Press the remote control switch, and all doors and the tailgate will be locked or unlocked as
desired. It is also possible to operate the out-
side rear-view mirrors.
1- LOCK switch
2- UNLOCK switch
3- Electric tailgate switch*
4- Indication lamp
5- Charging timer cancel switch*
NOTEl The charging lid is also locked/unlocked,
when the driver’s door is locked/unlocked.
Electronic immobilizer (Anti-theft starting system)
4-03OGGE18E1Locking and unlocking4

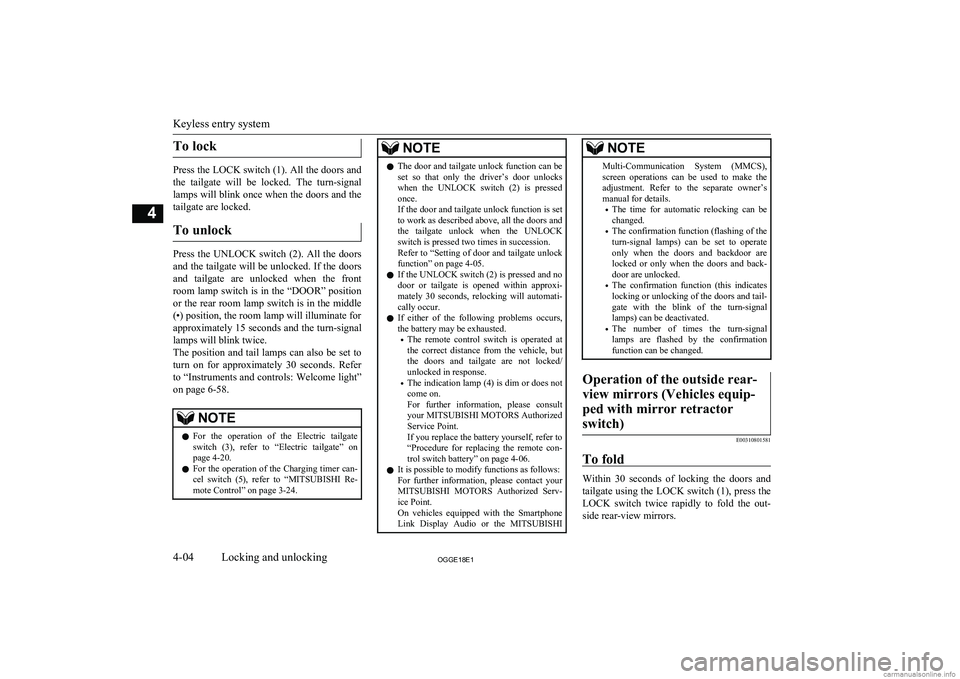

To lock
Press the LOCK switch (1). All the doors andthe tailgate will be locked. The turn-signal
lamps will blink once when the doors and the
tailgate are locked.
To unlock
Press the UNLOCK switch (2). All the doors
and the tailgate will be unlocked. If the doors and tailgate are unlocked when the frontroom lamp switch is in the “DOOR” positionor the rear room lamp switch is in the middle
(•) position, the room lamp will illuminate for
approximately 15 seconds and the turn-signal lamps will blink twice.
The position and tail lamps can also be set to
turn on for approximately 30 seconds. Refer to “Instruments and controls: Welcome light”
on page 6-58.
NOTEl For the operation of the Electric tailgate
switch (3), refer to “Electric tailgate” onpage 4-20.
l For the operation of the Charging timer can-
cel switch (5), refer to “MITSUBISHI Re-
mote Control” on page 3-24.NOTEl The door and tailgate unlock function can be
set so that only the driver’s door unlocks
when the UNLOCK switch (2) is pressed once.
If the door and tailgate unlock function is set
to work as described above, all the doors and
the tailgate unlock when the UNLOCK switch is pressed two times in succession.
Refer to “Setting of door and tailgate unlock
function” on page 4-05.
l If the UNLOCK switch (2) is pressed and no
door or tailgate is opened within approxi-mately 30 seconds, relocking will automati-
cally occur.
l If either of the following problems occurs,
the battery may be exhausted.
• The remote control switch is operated at
the correct distance from the vehicle, but
the doors and tailgate are not locked/
unlocked in response.
• The indication lamp (4) is dim or does not
come on.
For further information, please consult your MITSUBISHI MOTORS Authorized
Service Point.
If you replace the battery yourself, refer to
“Procedure for replacing the remote con-
trol switch battery” on page 4-06.
l It is possible to modify functions as follows:
For further information, please contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone Link Display Audio or the MITSUBISHINOTEMulti-Communication System (MMCS),
screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
• The time for automatic relocking can be
changed.
• The confirmation function (flashing of the
turn-signal lamps) can be set to operateonly when the doors and backdoor arelocked or only when the doors and back-
door are unlocked.
• The confirmation function (this indicates
locking or unlocking of the doors and tail-
gate with the blink of the turn-signal lamps) can be deactivated.
• The number of times the turn-signal
lamps are flashed by the confirmation function can be changed.Operation of the outside rear-
view mirrors (Vehicles equip- ped with mirror retractorswitch)
E00310801581
To fold
Within 30 seconds of locking the doors and tailgate using the LOCK switch (1), press the LOCK switch twice rapidly to fold the out-
side rear-view mirrors.
Keyless entry system
4-04OGGE18E1Locking and unlocking4

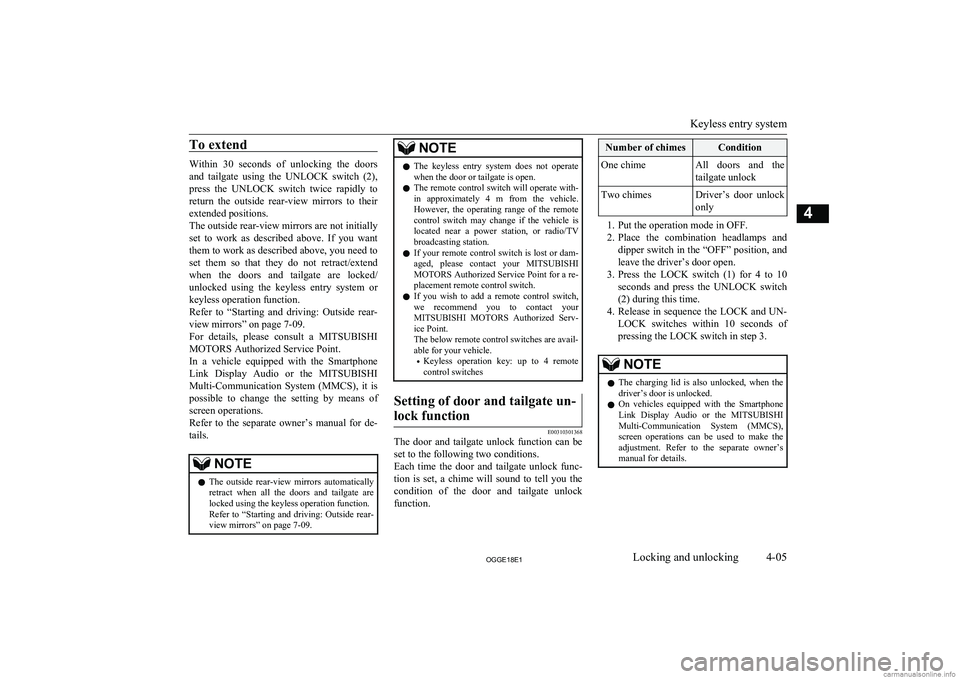

To extend
Within 30 seconds of unlocking the doors
and tailgate using the UNLOCK switch (2),
press the UNLOCK switch twice rapidly to return the outside rear-view mirrors to their
extended positions.
The outside rear-view mirrors are not initially
set to work as described above. If you want them to work as described above, you need to
set them so that they do not retract/extend when the doors and tailgate are locked/
unlocked using the keyless entry system or
keyless operation function.
Refer to “Starting and driving: Outside rear-
view mirrors” on page 7-09.
For details, please consult a MITSUBISHI
MOTORS Authorized Service Point.
In a vehicle equipped with the Smartphone Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), it is possible to change the setting by means of
screen operations.
Refer to the separate owner’s manual for de- tails.
NOTEl The outside rear-view mirrors automatically
retract when all the doors and tailgate are
locked using the keyless operation function.
Refer to “Starting and driving: Outside rear- view mirrors” on page 7-09.NOTEl The keyless entry system does not operate
when the door or tailgate is open.
l The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is
located near a power station, or radio/TV broadcasting station.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
l If you wish to add a remote control switch,
we recommend you to contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.
The below remote control switches are avail-
able for your vehicle.
• Keyless operation key: up to 4 remote
control switchesSetting of door and tailgate un-
lock function
E00310301368
The door and tailgate unlock function can be set to the following two conditions.
Each time the door and tailgate unlock func-
tion is set, a chime will sound to tell you the condition of the door and tailgate unlock
function.
Number of chimesConditionOne chimeAll doors and the
tailgate unlockTwo chimesDriver’s door unlock only
1. Put the operation mode in OFF.
2. Place the combination headlamps and
dipper switch in the “OFF” position, and leave the driver’s door open.
3. Press the LOCK switch (1) for 4 to 10
seconds and press the UNLOCK switch
(2) during this time.
4. Release in sequence the LOCK and UN-
LOCK switches within 10 seconds of pressing the LOCK switch in step 3.
NOTEl The charging lid is also unlocked, when the
driver’s door is unlocked.
l On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
Keyless entry system
4-05OGGE18E1Locking and unlocking4

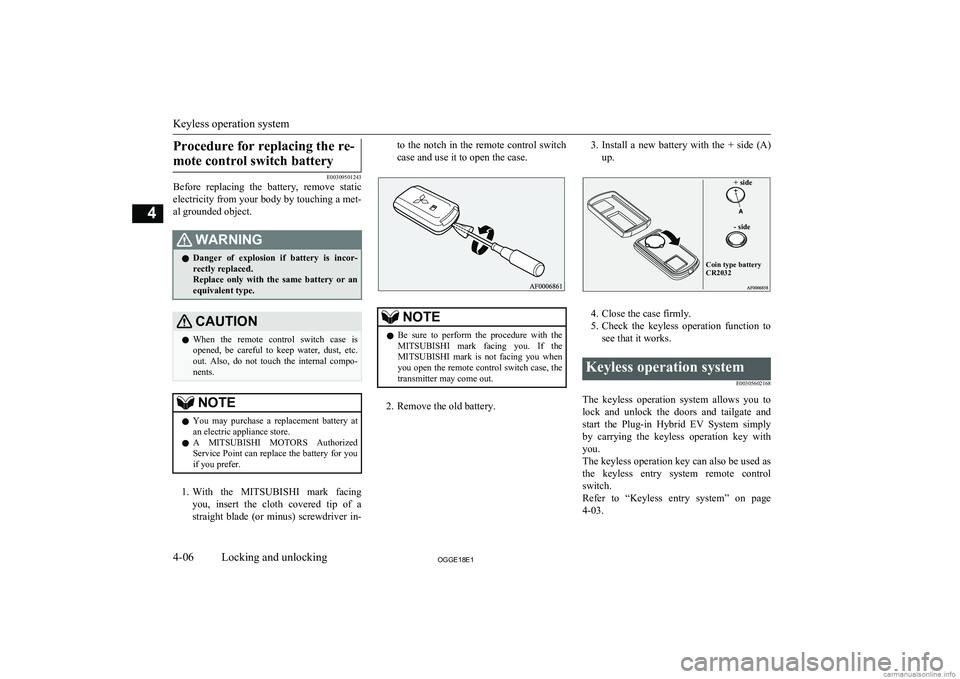

Procedure for replacing the re-mote control switch battery
E00309501243
Before replacing the battery, remove static
electricity from your body by touching a met- al grounded object.
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an equivalent type.CAUTIONl When the remote control switch case is
opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-
nents.NOTEl You may purchase a replacement battery at
an electric appliance store.
l A
MITSUBISHI MOTORS Authorized
Service Point can replace the battery for you
if you prefer.
1. With the MITSUBISHI mark facing
you, insert the cloth covered tip of a
straight blade (or minus) screwdriver in-
to the notch in the remote control switch
case and use it to open the case.NOTEl Be sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the remote control switch case, the transmitter may come out.
2. Remove the old battery.
3. Install a new battery with the + side (A)
up.+ side- sideCoin type battery CR2032
4. Close the case firmly.
5. Check the keyless operation function to
see that it works.
Keyless operation system
E00305602168
The keyless operation system allows you tolock and unlock the doors and tailgate andstart the Plug-in Hybrid EV System simplyby carrying the keyless operation key with
you.
The keyless operation key can also be used as
the keyless entry system remote control switch.
Refer to “Keyless entry system” on page
4-03.
Keyless operation system
4-06OGGE18E1Locking and unlocking4

The driver should always carry the keylessoperation key. This key is necessary for lock-
ing and unlocking the doors and tailgate,
starting the Plug-in Hybrid EV System and otherwise operating the vehicle, so before locking and leaving the vehicle, be sure to
check that you have the keyless operation key.WARNINGl People with implantable cardiac pace-
makers or implantable cardiovascular-de-
fibrillators should not go near the exterior
transmitters (A) or the interior transmit- ters (B). The radio waves used by the key-
less operation system could adversely af- fect implantable cardiac pacemakers or
implantable cardiovascular-defibrillators.WARNINGl When using electro-medical devices other
than implantable cardiac pacemakers or implantable cardiovascular-defibrillators,
contact the electromedical device manu- facturer ahead of time to determine theaffects of radio waves on the devices. Elec-
tromedical device operations could be ad-
versely effected by radio waves.
You can limit the possible operations of
the keyless operation system in the fol-
lowing ways. (The keyless operation system can be used as a keyless entry system.) Please consult a MITSUBISHI
MOTORS Authorized Service Point. • You can limit operations to locking
and unlocking the doors and tailgate.
• You can limit operations to starting
the Plug-in Hybrid EV System.
• The keyless operation system can be
disabled.
When keyless operation system opera- tions are modified, the operating trans-mitters are as follows. • Only locking and unlocking doors or
tailgate: exterior transmitter and inte-
rior transmitters.
• Only starting the Plug-in Hybrid EV
System: interior transmitter
NOTEl The keyless operation key uses an ultra-
weak electromagnetic wave. In the following
cases, the keyless operation system may not
operate properly or may be unstable.
• When there is equipment nearby that
emits strong radio waves, such as: a pow-
er station, a radio/TV broadcasting station or an airport.
• The keyless operation system is carried
together with a communications device such as a cellular phone or radio set, or
with an electronic device such as a per- sonal computer.
• The keyless operation key is touching or
covered by a metal object.
• A keyless entry system is being used
nearby.
• When the keyless operation key battery is
worn out.
• When the keyless operation key is placed
in an area with strong radio waves or noise.
In such cases, use the emergency key.
Refer to “To operate without using the
keyless operation function” on page 4-14.
Keyless operation system
4-07OGGE18E1Locking and unlocking4

NOTElBecause the keyless operation key receives
signals in order to communicate with the transmitters in the vehicle, the battery con-tinually wears down regardless of keylessoperation key use. The battery life is 1 to 3
years, depending on usage conditions. When the battery wears out, replace the battery ac-cording to the description in this manual or
have it replaced at your MITSUBISHI
MOTORS Authorized Service Point.
Refer to “Procedure for replacing the remote control switch battery” on page 4-06.
l Because the keyless operation key continual-
ly receives signals, strong radio wave recep-
tion could affect battery wear. Do not leave

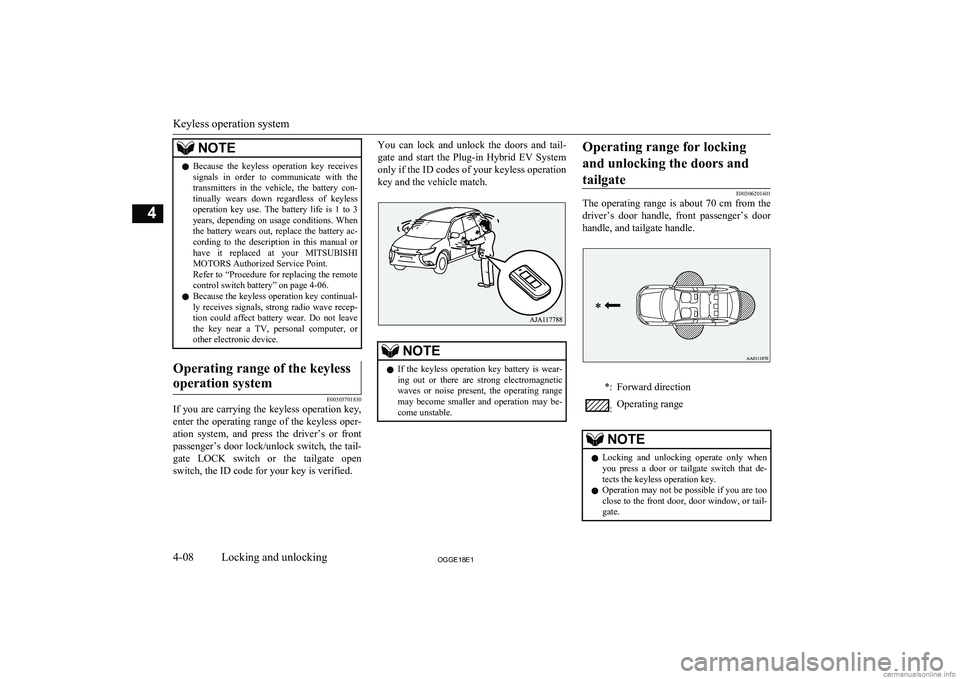

the key near a TV, personal computer, or other electronic device.Operating range of the keyless
operation system
E00305701830
If you are carrying the keyless operation key, enter the operating range of the keyless oper-
ation system, and press the driver’s or front
passenger’s door lock/unlock switch, the tail-
gate LOCK switch or the tailgate open
switch, the ID code for your key is verified.
You can lock and unlock the doors and tail-
gate and start the Plug-in Hybrid EV Systemonly if the ID codes of your keyless operation
key and the vehicle match.NOTEl If the keyless operation key battery is wear-
ing out or there are strong electromagnetic
waves or noise present, the operating range
may become smaller and operation may be-
come unstable.Operating range for locking
and unlocking the doors andtailgate
E00306201601
The operating range is about 70 cm from the
driver’s door handle, front passenger’s door handle, and tailgate handle.
*:Forward direction:Operating rangeNOTEl Locking and unlocking operate only when
you press a door or tailgate switch that de-
tects the keyless operation key.
l Operation may not be possible if you are too
close to the front door, door window, or tail-
gate.
Keyless operation system
4-08OGGE18E1Locking and unlocking4

NOTElEven if the keyless operation key is within
70 cm of the driver’s door handle, front pas- senger’s door handle, or tailgate handle, ifthe key is near to the ground or high up, the
system may not operate.
l If the keyless operation key is within the op-
erating range, even someone not carrying the key can lock and unlock the doors and tail-gate by pressing the driver’s or front passen-ger’s door lock/unlock switch, the tailgate

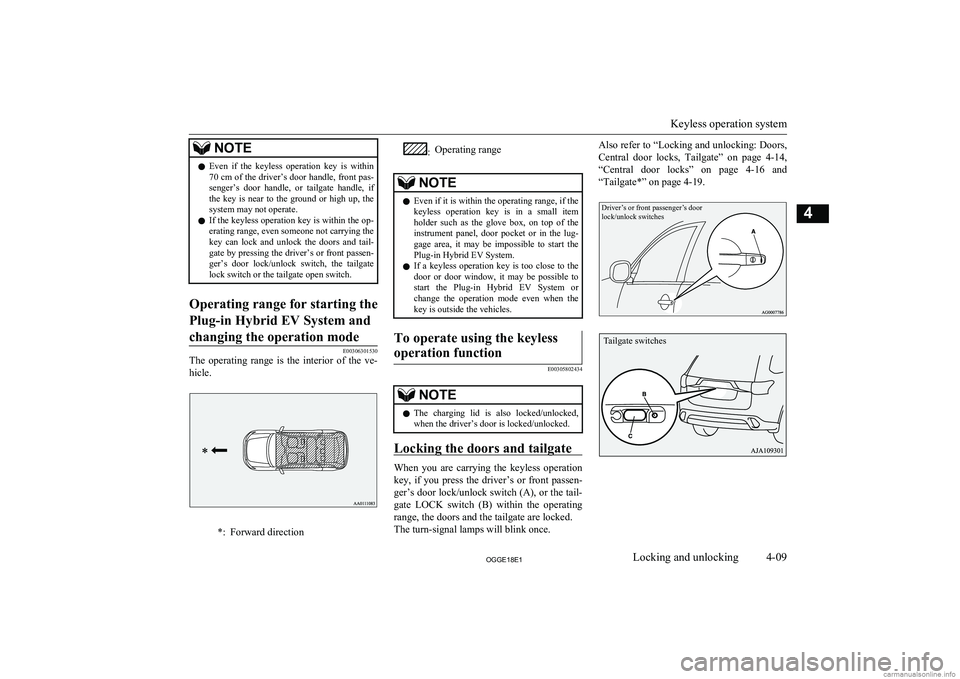

lock switch or the tailgate open switch.Operating range for starting the
Plug-in Hybrid EV System and changing the operation mode
E00306301530
The operating range is the interior of the ve- hicle.
*:Forward direction:Operating rangeNOTEl Even if it is within the operating range, if the
keyless operation key is in a small item
holder such as the glove box, on top of the instrument panel, door pocket or in the lug-gage area, it may be impossible to start the
Plug-in Hybrid EV System.
l If a keyless operation key is too close to the
door or door window, it may be possible to
start the Plug-in Hybrid EV System or
change the operation mode even when the key is outside the vehicles.To operate using the keyless
operation function
E00305802434
NOTEl The charging lid is also locked/unlocked,
when the driver’s door is locked/unlocked.
Locking the doors and tailgate
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), or the tail-
gate LOCK switch (B) within the operating range, the doors and the tailgate are locked.
The turn-signal lamps will blink once.
Also refer to “Locking and unlocking: Doors,
Central door locks, Tailgate” on page 4-14,
“Central door locks” on page 4-16 and
“Tailgate*” on page 4-19.Driver’s or front passenger’s door
lock/unlock switches
Keyless operation system
4-09OGGE18E1Locking and unlocking4 Tailgate switches

NOTElFor vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically retract when all the doors and
tailgate are locked using the keyless opera- tion function.
Refer to “Starting and driving: Outside rear- view mirrors” on page 7-09.
l The keyless operation function does not op-
erate under the following conditions:
• The keyless operation key is inside the
vehicle.
• A door or the tailgate is open or ajar.
l The tailgate open switch (C) can be used to
check that the vehicle is locked properly.Press the tailgate open switch within approx-
imately 3 seconds of locking the vehicle. If
you wait longer than 3 seconds and press the tailgate open switch, the doors and tailgate
will be unlocked.
l The time allowed for checking that the vehi-
cle is locked can be adjusted. For further in- formation, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make the
adjustment. Refer to the separate owner’s

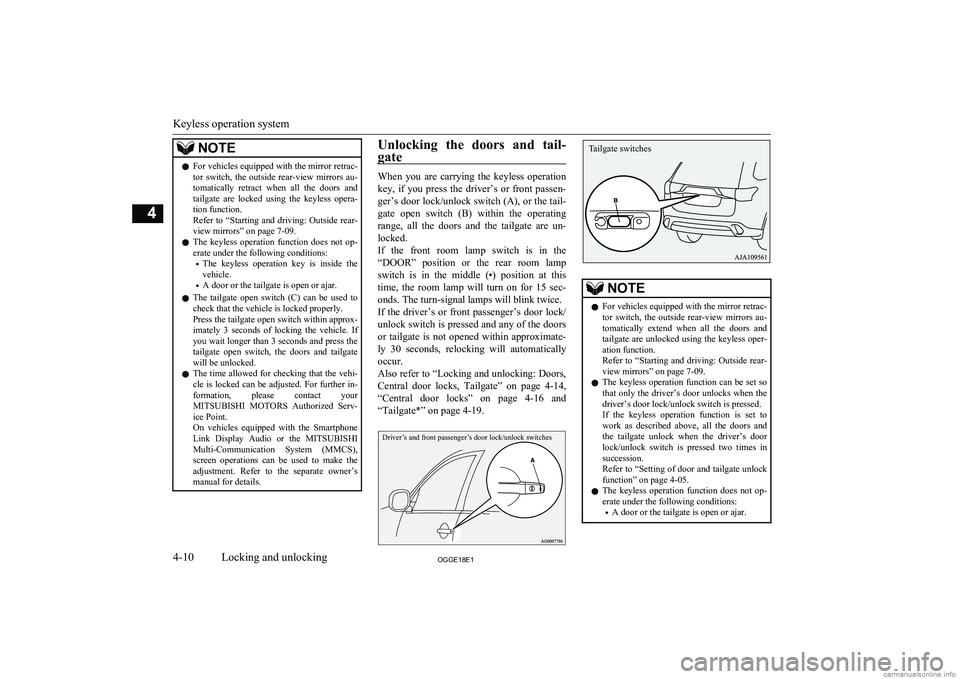

manual for details.Unlocking the doors and tail-
gate
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), or the tail-gate open switch (B) within the operating
range, all the doors and the tailgate are un-
locked.
If the front room lamp switch is in the “DOOR” position or the rear room lampswitch is in the middle (•) position at this
time, the room lamp will turn on for 15 sec-
onds. The turn-signal lamps will blink twice. If the driver’s or front passenger’s door lock/
unlock switch is pressed and any of the doors or tailgate is not opened within approximate-
ly 30 seconds, relocking will automatically occur.
Also refer to “Locking and unlocking: Doors, Central door locks, Tailgate” on page 4-14,
“Central door locks” on page 4-16 and
“Tailgate*” on page 4-19.
Driver’s and front passenger’s door lock/unlock switches
NOTEl For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically extend when all the doors and tailgate are unlocked using the keyless oper-
ation function.
Refer to “Starting and driving: Outside rear- view mirrors” on page 7-09.
l The keyless operation function can be set so
that only the driver’s door unlocks when the driver’s door lock/unlock switch is pressed.
If the keyless operation function is set to
work as described above, all the doors and the tailgate unlock when the driver’s door
lock/unlock switch is pressed two times in succession.
Refer to “Setting of door and tailgate unlock
function” on page 4-05.
l The keyless operation function does not op-
erate under the following conditions:
• A door or the tailgate is open or ajar.
Keyless operation system
4-10OGGE18E1Locking and unlocking4 Tailgate switches
