MITSUBISHI OUTLANDER PHEV 2019 Owner's Manual (in English)

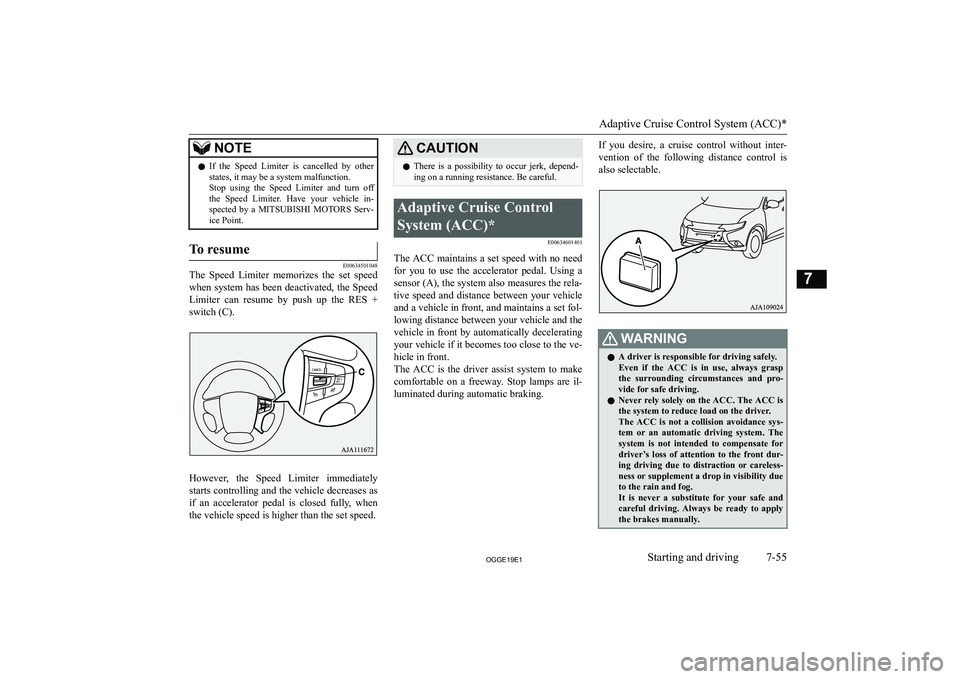

NOTEzIf the Speed Limiter is cancelled by other
states, it may be a system malfunction.
Stop using the Speed Limiter and turn off
the Speed Limiter. Have your vehicle in-
spected by a MITSUBISHI MOTORS Serv-
ice Point.To resume
E00634501048
The Speed Limiter memorizes the set speed
when system has been deactivated, the Speed
Limiter can resume by push up the RES +
switch (C).
However, the Speed Limiter immediately
starts controlling and the vehicle decreases as if an accelerator pedal is closed fully, whenthe vehicle speed is higher than the set speed.
CAUT,ONz There is a possibility to occur jerk, depend-
ing on a running resistance. Be careful.Adaptive Cruise Control
System (ACC)* E00634601401
The ACC maintains a set speed with no needfor you to use the accelerator pedal. Using a
sensor (A), the system also measures the rela- tive speed and distance between your vehicle
and a vehicle in front, and maintains a set fol- lowing distance between your vehicle and thevehicle in front by automatically decelerating
your vehicle if it becomes too close to the ve-
hicle in front.
The ACC is the driver assist system to make comfortable on a freeway. Stop lamps are il-
luminated during automatic braking.
If you desire, a cruise control without inter-
vention of the following distance control is
also selectable.:ARN,NGz A driver is responsible for driving safely.
Even if the ACC is in use, always grasp the surrounding circumstances and pro- vide for safe driving.
z Never rely solely on the ACC. The ACC is
the system to reduce load on the driver. The ACC is not a collision avoidance sys-
tem or an automatic driving system. The system is not intended to compensate for driver’s loss of attention to the front dur-
ing driving due to distraction or careless- ness or supplement a drop in visibility due
to the rain and fog.
It is never a substitute for your safe and
careful driving. Always be ready to apply the brakes manually.
Adaptive Cruise Control System (ACC)*
7-552**((Starting and driving7

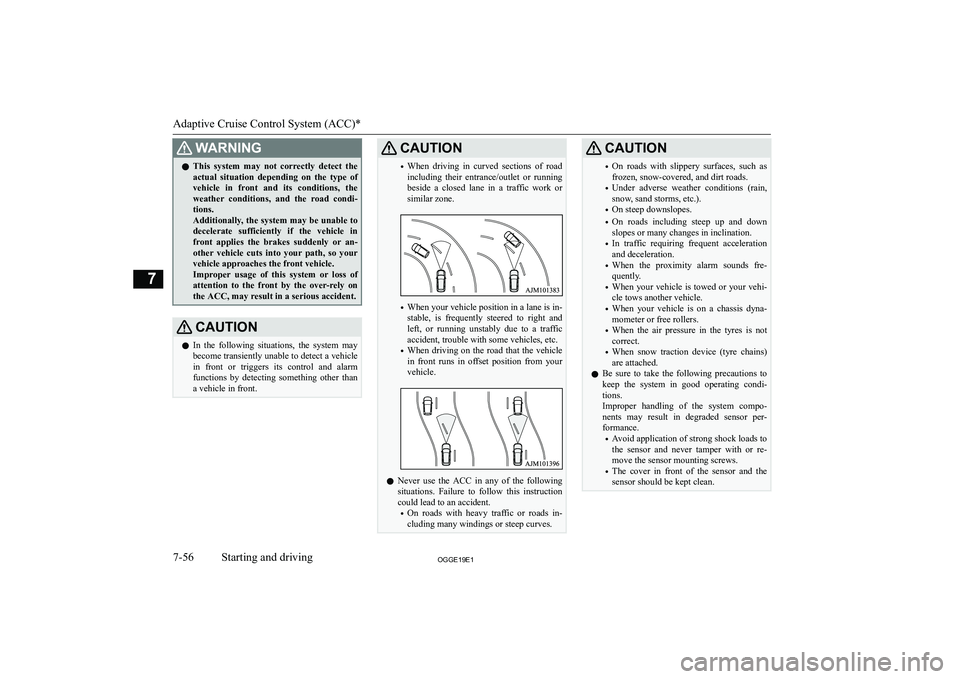

:ARN,NGzThis system may not correctly detect the
actual situation depending on the type of
vehicle in front and its conditions, the weather conditions, and the road condi-
tions.
Additionally, the system may be unable to
decelerate sufficiently if the vehicle in front applies the brakes suddenly or an- other vehicle cuts into your path, so yourvehicle approaches the front vehicle.
Improper usage of this system or loss of
attention to the front by the over-rely on the ACC, may result in a serious accident.CAUT,ONz In the following situations, the system may
become transiently unable to detect a vehicle in front or triggers its control and alarm
functions by detecting something other than a vehicle in front.CAUT,ON

CAUT,ON

CAUT,ONzNever leave the vehicle when it is stopped
by automatic braking.NOTEz If you do not depress the brake pedal within
2 seconds after an automatic stop, you arealerted to automatic cancellation of the ACC
by a buzzer and display message and the
ACC shift into the ‘standby state’.
The vehicle will then start creeping as the
brakes are released.
When the ACC no longer detects any vehicle
in front, a buzzer sounds and the symbol of
vehicle running ahead disappears from the
screen. The vehicle is slowly accelerated to
resume the set speed and continues running at
that speed.
:ARN,NGz Your vehicle may accelerate up to the set
speed in the following situations. Apply the brake, if necessary, to slow down.

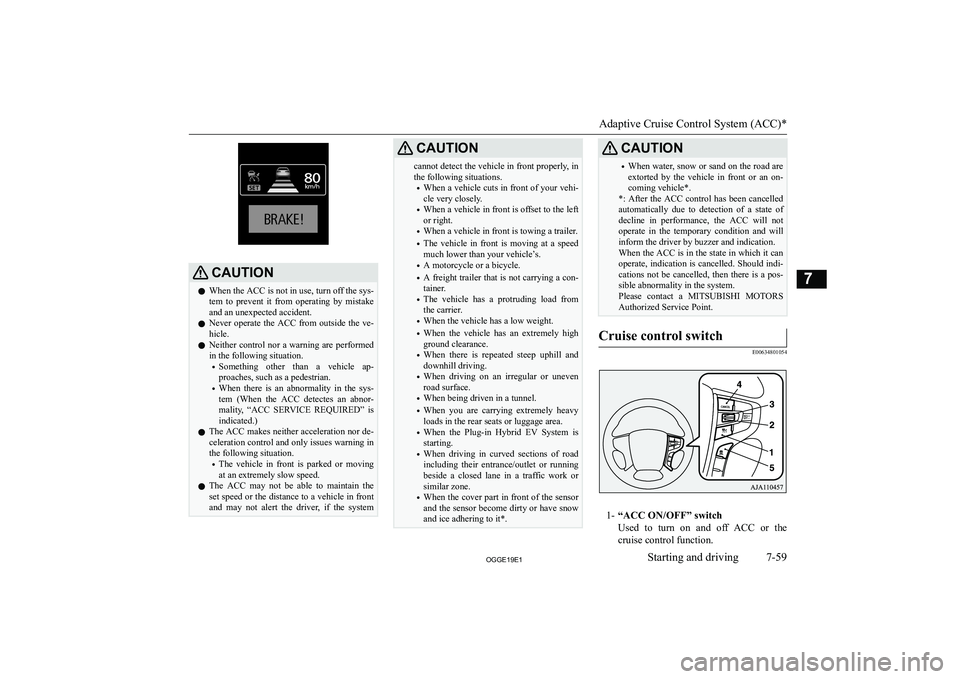

CAUT,ONzWhen the ACC is not in use, turn off the sys-
tem to prevent it from operating by mistake
and an unexpected accident.
z Never operate the ACC from outside the ve-
hicle.
z Neither control nor a warning are performed
in the following situation.

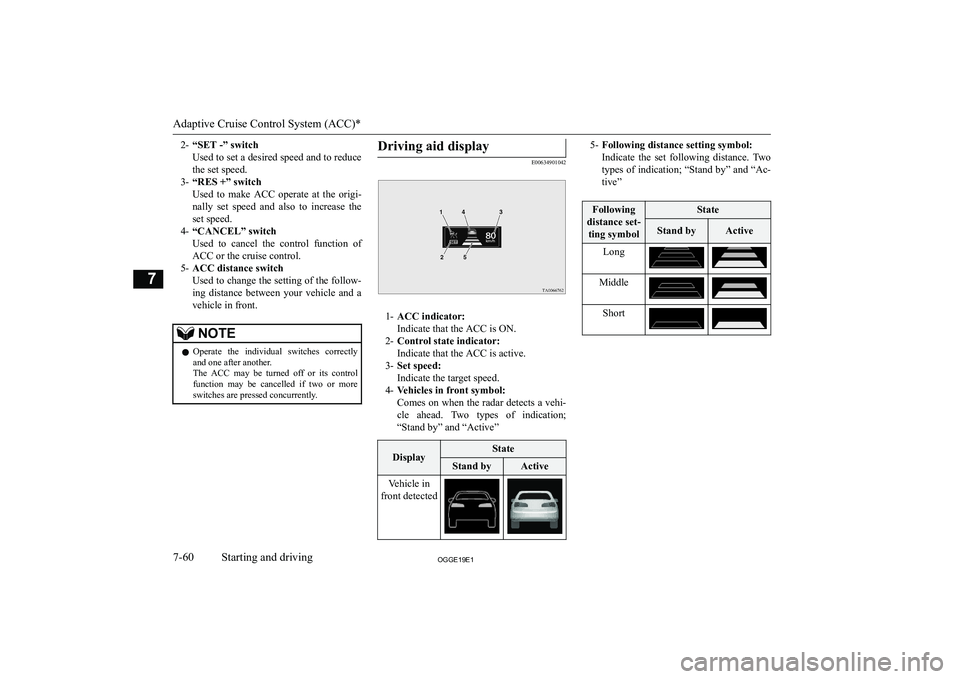

2-“SET -” switch
Used to set a desired speed and to reduce
the set speed.
3- “RES +” switch
Used to make ACC operate at the origi-
nally set speed and also to increase the set speed.
4- “CANCEL” switch
Used to cancel the control function of
ACC or the cruise control.
5- ACC distance switch
Used to change the setting of the follow- ing distance between your vehicle and a
vehicle in front.NOTEz Operate the individual switches correctly
and one after another.
The ACC may be turned off or its control
function may be cancelled if two or more switches are pressed concurrently.Driving aid display
E00634901042
1- ACC indicator:
Indicate that the ACC is ON.
2- Control state indicator:
Indicate that the ACC is active.
3- Set speed:
Indicate the target speed.
4- Vehicles in front symbol:
Comes on when the radar detects a vehi-
cle ahead. Two types of indication;
“Stand by” and “Active”
DisplayStateStand byActiveVehicle in
front detected5- Following distance setting symbol:
Indicate the set following distance. Two
types of indication; “Stand by” and “Ac-
tive”Following
distance set- ting symbolStateStand byActiveLongMiddleShort
Adaptive Cruise Control System (ACC)*
7-602**((Starting and driving7

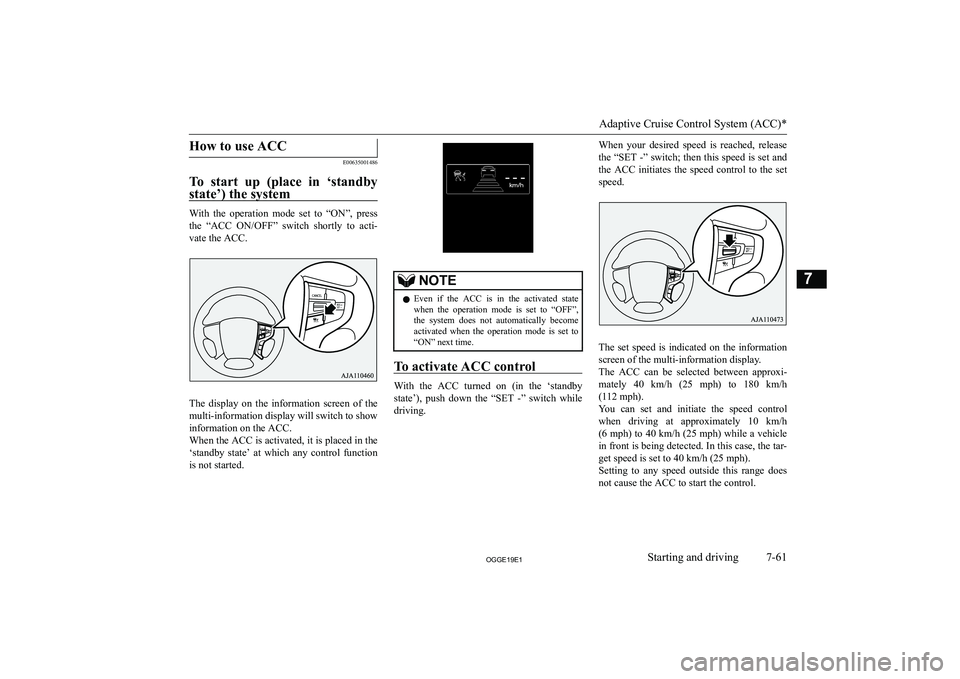

How to use ACC
E00635001486
To start up (place in ‘standby state’) the system
With the operation mode set to “ON”, press
the “ACC ON/OFF” switch shortly to acti-
vate the ACC.
The display on the information screen of the multi-information display will switch to show
information on the ACC.
When the ACC is activated, it is placed in the
‘standby state’ at which any control function
is not started.
NOTEz Even if the ACC is in the activated state
when the operation mode is set to “OFF”,
the system does not automatically become
activated when the operation mode is set to “ON” next time.
To activate ACC control
With the ACC turned on (in the ‘standby
state’), push down the “SET -” switch while driving.
When your desired speed is reached, release
the “SET -” switch; then this speed is set and
the ACC initiates the speed control to the set
speed.
The set speed is indicated on the information screen of the multi-information display.
The ACC can be selected between approxi-
mately 40 km/h (25 mph) to 180 km/h
(112 mph).
You can set and initiate the speed control when driving at approximately 10 km/h
(6 mph) to 40 km/h (25 mph) while a vehicle
in front is being detected. In this case, the tar- get speed is set to 40 km/h (25 mph).
Setting to any speed outside this range does
not cause the ACC to start the control.
Adaptive Cruise Control System (ACC)*
7-612**((Starting and driving7

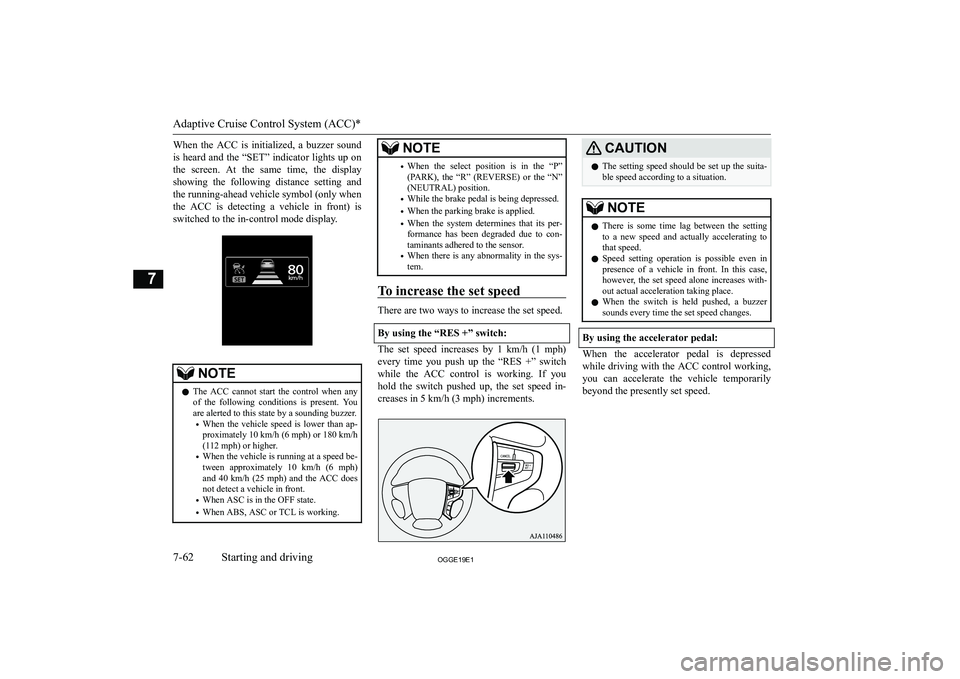

When the ACC is initialized, a buzzer soundis heard and the “SET” indicator lights up on the screen. At the same time, the display showing the following distance setting and
the running-ahead vehicle symbol (only when
the ACC is detecting a vehicle in front) is switched to the in-control mode display.NOTEz The ACC cannot start the control when any
of the following conditions is present. You
are alerted to this state by a sounding buzzer.

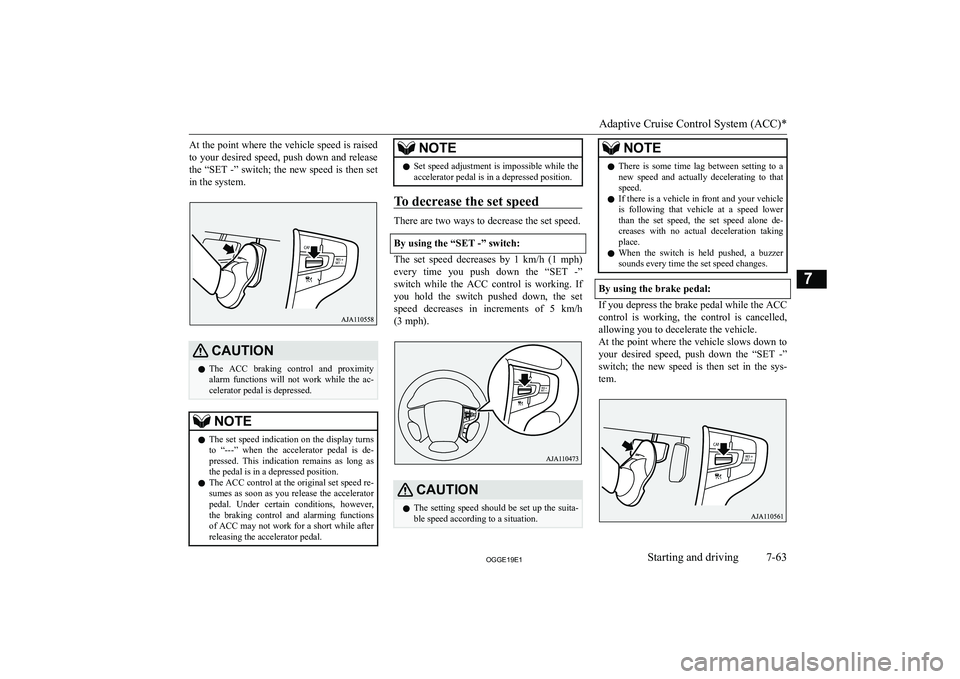

At the point where the vehicle speed is raisedto your desired speed, push down and release
the “SET -” switch; the new speed is then set
in the system.CAUT,ONz The ACC braking control and proximity
alarm functions will not work while the ac- celerator pedal is depressed.NOTEz The set speed indication on the display turns
to “---” when the accelerator pedal is de- pressed. This indication remains as long as
the pedal is in a depressed position.
z The ACC control at the original set speed re-
sumes as soon as you release the accelerator
pedal. Under certain conditions, however,
the braking control and alarming functions of ACC may not work for a short while afterreleasing the accelerator pedal.NOTEz Set speed adjustment is impossible while the
accelerator pedal is in a depressed position.
To decrease the set speed
There are two ways to decrease the set speed.
By using the “SET -” switch:
The set speed decreases by 1 km/h (1 mph) every time you push down the “SET -”switch while the ACC control is working. If
you hold the switch pushed down, the set
speed decreases in increments of 5 km/h (3 mph).
CAUT,ONz The setting speed should be set up the suita-
ble speed according to a situation.NOTEz There is some time lag between setting to a
new speed and actually decelerating to that
speed.
z If there is a vehicle in front and your vehicle
is following that vehicle at a speed lower
than the set speed, the set speed alone de- creases with no actual deceleration taking
place.
z When the switch is held pushed, a buzzer
sounds every time the set speed changes.
By using the brake pedal:
If you depress the brake pedal while the ACC
control is working, the control is cancelled,allowing you to decelerate the vehicle.
At the point where the vehicle slows down to
your desired speed, push down the “SET -” switch; the new speed is then set in the sys-tem.
Adaptive Cruise Control System (ACC)*
7-632**((Starting and driving7

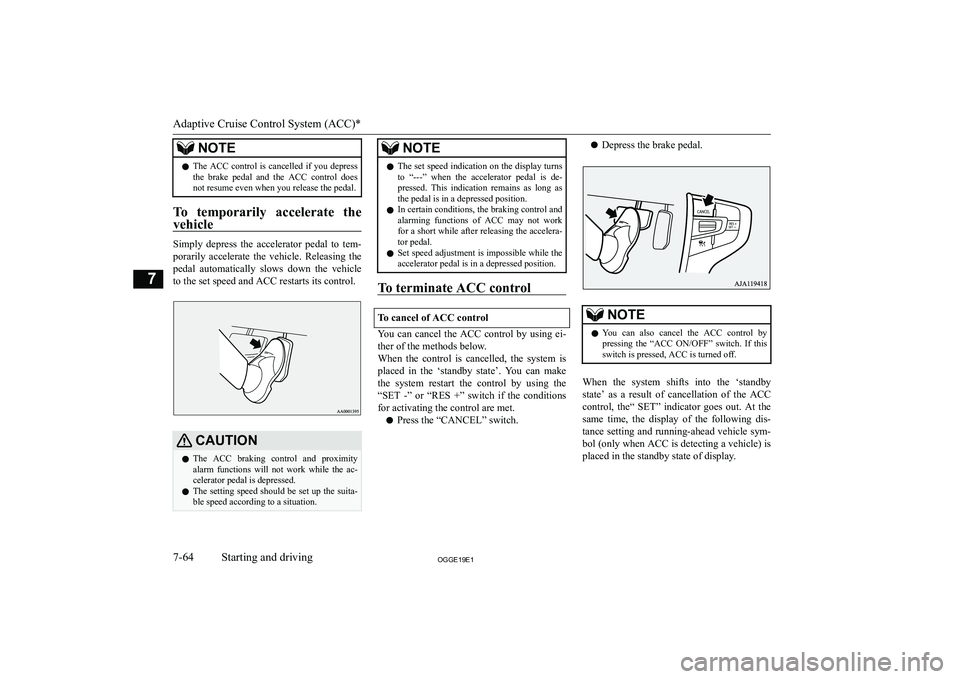

NOTEzThe ACC control is cancelled if you depress
the brake pedal and the ACC control does
not resume even when you release the pedal.
To temporarily accelerate the
vehicle
Simply depress the accelerator pedal to tem-
porarily accelerate the vehicle. Releasing the
pedal automatically slows down the vehicle to the set speed and ACC restarts its control.
CAUT,ONz The ACC braking control and proximity
alarm functions will not work while the ac- celerator pedal is depressed.
z The setting speed should be set up the suita-
ble speed according to a situation.NOTEz The set speed indication on the display turns
to “---” when the accelerator pedal is de- pressed. This indication remains as long as
the pedal is in a depressed position.
z In certain conditions, the braking control and
alarming functions of ACC may not work
for a short while after releasing the accelera- tor pedal.
z Set speed adjustment is impossible while the
accelerator pedal is in a depressed position.
To terminate ACC control
To cancel of ACC control
You can cancel the ACC control by using ei-
ther of the methods below.
When the control is cancelled, the system is placed in the ‘standby state’. You can makethe system restart the control by using the
“SET -” or “RES +” switch if the conditions
for activating the control are met.
z Press the “CANCEL” switch.
z Depress the brake pedal.NOTEzYou can also cancel the ACC control by
pressing the “ACC ON/OFF” switch. If thisswitch is pressed, ACC is turned off.
When the system shifts into the ‘standby
state’ as a result of cancellation of the ACC
control, the“ SET” indicator goes out. At the same time, the display of the following dis-
tance setting and running-ahead vehicle sym- bol (only when ACC is detecting a vehicle) is
placed in the standby state of display.
