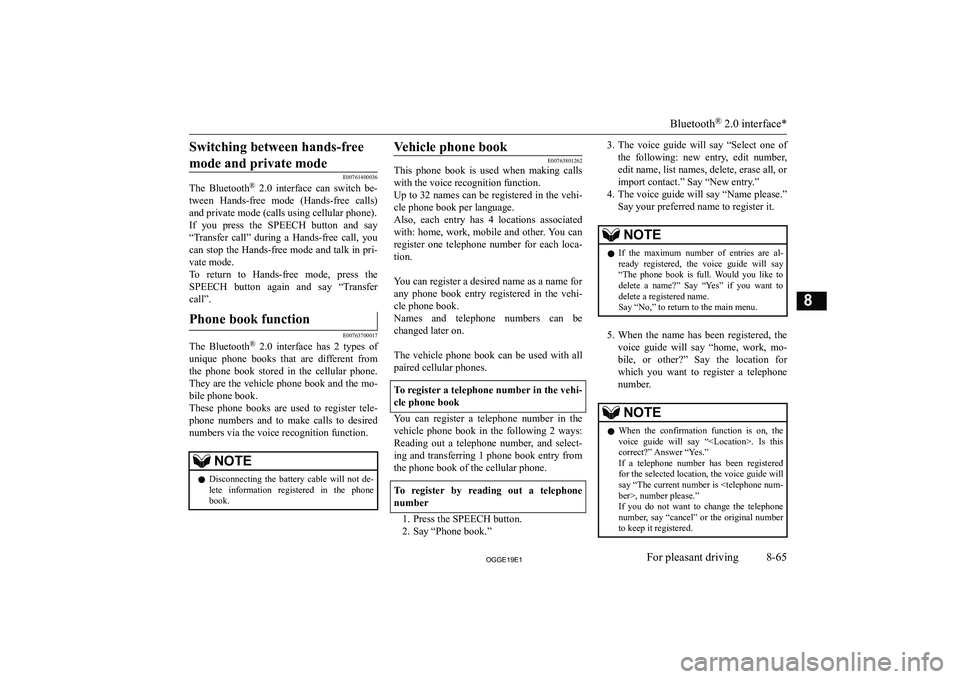

Switching between hands-freemode and private mode
E00761400036
The Bluetooth

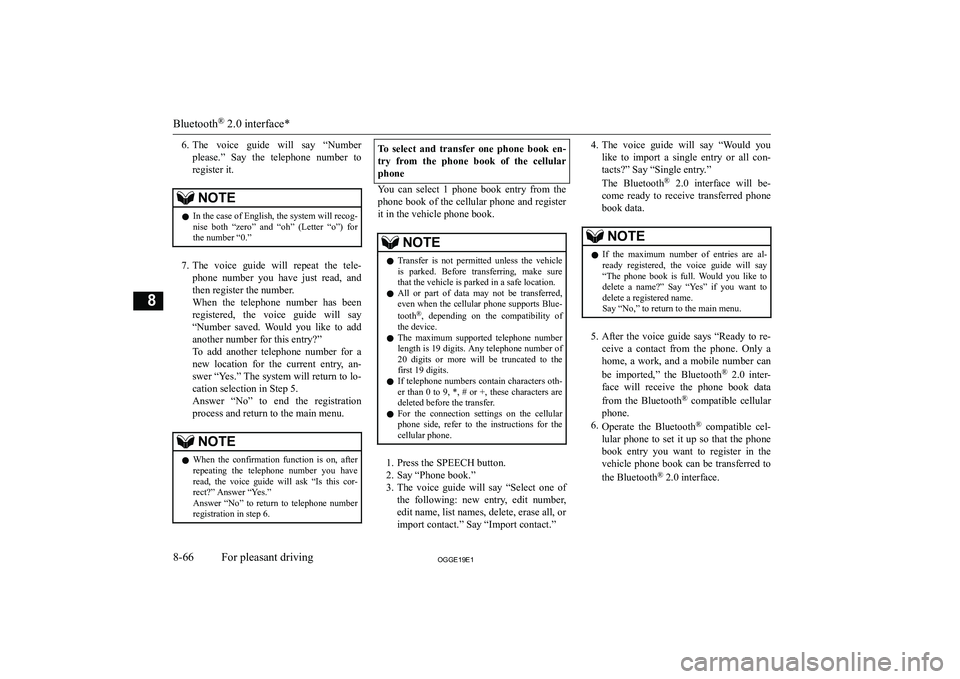

6.The voice guide will say “Number
please.” Say the telephone number to register it.NOTEz In the case of English, the system will recog-
nise both “zero” and “oh” (Letter “o”) for the number “0.”
7. The voice guide will repeat the tele-
phone number you have just read, and
then register the number.
When the telephone number has been registered, the voice guide will say
“Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a
new location for the current entry, an-
swer “Yes.” The system will return to lo- cation selection in Step 5.
Answer “No” to end the registration process and return to the main menu.
NOTEz When the confirmation function is on, after
repeating the telephone number you have
read, the voice guide will ask “Is this cor- rect?” Answer “Yes.”
Answer “No” to return to telephone number registration in step 6.To select and transfer one phone book en-
try from the phone book of the cellular phone
You can select 1 phone book entry from the
phone book of the cellular phone and register
it in the vehicle phone book.
NOTEz Transfer is not permitted unless the vehicle
is parked. Before transferring, make sure
that the vehicle is parked in a safe location.
z All or part of data may not be transferred,
even when the cellular phone supports Blue-
tooth

NOTEzIf the Bluetooth

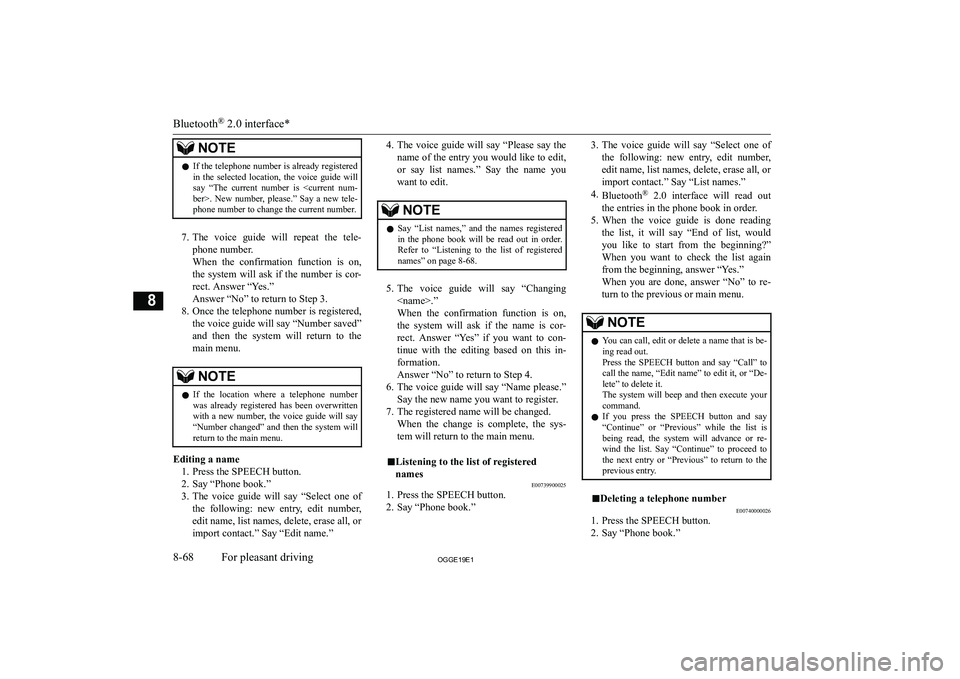

NOTEzIf the telephone number is already registered
in the selected location, the voice guide will
say “The current number is <current num-
ber>. New number, please.” Say a new tele- phone number to change the current number.
7. The voice guide will repeat the tele-
phone number.
When the confirmation function is on, the system will ask if the number is cor-
rect. Answer “Yes.”
Answer “No” to return to Step 3.
8. Once the telephone number is registered,
the voice guide will say “Number saved”
and then the system will return to the main menu.
NOTEz If the location where a telephone number
was already registered has been overwritten
with a new number, the voice guide will say “Number changed” and then the system will return to the main menu.
Editing a name
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Edit name.”
4. The voice guide will say “Please say the
name of the entry you would like to edit, or say list names.” Say the name you want to edit.NOTEz Say “List names,” and the names registered
in the phone book will be read out in order.Refer to “Listening to the list of registered
names” on page 8-68.
5. The voice guide will say “Changing
<name>.”
When the confirmation function is on, the system will ask if the name is cor-
rect. Answer “Yes” if you want to con-
tinue with the editing based on this in- formation.
Answer “No” to return to Step 4.
6. The voice guide will say “Name please.”
Say the new name you want to register.
7. The registered name will be changed. When the change is complete, the sys-
tem will return to the main menu.

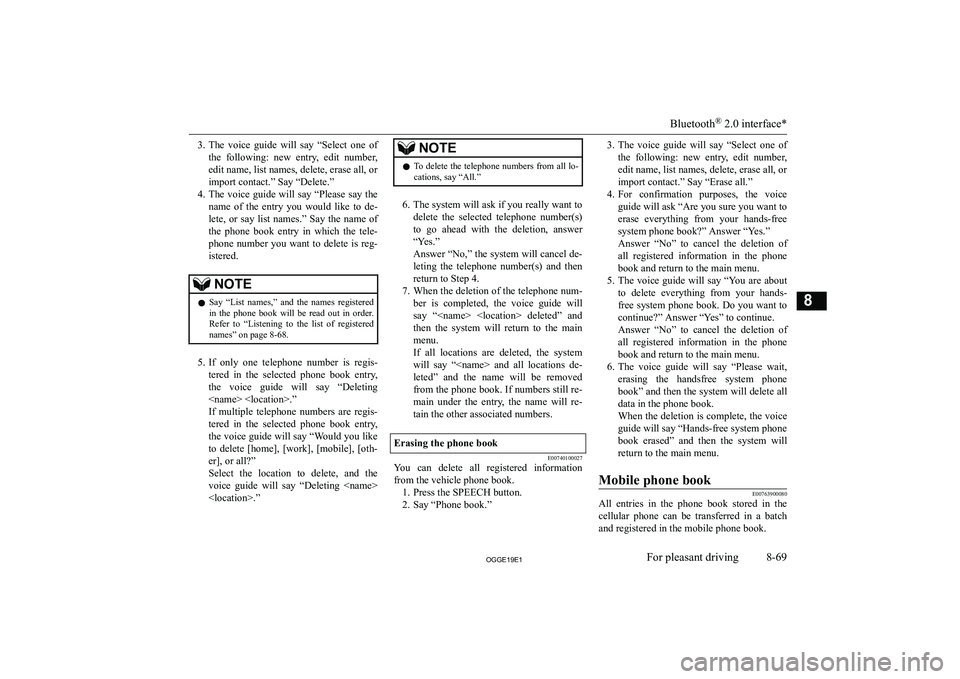

3.The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Delete.”
4. The voice guide will say “Please say the
name of the entry you would like to de- lete, or say list names.” Say the name of
the phone book entry in which the tele-
phone number you want to delete is reg- istered.NOTEz Say “List names,” and the names registered
in the phone book will be read out in order.Refer to “Listening to the list of registered
names” on page 8-68.
5. If only one telephone number is regis-
tered in the selected phone book entry, the voice guide will say “Deleting <name> <location>.”
If multiple telephone numbers are regis- tered in the selected phone book entry,
the voice guide will say “Would you like
to delete [home@, [work@, [mobile@, [oth-
er@, or all?”
Select the location to delete, and the voice guide will say “Deleting <name> <location>.”
NOTEz To delete the telephone numbers from all lo-
cations, say “All.”
6. The system will ask if you really want to
delete the selected telephone number(s)
to go ahead with the deletion, answer
“Yes.”
Answer “No,” the system will cancel de- leting the telephone number(s) and thenreturn to Step 4.
7. When the deletion of the telephone num-
ber is completed, the voice guide will
say “<name> <location> deleted” and then the system will return to the main
menu.
If all locations are deleted, the system will say “<name> and all locations de-
leted” and the name will be removed from the phone book. If numbers still re-
main under the entry, the name will re- tain the other associated numbers.
Erasing the phone book
E00740100027
You can delete all registered information
from the vehicle phone book. 1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “Erase all.”
4. For confirmation purposes, the voice
guide will ask “Are you sure you want toerase everything from your hands-free
system phone book?” Answer “Yes.”
Answer “No” to cancel the deletion of
all registered information in the phone book and return to the main menu.
5. The voice guide will say “You are about
to delete everything from your hands-
free system phone book. Do you want to continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of
all registered information in the phone
book and return to the main menu.
6. The voice guide will say “Please wait,
erasing the handsfree system phone book” and then the system will delete all
data in the phone book.
When the deletion is complete, the voice guide will say “Hands-free system phone
book erased” and then the system will
return to the main menu.Mobile phone book
E00763900080

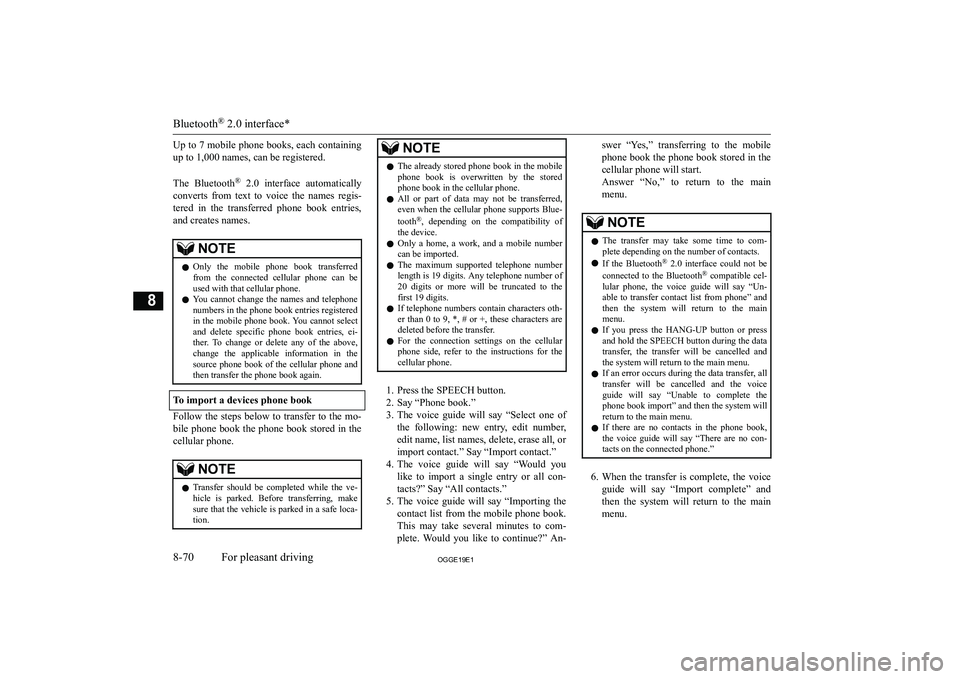

All entries in the phone book stored in the cellular phone can be transferred in a batch
and registered in the mobile phone book.
Bluetooth

Up to 7 mobile phone books, each containing
up to 1,000 names, can be registered.

The Bluetooth

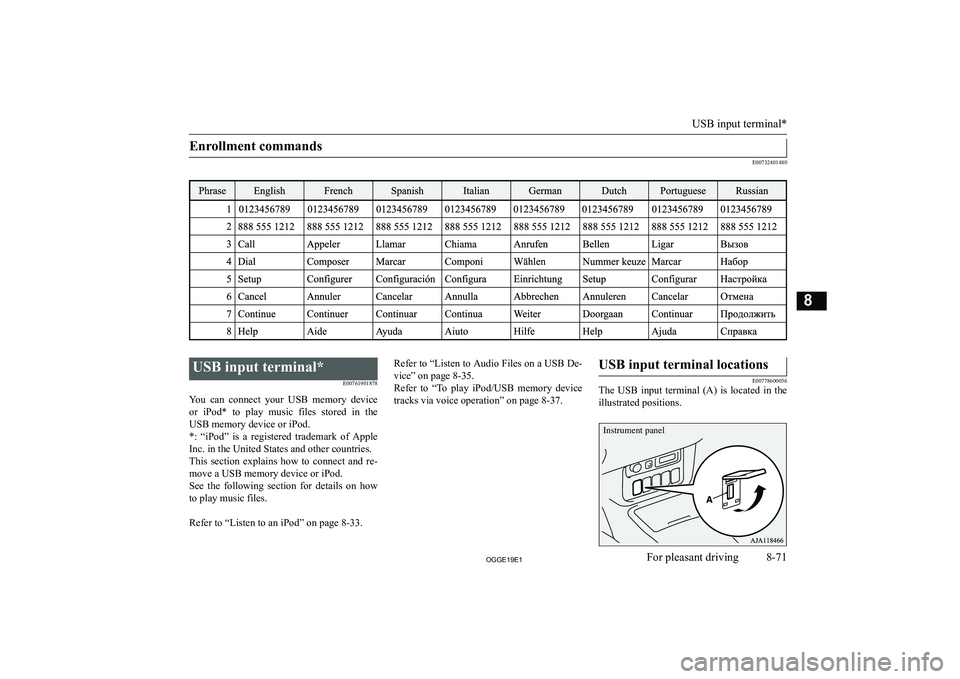

Enrollment commands
E00732401480

USB input terminal*E00761901878
You can connect your USB memory device or iPod* to play music files stored in the
USB memory device or iPod.
*: “iPod” is a registered trademark of Apple Inc. in the United States and other countries.This section explains how to connect and re-
move a USB memory device or iPod.
See the following section for details on how
to play music files.

Refer to “Listen to an iPod” on page 8-33.Refer to “Listen to Audio Files on a USB De-
vice” on page 8-35.
Refer to “To play iPod/USB memory device
tracks via voice operation” on page 8-37.USB input terminal locations
E00778600056
The USB input terminal (A) is located in the
illustrated positions.
USB input terminal*
8-712**((For pleasant driving8 Instrument panel

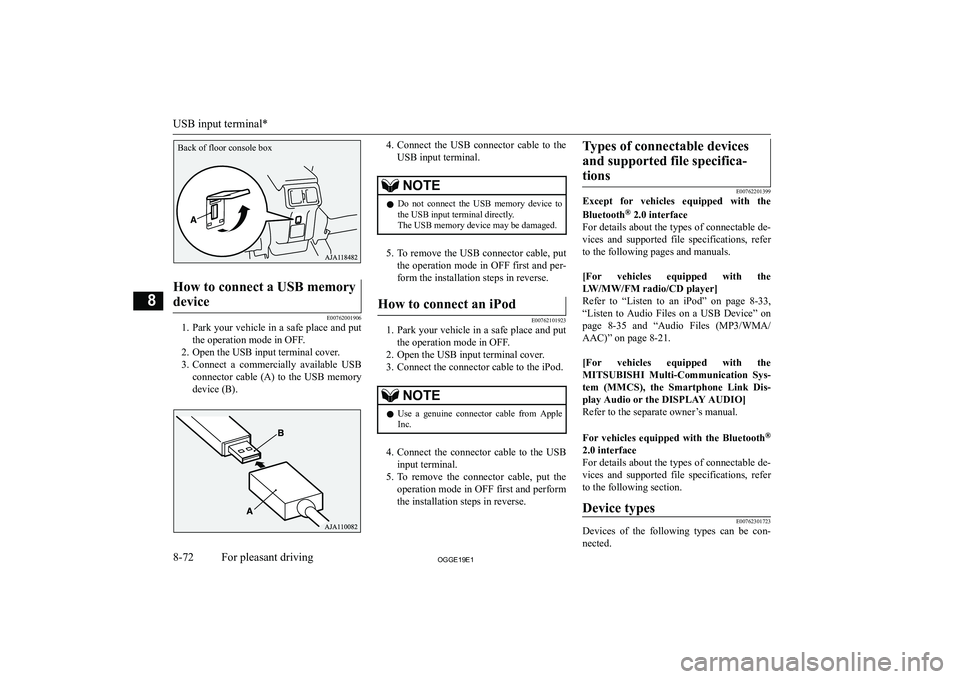

How to connect a USB memorydevice
E00762001906
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover.
3. Connect a commercially available USB
connector cable (A) to the USB memory
device (B).
4. Connect the USB connector cable to the
USB input terminal.NOTEz Do not connect the USB memory device to
the USB input terminal directly.
The USB memory device may be damaged.
5. To remove the USB connector cable, put
the operation mode in OFF first and per- form the installation steps in reverse.
How to connect an iPod
E00762101923
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover.
3. Connect the connector cable to the iPod.
NOTEz Use a genuine connector cable from Apple
Inc.
4. Connect the connector cable to the USB
input terminal.
5. To remove the connector cable, put the
operation mode in OFF first and perform the installation steps in reverse.
Types of connectable devices
and supported file specifica- tions
E00762201399
Except for vehicles equipped with the
Bluetooth

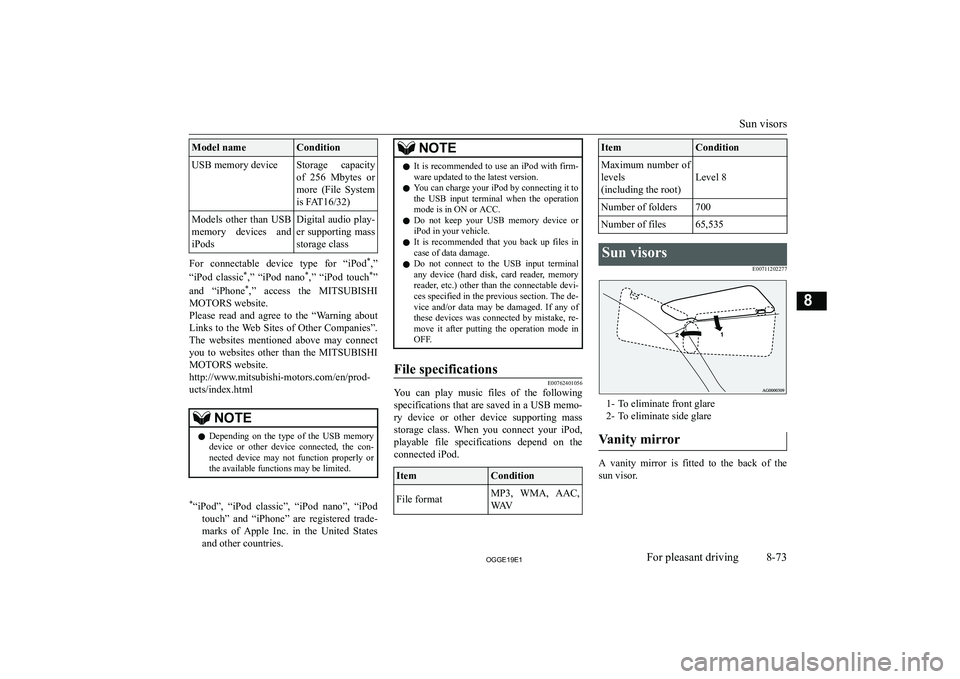

Model nameConditionUSB memory deviceStorage capacity
of 256 Mbytes or
more (File System is FAT16/32)Models other than USBmemory devices and
iPodsDigital audio play- er supporting mass
storage class
For connectable device type for “iPod *
,”
“iPod classic *
,” “iPod nano *
,” “iPod touch *
”
and “iPhone *
,” access the MITSUBISHI
MOTORS website.
Please read and agree to the “Warning about Links to the Web Sites of Other Companies”.
The websites mentioned above may connect you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod- ucts/index.html
NOTEz Depending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.* “iPod”, “iPod classic”, “iPod nano”, “iPod
touch” and “iPhone” are registered trade-marks of Apple Inc. in the United States and other countries.NOTEz It is recommended to use an iPod with firm-
ware updated to the latest version.
z You can charge your iPod by connecting it to
the USB input terminal when the operation mode is in ON or ACC.
z Do not keep your USB memory device or
iPod in your vehicle.
z It is recommended that you back up files in
case of data damage.
z Do not connect to the USB input terminal
any device (hard disk, card reader, memory
reader, etc.) other than the connectable devi- ces specified in the previous section. The de- vice and/or data may be damaged. If any of
these devices was connected by mistake, re- move it after putting the operation mode inOFF.File specifications
E00762401056
You can play music files of the following
specifications that are saved in a USB memo-
ry device or other device supporting mass storage class. When you connect your iPod,playable file specifications depend on the
connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVItemConditionMaximum number of levels
(including the root)
Level 8
Number of folders700Number of files65,535Sun visors
E00711202277
1- To eliminate front glare
2- To eliminate side glare
Vanity mirror
A vanity mirror is fitted to the back of the sun visor.
Sun visors
8-732**((For pleasant driving8

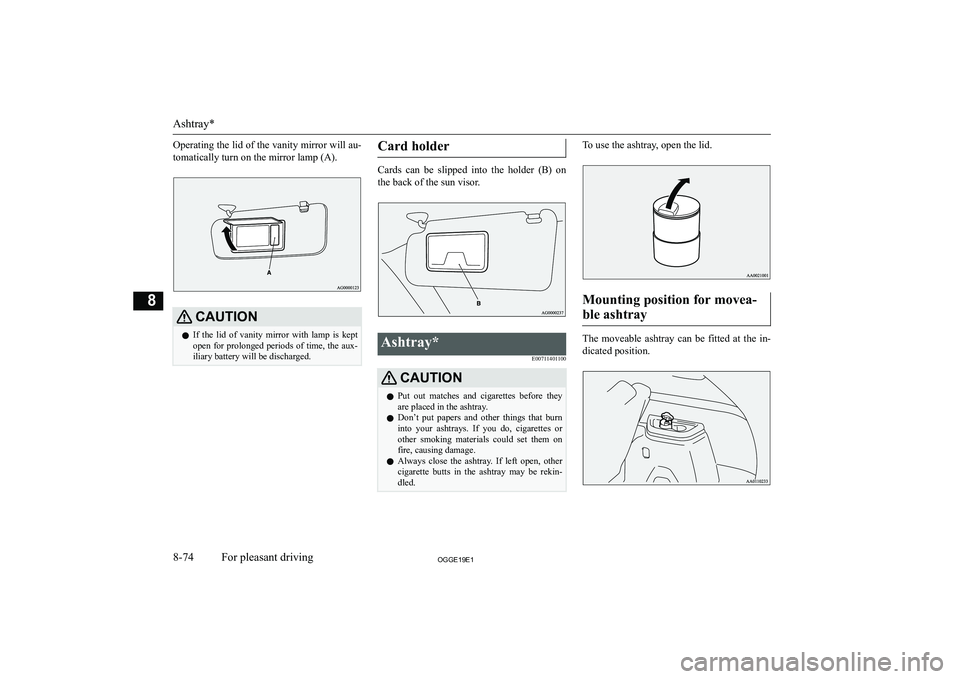

Operating the lid of the vanity mirror will au-tomatically turn on the mirror lamp (A).CAUT,ONz If the lid of vanity mirror with lamp is kept
open for prolonged periods of time, the aux-
iliary battery will be discharged.Card holder
Cards can be slipped into the holder (B) on
the back of the sun visor.
Ashtray*
E00711401100CAUT,ONzPut out matches and cigarettes before they
are placed in the ashtray.
z Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
z Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.To use the ashtray, open the lid.
Mounting position for movea-
ble ashtray
The moveable ashtray can be fitted at the in- dicated position.
Ashtray*
