MITSUBISHI OUTLANDER PHEV 2019 Owner's Manual (in English)

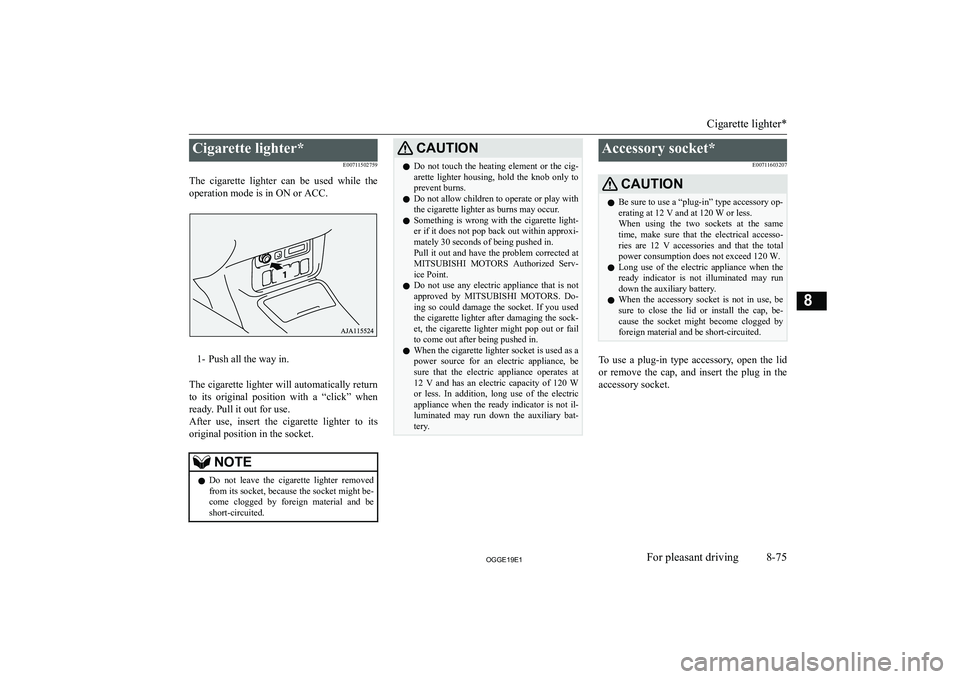

Cigarette lighter*E00711502759
The cigarette lighter can be used while the operation mode is in ON or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEz Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.CAUT,ONz Do not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
z Do not allow children to operate or play with
the cigarette lighter as burns may occur.
z Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
z Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used the cigarette lighter after damaging the sock-
et, the cigarette lighter might pop out or fail to come out after being pushed in.
z When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance when the ready indicator is not il-
luminated may run down the auxiliary bat-
tery.Accessory socket*
E00711603207CAUT,ONzBe sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using the two sockets at the same time, make sure that the electrical accesso-
ries are 12 V accessories and that the total power consumption does not exceed 120 W.
z Long use of the electric appliance when the
ready indicator is not illuminated may run
down the auxiliary battery.
z When the accessory socket is not in use, be
sure to close the lid or install the cap, be- cause the socket might become clogged by
foreign material and be short-circuited.
To use a plug-in type accessory, open the lid
or remove the cap, and insert the plug in the accessory socket.
Cigarette lighter*
8-752**((For pleasant driving8

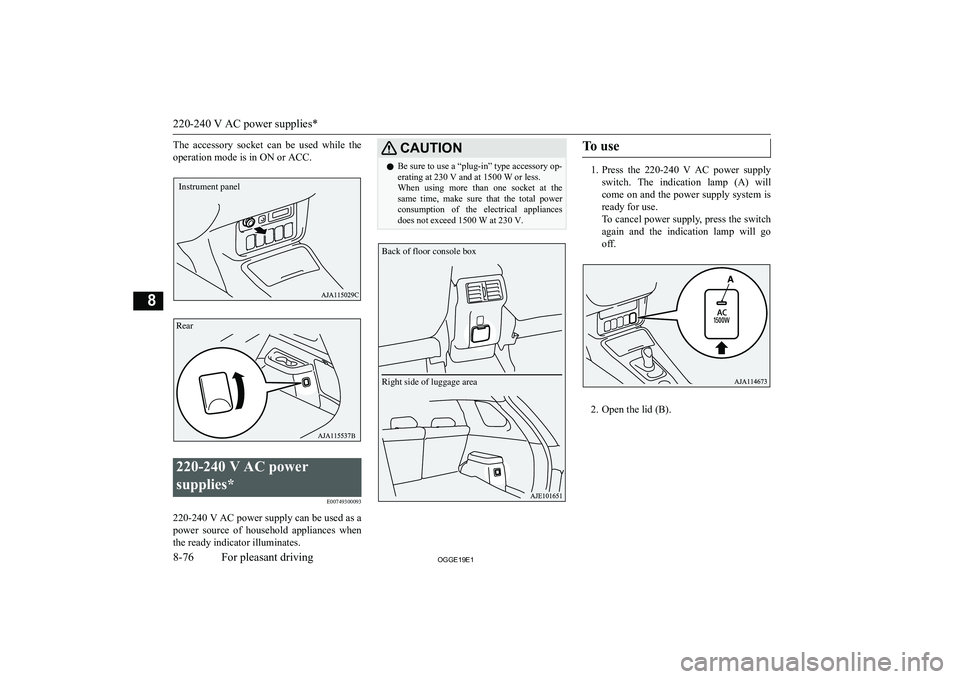

The accessory socket can be used while the
operation mode is in ON or ACC.220-240 V AC power
supplies* E00749300093
220-240 V AC power supply can be used as a
power source of household appliances when
the ready indicator illuminates.
CAUT,ONz Be sure to use a “plug-in” type accessory op-
erating at 230 V and at 1500 W or less.
When using more than one socket at the same time, make sure that the total power
consumption of the electrical appliances
does not exceed 1500 W at 230 V.To use
1. Press the 220-240 V AC power supply
switch. The indication lamp (A) will
come on and the power supply system is ready for use.
To cancel power supply, press the switch again and the indication lamp will go
off.
2. Open the lid (B).
220-240 V AC power supplies*
8-762**((For pleasant driving8Instrument panelC RearB Right side of luggage area
Back of floor console box

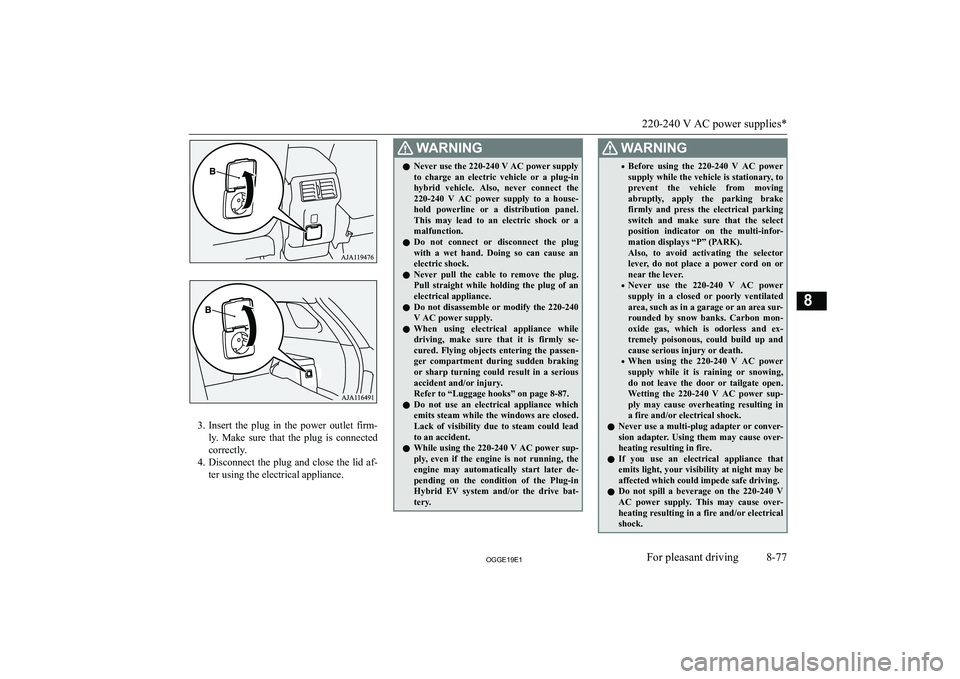

3.Insert the plug in the power outlet firm-
ly. Make sure that the plug is connected
correctly.
4. Disconnect the plug and close the lid af-
ter using the electrical appliance.
:ARN,NGz Never use the 220-240 V AC power supply
to charge an electric vehicle or a plug-in
hybrid vehicle. Also, never connect the 220-240 V AC power supply to a house-
hold powerline or a distribution panel. This may lead to an electric shock or a
malfunction.
z Do not connect or disconnect the plug
with a wet hand. Doing so can cause an
electric shock.
z Never pull the cable to remove the plug.
Pull straight while holding the plug of an electrical appliance.
z Do not disassemble or modify the 220-240
V AC power supply.
z When using electrical appliance while
driving, make sure that it is firmly se-
cured. Flying objects entering the passen- ger compartment during sudden braking or sharp turning could result in a serious
accident and/or injury.
Refer to “Luggage hooks” on page 8-87.
z Do not use an electrical appliance which
emits steam while the windows are closed. Lack of visibility due to steam could lead to an accident.
z While using the 220-240 V AC power sup-
ply, even if the engine is not running, the engine may automatically start later de-pending on the condition of the Plug-in
Hybrid EV system and/or the drive bat-
tery.:ARN,NG

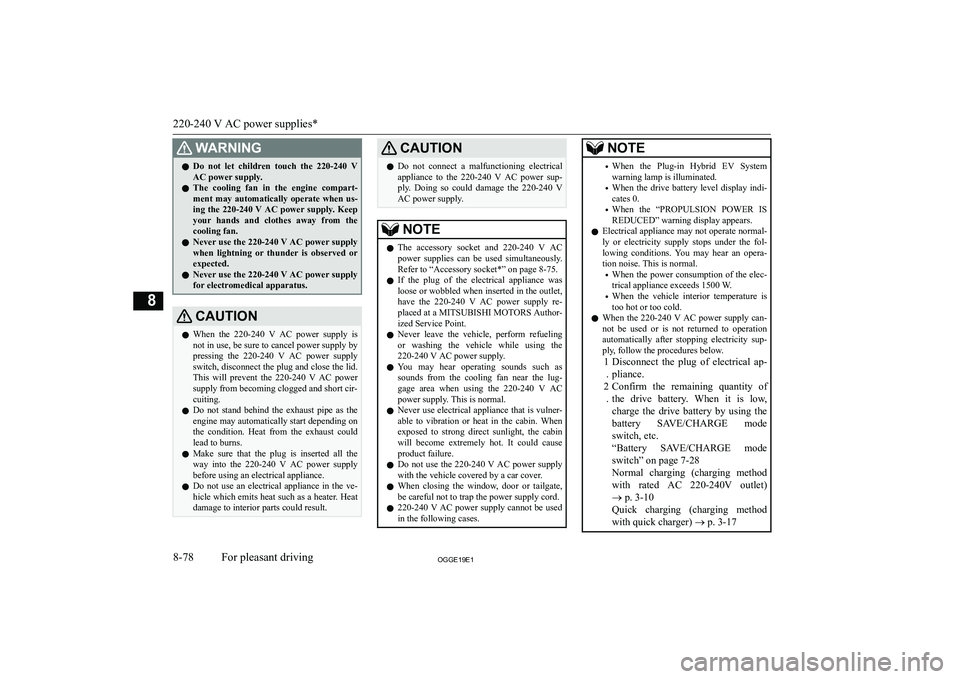

:ARN,NGzDo not let children touch the 220-240 V
AC power supply.
z The cooling fan in the engine compart-
ment may automatically operate when us-ing the 220-240 V AC power supply. Keep
your hands and clothes away from the cooling fan.
z Never use the 220-240 V AC power supply
when lightning or thunder is observed or
expected.
z Never use the 220-240 V AC power supply
for electromedical apparatus.CAUT,ONz When the 220-240 V AC power supply is
not in use, be sure to cancel power supply by pressing the 220-240 V AC power supply
switch, disconnect the plug and close the lid.
This will prevent the 220-240 V AC power
supply from becoming clogged and short cir-
cuiting.
z Do not stand behind the exhaust pipe as the
engine may automatically start depending on the condition. Heat from the exhaust could
lead to burns.
z Make sure that the plug is inserted all the
way into the 220-240 V AC power supplybefore using an electrical appliance.
z Do not use an electrical appliance in the ve-
hicle which emits heat such as a heater. Heat
damage to interior parts could result.CAUT,ONz Do not connect a malfunctioning electrical
appliance to the 220-240 V AC power sup-
ply. Doing so could damage the 220-240 V AC power supply.NOTEz The accessory socket and 220-240 V AC
power supplies can be used simultaneously.
Refer to “Accessory socket*” on page 8-75.
z If the plug of the electrical appliance was
loose or wobbled when inserted in the outlet, have the 220-240 V AC power supply re-
placed at a MITSUBISHI MOTORS Author-
ized Service Point.
z Never leave the vehicle, perform refueling
or washing the vehicle while using the 220-240 V AC power supply.
z You may hear operating sounds such as
sounds from the cooling fan near the lug-
gage area when using the 220-240 V AC
power supply. This is normal.
z Never use electrical appliance that is vulner-
able to vibration or heat in the cabin. When
exposed to strong direct sunlight, the cabin will become extremely hot. It could cause
product failure.
z Do not use the 220-240 V AC power supply
with the vehicle covered by a car cover.
z When closing the window, door or tailgate,
be careful not to trap the power supply cord.
z 220-240 V AC power supply cannot be used
in the following cases.NOTE

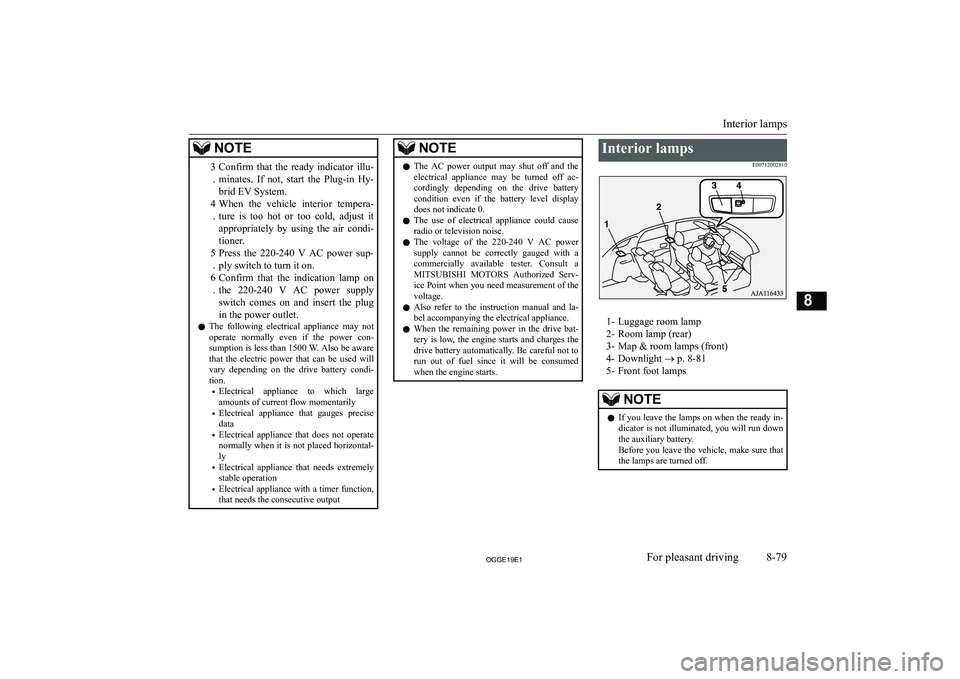

NOTE3. Confirm that the ready indicator illu-
minates. If not, start the Plug-in Hy- brid EV System.
4 . When the vehicle interior tempera-
ture is too hot or too cold, adjust it
appropriately by using the air condi-
tioner.
5 . Press the 220-240 V AC power sup-
ply switch to turn it on.
6 . Confirm that the indication lamp on
the 220-240 V AC power supply
switch comes on and insert the plug in the power outlet.
z The following electrical appliance may not
operate normally even if the power con-
sumption is less than 1500 W. Also be aware that the electric power that can be used will
vary depending on the drive battery condi- tion.

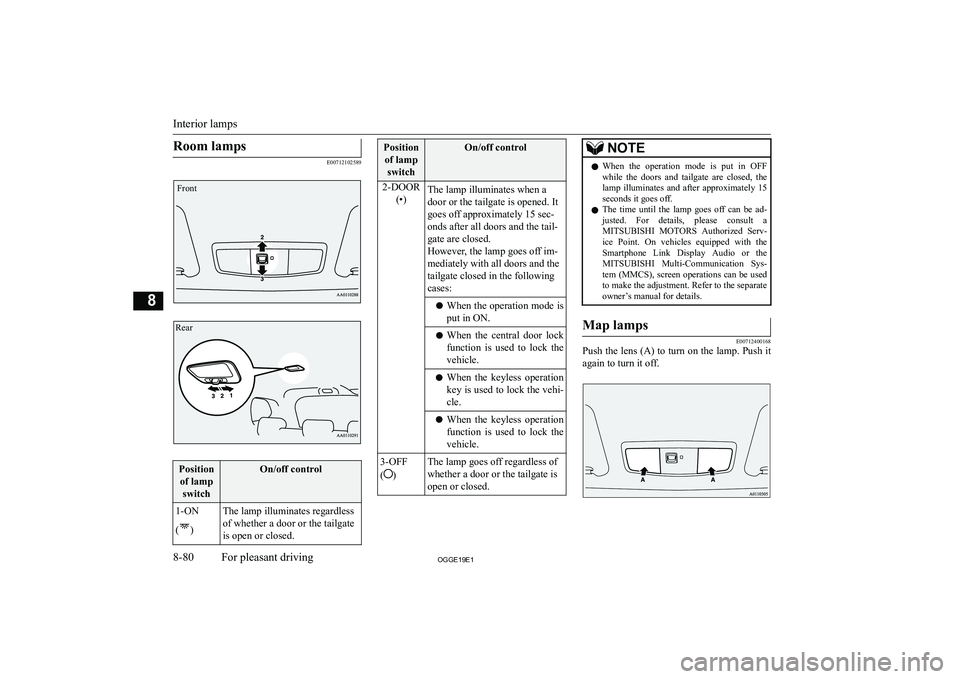

Room lamps
E00712102589
Positionof lamp switchOn/off control1-ON
(
)
The lamp illuminates regardless
of whether a door or the tailgate
is open or closed.Position of lamp switchOn/off control2-DOOR (

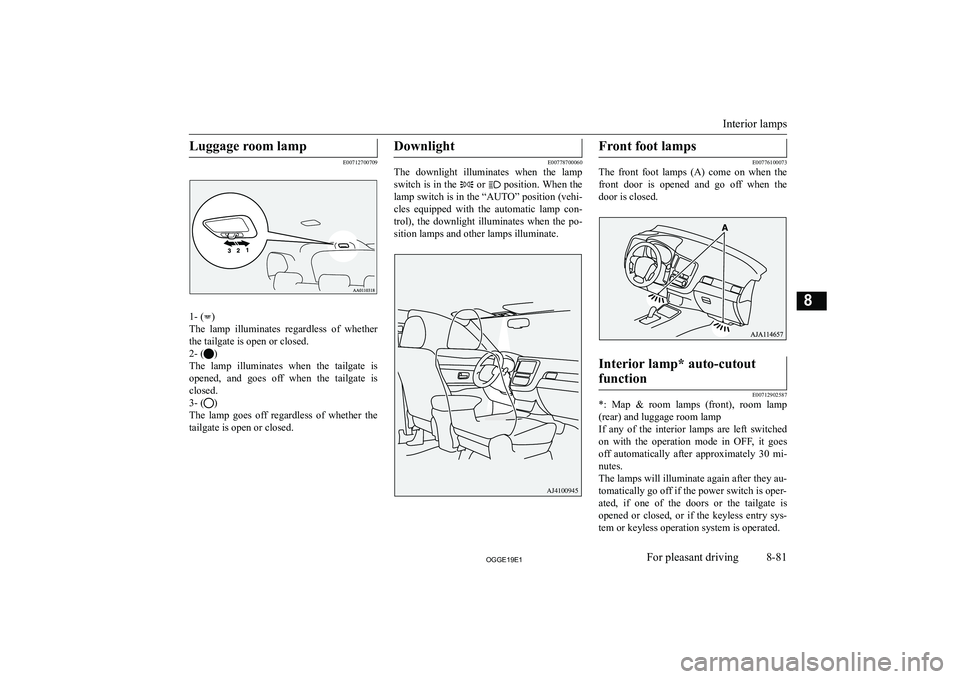

Luggage room lamp
E00712700709
1- ()
The lamp illuminates regardless of whether the tailgate is open or closed.
2- (
)
The lamp illuminates when the tailgate is opened, and goes off when the tailgate is
closed.
3- (
)
The lamp goes off regardless of whether the tailgate is open or closed.
Downlight
E00778700060
The downlight illuminates when the lamp
switch is in the
or position. When the
lamp switch is in the “AUTO” position (vehi-
cles equipped with the automatic lamp con-
trol), the downlight illuminates when the po- sition lamps and other lamps illuminate.
Front foot lamps
E00776100073
The front foot lamps (A) come on when the
front door is opened and go off when the
door is closed.
Interior lamp* auto-cutout
function
E00712902587
*: Map & room lamps (front), room lamp (rear) and luggage room lamp
If any of the interior lamps are left switched
on with the operation mode in OFF, it goes off automatically after approximately 30 mi- nutes.
The lamps will illuminate again after they au- tomatically go off if the power switch is oper-ated, if one of the doors or the tailgate is
opened or closed, or if the keyless entry sys- tem or keyless operation system is operated.
Interior lamps
8-812**((For pleasant driving8 AJ4100945

NOTEzThe interior lamp auto-cut function can be
deactivated. The time until the lamps auto- matically go off can be adjusted. For details
and support, consult your nearest
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make the

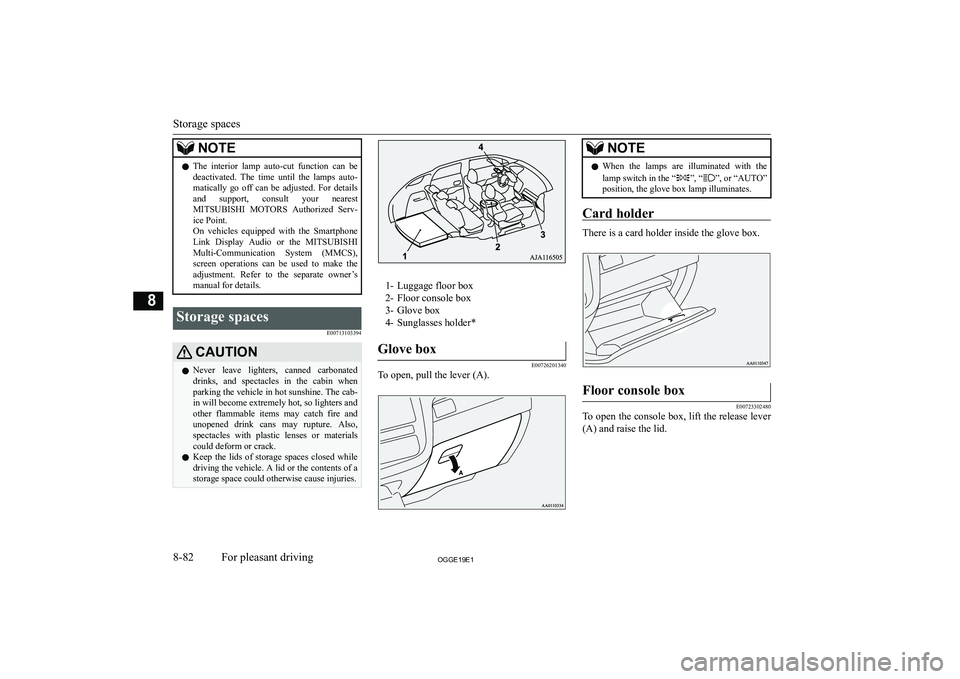

adjustment. Refer to the separate owner’s manual for details.Storage spaces
E00713103394CAUT,ONzNever leave lighters, canned carbonated
drinks, and spectacles in the cabin when
parking the vehicle in hot sunshine. The cab- in will become extremely hot, so lighters and
other flammable items may catch fire and
unopened drink cans may rupture. Also, spectacles with plastic lenses or materials could deform or crack.
z Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a storage space could otherwise cause injuries.
1- Luggage floor box
2- Floor console box
3- Glove box
4- Sunglasses holder*
Glove box
E00726201340
To open, pull the lever (A).
NOTEz When the lamps are illuminated with the
lamp switch in the “”, “”, or “AUTO”
position, the glove box lamp illuminates.
Card holder
There is a card holder inside the glove box.
Floor console box
E00723302480
To open the console box, lift the release lever
(A) and raise the lid.
Storage spaces
8-822**((For pleasant driving8

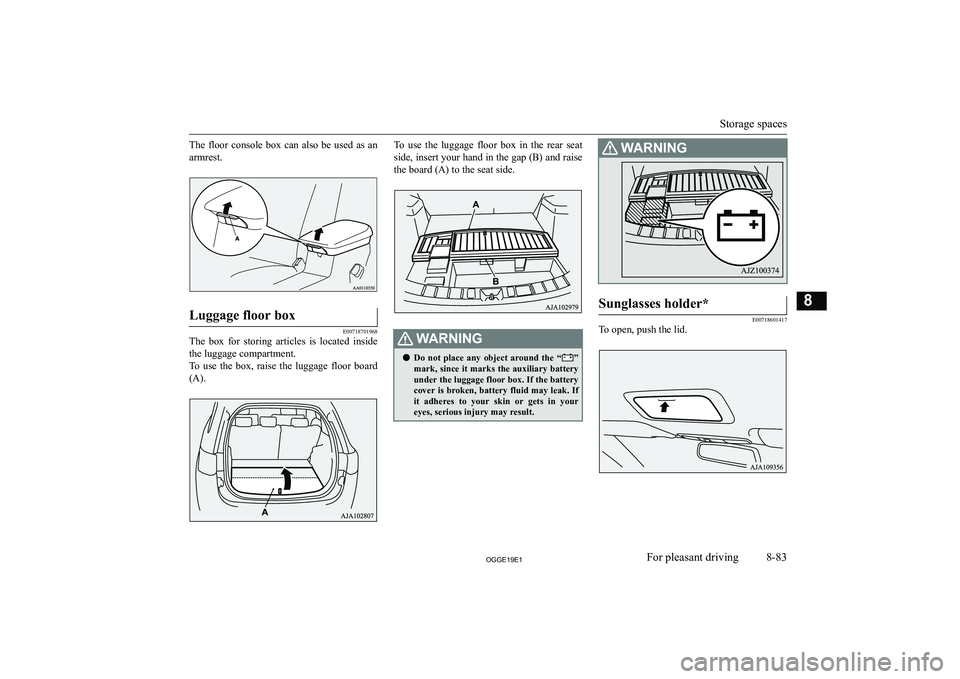

The floor console box can also be used as anarmrest.Luggage floor box
E00718701968
The box for storing articles is located insidethe luggage compartment.
To use the box, raise the luggage floor board (A).
To use the luggage floor box in the rear seat
side, insert your hand in the gap (B) and raise the board (A) to the seat side.:ARN,NGz Do not place any object around the “”
mark, since it marks the auxiliary battery
under the luggage floor box. If the battery cover is broken, battery fluid may leak. If it adheres to your skin or gets in youreyes, serious injury may result.:ARN,NGSunglasses holder*
E00718601417
To open, push the lid.
Storage spaces
8-832**((For pleasant driving8

CAUT,ONzThe holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.NOTEz The holder may not be able to accomodate
every possible size and shape of sunglasses;

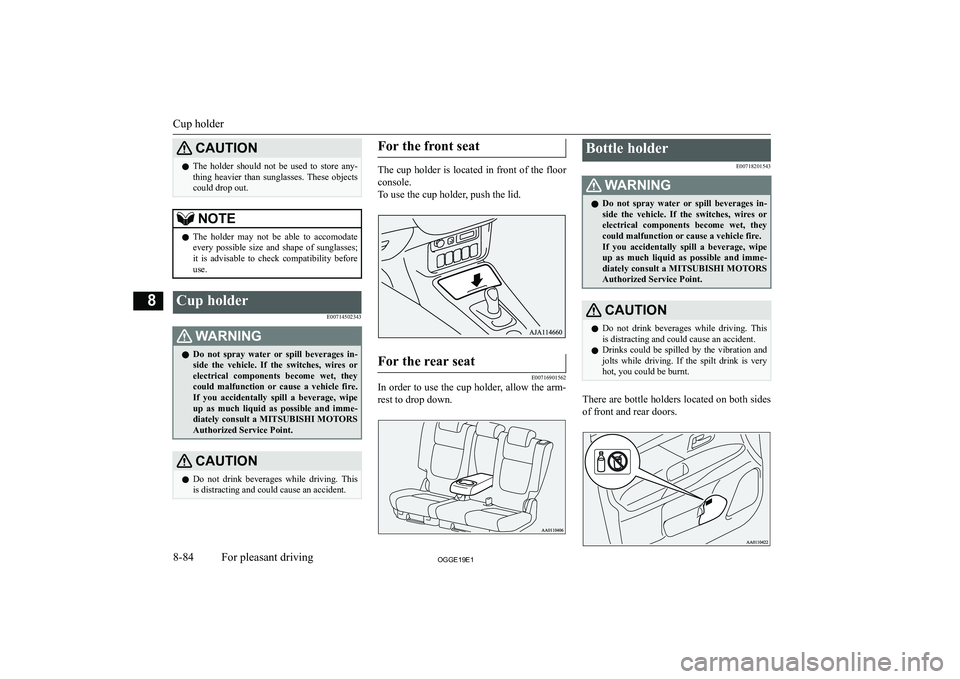

it is advisable to check compatibility before use.Cup holder
E00714502343:ARN,NGzDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.For the front seat
The cup holder is located in front of the floor
console.
To use the cup holder, push the lid.
For the rear seat
E00716901562
In order to use the cup holder, allow the arm-
rest to drop down.
Bottle holder
E00718201543:ARN,NGzDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.
z Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
There are bottle holders located on both sides
of front and rear doors.
Cup holder
8-842**((For pleasant driving8
