MITSUBISHI OUTLANDER PHEV 2020 (in English) Owners Manual

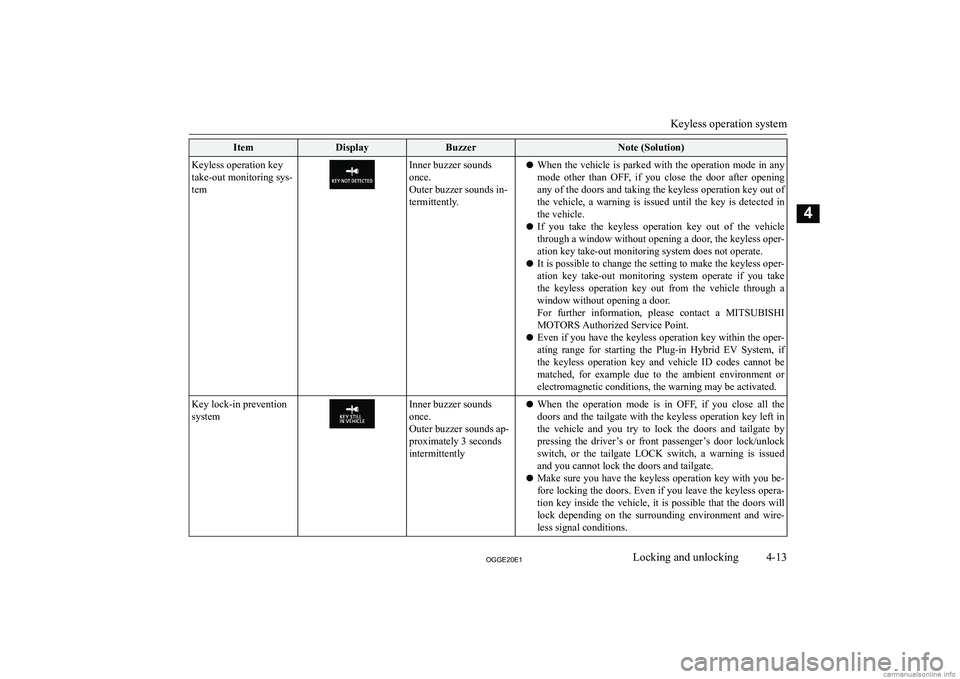

ItemDisplayBuzzerNote (Solution)Keyless operation key
take-out monitoring sys-
temInner buzzer sounds
once.
Outer buzzer sounds in-
termittently.z When the vehicle is parked with the operation mode in any
mode other than OFF, if you close the door after opening any of the doors and taking the keyless operation key out of
the vehicle, a warning is issued until the key is detected in the vehicle.
z If you take the keyless operation key out of the vehicle
through a window without opening a door, the keyless oper-
ation key take-out monitoring system does not operate.
z It is possible to change the setting to make the keyless oper-
ation key take-out monitoring system operate if you take
the keyless operation key out from the vehicle through a window without opening a door.
For further information, please contact a MITSUBISHI
MOTORS Authorized Service Point.
z Even if you have the keyless operation key within the oper-
ating range for starting the Plug-in Hybrid EV System, if the keyless operation key and vehicle ID codes cannot be
matched, for example due to the ambient environment or electromagnetic conditions, the warning may be activated.Key lock-in prevention
systemInner buzzer sounds
once.
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyz When the operation mode is in OFF, if you close all the
doors and the tailgate with the keyless operation key left in
the vehicle and you try to lock the doors and tailgate by pressing the driver’s or front passenger’s door lock/unlockswitch, or the tailgate LOCK switch, a warning is issued
and you cannot lock the doors and tailgate.
z Make sure you have the keyless operation key with you be-
fore locking the doors. Even if you leave the keyless opera- tion key inside the vehicle, it is possible that the doors will
lock depending on the surrounding environment and wire-
less signal conditions.
Keyless operation system
4-132**(20(1Locking and unlocking4

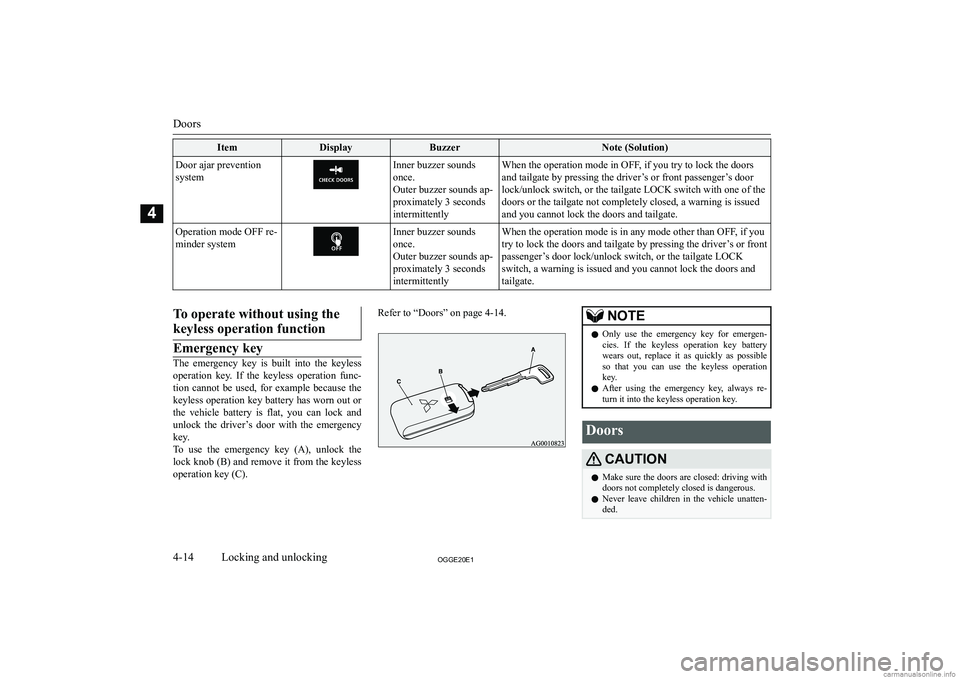

ItemDisplayBuzzerNote (Solution)Door ajar prevention
systemInner buzzer sounds
once.
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyWhen the operation mode in OFF, if you try to lock the doors and tailgate by pressing the driver’s or front passenger’s door
lock/unlock switch, or the tailgate LOCK switch with one of the
doors or the tailgate not completely closed, a warning is issued
and you cannot lock the doors and tailgate.Operation mode OFF re-
minder systemInner buzzer sounds
once.
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyWhen the operation mode is in any mode other than OFF, if you
try to lock the doors and tailgate by pressing the driver’s or front
passenger’s door lock/unlock switch, or the tailgate LOCK
switch, a warning is issued and you cannot lock the doors and
tailgate.

To operate without using the
keyless operation functionEmergency key
The emergency key is built into the keyless
operation key. If the keyless operation func- tion cannot be used, for example because the
keyless operation key battery has worn out or the vehicle battery is flat, you can lock and
unlock the driver’s door with the emergency key.
To use the emergency key (A), unlock the
lock knob (B) and remove it from the keyless
operation key (C).
Refer to “Doors” on page 4-14.NOTEz Only use the emergency key for emergen-
cies. If the keyless operation key battery
wears out, replace it as quickly as possible so that you can use the keyless operation
key.
z After using the emergency key, always re-
turn it into the keyless operation key.DoorsCAUT,ONz Make sure the doors are closed: driving with
doors not completely closed is dangerous.
z Never leave children in the vehicle unatten-
ded.
Doors
4-142**(20(1Locking and unlocking4

CAUT,ONzBe careful not to lock the doors while the
key is inside the vehicle.NOTEz To prevent the key from being locked inside
the vehicle, neither the lock knob on the driver’s door nor the key can be used to lock
the driver’s door when it is open.

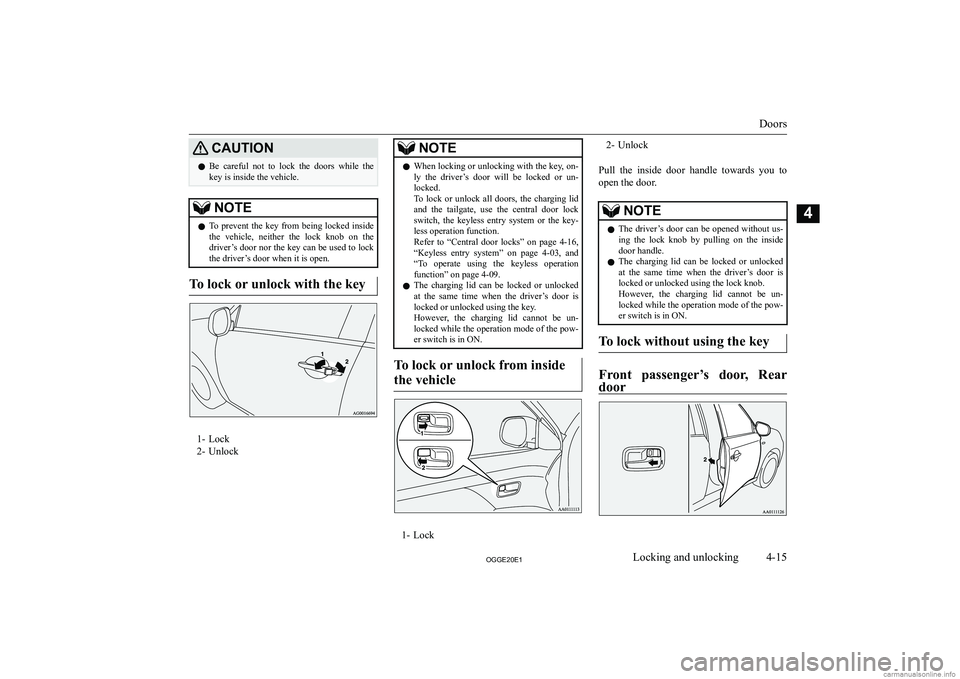

To lock or unlock with the key
1- Lock
2- Unlock
NOTEz When locking or unlocking with the key, on-
ly the driver’s door will be locked or un-
locked.
To lock or unlock all doors, the charging lid and the tailgate, use the central door lock
switch, the keyless entry system or the key-
less operation function.
Refer to “Central door locks” on page 4-16,
“Keyless entry system” on page 4-03, and
“To operate using the keyless operation function” on page 4-09.
z The charging lid can be locked or unlocked
at the same time when the driver’s door is locked or unlocked using the key.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.
To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
Pull the inside door handle towards you to open the door.NOTEz The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
z The charging lid can be locked or unlocked
at the same time when the driver’s door is locked or unlocked using the lock knob.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.
To lock without using the key
Front passenger’s door, Rear
door
Doors
4-152**(20(1Locking and unlocking4

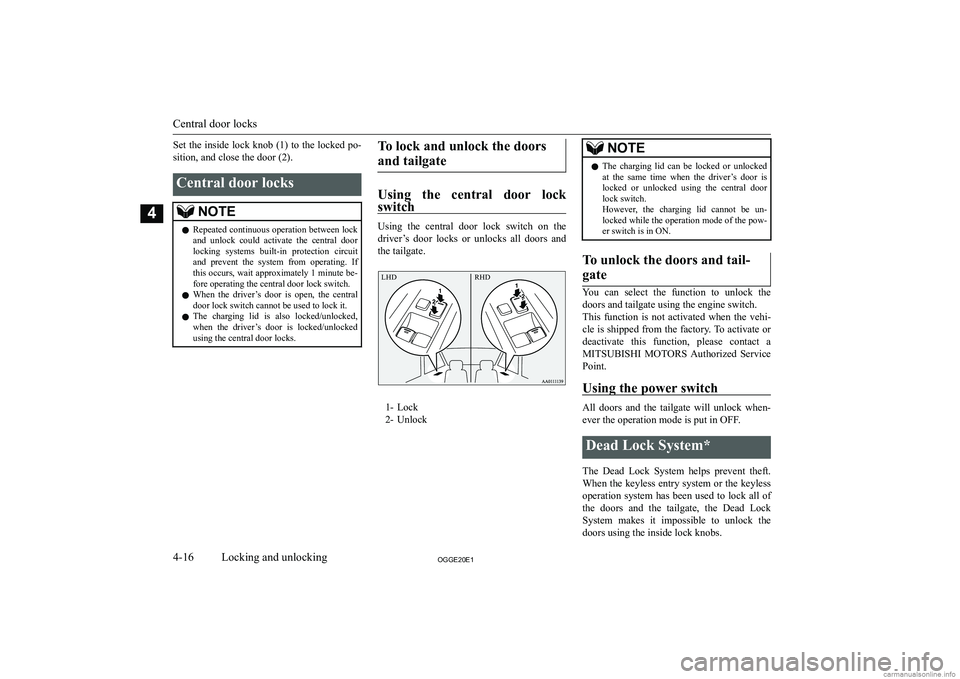

Set the inside lock knob (1) to the locked po-
sition, and close the door (2).Central door locksNOTEz Repeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating. If
this occurs, wait approximately 1 minute be- fore operating the central door lock switch.
z When the driver’s door is open, the central
door lock switch cannot be used to lock it.
z The charging lid is also locked/unlocked,
when the driver’s door is locked/unlocked using the central door locks.To lock and unlock the doors
and tailgate
Using the central door lock
switch
Using the central door lock switch on the
driver’s door locks or unlocks all doors and the tailgate.
1- Lock
2- Unlock
NOTEz The charging lid can be locked or unlocked
at the same time when the driver’s door islocked or unlocked using the central doorlock switch.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.To unlock the doors and tail-
gate
You can select the function to unlock the
doors and tailgate using the engine switch.
This function is not activated when the vehi- cle is shipped from the factory. To activate or deactivate this function, please contact aMITSUBISHI MOTORS Authorized Service
Point.
Using the power switch
All doors and the tailgate will unlock when-
ever the operation mode is put in OFF.
Dead Lock System*
The Dead Lock System helps prevent theft.
When the keyless entry system or the keyless operation system has been used to lock all of
the doors and the tailgate, the Dead Lock System makes it impossible to unlock the
doors using the inside lock knobs.
Central door locks
4-162**(20(1Locking and unlocking4 LHD RHD

CAUT,ONzDo not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un-
lock the doors using the UNLOCK switch on the remote control switch or using the

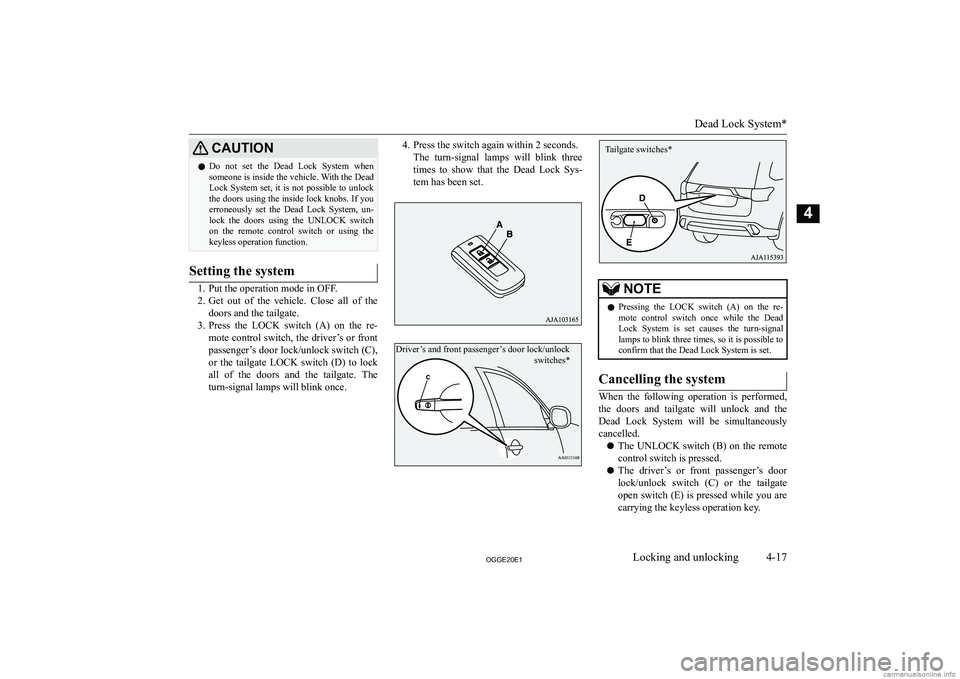

keyless operation function.Setting the system
1. Put the operation mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
3. Press the LOCK switch (A) on the re-
mote control switch, the driver’s or front
passenger’s door lock/unlock switch (C),
or the tailgate LOCK switch (D) to lock
all of the doors and the tailgate. The turn-signal lamps will blink once.
4. Press the switch again within 2 seconds.
The turn-signal lamps will blink threetimes to show that the Dead Lock Sys-
tem has been set.NOTEz Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to
confirm that the Dead Lock System is set.Cancelling the system
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously
cancelled.
z The UNLOCK switch (B) on the remote
control switch is pressed.
z The driver’s or front passenger’s door
lock/unlock switch (C) or the tailgateopen switch (E) is pressed while you are
carrying the keyless operation key.
Dead Lock System*
4-172**(20(1Locking and unlocking4 Driver’s and front passenger’s door lock/unlock
switches* Tailgate switches*

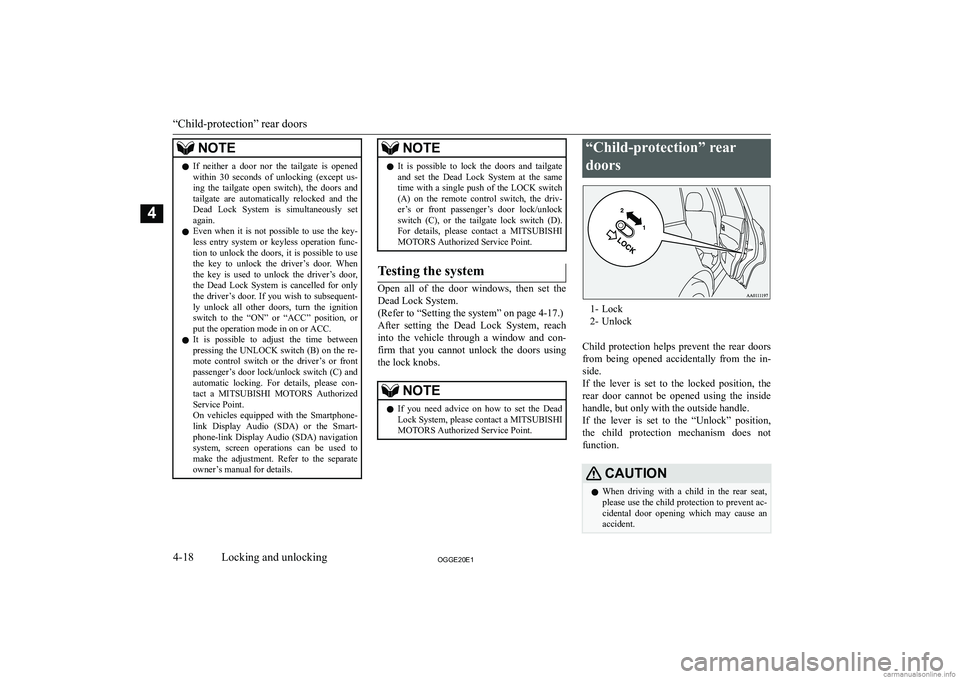

NOTEzIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate open switch), the doors andtailgate are automatically relocked and the
Dead Lock System is simultaneously set again.
z Even when it is not possible to use the key-
less entry system or keyless operation func- tion to unlock the doors, it is possible to use
the key to unlock the driver’s door. When
the key is used to unlock the driver’s door, the Dead Lock System is cancelled for onlythe driver’s door. If you wish to subsequent-
ly unlock all other doors, turn the ignition switch to the “ON” or “ACC” position, orput the operation mode in on or ACC.
z It is possible to adjust the time between
pressing the UNLOCK switch (B) on the re- mote control switch or the driver’s or front
passenger’s door lock/unlock switch (C) and automatic locking. For details, please con-
tact a MITSUBISHI MOTORS Authorized
Service Point.
On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart- phone-link Display Audio (SDA) navigation
system, screen operations can be used to
make the adjustment. Refer to the separate
owner’s manual for details.NOTEz It is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er’s or front passenger’s door lock/unlock
switch (C), or the tailgate lock switch (D).
For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.Testing the system
Open all of the door windows, then set the
Dead Lock System.
(Refer to “Setting the system” on page 4-17.)
After setting the Dead Lock System, reach into the vehicle through a window and con-
firm that you cannot unlock the doors using the lock knobs.
NOTEz If you need advice on how to set the Dead
Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.“Child-protection” rear
doors
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUT,ONz When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.
“Child-protection” rear doors
4-182**(20(1Locking and unlocking4

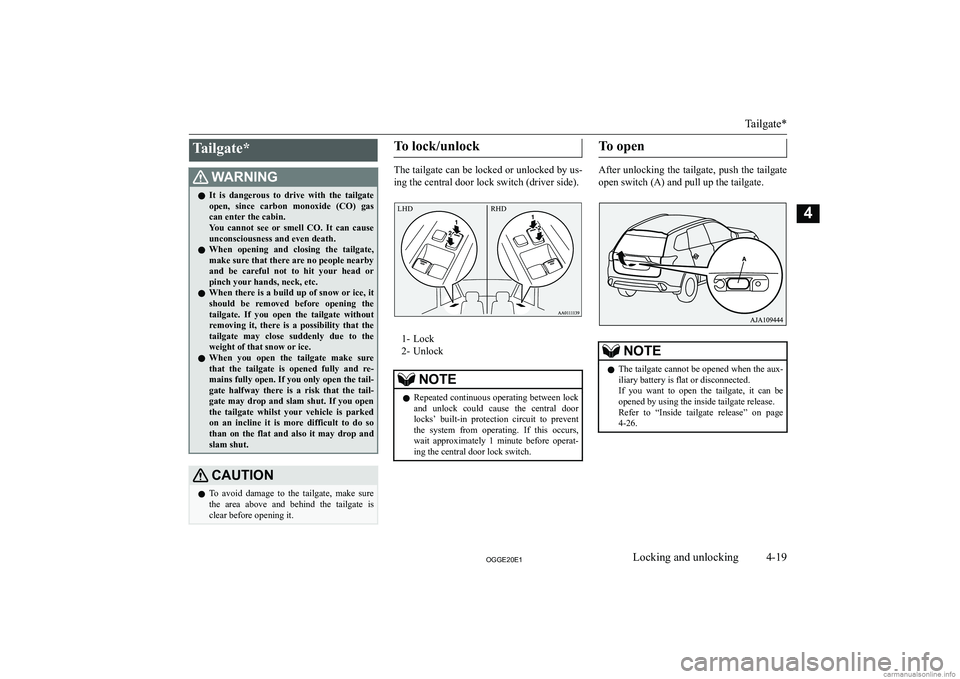

Tailgate*:ARN,NGzIt is dangerous to drive with the tailgate
open, since carbon monoxide (CO) gas
can enter the cabin.
You cannot see or smell CO. It can cause
unconsciousness and even death.
z When opening and closing the tailgate,
make sure that there are no people nearby
and be careful not to hit your head or pinch your hands, neck, etc.
z When there is a build up of snow or ice, it
should be removed before opening the tailgate. If you open the tailgate without removing it, there is a possibility that the
tailgate may close suddenly due to the weight of that snow or ice.
z When you open the tailgate make sure
that the tailgate is opened fully and re- mains fully open. If you only open the tail-
gate halfway there is a risk that the tail-
gate may drop and slam shut. If you open the tailgate whilst your vehicle is parked
on an incline it is more difficult to do so
than on the flat and also it may drop and slam shut.CAUT,ONz To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.To lock/unlock
The tailgate can be locked or unlocked by us-
ing the central door lock switch (driver side).
1- Lock
2- Unlock
NOTEz Repeated continuous operating between lock
and unlock could cause the central doorlocks’ built-in protection circuit to preventthe system from operating. If this occurs,
wait approximately 1 minute before operat-
ing the central door lock switch.To open
After unlocking the tailgate, push the tailgate
open switch (A) and pull up the tailgate.
NOTEz The tailgate cannot be opened when the aux-
iliary battery is flat or disconnected.If you want to open the tailgate, it can be
opened by using the inside tailgate release.
Refer to “Inside tailgate release” on page
4-26.
Tailgate*
4-192**(20(1Locking and unlocking4 LHD RHD

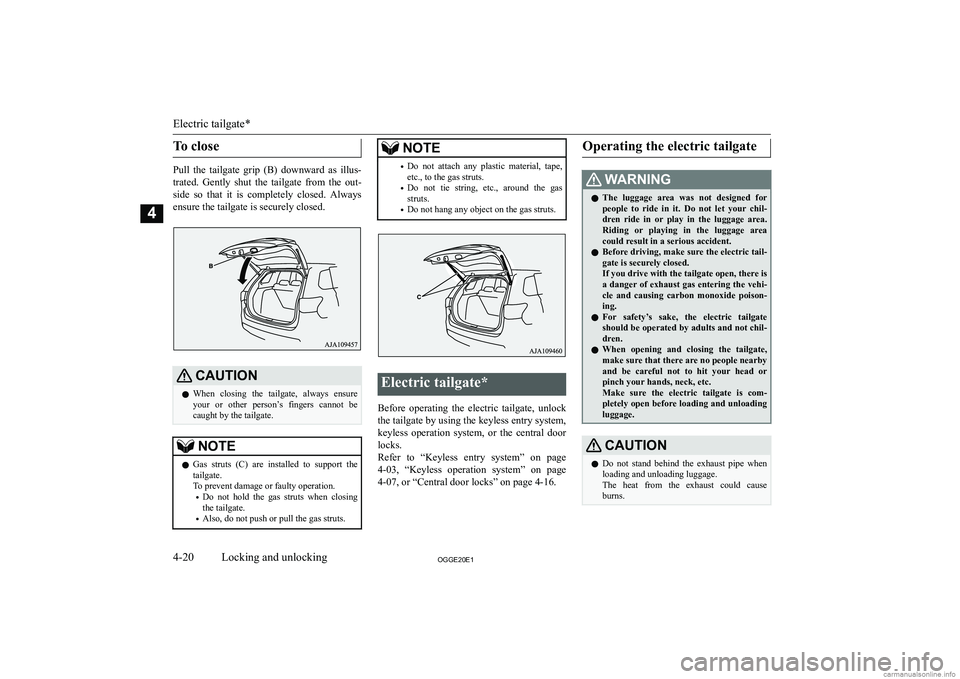

To close
Pull the tailgate grip (B) downward as illus-trated. Gently shut the tailgate from the out-
side so that it is completely closed. Always
ensure the tailgate is securely closed.
CAUT,ONz When closing the tailgate, always ensure
your or other person’s fingers cannot becaught by the tailgate.NOTEz Gas struts (C) are installed to support the
tailgate.
To prevent damage or faulty operation.

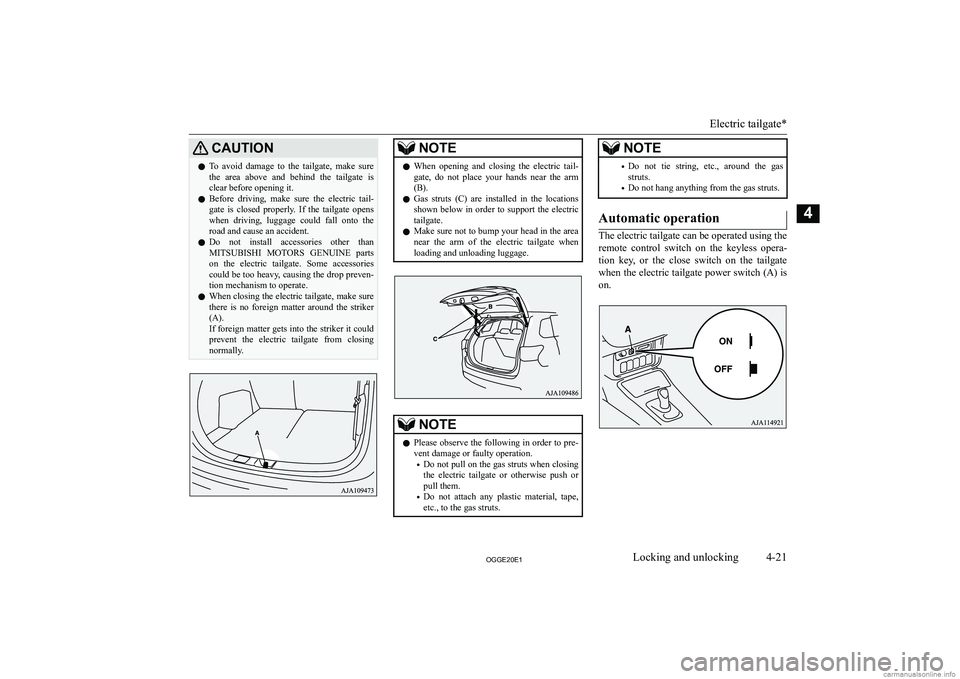

CAUT,ONzTo avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.
z Before driving, make sure the electric tail-
gate is closed properly. If the tailgate opens
when driving, luggage could fall onto the road and cause an accident.
z Do not install accessories other than
MITSUBISHI MOTORS GENUINE parts
on the electric tailgate. Some accessories could be too heavy, causing the drop preven-
tion mechanism to operate.
z When closing the electric tailgate, make sure
there is no foreign matter around the striker
(A).
If foreign matter gets into the striker it could
prevent the electric tailgate from closing normally.NOTEz When opening and closing the electric tail-
gate, do not place your hands near the arm(B).
z Gas struts (C) are installed in the locations
shown below in order to support the electric tailgate.
z Make sure not to bump your head in the area
near the arm of the electric tailgate when
loading and unloading luggage.NOTEz Please observe the following in order to pre-
vent damage or faulty operation.

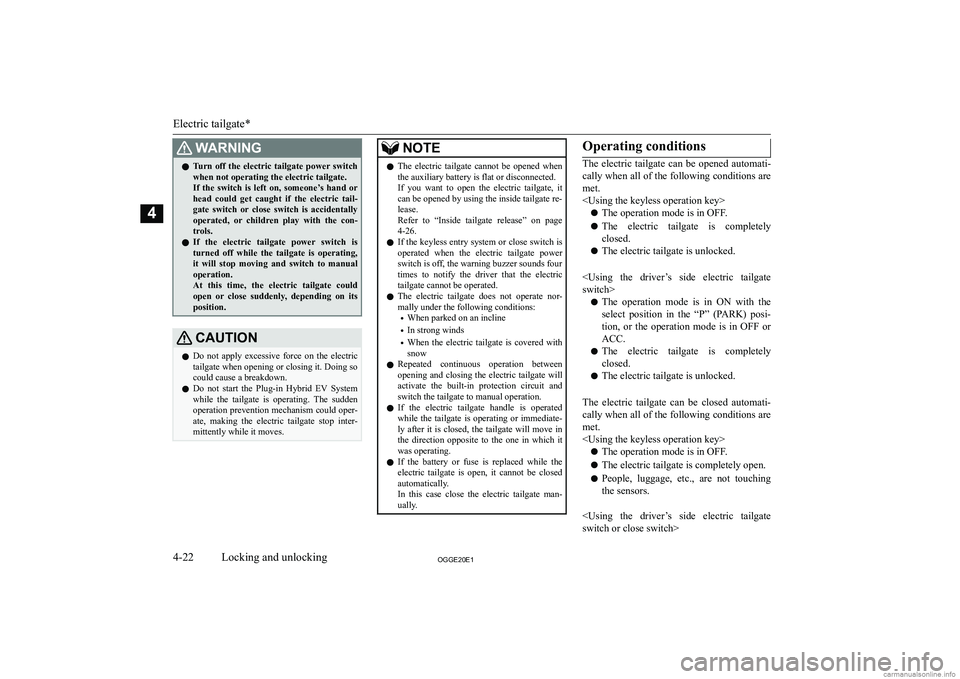

:ARN,NGzTurn off the electric tailgate power switch
when not operating the electric tailgate.
If the switch is left on, someone’s hand or head could get caught if the electric tail-gate switch or close switch is accidentally
operated, or children play with the con-
trols.
z If the electric tailgate power switch is
turned off while the tailgate is operating,
it will stop moving and switch to manual operation.
At this time, the electric tailgate could
open or close suddenly, depending on its position.CAUT,ONz Do not apply excessive force on the electric
tailgate when opening or closing it. Doing so
could cause a breakdown.
z Do not start the Plug-in Hybrid EV System
while the tailgate is operating. The sudden
operation prevention mechanism could oper-
ate, making the electric tailgate stop inter-
mittently while it moves.NOTEz The electric tailgate cannot be opened when
the auxiliary battery is flat or disconnected.
If you want to open the electric tailgate, it can be opened by using the inside tailgate re-
lease.
Refer to “Inside tailgate release” on page
4-26.
z If the keyless entry system or close switch is
operated when the electric tailgate powerswitch is off, the warning buzzer sounds fourtimes to notify the driver that the electric
tailgate cannot be operated.
z The electric tailgate does not operate nor-
mally under the following conditions:
