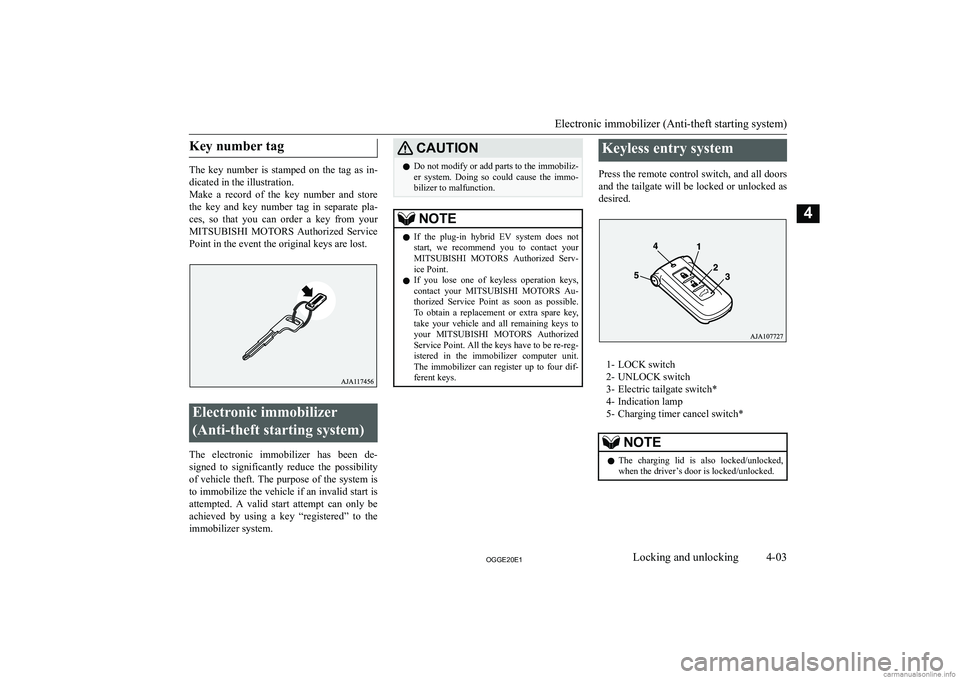

Key number tag
The key number is stamped on the tag as in-dicated in the illustration.
Make a record of the key number and store
the key and key number tag in separate pla- ces, so that you can order a key from yourMITSUBISHI MOTORS Authorized Service
Point in the event the original keys are lost.
Electronic immobilizer
(Anti-theft starting system)
The electronic immobilizer has been de-
signed to significantly reduce the possibility of vehicle theft. The purpose of the system is
to immobilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system.
CAUT,ONz Do not modify or add parts to the immobiliz-
er system. Doing so could cause the immo- bilizer to malfunction.NOTEz If the plug-in hybrid EV system does not
start, we recommend you to contact yourMITSUBISHI MOTORS Authorized Serv-
ice Point.
z If you lose one of keyless operation keys,
contact your MITSUBISHI MOTORS Au-
thorized Service Point as soon as possible.
To obtain a replacement or extra spare key, take your vehicle and all remaining keys to
your MITSUBISHI MOTORS Authorized
Service Point. All the keys have to be re-reg- istered in the immobilizer computer unit.
The immobilizer can register up to four dif- ferent keys.Keyless entry system
Press the remote control switch, and all doors and the tailgate will be locked or unlocked as
desired.
1- LOCK switch
2- UNLOCK switch
3- Electric tailgate switch*
4- Indication lamp
5- Charging timer cancel switch*
NOTEz The charging lid is also locked/unlocked,
when the driver’s door is locked/unlocked.
Electronic immobilizer (Anti-theft starting system)
4-032**(20(1Locking and unlocking4

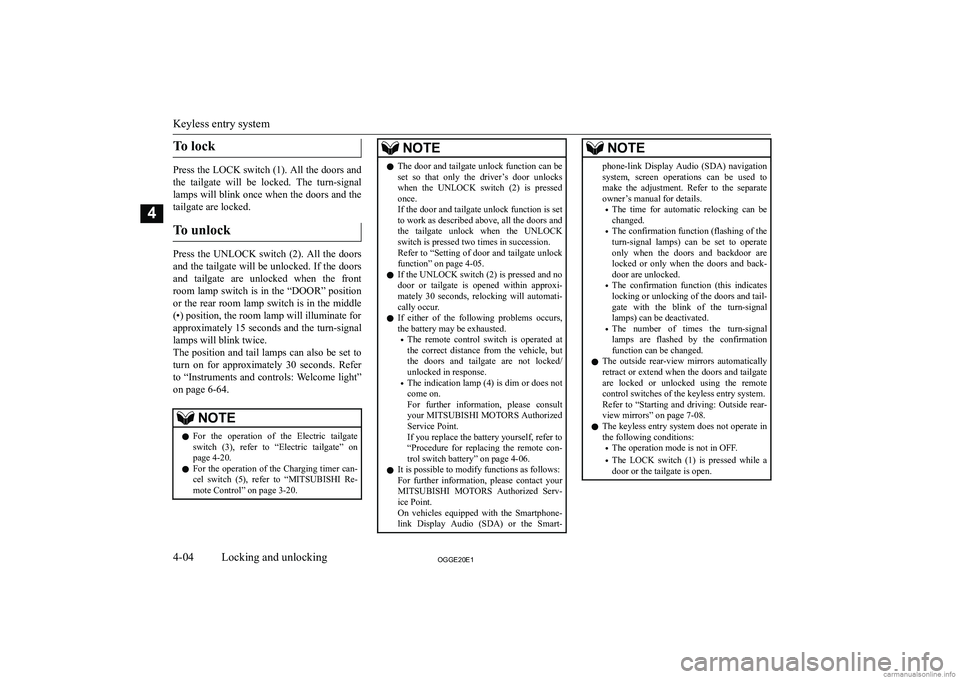

To lock
Press the LOCK switch (1). All the doors andthe tailgate will be locked. The turn-signal
lamps will blink once when the doors and the
tailgate are locked.
To unlock
Press the UNLOCK switch (2). All the doors and the tailgate will be unlocked. If the doors
and tailgate are unlocked when the front room lamp switch is in the “DOOR” positionor the rear room lamp switch is in the middle (

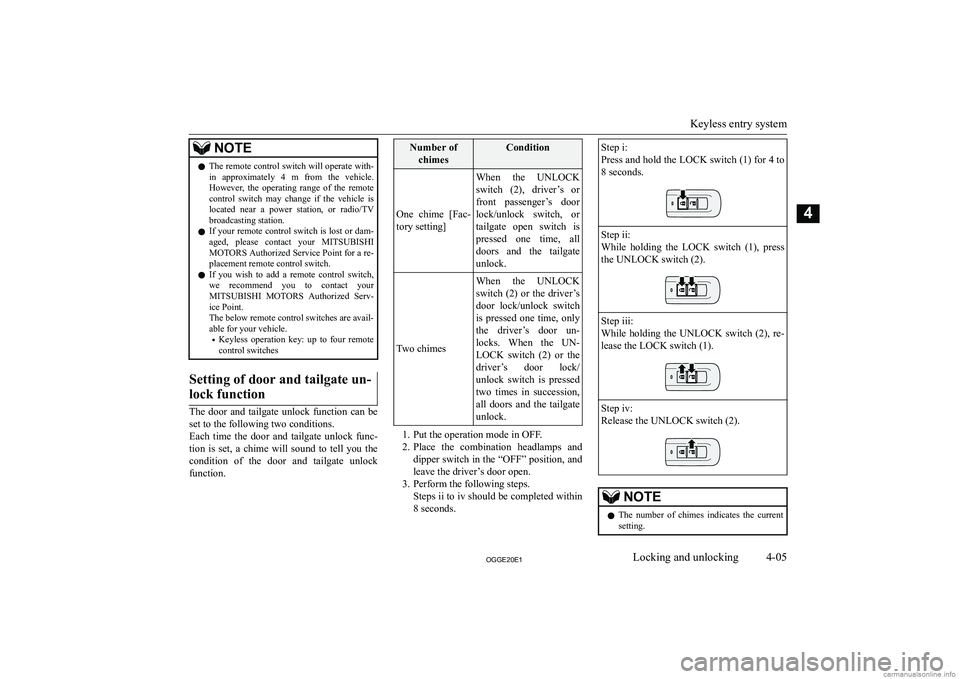

NOTEzThe remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is
located near a power station, or radio/TV broadcasting station.
z If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
z If you wish to add a remote control switch,
we recommend you to contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
The below remote control switches are avail-
able for your vehicle.

NOTEzBe sure to press the switches correctly when
performing the procedures. If you performthe procedures incorrectly, the setting can be
changed unintentionally.
z The charging lid is also unlocked, when the
driver’s door is unlocked.
z On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart-
phone-link Display Audio (SDA) navigation
system, screen operations can be used to make the adjustment. Refer to the separate

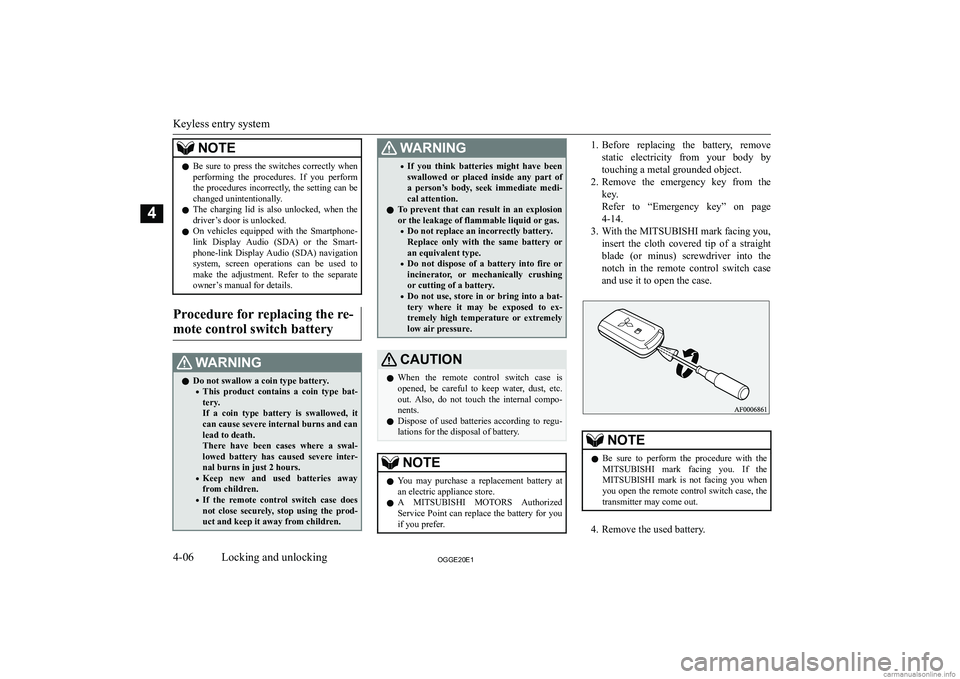

owner’s manual for details.Procedure for replacing the re-
mote control switch battery:ARN,NGz Do not swallow a coin type battery.

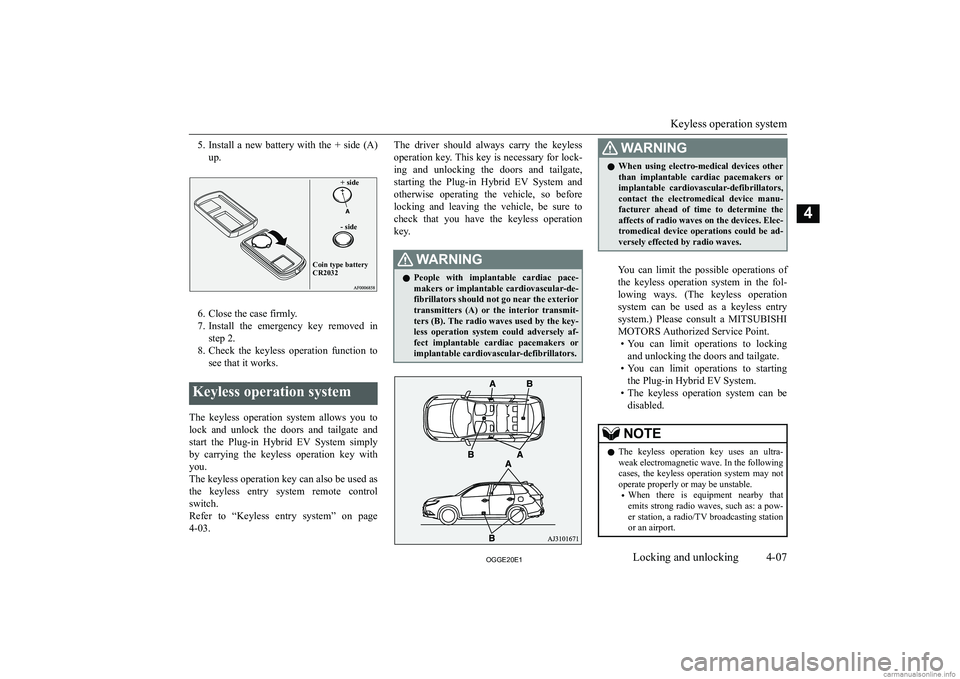

5.Install a new battery with the + side (A)
up.+ side- sideCoin type battery CR2032
6. Close the case firmly.
7. Install the emergency key removed in
step 2.
8. Check the keyless operation function to
see that it works.
Keyless operation system
The keyless operation system allows you to lock and unlock the doors and tailgate andstart the Plug-in Hybrid EV System simplyby carrying the keyless operation key with
you.
The keyless operation key can also be used as
the keyless entry system remote control switch.
Refer to “Keyless entry system” on page
4-03.
The driver should always carry the keyless
operation key. This key is necessary for lock- ing and unlocking the doors and tailgate,
starting the Plug-in Hybrid EV System and otherwise operating the vehicle, so before
locking and leaving the vehicle, be sure to check that you have the keyless operationkey.:ARN,NGz People with implantable cardiac pace-
makers or implantable cardiovascular-de-
fibrillators should not go near the exterior
transmitters (A) or the interior transmit- ters (B). The radio waves used by the key-
less operation system could adversely af- fect implantable cardiac pacemakers orimplantable cardiovascular-defibrillators.:ARN,NGz When using electro-medical devices other
than implantable cardiac pacemakers or implantable cardiovascular-defibrillators,
contact the electromedical device manu- facturer ahead of time to determine theaffects of radio waves on the devices. Elec-
tromedical device operations could be ad-
versely effected by radio waves.
You can limit the possible operations of
the keyless operation system in the fol-
lowing ways. (The keyless operation system can be used as a keyless entry system.) Please consult a MITSUBISHI
MOTORS Authorized Service Point.

NOTE

NOTEzLocking and unlocking operate only when
you press a door or tailgate switch that de-
tects the keyless operation key.
z Operation may not be possible if you are too
close to the front door, door window, or tail-
gate.
z Even if the keyless operation key is within
70 cm of the driver’s door lock/unlock switch, front passenger’s door lock/unlock
switch, or tailgate lock/unlock switch, if the key is near to the ground or high up, the sys-tem may not operate.
z If the keyless operation key is within the op-
erating range, even someone not carrying the key can lock and unlock the doors and tail-gate by pressing the driver’s or front pas-senger’s door lock/unlock switch, the tail-
gate lock switch or the tailgate open switch.Operating range for starting the
Plug-in Hybrid EV System and changing the operation mode
The operating range is the interior of the ve- hicle.
*:Forward direction:Operating rangeNOTEz Even if it is within the operating range, if the
keyless operation key is in a small item
holder such as the glove box, on top of the instrument panel, door pocket or in the lug-gage area, it may be impossible to start the
Plug-in Hybrid EV System.NOTEz If a keyless operation key is too close to the
door or door window, it may be possible to start the Plug-in Hybrid EV System or
change the operation mode even when the
key is outside the vehicles.To operate using the keyless
operation functionNOTEz The charging lid is also locked/unlocked,
when the driver’s door is locked/unlocked.
Locking the doors and tailgate
When you are carrying the keyless operation
key, if you press the driver’s or front pas- senger’s door lock/unlock switch (A), or the
tailgate LOCK switch (B) within the operat-
ing range, the doors and the tailgate are locked.
The turn-signal lamps will blink once.
Keyless operation system
4-092**(20(1Locking and unlocking4

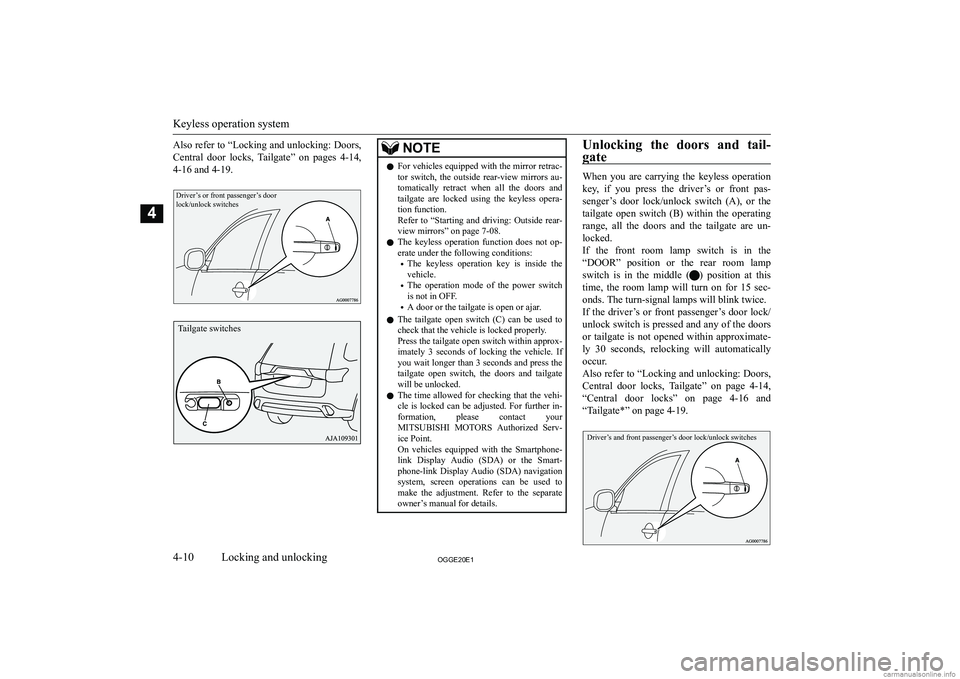

Also refer to “Locking and unlocking: Doors,Central door locks, Tailgate” on pages 4-14,
4-16 and 4-19.Driver’s or front passenger’s door
lock/unlock switches
NOTEz For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically retract when all the doors and
tailgate are locked using the keyless opera- tion function.
Refer to “Starting and driving: Outside rear- view mirrors” on page 7-08.
z The keyless operation function does not op-
erate under the following conditions:

NOTEzThe outside rear-view mirrors automatically
extend when all the doors and tailgate are
unlocked using the keyless operation func-
tion.
Refer to “Starting and driving: Outside rear- view mirrors” on page 7-08.
z The keyless operation function can be set so
that only the driver’s door unlocks when the driver’s door lock/unlock switch is pressed.
If the keyless operation function is set to
work as described above, all the doors and
the tailgate unlock when the driver’s door lock/unlock switch is pressed two times in succession.
Refer to “Setting of door and tailgate unlock
function” on page 4-05.
z The keyless operation function does not op-
erate when the operation mode of the power switch is not in OFF.NOTEz In order to make it possible to check that the
doors and tailgate are locked, you cannot un-
lock them by using the tailgate open switch for 3 seconds after locking them.
z The time allowed for checking that the vehi-
cle is locked can be adjusted. For further in- formation, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart-
phone-link Display Audio (SDA) navigation
system, screen operations can be used to make the adjustment. Refer to the separate
owner’s manual for details.
z The time between unlocking and automatic
locking can be adjusted. Please consult a MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart-
phone-link Display Audio (SDA) navigation
system, screen operations can be used to make the adjustment. Refer to the separate
owner’s manual for details.

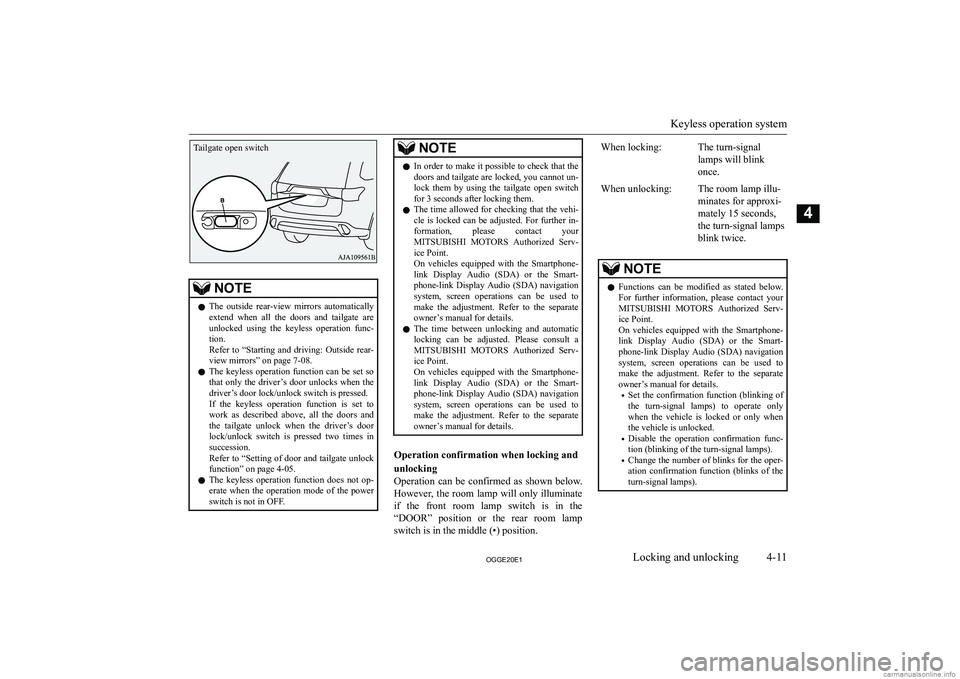

Operation confirmation when locking and
unlocking
Operation can be confirmed as shown below. However, the room lamp will only illuminate
if the front room lamp switch is in the “DOOR” position or the rear room lampswitch is in the middle (

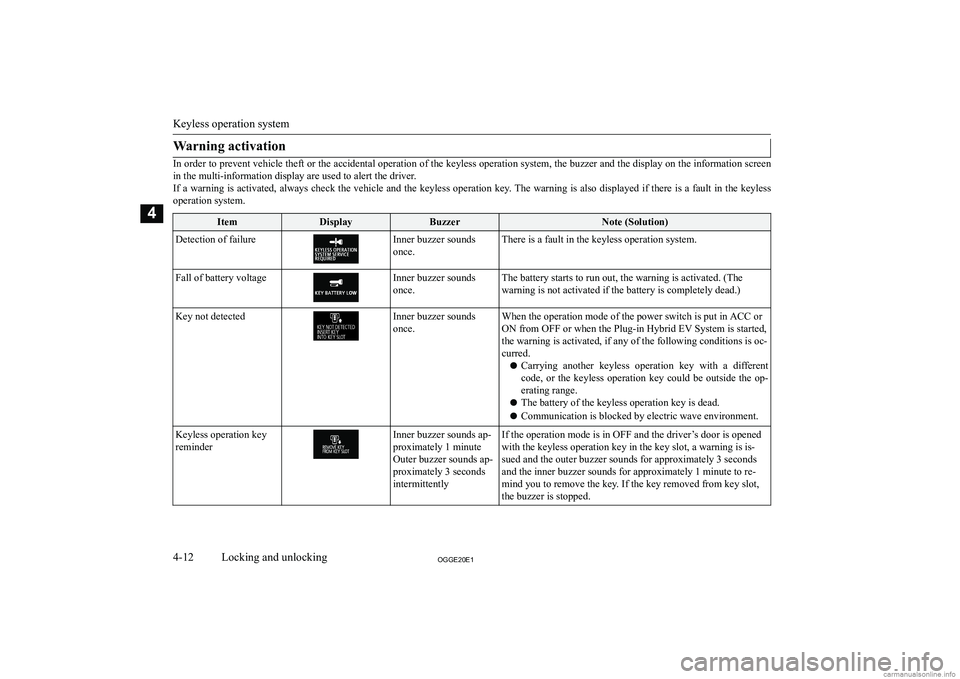

Warning activation
In order to prevent vehicle theft or the accidental operation of the keyless operation system, the buzzer and the display on the information screen
in the multi-information display are used to alert the driver. If a warning is activated, always check the vehicle and the keyless operation key. The warning is also displayed if there is a fault in the keyless operation system.
ItemDisplayBuzzerNote (Solution)Detection of failureInner buzzer sounds
once.There is a fault in the keyless operation system.Fall of battery voltageInner buzzer sounds
once.The battery starts to run out, the warning is activated. (The warning is not activated if the battery is completely dead.)Key not detectedInner buzzer sounds
once.When the operation mode of the power switch is put in ACC or
ON from OFF or when the Plug-in Hybrid EV System is started, the warning is activated, if any of the following conditions is oc-
curred.
z Carrying another keyless operation key with a different
code, or the keyless operation key could be outside the op- erating range.
z The battery of the keyless operation key is dead.
z Communication is blocked by electric wave environment.Keyless operation key
reminderInner buzzer sounds ap-
proximately 1 minute
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyIf the operation mode is in OFF and the driver’s door is opened
with the keyless operation key in the key slot, a warning is is-
sued and the outer buzzer sounds for approximately 3 seconds
and the inner buzzer sounds for approximately 1 minute to re- mind you to remove the key. If the key removed from key slot,
the buzzer is stopped.
