Introduction
N09200100817
Thank you for buying a MITSUBISHI OUTLANDER
SPORT/RVR.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
OUTLANDER SPORT/RVR. The Owner’s Manual contains
descriptions and illustrations that will assist in the operation
and maintenance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all OUTLANDER
SPORT/RVR models and explains all features including
options. Some features explained in this manual may not be
installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WARNING and
CAUTION appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
As with other vehicles of this type, failure to operate this vehicle
correctly may result in loss of control or an accident. Be sure to
read “on-pavement” and “off-road” driving guidelines in the
“Driving safety” and “Features and controls” sections.
WA R N I N G
!
Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects and reproduc-
tive harm. In addition, certain fluids contained in vehicles
and certain products of component wear contain or emit
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2011 Mitsubishi Motors Corporation Printed in Japan
12ZC(NAFTA)_Cover2.fm 1 ページ 2011年6月10日 金曜日 午後1時50分
Page 2 of 610
Table of contents
1
2
3
4
5
6
7
8
9
Overview
Quick index
General information
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/
Reporting Safety Defects
Specifications
BK0140300US.book 1 ページ 2011年6月28日 火曜日 午後5時18分
Page 3 of 610
Overview

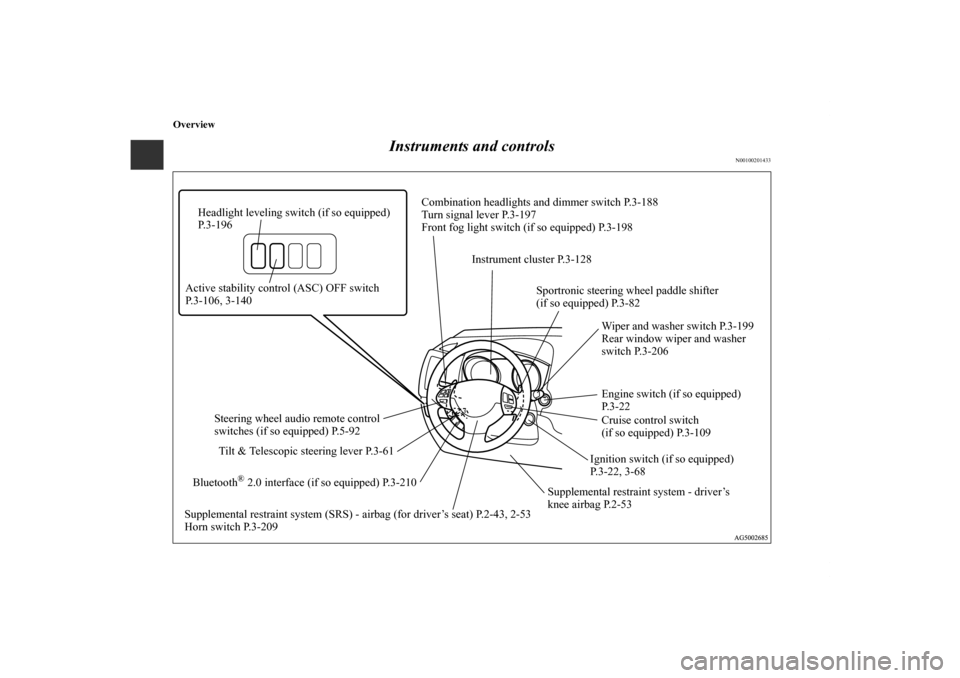

Instruments and controls
N00100201433
Cruise control switch
(if so equipped) P.3-109 Active stability control (ASC) OFF switch
P.3-106, 3-140
Ignition switch (if so equipped)
P.3-22, 3-68 Tilt & Telescopic steering lever P.3-61Wiper and washer switch P.3-199
Rear window wiper and washer
switch P.3-206 Instrument cluster P.3-128
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.2-43, 2-53
Horn switch P.3-209Combination headlights and dimmer switch P.3-188
Turn signal lever P.3-197
Front fog light switch (if so equipped) P.3-198
Sportronic steering wheel paddle shifter
(if so equipped) P.3-82
Steering wheel audio remote control
switches (if so equipped) P.5-92
Bluetooth
® 2.0 interface (if so equipped) P.3-210 Headlight leveling switch (if so equipped)
P. 3 - 1 9 6
Engine switch (if so equipped)
P. 3 - 2 2
Supplemental restraint system - driver’s
knee airbag P.2-53
BK0140300US.book 1 ページ 2011年6月28日 火曜日 午後5時18分
Page 4 of 610
Overview
Drive mode-selector (if so equipped)
P. 3 - 8 6Center vents P.5-2
Gearshift or selector lever P.3-73, 3-77 12V power outlet P.3-243Glove compartment P.3-252
Fuel tank filler door
release lever P.1-4Rear window defogger switch P.3-208Side vents P.5-2
Engine hood release lever
P. 7 - 4
Hazard warning flasher switch P.3-198 Mitsubishi Multi-Communication System
(if so equipped)
Audio (if so equipped) P.5-46
Clock (if so equipped) P.5-103
Air conditioning P.5-6, 5-16, 5-25, 5-35Key slot (if so equipped) P.3-28
Cup holder P.3-256 Fuses P.7-40 Multi-information meter switch
P. 3 - 1 3 4
Parking brake lever P.7-33
BK0140300US.book 2 ページ 2011年6月28日 火曜日 午後5時18分
Page 5 of 610
Overview

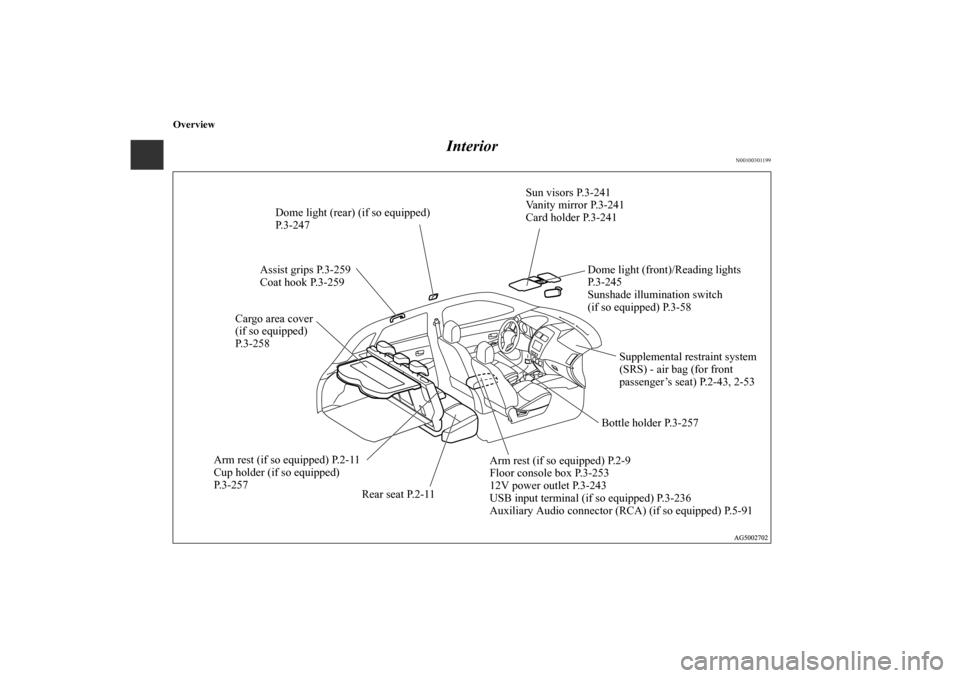

Interior
N00100301199
Dome light (front)/Reading lights
P. 3 - 2 4 5
Sunshade illumination switch
(if so equipped) P.3-58 Sun visors P.3-241
Vanity mirror P.3-241
Card holder P.3-241
Arm rest (if so equipped) P.2-11
Cup holder (if so equipped)
P. 3 - 2 5 7Arm rest (if so equipped) P.2-9
Floor console box P.3-253
12V power outlet P.3-243
USB input terminal (if so equipped) P.3-236
Auxiliary Audio connector (RCA) (if so equipped) P.5-91 Dome light (rear) (if so equipped)
P. 3 - 2 4 7
Cargo area cover
(if so equipped)
P. 3 - 2 5 8
Supplemental restraint system
(SRS) - air bag (for front
passenger’s seat) P.2-43, 2-53 Assist grips P.3-259
Coat hook P.3-259
Rear seat P.2-11Bottle holder P.3-257
BK0140300US.book 3 ページ 2011年6月28日 火曜日 午後5時18分
Page 6 of 610
Overview
Power window switch P.3-54 Lock switch
P. 3 - 5 6 Electric remote-controlled outside mirror switch
P. 3 - 6 6
Power door lock
switch P.3-41
Adjustable seat belt shoulder anchor P.2-27 Supplemental restraint system (SRS) - curtain airbags
P. 2 - 6 0
Seat belts P.2-18
Head restraints P.2-12Inside rearview mirror
P.3-62, 3-126
Front seat P.2-2
Heated seat (if so equipped) P.2-9
Cargo room light
P. 3 - 2 4 8Supplemental restraint system (SRS) -
side airbag (for front seats) P.2-59 Tether anchors for
child restraint system
P. 2 - 3 5Sunshade illumination lamp
dimming control switch
(if so equipped) P.3-248
BK0140300US.book 4 ページ 2011年6月28日 火曜日 午後5時18分
Page 7 of 610
Overview

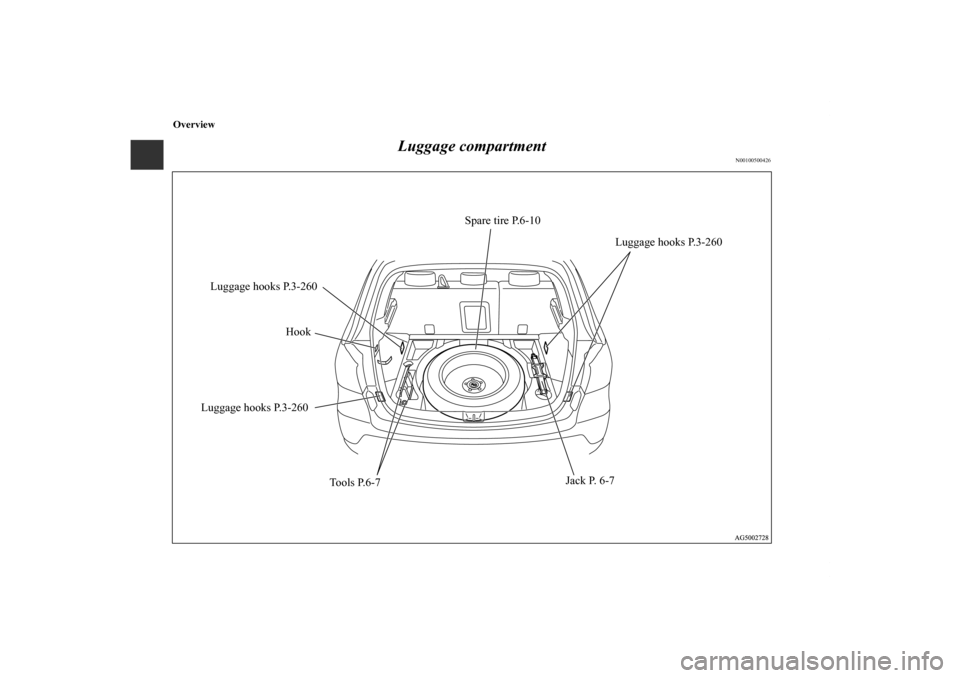

Luggage compartment
N00100500426
Luggage hooks P.3-260
Jack P. 6-7Luggage hooks P.3-260 Spare tire P.6-10
Hook
Luggage hooks P.3-260
Tools P.6-7
BK0140300US.book 5 ページ 2011年6月28日 火曜日 午後5時18分
Page 8 of 610
Overview

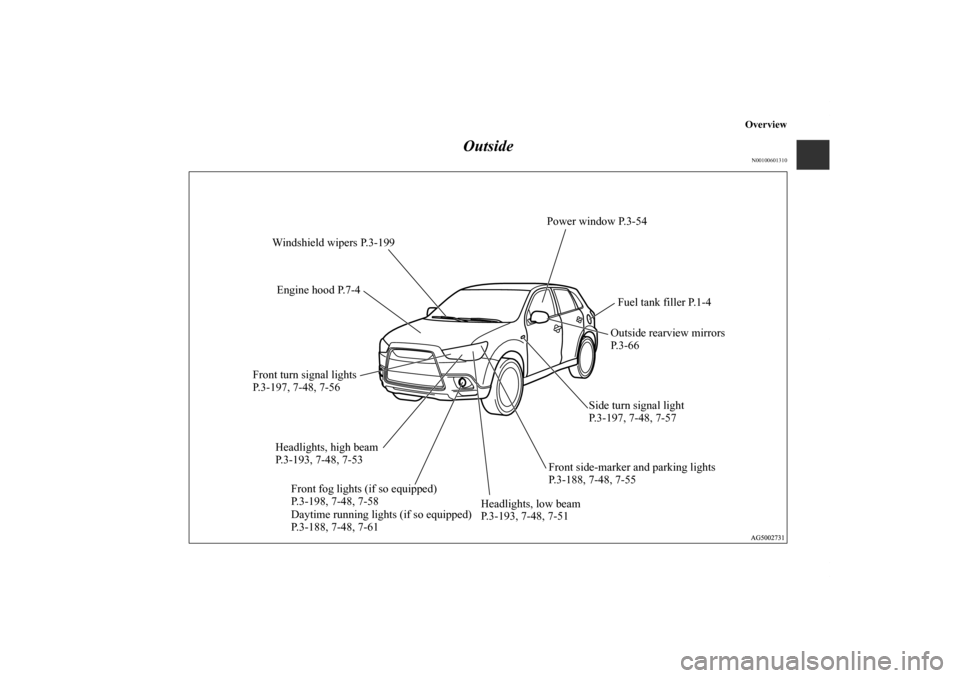

Outside
N00100601310
Power window P.3-54
Front turn signal lights
P.3-197, 7-48, 7-56Engine hood P.7-4
Fuel tank filler P.1-4
Outside rearview mirrors
P.3-66 Windshield wipers P.3-199
Front fog lights (if so equipped)
P.3-198, 7-48, 7-58Side turn signal light
P.3-197, 7-48, 7-57
Headlights, low beam
P.3-193, 7-48, 7-51 Headlights, high beam
P.3-193, 7-48, 7-53
Front side-marker and parking lights
P.3-188, 7-48, 7-55
Daytime running lights (if so equipped)
P.3-188, 7-48, 7-61
BK0140300US.book 6 ページ 2011年6月28日 火曜日 午後5時18分
Page 9 of 610
Overview

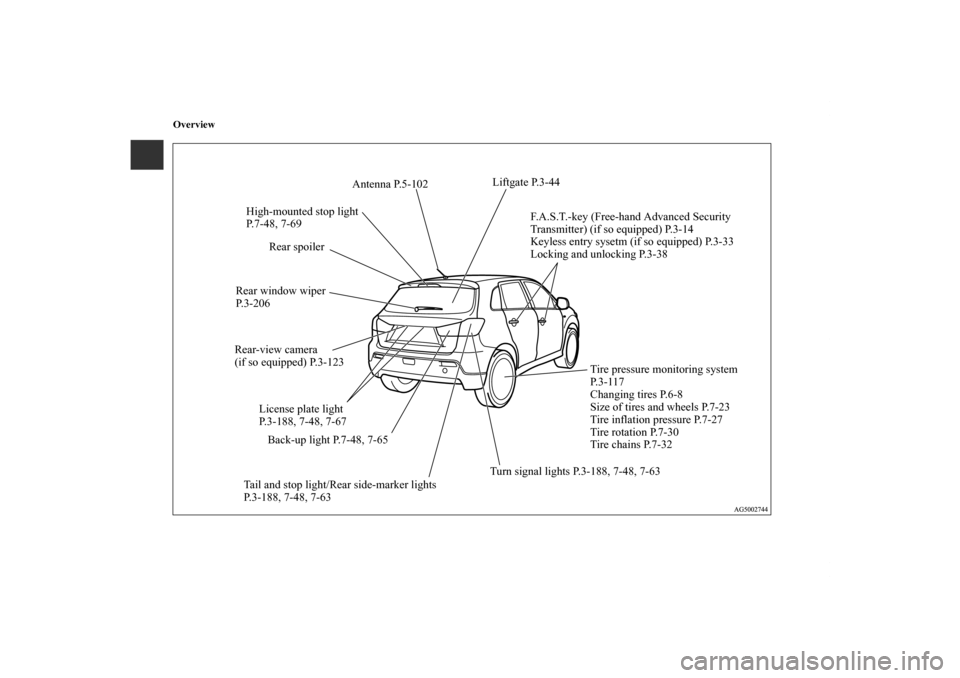

Tire pressure monitoring system
P. 3 - 1 1 7
Changing tires P.6-8
Size of tires and wheels P.7-23
Tire inflation pressure P.7-27
Tire rotation P.7-30
Tire chains P.7-32 License plate light
P.3-188, 7-48, 7-67F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-14
Keyless entry sysetm (if so equipped) P.3-33
Locking and unlocking P.3-38 High-mounted stop light
P.7-48, 7-69Antenna P.5-102
Rear window wiper
P. 3 - 2 0 6
Back-up light P.7-48, 7-65
Tail and stop light/Rear side-marker lights
P.3-188, 7-48, 7-63Turn signal lights P.3-188, 7-48, 7-63 Rear spoilerLiftgate P.3-44
Rear-view camera
(if so equipped) P.3-123
BK0140300US.book 7 ページ 2011年6月28日 火曜日 午後5時18分
Page 10 of 610
Quick index
1

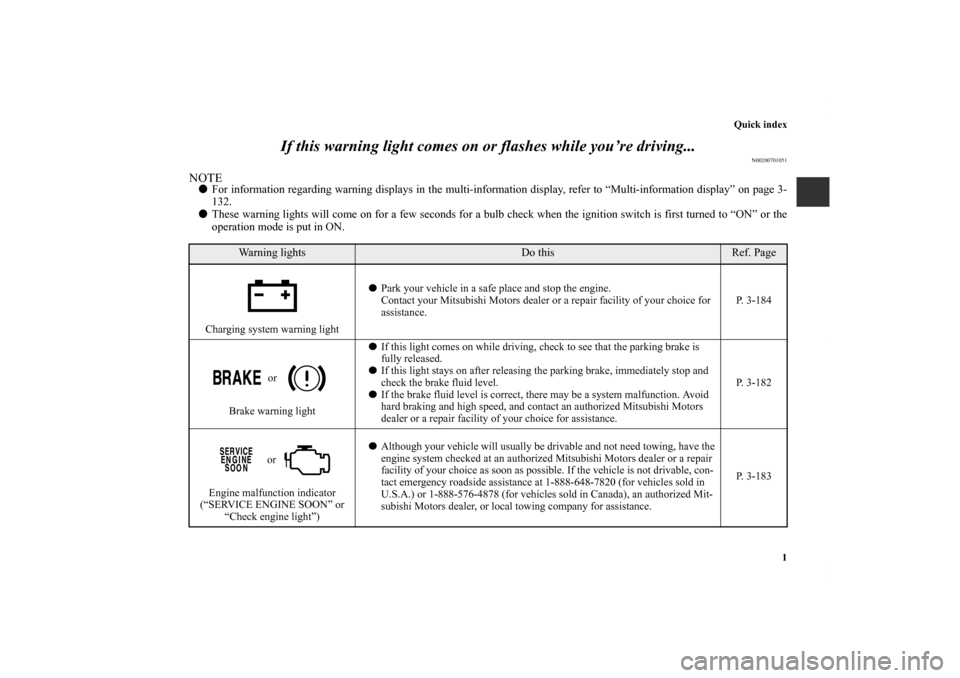

If this warning light comes on or flashes while you’re driving...
N00200701051
NOTEFor information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-
132.
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning lightPark your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3-184
or
Brake warning lightIf this light comes on while driving, check to see that the parking brake is
fully released.
If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.
If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-182
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3-183
BK0140300US.book 1 ページ 2011年6月28日 火曜日 午後5時18分
