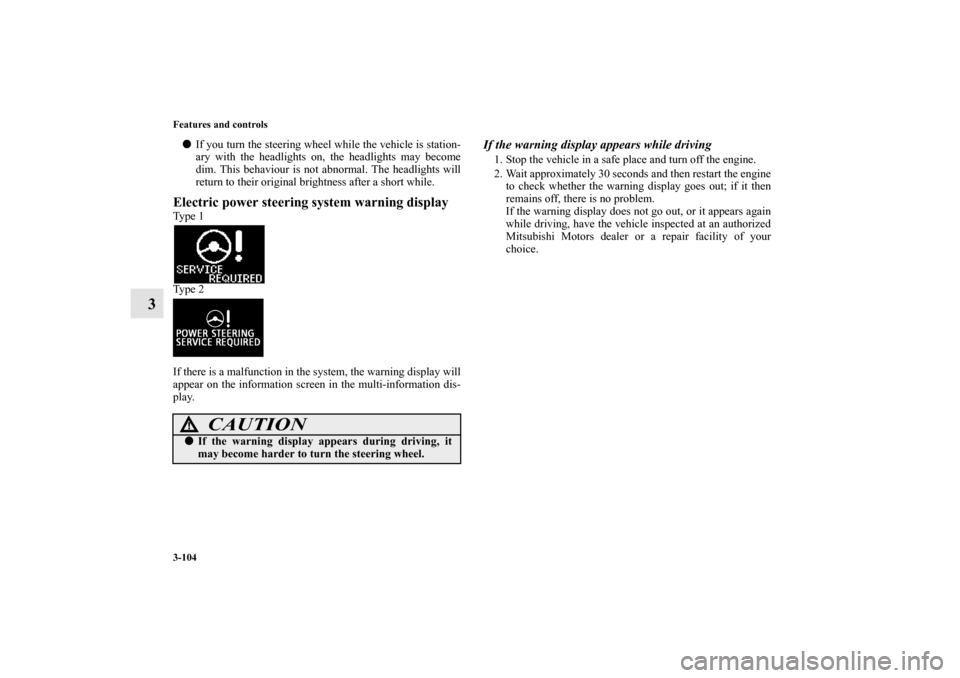

3-104 Features and controls
3

If you turn the steering wheel while the vehicle is station-
ary with the headlights on, the headlights may become
dim. This behaviour is not abnormal. The headlights will
return to their original brightness after a short while.Electric power steering system warning displayTy p e 1
Ty p e 2
If there is a malfunction in the system, the warning display will
appear on the information screen in the multi-information dis-
play.
If the warning display appears while driving 1. Stop the vehicle in a safe place and turn off the engine.
2. Wait approximately 30 seconds and then restart the engine
to check whether the warning display goes out; if it then
remains off, there is no problem.
If the warning display does not go out, or it appears again
while driving, have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
CAUTION
!
If the warning display appears during driving, it
may become harder to turn the steering wheel.
BK0140300US.book 104 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-105

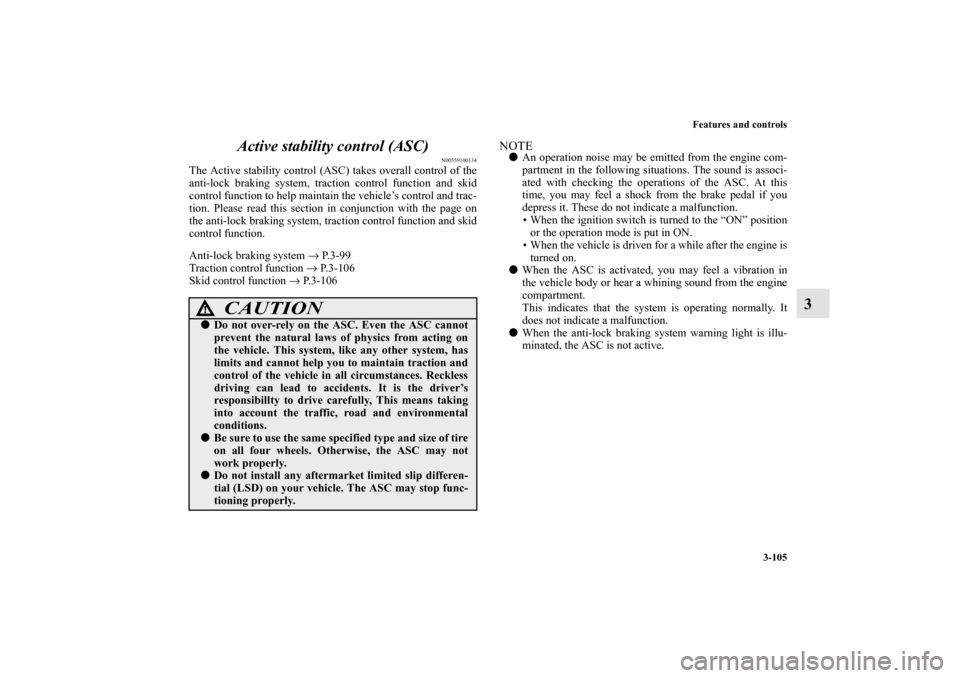

3 Active stability control (ASC)
N00559100134
The Active stability control (ASC) takes overall control of the
anti-lock braking system, traction control function and skid
control function to help maintain the vehicle’s control and trac-
tion. Please read this section in conjunction with the page on
the anti-lock braking system, traction control function and skid
control function.
Anti-lock braking system → P. 3 - 9 9
Traction control function → P. 3 - 1 0 6
Skid control function → P. 3 - 1 0 6
NOTE
An operation noise may be emitted from the engine com-
partment in the following situations. The sound is associ-
ated with checking the operations of the ASC. At this
time, you may feel a shock from the brake pedal if you
depress it. These do not indicate a malfunction.
• When the ignition switch is turned to the “ON” position
or the operation mode is put in ON.
• When the vehicle is driven for a while after the engine is
turned on.

When the ASC is activated, you may feel a vibration in
the vehicle body or hear a whining sound from the engine
compartment.
This indicates that the system is operating normally. It
does not indicate a malfunction.

When the anti-lock braking system warning light is illu-
minated, the ASC is not active.
CAUTION
!
Do not over-rely on the ASC. Even the ASC cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibillty to drive carefully, This means taking
into account the traffic, road and environmental
conditions.
Be sure to use the same specified type and size of tire
on all four wheels. Otherwise, the ASC may not
work properly.
Do not install any aftermarket limited slip differen-
tial (LSD) on your vehicle. The ASC may stop func-
tioning properly.
BK0140300US.book 105 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-106 Features and controls
3

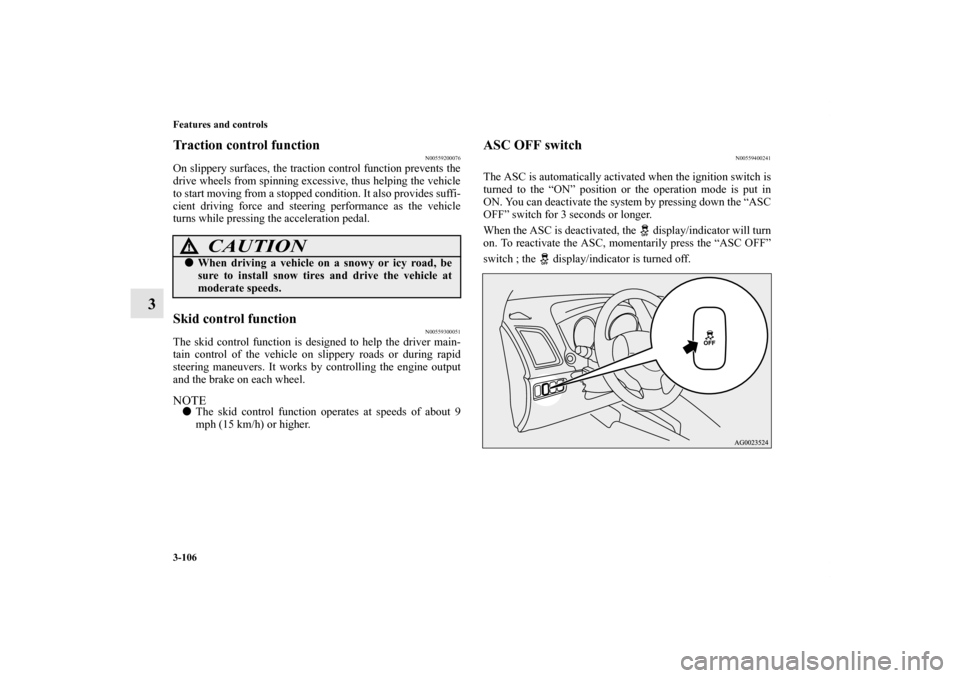

Traction control function
N00559200076
On slippery surfaces, the traction control function prevents the
drive wheels from spinning excessive, thus helping the vehicle
to start moving from a stopped condition. It also provides suffi-
cient driving force and steering performance as the vehicle
turns while pressing the acceleration pedal.Skid control function
N00559300051
The skid control function is designed to help the driver main-
tain control of the vehicle on slippery roads or during rapid
steering maneuvers. It works by controlling the engine output
and the brake on each wheel.NOTE
The skid control function operates at speeds of about 9
mph (15 km/h) or higher.
ASC OFF switch
N00559400241
The ASC is automatically activated when the ignition switch is
turned to the “ON” position or the operation mode is put in
ON. You can deactivate the system by pressing down the “ASC
OFF” switch for 3 seconds or longer.
When the ASC is deactivated, the display/indicator will turn
on. To reactivate the ASC, momentarily press the “ASC OFF”
switch ; the display/indicator is turned off.
CAUTION
!
When driving a vehicle on a snowy or icy road, be
sure to install snow tires and drive the vehicle at
moderate speeds.
BK0140300US.book 106 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-107
3

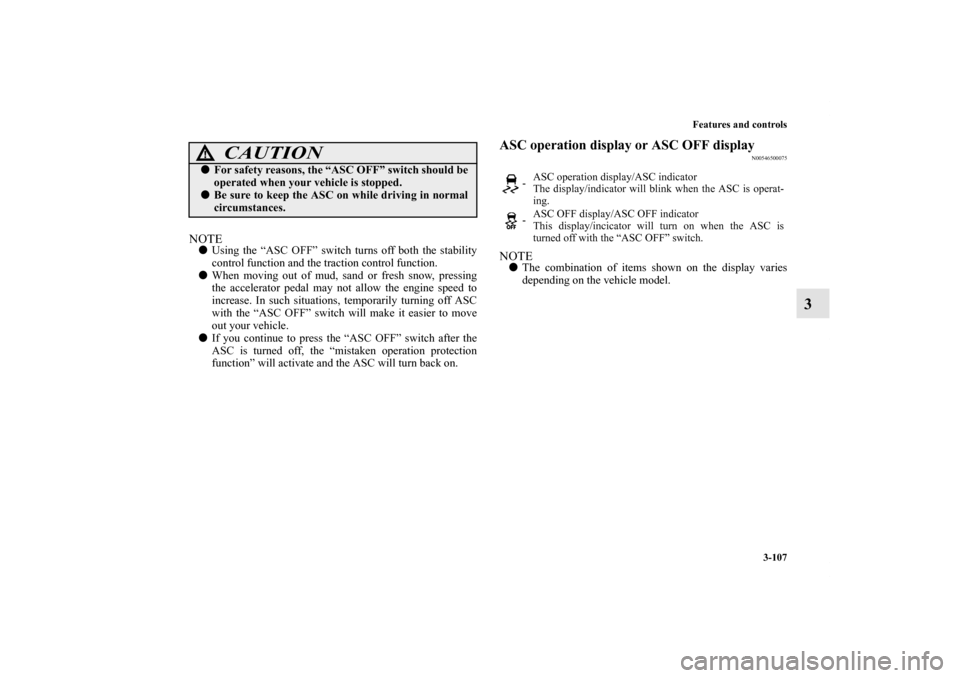

NOTE
Using the “ASC OFF” switch turns off both the stability
control function and the traction control function.

When moving out of mud, sand or fresh snow, pressing
the accelerator pedal may not allow the engine speed to
increase. In such situations, temporarily turning off ASC
with the “ASC OFF” switch will make it easier to move
out your vehicle.

If you continue to press the “ASC OFF” switch after the
ASC is turned off, the “mistaken operation protection
function” will activate and the ASC will turn back on.
ASC operation display or ASC OFF display
N00546500075
NOTE
The combination of items shown on the display varies
depending on the vehicle model.
CAUTION
!
For safety reasons, the “ASC OFF” switch should be
operated when your vehicle is stopped.
Be sure to keep the ASC on while driving in normal
circumstances.
-ASC operation display/ASC indicator
The display/indicator will blink when the ASC is operat-
ing.
-ASC OFF display/ASC OFF indicator
This display/incicator will turn on when the ASC is
turned off with the “ASC OFF” switch.
BK0140300US.book 107 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-108 Features and controls
3
NOTE
The display/indicator may turn on when you start the
engine. This means that the battery voltage momentarily
dropped when the engine was started. It does not indicate
a malfunction, provided that the display goes out immedi-
ately.

When a compact spare tire has been put on your vehicle,
the gripping ability of the tire will be lower, making it
more likely that the display/indicator will blink.

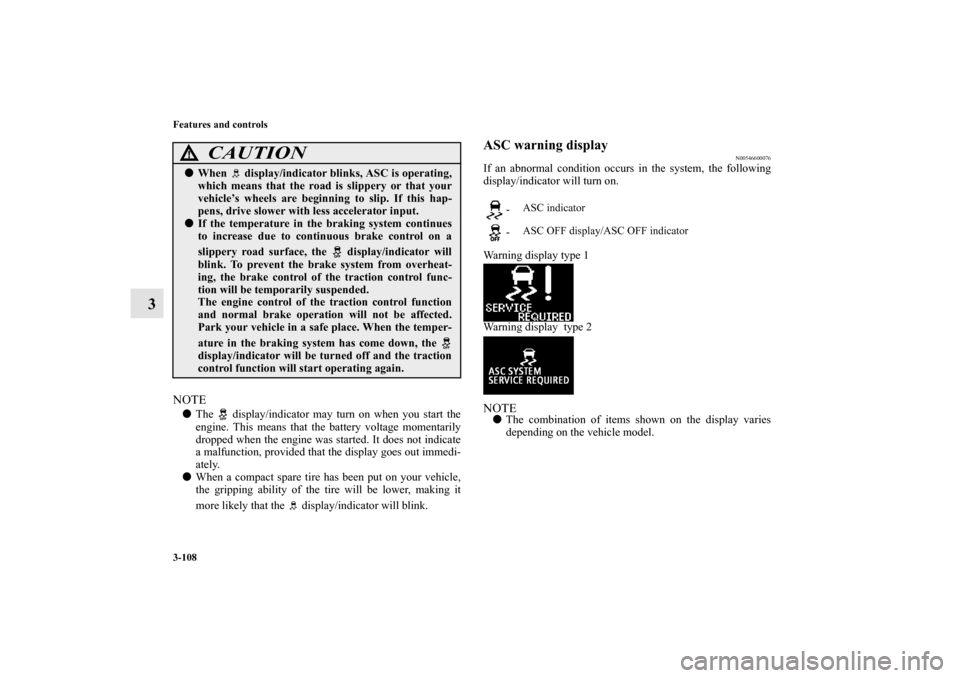

ASC warning display
N00546600076
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display type 1
Warning display type 2NOTE
The combination of items shown on the display varies
depending on the vehicle model.
CAUTION
!
When display/indicator blinks, ASC is operating,
which means that the road is slippery or that your
vehicle’s wheels are beginning to slip. If this hap-
pens, drive slower with less accelerator input.
If the temperature in the braking system continues
to increase due to continuous brake control on a
slippery road surface, the display/indicator will
blink. To prevent the brake system from overheat-
ing, the brake control of the traction control func-
tion will be temporarily suspended.
The engine control of the traction control function
and normal brake operation will not be affected.
Park your vehicle in a safe place. When the temper-
ature in the braking system has come down, the
display/indicator will be turned off and the traction
control function will start operating again.
-ASC indicator
-ASC OFF display/ASC OFF indicator
BK0140300US.book 108 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-109
3

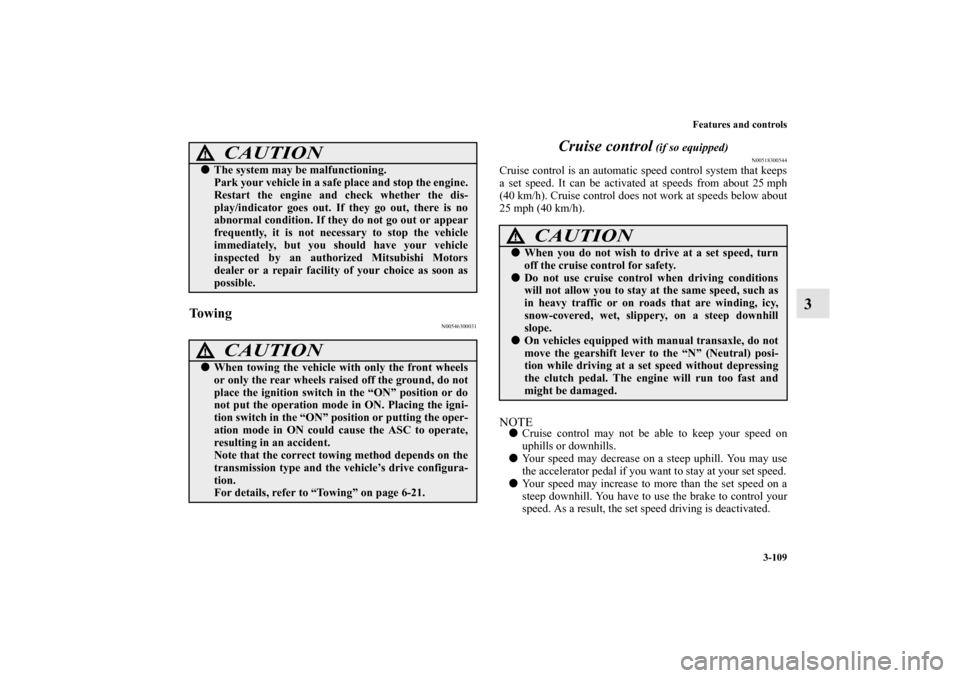

To w i n g
N00546300031
Cruise control
(if so equipped)
N00518300544
Cruise control is an automatic speed control system that keeps
a set speed. It can be activated at speeds from about 25 mph
(40 km/h). Cruise control does not work at speeds below about
25 mph (40 km/h).NOTE
Cruise control may not be able to keep your speed on
uphills or downhills.

Your speed may decrease on a steep uphill. You may use
the accelerator pedal if you want to stay at your set speed.

Your speed may increase to more than the set speed on a
steep downhill. You have to use the brake to control your
speed. As a result, the set speed driving is deactivated.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the dis-
play/indicator goes out. If they go out, there is no
abnormal condition. If they do not go out or appear
frequently, it is not necessary to stop the vehicle
immediately, but you should have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
CAUTION
!
When towing the vehicle with only the front wheels
or only the rear wheels raised off the ground, do not
place the ignition switch in the “ON” position or do
not put the operation mode in ON. Placing the igni-
tion switch in the “ON” position or putting the oper-
ation mode in ON could cause the ASC to operate,
resulting in an accident.
Note that the correct towing method depends on the
transmission type and the vehicle’s drive configura-
tion.
For details, refer to “Towing” on page 6-21.
CAUTION
!
When you do not wish to drive at a set speed, turn
off the cruise control for safety.
Do not use cruise control when driving conditions
will not allow you to stay at the same speed, such as
in heavy traffic or on roads that are winding, icy,
snow-covered, wet, slippery, on a steep downhill
slope.
On vehicles equipped with manual transaxle, do not
move the gearshift lever to the “N” (Neutral) posi-
tion while driving at a set speed without depressing
the clutch pedal. The engine will run too fast and
might be damaged.
BK0140300US.book 109 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-110 Features and controls
3

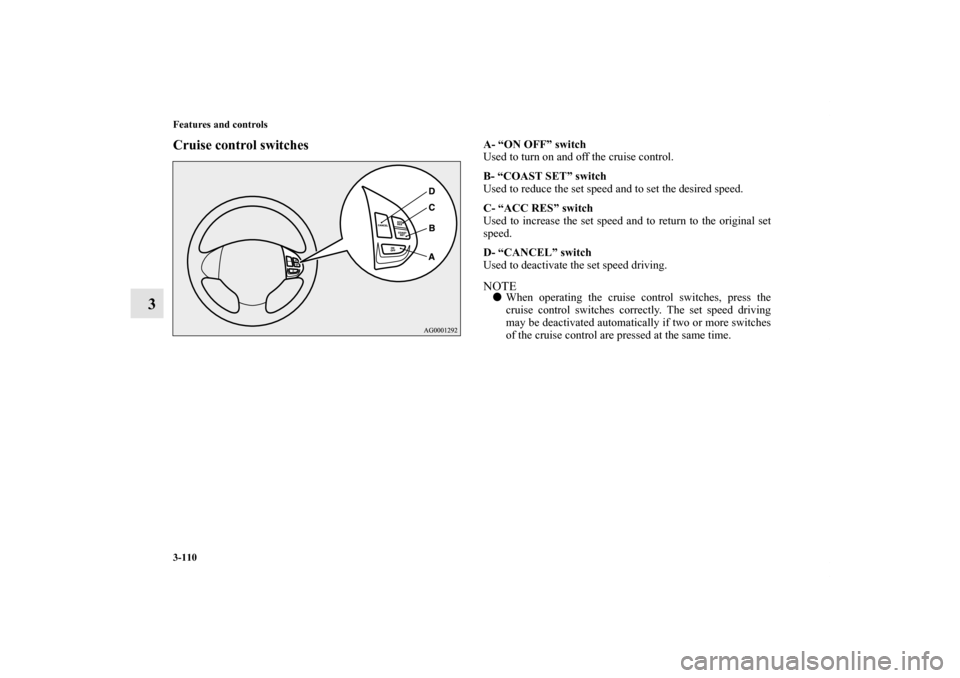

Cruise control switches
A- “ON OFF” switch
Used to turn on and off the cruise control.
B- “COAST SET” switch
Used to reduce the set speed and to set the desired speed.
C- “ACC RES” switch
Used to increase the set speed and to return to the original set
speed.
D- “CANCEL” switch
Used to deactivate the set speed driving.NOTE
When operating the cruise control switches, press the
cruise control switches correctly. The set speed driving
may be deactivated automatically if two or more switches
of the cruise control are pressed at the same time.
BK0140300US.book 110 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-111
3

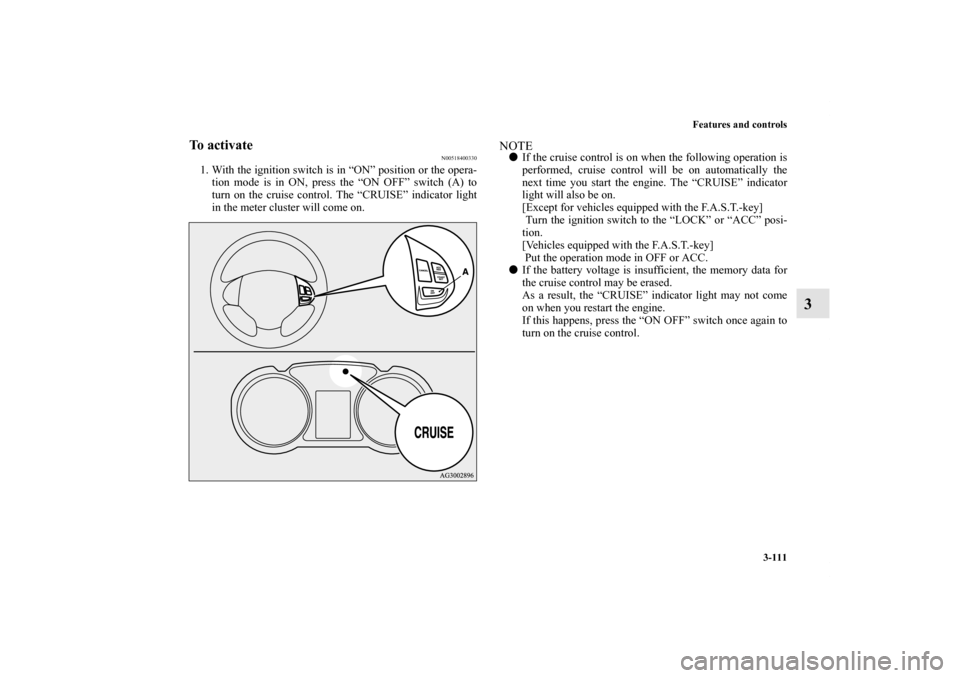

To activate
N00518400330
1. With the ignition switch is in “ON” position or the opera-
tion mode is in ON, press the “ON OFF” switch (A) to
turn on the cruise control. The “CRUISE” indicator light
in the meter cluster will come on.
NOTE
If the cruise control is on when the following operation is
performed, cruise control will be on automatically the
next time you start the engine. The “CRUISE” indicator
light will also be on.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “LOCK” or “ACC” posi-
tion.
[Vehicles equipped with the F.A.S.T.-key]
Put the operation mode in OFF or ACC.

If the battery voltage is insufficient, the memory data for
the cruise control may be erased.
As a result, the “CRUISE” indicator light may not come
on when you restart the engine.
If this happens, press the “ON OFF” switch once again to
turn on the cruise control.
BK0140300US.book 111 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-112 Features and controls
3

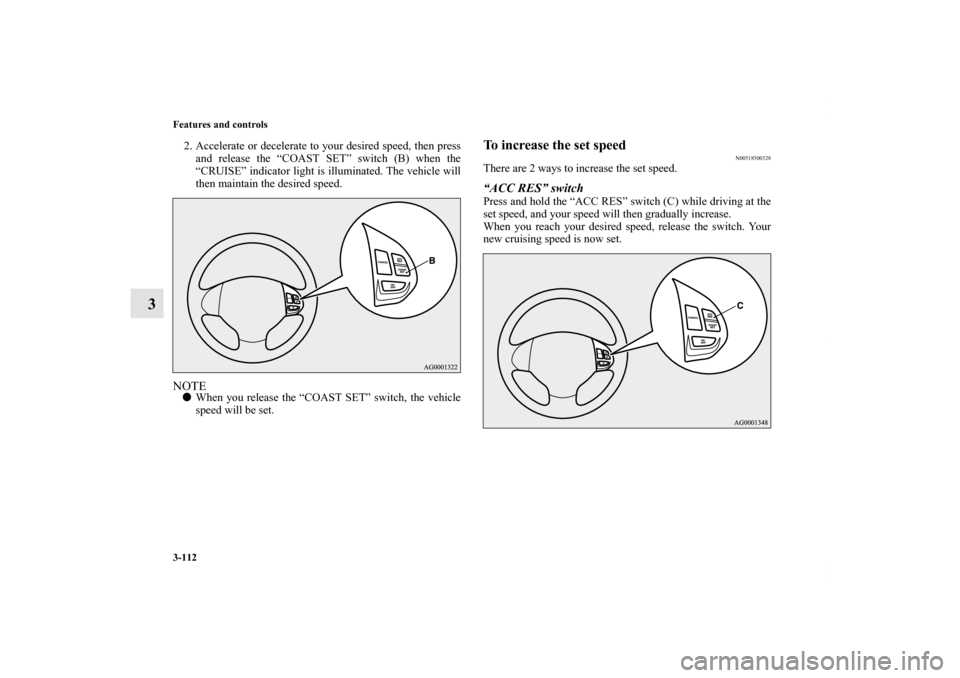

2. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.NOTE
When you release the “COAST SET” switch, the vehicle
speed will be set.
To increase the set speed
N00518500328
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0140300US.book 112 ページ ２０１１年６月２８日　火曜日　午後５時１８分

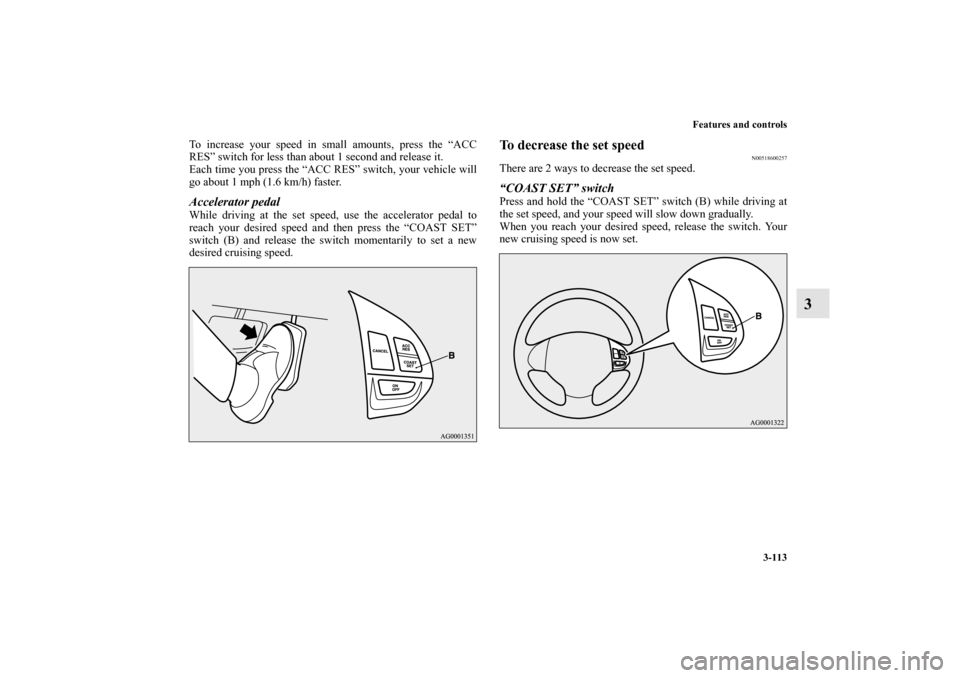

Features and controls
3-113
3
To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To decrease the set speed
N00518600257
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0140300US.book 113 ページ ２０１１年６月２８日　火曜日　午後５時１８分
