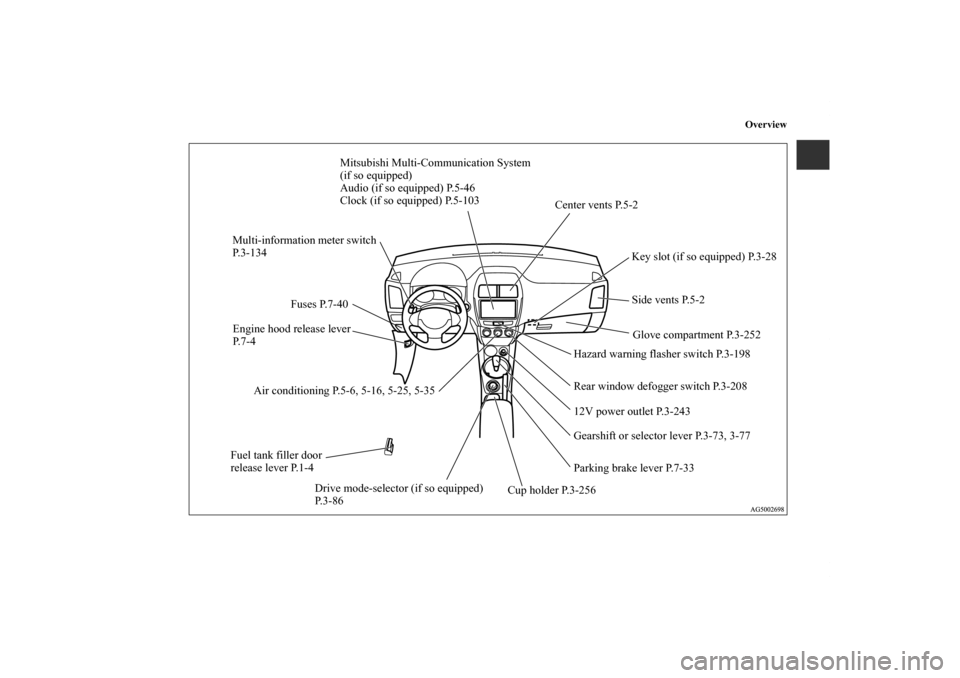

Page 4 of 610
Overview
Drive mode-selector (if so equipped)
P. 3 - 8 6Center vents P.5-2
Gearshift or selector lever P.3-73, 3-77 12V power outlet P.3-243Glove compartment P.3-252
Fuel tank filler door
release lever P.1-4Rear window defogger switch P.3-208Side vents P.5-2
Engine hood release lever
P. 7 - 4
Hazard warning flasher switch P.3-198 Mitsubishi Multi-Communication System
(if so equipped)
Audio (if so equipped) P.5-46
Clock (if so equipped) P.5-103
Air conditioning P.5-6, 5-16, 5-25, 5-35Key slot (if so equipped) P.3-28
Cup holder P.3-256 Fuses P.7-40 Multi-information meter switch
P. 3 - 1 3 4
Parking brake lever P.7-33
BK0140300US.book 2 ページ 2011年6月28日 火曜日 午後5時18分

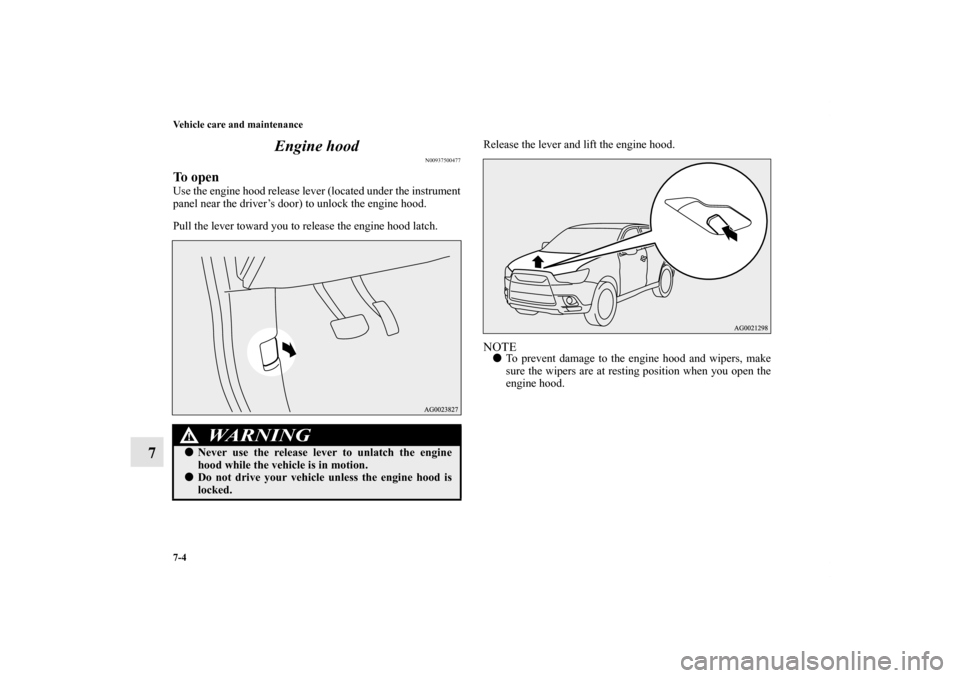

Page 513 of 610
7-4 Vehicle care and maintenance
7Engine hood
N00937500477
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.Release the lever and lift the engine hood.
NOTETo prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WA R N I N G
!Never use the release lever to unlatch the engine
hood while the vehicle is in motion.Do not drive your vehicle unless the engine hood is
locked.
BK0140300US.book 4 ページ 2011年6月28日 火曜日 午後5時18分

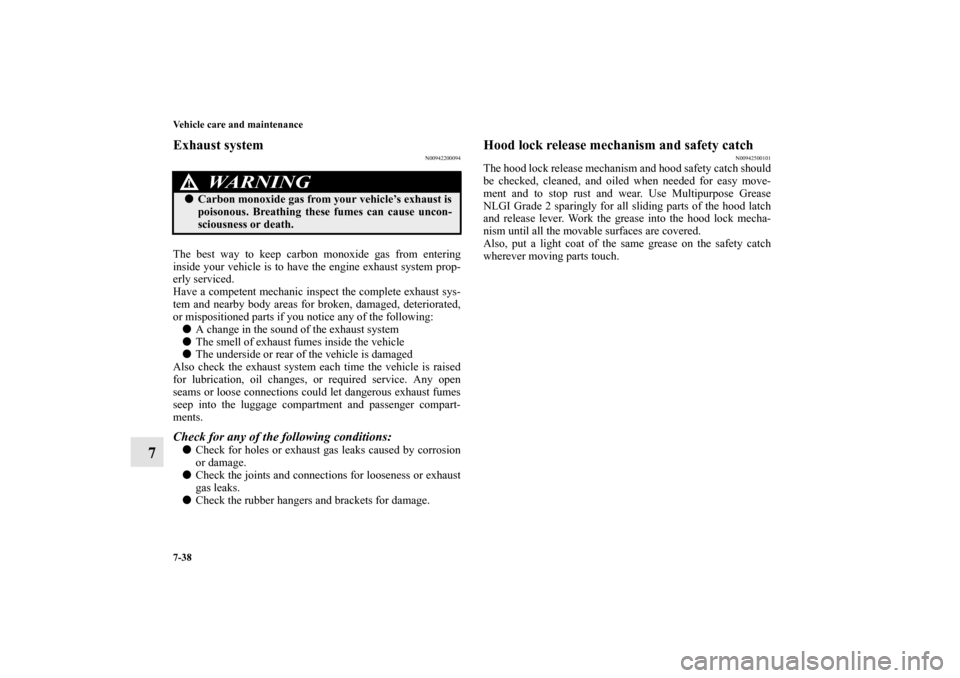

Page 547 of 610
7-38 Vehicle care and maintenance
7
Exhaust system
N00942200094
The best way to keep carbon monoxide gas from entering
inside your vehicle is to have the engine exhaust system prop-
erly serviced.
Have a competent mechanic inspect the complete exhaust sys-
tem and nearby body areas for broken, damaged, deteriorated,
or mispositioned parts if you notice any of the following:
A change in the sound of the exhaust system
The smell of exhaust fumes inside the vehicle
The underside or rear of the vehicle is damaged
Also check the exhaust system each time the vehicle is raised
for lubrication, oil changes, or required service. Any open
seams or loose connections could let dangerous exhaust fumes
seep into the luggage compartment and passenger compart-
ments.Check for any of the following conditions:Check for holes or exhaust gas leaks caused by corrosion
or damage.
Check the joints and connections for looseness or exhaust
gas leaks.
Check the rubber hangers and brackets for damage.
Hood lock release mechanism and safety catch
N00942500101
The hood lock release mechanism and hood safety catch should
be checked, cleaned, and oiled when needed for easy move-
ment and to stop rust and wear. Use Multipurpose Grease
NLGI Grade 2 sparingly for all sliding parts of the hood latch
and release lever. Work the grease into the hood lock mecha-
nism until all the movable surfaces are covered.
Also, put a light coat of the same grease on the safety catch
wherever moving parts touch.
WA R N I N G
!Carbon monoxide gas from your vehicle’s exhaust is
poisonous. Breathing these fumes can cause uncon-
sciousness or death.
BK0140300US.book 38 ページ 2011年6月28日 火曜日 午後5時18分

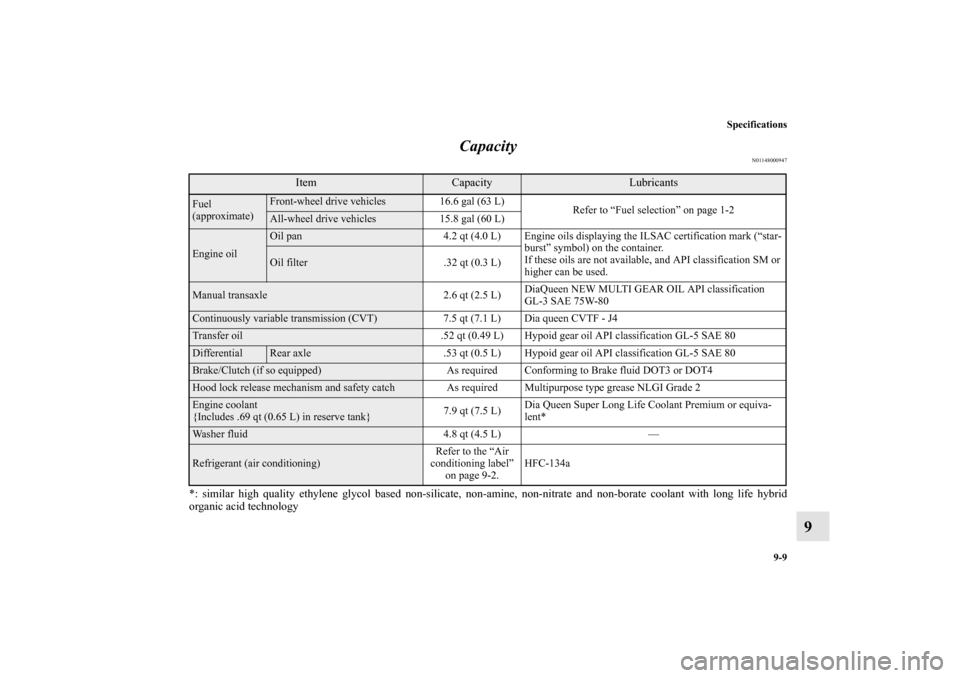

Page 600 of 610
Specifications
9-9
9 Capacity
N01148000947
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM or
higher can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classification
GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J4Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Dia Queen Super Long Life Coolant Premium or equiva-
lent*Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0140300US.book 9 ページ 2011年6月28日 火曜日 午後5時18分

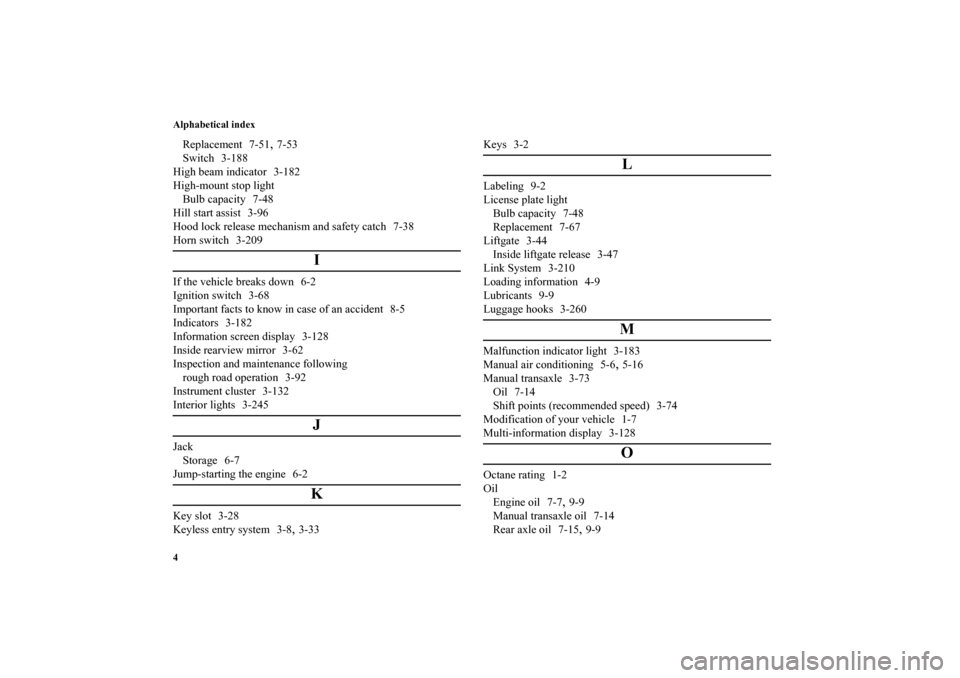

Page 605 of 610
Alphabetical index
4Replacement 7-51
,7-53
Switch 3-188
High beam indicator 3-182
High-mount stop light
Bulb capacity 7-48
Hill start assist 3-96
Hood lock release mechanism and safety catch 7-38
Horn switch 3-209
I
If the vehicle breaks down 6-2
Ignition switch 3-68
Important facts to know in case of an accident 8-5
Indicators 3-182
Information screen display 3-128
Inside rearview mirror 3-62
Inspection and maintenance following
rough road operation 3-92
Instrument cluster 3-132
Interior lights 3-245
J
Jack
Storage 6-7
Jump-starting the engine 6-2
K
Key slot 3-28
Keyless entry system 3-8
,3-33Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-48
Replacement 7-67
Liftgate 3-44
Inside liftgate release 3-47
Link System 3-210
Loading information 4-9
Lubricants 9-9
Luggage hooks 3-260
M
Malfunction indicator light 3-183
Manual air conditioning 5-6
,5-16
Manual transaxle 3-73
Oil 7-14
Shift points (recommended speed) 3-74
Modification of your vehicle 1-7
Multi-information display 3-128O
Octane rating 1-2
Oil
Engine oil 7-7
,9-9
Manual transaxle oil 7-14
Rear axle oil 7-15,9-9
