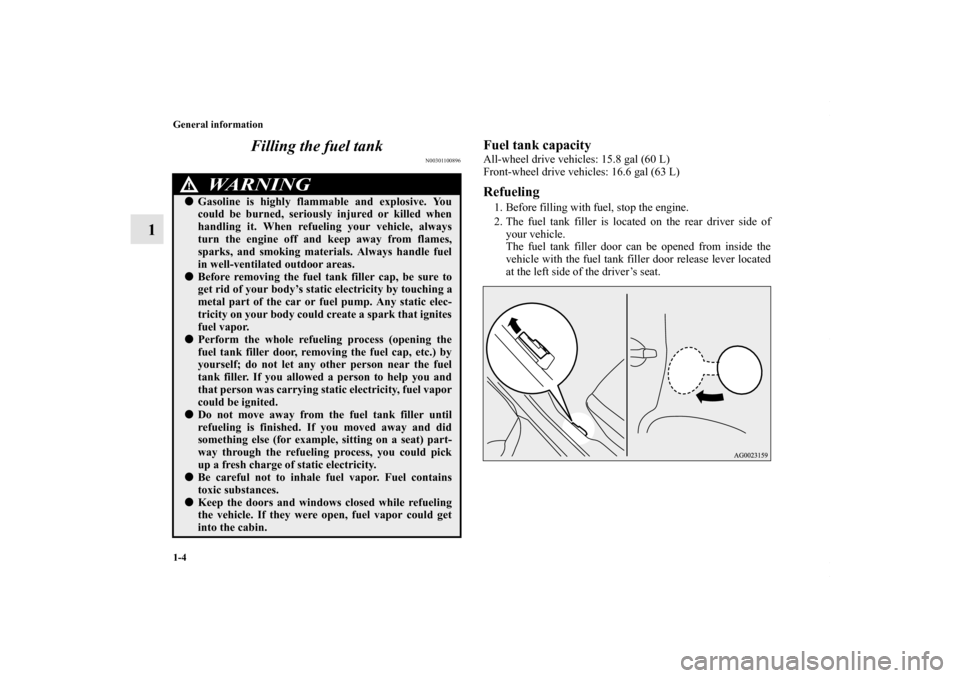

1-4 General information
1Filling the fuel tank
N00301100896
Fuel tank capacityAll-wheel drive vehicles: 15.8 gal (60 L)
Front-wheel drive vehicles: 16.6 gal (63 L)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
The fuel tank filler door can be opened from inside the
vehicle with the fuel tank filler door release lever located
at the left side of the driver’s seat.
WARNING
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.
Before removing the fuel tank filler cap, be sure to
get rid of your body’s static electricity by touching a
metal part of the car or fuel pump. Any static elec-
tricity on your body could create a spark that ignites
fuel vapor.
Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself; do not let any other person near the fuel
tank filler. If you allowed a person to help you and
that person was carrying static electricity, fuel vapor
could be ignited.
Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.
Be careful not to inhale fuel vapor. Fuel contains
toxic substances.
Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0150700US.book 4 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-178 Features and controls
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500804
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
continuously variable transmission (CVT) control system. If a
problem is detected in one of these systems, this indicator illu-
minates or flashes. When the ignition switch is turned to the
“ON” position or the operation mode is put in ON, this indica-
tor normally comes on and goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
CAUTION
!
If the brake warning light and the Anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions.
• When the brake warning light does not go out even
when the parking brake is released.
• When the brake warning light stays on while driv-
ing.
• If the above occurs, avoid sudden braking and high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.

The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
switch is turned to the “ON” position or the opera-
tion mode is put in ON, have the system checked at
an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0150700US.book 178 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Specifications9-9
9
Capacity
N01148001058
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SN or
higher can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)Mitsubishi Motors Genuine NEW MULTI GEAR OIL API
classification GL-3 SAE 75W-80Continuously variable transmission (CVT)
7.5 qt (7.1 L) Mitsubishi Motors Genuine CVTF - J4Transfer oil.50 qt (0.47 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80Differential
Rear axle
.42 qt (0.4 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped)
As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium or equivalent*Washer fluid
4.8 qt (4.5 L)—Refrigerant (air conditioning) Refer to the “Air
conditioning label” on page 9-2. HFC-134a
