MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Handbook
Manufacturer: MITSUBISHI, Model Year: 2013, Model line: OUTLANDER SPORT, Model: MITSUBISHI OUTLANDER SPORT 2013 3.GPages: 16, PDF Size: 2.46 MB
Page 1 of 16
OUTLANDER SPORT
Owner’s Handbook

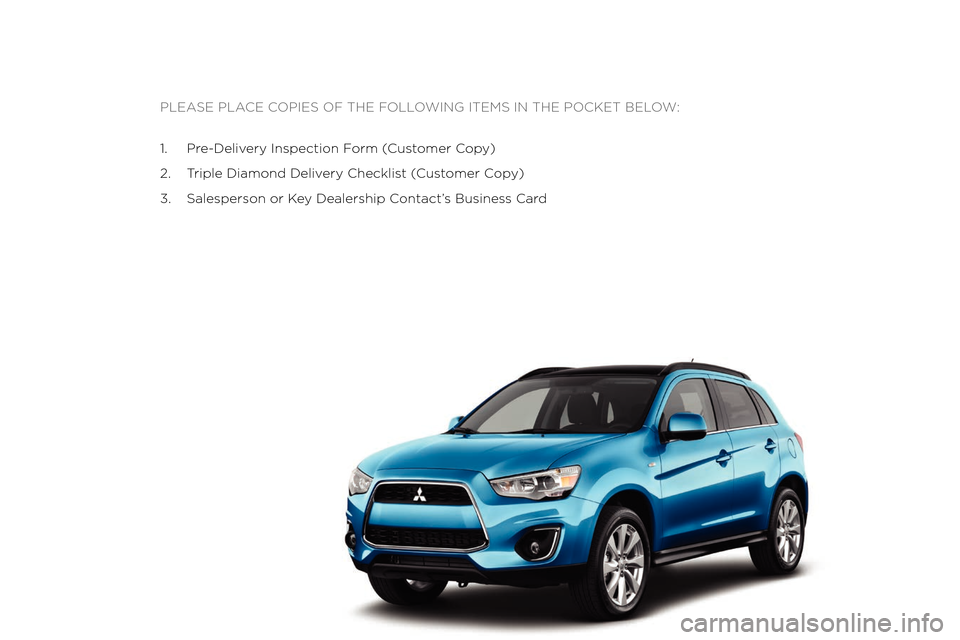

Page 2 of 16
Please Place coPies of the following items in the Pocket below:
1.
Pr
e-Delivery i nspection f
orm (c
ustomer c
op
y)
2.
t
riple Diamond Deliv
ery c hecklist (
c
ustomer c
op
y)
3.
s alesperson or k
e
y Dealership c
ontact’
s b usiness c ard
OUTLANDER SPORT
Owner’s Handbook

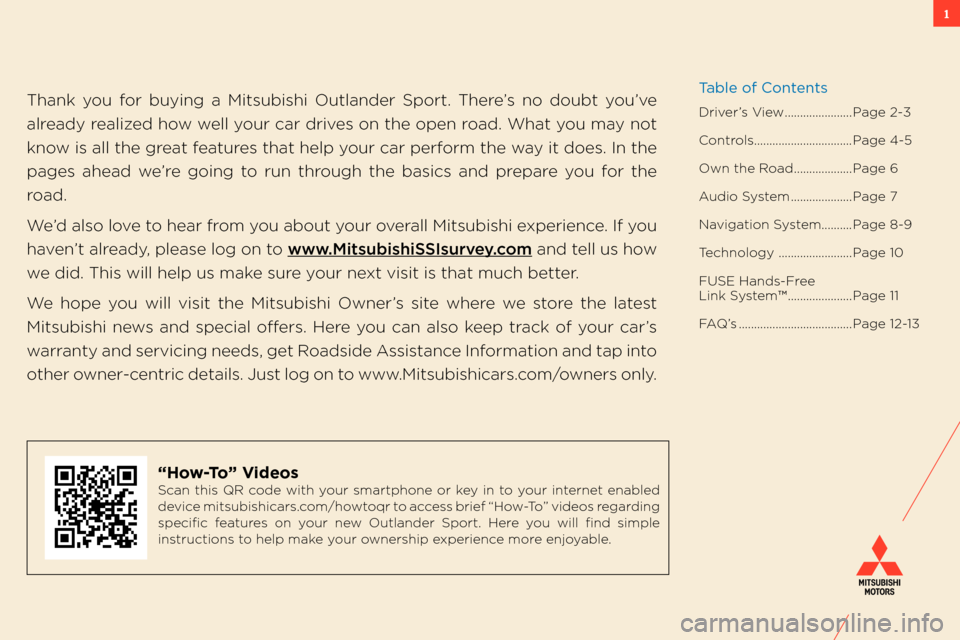

Page 3 of 16
1
thank you for buying a m itsubishi o utlander s port. ther e’s no doubt you’ve
already realized how well your car drives on the open road. w
ha
t you may not
know is all the great features that help your car perform the way it does.
i n the
pages ahead we’re going to run through the basics and prepare you for the
road.
we’
d also love to hear from you about your overall m itsubishi experience. i f you
haven’t already, please log on to www.MitsubishiSSIsurvey.com and tell us how
we did.
t
his will help us mak
e sure your next visit is that much better.
we hope y
ou will visit the m itsubishi o wner’s site where we store the latest
m
itsubishi news and special offers. h ere you can also keep track of your car’s
warranty and servicing needs, get Roadside
a ssistance i nformation and tap into
other owner-centric details. Just log on to www.
m itsubishicars.com/owners only. Driver’s View ......................P age 2-3
contr
ols................................ Page 4-5
o
wn the Road ...................Page 6
audio
s
y
stem ....................Page 7
n
avigation s
y
stem.......... Page 8-9
technology
........................Page 10
f
U se h ands- f ree
l
ink s
y
stem™ .....................Page 11
faQ
’s
..................................... Page 12-13
Table of Contents
“How-To” Videos
scan this QR code with your smartphone or key in to your internet enabled
de vice mitsubishicars.com/howtoqr to access brief “ h ow-
to” videos r
egarding
specific features on your new
o utlander
s
port.
h
ere you will find simple
instructions to help make your ownership experience more enjoyable.
Page 4 of 16
2
1
56
7
4
22

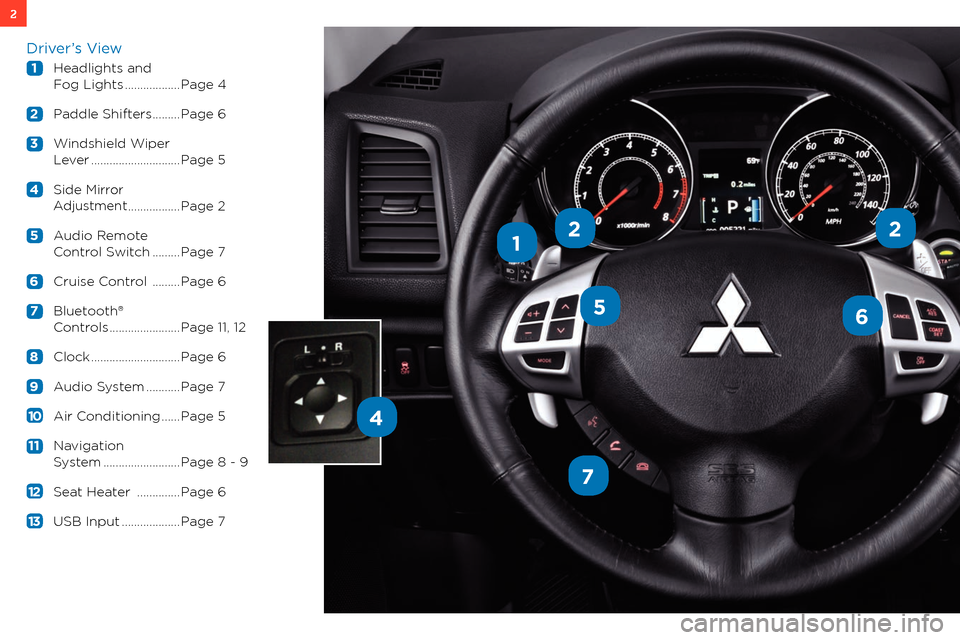

Driver’s View
1 h eadlights and
f
og
l ights ..................Page 4
2
P
addle s hifters .........Page 6
3
w
indshield
w
iper
l
e
ver
............................. Page 5
4
s ide
mirror
a
djus
tment
................. Page 2
5
a
udio R
emote
c
ontr
ol
s
wit
ch ......... Page 7
6
c
ruise
c
ontr
ol ......... Page 6
7
b
luetooth®
c
ontr
ols
....................... Page 11, 12
8
c
lock
............................. Page 6
9
a
udio
s
y
stem ........... Page 7
10
a
ir
c
onditioning
......Page 5
11
n
avigation
s
ystem
......................... Page 8 - 9
12
s
eat
h
eater .............. Page 6
1
3
U
sb
i
nput
................... Page 7

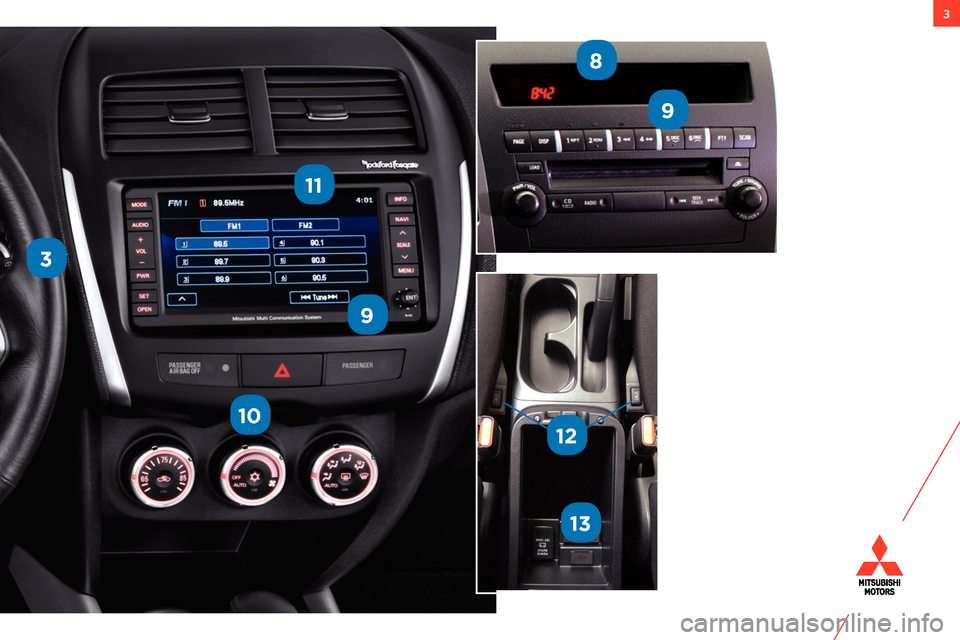

Page 5 of 16
3
3
9
9
8
10
11
12
13

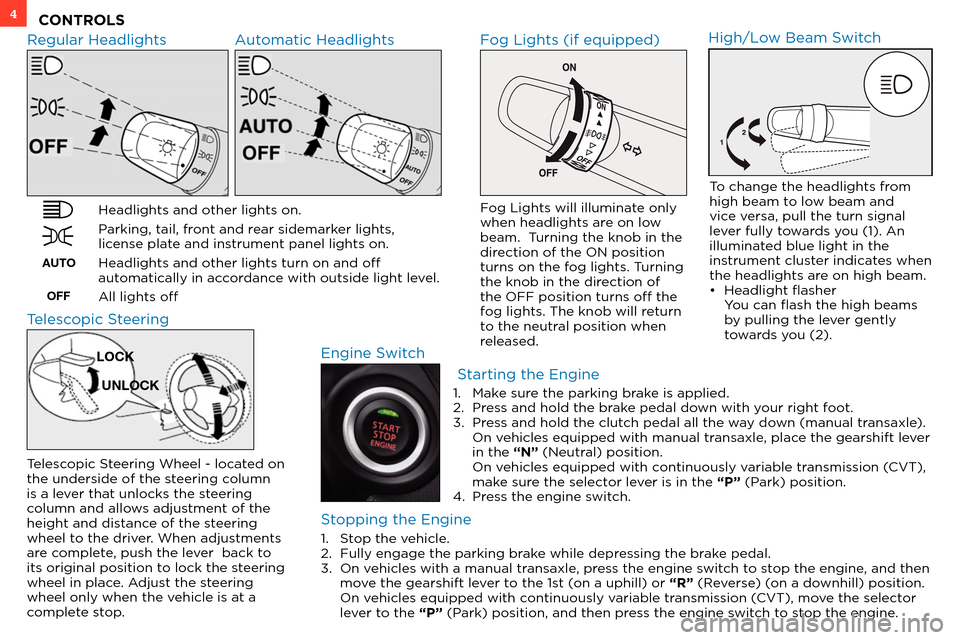

Page 6 of 16
4CONTROLS
Regular Headlights Automatic Headlights
Headlights and other lights on.
Parking, tail, front and rear sidemarker lights,
license plate and instrument panel lights on.
Headlights and other lights turn on and off
automatically in accordance with outside light level.
All lights off
AUTOOFF
Fog Lights (if equipped)
Engine Switch
Fog Lights will illuminate only
when headlights are on low
beam. Turning the knob in the
direction of the ON position
turns on the fog lights. Turning
the knob in the direction of
the OFF position turns off the
fog lights. The knob will return
to the neutral position when
released.
High/Low Beam Switch
To change the headlights from
high beam to low beam and
vice versa, pull the turn signal
lever fully towards you (1). An
illuminated blue light in the
instrument cluster indicates when
the headlights are on high beam.
• Headlight flasher
You
can flash the high beams
b
y pulling the lever gently
towards you (2).
Telescopic Steering
Telescopic Steering Wheel - located on
the underside of the steering column
is a lever that unlocks the steering
column and allows adjustment of the
height and distance of the steering
wheel to the driver. When adjustments
are complete, push the lever back to
its original position to lock the steering
wheel in place. Adjust the steering
wheel only when the vehicle is at a
complete stop.
LOCK
UNLOCK
Starting the Engine
Stopping the Engine
1. Stop the vehicle.
2. Fully engage the parking br ake while depressing the brake pedal.
3.
On v
ehicles with a manual transaxle, press the engine switch to stop the engine, and then
move the gearshift lever to the 1st (on a uphill) or “R” (Reverse) (on a downhill) position.
On v
ehicles equipped with continuously variable transmission (CVT), move the selector
lever to the “P” (Park) position, and then press the engine switch to stop the engine. 1.
Mak
e sure the parking brake is applied.
2.
Pr
ess and hold the brake pedal down with your right foot.
3.
Pr
ess and hold the clutch pedal all the way down (manual transaxle).
On v
ehicles equipped with manual transaxle, place the gearshift lever
in the “N” (Neutral) position.
On v
ehicles equipped with continuously variable transmission (CVT),
make sure the selector lever is in the “P” (Park) position.
4.
Pr
ess the engine switch.

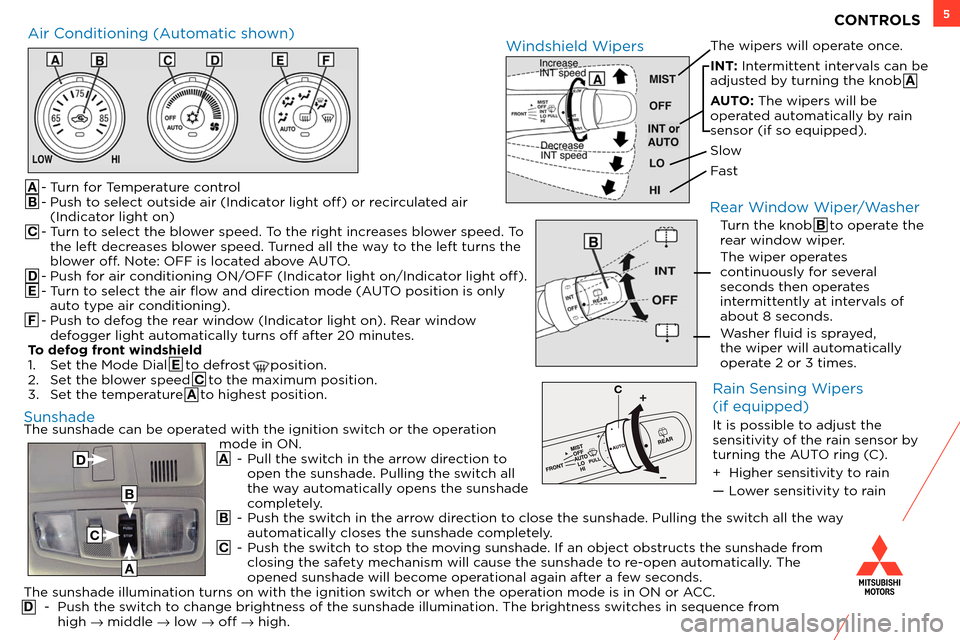

Page 7 of 16
5
The sunshade can be operated with the ignition switch or the operation mode in ON.
A
-
Pull the s
witch in the arrow direction to
open the sunshade. Pulling the switch all
the way automatically opens the sunshade
completely.
B
-
Push the s
witch in the arrow direction to close the sunshade. Pulling the switch all the way
automatically closes the sunshade completely.
C
-
Push the s
witch to stop the moving sunshade. If an object obstructs the sunshade from
closing the safety mechanism will cause the sunshade to re-open automatically. The
opened sunshade will become operational again after a few seconds.
The sunshade illumination turns on with the ignition switch or when the operation mode is in ON or ACC.
D
-
Push the s
witch to change brightness of the sunshade illumination. The brightness switches in sequence from
high → middle → low → off → high.
A
-
T
urn for Temperature control
B
-
Push t
o select outside air (Indicator light off) or recirculated air
(Indicator light on)
C
-
T
urn to select the blower speed. To the right increases blower speed. To
the left decreases blower speed. Turned all the way to the left turns the
blower off. Note: OFF is located above AUTO.
D
-
Push f
or air conditioning ON/OFF (Indicator light on/Indicator light off).
E - Turn to select the air flow and direction mode (AUTO position is only
aut
o type air conditioning).
F
-
Push t
o defog the rear window (Indicator light on). Rear window
def
ogger light automatically turns off after 20 minutes.
To defog front windshield
1.
Set the Mode Dial
E to defrost
position.
2.
Set the blo
wer speed C to the maximum position.
3.
Set the t
emperature A to highest position.
Air Conditioning (Automatic shown) The wipers will operate once.
INT: Intermittent intervals can be
adjusted by turning the knob A
AUTO: The wipers will be
operated automatically by rain
sensor (if so equipped).
Slow
FastWindshield Wipers
CONTROLS
Sunshade
Turn the knob B to operate the
rear window wiper.
The wiper operates
continuously for several
seconds then operates
intermittently at intervals of
about 8 seconds.
Washer fluid is sprayed,
the wiper will aut
omatically
operate 2 or 3 times.
Rear Window Wiper/Washer
Rain Sensing Wipers
(if equipped)
It is possible to adjust the
sensitivity of the rain sensor by
turning the AUTO ring (C).
+ Higher sensitivity to rain
— Lower sensitivity to rain
C
A
D
B
C
Page 8 of 16

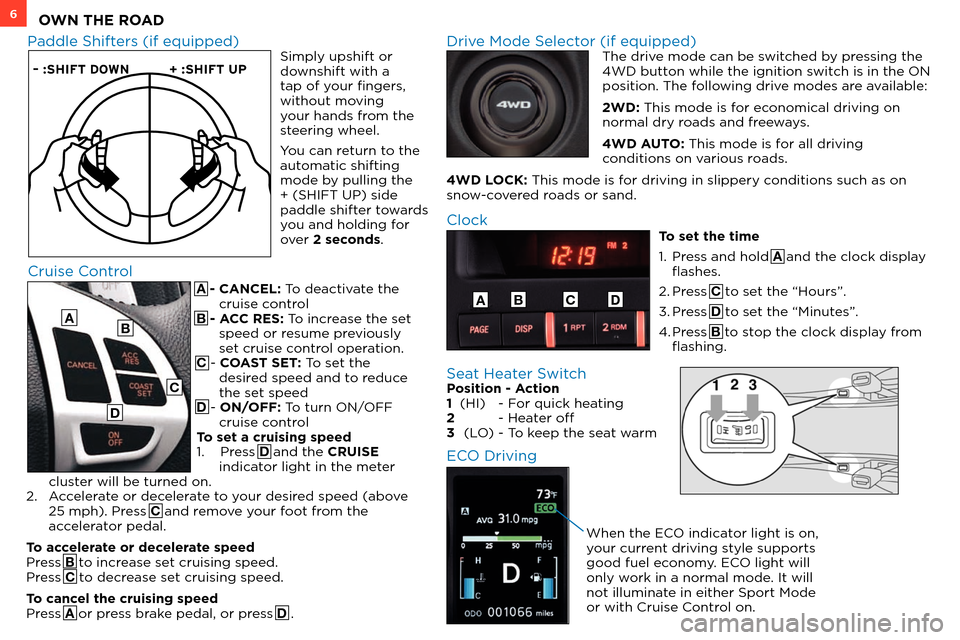

6OWN THE ROAD
A - CANCEL: To deactivate the cruise control
B - ACC RES: To increase the set speed or resume previously
set cruise control operation.
C - COAST SET: To set the desired speed and to reduce
the set speed
D - ON/OFF: To turn ON/OFF cruise control
To set a cruising speed
1.
Press D and the CRUISE
indicator light in the meter
cluster will be turned on.
2.
A
ccelerate or decelerate to your desired speed (above
25 mph). Press C and remove your foot from the
accelerator pedal.
To accelerate or decelerate speed
Press B to increase set cruising speed.
Press C to decrease set cruising speed.
To cancel the cruising speed
Press A or press brake pedal, or press D .
– :SHIFT DOWN + :SHIFT UP
Paddle Shifters (if equipped) Drive Mode Selector (if equipped) The drive mode can be switched by pressing the
4WD button while the ignition switch is in the ON
position. The following drive modes are available:
2WD: This mode is for economical driving on
normal dry roads and freeways.
4WD AUTO: This mode is for all driving
conditions on various roads.
4WD LOCK: This mode is for driving in slippery conditions such as on
snow-covered roads or sand.
Cruise Control
A
Clock
To set the time
1.
Pr
ess and hold A and the clock display
flashes.
2.
Press C to set the “Hours”.
3.
Press D to set the “Minutes”.
4.
Press B to stop the clock display from
flashing.
ABCD
B
C
D
Simply upshift or
downshift with a
tap of your fingers,
without moving
your hands from the
steering wheel.
You can return to the
automatic shifting
mode by pulling the
+ (SHIFT UP) side
paddle shifter towards
you and holding for
over 2 seconds.
Seat Heater Switch Position - Action
1 (HI) - F or quick heating
2
- Hea
ter off
3
(L
O)
- T
o keep the seat warm
ECO Driving
When the ECO indicator light is on,
your current driving style supports
good fuel economy. ECO light will
only work in a normal mode. It will
not illuminate in either Sport Mode
or with Cruise Control on.
Page 9 of 16

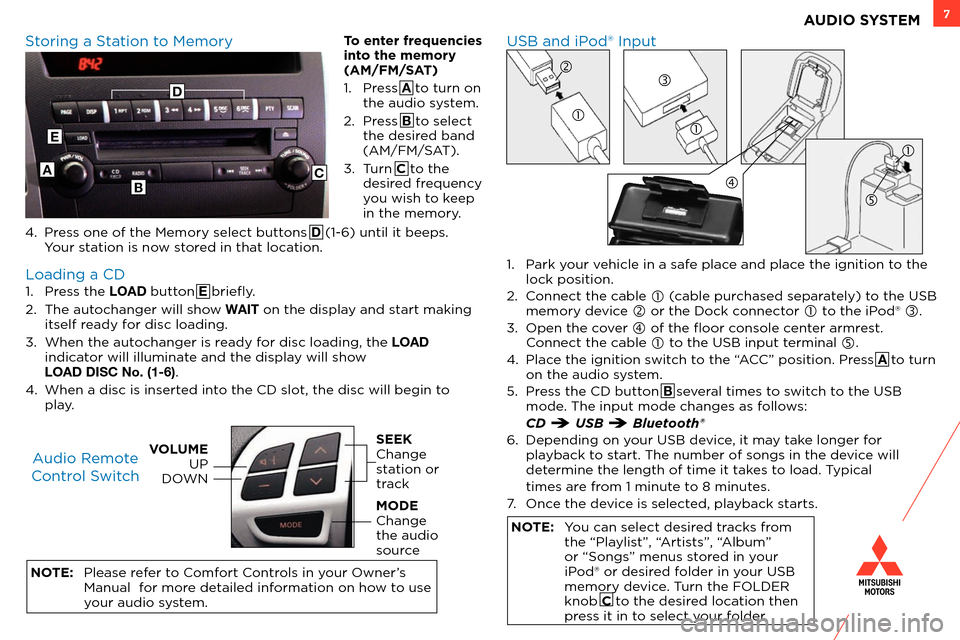

7AUDIO SYSTEM
1. Press the LOAD button E briefly.
2.
T
he autochanger will show WAIT on the display and start making
itself ready for disc loading.
3.
W
hen the autochanger is ready for disc loading, the LOAD
indicator will illuminate and the display will show
LOAD DISC No. (1-6)
.
4.
W
hen a disc is inserted into the CD slot, the disc will begin to
play.
NOTE:
Please r
efer to Comfort Controls in your Owner’s
Manual for more detailed information on how to use
your audio system.
USB and iPod® Input
Storing a Station to Memory
Loading a CD Audio Remote
Control Switch
VOLUME UP
DOWNSEEK
Change
station or
track
MODE
Change
the audio
source
1. Park your vehicle in a safe place and place the ignition to the lock position.
2.
C
onnect the cable
(cable purchased separately) to the USB
memory device
or the Dock connector to the iPod® .
3.
Open the c
over
of the floor console center armrest. C
onnect the cable
to the USB input terminal .
4.
Plac
e the ignition switch to the “ACC” position. Press A to turn
on the audio system.
5.
Pr
ess the CD button B several times to switch to the USB
mode. The input mode changes as follows:
CD USB Bluetooth®
6.
Depending on y
our USB device, it may take longer for
playback to start. The number of songs in the device will
determine the length of time it takes to load. Typical
times ar
e from 1 minute to 8 minutes.
7.
Onc
e the device is selected, playback starts.
NOTE: You can select desired tracks from the “Playlist”, “Artists”, “Album”
or “Songs” menus stored in your
iPod® or desired folder in your USB
memory device. Turn the FOLDER
knob C to the desired location then
press it in to select your folder.
A
E
BC
To enter frequencies
into the memory
(AM/FM/SAT)
1.
Pr
ess A to turn on
the audio system.
2.
Pr
ess B to select
the desired band
(AM/FM/SAT).
3.
T
urn C to the
desired frequency
you wish to keep
in the memory.
4.
Pr
ess one of the Memory select buttons D (1-6) until it beeps.
Your station is now stored in that location.
D
Page 10 of 16

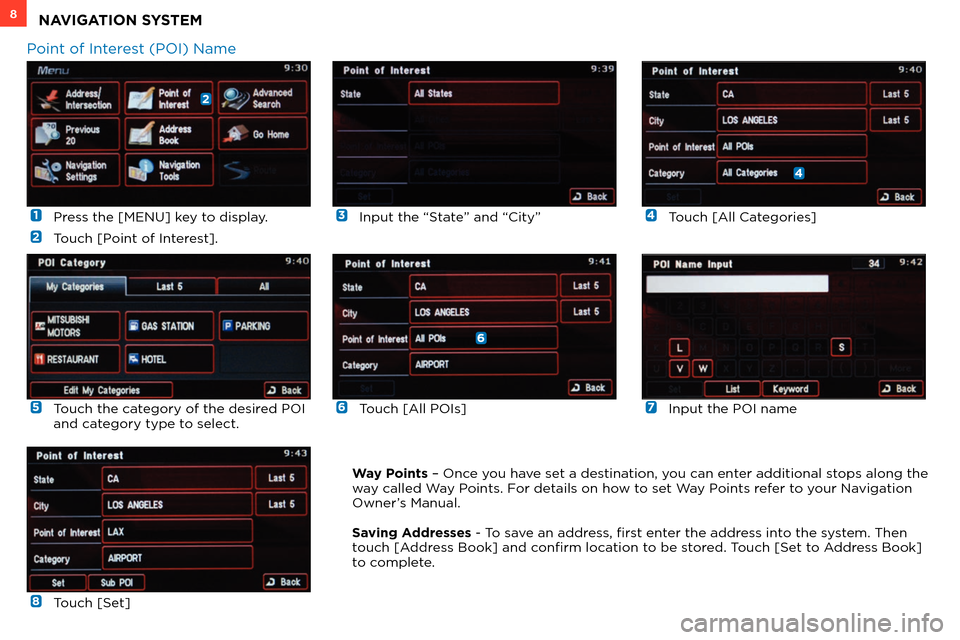

1 Press the [MENU] key to display.
2 Touch [Point of Interest].
6 Touch [All POIs]
3 Input the “S
tate” and “City”
7 Input the POI name
4 Touch [All Categories]
8 Touch [Set]
5 Touch the category of the desired POI
and category type to select.
Point of Interest (POI) Name
8NAVIGATION SYSTEM
6
4
2
Way Points – Once you have set a destination, you can enter additional stops along the
way called Way Points. For details on how to set Way Points refer to your Navigation
Owner’s Manual.
Saving Addresses - To save an address, first enter the address into the system. Then
touch [Address Book] and confirm location to be stored. Touch [Set to Address Book]
to complete.
