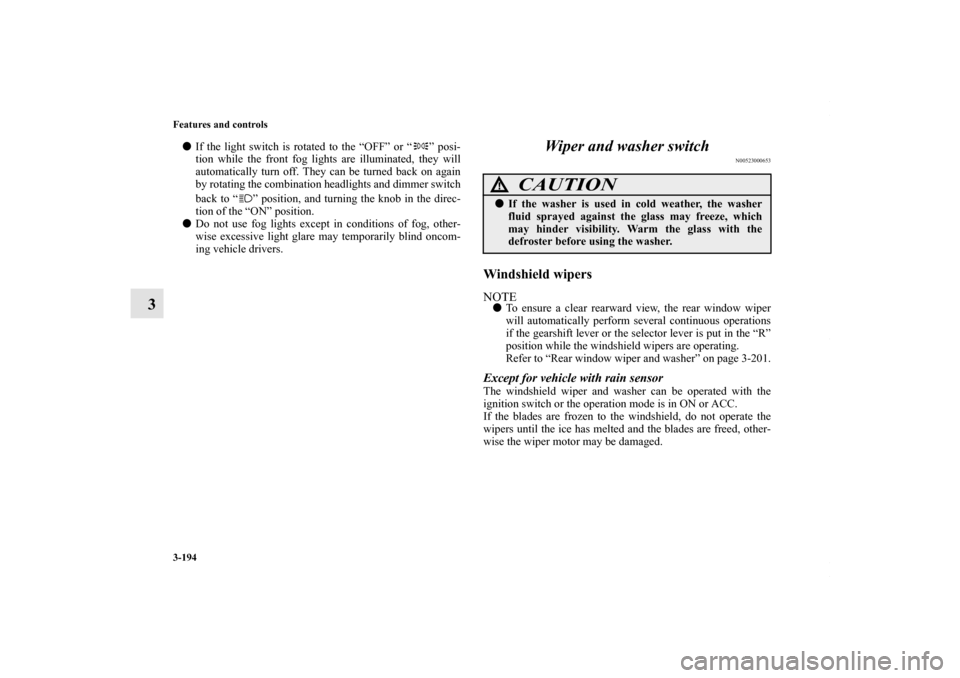

3-194 Features and controls
3

If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the combination headlights and dimmer switch
back to “ ” position, and turning the knob in the direc-
tion of the “ON” position.

Do not use fog lights except in conditions of fog, other-
wise excessive light glare may temporarily blind oncom-
ing vehicle drivers.
Wiper and washer switch
N00523000653
Windshield wipersNOTE
To ensure a clear rearward view, the rear window wiper
will automatically perform several continuous operations
if the gearshift lever or the selector lever is put in the “R”
position while the windshield wipers are operating.
Refer to “Rear window wiper and washer” on page 3-201.Except for vehicle with rain sensorThe windshield wiper and washer can be operated with the
ignition switch or the operation mode is in ON or ACC.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
BK0150700US.book 194 ページ ２０１２年３月２２日　木曜日　午後６時４６分

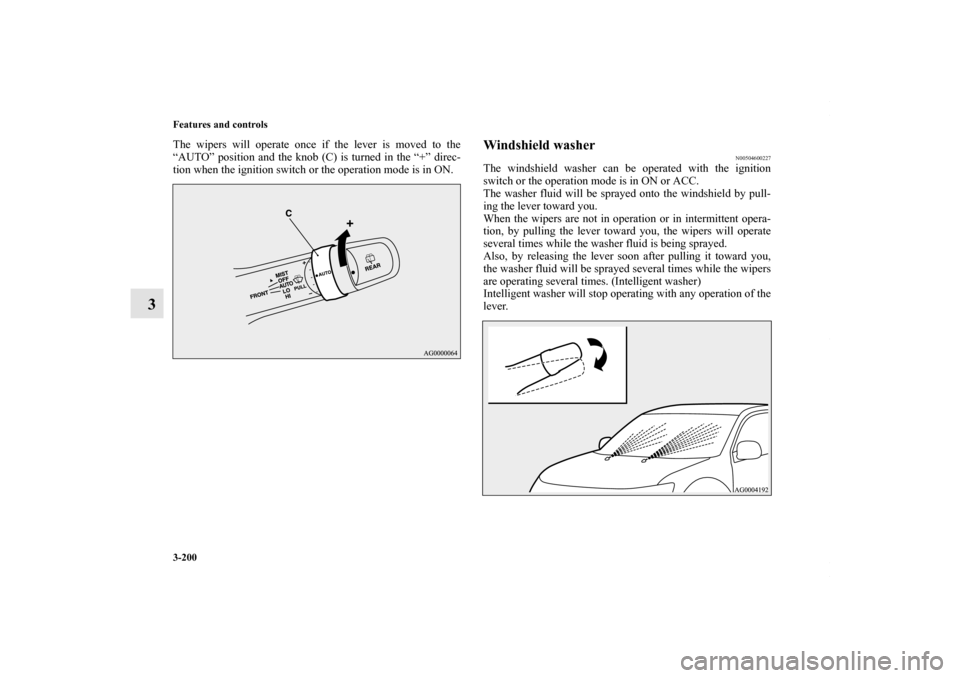

3-200 Features and controls
3
The wipers will operate once if the lever is moved to the
“AUTO” position and the knob (C) is turned in the “+” direc-
tion when the ignition switch or the operation mode is in ON.
Windshield washer
N00504600227
The windshield washer can be operated with the ignition
switch or the operation mode is in ON or ACC.
The washer fluid will be sprayed onto the windshield by pull-
ing the lever toward you.
When the wipers are not in operation or in intermittent opera-
tion, by pulling the lever toward you, the wipers will operate
several times while the washer fluid is being sprayed.
Also, by releasing the lever soon after pulling it toward you,
the washer fluid will be sprayed several times while the wipers
are operating several times. (Intelligent washer)
Intelligent washer will stop operating with any operation of the
lever.
BK0150700US.book 200 ページ ２０１２年３月２２日　木曜日　午後６時４６分

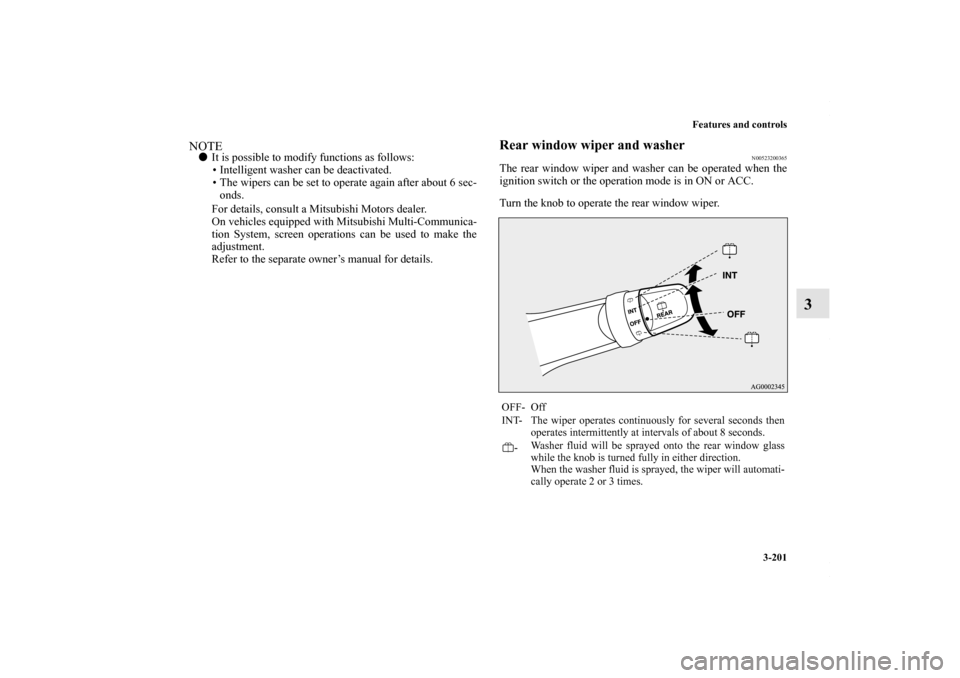

Features and controls3-201
3
NOTE
It is possible to modify functions as follows:
• Intelligent washer can be deactivated.
• The wipers can be set to operate again after about 6 sec- onds.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
Rear window wiper and washer
N00523200365
The rear window wiper and washer can be operated when the
ignition switch or the operation mode is in ON or ACC.
Turn the knob to operate the rear window wiper.OFF- Off
INT- The wiper operates continuously for several seconds then operates intermittently at intervals of about 8 seconds.
- Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.
BK0150700US.book 201 ページ
２０１２年３月２２日　木曜日　午後６時４６分

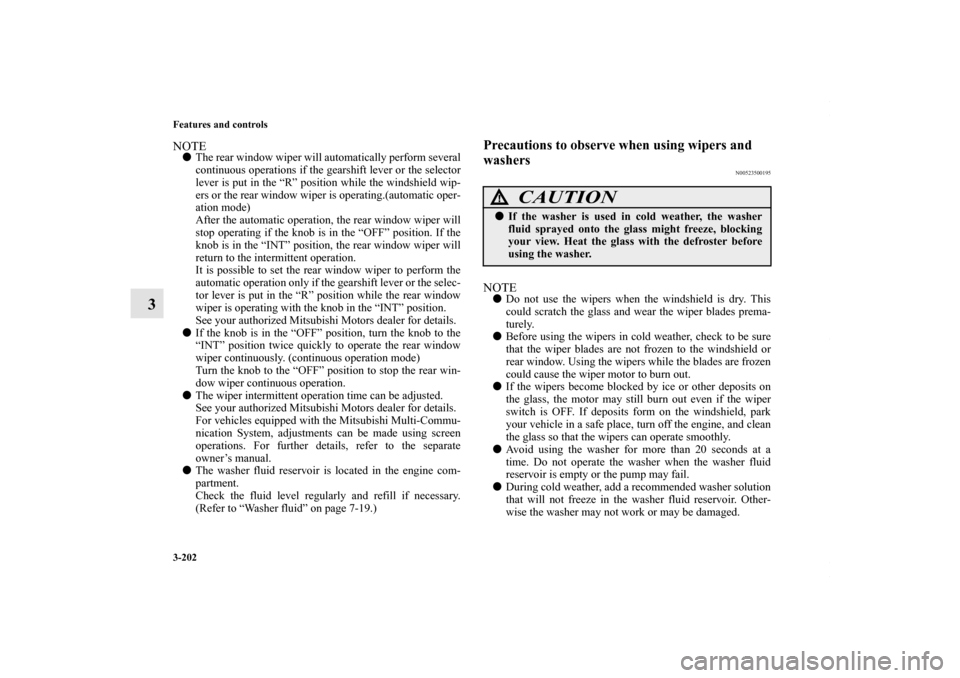

3-202 Features and controls
3
NOTE
The rear window wiper will automatically perform several
continuous operations if the gearshift lever or the selector
lever is put in the “R” position while the windshield wip-
ers or the rear window wiper is operating.(automatic oper-
ation mode)
After the automatic operation, the rear window wiper will
stop operating if the knob is in the “OFF” position. If the
knob is in the “INT” position, the rear window wiper will
return to the intermittent operation.
It is possible to set the rear window wiper to perform the
automatic operation only if the gearshift lever or the selec-
tor lever is put in the “R” position while the rear window
wiper is operating with the knob in the “INT” position.
See your authorized Mitsubishi Motors dealer for details.

If the knob is in the “OFF” position, turn the knob to the
“INT” position twice quickly to operate the rear window
wiper continuously. (continuous operation mode)
Turn the knob to the “OFF” position to stop the rear win-
dow wiper continuous operation.

The wiper intermittent operation time can be adjusted.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.

The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary.
(Refer to “Washer fluid” on page 7-19.)
Precautions to observe when using wipers and
washers
N00523500195
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield or
rear window. Using the wipers while the blades are frozen
could cause the wiper motor to burn out.

If the wipers become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.

Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the washer fluid
reservoir is empty or the pump may fail.

During cold weather, add a recommended washer solution
that will not freeze in the washer fluid reservoir. Other-
wise the washer may not work or may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. Heat the glass with the defroster before
using the washer.
BK0150700US.book 202 ページ ２０１２年３月２２日　木曜日　午後６時４６分

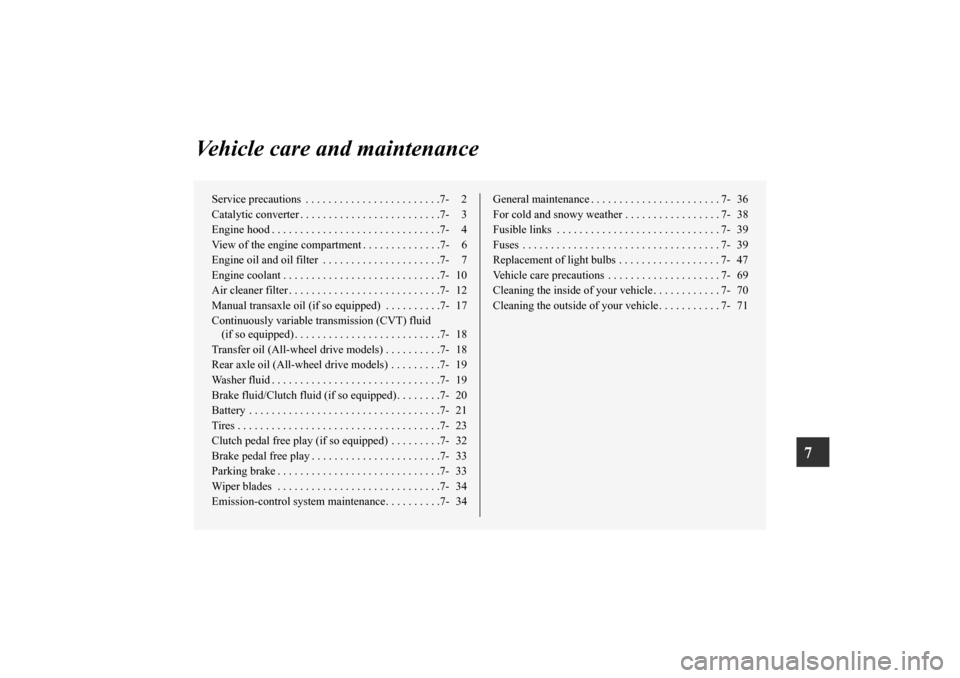

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 6
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 10
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 12
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 17
Continuously variable transmission (CVT) fluid (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .7- 18
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 18
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 19
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 20
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 21
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 23
Clutch pedal free play (if so equipped) . . . . . . . . .7- 32
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 33
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 33
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 34
Emission-control system maintenance. . . . . . . . . .7- 34 General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 36
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 38
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 39
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 39
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 47
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 69
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 70
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 71
BK0150700US.book 1
ページ ２０１２年３月２２日　木曜日　午後６時４６分

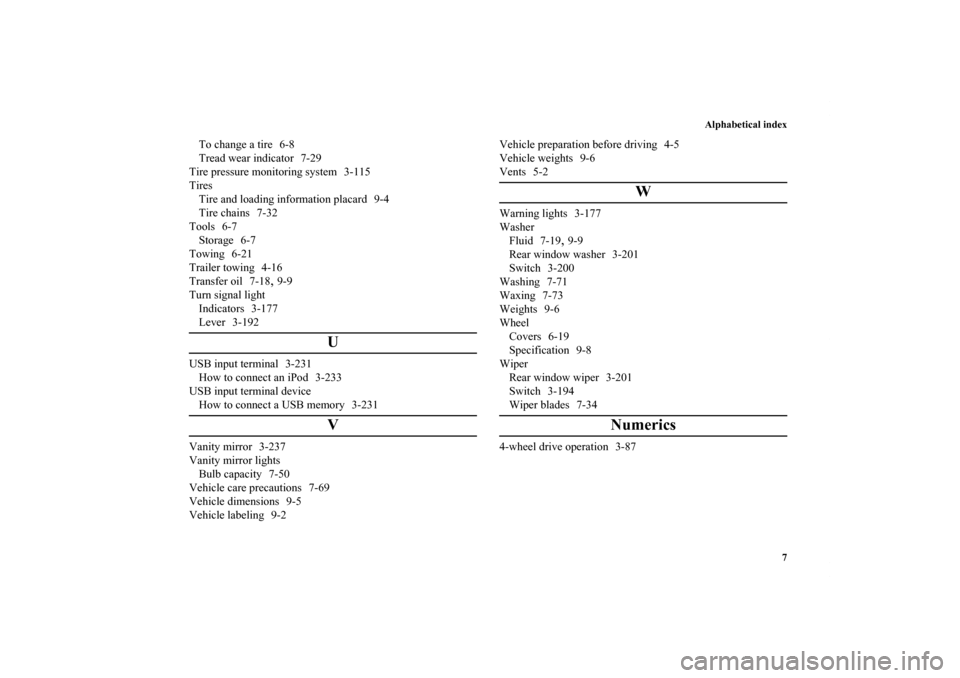

Alphabetical index7
To change a tire 6-8
Tread wear indicator 7-29
Tire pressure monitoring system 3-115
Tires Tire and loading information placard 9-4
Tire chains 7-32
Tools 6-7 Storage 6-7
Towing 6-21
Trailer towing 4-16
Transfer oil 7-18
,9-9
Turn signal light Indicators 3-177
Lever 3-192
U
USB input terminal 3-231How to connect an iPod 3-233
USB input terminal device How to connect a USB memory 3-231
V
Vanity mirror 3-237
Vanity mirror lightsBulb capacity 7-50
Vehicle care precautions 7-69
Vehicle dimensions 9-5
Vehicle labeling 9-2 Vehicle preparation before driving 4-5
Vehicle weights 9-6
Vents 5-2
W
Warning lights 3-177
Washer
Fluid 7-19
,9-9
Rear window washer 3-201
Switch 3-200
Washing 7-71
Waxing 7-73
Weights 9-6
Wheel Covers 6-19
Specification 9-8
Wiper Rear window wiper 3-201
Switch 3-194
Wiper blades 7-34
Numerics
4-wheel drive operation 3-87
