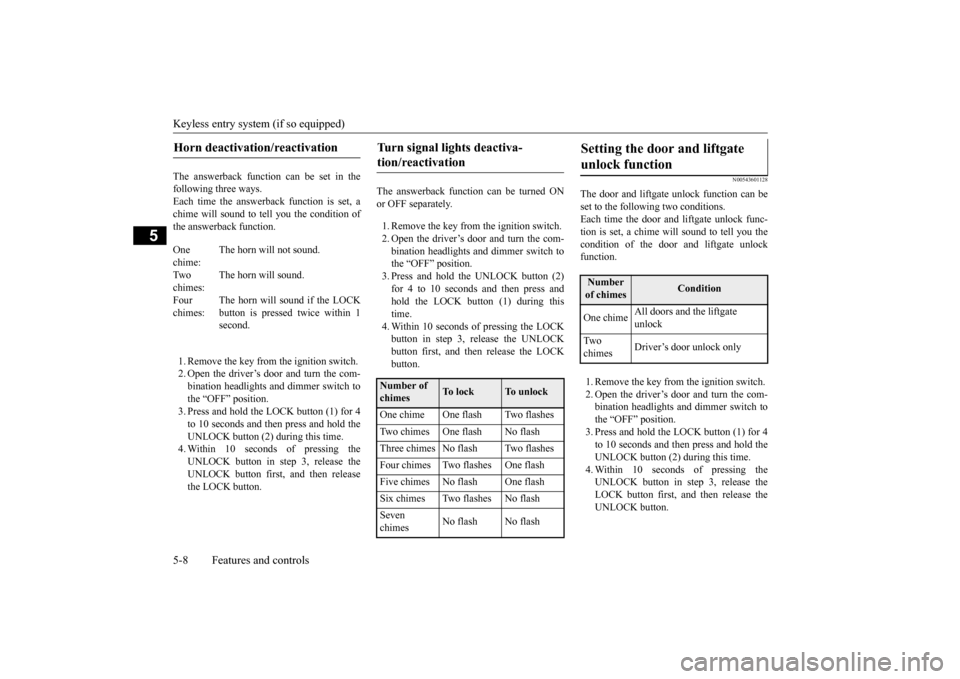

Keyless entry system (if so equipped) 5-8 Features and controls
5
The answerback function can be set in the following three ways.Each time the answerback function is set, a chime will sound to tell
you the condition of
the answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press and hold the LOCK button (1) for 4 to 10 seconds and then press and hold theUNLOCK button (2) during this time. 4. Within 10 seconds of pressing the UNLOCK button in step 3, release theUNLOCK button first, and then release the LOCK button.
The answerback function can be turned ON or OFF separately. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press and hold the UNLOCK button (2)for 4 to 10 seconds and then press andhold the LOCK button (1) during this time. 4. Within 10 seconds of pressing the LOCKbutton in step 3, release the UNLOCK button first, and then release the LOCK button.
N00543601128
The door and liftgate unlock function can beset to the following two conditions. Each time the door and liftgate unlock func- tion is set, a chime will sound to tell you thecondition of the door and liftgate unlock function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press and hold the LOCK button (1) for 4 to 10 seconds and then press and hold the UNLOCK button (2) during this time.4. Within 10 seconds of pressing the UNLOCK button in step 3, release the LOCK button first, and then release theUNLOCK button.
Horn deactivation/reactivation Onechime:
The horn will not sound.
Tw o chimes:
The horn will sound.
Four chimes:
The horn will sound if the LOCK button is pressed twice within 1second.
Turn signal lights deactiva- tion/reactivation Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
Setting the door and liftgate unlock function Number of chimes
Condition
One chime
All doors and the liftgate unlock
Tw o chimes
Driver’s door unlock only
BK0206700US.bo
ok 8 ページ ２０１４年３月２５日　火曜日　午後４時４２分

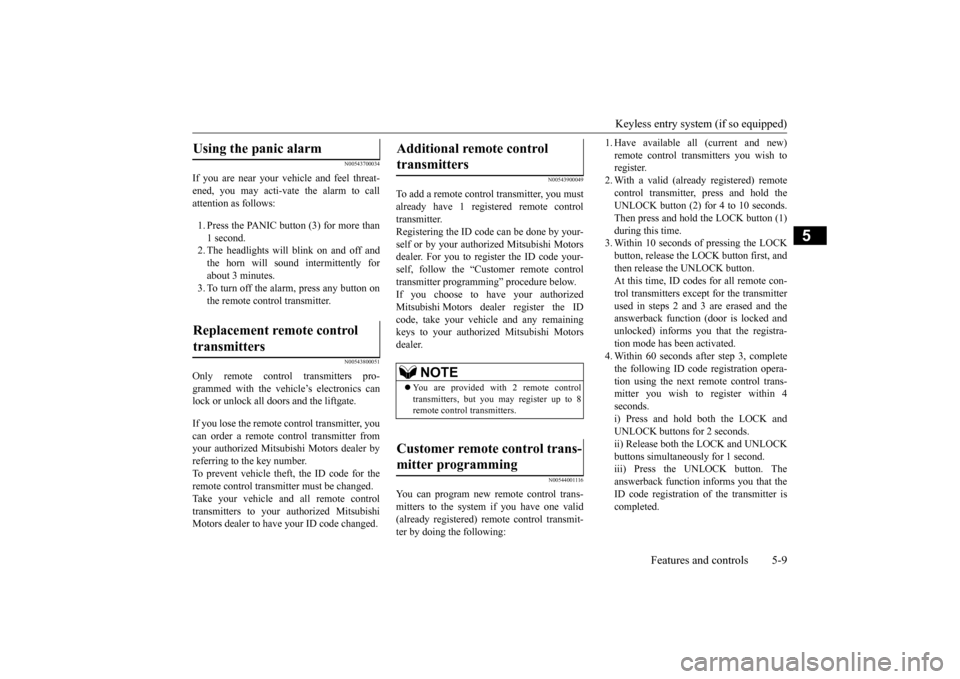

Keyless entry system (if so equipped)
Features and controls 5-9
5
N00543700034
If you are near your vehicle and feel threat- ened, you may acti-vate the alarm to callattention as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off andthe horn will sound intermittently forabout 3 minutes. 3. To turn off the alarm, press any button on the remote control transmitter.
N00543800051
Only remote control transmitters pro-grammed with the vehicle’s electronics can lock or unlock all doors and the liftgate. If you lose the remote control transmitter, you can order a remote control transmitter fromyour authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for theremote control transmitter must be changed. Take your vehicle and all remote control transmitters to your authorized MitsubishiMotors dealer to have your ID code changed.
N00543900049
To add a remote control transmitter, you mustalready have 1 registered remote control transmitter. Registering the ID code can be done by your-self or by your authorized Mitsubishi Motors dealer. For you to register the ID code your- self, follow the “Customer remote controltransmitter programming” procedure below.If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and any remainingkeys to your authorized Mitsubishi Motors dealer.
N00544001116
You can program new remote control trans- mitters to the system if you have one valid (already registered) remote control transmit- ter by doing the following:
1. Have available all (current and new) remote control transmitters you wish to register. 2. With a valid (already registered) remotecontrol transmitter, press and hold the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1)during this time. 3. Within 10 seconds of pressing the LOCK button, release the LOCK
button first, and
then release the UNLOCK button.At this time, ID codes for all remote con- trol transmitters except for the transmitter used in steps 2 and 3 are erased and theanswerback function (door is locked and unlocked) informs you
that the registra-
tion mode has been activated.4. Within 60 seconds after step 3, complete the following ID code registration opera- tion using the next remote control trans-mitter you wish to register within 4 seconds. i) Press and hold both the LOCK andUNLOCK buttons for 2 seconds. ii) Release both the LOCK and UNLOCK buttons simultaneously for 1 second.iii) Press the UNLOCK button. The answerback function informs you that the ID code registration of the transmitter iscompleted.
Using the panic alarm Replacement remote control transmitters
Additional remote control transmitters
NOTE
 You are provided with 2 remote control transmitters, but you may register up to 8remote control transmitters.
Customer remote control trans- mitter programming
BK0206700US.bo
ok 9 ページ ２０１４年３月２５日　火曜日　午後４時４２分

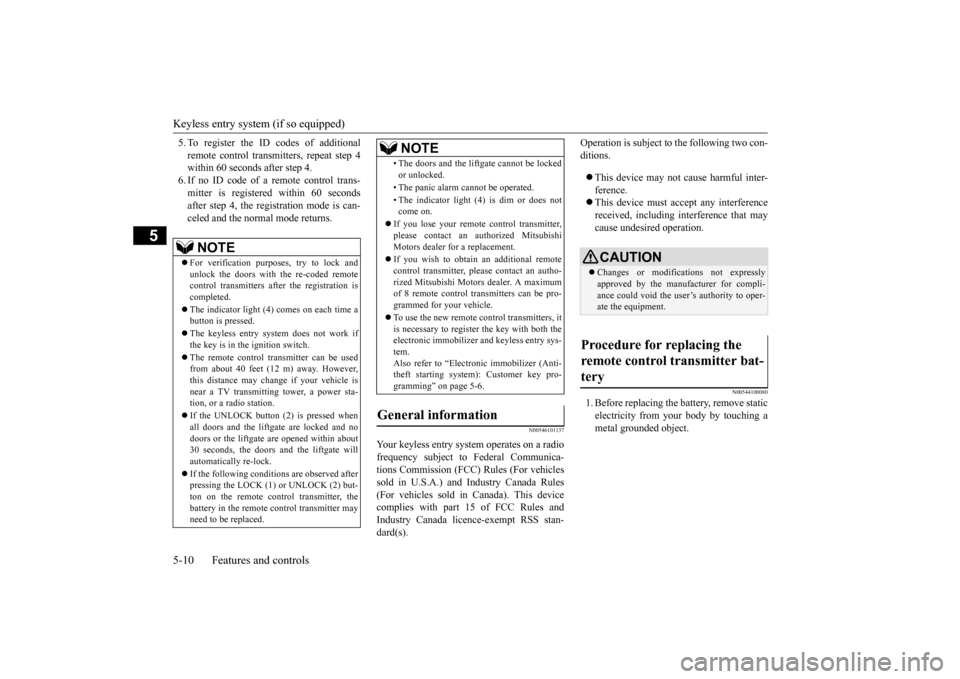

Keyless entry system (if so equipped) 5-10 Features and controls
5
5. To register the ID codes of additional remote control transmitters, repeat step 4 within 60 seconds after step 4. 6. If no ID code of a remote control trans-mitter is registered within 60 seconds after step 4, the registration mode is can- celed and the normal mode returns.
N00546101137
Your keyless entry system operates on a radiofrequency subject to Federal Communica- tions Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules(For vehicles sold in Canada). This device complies with part 15 of FCC Rules and Industry Canada licence-exempt RSS stan-dard(s).
Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00544100080
1. Before replacing the battery, remove static electricity from your body by touching ametal grounded object.
NOTE
 For verification purposes, try to lock and unlock the doors with the re-coded remotecontrol transmitters after the registration is completed.  The indicator light (4) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The remote control transmitter can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle isnear a TV transmitting tower, a power sta- tion, or a radio station.  If the UNLOCK button (2) is pressed when all doors and the liftgate are locked and no doors or the liftgate are opened within about30 seconds, the doors and the liftgate will automatically re-lock.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, the battery in the remote control transmitter may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked. • The panic alarm cannot be operated. • The indicator light (4) is dim or does not come on.
 If you lose your remote control transmitter, please contact an authorized Mitsubishi Motors dealer for a replacement.  If you wish to obtain an additional remote control transmitter, please contact an autho-rized Mitsubishi Motors dealer. A maximum of 8 remote control transmitters can be pro- grammed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro- gramming” on page 5-6.
General information
NOTE
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat- tery
BK0206700US.bo
ok 10 ページ ２０１４年３月２５日　火曜日　午後４時４２分

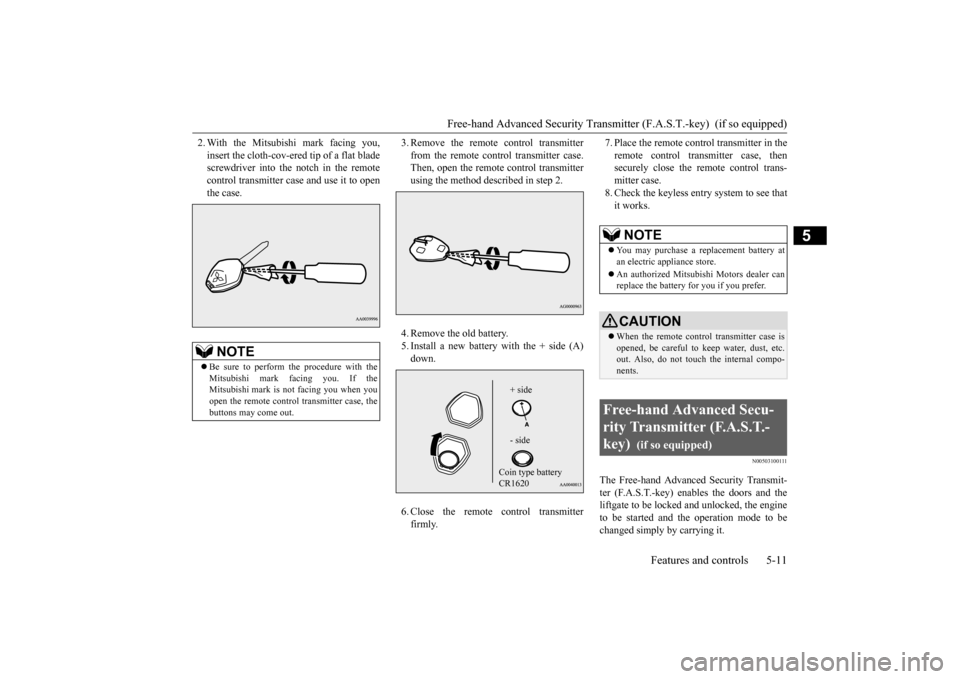

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-11
5
2. With the Mitsubishi mark facing you, insert the cloth-cov-ered tip of a flat blade screwdriver into the notch in the remote control transmitter case and use it to openthe case.
3. Remove the remote control transmitter from the remote control transmitter case. Then, open the remote control transmitter using the method described in step 2. 4. Remove the old battery. 5. Install a new battery with the + side (A)down. 6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control transmitter case, then securely close the remote control trans- mitter case.8. Check the keyless entry system to see that it works.
N00503100111
The Free-hand Advanced Security Transmit- ter (F.A.S.T.-key) enables the doors and theliftgate to be locked and unlocked, the engine to be started and the operation mode to be changed simply by carrying it.
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If theMitsubishi mark is not facing you when you open the remote control transmitter case, the buttons may come out.
+ side - side Coin type battery CR1620
NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc.out. Also, do not touch the internal compo- nents.
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
BK0206700US.bo
ok 11 ページ ２０１４年３月２５日　火曜日　午後４時４２分

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)

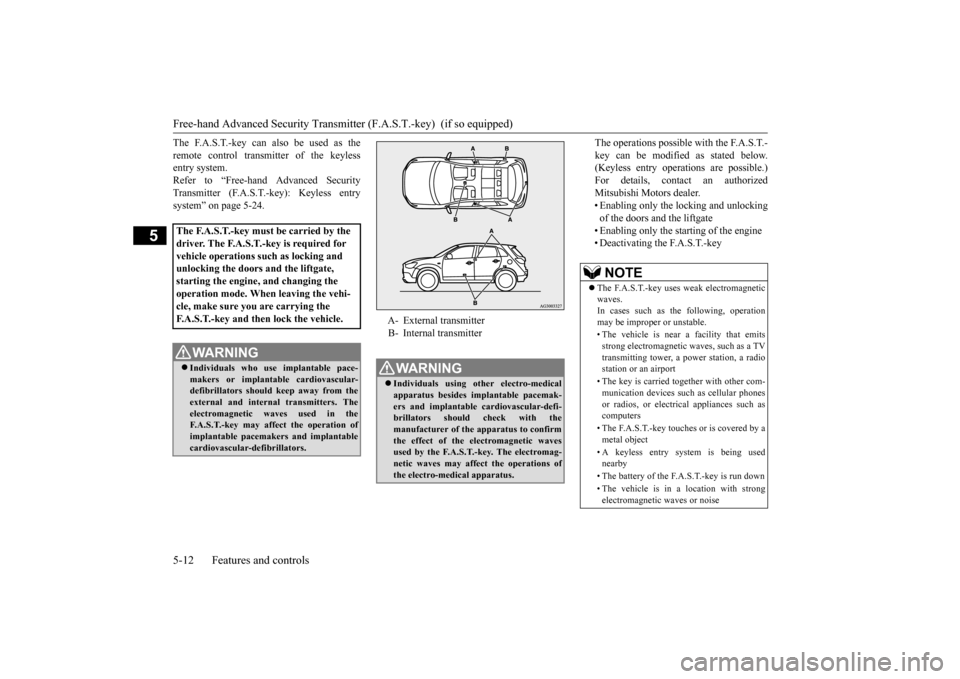

5-12 Features and controls
5
The F.A.S.T.-key can also be used as the remote control transmitter of the keyless entry system. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-key): Keyless entry system” on page 5-24.
The operations possible with the F.A.S.T.- key can be modified as stated below. (Keyless entry operations are possible.) For details, contact an authorizedMitsubishi Motors dealer. • Enabling only the locking and unlocking of the doors and the liftgate• Enabling only the starting of the engine • Deactivating the F.A.S.T.-key
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations such as locking and unlocking the doors and the liftgate, starting the engine, and changing the operation mode. When leaving the vehi- cle, make sure you are carrying the F.A.S.T.-key and then lock the vehicle.
WA R N I N G Individuals who use implantable pace- makers or implantable cardiovascular- defibrillators should keep away from the external and internal
transmitters. The
electromagnetic waves used in the F.A.S.T.-key may affect the operation of implantable pacemakers and implantablecardiovascular-defibrillators.
A- External transmitter B- Internal transmitterWA R N I N G Individuals using other electro-medical apparatus besides implantable pacemak- ers and implantable cardiovascular-defi- brillators should check with the manufacturer of the apparatus to confirm the effect of the electromagnetic wavesused by the F.A.S.T.-key. The electromag- netic waves may affect the operations of the electro-medical apparatus.
NOTE
 The F.A.S.T.-key uses weak electromagnetic waves. In cases such as the following, operation may be improper or unstable. • The vehicle is near a facility that emits strong electromagnetic waves, such as a TVtransmitting tower, a power station, a radio station or an airport • The key is carried together with other com- munication devices such as cellular phones or radios, or electrical appliances such ascomputers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down • The vehicle is in a location with strong electromagnetic waves or noise
BK0206700US.bo
ok 12 ページ ２０１４年３月２５日　火曜日　午後４時４２分

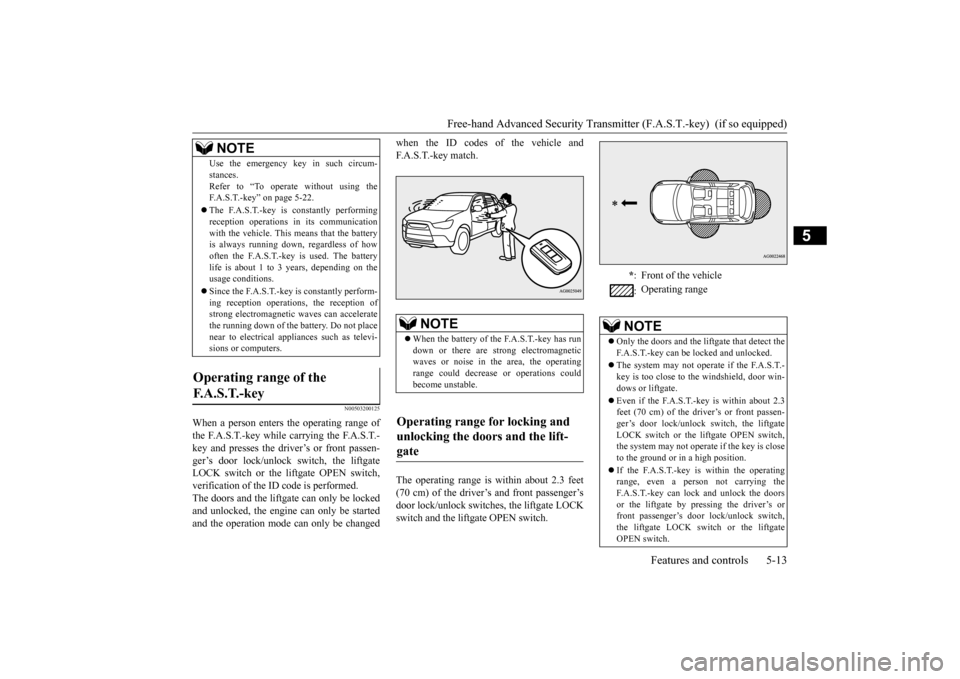

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
N00503200125
When a person enters the operating range of the F.A.S.T.-key while carrying the F.A.S.T.- key and presses the driver’s or front passen-ger’s door lock/unlock switch, the liftgate LOCK switch or the liftgate OPEN switch, verification of the ID code is performed.The doors and the liftgate can only be locked and unlocked, the engine can only be started and the operation mode can only be changed
when the ID codes of the vehicle and F.A.S.T.-key match. The operating range is within about 2.3 feet (70 cm) of the driver’s and front passenger’s door lock/unlock switches, the liftgate LOCKswitch and the liftgate OPEN switch.
Use the emergency key in such circum- stances. Refer to “To operate without using the F.A.S.T.-key” on page 5-22.  The F.A.S.T.-key is constantly performing reception operations in its communication with the vehicle. This means that the batteryis always running down, regardless of how often the F.A.S.T.-key is used. The battery life is about 1 to 3 years, depending on theusage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operations, the reception of strong electromagnetic waves can accelerate the running down of the battery. Do not placenear to electrical appliances such as televi- sions or computers.
Operating range of the F. A . S . T. - k e y

NOTE
NOTE
 When the battery of the F.A.S.T.-key has run down or there are strong electromagneticwaves or noise in the area, the operating range could decrease or operations could become unstable.
Operating range for locking and unlocking the doors and the lift-gate

* : Front of the vehicle : Operating range
NOTE
 Only the doors and the liftgate that detect the F.A.S.T.-key can be locked and unlocked.  The system may not operate if the F.A.S.T.- key is too close to the windshield, door win- dows or liftgate.  Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the driver’s or front passen-ger’s door lock/unlock switch, the liftgate LOCK switch or the liftgate OPEN switch, the system may not operate if the key is closeto the ground or in a high position.  If the F.A.S.T.-key is within the operating range, even a person not carrying the F.A.S.T.-key can lock and unlock the doors or the liftgate by pressing the driver’s orfront passenger’s door lock/unlock switch, the liftgate LOCK switch or the liftgate OPEN switch.
BK0206700US.bo
ok 13 ページ ２０１４年３月２５日　火曜日　午後４時４２分

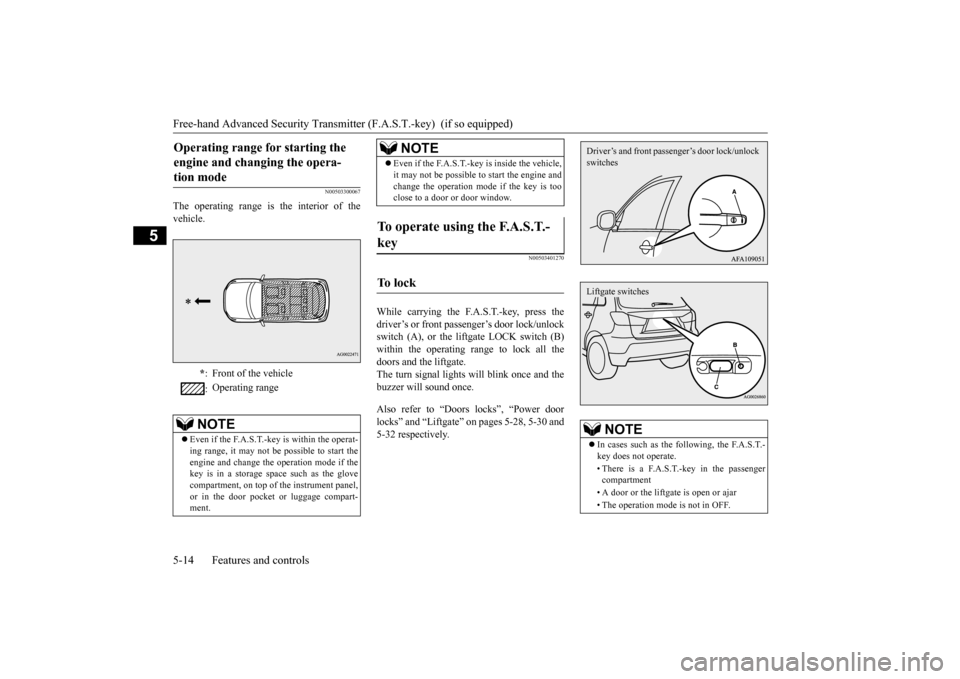

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-14 Features and controls
5
N00503300067
The operating range is the interior of the vehicle.
N00503401270
While carrying the F.A.S.T.-key, press the driver’s or front passenger’s door lock/unlock switch (A), or the liftgate LOCK switch (B)within the operating range to lock all the doors and the liftgate. The turn signal lights will blink once and thebuzzer will sound once. Also refer to “Doors locks”, “Power door locks” and “Liftgate” on pages 5-28, 5-30 and 5-32 respectively.
Operating range for starting the engine and changing the opera- tion mode

* : Front of the vehicle : Operating range
NOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be possible to start the engine and change the operation mode if the key is in a storage space such as the glovecompartment, on top of the instrument panel, or in the door pocket or luggage compart- ment.
 Even if the F.A.S.T.-key is inside the vehicle, it may not be possible to start the engine and change the operation mode if the key is too close to a door or door window.
To operate using the F.A.S.T.- key

To l o c k

NOTE
NOTE
 In cases such as the following, the F.A.S.T.- key does not operate. • There is a F.A.S.T.-key in the passenger compartment • A door or the liftgate is open or ajar• The operation mode is not in OFF.Driver’s and front passenger’s door lock/unlock switchesLiftgate switches
BK0206700US.bo
ok 14 ページ ２０１４年３月２５日　火曜日　午後４時４２分

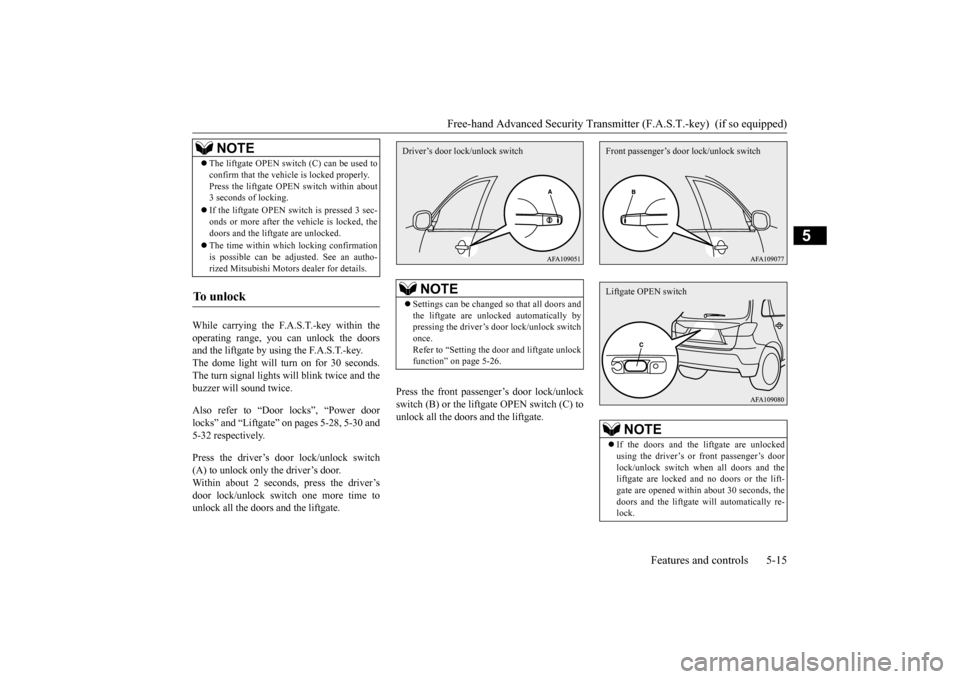

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors and the liftgate by using the F.A.S.T.-key.The dome light will turn on for 30 seconds. The turn signal lights will blink twice and the buzzer will sound twice. Also refer to “Door locks”, “Power door locks” and “Liftgate” on pages 5-28, 5-30 and 5-32 respectively. Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door.Within about 2 seconds, press the driver’s door lock/unlock switch one more time to unlock all the doors and the liftgate.
Press the front passenger’s door lock/unlock switch (B) or the liftgate OPEN switch (C) to unlock all the doors and the liftgate.
 The liftgate OPEN switch (C) can be used to confirm that the vehicle is locked properly. Press the liftgate OPEN switch within about 3 seconds of locking.  If the liftgate OPEN switch is pressed 3 sec- onds or more after the vehicle is locked, the doors and the liftgate are unlocked.  The time within which locking confirmation is possible can be adjusted. See an autho-rized Mitsubishi Motors dealer for details.
To u n l o c k

NOTE
NOTE
 Settings can be changed so that all doors and the liftgate are unlocked automatically by pressing the driver’s door lock/unlock switchonce. Refer to “Setting the door and liftgate unlock function” on page 5-26.Driver’s door lock/unlock switch
NOTE
 If the doors and the liftgate are unlocked using the driver’s or front passenger’s door lock/unlock switch when all doors and the liftgate are locked and no doors or the lift-gate are opened within about 30 seconds, the doors and the liftgate will automatically re- lock.Front passenger’s door
lock/unlock switch
Liftgate OPEN switch
BK0206700US.bo
ok 15 ページ ２０１４年３月２５日　火曜日　午後４時４２分

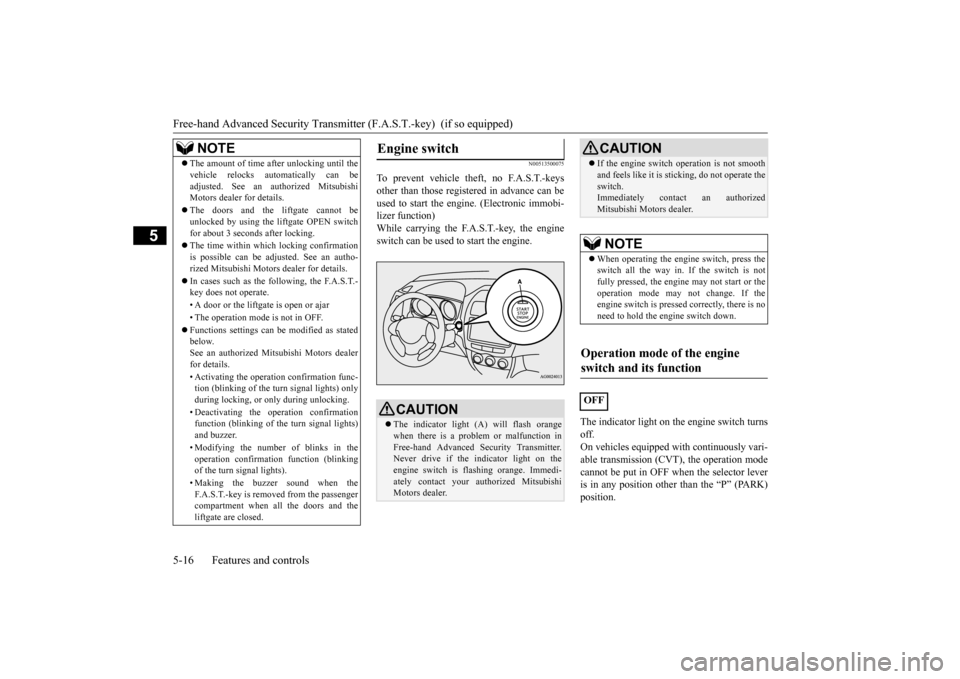

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-16 Features and controls
5
N00513500075
To prevent vehicle theft, no F.A.S.T.-keys other than those registered in advance can beused to start the engine. (Electronic immobi- lizer function) While carrying the F.A.S.T.-key, the engineswitch can be used to start the engine.
The indicator light on the engine switch turns off.On vehicles equipped with continuously vari- able transmission (CVT), the operation mode cannot be put in OFF when the selector leveris in any position other than the “P” (PARK) position.
 The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details.  The doors and the liftgate cannot be unlocked by using the liftgate OPEN switch for about 3 seconds after locking.  The time within which locking confirmation is possible can be adjusted. See an autho-rized Mitsubishi Motors dealer for details.  In cases such as the following, the F.A.S.T.- key does not operate. • A door or the liftgate is open or ajar• The operation mode is not in OFF.  Functions settings can be modified as stated below. See an authorized Mitsubishi Motors dealerfor details. • Activating the operation confirmation func- tion (blinking of the turn signal lights) only during locking, or only during unlocking. • Deactivating the operation confirmation function (blinking of the turn signal lights) and buzzer. • Modifying the number of blinks in the operation confirmation function (blinking of the turn signal lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors and theliftgate are closed.NOTE
Engine switch

CAUTION The indicator light (A) will flash orange when there is a problem or malfunction in Free-hand Advanced Security Transmitter. Never drive if the indicator light on theengine switch is flashing orange. Immedi- ately contact your authorized Mitsubishi Motors dealer.
 If the engine switch operation is not smooth and feels like it is sticking, do not operate the switch. Immediately contact an authorized Mitsubishi Motors dealer.NOTE
 When operating the engine switch, press the switch all the way in. If the switch is not fully pressed, the engine may not start or the operation mode may not change. If theengine switch is pressed correctly, there is no need to hold the en
gine switch down.
Operation mode of the engine switch and its function

OFF
CAUTION
BK0206700US.bo
ok 16 ページ ２０１４年３月２５日　火曜日　午後４時４２分

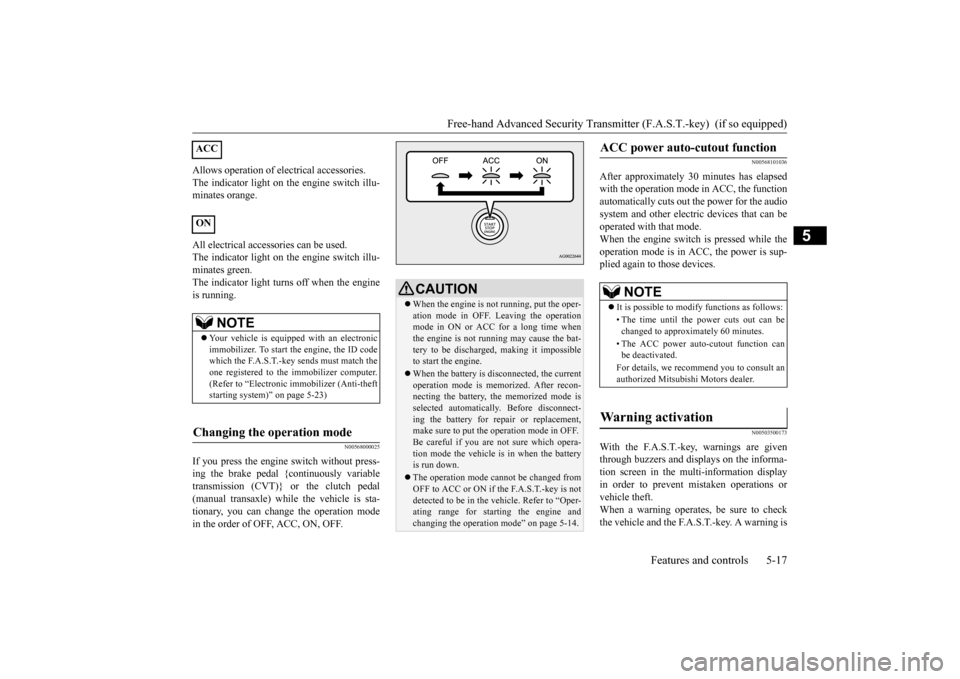

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
Allows operation of electrical accessories. The indicator light on the engine switch illu- minates orange. All electrical accessories can be used. The indicator light on the engine switch illu-minates green.The indicator light turn
s off when the engine
is running.
N00568000025
If you press the engine switch without press- ing the brake pedal {continuously variabletransmission (CVT)} or the clutch pedal (manual transaxle) while the vehicle is sta- tionary, you can change the operation modein the order of OFF, ACC, ON, OFF.
N00568101036
After approximately 30 minutes has elapsedwith the operation mode in ACC, the functionautomatically cuts out the power for the audio system and other electri
c devices that can be
operated with that mode.When the engine switch is pressed while the operation mode is in ACC, the power is sup- plied again to those devices.
N00503500173
With the F.A.S.T.-key, warnings are given through buzzers and displays on the informa- tion screen in the multi-information displayin order to prevent mistaken operations or vehicle theft. When a warning operates, be sure to checkthe vehicle and the F.A.S.T.-key. A warning is
ACC ON
NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID codewhich the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-23)
Changing the operation mode

CAUTION When the engine is not running, put the oper- ation mode in OFF. Leaving the operation mode in ON or ACC for a long time whenthe engine is not running may cause the bat- tery to be discharged, making it impossible to start the engine.  When the battery is disconnected, the current operation mode is memorized. After recon-necting the battery, the memorized mode is selected automatically. Before disconnect- ing the battery for repair or replacement,make sure to put the operation mode in OFF. Be careful if you are not sure which opera- tion mode the vehicle is in when the batteryis run down. The operation mode cannot be changed from OFF to ACC or ON if the F.A.S.T.-key is not detected to be in the vehicle. Refer to “Oper- ating range for starting the engine andchanging the operation mode” on page 5-14.
ACC power auto-cutout function

NOTE
 It is possible to modify functions as follows: • The time until the power cuts out can be changed to approximately 60 minutes. • The ACC power auto-cutout function can be deactivated. For details, we recommend you to consult an authorized Mitsubishi Motors dealer.
Warning activation

BK0206700US.bo
