Instruments and controls 1-1
1
Overview
N00100202560
Instruments and controls

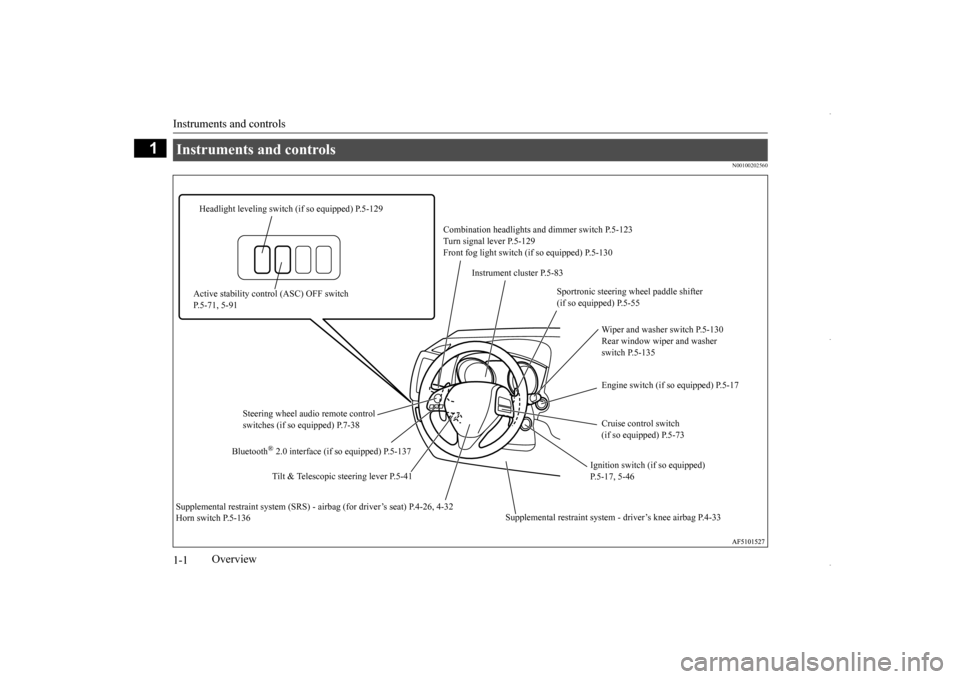

Combination headlights
and dimmer switch P.5-123
Turn signal lever P.5-129 Front fog light switch (if so equipped) P.5-130
Headlight leveling switch (if so equipped) P.5-129
Instrument cluster P.5-83
Active stability control (ASC) OFF switch P.5-71, 5-91
Sportronic steering wheel paddle shifter (if so equipped) P.5-55
Wiper and washer switch P.5-130 Rear window wiper and washer switch P.5-135 Engine switch (if so equipped) P.5-17
Steering wheel audio remote control switches (if so equipped) P.7-38
Cruise control switch (if so equipped) P.5-73
Tilt & Telescopic steering lever P.5-41
Ignition switch (if so equipped) P.5-17, 5-46
Bluetooth
® 2.0 interface (if so
equipped) P.5-137
Supplemental restraint system
- driver’s knee airbag P.4-33
Supplemental restraint system (SRS) - ai
rbag (for driver’s seat) P.4-26, 4-32
Horn switch P.5-136BK0229600US.bo
ok 1 ページ 2015年10月1日 木曜日 午後2時29分
Page 3 of 398
Instruments and controls
Overview 1-2
1

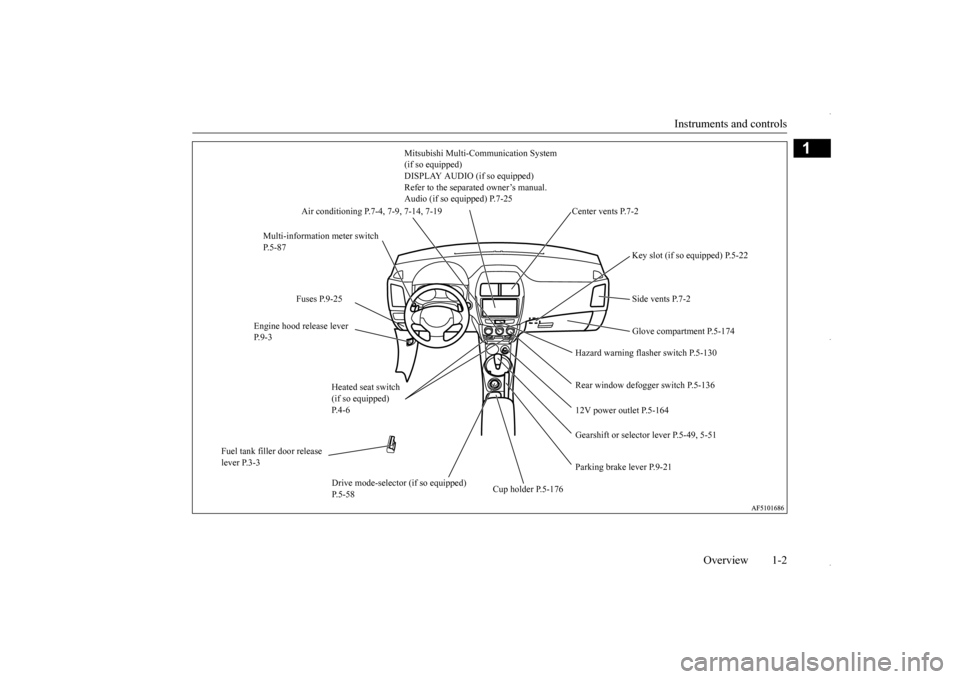

Mitsubishi Multi-Communication System (if so equipped) DISPLAY AUDIO (if so equipped) Refer to the separated owner’s manual.Audio (if so equipped) P.7-25
Multi-information meter switch P.5-87
Key slot (if so equipped) P.5-22 Side vents P.7-2
Fuses P.9-25
Engine hood release lever P.9-3
Glove compartment P.5-174
Hazard warning flasher switch P.5-130 Rear window defogger switch P.5-136
Air conditioning P.7-4, 7-9, 7-14, 7-19
12V power outlet P.5-164 Gearshift or selector
lever P.5-49, 5-51
Fuel tank filler door release lever P.3-3
Parking brake lever P.9-21
Drive mode-selector (if so equipped) P.5-58
Cup holder P.5-176
Center vents P.7-2
Heated seat switch (if so equipped) P. 4 - 6
BK0229600US.bo
ok 2 ページ 2015年10月1日 木曜日 午後2時29分
Page 4 of 398
Interior 1-3 Overview
1
N00100302402
Interior

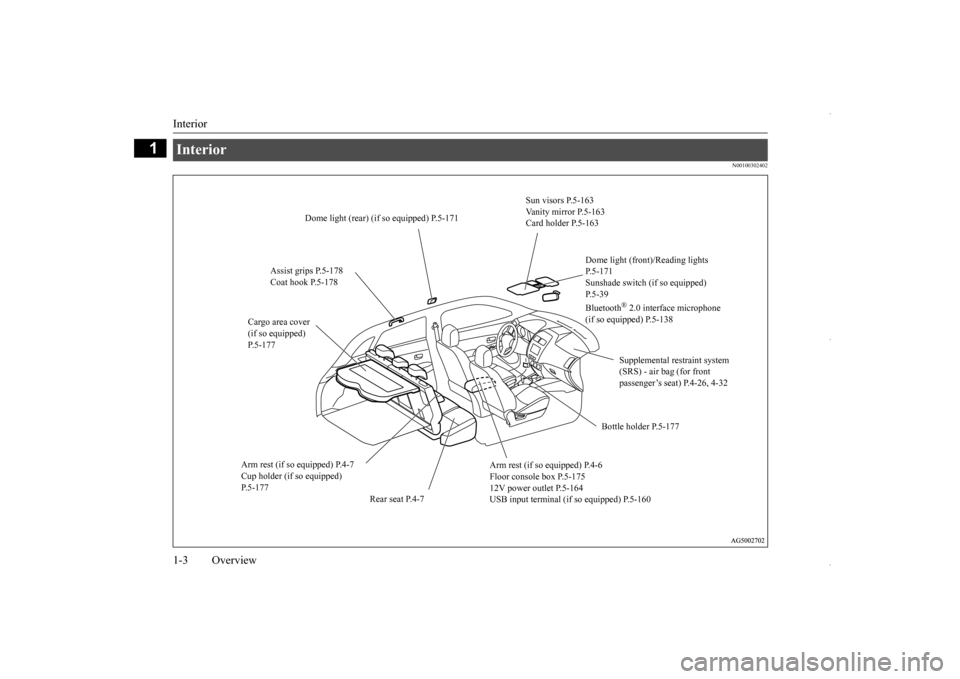

Sun visors P.5-163 Vanity mirror P.5-163 Card holder P.5-163
Dome light (rear) (if so equipped) P.5-171
Dome light (front)/Reading lights P.5-171Sunshade switch (if so equipped) P.5-39 Bluetooth
® 2.0 interface microphone
(if so equipped) P.5-138
Assist grips P.5-178 Coat hook P.5-178
Cargo area cover (if so equipped) P.5-177
Supplemental restraint system (SRS) - air bag (for front passenger’s seat) P.4-26, 4-32
Bottle holder P.5-177
Arm rest (if so equipped) P.4-7 Cup holder (if so equipped) P.5-177
Arm rest (if so equipped) P.4-6 Floor console box P.5-175 12V power outlet P.5-164 USB input terminal (i
f so equipped) P.5-160
Rear seat P.4-7
BK0229600US.bo
ok 3 ページ 2015年10月1日 木曜日 午後2時29分
Page 5 of 398
Interior
Overview 1-4
1
Electric remote-controlled outside mirror switch P.5-44
Lock switch P.5-38
Power door lock switch P.5-30
Supplemental restraint system (SRS) - curtain airbags P.4-37
Power window switch P.5-37
Sunshade illumination lamp dimming control switch (if so equipped) P.5-172
Seat belts P.4-11
Adjustable seat belt shoulder anchor P.4-16
Inside rearview mirror P.5-42 HomeLink
® Wireless Control System (if so
equipped) P.5-165
Tether anchors for child restraint system P.4-21
Front seat P.4-2 Heated seat (if so equipped) P.4-6
Supplemental restraint system (SRS) - side airbag (for front seats) P.4-37
Cargo room light P.5-172
Head restraints P.4-7
BK0229600US.bo
ok 4 ページ 2015年10月1日 木曜日 午後2時29分
Page 6 of 398
Luggage compartment 1-5 Overview
1
N00100501508
Luggage compartment

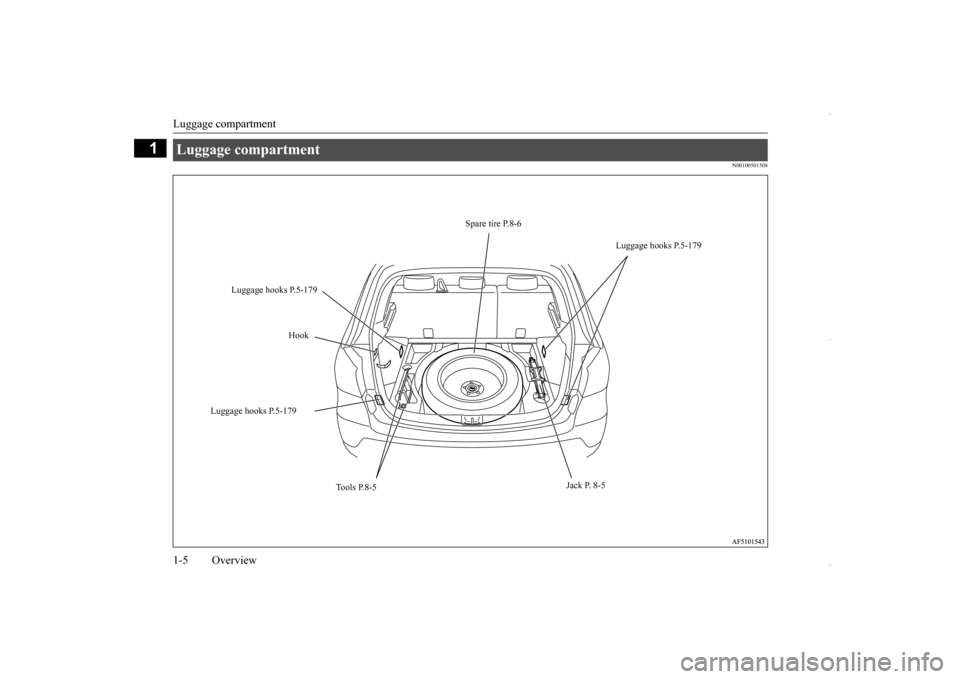

Spare tire P.8-6
Luggage hooks P.5-179
Luggage hooks P.5-179
Hook
Luggage hooks P.5-179
Jack P. 8-5
Tools P.8-5
BK0229600US.bo
ok 5 ページ 2015年10月1日 木曜日 午後2時29分
Page 7 of 398
Outside
Overview 1-6
1
N00100602610
Outside

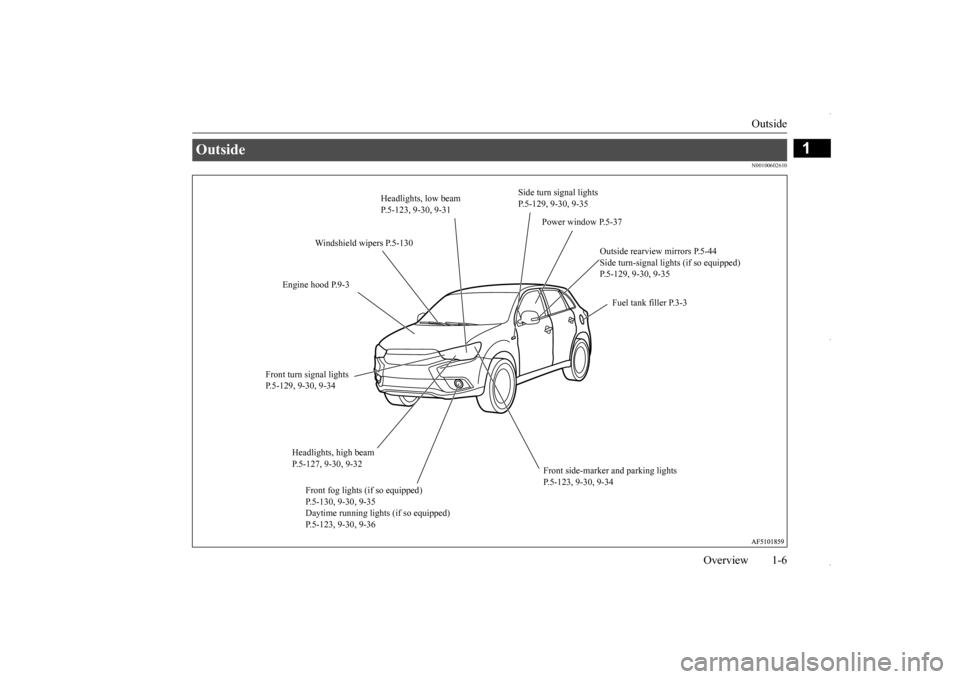

Power window P.5-37
Windshield wipers P.5-130
Engine hood P.9-3
Fuel tank filler P.3-3
Outside rearview mirrors P.5-44 Side turn-signal lights (if so equipped) P.5-129, 9-30, 9-35
Front turn signal lights P.5-129, 9-30, 9-34
Side turn signal lights P.5-129, 9-30, 9-35
Headlights, high beam P.5-127, 9-30, 9-32
Front side-marker and parking lights P.5-123, 9-30, 9-34
Front fog lights (if so equipped) P.5-130, 9-30, 9-35 Daytime running lights (if so equipped) P.5-123, 9-30, 9-36
Headlights, low beam P.5-123, 9-30, 9-31
BK0229600US.bo
ok 6 ページ 2015年10月1日 木曜日 午後2時29分
Page 8 of 398
Outside 1-7 Overview
1

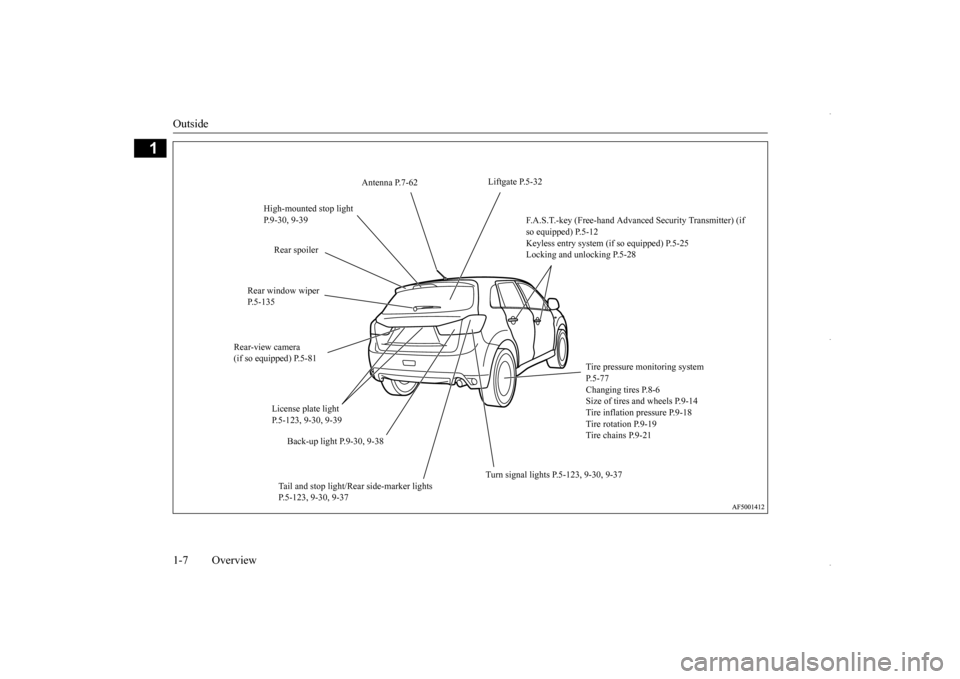

Liftgate P.5-32
Antenna P.7-62
High-mounted stop light P.9-30, 9-39
F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P.5-12 Keyless entry system (if so equipped) P.5-25Locking and unlocking P.5-28
Rear spoiler
Rear window wiper P.5-135
Rear-view camera (if so equipped) P.5-81
Tire pressure monitoring system P.5-77Changing tires P.8-6 Size of tires and wheels P.9-14 Tire inflation pressure P.9-18 Tire rotation P.9-19 Tire chains P.9-21
License plate light P.5-123, 9-30, 9-39
Back-up light P.9-30, 9-38
Turn signal lights P.5-123, 9-30, 9-37
Tail and stop light/Rear side-marker lights P.5-123, 9-30, 9-37
BK0229600US.bo
ok 7 ページ 2015年10月1日 木曜日 午後2時29分
Page 9 of 398
2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702175
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-informat
ion display, refer to “Multi-information display” on page 5-85.
These warning lights will come on for a few seconds for a bulb check
when the ignition switch is first turned to “ON” or the op
eration mode is put in ON.
Wa r n i n g l i g h t s
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine. Contact your Mitsubishi Motors dealer or
a repair facility of your choice for assis-
tance.
P. 5-121
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after releasing the parking brake, immediately stop and check the brake fluid level. If the brake fluid level is correct, there may be a system malfunction. Avoid hard braking and high speed, and contact an aut
horized Mitsubishi Mo
tors dealer or a
repair facility of your choice for assistance.
P. 5-120
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the engine system checked at an authorized Mits
ubishi Motors dealer or a repair facility
of your choice as soon as possible. If the
vehicle is not drivable, contact emergency
roadside assistance at 1-888-648-7820 (for ve
hicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an auth
orized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5-120
BK0229600US.bo
ok 1 ページ 2015年10月1日 木曜日 午後2時29分
Page 10 of 398
If this warning light comes on or
flashes while you’re driving...
2-2 Quick index
2
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and only the ordinary braking system is functioning. Park your vehicle in a safe place and stop the engine. Test the system as described on page 5-67. If the light does not go out after the test, or if it comes on again, we recommend that you have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-67
SRS warning light
Immediately have the airbag and the pre-te
nsioner seat belt system checked at an
authorized Mitsubishi Motors dealer.
P. 4-32
Tire pressure monitoring system warn-
ing light
If the warning light comes on, you should stop and adjust the tires to the proper inflation pressure as soon as possible. (See “Tire inflation pressures” on page 9-18.)Once adjustments have been made, the warnin
g light will go off after a few minutes
of driving. If the warning light blinks for approxim
ately 1 minute and then remains continu-
ously illuminated, the system is not operatin
g properly. If the system returns to nor-
mal, the warning light will go off. If the warning light does not go off, have the vehicle inspected at an authori
zed Mitsubishi Motors dealer.
P. 5-77
Warning lights
Do this
Ref. Page
BK0229600US.bo
ok 2 ページ 2015年10月1日 木曜日 午後2時29分
