Door locks 5-28 Features and controls
5
N00562100066
1. Before replacing the battery, remove static electricity from your body by touching a metal grounded object. 2. With the Mitsubishi mark facing you,insert the cloth-cov-ered tip of a flat blade screwdriver into the notch in the case and use it to open the case.
3. Remove the old battery. 4. Install a new battery with the + side (A) up. 5. Close the case firmly. 6. Check the keyless entry system to see that it works.
N00509200488
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.

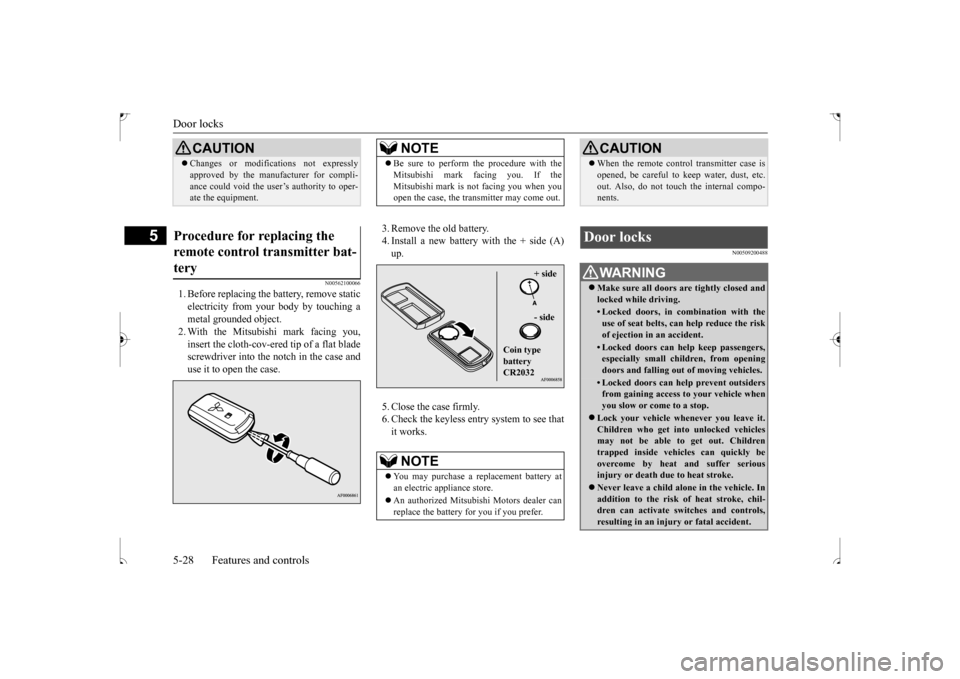

Procedure for replacing the remote control transmitter bat-tery
NOTE
Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubishi mark is not facing you when you open the case, the transmitter may come out.NOTE
You may purchase a replacement battery at an electric appliance store. An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.
+ side - side
Coin type battery CR2032
CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo- nents.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in combination with theuse of seat belts, can help reduce the risk of ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.• Locked doors can help prevent outsidersfrom gaining access to your vehicle whenyou slow or come to a stop.
Lock your vehicle whenever you leave it. Children who get into unlocked vehicles may not be able to get out. Children trapped inside vehicles can quickly be overcome by heat and suffer serious injury or death due to heat stroke. Never leave a child alone in the vehicle. In addition to the risk of heat stroke, chil-dren can activate switches and controls, resulting in an injury or fatal accident.
BK0239500US.bo
ok 28 ページ 2016年5月13日 金曜日 午前8時53分
Page 92 of 399

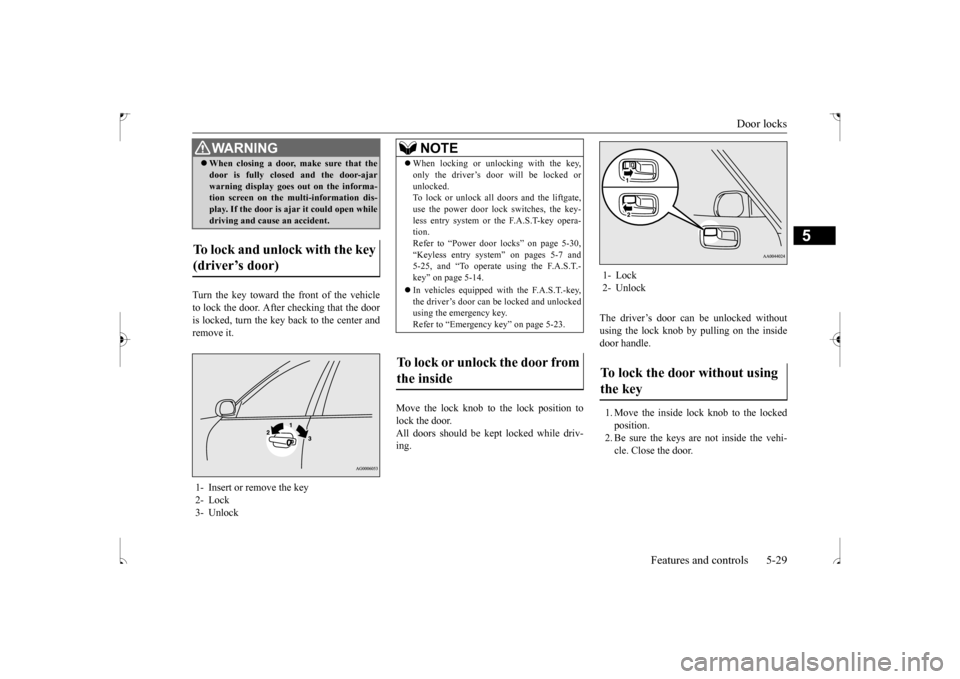

Door locks
Features and controls 5-29
5
Turn the key toward the front of the vehicle to lock the door. After checking that the dooris locked, turn the key back to the center and remove it.
Move the lock knob to the lock position to lock the door.All doors should be kept locked while driv- ing.
The driver’s door can be unlocked without using the lock knob by pulling on the insidedoor handle. 1. Move the inside lock knob to the locked position.2. Be sure the keys are not inside the vehi- cle. Close the door.
When closing a door, make sure that the door is fully closed and the door-ajar warning display goes out on the informa- tion screen on the multi-information dis- play. If the door is ajar it could open whiledriving and cause an accident.
To lock and unlock with the key (driver’s door) 1- Insert or remove the key 2- Lock 3- Unlock
WA R N I N G
NOTE
When locking or unlocking with the key, only the driver’s door will be locked or unlocked. To lock or unlock all doors and the liftgate, use the power door lock switches, the key-less entry system or the F.A.S.T-key opera- tion. Refer to “Power door locks” on page 5-30,“Keyless entry system” on pages 5-7 and 5-25, and “To operate using the F.A.S.T.- key” on page 5-14. In vehicles equipped with the F.A.S.T.-key, the driver’s door can be locked and unlockedusing the emergency key. Refer to “Emergency key” on page 5-23.
To lock or unlock the door from the inside
1- Lock 2- UnlockTo lock the door without using the key
BK0239500US.bo
ok 29 ページ 2016年5月13日 金曜日 午前8時53分
Page 93 of 399

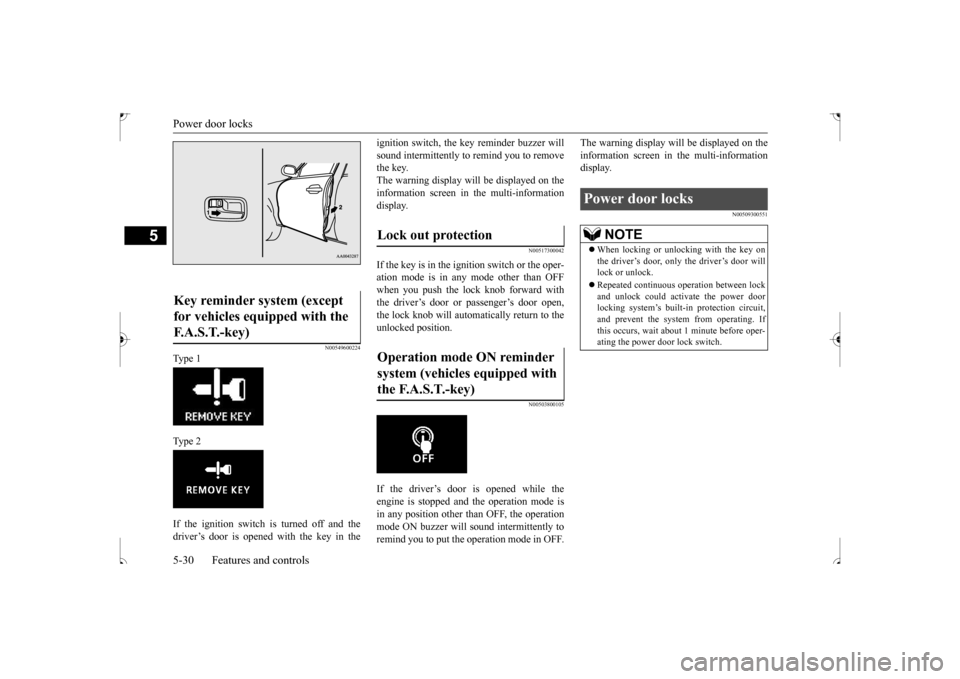

Power door locks 5-30 Features and controls
5
N00549600224
Ty p e 1 Ty p e 2 If the ignition switch is turned off and the driver’s door is opened with the key in the
ignition switch, the key reminder buzzer will sound intermittently to remind you to remove the key. The warning display will be displayed on theinformation screen in the multi-information display.
N00517300042
If the key is in the ignition switch or the oper- ation mode is in any mode other than OFF when you push the lock knob forward with the driver’s door or passenger’s door open,the lock knob will automatically return to the unlocked position.
N00503800105
If the driver’s door is opened while the engine is stopped and the operation mode is in any position other than OFF, the operation mode ON buzzer will sound intermittently toremind you to put the operation mode in OFF.
The warning display will be displayed on the information screen in the multi-information display.
N00509300551
Key reminder system (except for vehicles equipped with the F. A . S . T. - k e y )
Lock out protection Operation mode ON reminder system (vehicles equipped with the F.A.S.T.-key)
Power door locks
NOTE
When locking or unlocking with the key on the driver’s door, only the driver’s door will lock or unlock. Repeated continuous operation between lock and unlock could activate the power doorlocking system’s built
-in protection circuit,
and prevent the system from operating. If this occurs, wait about 1 minute before oper-ating the power door lock switch.
BK0239500US.bo
ok 30 ページ 2016年5月13日 金曜日 午前8時53分
Page 94 of 399

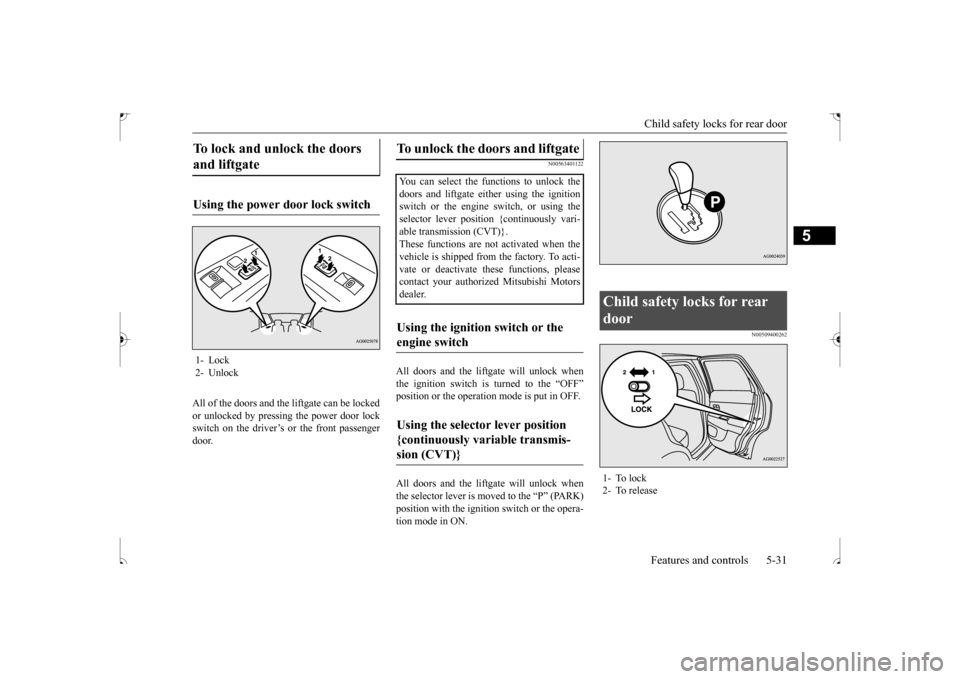

Child safety locks for rear door Features and controls 5-31
5
All of the doors and the
liftgate can be locked
or unlocked by pressing the power door lock switch on the driver’s or the front passenger door.
N00563401122
All doors and the liftgate will unlock when the ignition switch is
turned to the “OFF”
position or the operation mode is put in OFF. All doors and the liftgate will unlock when the selector lever is moved to the “P” (PARK) position with the ignition switch or the opera- tion mode in ON.
N00509400262
To lock and unlock the doors and liftgate Using the power door lock switch 1- Lock 2- Unlock
To unlock the doors and liftgate You can select the functions to unlock thedoors and liftgate either using the ignition switch or the engine switch, or using the selector lever position {continuously vari-able transmission (CVT)}. These functions are not activated when the vehicle is shipped from the factory. To acti-vate or deactivate these functions, please contact your authorized Mitsubishi Motors dealer.Using the ignition switch or the engine switch Using the selector lever position {continuously variable transmis- sion (CVT)}
Child safety locks for rear door 1- To lock 2- To release
BK0239500US.bo
ok 31 ページ 2016年5月13日 金曜日 午前8時53分
Page 95 of 399

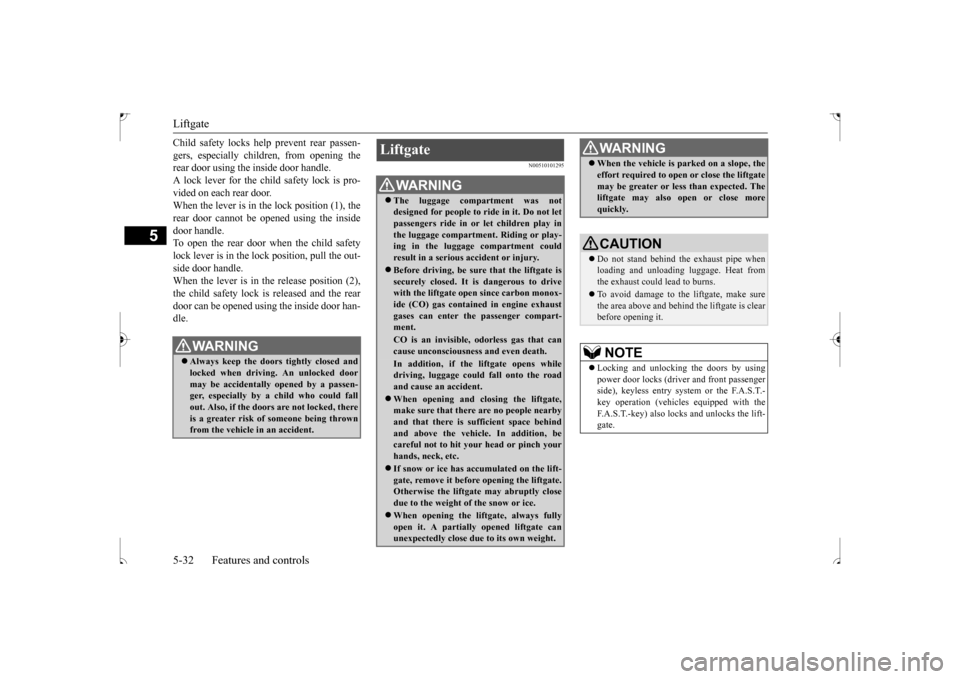

Liftgate 5-32 Features and controls
5
Child safety locks help prevent rear passen- gers, especially children, from opening the rear door using the inside door handle. A lock lever for the child safety lock is pro-vided on each rear door. When the lever is in the lock position (1), the rear door cannot be opened using the insidedoor handle. To open the rear door when the child safety lock lever is in the lock position, pull the out-side door handle.When the lever is in the release position (2), the child safety lock is released and the rear door can be opened using the inside door han-dle.
N00510101295
WA R N I N G Always keep the doors tightly closed and locked when driving. An unlocked door may be accidentally opened by a passen- ger, especially by a child who could fallout. Also, if the doors are not locked, there is a greater risk of someone being thrown from the vehicle in an accident.
Liftgate
WA R N I N G The luggage compartment was not designed for people to ride in it. Do not let passengers ride in or let children play in the luggage compartment. Riding or play-ing in the luggage compartment could result in a serious accident or injury. Before driving, be sure that the liftgate is securely closed. It is dangerous to drive with the liftgate open
since carbon monox-
ide (CO) gas contained in engine exhaust gases can enter the passenger compart- ment.CO is an invisible, odorless gas that cancause unconsciousness and even death.In addition, if the liftgate opens whiledriving, luggage could fall onto the roadand cause an accident. When opening and closing the liftgate, make sure that there are no people nearby and that there is sufficient space behind and above the vehicle. In addition, becareful not to hit your head or pinch your hands, neck, etc. If snow or ice has accumulated on the lift- gate, remove it before opening the liftgate. Otherwise the liftgate may abruptly close due to the weight of the snow or ice. When opening the liftgate, always fully open it. A partially opened liftgate can unexpectedly close due to its own weight.
When the vehicle is parked on a slope, the effort required to open or close the liftgate may be greater or less than expected. The liftgate may also open or close more quickly.CAUTION Do not stand behind the exhaust pipe when loading and unloading luggage. Heat from the exhaust could lead to burns. To avoid damage to the liftgate, make sure the area above and behind the liftgate is clear before opening it.NOTE
Locking and unlocking the doors by using power door locks (driver and front passenger side), keyless entry system or the F.A.S.T.-key operation (vehicles equipped with the F.A.S.T.-key) also locks and unlocks the lift- gate.WA R N I N G
BK0239500US.bo
ok 32 ページ 2016年5月13日 金曜日 午前8時53分
Page 96 of 399

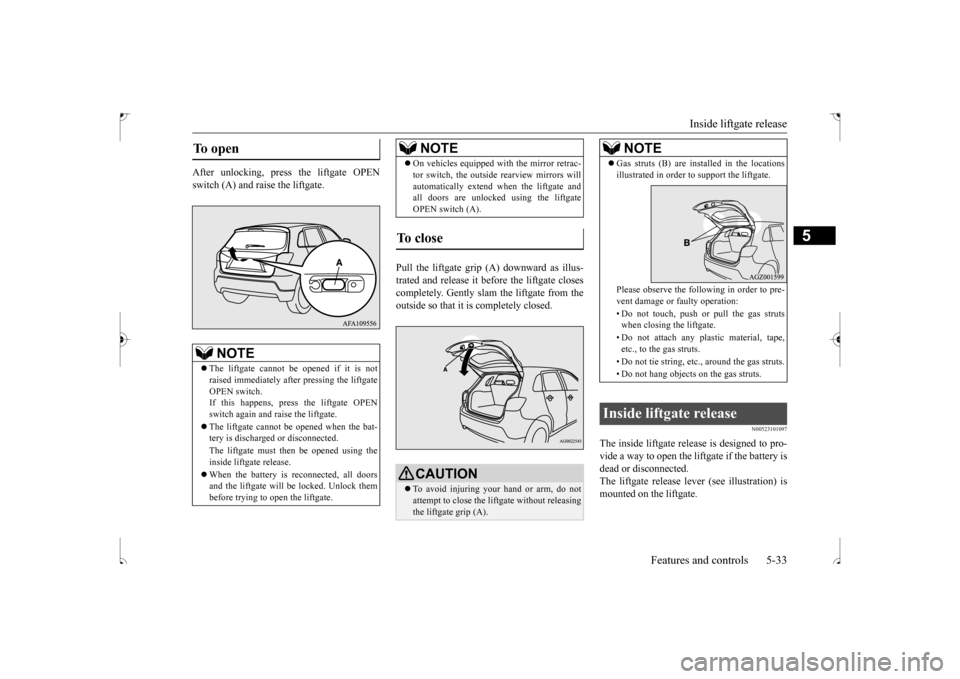

Inside liftgate release
Features and controls 5-33
5
After unlocking, press the liftgate OPEN switch (A) and raise the liftgate.
Pull the liftgate grip
(A) downward as illus-
trated and release it before the liftgate closescompletely. Gently slam the liftgate from the outside so that it is completely closed.
N00523101097
The inside liftgate release is designed to pro- vide a way to open the liftgate if the battery isdead or disconnected. The liftgate release lever (see illustration) is mounted on the liftgate.
To open
NOTE
The liftgate cannot be opened if it is not raised immediately after pressing the liftgateOPEN switch. If this happens, press the liftgate OPEN switch again and raise the liftgate. The liftgate cannot be opened when the bat- tery is discharged or disconnected. The liftgate must then be opened using the inside liftgate release. When the battery is reconnected, all doors and the liftgate will be locked. Unlock thembefore trying to open the liftgate.
On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically extend when the liftgate and all doors are unlocked using the liftgate OPEN switch (A).
To close
CAUTION To avoid injuring your hand or arm, do not attempt to close the liftgate without releasing the liftgate grip (A).NOTE
NOTE
Gas struts (B) are installed in the locations illustrated in order to support the liftgate. Please observe the following in order to pre- vent damage or faulty operation: • Do not touch, push or pull the gas struts when closing the liftgate. • Do not attach any plastic material, tape, etc., to the gas struts. • Do not tie string, etc., around the gas struts. • Do not hang objects on the gas struts.
Inside liftgate release
BK0239500US.bo
ok 33 ページ 2016年5月13日 金曜日 午前8時53分
Page 97 of 399

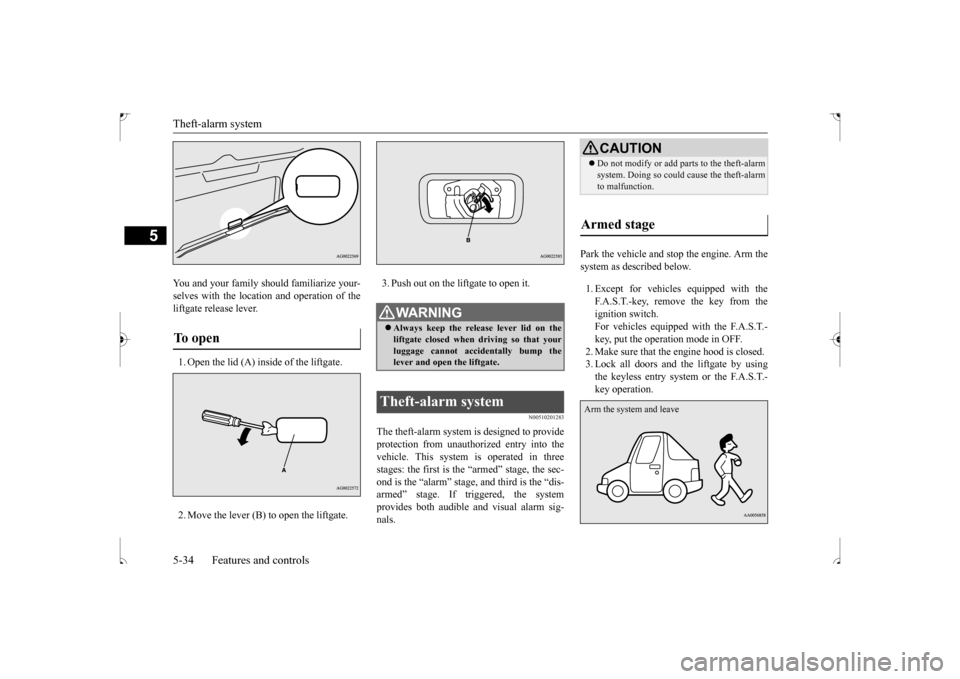

Theft-alarm system 5-34 Features and controls
5
You and your family should familiarize your- selves with the location and operation of the liftgate release lever. 1. Open the lid (A) inside of the liftgate. 2. Move the lever (B) to open the liftgate.
3. Push out on the liftgate to open it.
N00510201283
The theft-alarm system is designed to provide protection from unauthorized entry into thevehicle. This system is operated in three stages: the first is the “armed” stage, the sec- ond is the “alarm” stage, and third is the “dis-armed” stage. If triggered, the system provides both audible and visual alarm sig- nals.
Park the vehicle and stop the engine. Arm the system as described below. 1. Except for vehicles equipped with the F.A.S.T.-key, remove the key from the ignition switch. For vehicles equipped with the F.A.S.T.-key, put the operation mode in OFF. 2. Make sure that the engine hood is closed. 3. Lock all doors and the liftgate by usingthe keyless entry system or the F.A.S.T.- key operation.
To open
WA R N I N G Always keep the release lever lid on the liftgate closed when driving so that your luggage cannot accidentally bump thelever and open the liftgate.
Theft-alarm system
CAUTION Do not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.
Armed stage Arm the system and leave
BK0239500US.bo
ok 34 ページ 2016年5月13日 金曜日 午前8時53分
Page 98 of 399

Theft-alarm system
Features and controls 5-35
5
At this time, the theft-alarm indicator (A) on the audio panel flashes for confirma- tion. 4. The system has entered the armed stage after about 20 seconds, when the theft- alarm indicator (A) flashing becomesslower. The theft-alarm indicator (A) continues to flash while the system is in the armedstage.
The alarm will be activated if any of the fol- lowing occur while the vehicle is parked and the system is armed. One of the doors and the liftgate is opened without using the keyless entry system orthe F.A.S.T.-key operation. The engine hood is opened.
When the alarm is activated: 1. The headlights blink on and off for 3 min- utes.After 3 minutes the headlights automati- cally shut off. 2. The horn will sound intermittently for 3minutes.
NOTE
If the engine hood is open, the theft-alarm indicator (A) illuminates and the system can-not enter the armed stage. The system enters the armed stage about 20 seconds after the engine hood is closed. The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, alldoors and the liftgate are unlocked by using the keyless entry system or the F.A.S.T.-key operation.
The system will be disarmed if, while the theft-alarm indicator is illuminated, the fol- lowing operation is performed. • Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position. • For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.
The system will not be armed if a door, the liftgate or the engine hood is not completely closed. If this happens, rearm the system asdescribed above. The theft-alarm system can be activated when people are riding inside the vehicle or when the windows are open. To prevent acci- dental activation of the alarm, do not set thesystem to the system armed mode while peo- ple are riding in the vehicle.
Alarm stage
NOTE
Type of alarm
NOTE
The alarm will continue to operate for 3 min- utes. At the end of that period, the alarm will automatically shut off to save battery power. The system will then
be rearmed until the
proper disarming step is taken. The alarm will resume if unauthorized actions are taken again, even if the alarm has stopped.
Horn sounds! Headlights blink on and off!
BK0239500US.bo
ok 35 ページ 2016年5月13日 金曜日 午前8時53分
Page 99 of 399

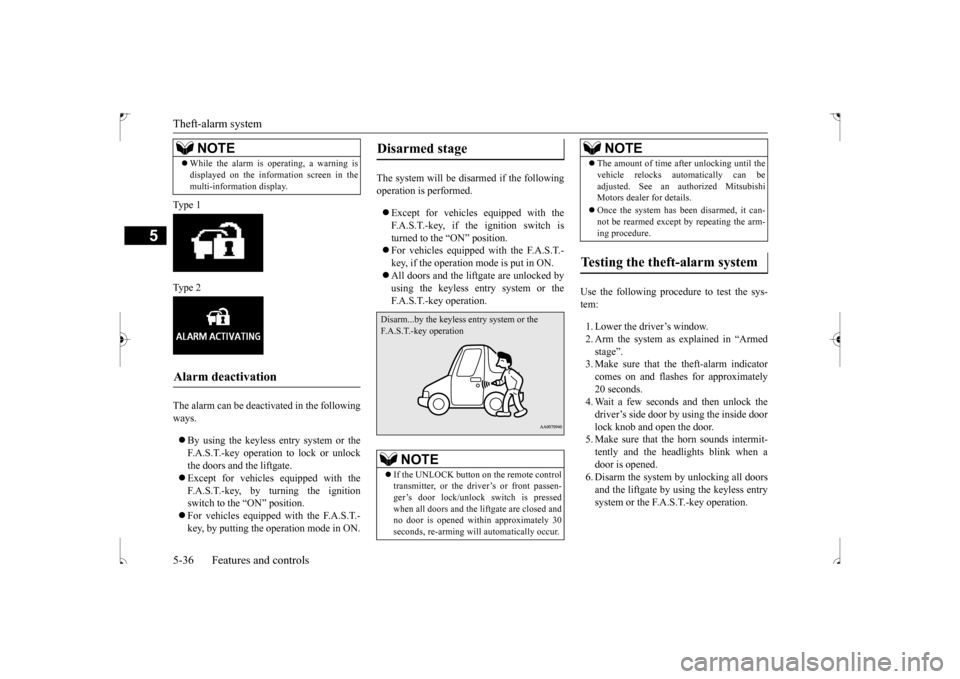

Theft-alarm system 5-36 Features and controls
5
Ty p e 1 Ty p e 2 The alarm can be deactivated in the following ways. By using the keyless entry system or the F.A.S.T.-key operation to lock or unlockthe doors and the liftgate. Except for vehicles equipped with the F.A.S.T.-key, by turning the ignitionswitch to the “ON” position. For vehicles equipped with the F.A.S.T.- key, by putting the operation mode in ON.
The system will be disarmed if the following operation is performed. Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position. For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON. All doors and the liftgate are unlocked by using the keyless entry system or the F.A.S.T.-key operation.
Use the following procedure to test the sys- tem: 1. Lower the driver’s window. 2. Arm the system as explained in “Armed stage”. 3. Make sure that the theft-alarm indicatorcomes on and flashes for approximately 20 seconds. 4. Wait a few seconds and then unlock thedriver’s side door by using the inside door lock knob and open the door. 5. Make sure that the horn sounds intermit-tently and the headlights blink when a door is opened. 6. Disarm the system by unlocking all doorsand the liftgate by using the keyless entry system or the F.A.S.T.-key operation.
While the alarm is operating, a warning is displayed on the information screen in the multi-information display.
Alarm deactivation
NOTE
Disarmed stage
NOTE
If the UNLOCK button on the remote control transmitter, or the driver’s or front passen-ger’s door lock/unlock switch is pressed when all doors and the liftgate are closed and no door is opened within approximately 30seconds, re-arming will automatically occur.
Disarm...by the keyless entry system or the F.A.S.T.-key operation
The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details. Once the system has been disarmed, it can- not be rearmed except by repeating the arm- ing procedure.
Testing the theft-alarm system
NOTE
BK0239500US.bo
ok 36 ページ 2016年5月13日 金曜日 午前8時53分
Page 100 of 399

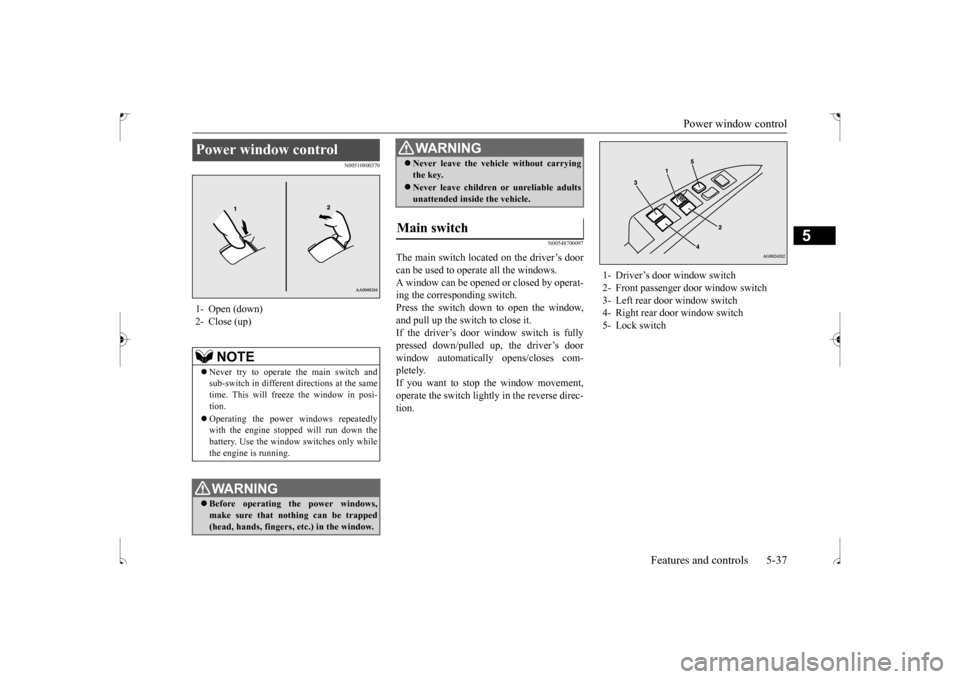

Power window control
Features and controls 5-37
5
N00510800370
N00548700097
The main switch located on the driver’s door can be used to operate all the windows.A window can be opened or closed by operat- ing the corresponding switch. Press the switch down to open the window,and pull up the switch to close it. If the driver’s door window switch is fully pressed down/pulled up, the driver’s doorwindow automatically opens/closes com- pletely. If you want to stop the window movement,operate the switch lightly in the reverse direc- tion.
Power window control 1- Open (down)2- Close (up)
NOTE
Never try to operate the main switch and sub-switch in different directions at the sametime. This will freeze the window in posi- tion. Operating the power windows repeatedly with the engine stopped will run down the battery. Use the window switches only whilethe engine is running.WA R N I N G Before operating the power windows, make sure that nothing can be trapped(head, hands, fingers, etc.) in the window.
Never leave the vehicle without carrying the key. Never leave children or unreliable adults unattended inside the vehicle.
Main switch
WA R N I N G
1- Driver’s door window switch 2- Front passenger door window switch3- Left rear door window switch 4- Right rear door window switch 5- Lock switch
BK0239500US.bo
