MITSUBISHI OUTLANDER XL 2010 Owners Manual

Introduction
N09200100556
Thank you for buying a MITSUBISHI OUTLANDER.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
OUTLANDER. The Owner’s Manual contains descriptions
and illustrations that will assist in the operation and mainte-
nance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all OUTLANDER mod-
els and explains all features including options. Some features
explained in this manual may not be installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WARNING and
CAUTION appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
As with other vehicles of this type, failure to operate this vehicle
correctly may result in loss of control or an accident. Be sure to
read “on-pavement” and “off-road” driving guidelines in the
“Driving safety” and “Features and controls” sections.
WA R N I N G
!

Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects and reproduc-
tive harm. In addition, certain fluids contained in vehicles
and certain products of component wear contain or emit
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2009 Mitsubishi Motors Corporation Printed in Japan
10GS45X(NAS)_Cover2.fm 1 ページ ２００９年６月１日　月曜日　午前９時１０分

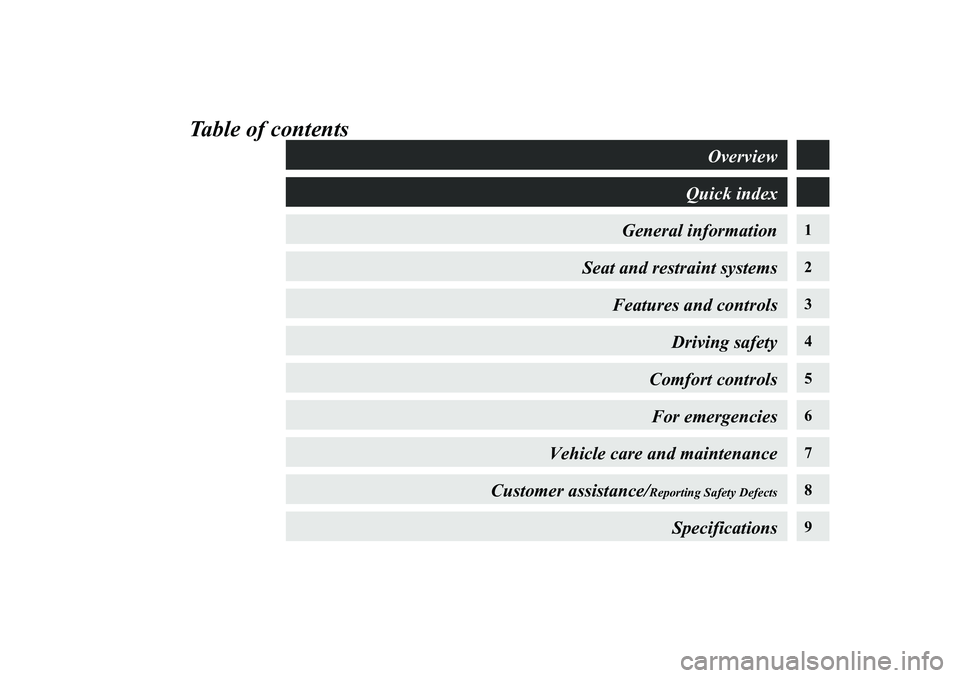

Table of contents
1
2
3
4
5
6
7
8
9
Overview
Quick index
General information
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/
Reporting Safety Defects
Specifications
BK0115300US.book 1 ページ ２００９年７月１６日　木曜日　午前９時１３分

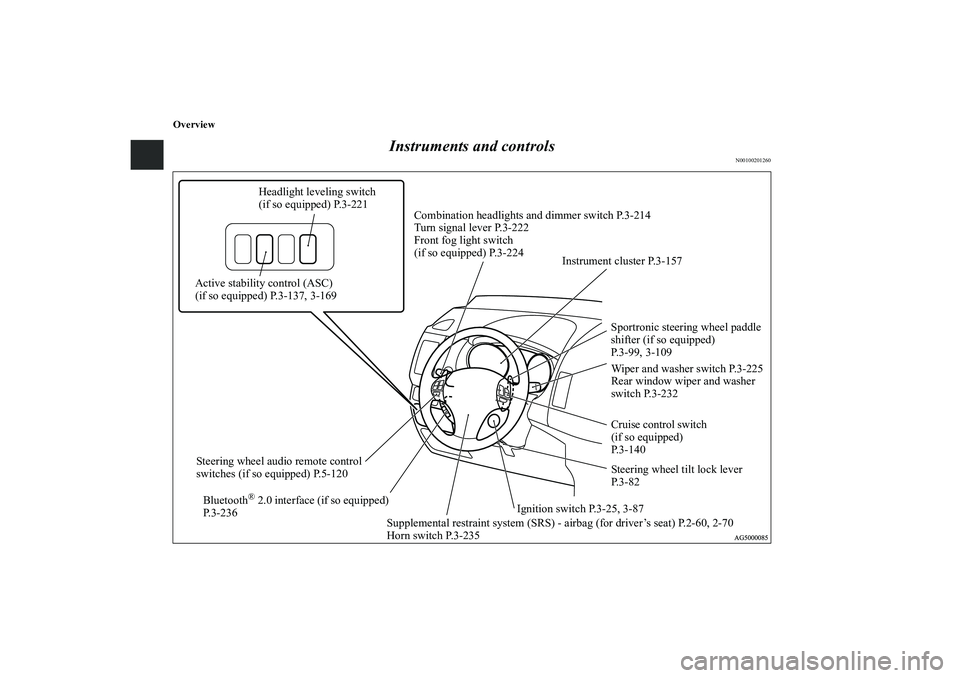

Overview
Instruments and controls
N00100201260
Cruise control switch
(if so equipped)
P. 3 - 1 4 0 Active stability control (ASC)
(if so equipped) P.3-137, 3-169
Ignition switch P.3-25, 3-87Steering wheel tilt lock lever
P. 3 - 8 2 Wiper and washer switch P.3-225
Rear window wiper and washer
switch P.3-232 Instrument cluster P.3-157
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.2-60, 2-70
Horn switch P.3-235Combination headlights and dimmer switch P.3-214
Turn signal lever P.3-222
Front fog light switch
(if so equipped) P.3-224
Sportronic steering wheel paddle
shifter (if so equipped)
P.3-99, 3-109
Steering wheel audio remote control
switches (if so equipped) P.5-120
Bluetooth
® 2.0 interface (if so equipped)
P. 3 - 2 3 6Headlight leveling switch
(if so equipped) P.3-221
BK0115300US.book 1 ページ ２００９年１１月３０日　月曜日　午後２時１分

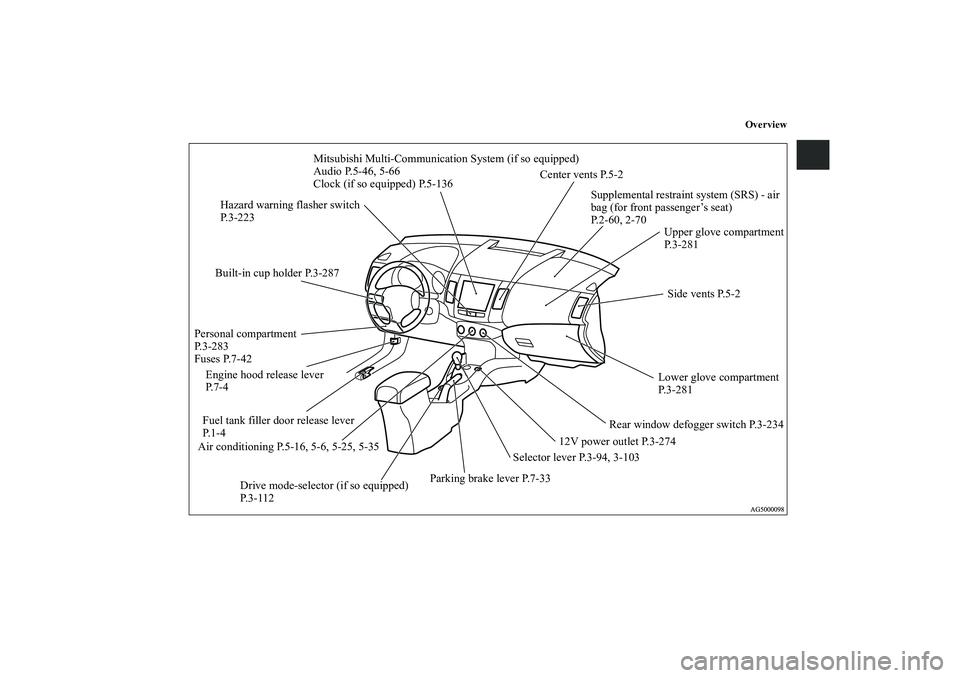

Overview
Supplemental restraint system (SRS) - air
bag (for front passenger’s seat)
P.2-60, 2-70 Center vents P.5-2
Upper glove compartment
P.3-281
Selector lever P.3-94, 3-10312V power outlet P.3-274Lower glove compartment
P. 3 - 2 8 1
Fuel tank filler door release lever
P. 1 - 4Rear window defogger switch P.3-234Side vents P.5-2
Drive mode-selector (if so equipped)
P. 3 - 1 1 2 Personal compartment
P.3-283
Fuses P.7-42
Engine hood release lever
P. 7 - 4Hazard warning flasher switch
P.3-223
Built-in cup holder P.3-287
Parking brake lever P.7-33 Mitsubishi Multi-Communication System (if so equipped)
Audio P.5-46, 5-66
Clock (if so equipped) P.5-136
Air conditioning P.5-16, 5-6, 5-25, 5-35
BK0115300US.book 2 ページ ２００９年７月１６日　木曜日　午前９時１３分

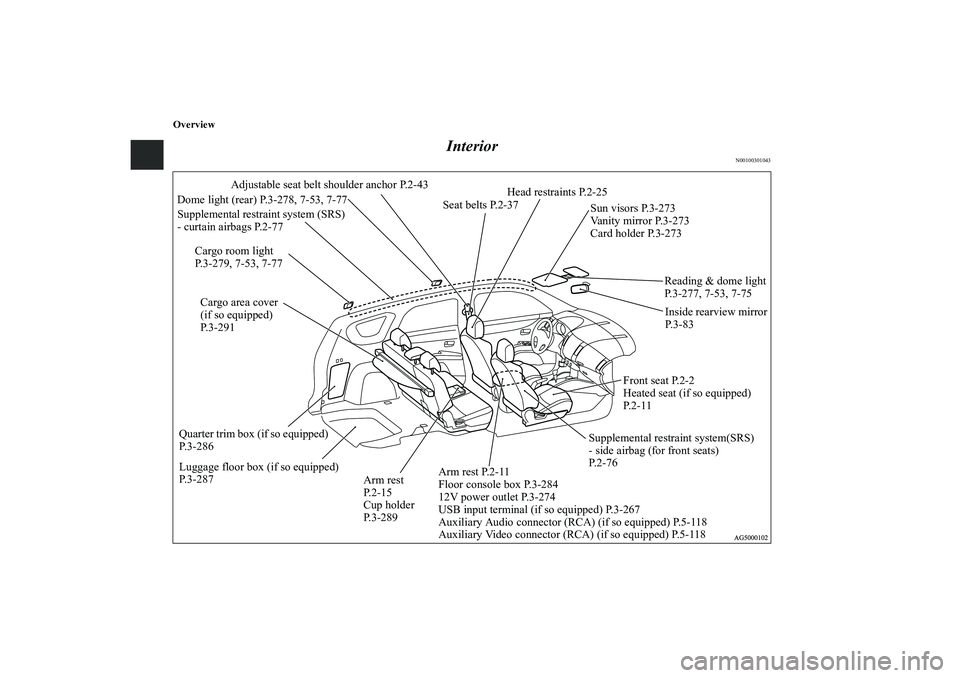

Overview
Interior
N00100301043
Adjustable seat belt shoulder anchor P.2-43
Reading & dome light
P.3-277, 7-53, 7-75 Supplemental restraint system (SRS)
- curtain airbags P.2-77Seat belts P.2-37Head restraints P.2-25
Sun visors P.3-273
Vanity mirror P.3-273
Card holder P.3-273
Quarter trim box (if so equipped)
P.3-286
Arm rest
P.2-15
Cup holder
P.3-289Inside rearview mirror
P.3-83
Arm rest P.2-11
Floor console box P.3-284
12V power outlet P.3-274
USB input terminal (if so equipped) P.3-267
Auxiliary Audio connector (RCA) (if so equipped) P.5-118
Auxiliary Video connector (RCA) (if so equipped) P.5-118Front seat P.2-2
Heated seat (if so equipped)
P. 2 - 1 1 Cargo room light
P.3-279, 7-53, 7-77 Dome light (rear) P.3-278, 7-53, 7-77
Luggage floor box (if so equipped)
P.3-287Cargo area cover
(if so equipped)
P.3-291
Supplemental restraint system(SRS)
- side airbag (for front seats)
P.2-76
BK0115300US.book 3 ページ ２００９年７月１６日　木曜日　午前９時１３分

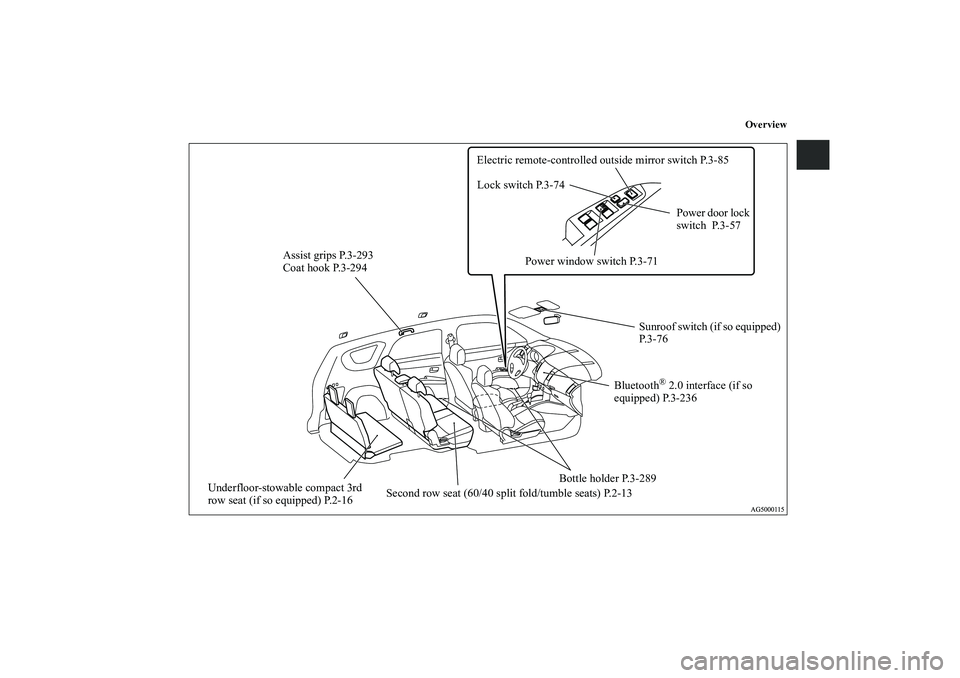

Overview
Assist grips P.3-293
Coat hook P.3-294
Underfloor-stowable compact 3rd
row seat (if so equipped) P.2-16Second row seat (60/40 split fold/tumble seats) P.2-13Bottle holder P.3-289Bluetooth
® 2.0 interface (if so
equipped) P.3-236Sunroof switch (if so equipped)
P. 3 - 7 6 Power window switch P.3-71 Lock switch P.3-74 Electric remote-controlled outside mirror switch P.3-85
Power door lock
switch P.3-57
BK0115300US.book 4 ページ ２００９年７月１６日　木曜日　午前９時１３分

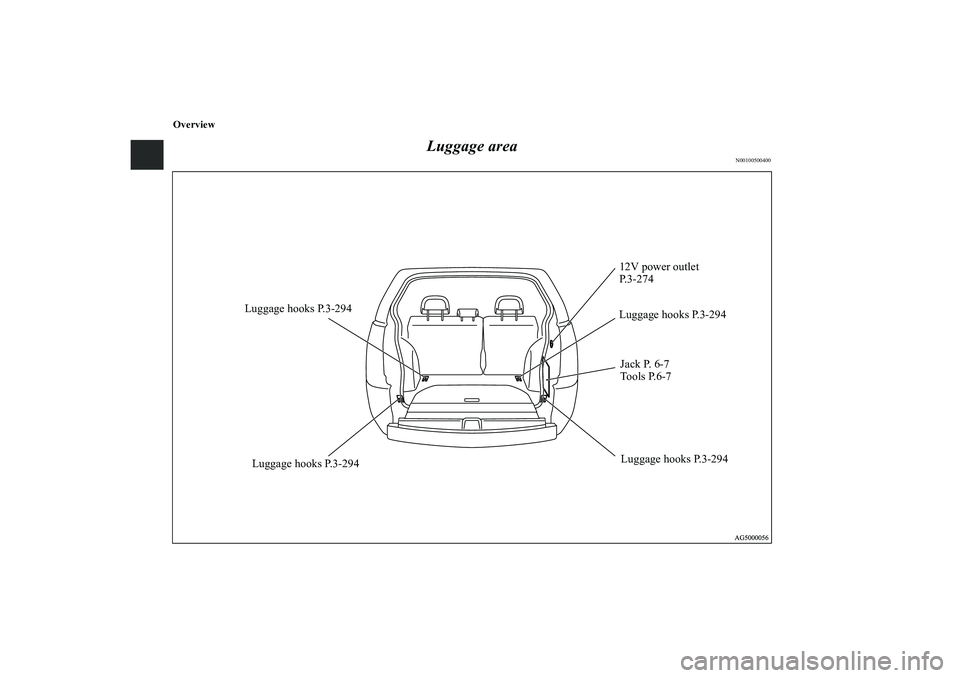

Overview
Luggage area
N00100500400
Luggage hooks P.3-294
Jack P. 6-7
Tools P.6-7
Luggage hooks P.3-294Luggage hooks P.3-294 Luggage hooks P.3-29412V power outlet
P. 3 - 2 7 4
BK0115300US.book 5 ページ ２００９年７月１６日　木曜日　午前９時１３分

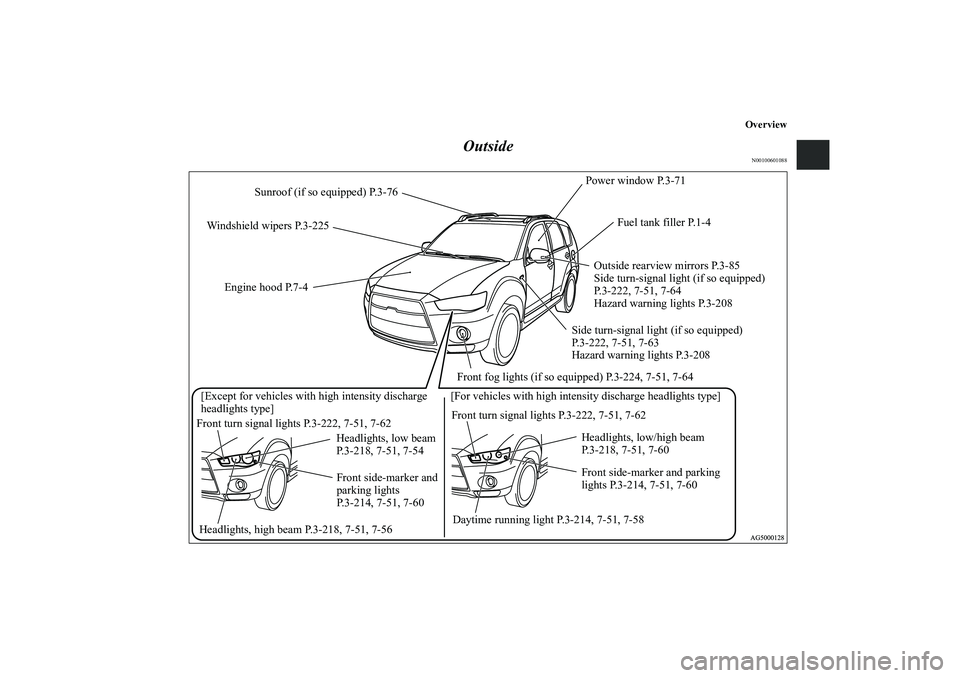

Overview
Outside
N00100601088
Power window P.3-71
Front turn signal lights P.3-222, 7-51, 7-62Engine hood P.7-4Fuel tank filler P.1-4
Outside rearview mirrors P.3-85
Side turn-signal light (if so equipped)
P.3-222, 7-51, 7-64
Hazard warning lights P.3-208 Sunroof (if so equipped) P.3-76
Windshield wipers P.3-225
Front fog lights (if so equipped) P.3-224, 7-51, 7-64Side turn-signal light (if so equipped)
P.3-222, 7-51, 7-63
Hazard warning lights P.3-208
Daytime running light P.3-214, 7-51, 7-58 Headlights, low beam
P.3-218, 7-51, 7-54Headlights, low/high beam
P.3-218, 7-51, 7-60
Headlights, high beam P.3-218, 7-51, 7-56Front side-marker and parking
lights P.3-214, 7-51, 7-60 Front side-marker and
parking lights
P.3-214, 7-51, 7-60Front turn signal lights P.3-222, 7-51, 7-62 [Except for vehicles with high intensity discharge
headlights type][For vehicles with high intensity discharge headlights type]
BK0115300US.book 6 ページ ２００９年７月１６日　木曜日　午前９時１３分

Overview
Size of tires and wheels P.7-23
Tire inflation pressure P.7-27
Changing tires P.6-10
Tire rotation P.7-30
Tire chains P.7-32
Tire pressure monitoring system
P.3-149 License plate light
P.3-208, 7-51, 7-73
Spare tire P.6-11F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-16
Locking and unlocking P.3-54
Keyless entry sysetm (if so equipped) P.3-47 High-mounted stop light
P.7-51, 7-75Antenna P.5-134
Rear window wiper
P. 3 - 2 3 2
Back-up light P.7-51, 7-69
Tail and stop light P.3-214, 7-51, 7-67Turn signal indicator/hazard warning lights P.3-208 Rear spoiler
Rear side-marker lights
P.3-214, 7-51, 7-71Flap-fold tailgate P.3-60
Rear-view camera
(if so equipped)
P.3-155
BK0115300US.book 7 ページ ２００９年７月１６日　木曜日　午前９時１３分

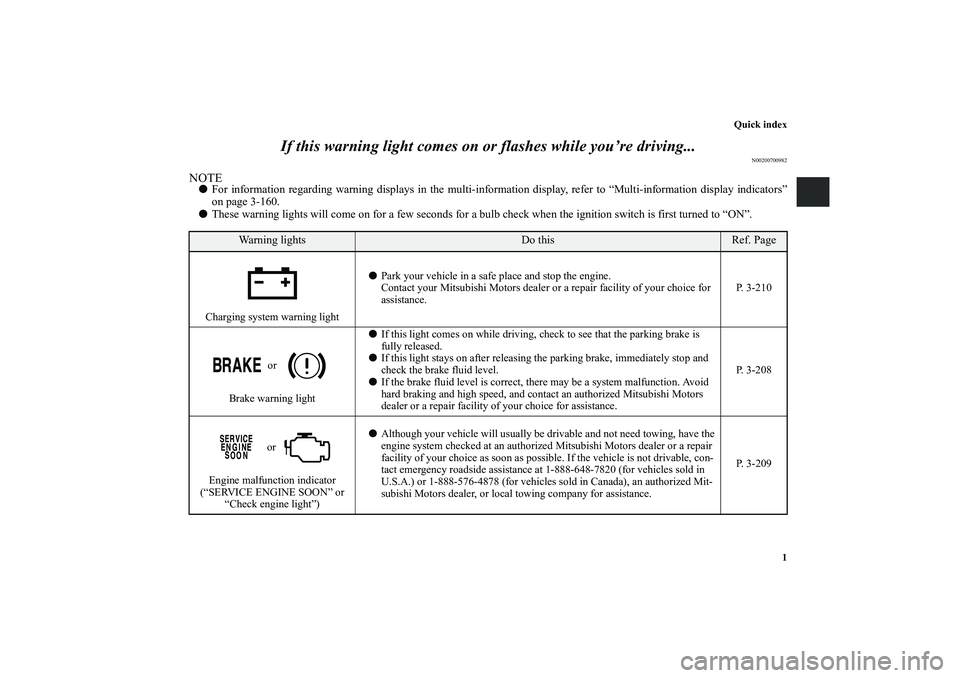

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200700982
NOTE

For information regarding warning displays in the multi-information display, refer to “Multi-information display indicators”
on page 3-160.


These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning lights
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3-210
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-208
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3-209
