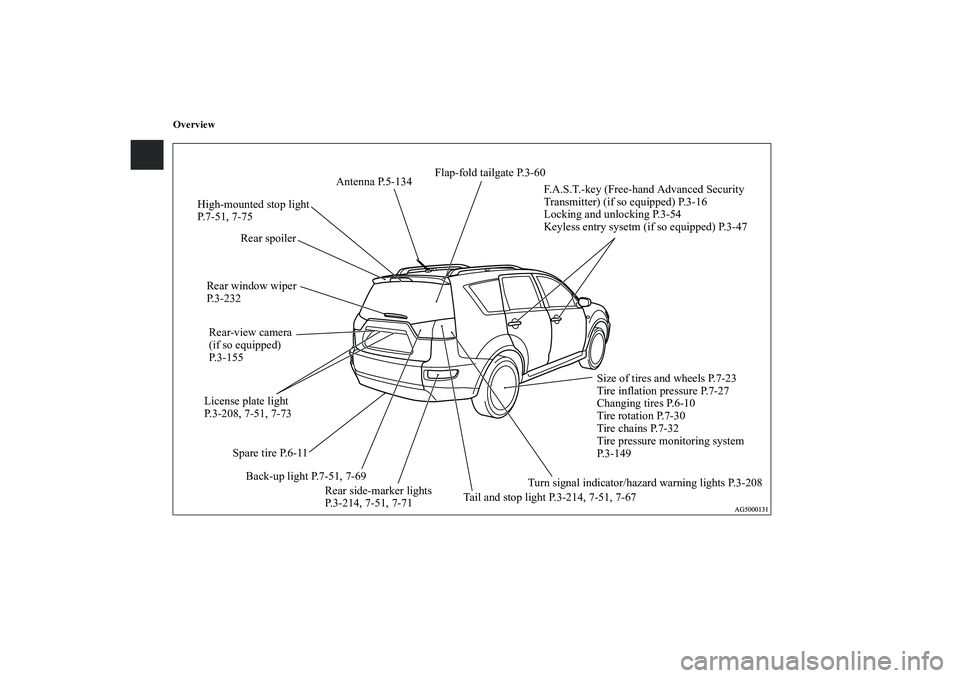

Overview
Size of tires and wheels P.7-23
Tire inflation pressure P.7-27
Changing tires P.6-10
Tire rotation P.7-30
Tire chains P.7-32
Tire pressure monitoring system
P.3-149 License plate light
P.3-208, 7-51, 7-73
Spare tire P.6-11F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-16
Locking and unlocking P.3-54
Keyless entry sysetm (if so equipped) P.3-47 High-mounted stop light
P.7-51, 7-75Antenna P.5-134
Rear window wiper
P. 3 - 2 3 2
Back-up light P.7-51, 7-69
Tail and stop light P.3-214, 7-51, 7-67Turn signal indicator/hazard warning lights P.3-208 Rear spoiler
Rear side-marker lights
P.3-214, 7-51, 7-71Flap-fold tailgate P.3-60
Rear-view camera
(if so equipped)
P.3-155
BK0115300US.book 7 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-125

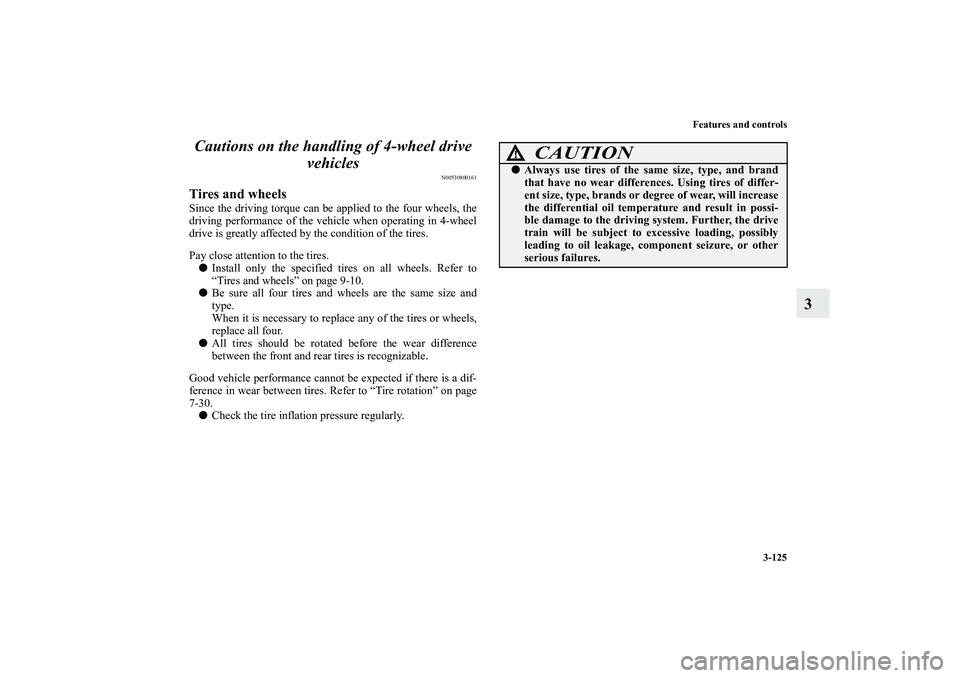

3 Cautions on the handling of 4-wheel drive
vehicles
N00530800161
Tires and wheelsSince the driving torque can be applied to the four wheels, the
driving performance of the vehicle when operating in 4-wheel
drive is greatly affected by the condition of the tires.
Pay close attention to the tires.

Install only the specified tires on all wheels. Refer to
“Tires and wheels” on page 9-10.


Be sure all four tires and wheels are the same size and
type.
When it is necessary to replace any of the tires or wheels,
replace all four.


All tires should be rotated before the wear difference
between the front and rear tires is recognizable.
Good vehicle performance cannot be expected if there is a dif-
ference in wear between tires. Refer to “Tire rotation” on page
7-30.


Check the tire inflation pressure regularly.
CAUTION
!

Always use tires of the same size, type, and brand
that have no wear differences. Using tires of differ-
ent size, type, brands or degree of wear, will increase
the differential oil temperature and result in possi-
ble damage to the driving system. Further, the drive
train will be subject to excessive loading, possibly
leading to oil leakage, component seizure, or other
serious failures.
BK0115300US.book 125 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-203
3

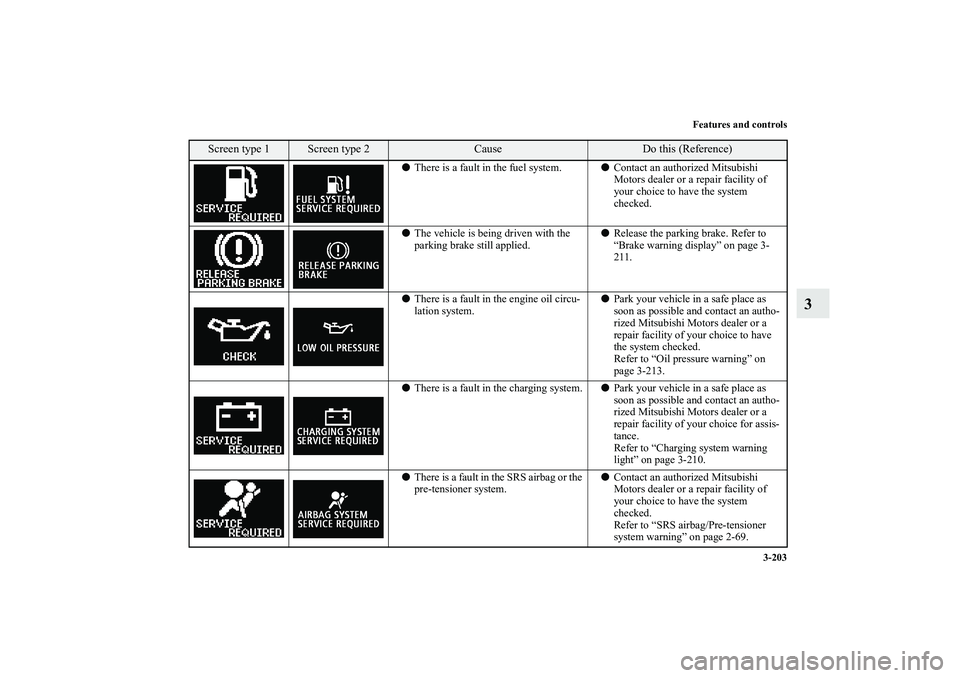

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
211.

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning” on
page 3-213.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
light” on page 3-210.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS airbag/Pre-tensioner
system warning” on page 2-69.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0115300US.book 203 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-213
3

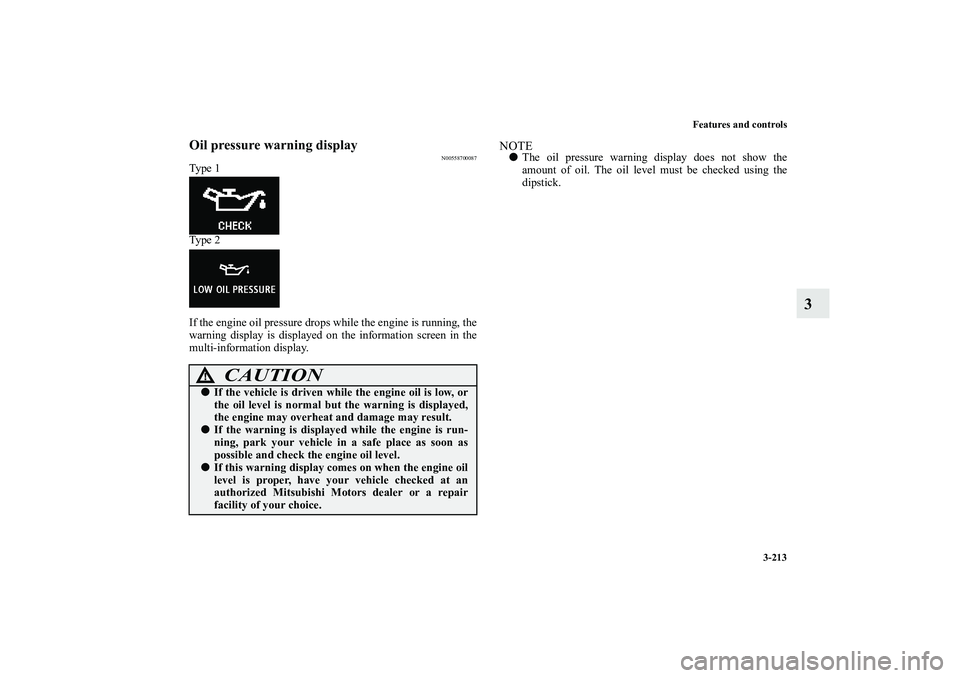

Oil pressure warning display
N00558700087
Ty p e 1
Ty p e 2
If the engine oil pressure drops while the engine is running, the
warning display is displayed on the information screen in the
multi-information display.
NOTE

The oil pressure warning display does not show the
amount of oil. The oil level must be checked using the
dipstick.
CAUTION
!

If the vehicle is driven while the engine oil is low, or
the oil level is normal but the warning is displayed,
the engine may overheat and damage may result.


If the warning is displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and check the engine oil level.


If this warning display comes on when the engine oil
level is proper, have your vehicle checked at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0115300US.book 213 ページ ２００９年７月１６日　木曜日　午前９時１３分

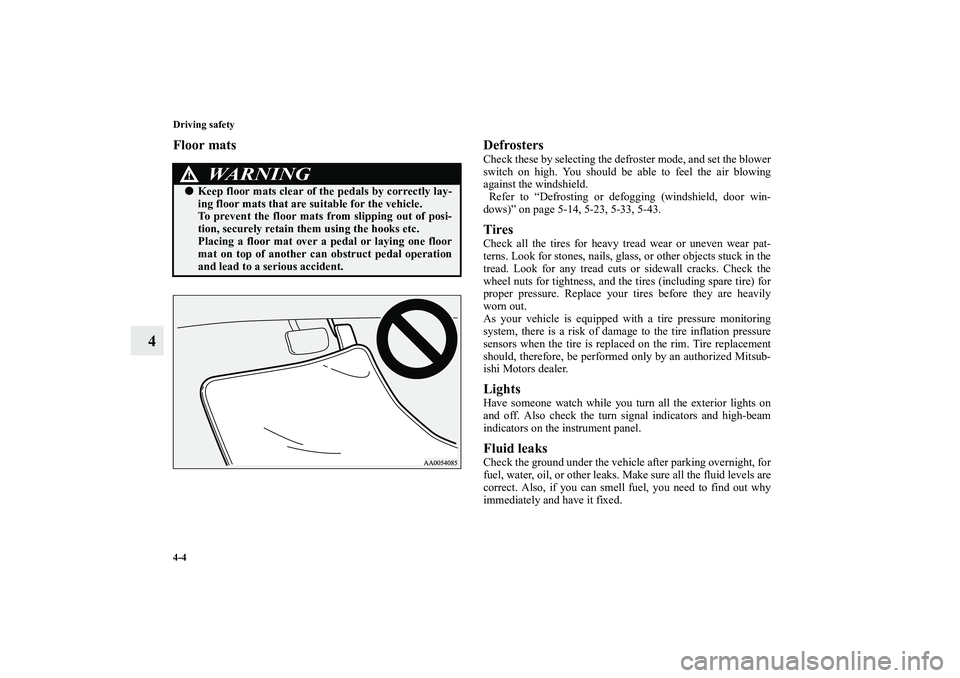

4-4 Driving safety
4
Floor mats Defrosters
Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
Refer to “Defrosting or defogging (windshield, door win-
dows)” on page 5-14, 5-23, 5-33, 5-43.TiresCheck all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressure. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized Mitsub-
ishi Motors dealer.LightsHave someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel.Fluid leaksCheck the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
WA R N I N G
!

Keep floor mats clear of the pedals by correctly lay-
ing floor mats that are suitable for the vehicle.
To prevent the floor mats from slipping out of posi-
tion, securely retain them using the hooks etc.
Placing a floor mat over a pedal or laying one floor
mat on top of another can obstruct pedal operation
and lead to a serious accident.
BK0115300US.book 4 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-9
7
NOTE

Engine oil consumption is greatly influenced by payload,
engine speed, etc.


The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.

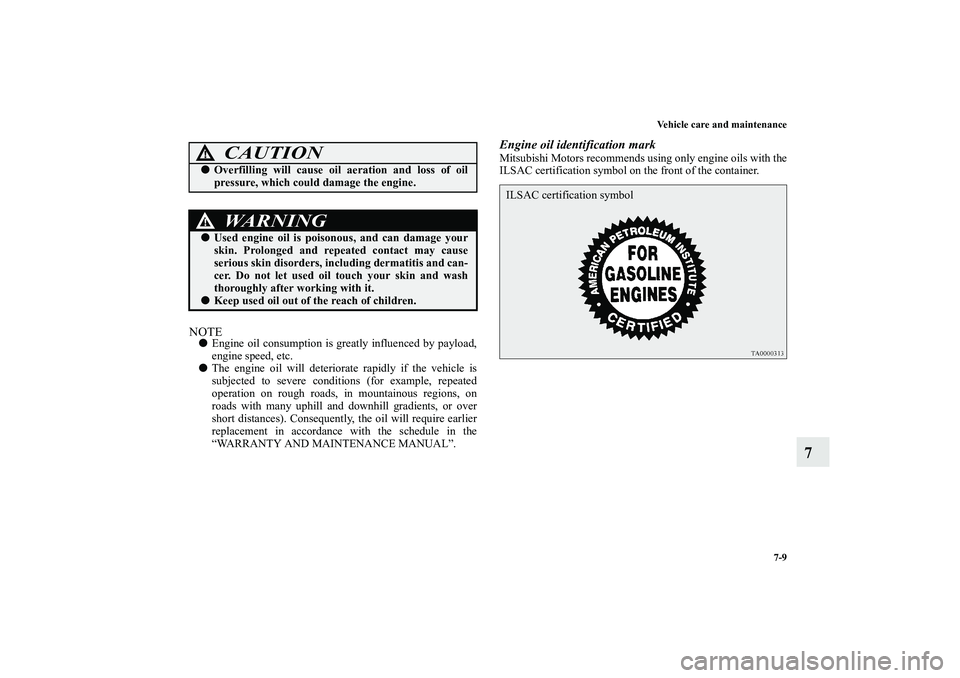

Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.
CAUTION
!

Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.WA R N I N G
!

Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.


Keep used oil out of the reach of children.
ILSAC certification symbol
BK0115300US.book 9 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-11
7

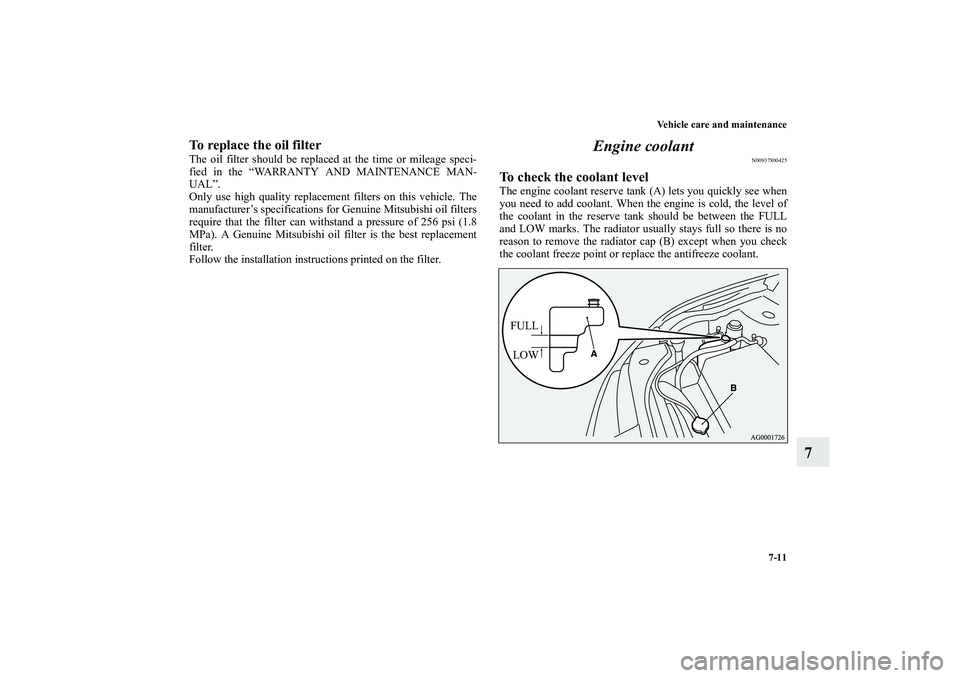

To replace the oil filterThe oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8
MPa). A Genuine Mitsubishi oil filter is the best replacement
filter.
Follow the installation instructions printed on the filter.
Engine coolant
N00937800425
To check the coolant levelThe engine coolant reserve tank (A) lets you quickly see when
you need to add coolant. When the engine is cold, the level of
the coolant in the reserve tank should be between the FULL
and LOW marks. The radiator usually stays full so there is no
reason to remove the radiator cap (B) except when you check
the coolant freeze point or replace the antifreeze coolant.FULL
LOW
BK0115300US.book 11 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-12 Vehicle care and maintenance
7

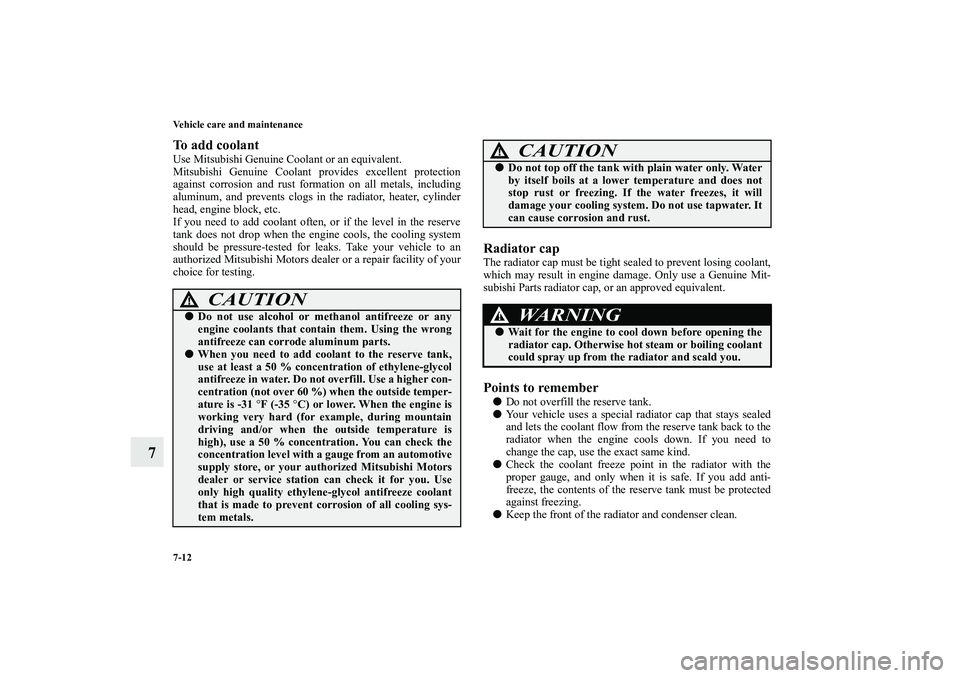

To add coolantUse Mitsubishi Genuine Coolant or an equivalent.
Mitsubishi Genuine Coolant provides excellent protection
against corrosion and rust formation on all metals, including
aluminum, and prevents clogs in the radiator, heater, cylinder
head, engine block, etc.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
Radiator capThe radiator cap must be tight sealed to prevent losing coolant,
which may result in engine damage. Only use a Genuine Mit-
subishi Parts radiator cap, or an approved equivalent.Points to remember

Do not overfill the reserve tank.


Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.


Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.


Keep the front of the radiator and condenser clean.
CAUTION
!

Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.


When you need to add coolant to the reserve tank,
use at least a 50 % concentration of ethylene-glycol
antifreeze in water. Do not overfill. Use a higher con-
centration (not over 60 %) when the outside temper-
ature is -31 °F (-35 °C) or lower. When the engine is
working very hard (for example, during mountain
driving and/or when the outside temperature is
high), use a 50 % concentration. You can check the
concentration level with a gauge from an automotive
supply store, or your authorized Mitsubishi Motors
dealer or service station can check it for you. Use
only high quality ethylene-glycol antifreeze coolant
that is made to prevent corrosion of all cooling sys-
tem metals.


Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.WA R N I N G
!

Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you.CAUTION
!
BK0115300US.book 12 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-28 Vehicle care and maintenance
7

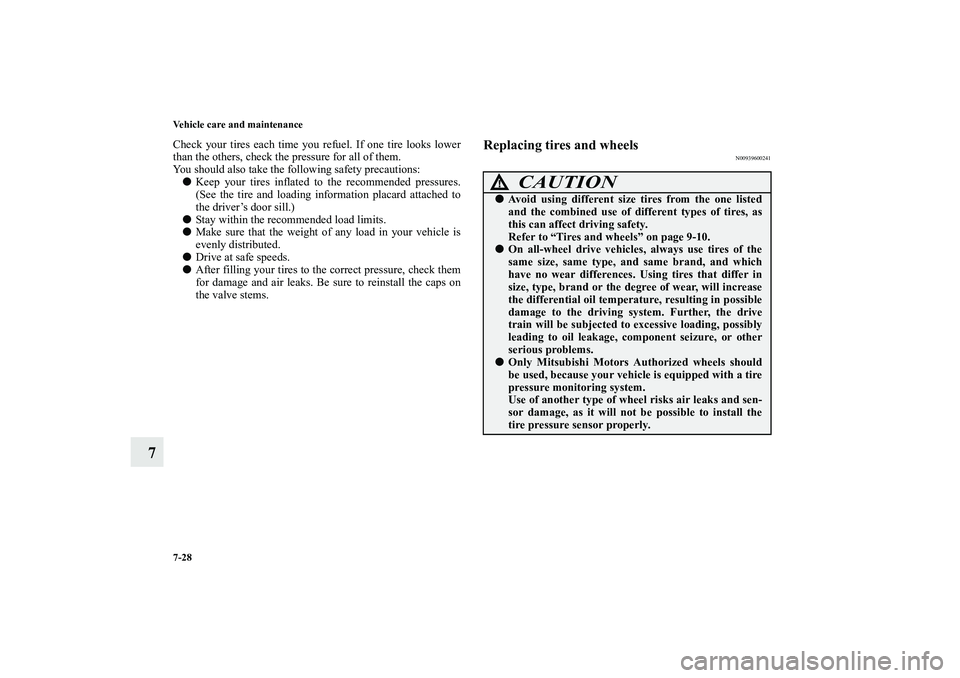

Check your tires each time you refuel. If one tire looks lower
than the others, check the pressure for all of them.
You should also take the following safety precautions:

Keep your tires inflated to the recommended pressures.
(See the tire and loading information placard attached to
the driver’s door sill.)


Stay within the recommended load limits.


Make sure that the weight of any load in your vehicle is
evenly distributed.


Drive at safe speeds.


After filling your tires to the correct pressure, check them
for damage and air leaks. Be sure to reinstall the caps on
the valve stems.
Replacing tires and wheels
N00939600241
CAUTION
!

Avoid using different size tires from the one listed
and the combined use of different types of tires, as
this can affect driving safety.
Refer to “Tires and wheels” on page 9-10.


On all-wheel drive vehicles, always use tires of the
same size, same type, and same brand, and which
have no wear differences. Using tires that differ in
size, type, brand or the degree of wear, will increase
the differential oil temperature, resulting in possible
damage to the driving system. Further, the drive
train will be subjected to excessive loading, possibly
leading to oil leakage, component seizure, or other
serious problems.


Only Mitsubishi Motors Authorized wheels should
be used, because your vehicle is equipped with a tire
pressure monitoring system.
Use of another type of wheel risks air leaks and sen-
sor damage, as it will not be possible to install the
tire pressure sensor properly.
BK0115300US.book 28 ページ ２００９年７月１６日　木曜日　午前９時１３分

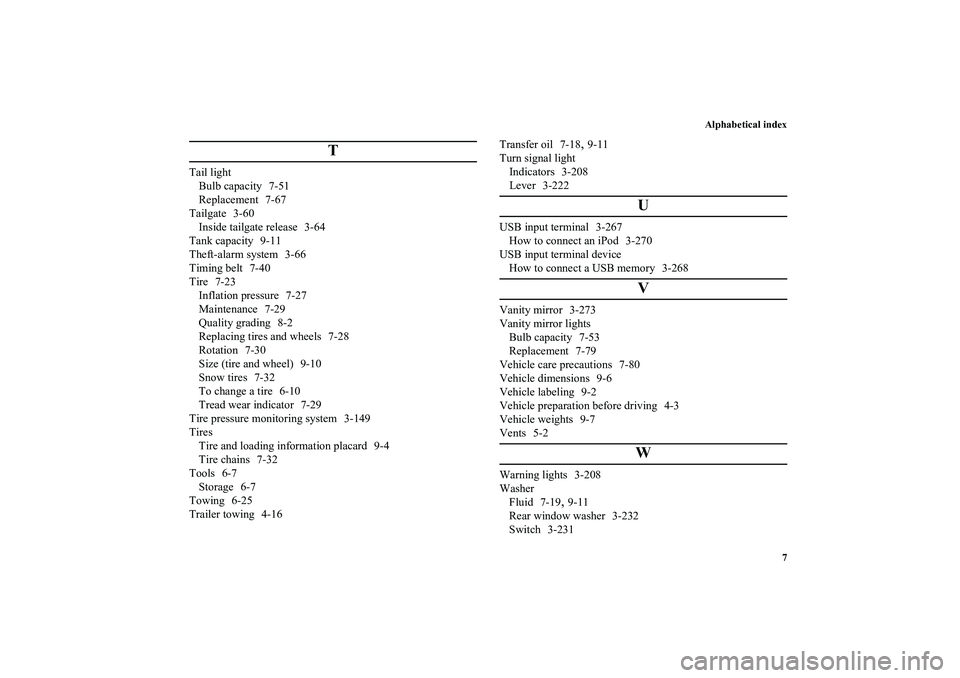

Alphabetical index
7
T
Tail light
Bulb capacity 7-51
Replacement 7-67
Tailgate 3-60
Inside tailgate release 3-64
Tank capacity 9-11
Theft-alarm system 3-66
Timing belt 7-40
Tire 7-23
Inflation pressure 7-27
Maintenance 7-29
Quality grading 8-2
Replacing tires and wheels 7-28
Rotation 7-30
Size (tire and wheel) 9-10
Snow tires 7-32
To change a tire 6-10
Tread wear indicator 7-29
Tire pressure monitoring system 3-149
Tires
Tire and loading information placard 9-4
Tire chains 7-32
Tools 6-7
Storage 6-7
Towing 6-25
Trailer towing 4-16Transfer oil 7-18
,9-11
Turn signal light
Indicators 3-208
Lever 3-222
U
USB input terminal 3-267
How to connect an iPod 3-270
USB input terminal device
How to connect a USB memory 3-268
V
Vanity mirror 3-273
Vanity mirror lights
Bulb capacity 7-53
Replacement 7-79
Vehicle care precautions 7-80
Vehicle dimensions 9-6
Vehicle labeling 9-2
Vehicle preparation before driving 4-3
Vehicle weights 9-7
Vents 5-2
W
Warning lights 3-208
Washer
Fluid 7-19
,9-11
Rear window washer 3-232
Switch 3-231
BK0115300US.book 7 ページ ２０１０年２月１８日　木曜日　午後１２時４８分
