Vehicle care and maintenance
7-29
7

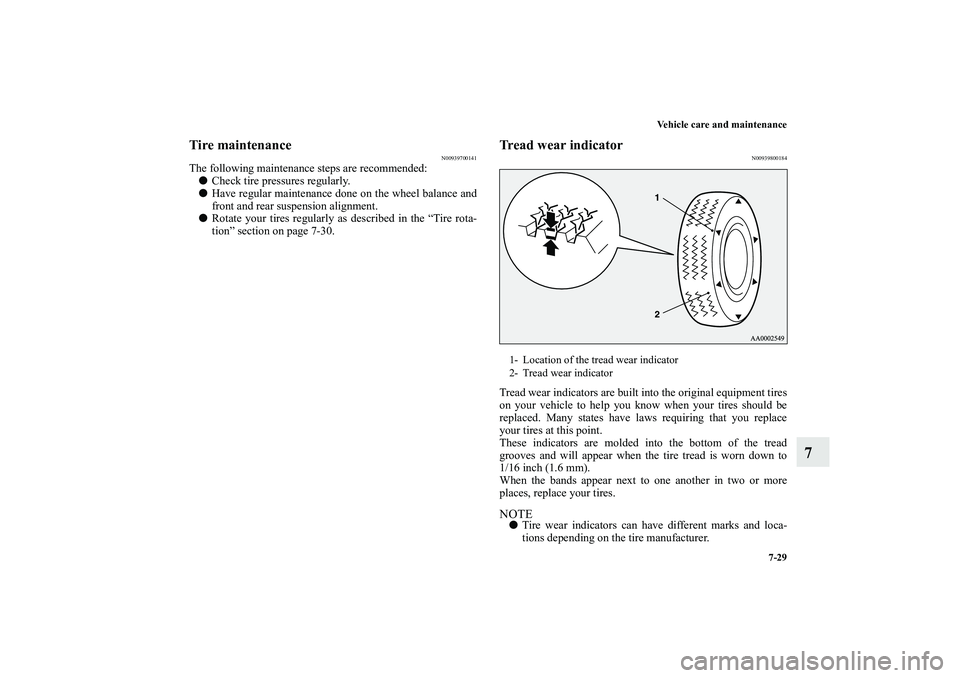

Tire maintenance
N00939700141
The following maintenance steps are recommended:
Check tire pressures regularly.
Have regular maintenance done on the wheel balance and
front and rear suspension alignment.
Rotate your tires regularly as described in the “Tire rota-
tion” section on page 7-30.
Tread wear indicator
N00939800184
Tread wear indicators are built into the original equipment tires
on your vehicle to help you know when your tires should be
replaced. Many states have laws requiring that you replace
your tires at this point.
These indicators are molded into the bottom of the tread
grooves and will appear when the tire tread is worn down to
1/16 inch (1.6 mm).
When the bands appear next to one another in two or more
places, replace your tires.NOTE
Tire wear indicators can have different marks and loca-
tions depending on the tire manufacturer.
1- Location of the tread wear indicator
2- Tread wear indicator
BK0115300US.book 29 ページ ２００９年７月１６日 木曜日 午前９時１３分
7-30 Vehicle care and maintenance
7

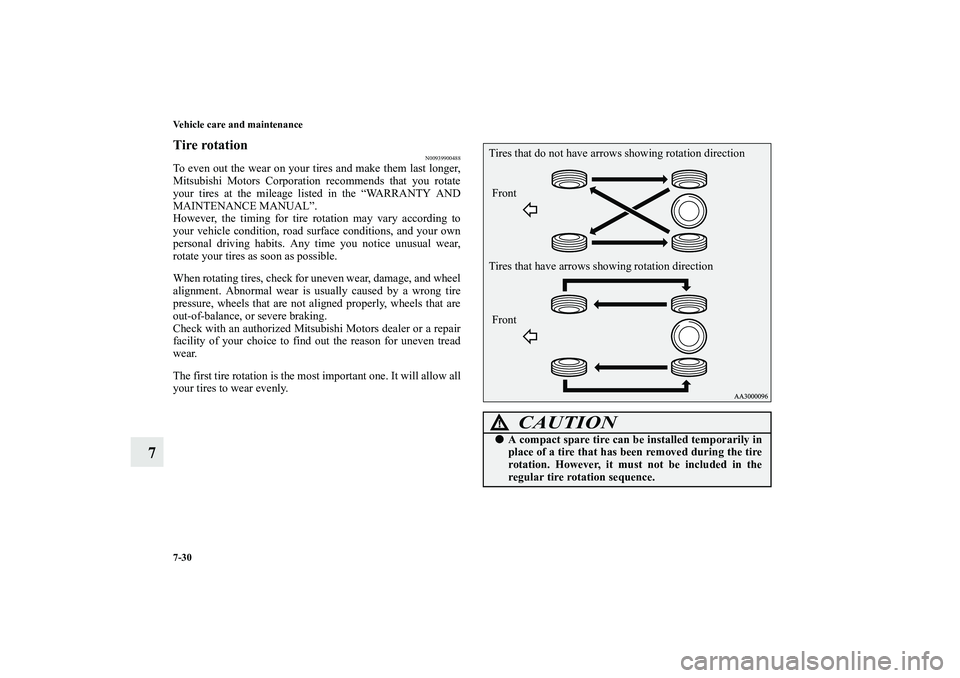

Tire rotation
N00939900488
To even out the wear on your tires and make them last longer,
Mitsubishi Motors Corporation recommends that you rotate
your tires at the mileage listed in the “WARRANTY AND
MAINTENANCE MANUAL”.
However, the timing for tire rotation may vary according to
your vehicle condition, road surface conditions, and your own
personal driving habits. Any time you notice unusual wear,
rotate your tires as soon as possible.
When rotating tires, check for uneven wear, damage, and wheel
alignment. Abnormal wear is usually caused by a wrong tire
pressure, wheels that are not aligned properly, wheels that are
out-of-balance, or severe braking.
Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice to find out the reason for uneven tread
wear.
The first tire rotation is the most important one. It will allow all
your tires to wear evenly.
CAUTION
!
A compact spare tire can be installed temporarily in
place of a tire that has been removed during the tire
rotation. However, it must not be included in the
regular tire rotation sequence.
Tires that do not have arrows showing rotation direction
Tires that have arrows showing rotation directionFront
Front
