MITSUBISHI OUTLANDER XL 2011 Owners Manual

2-64 Seat and restraint systems
2

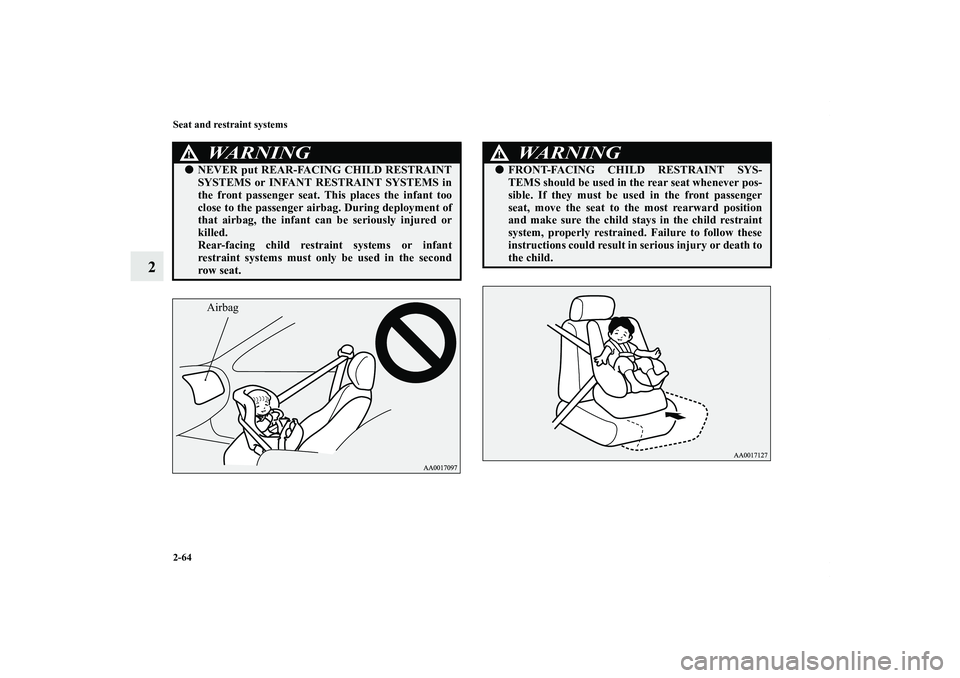

WA R N I N G
!
NEVER put REAR-FACING CHILD RESTRAINT
SYSTEMS or INFANT RESTRAINT SYSTEMS in
the front passenger seat. This places the infant too
close to the passenger airbag. During deployment of
that airbag, the infant can be seriously injured or
killed.
Rear-facing child restraint systems or infant
restraint systems must only be used in the second
row seat.
Airbag
WA R N I N G
!
FRONT-FACING CHILD RESTRAINT SYS-
TEMS should be used in the rear seat whenever pos-
sible. If they must be used in the front passenger
seat, move the seat to the most rearward position
and make sure the child stays in the child restraint
system, properly restrained. Failure to follow these
instructions could result in serious injury or death to
the child.
BK0122500US.book 64 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Seat and restraint systems
2-65
2

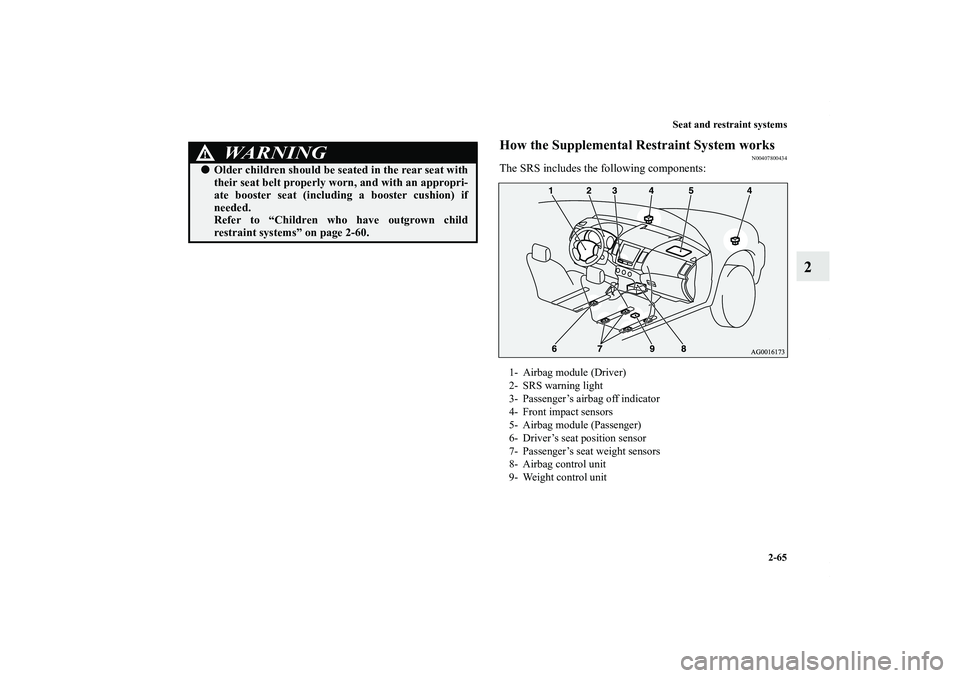

How the Supplemental Restraint System works
N00407800434
The SRS includes the following components:
WA R N I N G
!
Older children should be seated in the rear seat with
their seat belt properly worn, and with an appropri-
ate booster seat (including a booster cushion) if
needed.
Refer to “Children who have outgrown child
restraint systems” on page 2-60.
1- Airbag module (Driver)
2- SRS warning light
3- Passenger’s airbag off indicator
4- Front impact sensors
5- Airbag module (Passenger)
6- Driver ’s seat position sensor
7- Passenger’s seat weight sensors
8- Airbag control unit
9- Weight control unit
BK0122500US.book 65 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

2-66 Seat and restraint systems
2

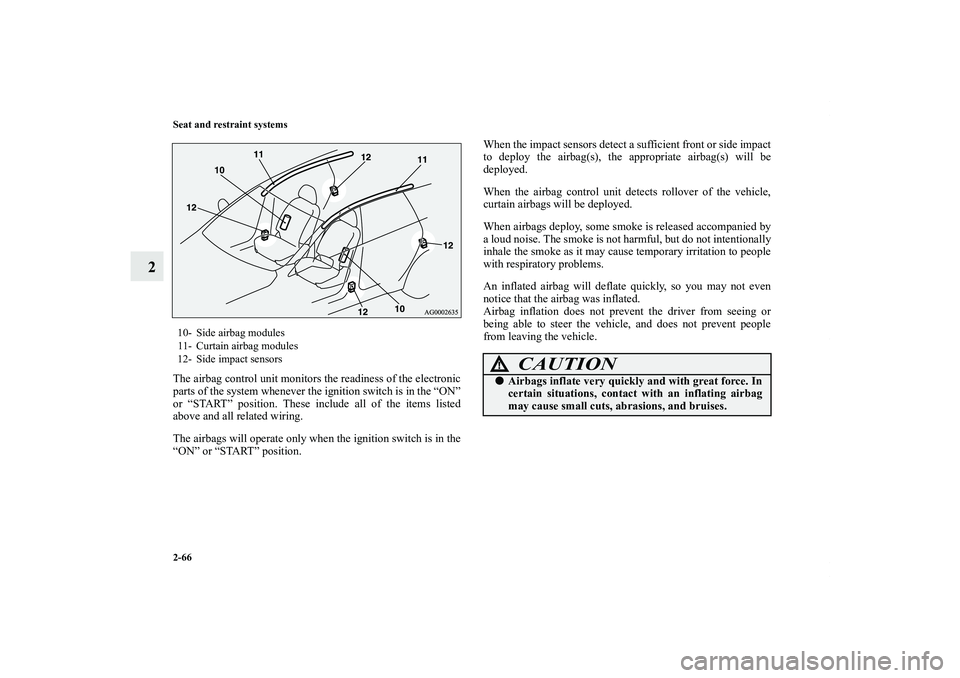

The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The airbags will operate only when the ignition switch is in the
“ON” or “START” position.When the impact sensors detect a sufficient front or side impact
to deploy the airbag(s), the appropriate airbag(s) will be
deployed.
When the airbag control unit detects rollover of the vehicle,
curtain airbags will be deployed.
When airbags deploy, some smoke is released accompanied by
a loud noise. The smoke is not harmful, but do not intentionally
inhale the smoke as it may cause temporary irritation to people
with respiratory problems.
An inflated airbag will deflate quickly, so you may not even
notice that the airbag was inflated.
Airbag inflation does not prevent the driver from seeing or
being able to steer the vehicle, and does not prevent people
from leaving the vehicle.10- Side airbag modules
11- Curtain airbag modules
12- Side impact sensors
CAUTION
!
Airbags inflate very quickly and with great force. In
certain situations, contact with an inflating airbag
may cause small cuts, abrasions, and bruises.
BK0122500US.book 66 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Seat and restraint systems
2-67
2

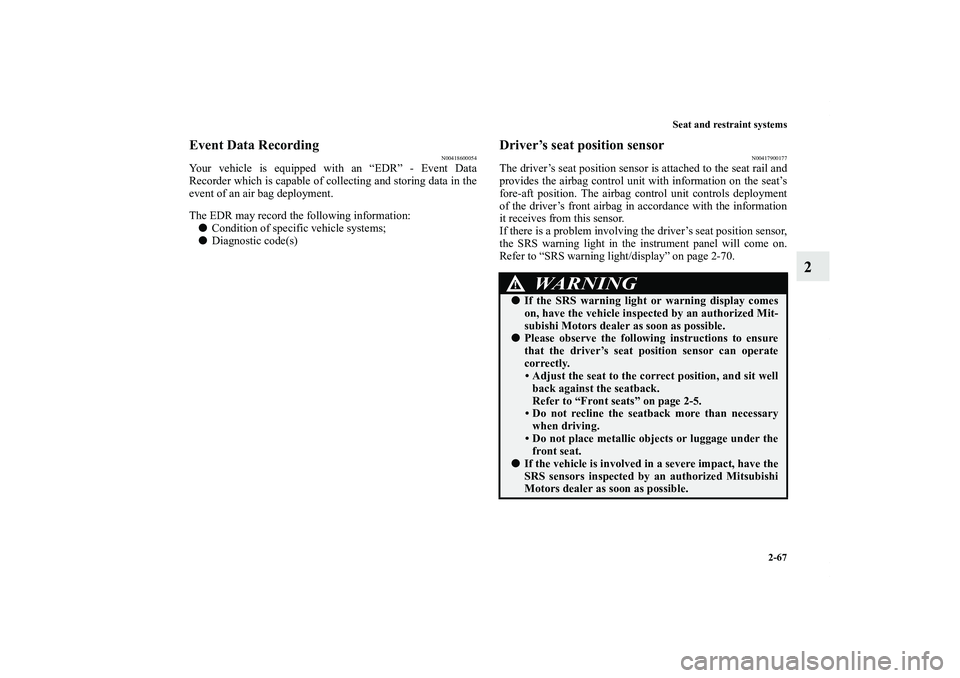

Event Data Recording
N00418600054
Your vehicle is equipped with an “EDR” - Event Data
Recorder which is capable of collecting and storing data in the
event of an air bag deployment.
The EDR may record the following information:

Condition of specific vehicle systems;

Diagnostic code(s)
Driver’s seat position sensor
N00417900177
The driver’s seat position sensor is attached to the seat rail and
provides the airbag control unit with information on the seat’s
fore-aft position. The airbag control unit controls deployment
of the driver’s front airbag in accordance with the information
it receives from this sensor.
If there is a problem involving the driver’s seat position sensor,
the SRS warning light in the instrument panel will come on.
Refer to “SRS warning light/display” on page 2-70.
WA R N I N G
!
If the SRS warning light or warning display comes
on, have the vehicle inspected by an authorized Mit-
subishi Motors dealer as soon as possible.
Please observe the following instructions to ensure
that the driver’s seat position sensor can operate
correctly.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-5.
• Do not recline the seatback more than necessary
when driving.
• Do not place metallic objects or luggage under the
front seat.

If the vehicle is involved in a severe impact, have the
SRS sensors inspected by an authorized Mitsubishi
Motors dealer as soon as possible.
BK0122500US.book 67 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

2-68 Seat and restraint systems
2
Passenger’s seat weight sensors
N00418000289
The passenger’s seat weight sensors are attached to the seat
rails and provide the airbag control unit with information
regarding the weight on the front passenger seat. The airbag
control unit controls deployment of the passenger’s front air-
bag in accordance with the information it receives from this
sensor.
The passenger’s front airbag will not deploy in an impact when
the weight on the seat is sensed to be less than approximately
66 pounds (30 kg). In this case, the passenger airbag off indica-
tor will come on.
Refer to “Passenger’s airbag off indicator” on page 2-69.
If there is a problem involving the passenger seat weight sen-
sors, the SRS warning light in the instrument panel will come
on. Refer to “SRS warning light/display” on page 2-70.
WA R N I N G
!
If any of the following conditions occur, you should
have your vehicle inspected by an authorized Mit-
subishi Motors dealer as soon as possible:
• The SRS warning light does not initially come on
when the key is turned to the “ON” or “START”
position.
• The SRS warning light does not go out after sev-
eral seconds.
• The SRS warning light comes on while you are
driving.

To ensure that the passenger’s seat weight sensors
can correctly sense the weight being applied to the
seat, observe the following instructions. Failure to
follow these instructions can adversely affect the
performance of the passenger’s airbag system.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-5.
• Do not recline the seatback more than necessary.
• Never have more than one person (adult or child)
sitting on the seat.
• Do not place anything between the seat and the
floor console.
• Do not hang anything on the front passenger’s
seatback.
• Do not remove the head restraints.
• When attaching a child restraint system, secure it
firmly.
• Do not place luggage or other objects on the seat.
• Do not use a seat cover or a cushion.
• Do not remove the seats and seat belts.
• Do not modify or replace the seat and seat belt.
• Do not place luggage or other objects under the
seat.
• Do not place the floor mat on the seat rails.
• Do not expose the sensors to liquids or vapors.
• Do not subject the sensors to shock.
• Do not allow rear-seat occupants to push the front
passenger seat with their feet or force the front
passenger seat upward.WA R N I N G
!
BK0122500US.book 68 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Seat and restraint systems
2-69
2

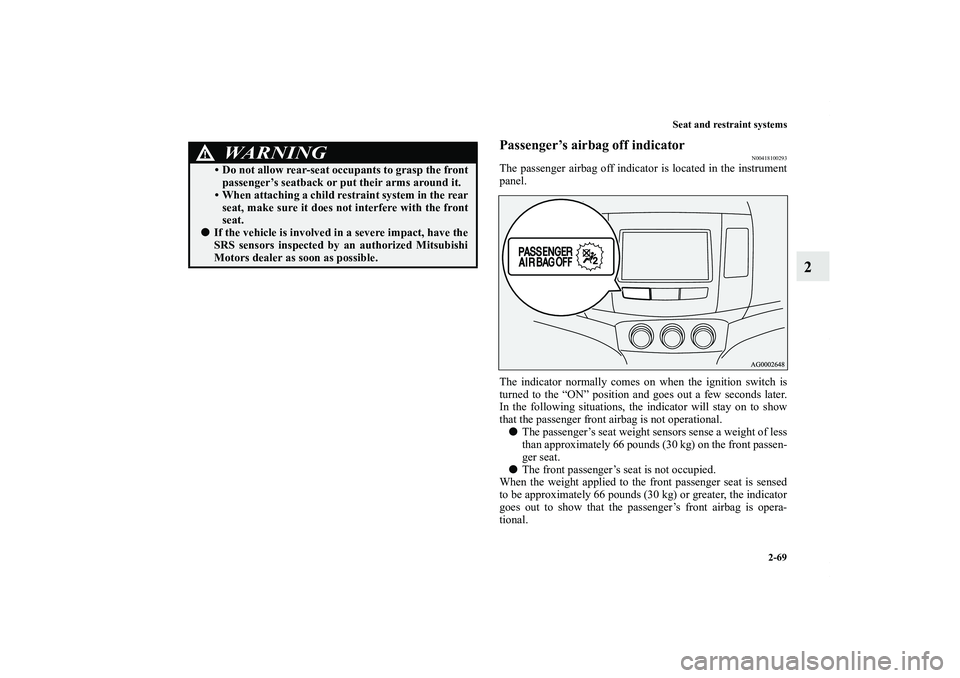

Passenger’s airbag off indicator
N00418100293
The passenger airbag off indicator is located in the instrument
panel.
The indicator normally comes on when the ignition switch is
turned to the “ON” position and goes out a few seconds later.
In the following situations, the indicator will stay on to show
that the passenger front airbag is not operational.

The passenger’s seat weight sensors sense a weight of less
than approximately 66 pounds (30 kg) on the front passen-
ger seat.

The front passenger’s seat is not occupied.
When the weight applied to the front passenger seat is sensed
to be approximately 66 pounds (30 kg) or greater, the indicator
goes out to show that the passenger’s front airbag is opera-
tional.
WA R N I N G
!• Do not allow rear-seat occupants to grasp the front
passenger’s seatback or put their arms around it.
• When attaching a child restraint system in the rear
seat, make sure it does not interfere with the front
seat.

If the vehicle is involved in a severe impact, have the
SRS sensors inspected by an authorized Mitsubishi
Motors dealer as soon as possible.
BK0122500US.book 69 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

2-70 Seat and restraint systems
2

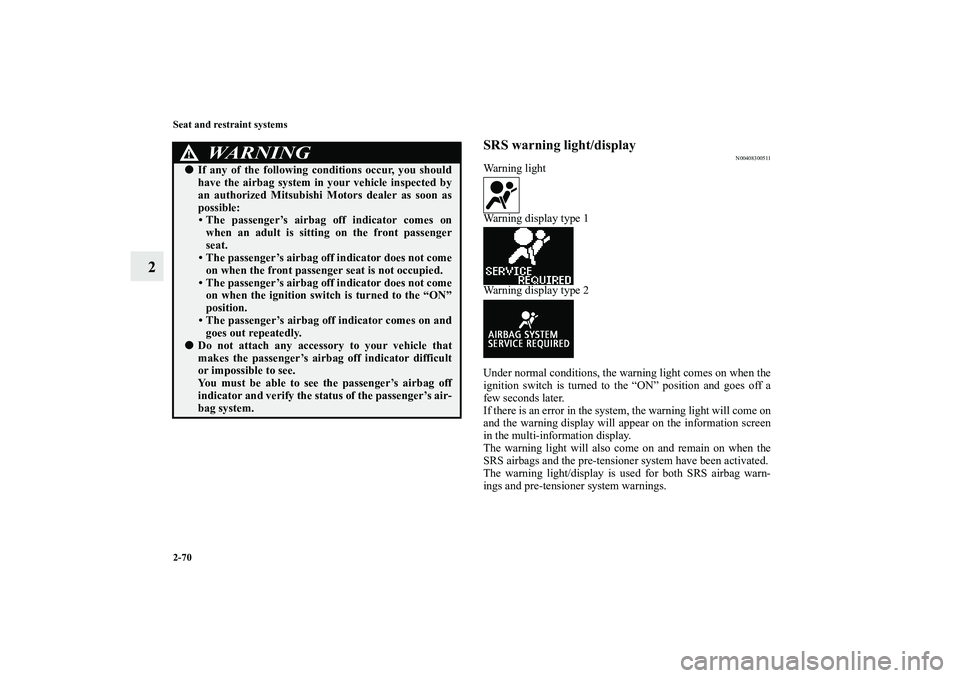

SRS warning light/display
N00408300511
Warning light
Warning display type 1
Warning display type 2
Under normal conditions, the warning light comes on when the
ignition switch is turned to the “ON” position and goes off a
few seconds later.
If there is an error in the system, the warning light will come on
and the warning display will appear on the information screen
in the multi-information display.
The warning light will also come on and remain on when the
SRS airbags and the pre-tensioner system have been activated.
The warning light/display is used for both SRS airbag warn-
ings and pre-tensioner system warnings.
WA R N I N G
!
If any of the following conditions occur, you should
have the airbag system in your vehicle inspected by
an authorized Mitsubishi Motors dealer as soon as
possible:
• The passenger’s airbag off indicator comes on
when an adult is sitting on the front passenger
seat.
• The passenger’s airbag off indicator does not come
on when the front passenger seat is not occupied.
• The passenger’s airbag off indicator does not come
on when the ignition switch is turned to the “ON”
position.
• The passenger’s airbag off indicator comes on and
goes out repeatedly.

Do not attach any accessory to your vehicle that
makes the passenger’s airbag off indicator difficult
or impossible to see.
You must be able to see the passenger’s airbag off
indicator and verify the status of the passenger’s air-
bag system.
BK0122500US.book 70 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Seat and restraint systems
2-71
2

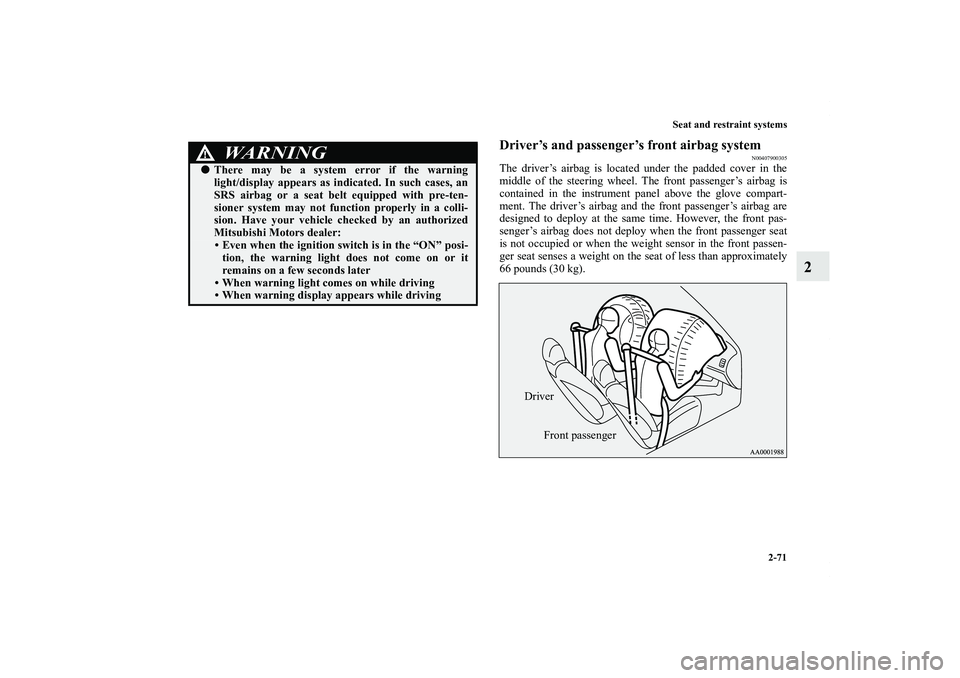

Driver’s and passenger’s front airbag system
N00407900305
The driver’s airbag is located under the padded cover in the
middle of the steering wheel. The front passenger’s airbag is
contained in the instrument panel above the glove compart-
ment. The driver’s airbag and the front passenger’s airbag are
designed to deploy at the same time. However, the front pas-
senger’s airbag does not deploy when the front passenger seat
is not occupied or when the weight sensor in the front passen-
ger seat senses a weight on the seat of less than approximately
66 pounds (30 kg).
WA R N I N G
!
There may be a system error if the warning
light/display appears as indicated. In such cases, an
SRS airbag or a seat belt equipped with pre-ten-
sioner system may not function properly in a colli-
sion. Have your vehicle checked by an authorized
Mitsubishi Motors dealer:
• Even when the ignition switch is in the “ON” posi-
tion, the warning light does not come on or it
remains on a few seconds later
• When warning light comes on while driving
• When warning display appears while driving
Driver
Front passenger
BK0122500US.book 71 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

2-72 Seat and restraint systems
2

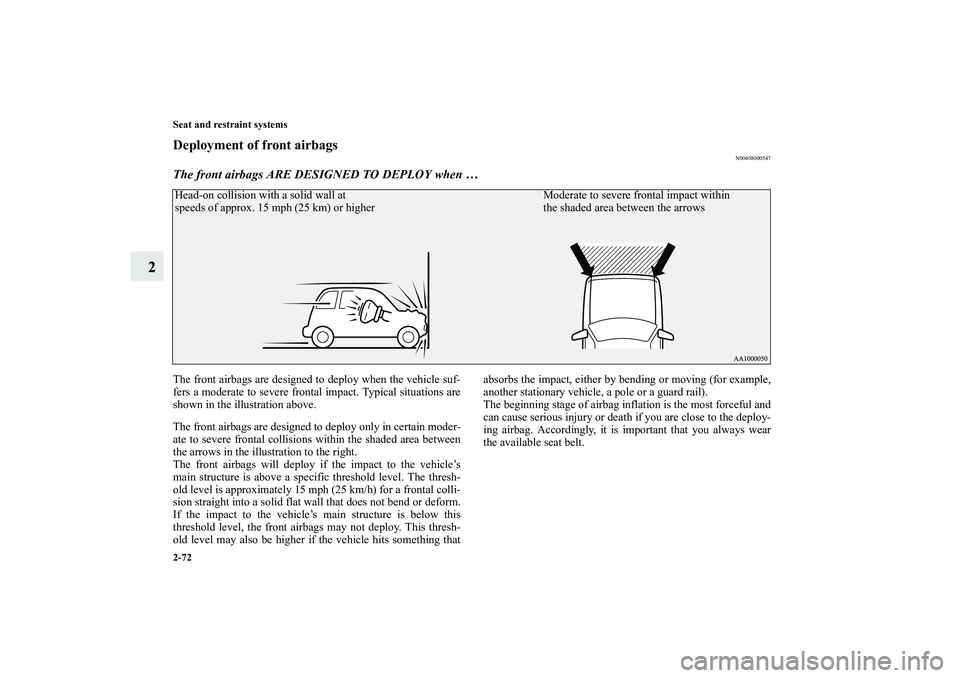

Deployment of front airbags
N00408000547
The front airbags ARE DESIGNED TO DEPLOY when …The front airbags are designed to deploy when the vehicle suf-
fers a moderate to severe frontal impact. Typical situations are
shown in the illustration above.
The front airbags are designed to deploy only in certain moder-
ate to severe frontal collisions within the shaded area between
the arrows in the illustration to the right.
The front airbags will deploy if the impact to the vehicle’s
main structure is above a specific threshold level. The thresh-
old level is approximately 15 mph (25 km/h) for a frontal colli-
sion straight into a solid flat wall that does not bend or deform.
If the impact to the vehicle’s main structure is below this
threshold level, the front airbags may not deploy. This thresh-
old level may also be higher if the vehicle hits something thatabsorbs the impact, either by bending or moving (for example,
another stationary vehicle, a pole or a guard rail).
The beginning stage of airbag inflation is the most forceful and
can cause serious injury or death if you are close to the deploy-
ing airbag. Accordingly, it is important that you always wear
the available seat belt.Head-on collision with a solid wall at
speeds of approx. 15 mph (25 km) or higherModerate to severe frontal impact within
the shaded area between the arrowsBK0122500US.book 72 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Seat and restraint systems
2-73
2

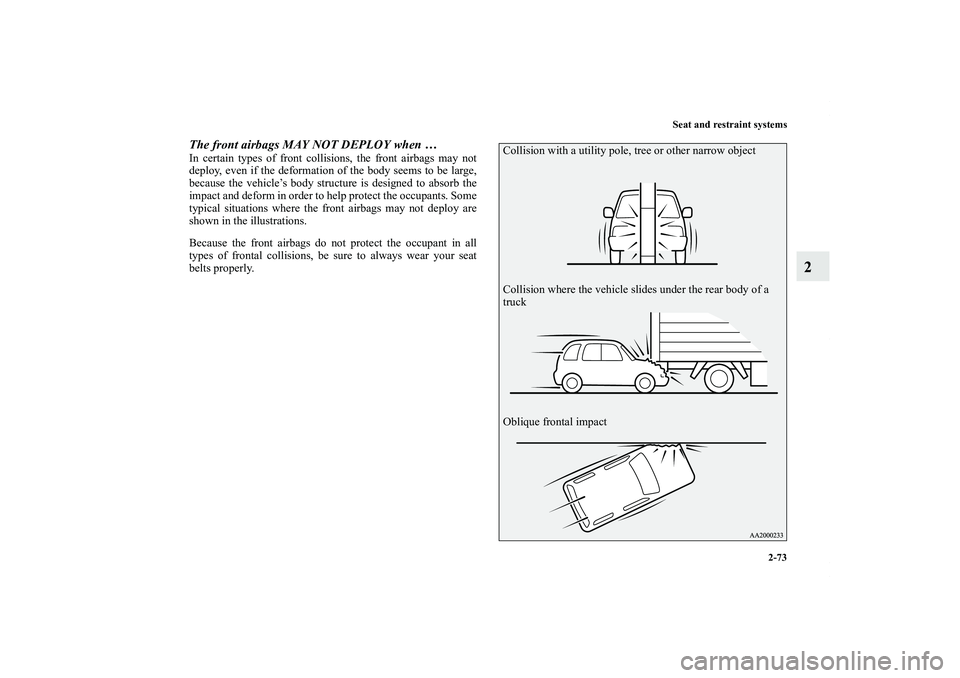

The front airbags MAY NOT DEPLOY when …In certain types of front collisions, the front airbags may not
deploy, even if the deformation of the body seems to be large,
because the vehicle’s body structure is designed to absorb the
impact and deform in order to help protect the occupants. Some
typical situations where the front airbags may not deploy are
shown in the illustrations.
Because the front airbags do not protect the occupant in all
types of frontal collisions, be sure to always wear your seat
belts properly.
Collision with a utility pole, tree or other narrow object
Collision where the vehicle slides under the rear body of a
truck
Oblique frontal impact
BK0122500US.book 73 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
